777-azure-notes-3(az-104)

Online Hosted Instructions | AZ-104-MicrosoftAzureAdministrator

great online doc for azure in cli Azure Citadel

online lab:

AZ-104 Exam Guide - Microsoft Azure Administrator
exercies lab 8 is useful in setting network
‘AZ-104 Official Course Study Guide.pdf’ → contains all the official doc from MS learn by exam topic (useful in work too)
- like detailed json (arm template)
777-az104-offical-doc → by exam topics links

→ clickable

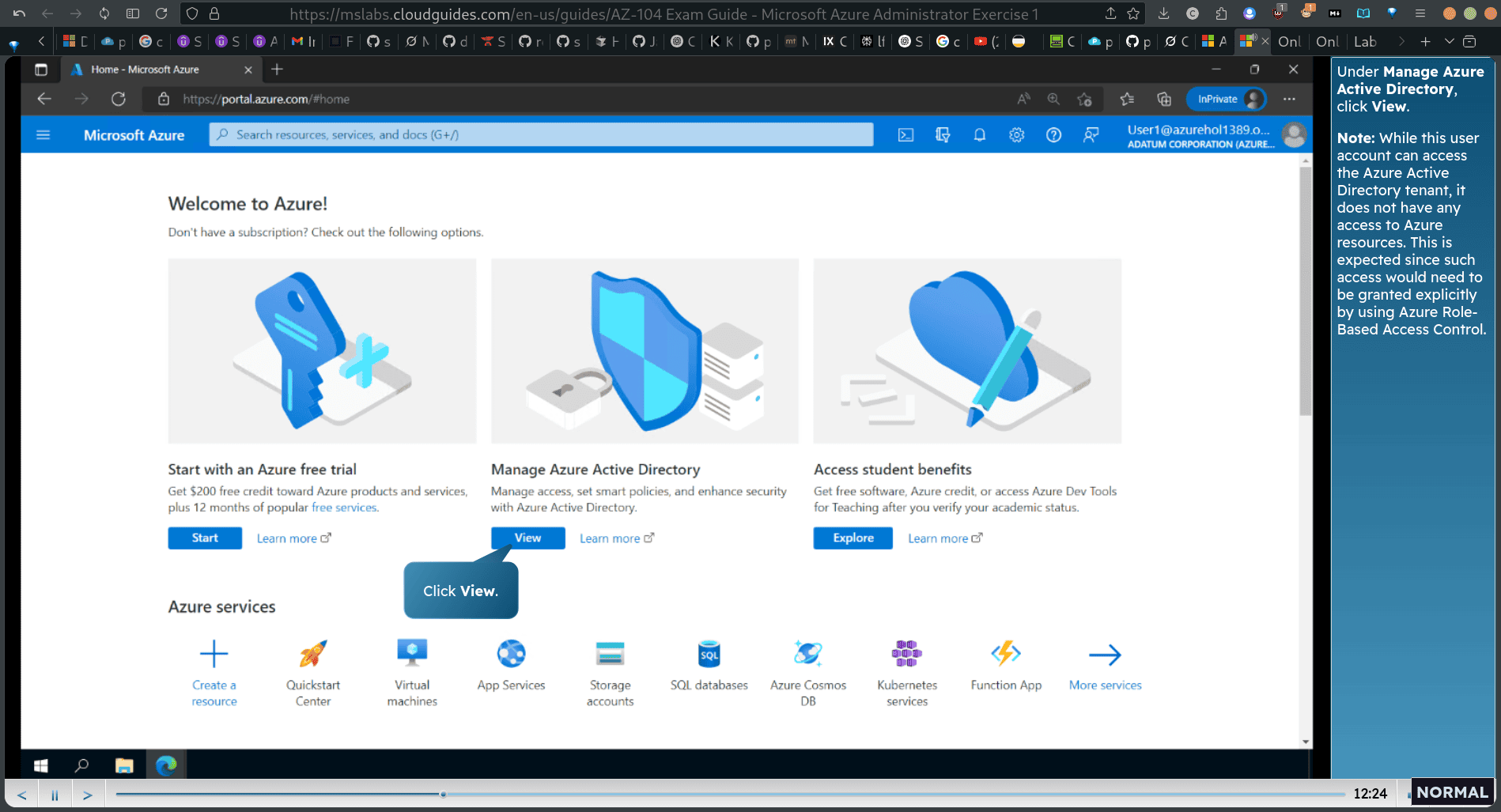

Manage Azure Active Directory identities >

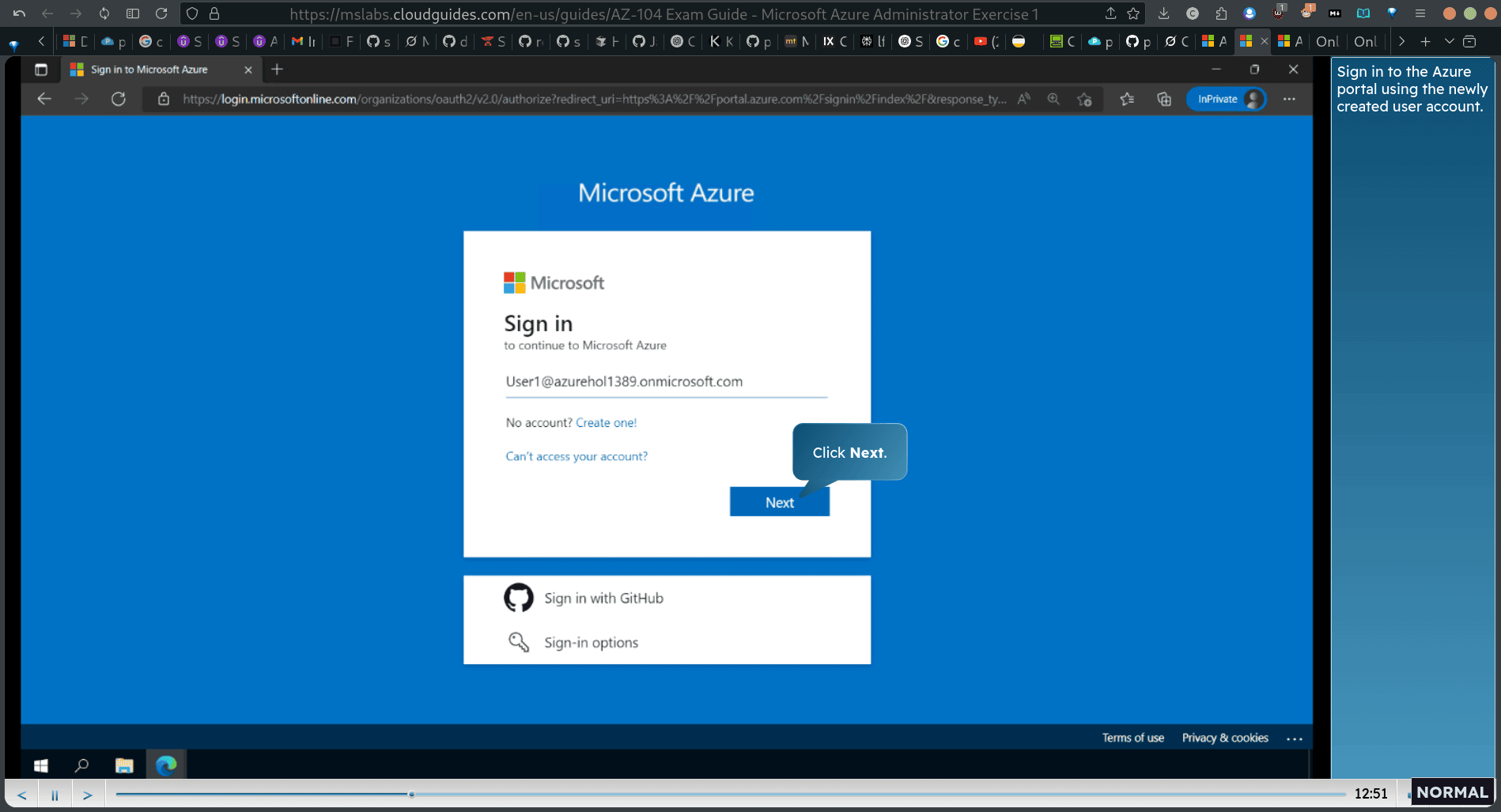

in private mode browser

Task 2: Create Azure AD groups with assigned and dynamic membership

asign user to use these premium active directory

create group

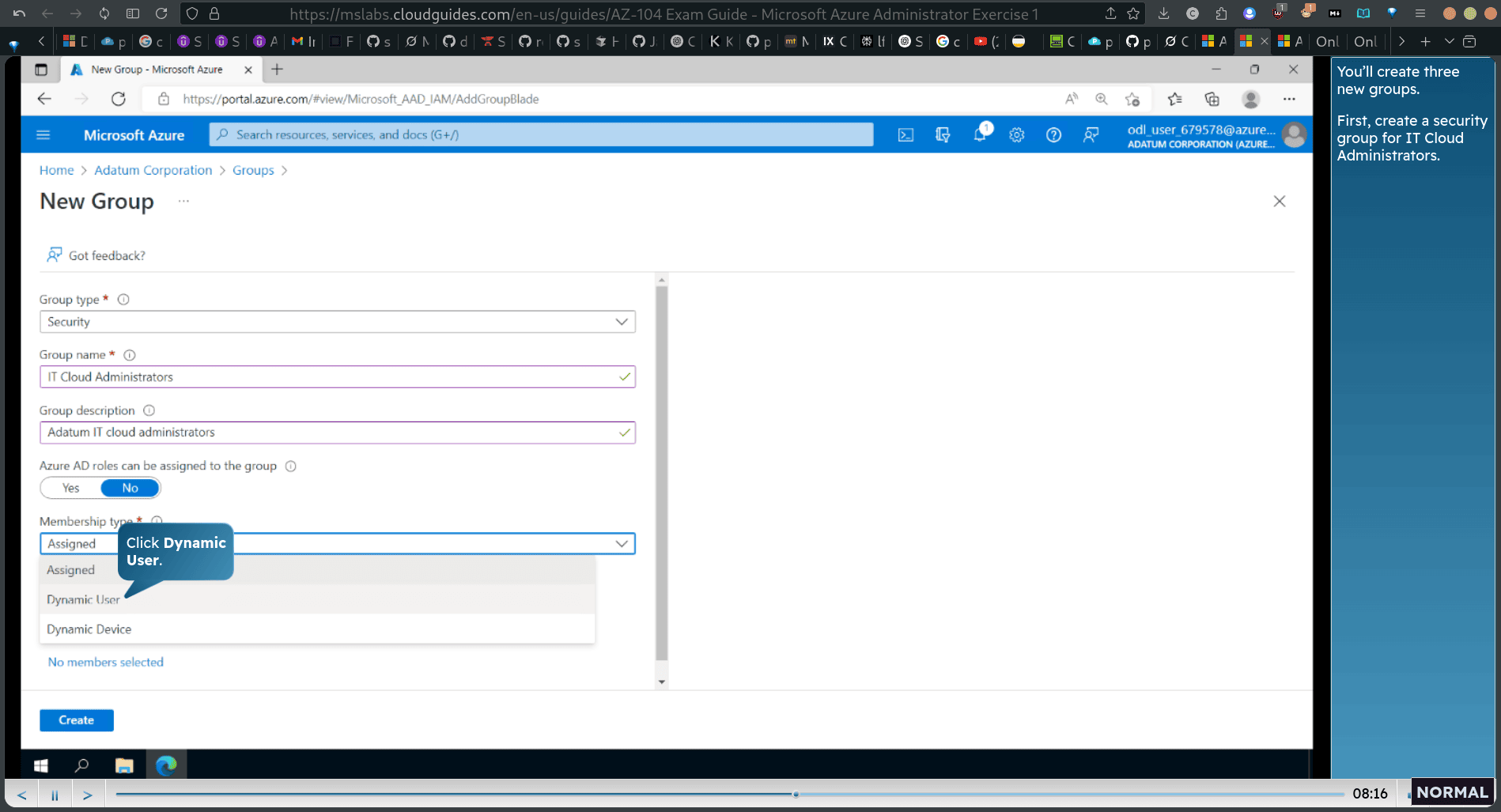

dynamic user

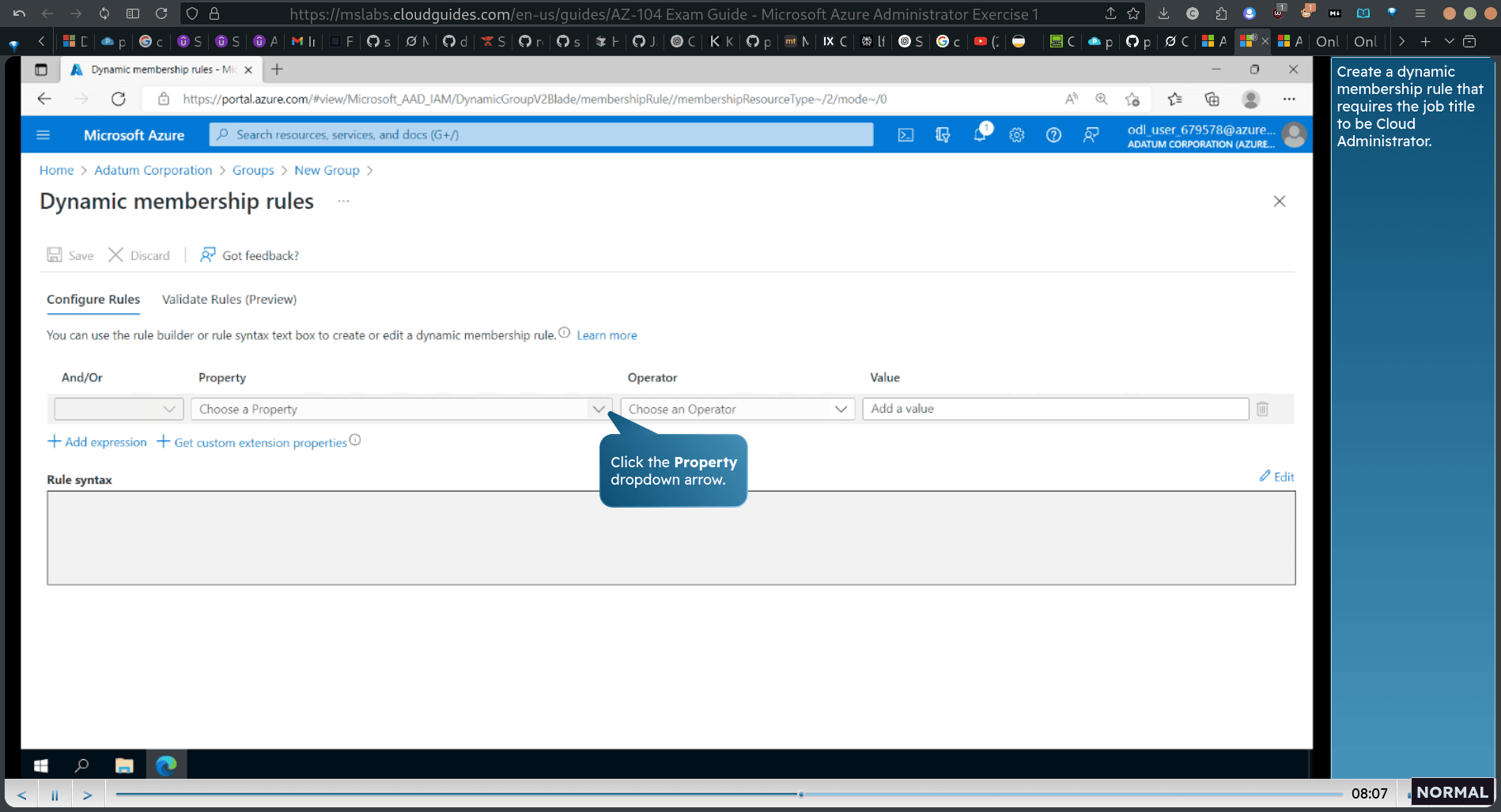

dynamic query (rule that appiled)

e.g. job title equal cloud administrator

another example

assigned example pick the user

Task 3: Create an Azure AD tenant

Task 4: Manage Azure AD guest users

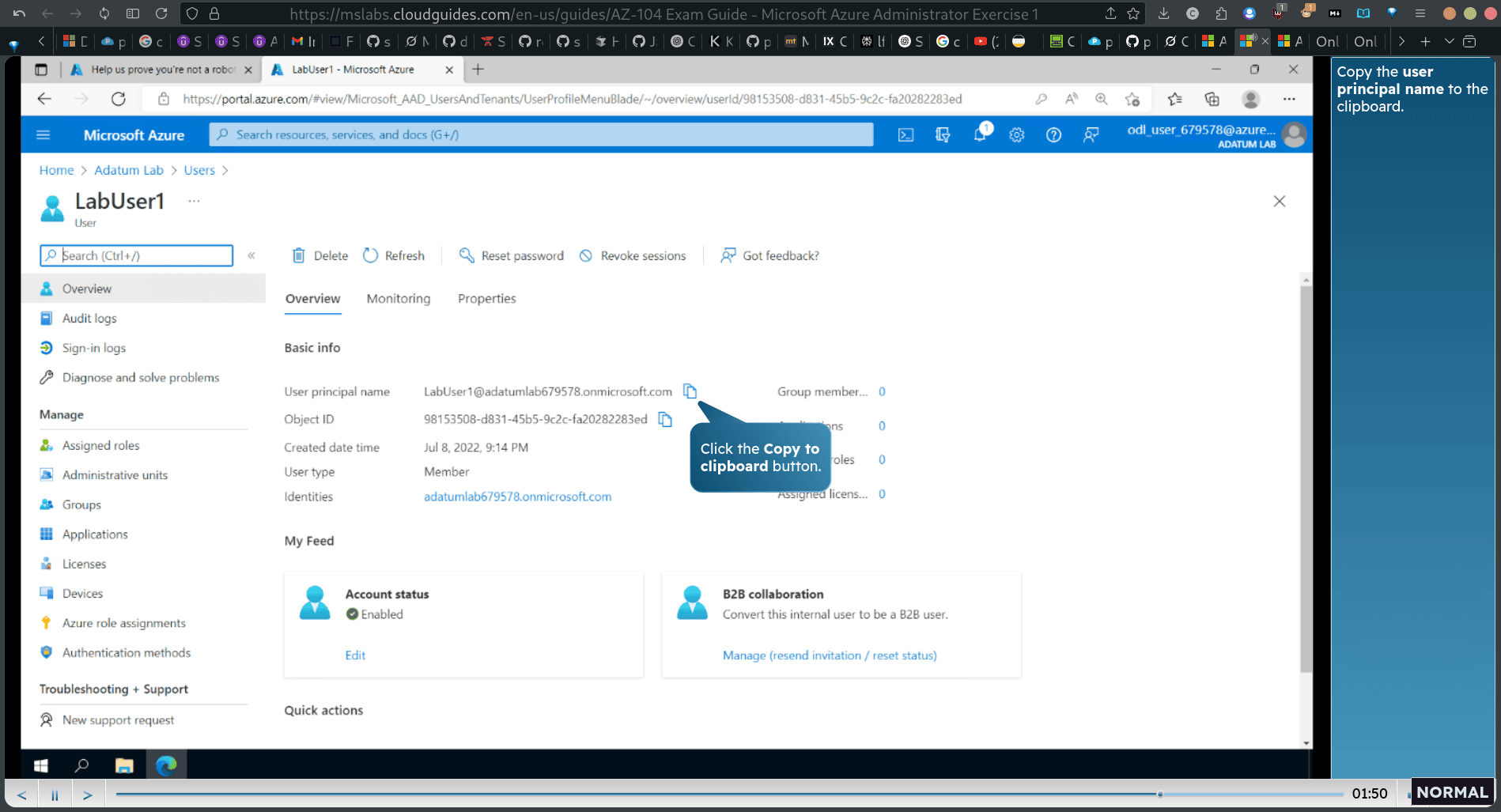

copy User principal name

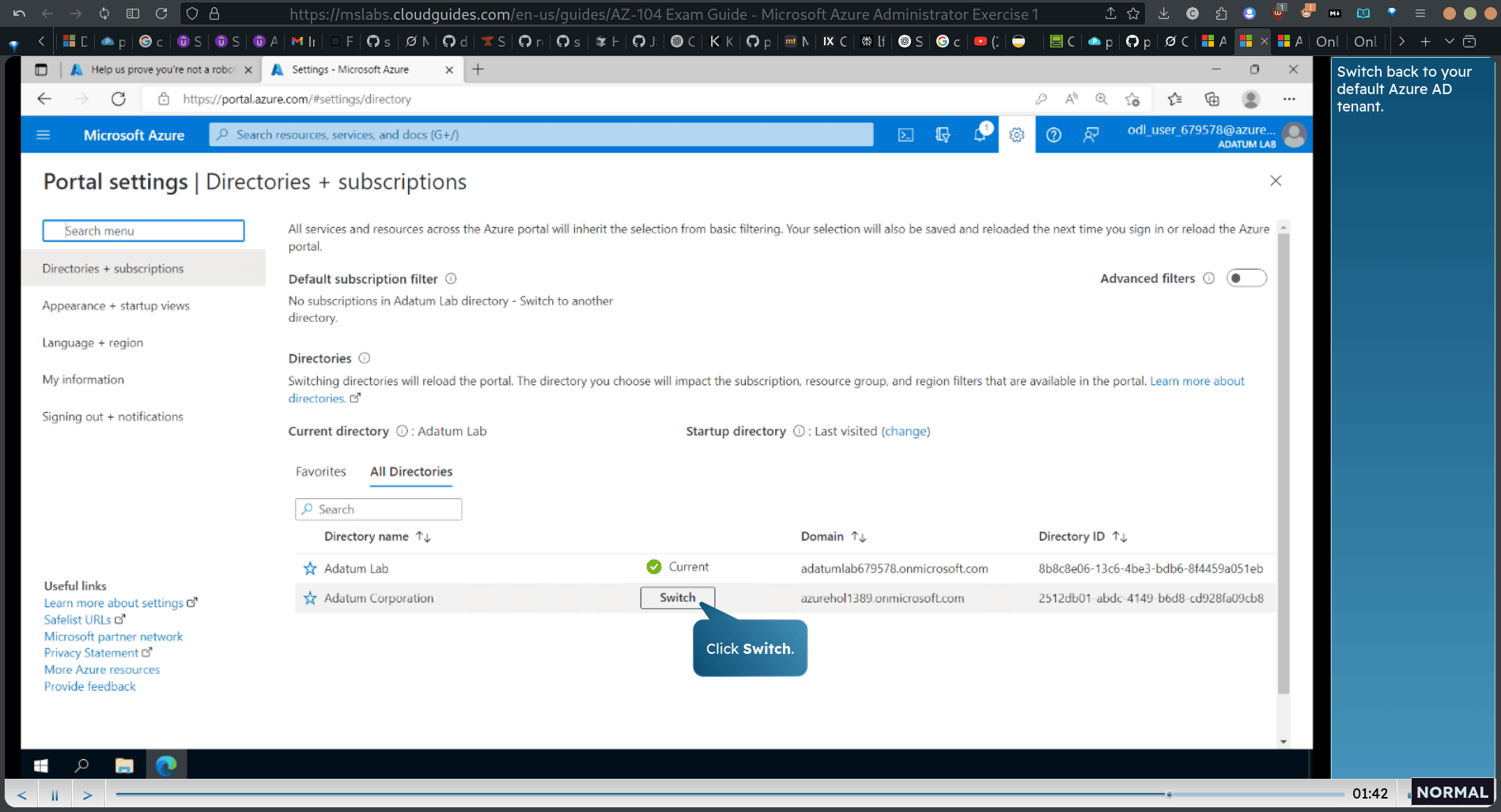

switching

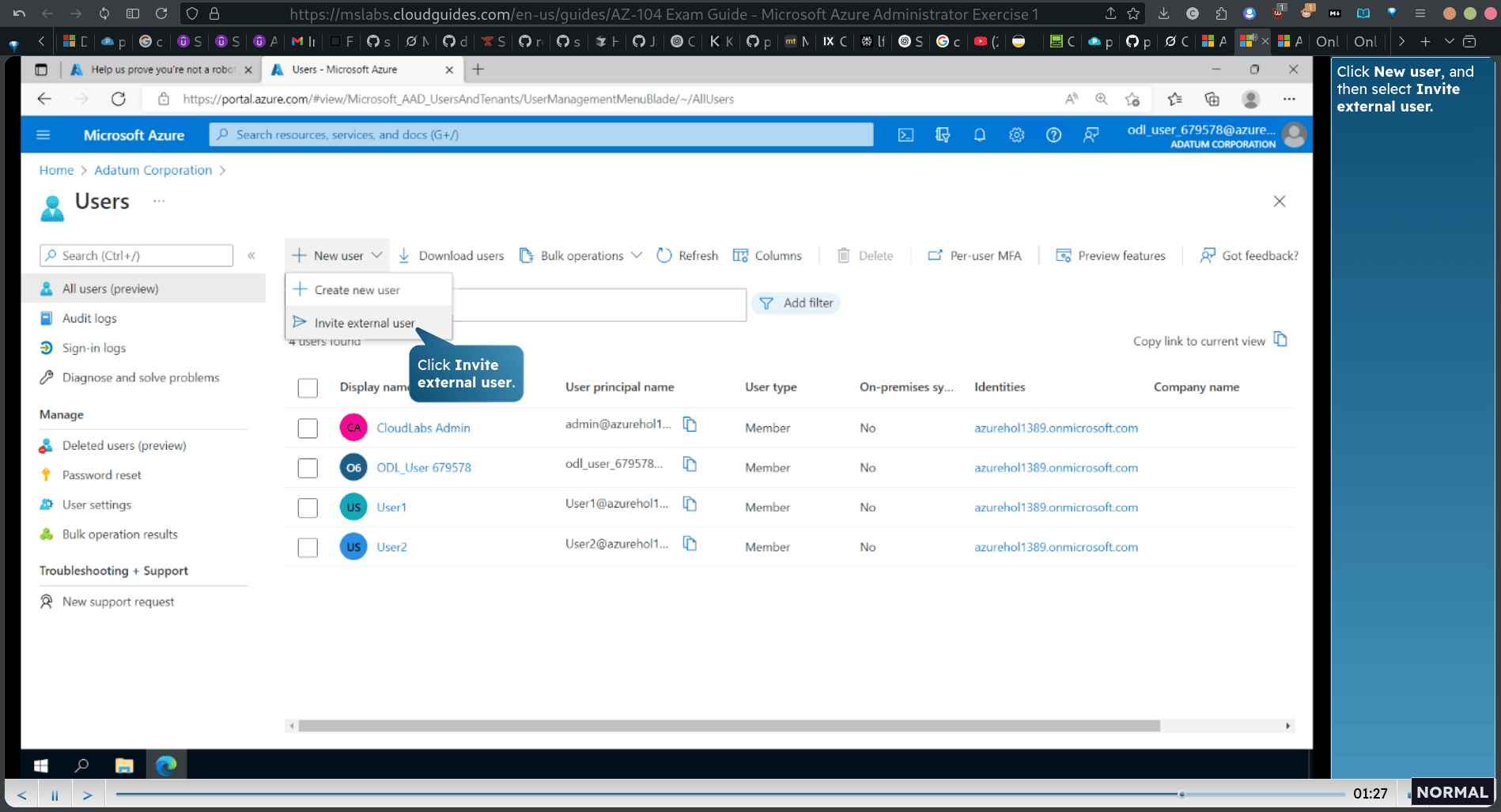

invite external user

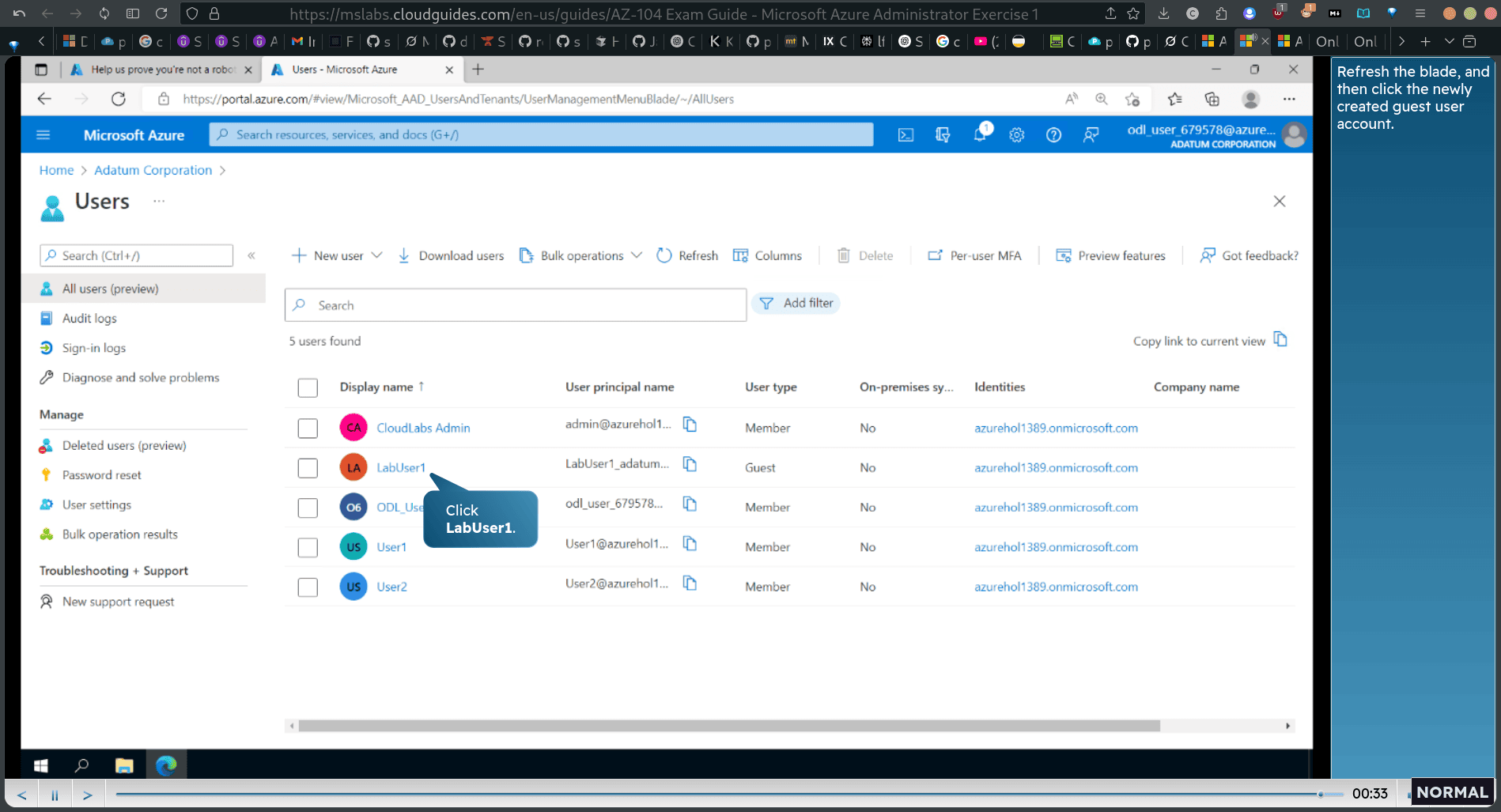

guest user now

and then add the user into group

2. Manage subscriptions and RBAC >

Task 1: Implement management groups

property → setting → access

search management group

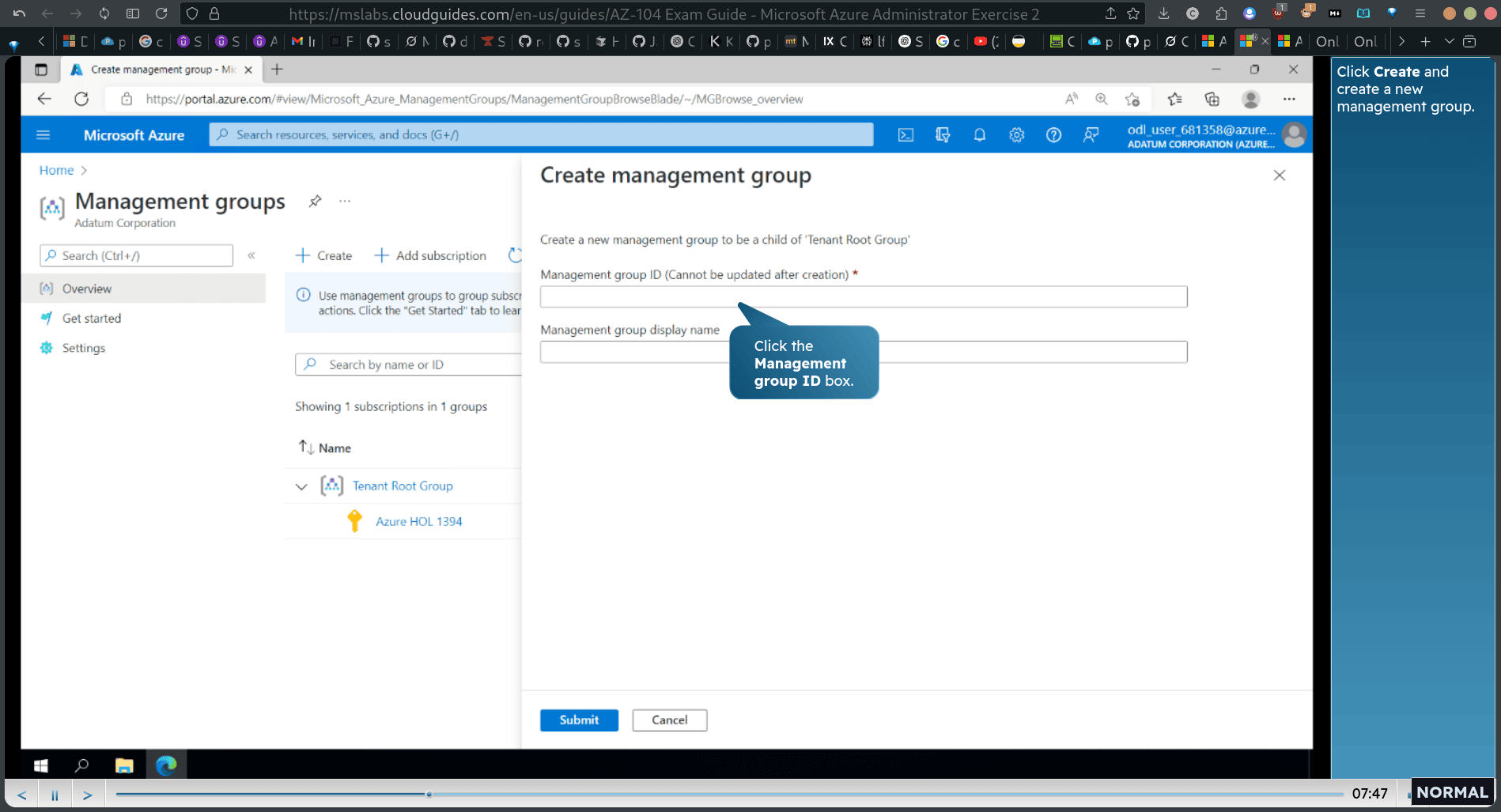

click start using management group

create a new management group

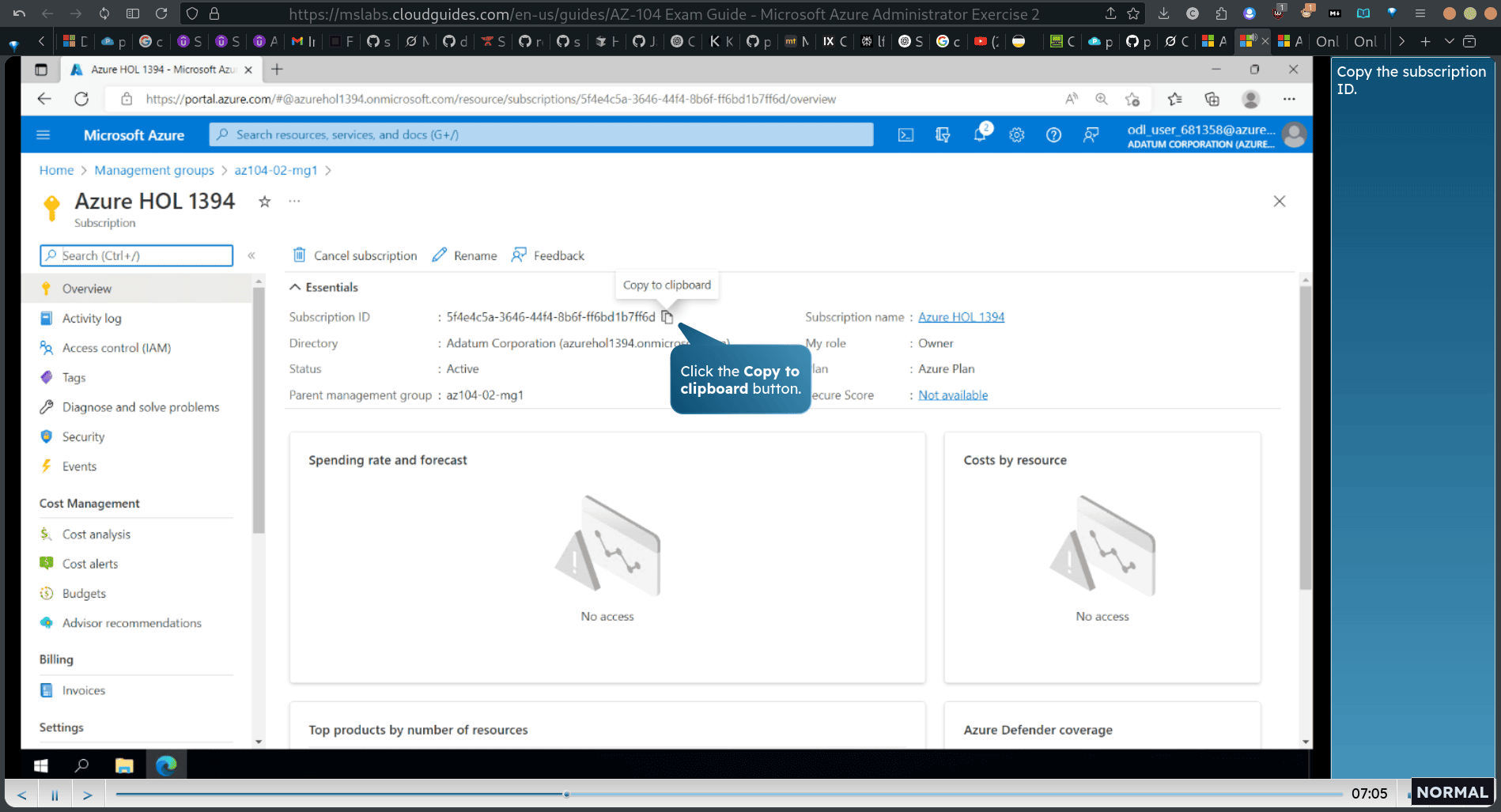

copy the subscription ID

Task 2: Create custom RBAC roles

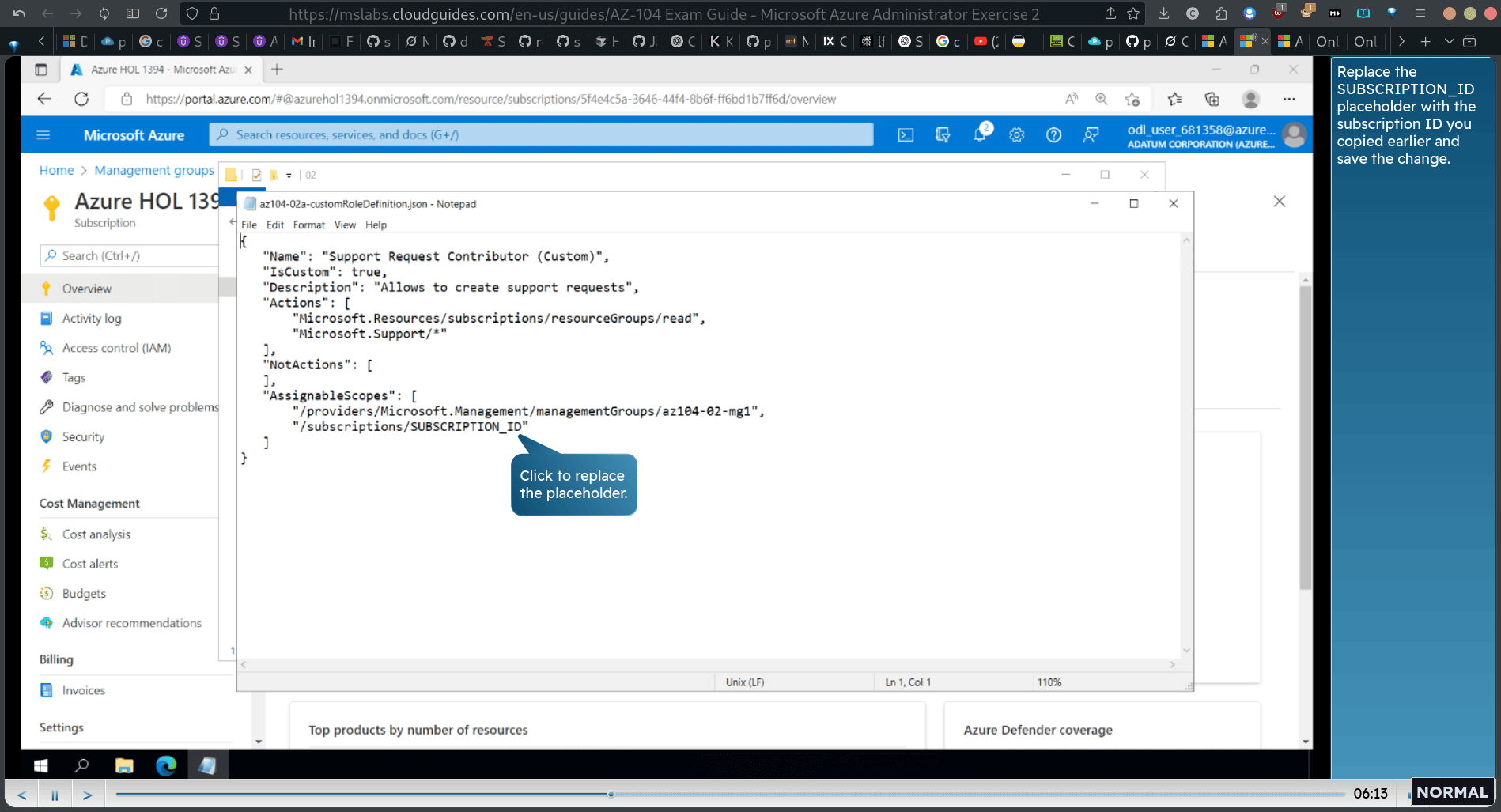

replace the sub ID (from clipboard)

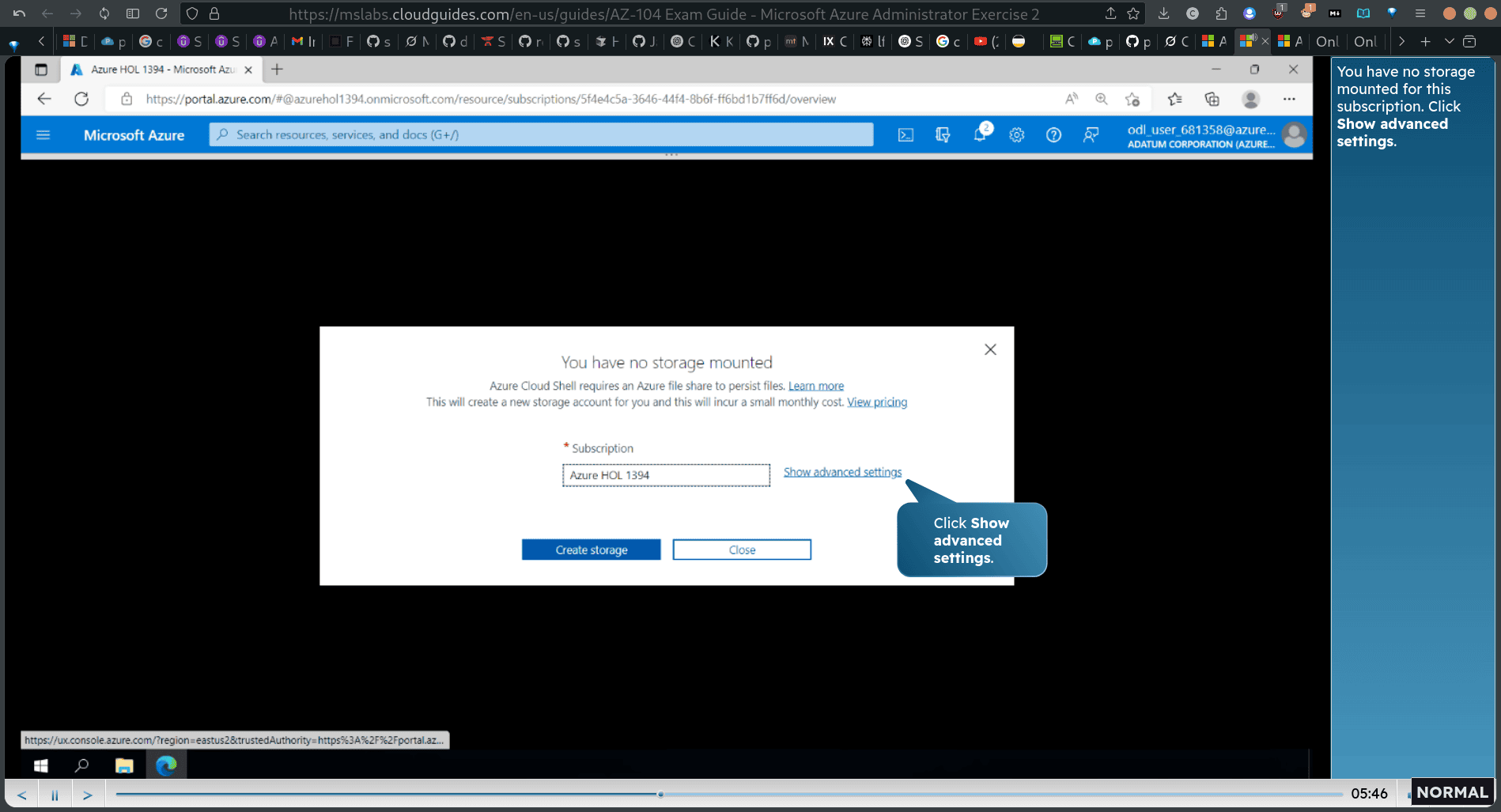

cloud shell → power shell

click the storage blog then

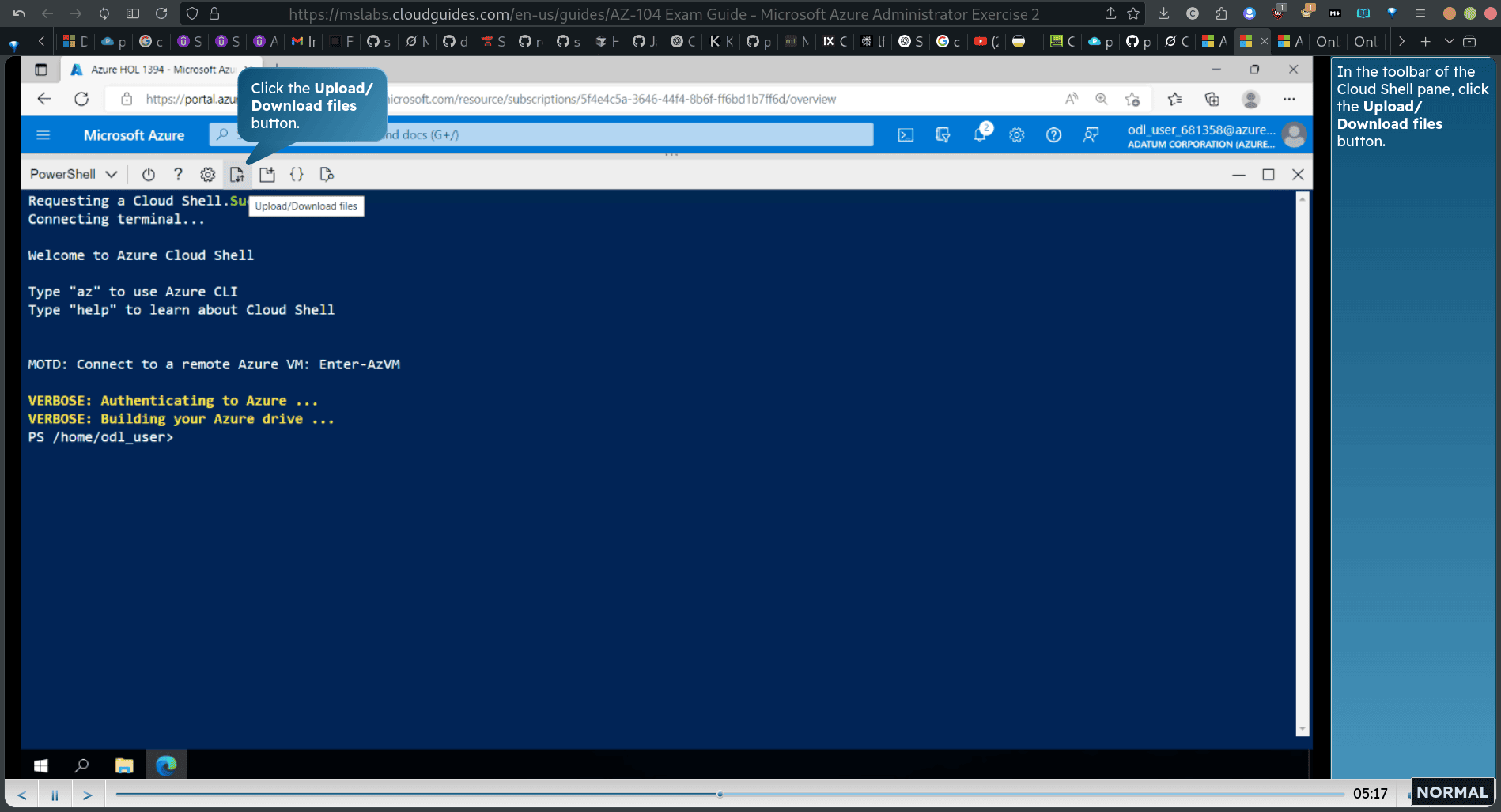

upload the json file in the home directory

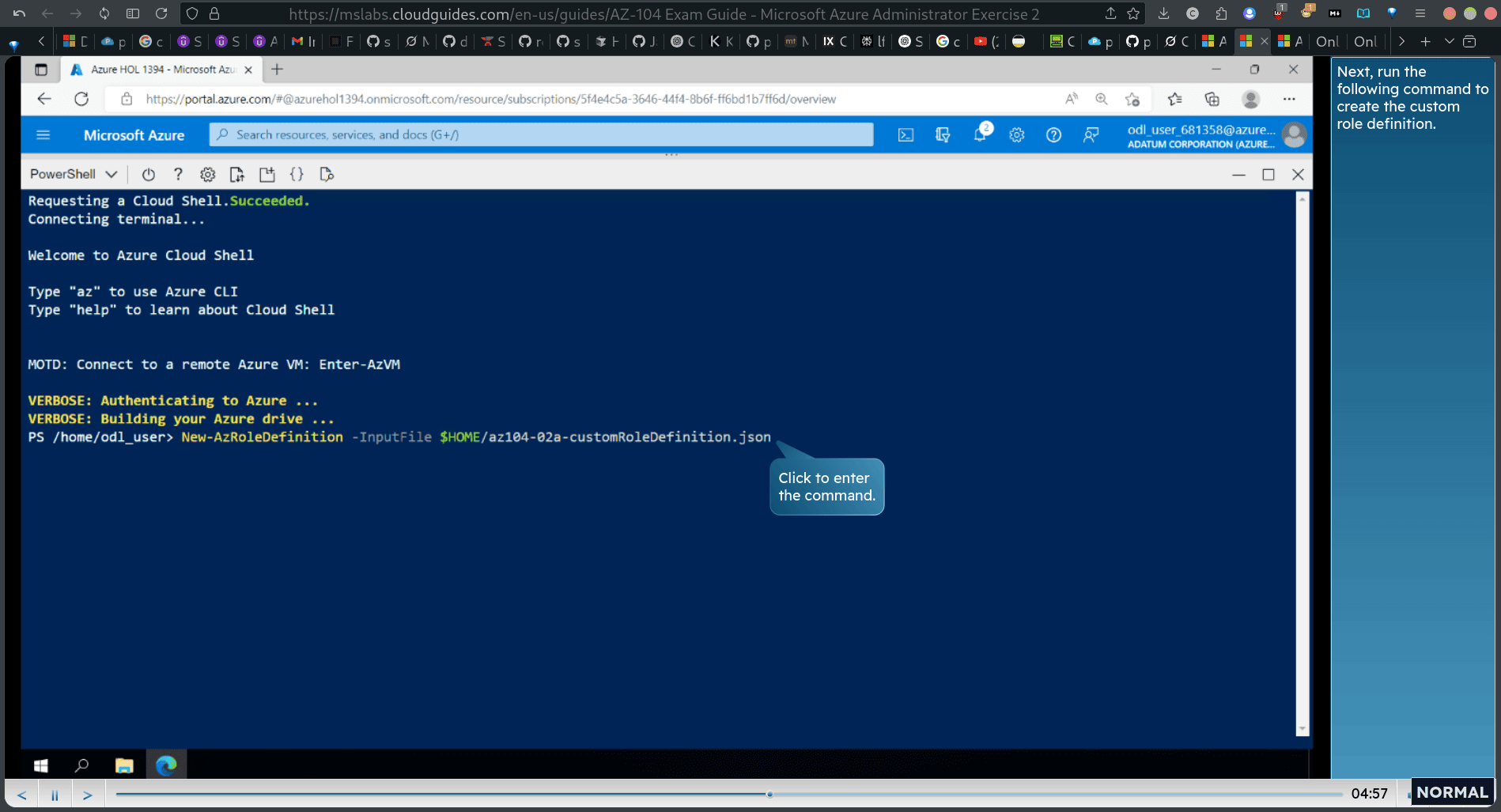

New-AzRoleDefinition -InputFile $HOME/az104-82a-customRoleDefinition.json

Task 3: Assign RBAC roles

copy a new created user , User principal name again

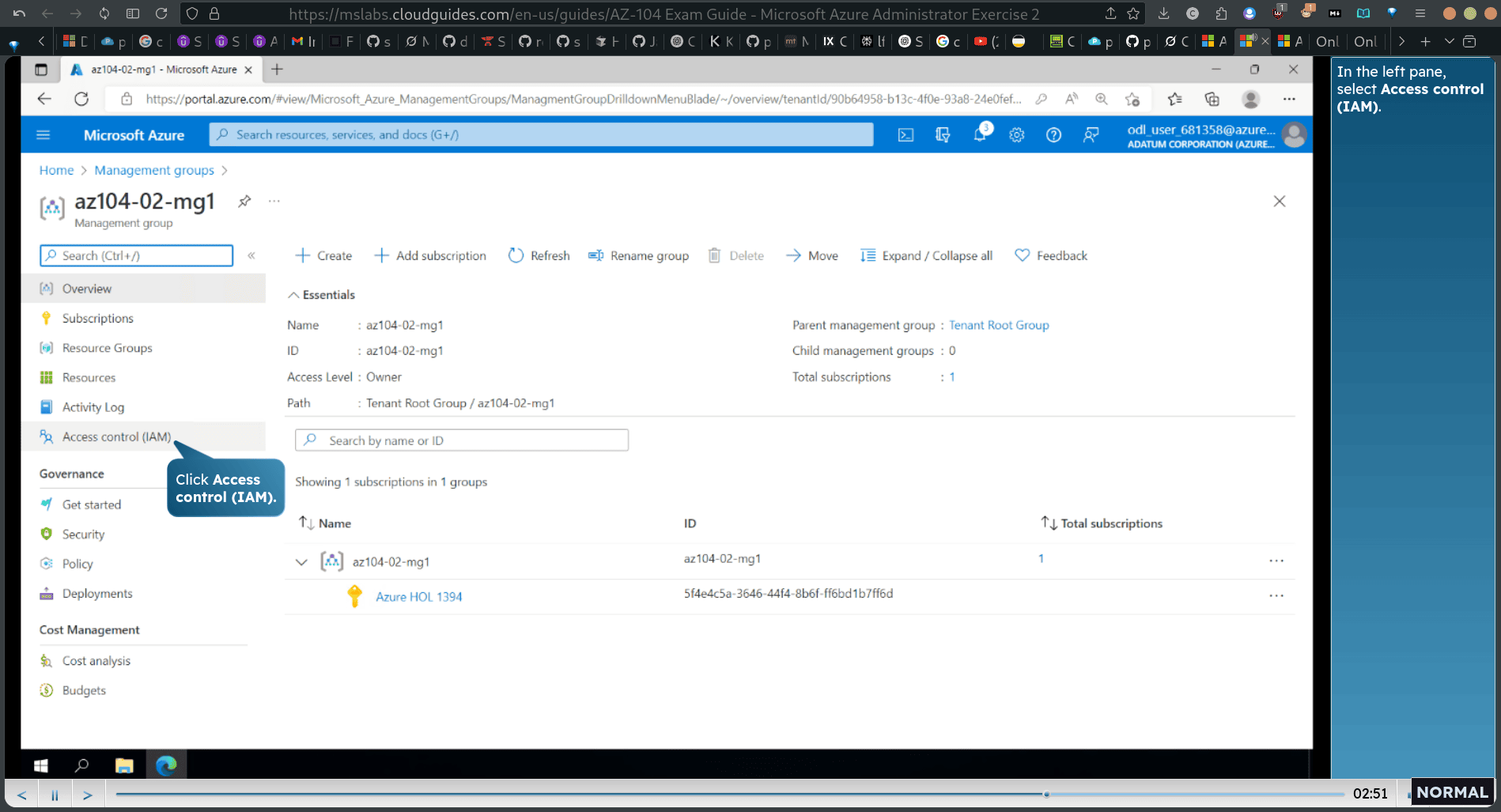

access control IAM

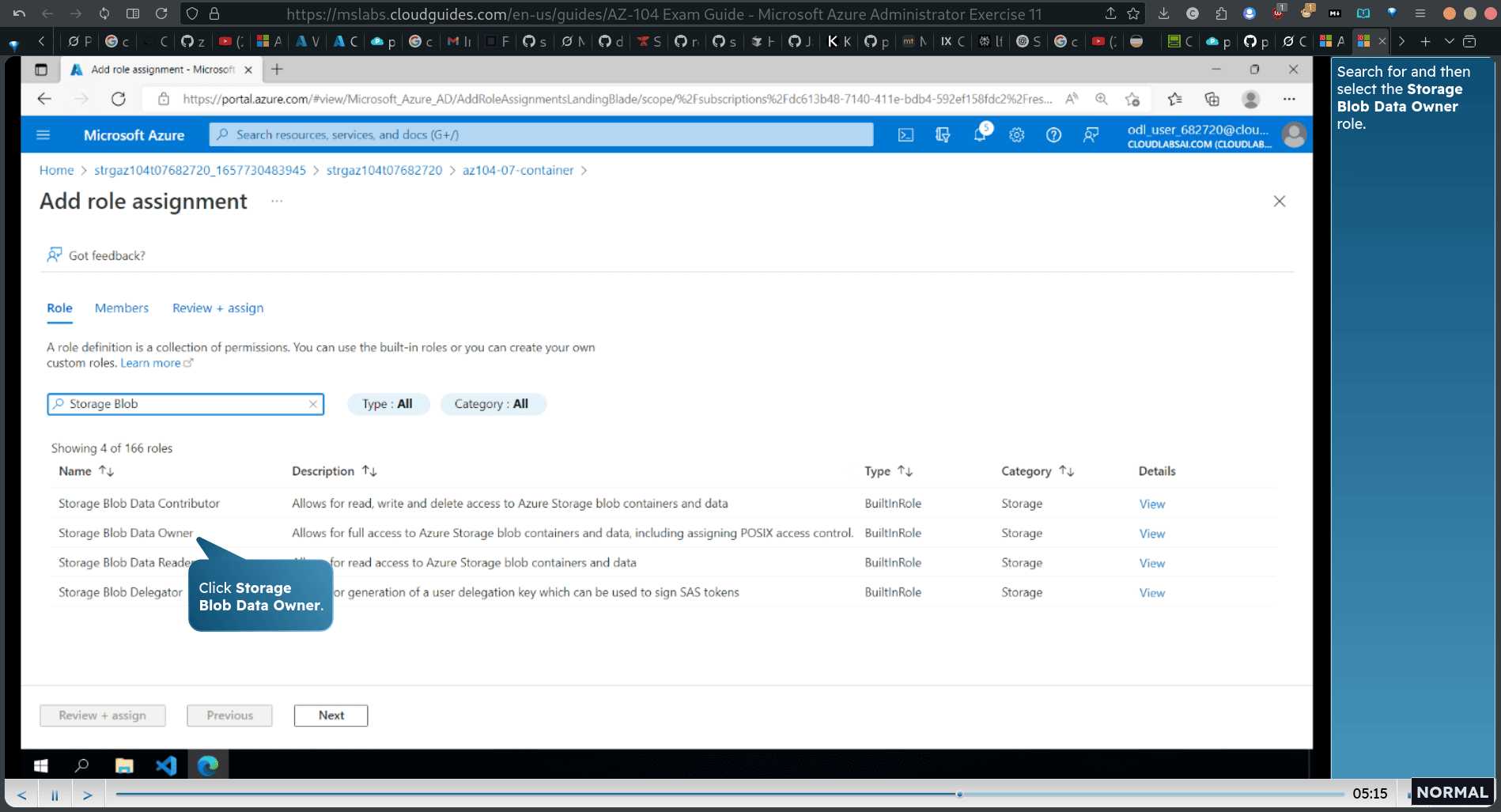

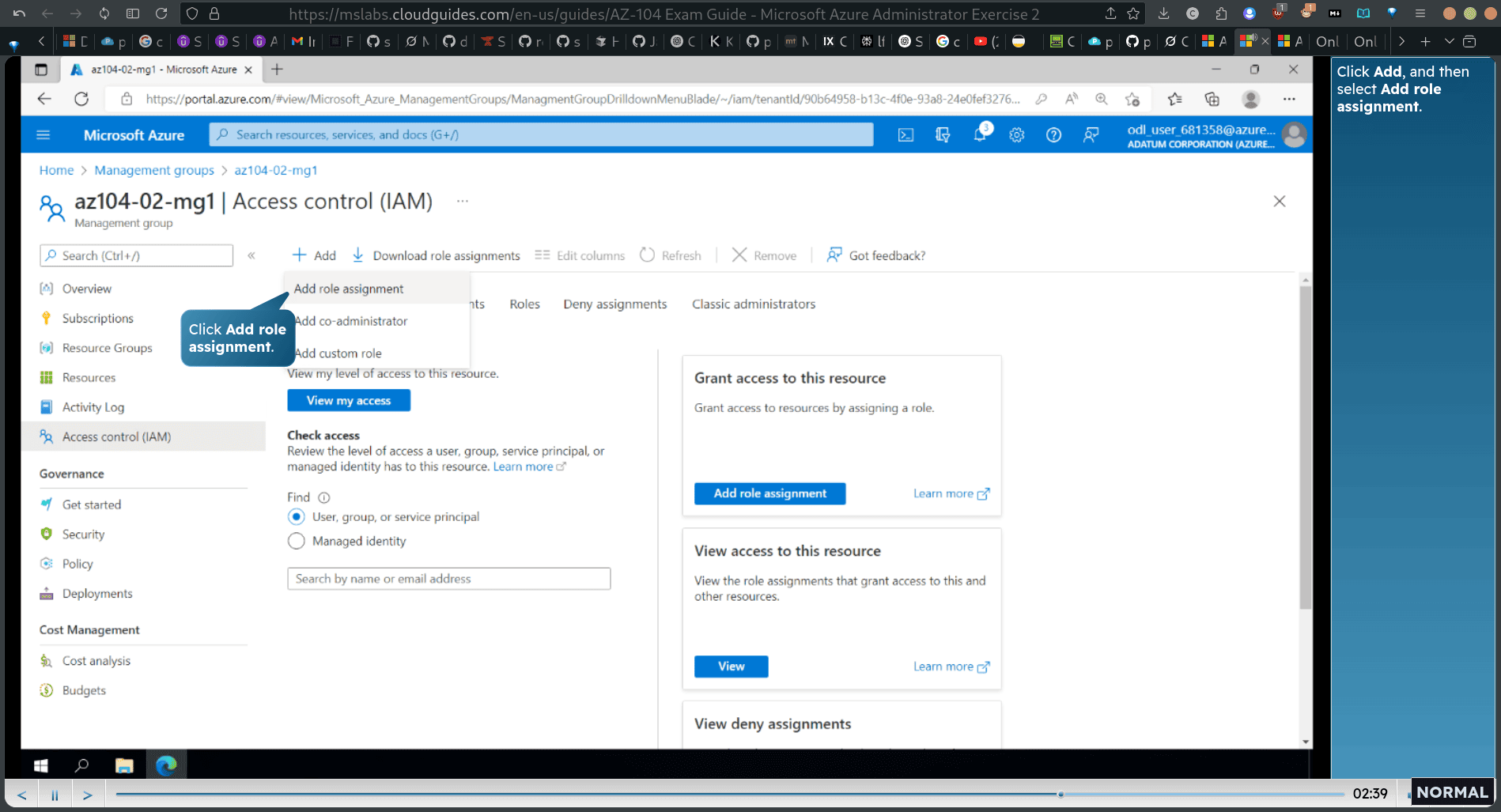

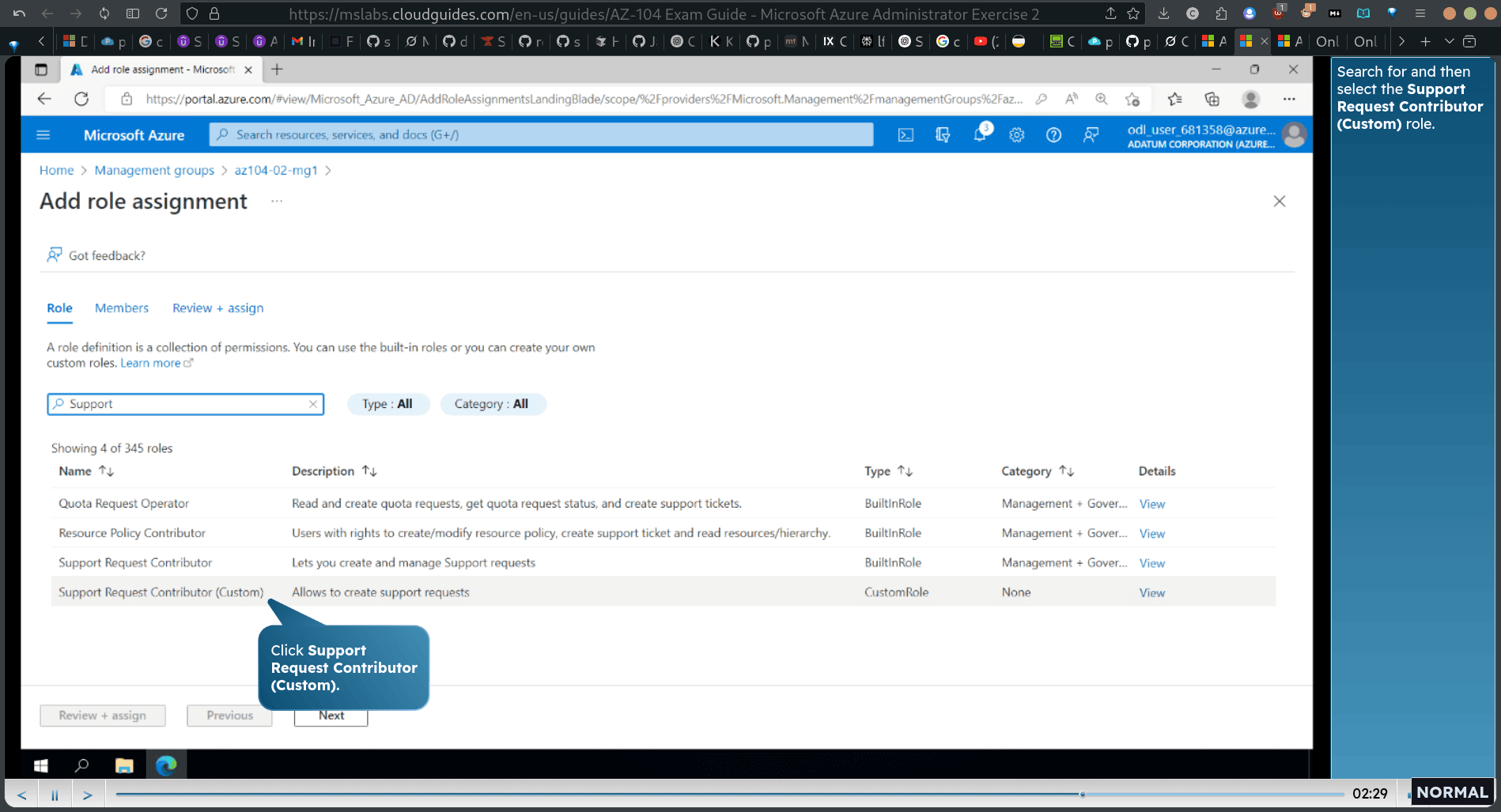

add role assignment

adding member (new created user)

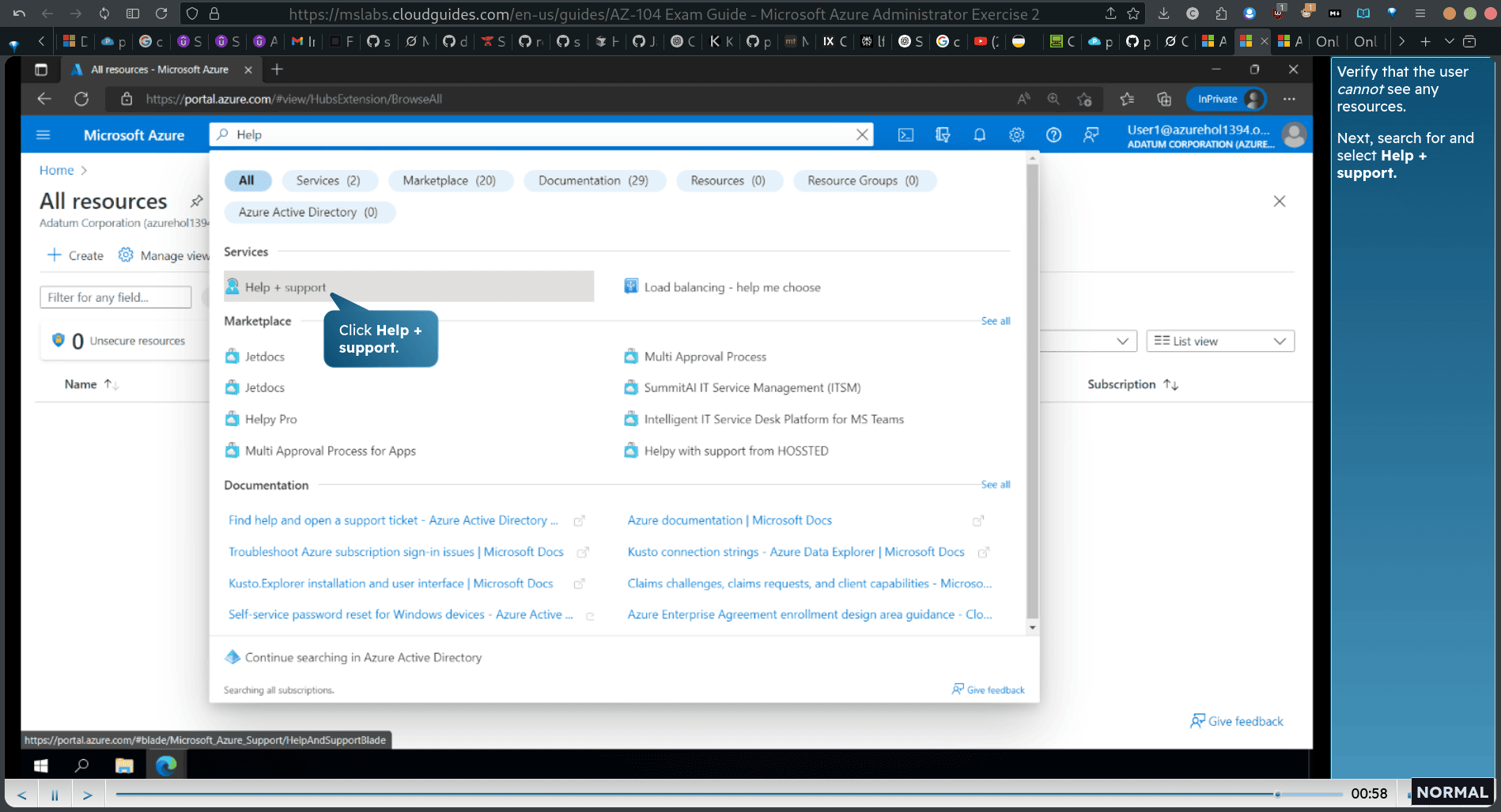

help + support

Create a support request

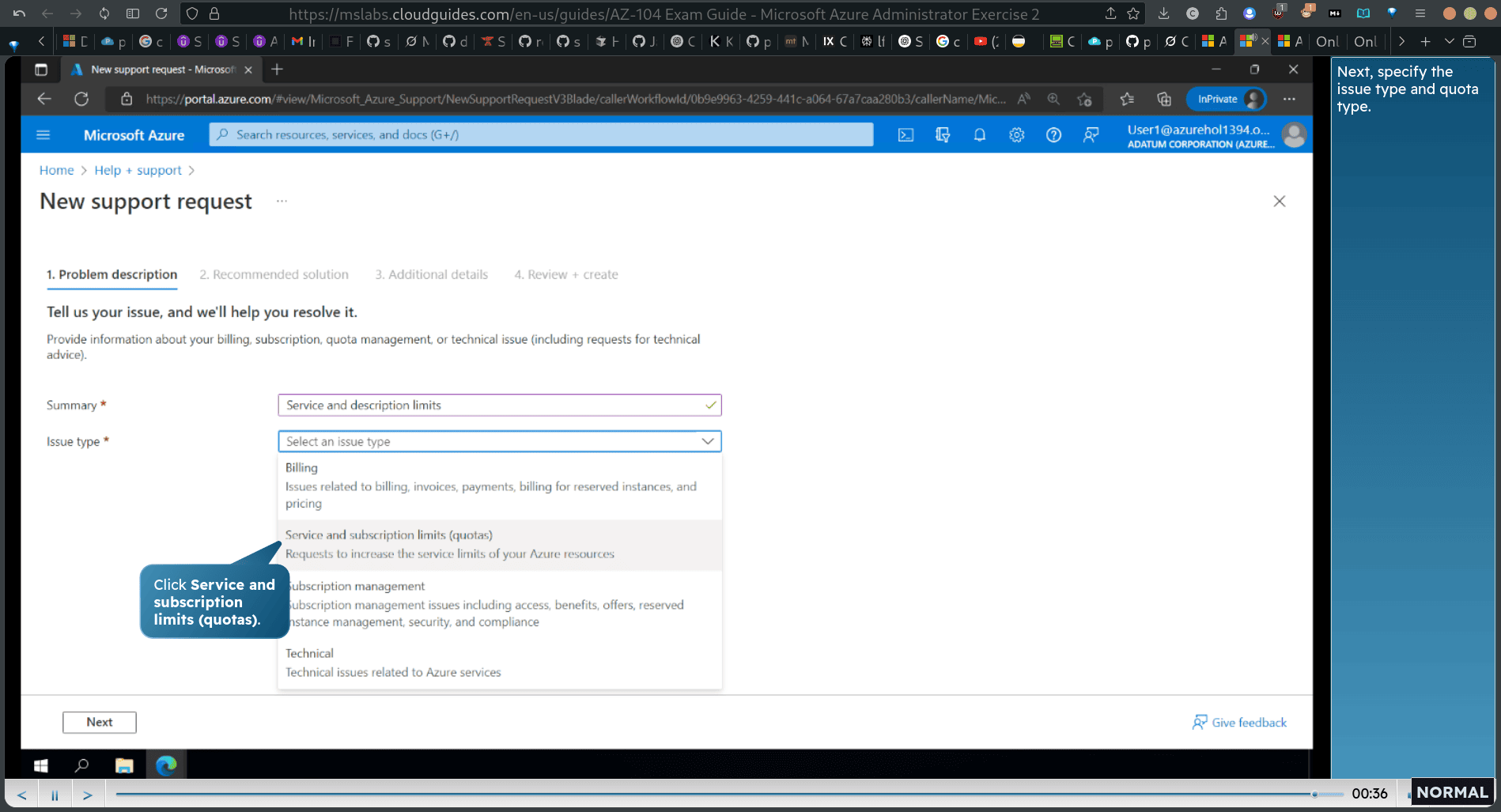

Service and subscription limits (quotas) type issue

3. Manage governance via Azure Policy >

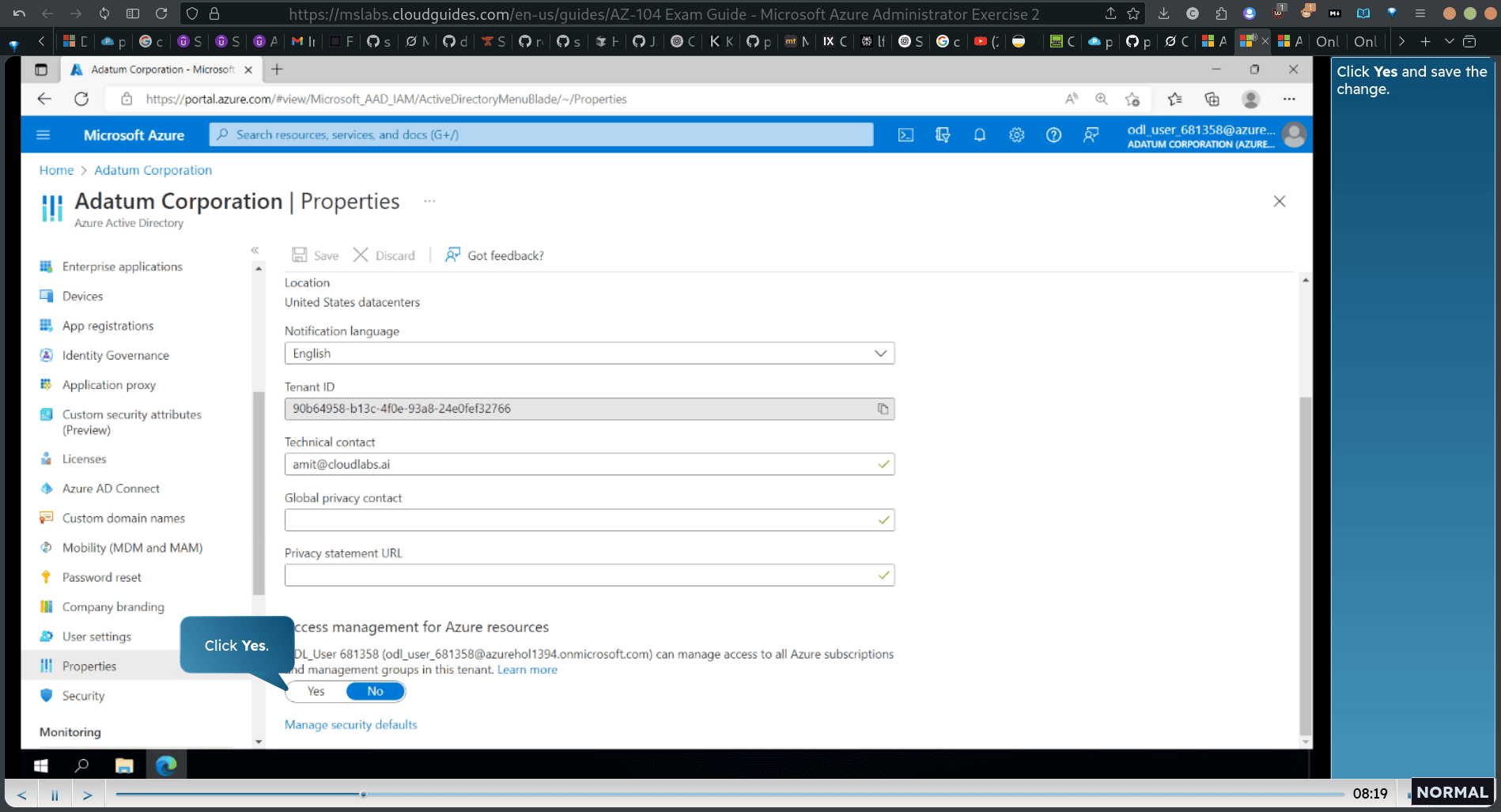

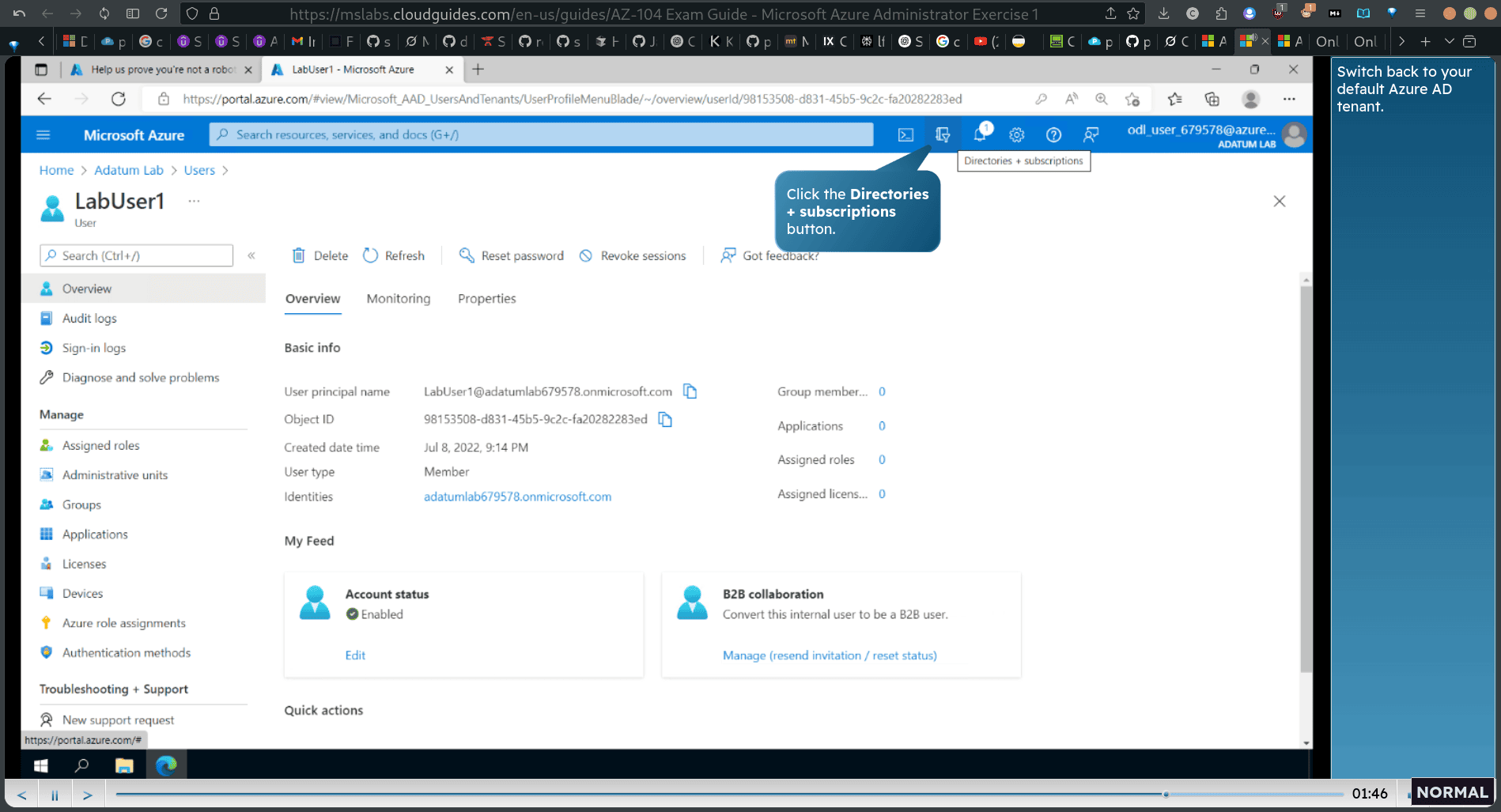

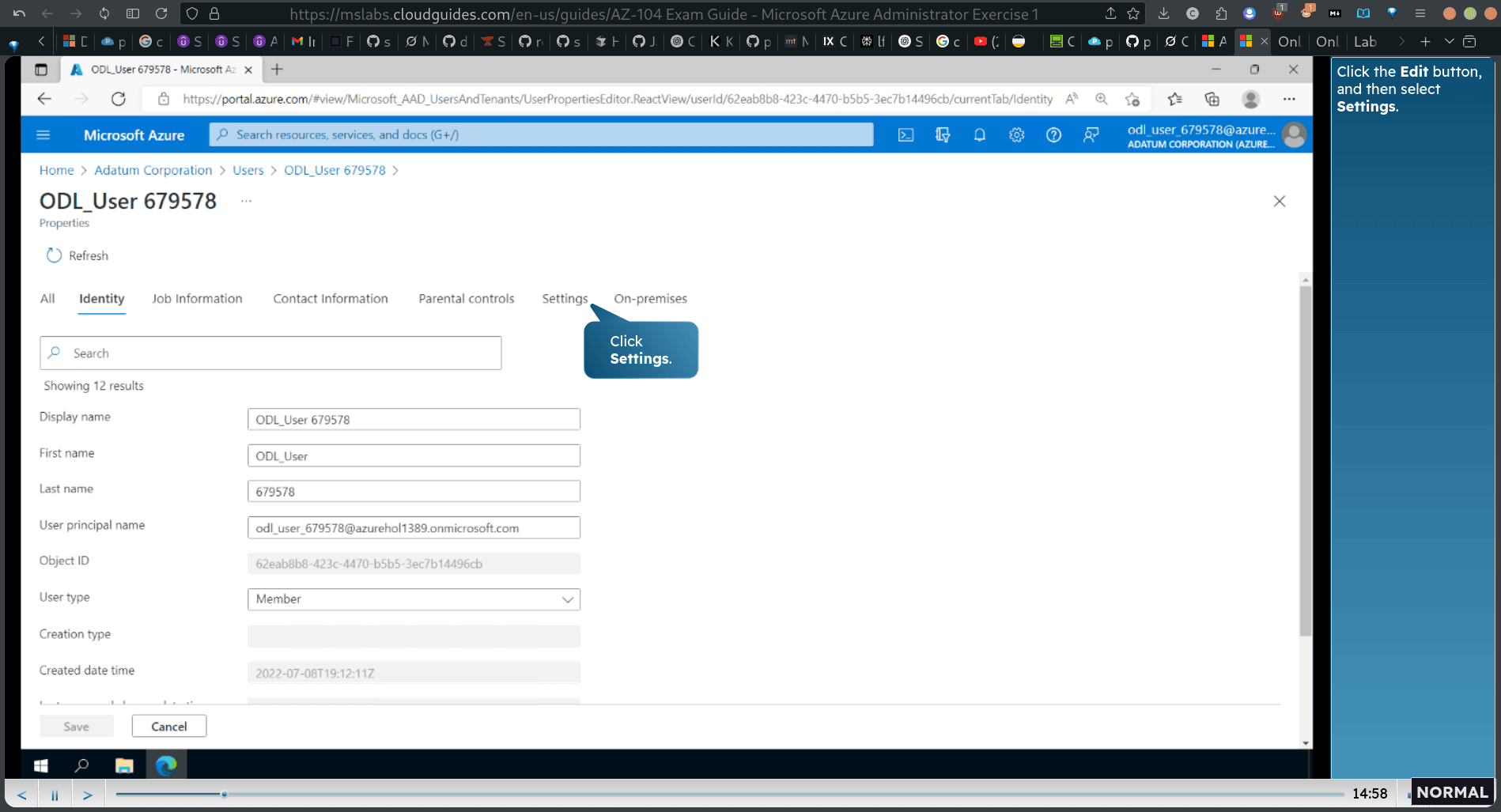

User → property → edit → setting

created user

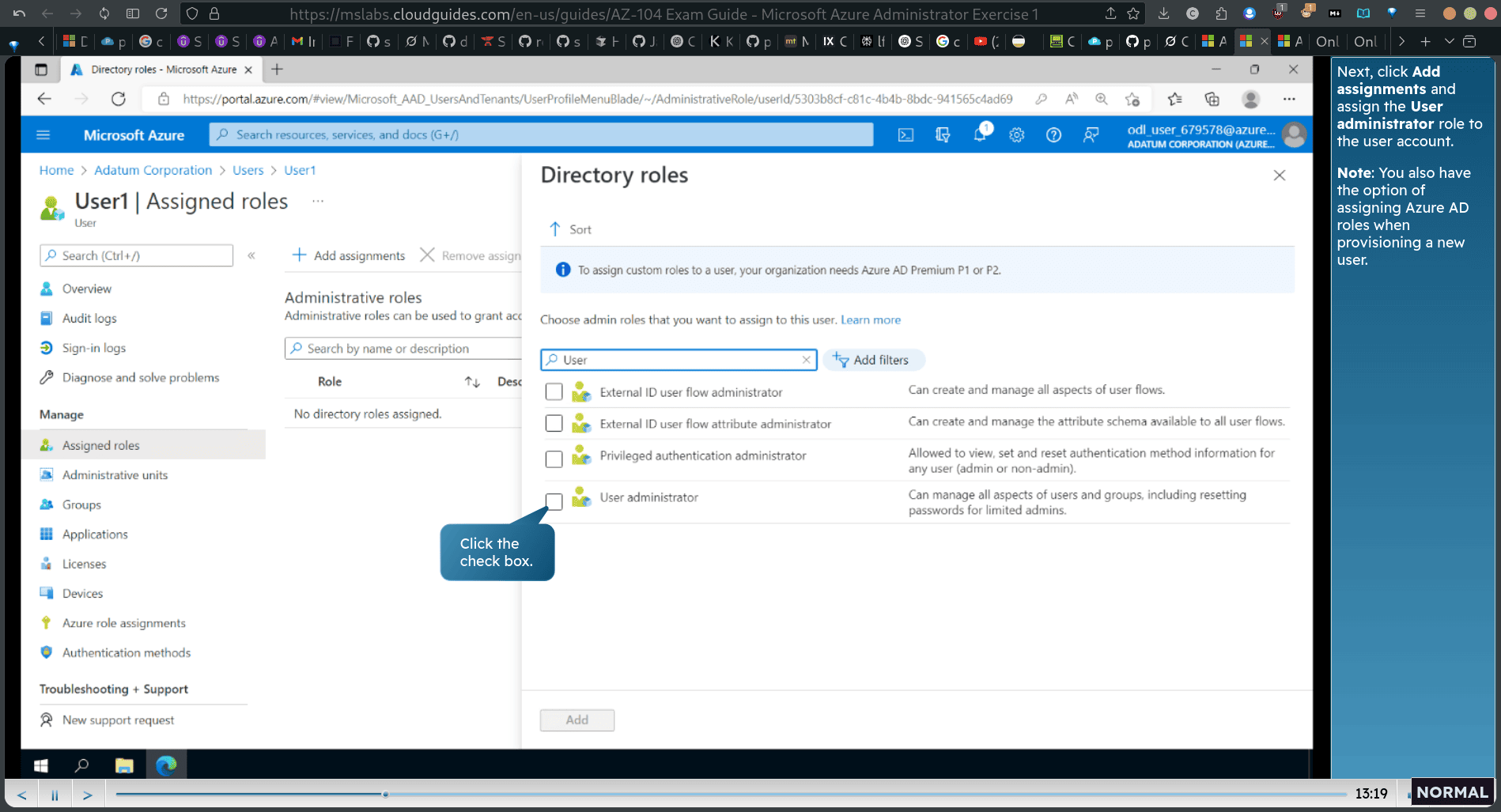

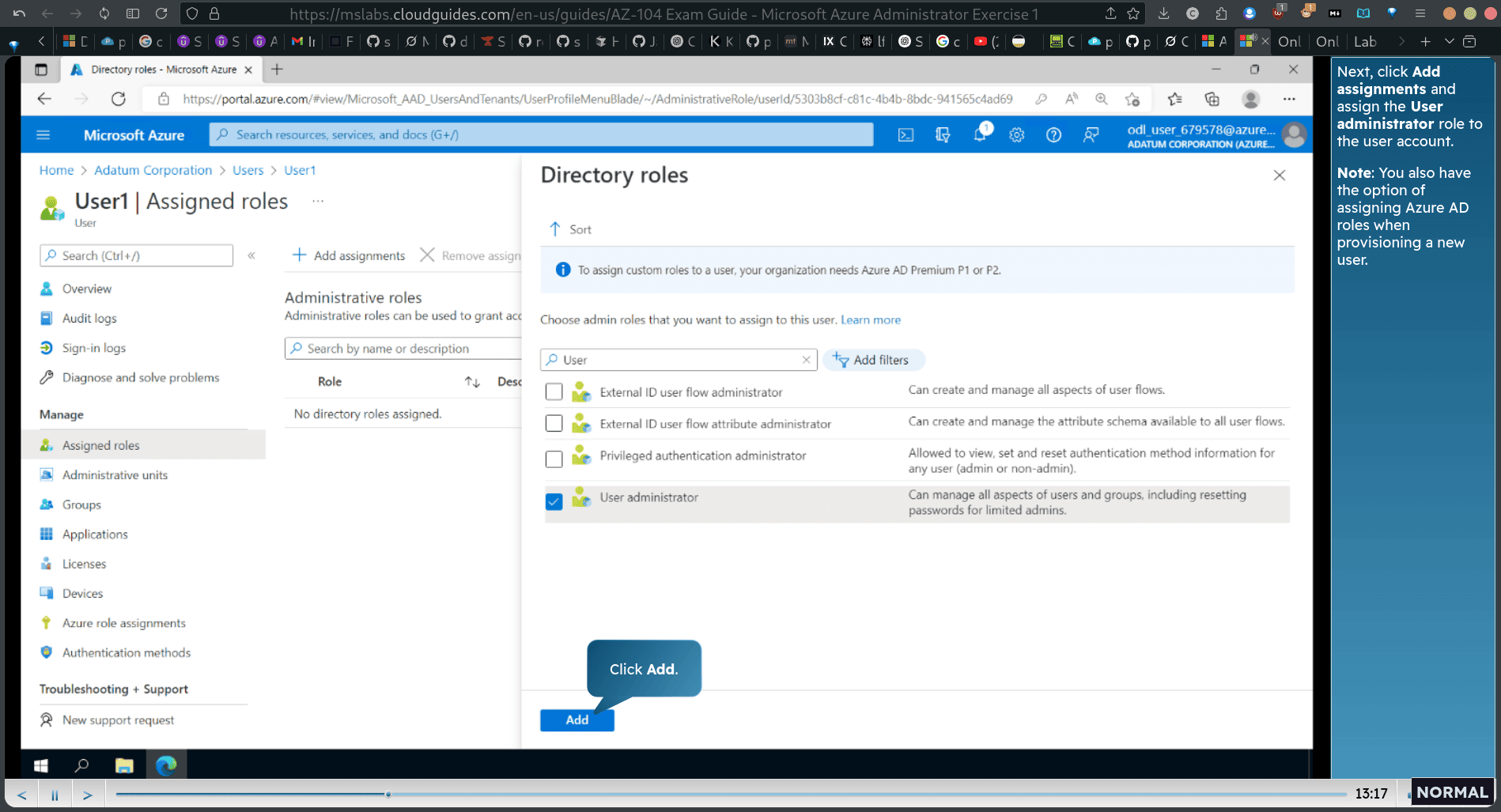

click user → assigned role

user admin role

view AD

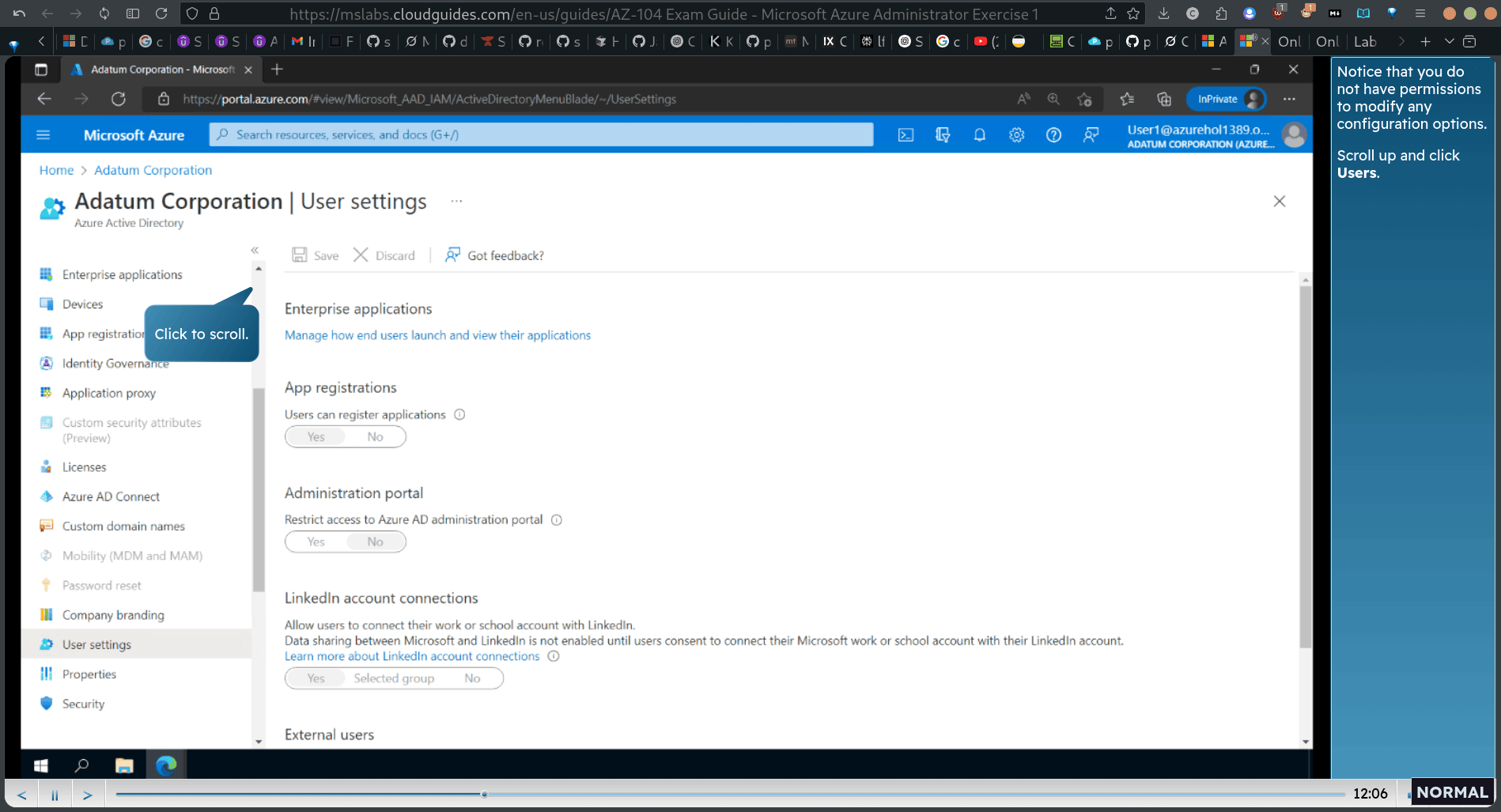

click and scroll and click user settings

notice don’t have any permission

scroll up click user

create new user

Task 2: Create Azure AD groups with assigned and dynamic membership

click ad company

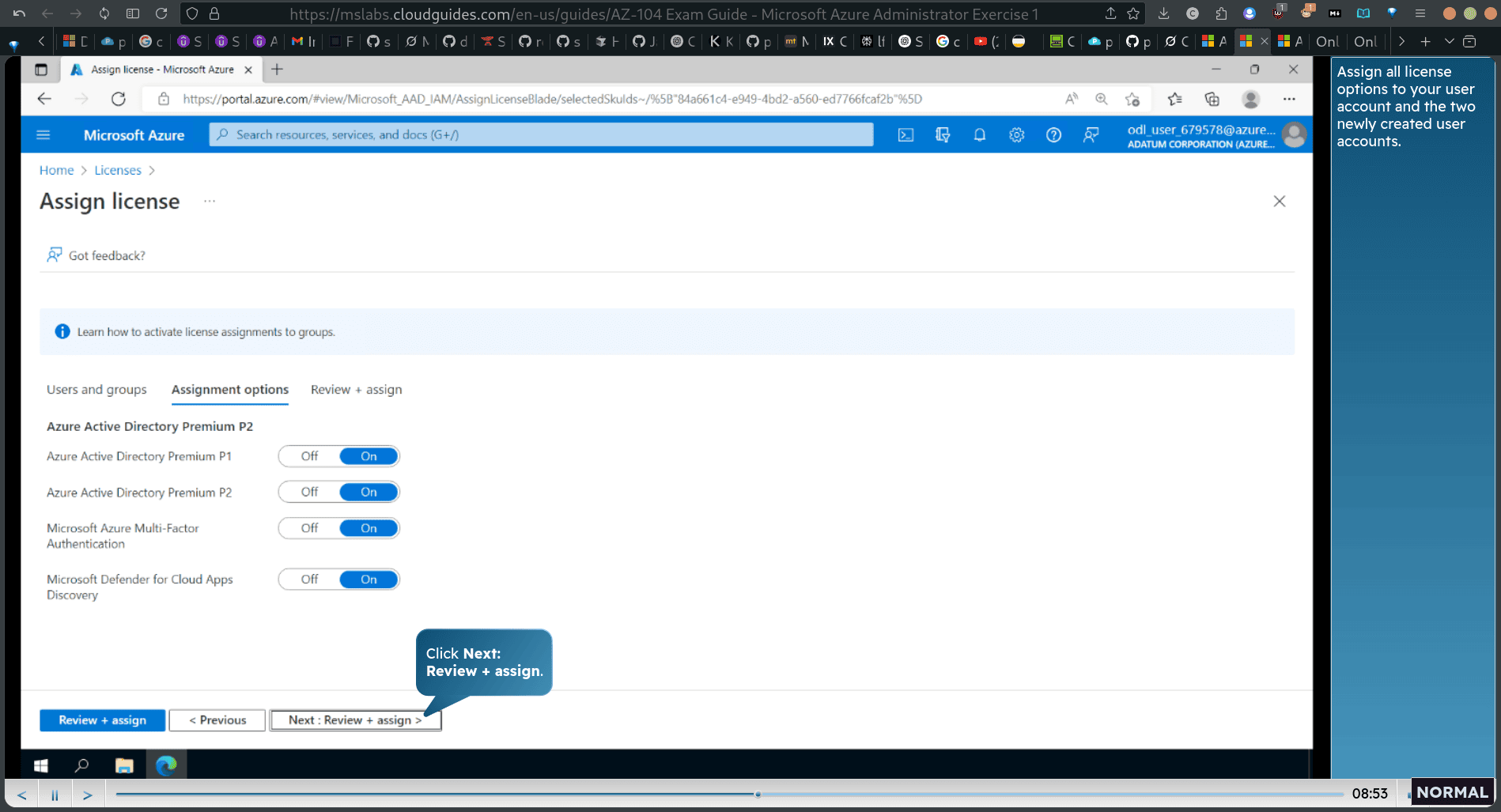

click licnese

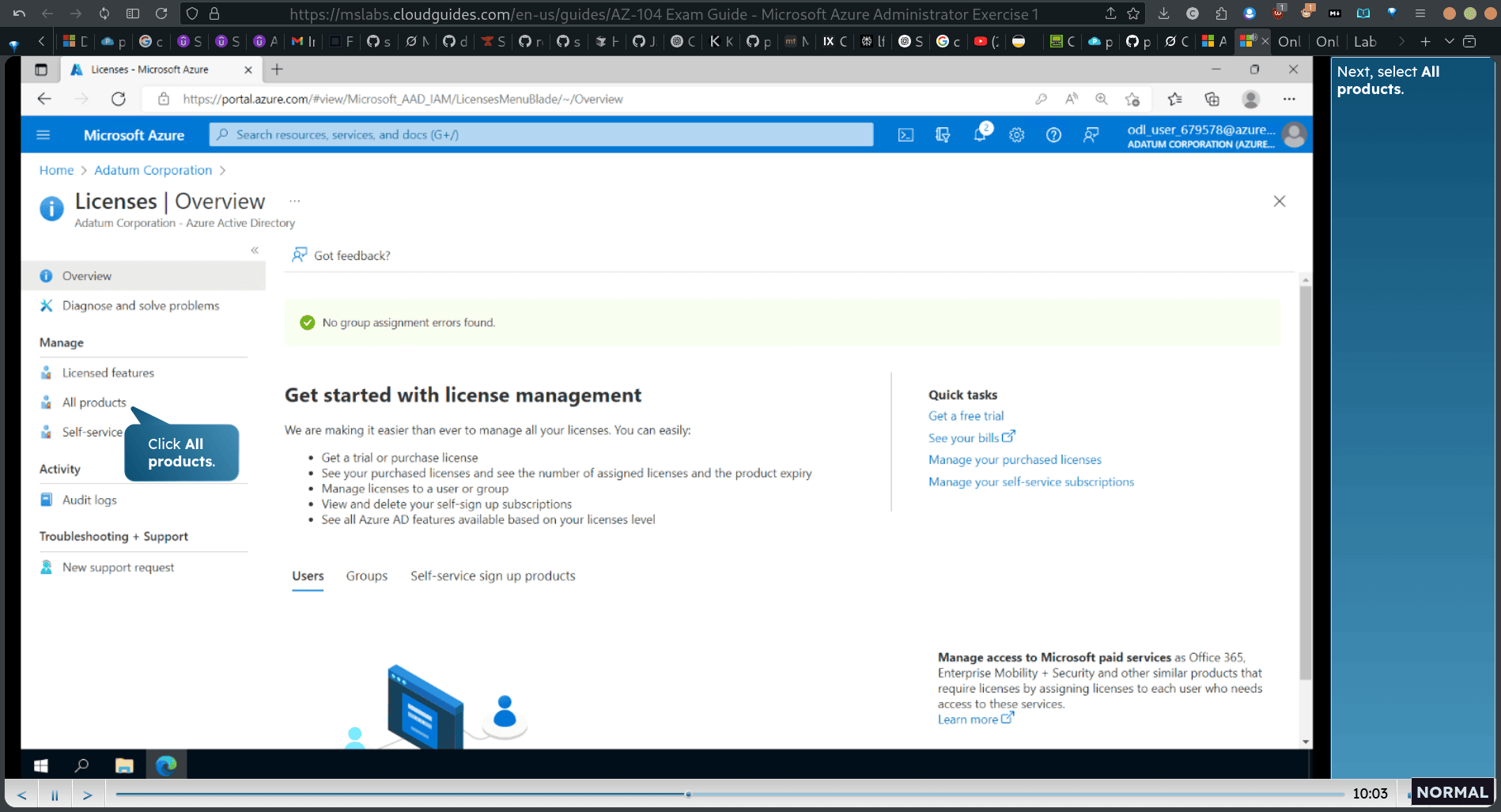

select all product

click try/buy

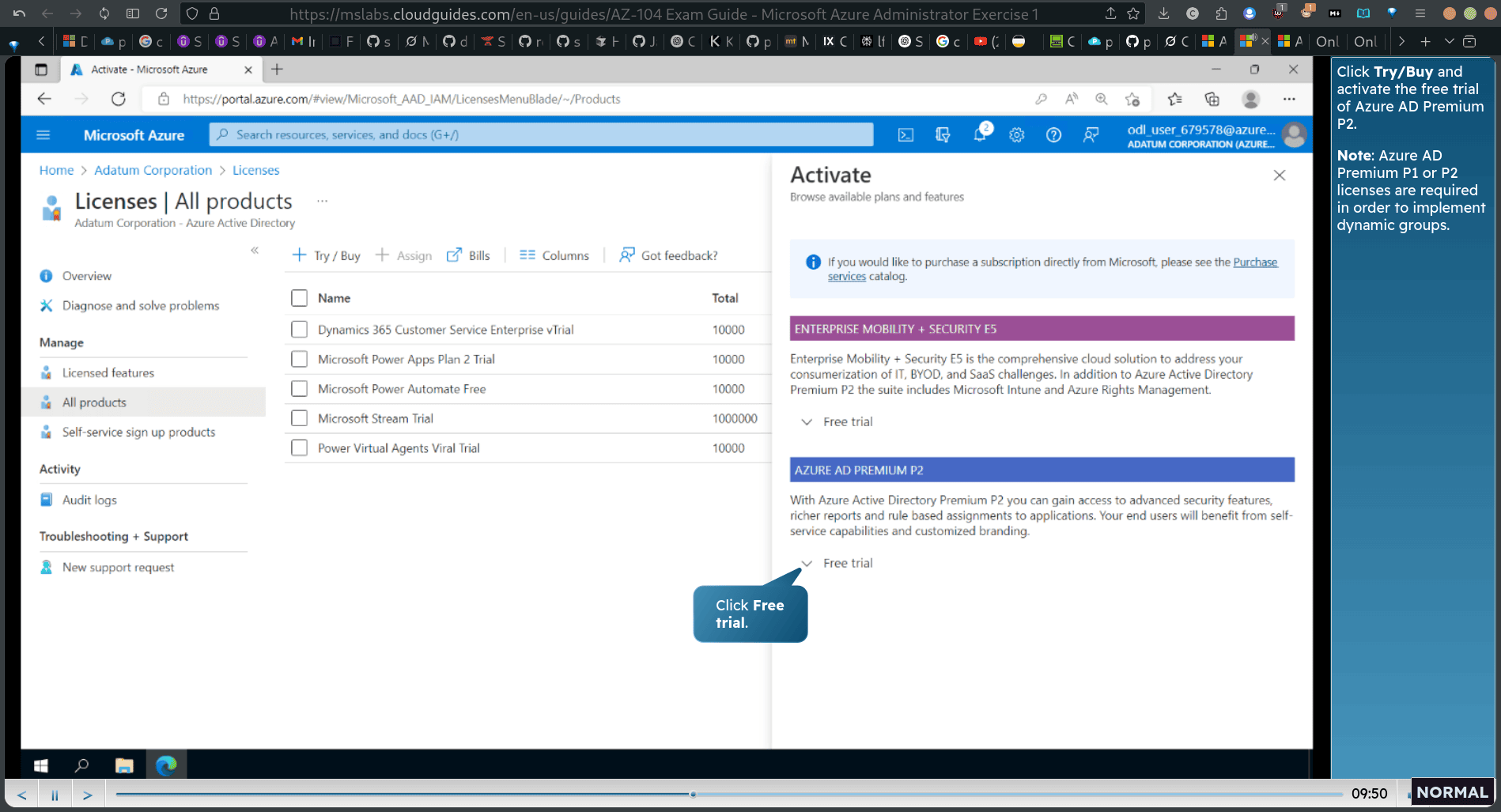

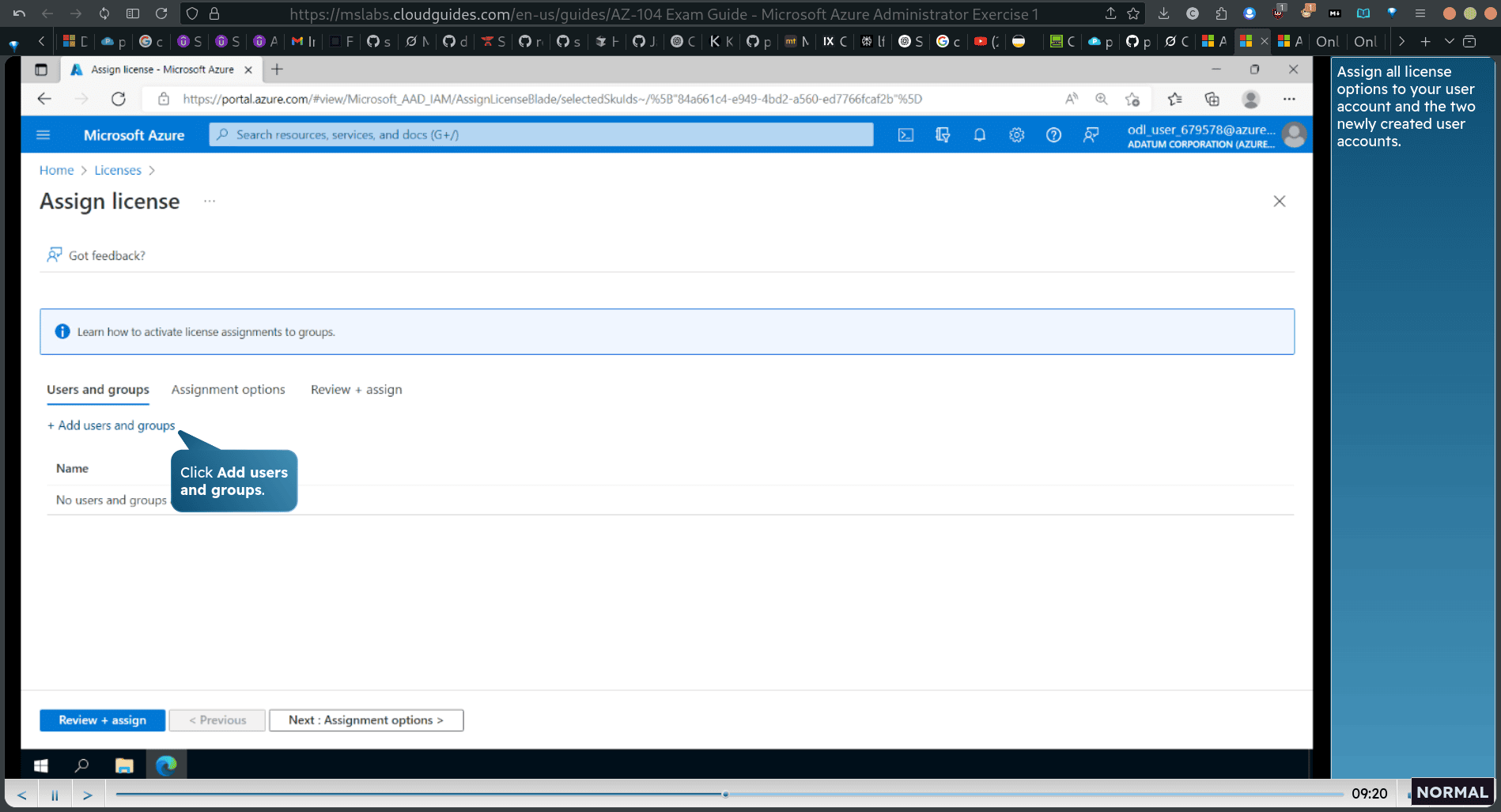

click new item and assigne with new ac

go back azure AD → Group

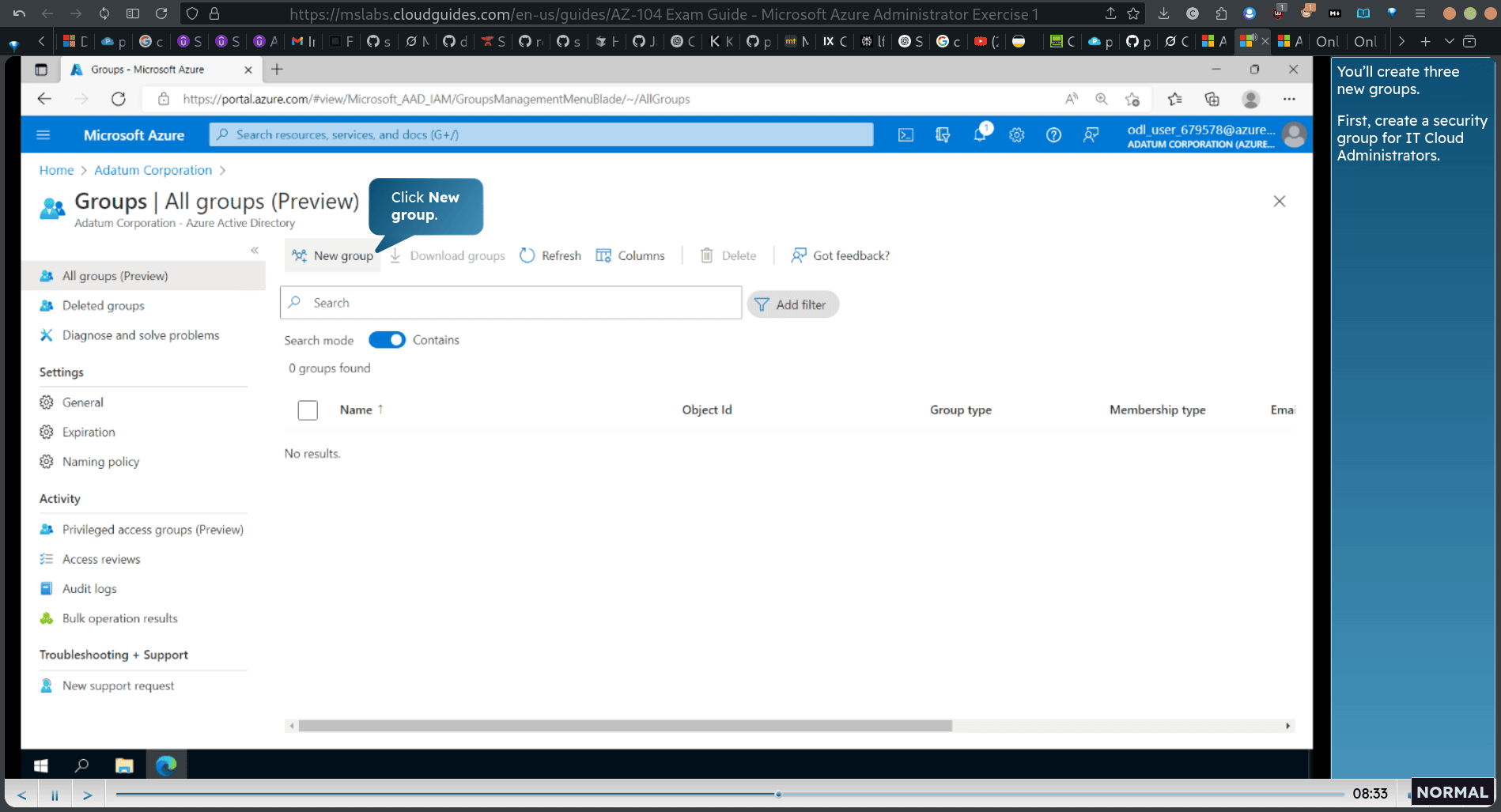

created new three group

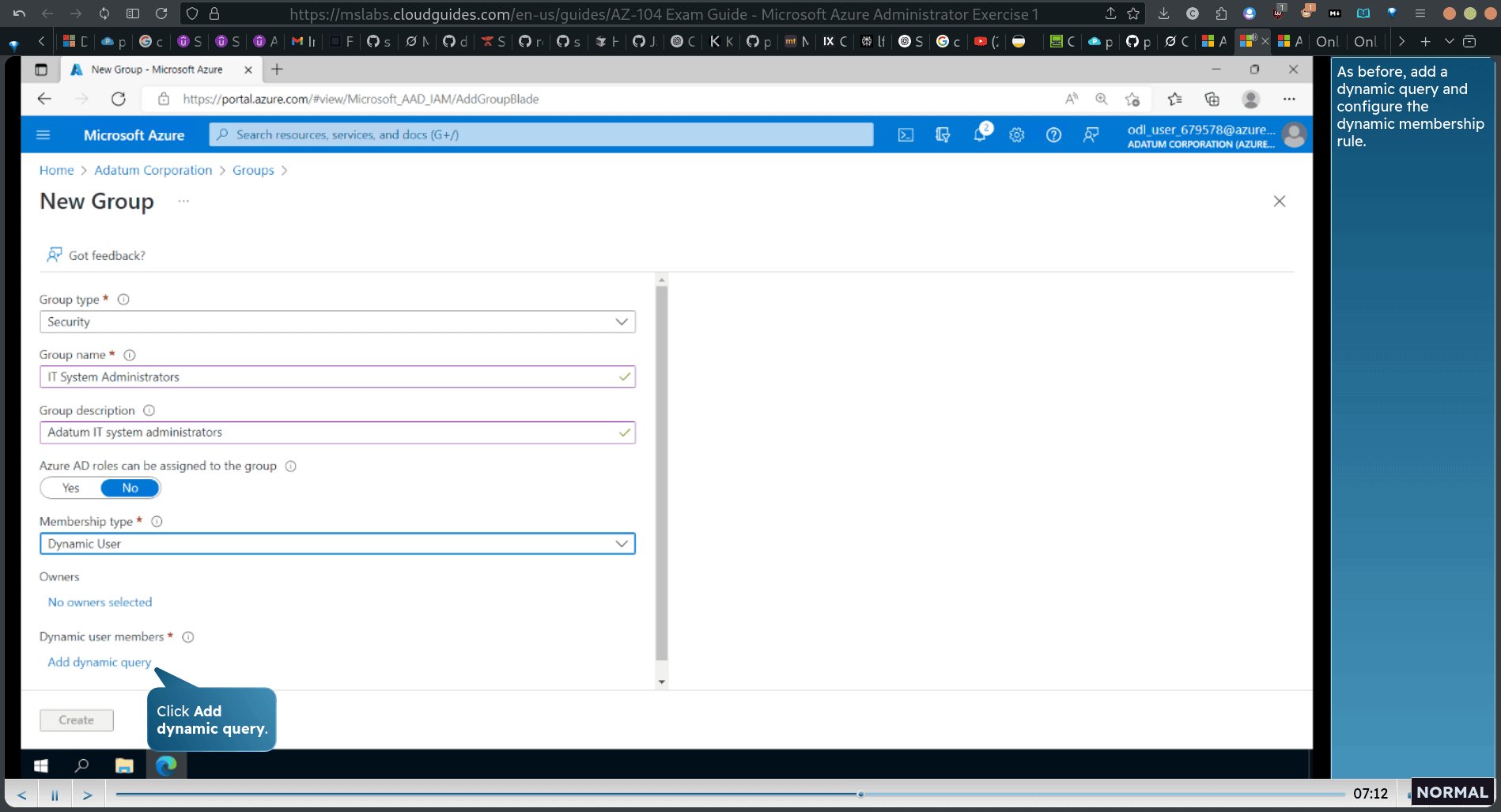

it cloud admin dynamic rule ⇒ job title equal cloud admin
securit group for it system admin
security group for lab admin

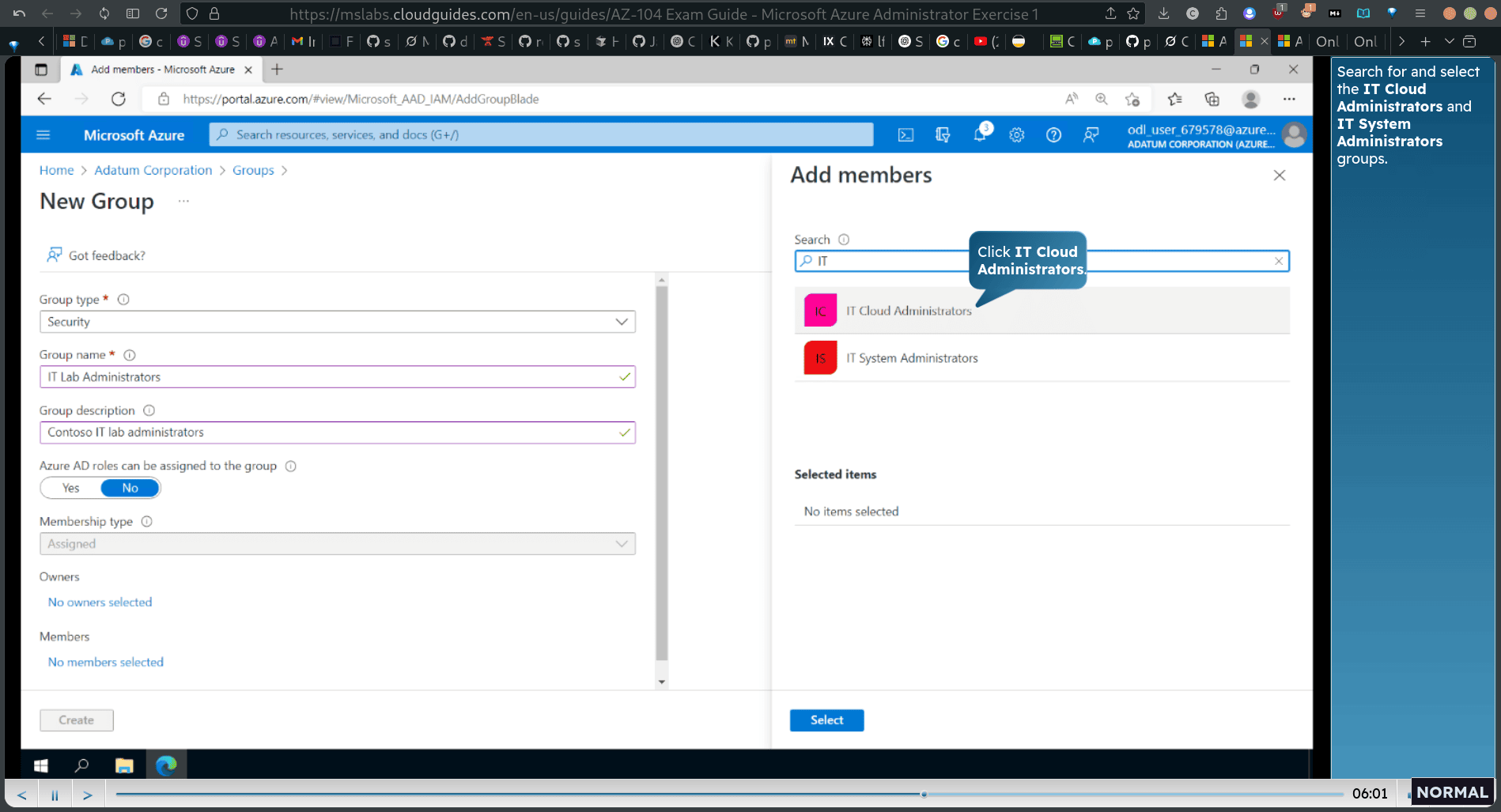

click security(all three are inside) , click cloud admin

click members verify that cloud admin is in the group

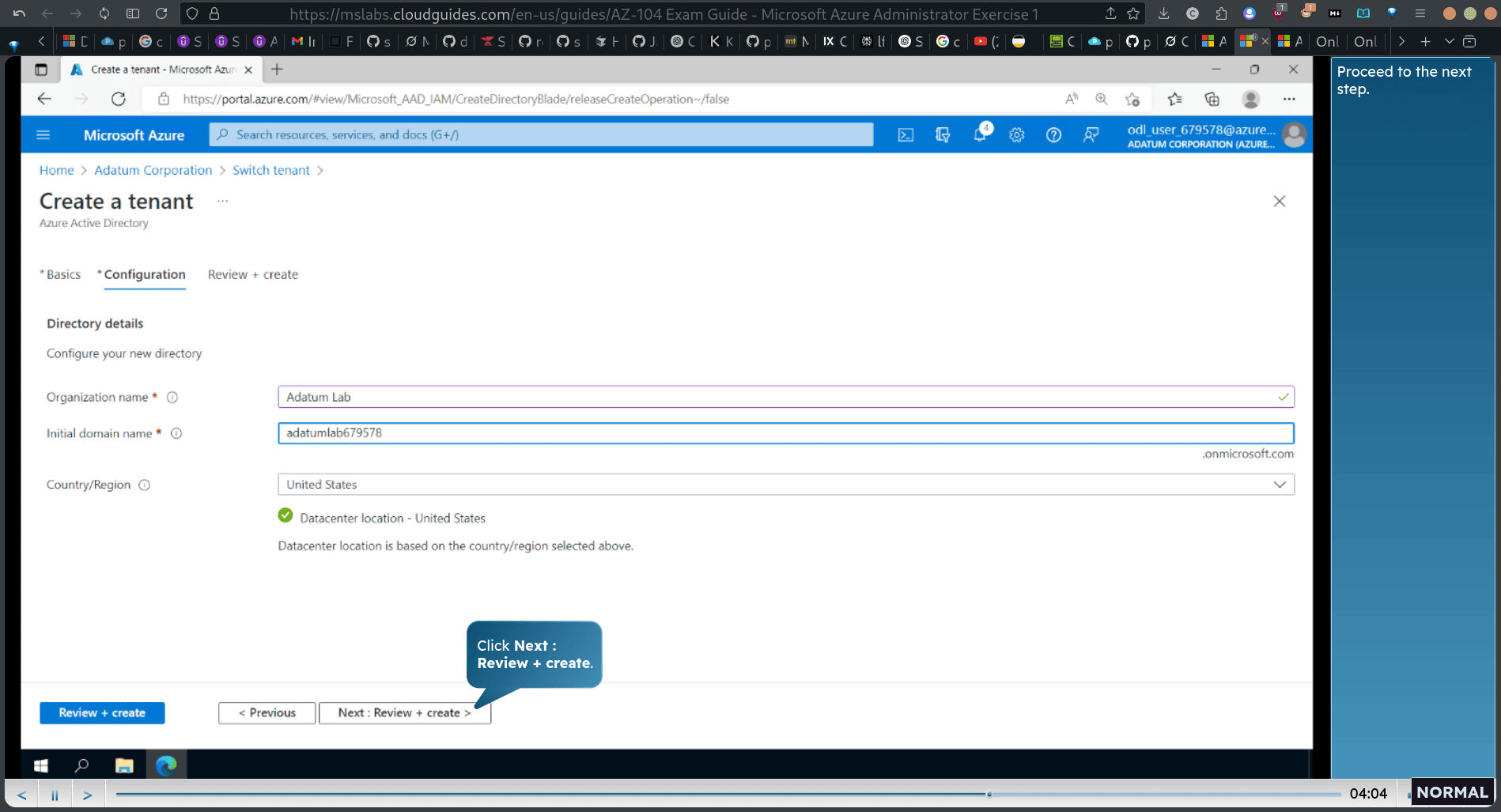

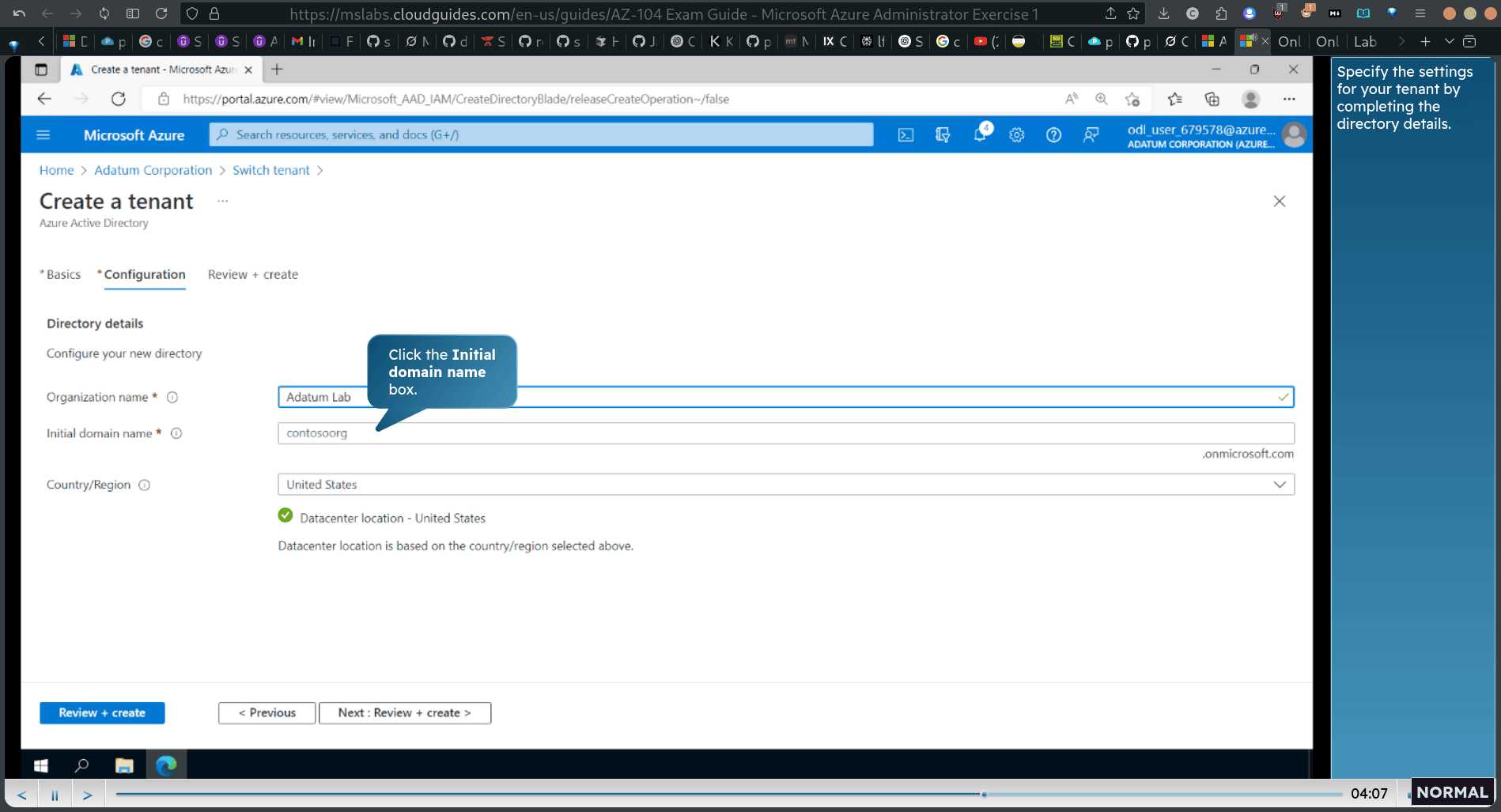

Task 3: Create an Azure AD tenant

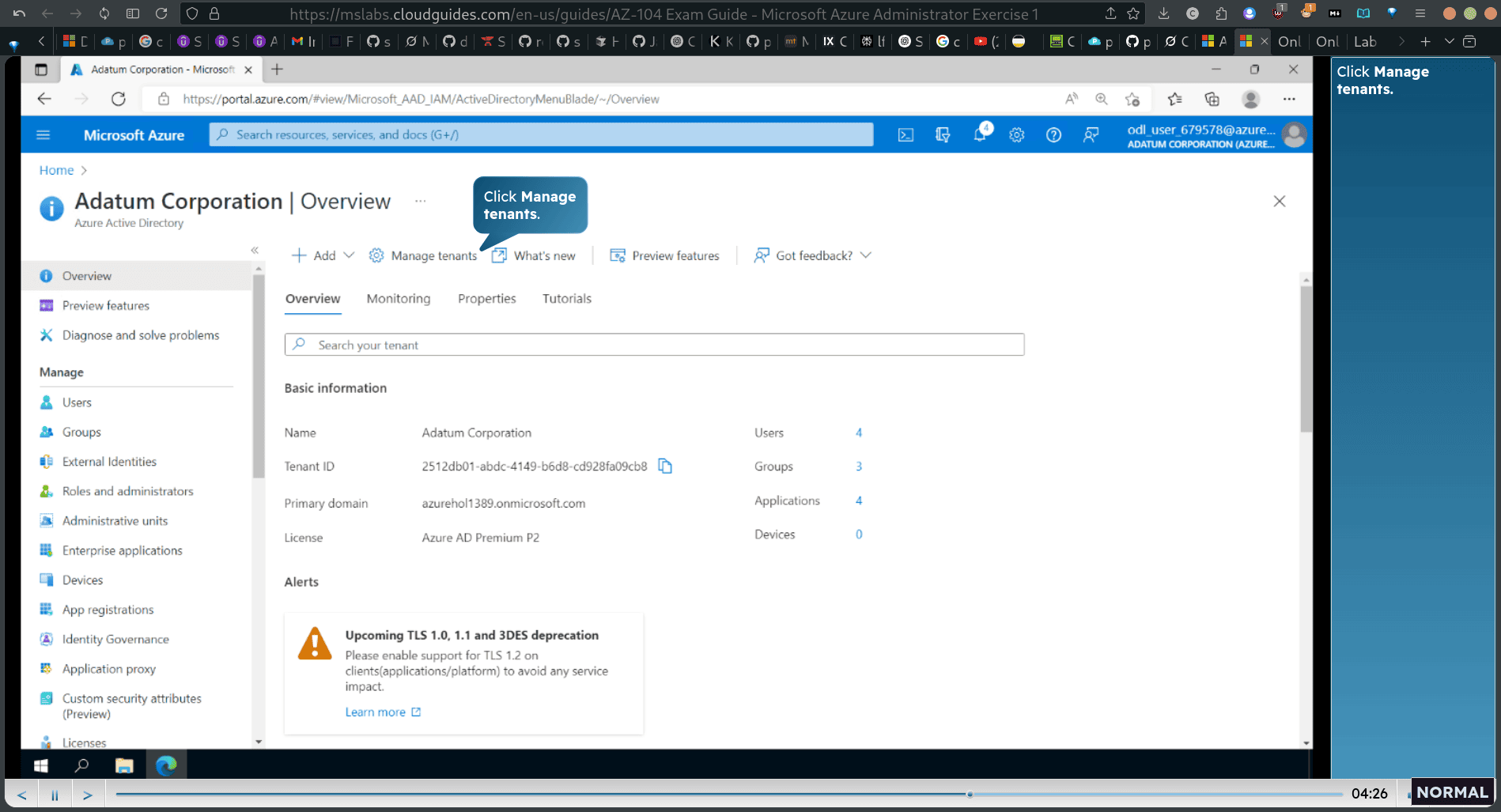

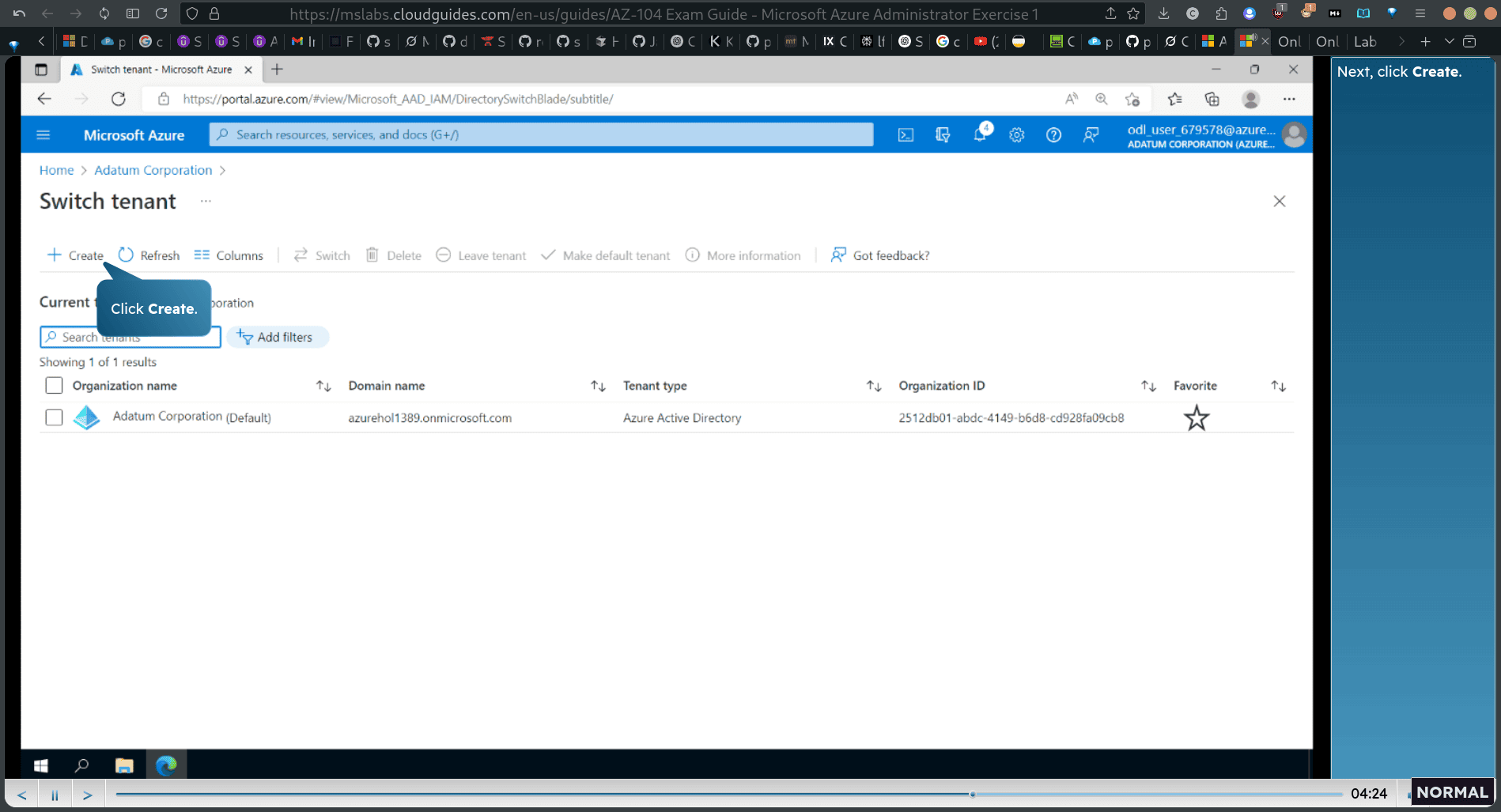

back to adatumn active directory → click manage tenants (first page)

overview

click the link lab (new tenant)

god damn it is the same exercise i did before , what the foo (i click the wrong link), no wonder why it is the same

3. Manage governance via Azure Policy ( real one)

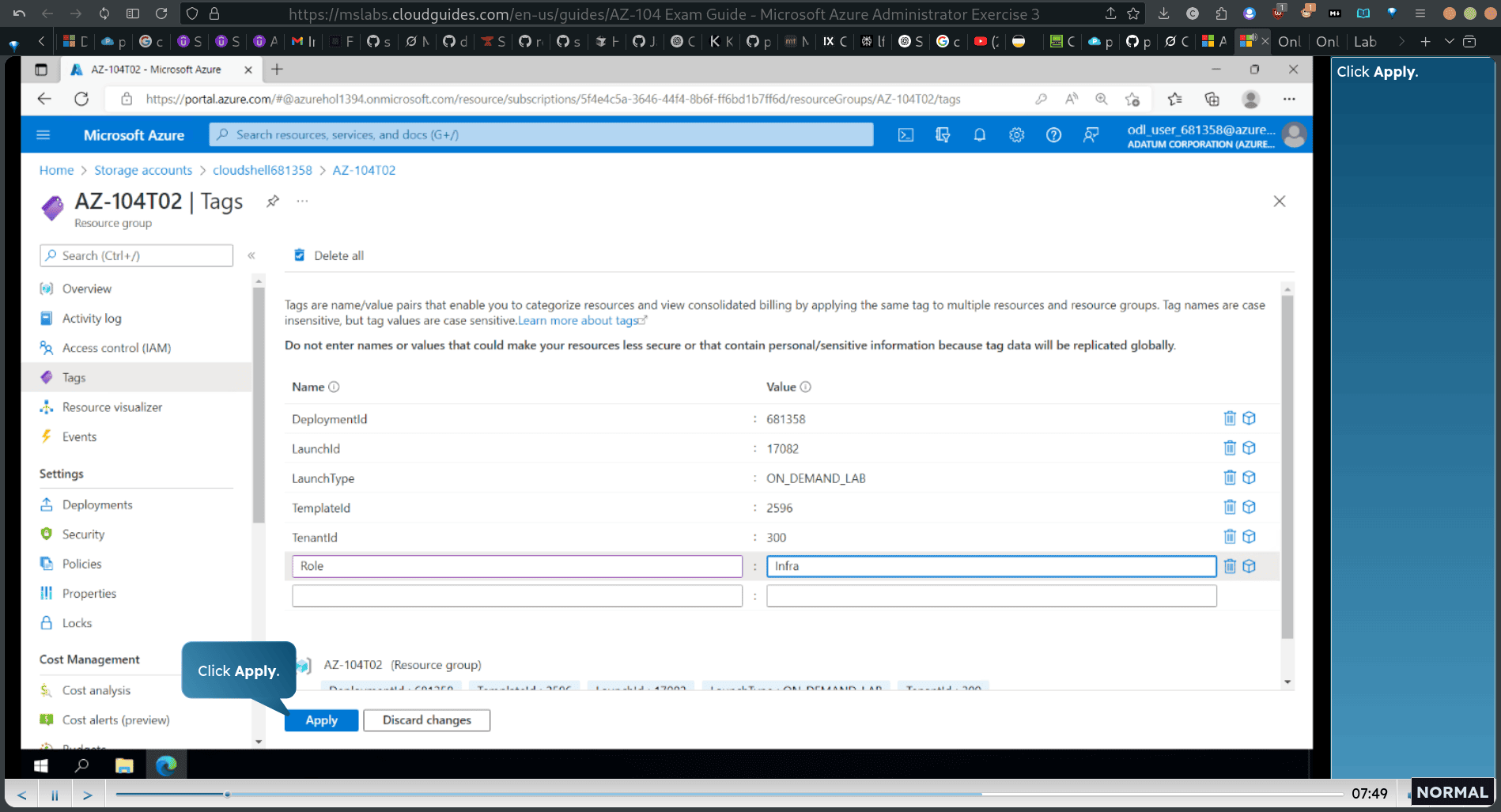

Task 1: Create and assign tags via the Azure portal

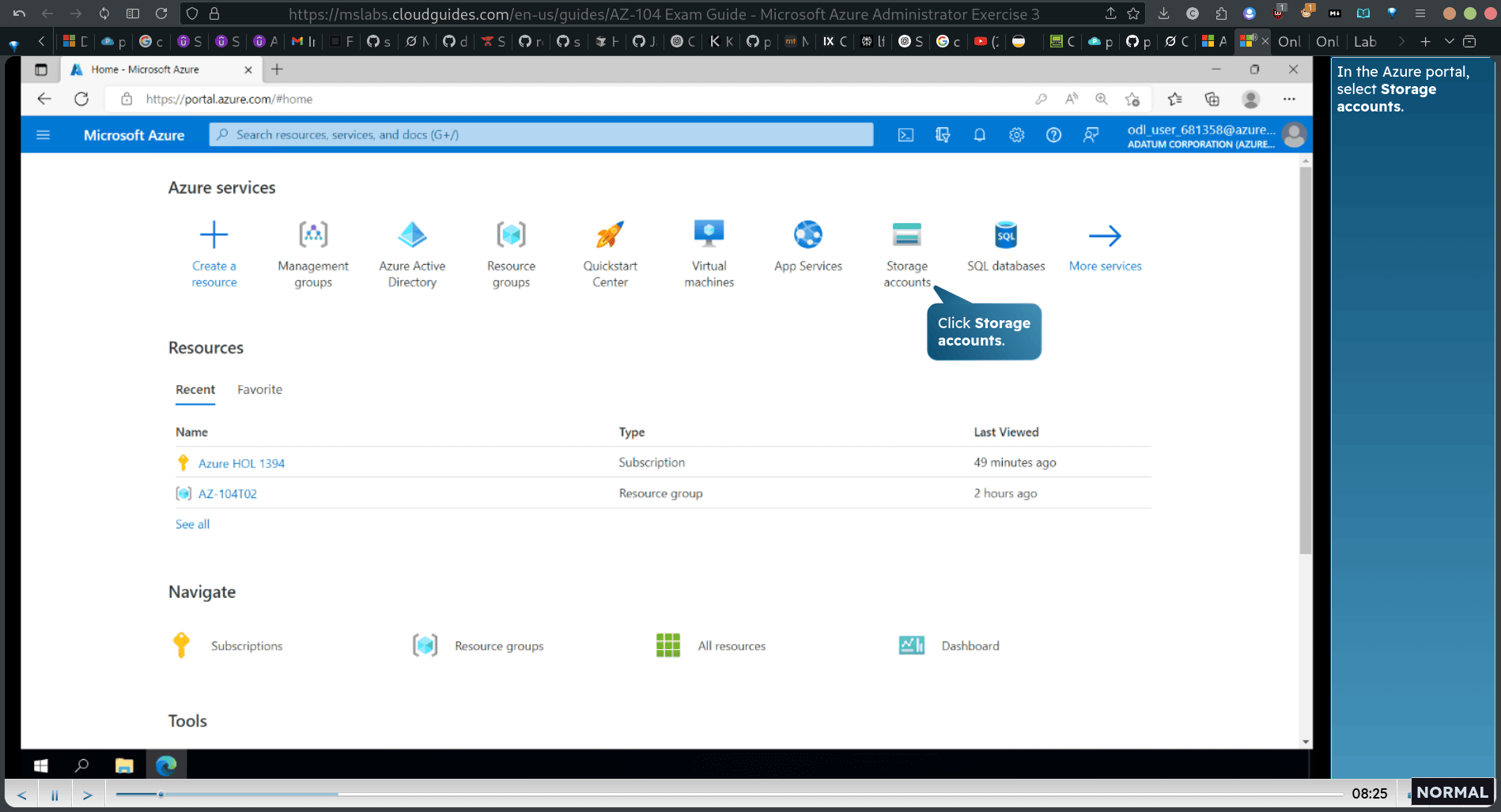

click the ac

click the tag in the left

new role → infra

go back storage ac link (from tab bar)

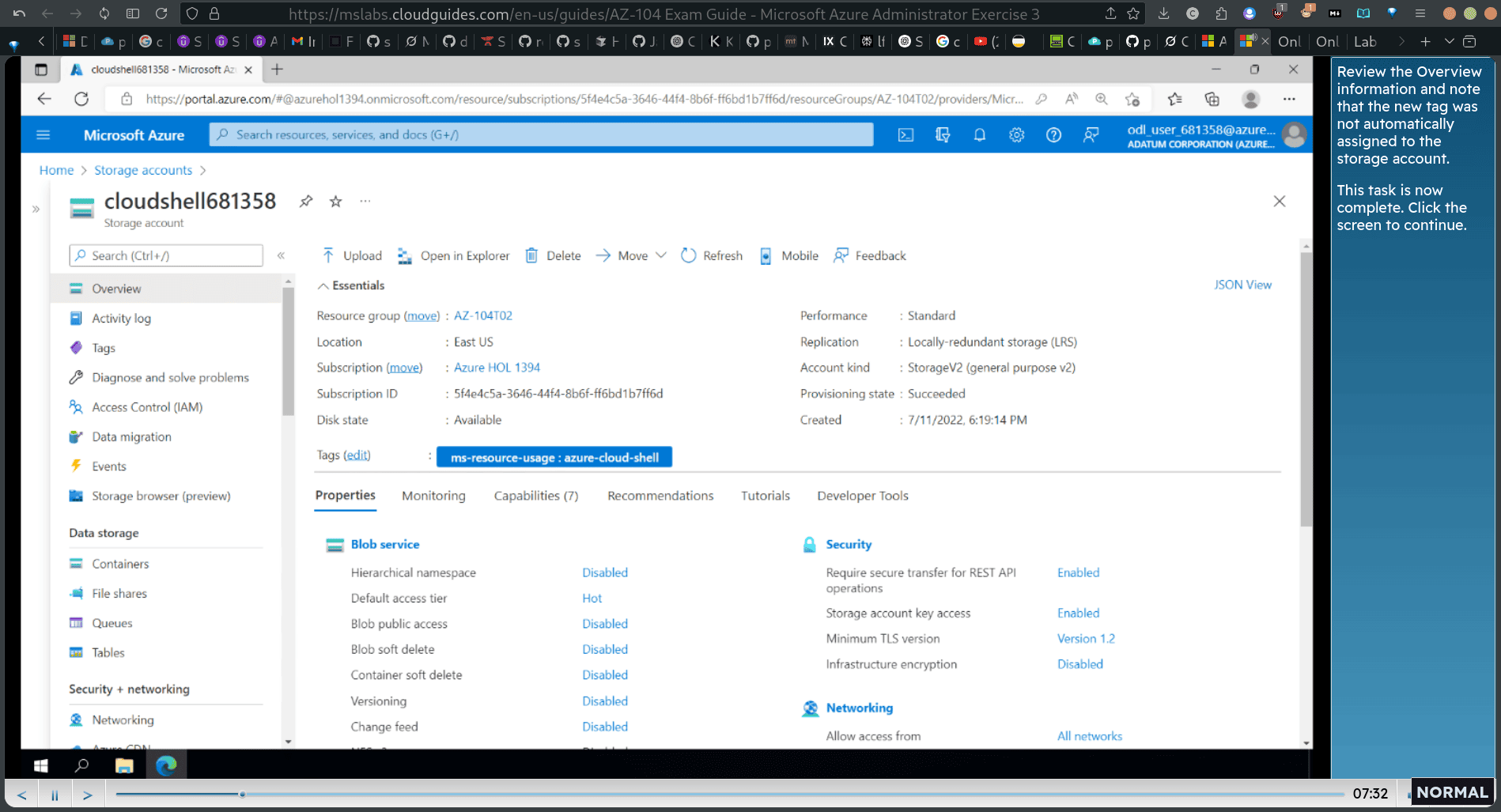

new tag did’nt in the frontend though

Task 2: Enforce tagging via an Azure policy

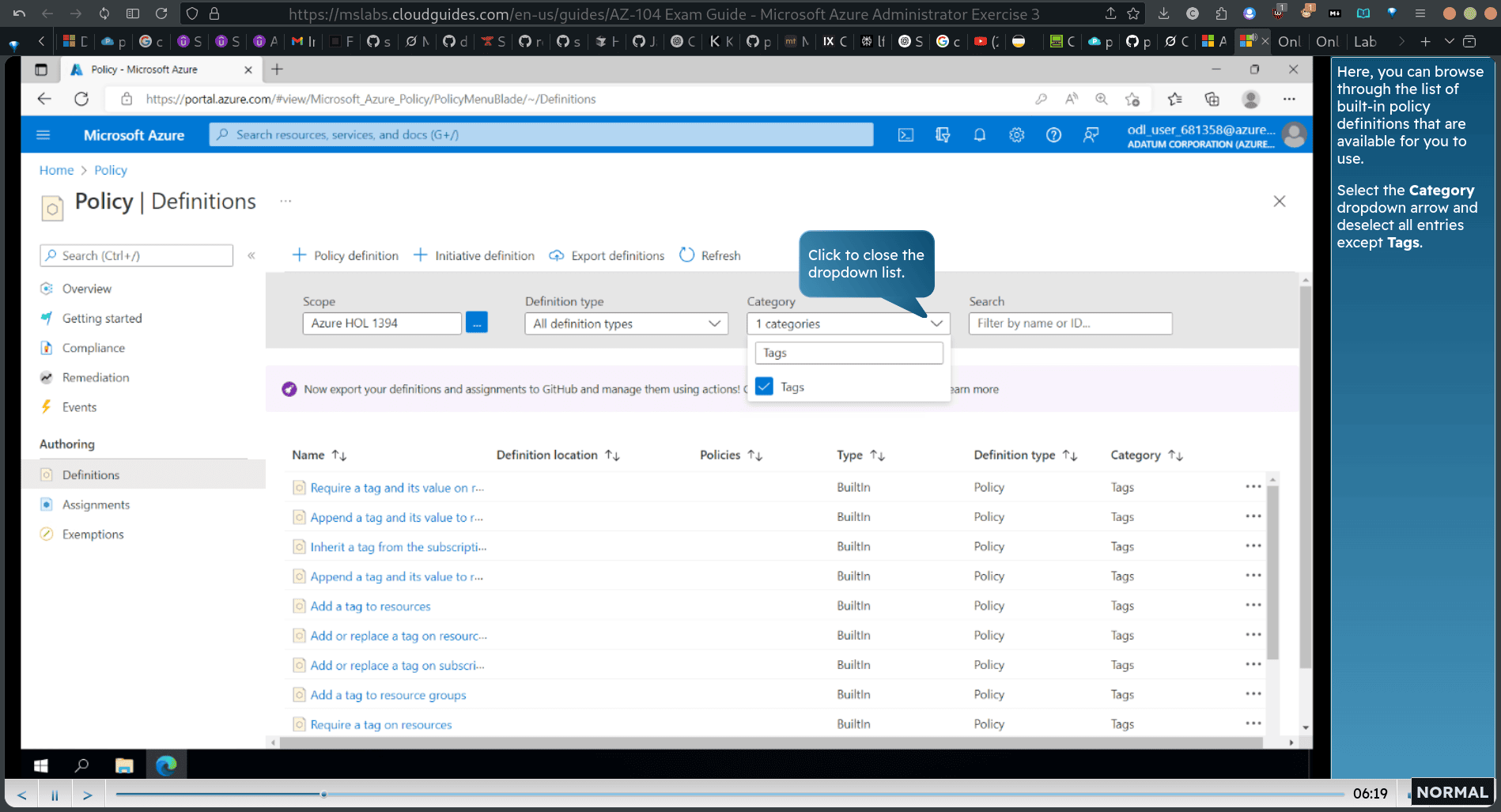

search policy → Definition

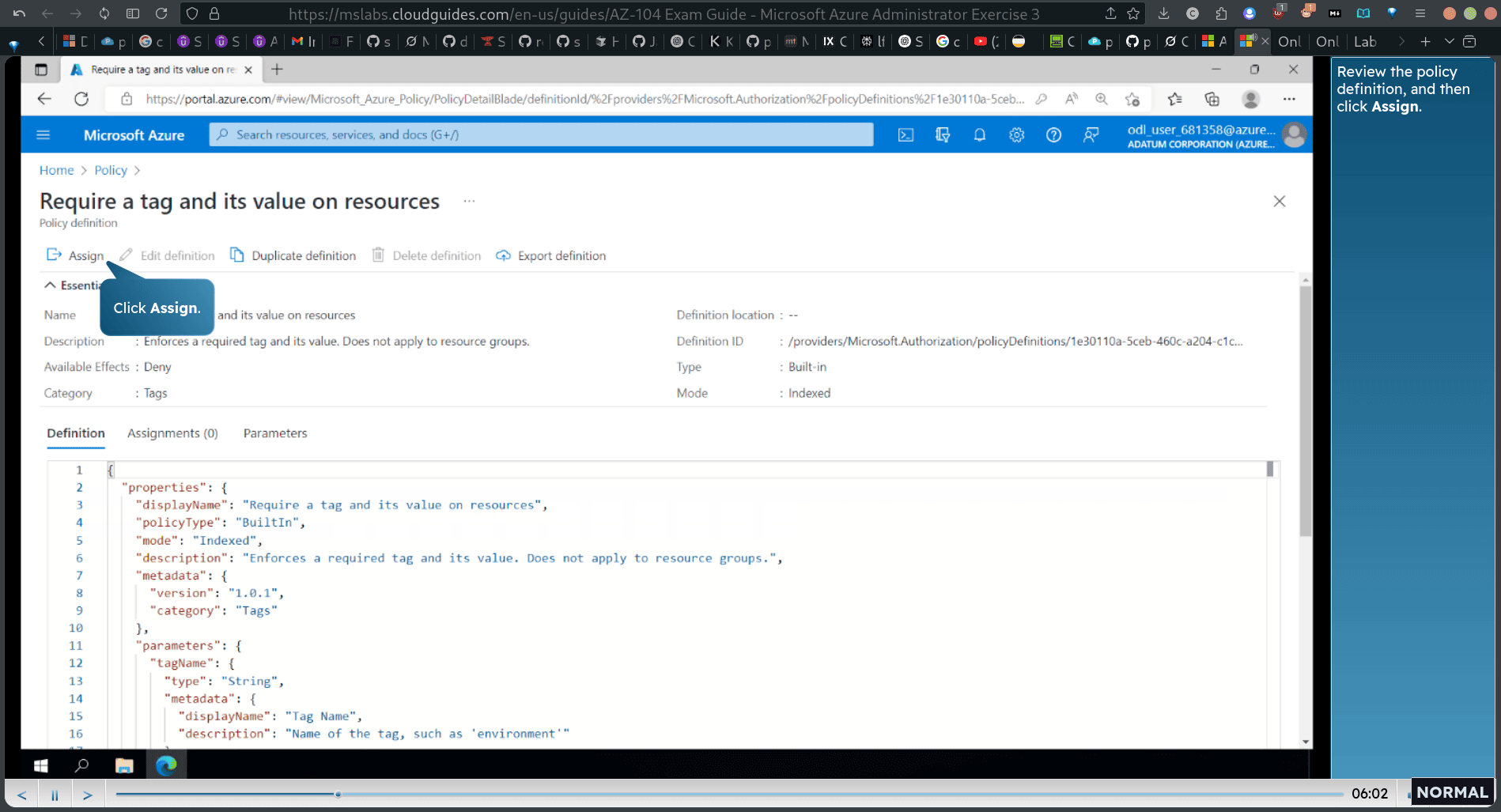

assign

define the scope

review and created

go back to the resource group

click created

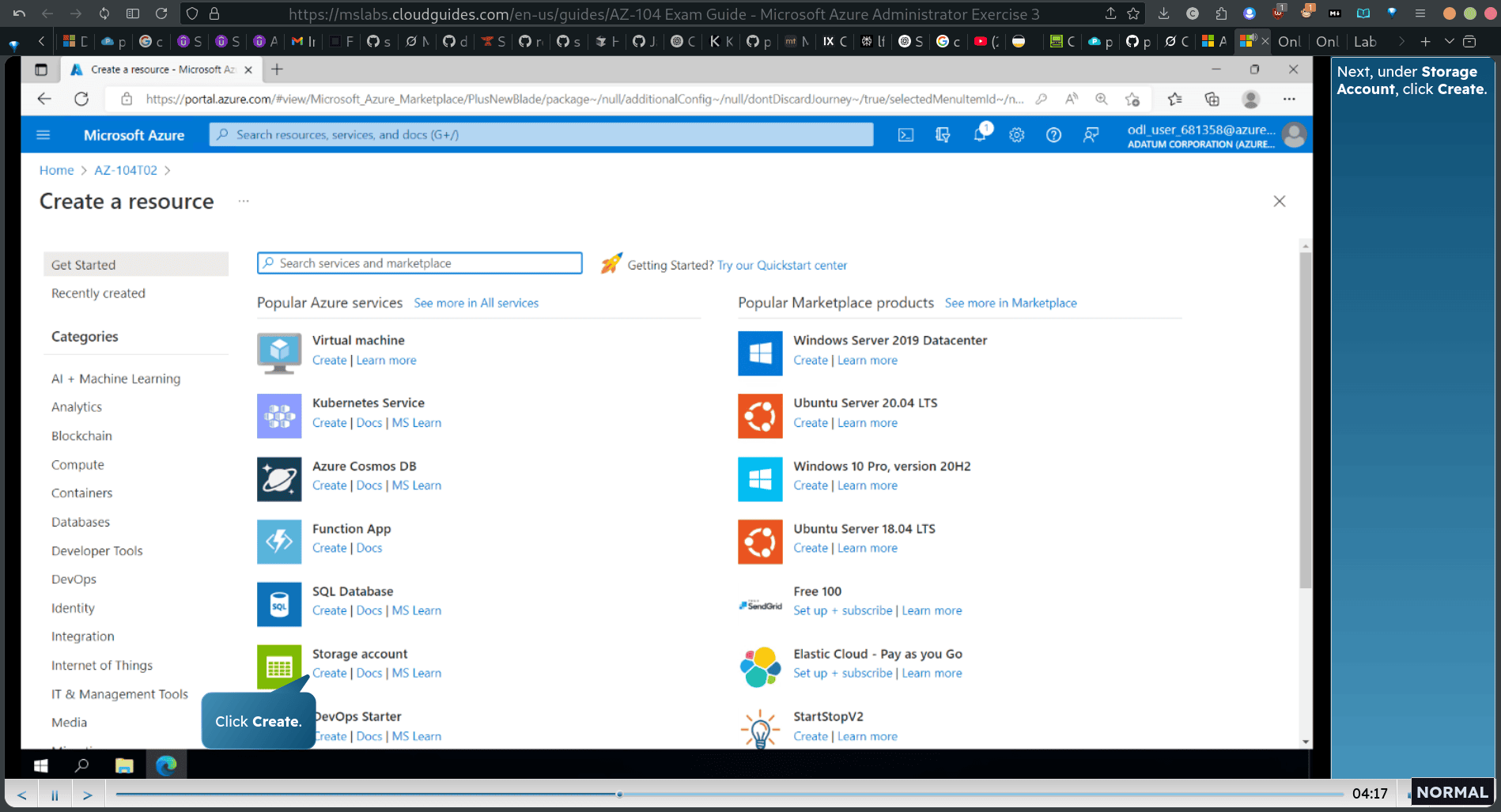

new storage

Task 3: Apply tagging via an Azure policy

search policy → assignment

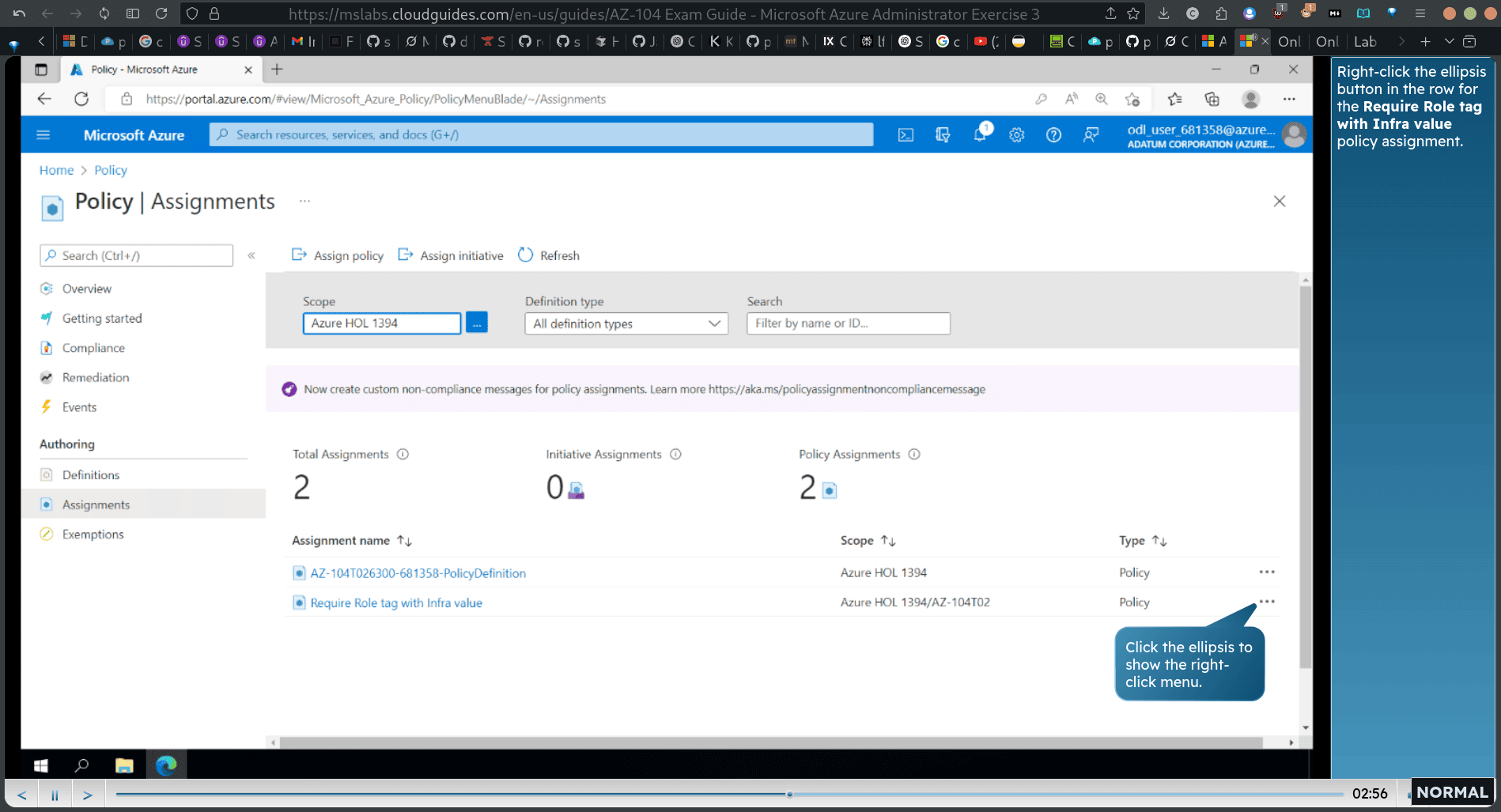

delete assignemn and confirm

click assign policy , → scope →

click policy defitinion → more

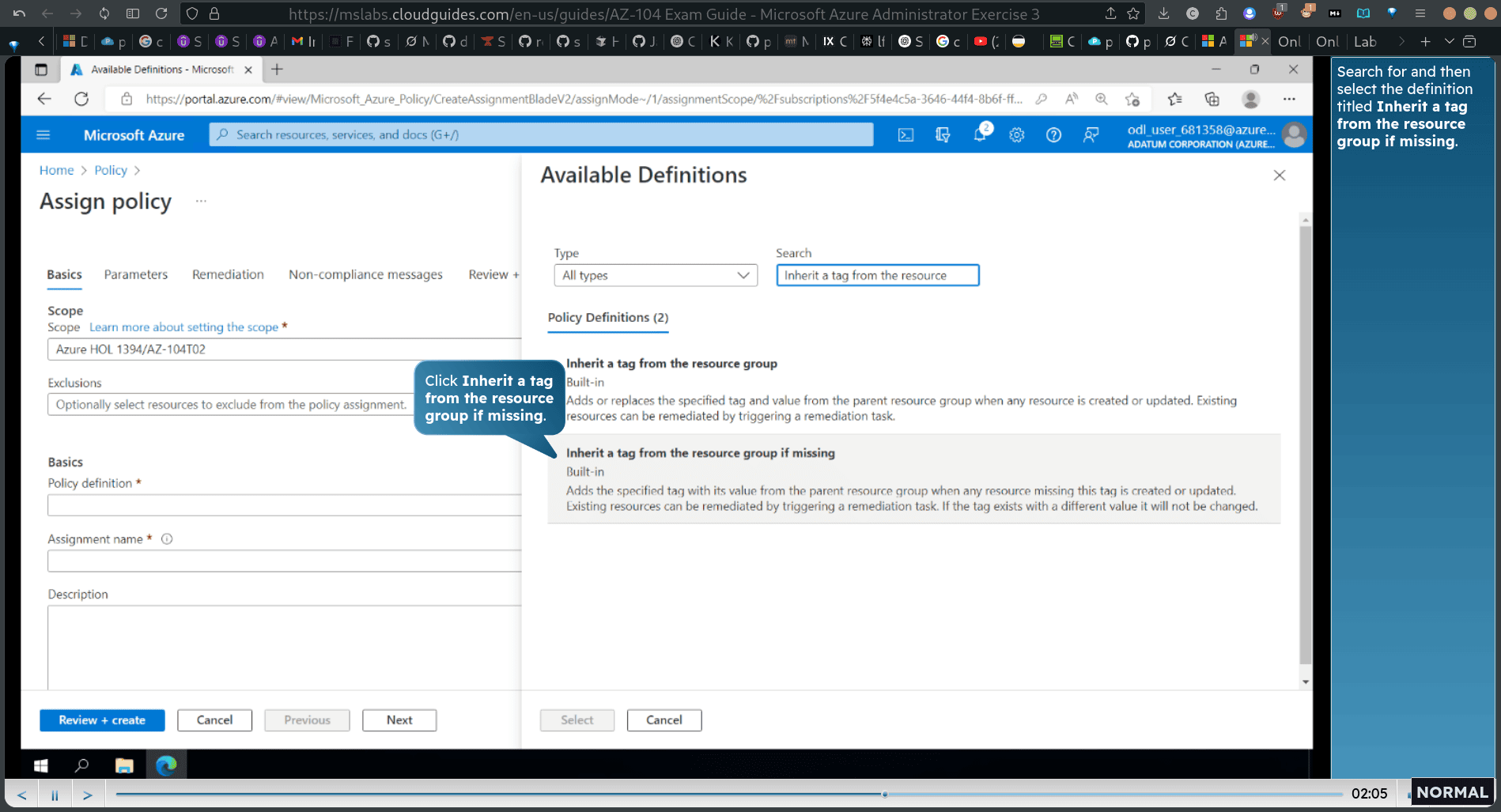

Inherit a tag from the resource group if missing

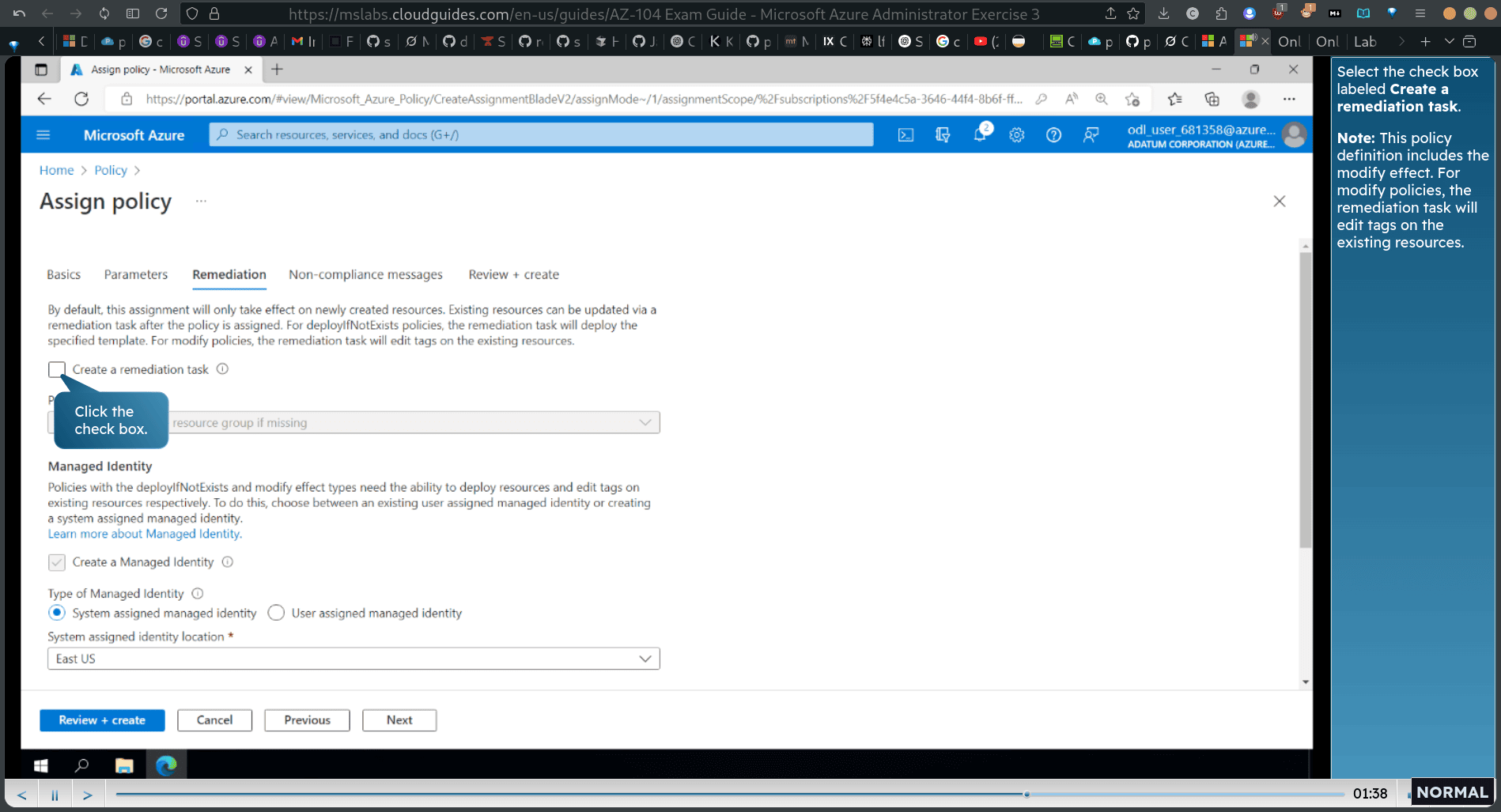

Select the check box labeled Create a remediation task.

create

now new created storage account will come up tag in the front end (go the resource→ overview : tag )

4. Manage Azure resources by using the Azure portal >

Task 1: Deploy resources to an existing resource group

search disk

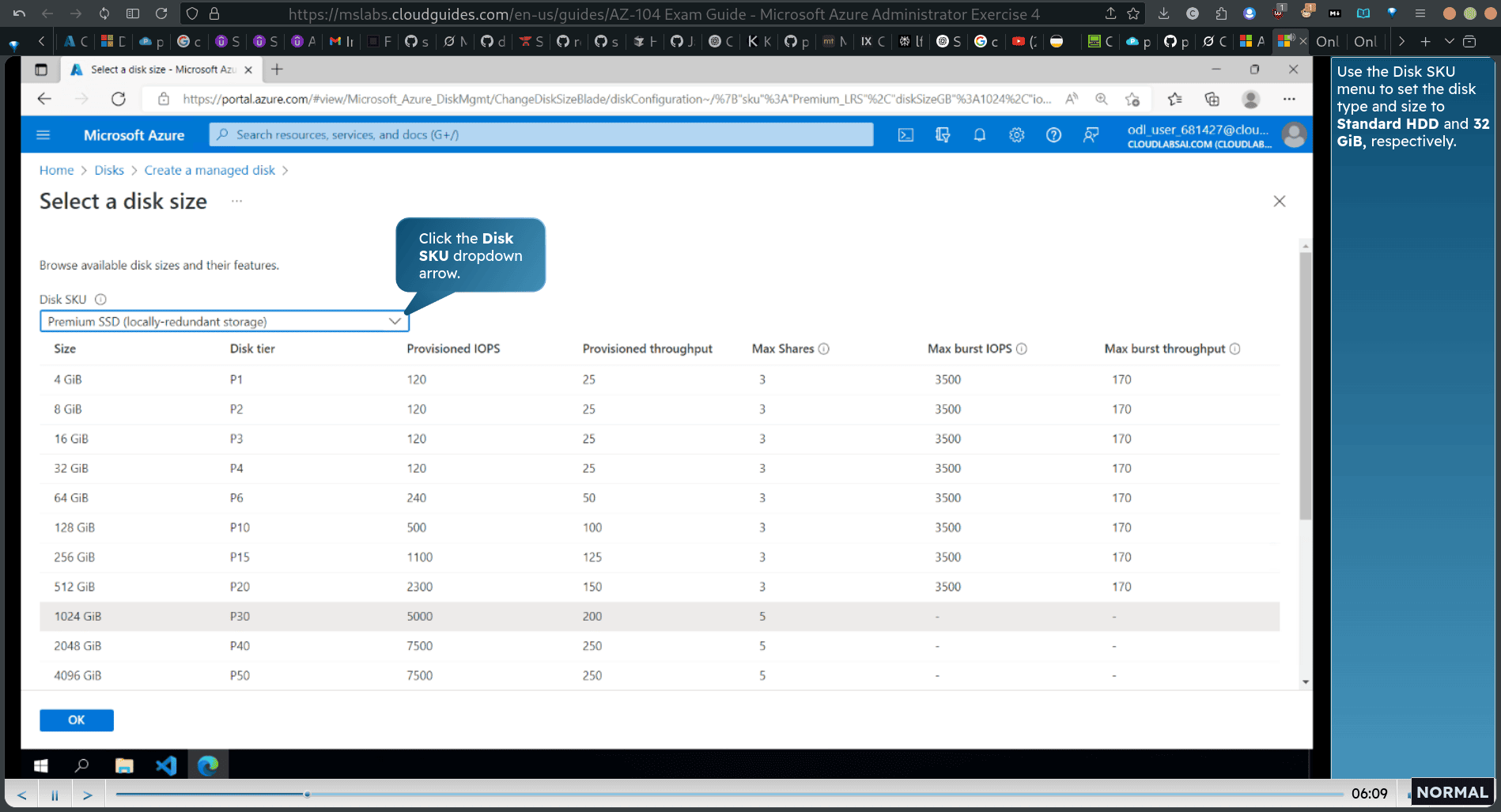

32 gb → create

Task 2: Move a resource between resource groups

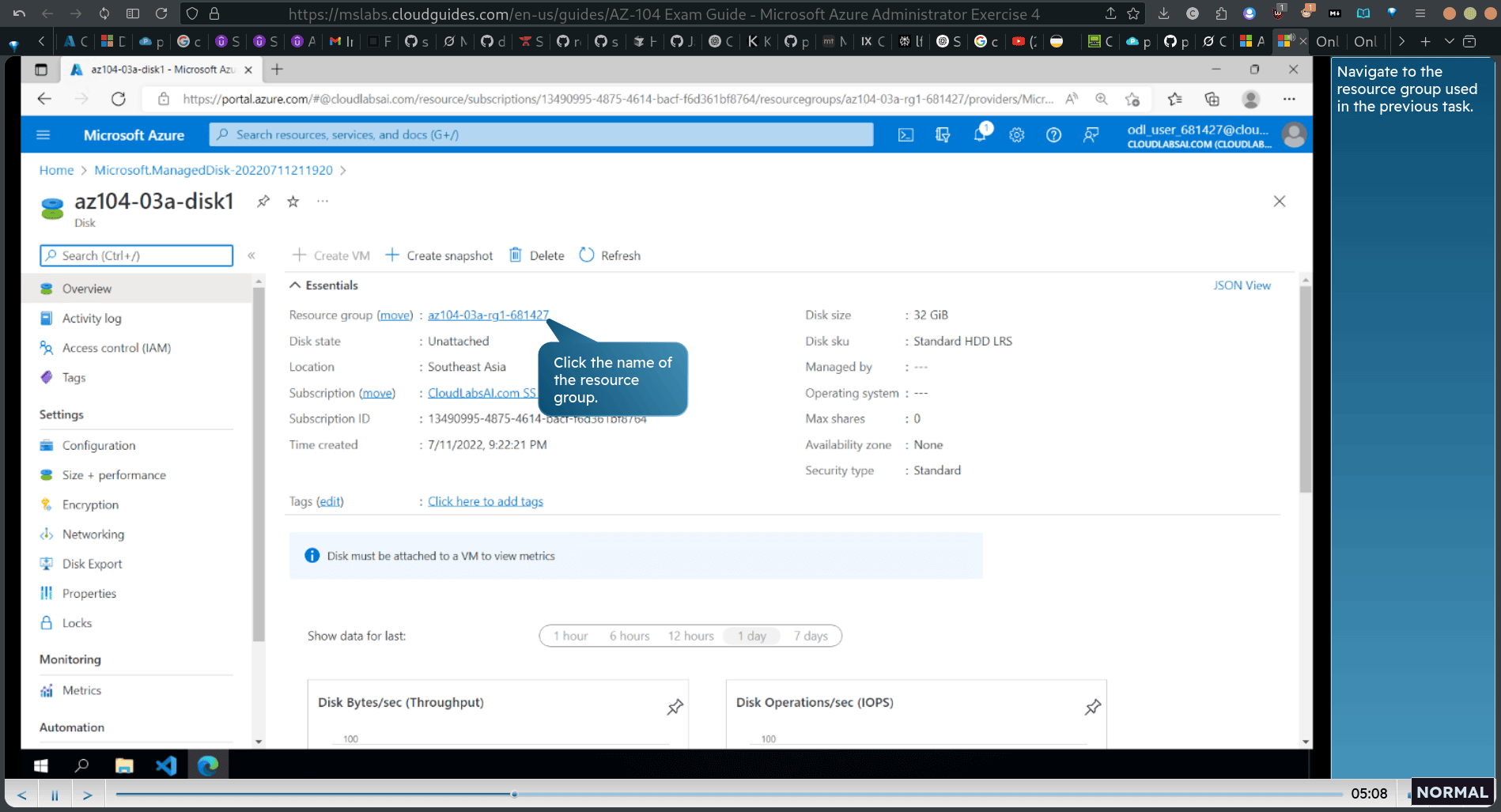

select new disk → move → move to other resource groups

search resource group and verify

Task 3: Implement and test a resource lock

delete lock from a new disk item

warning → delet fail

5. Manage Azure resources by using Azure Resource Manager templates >

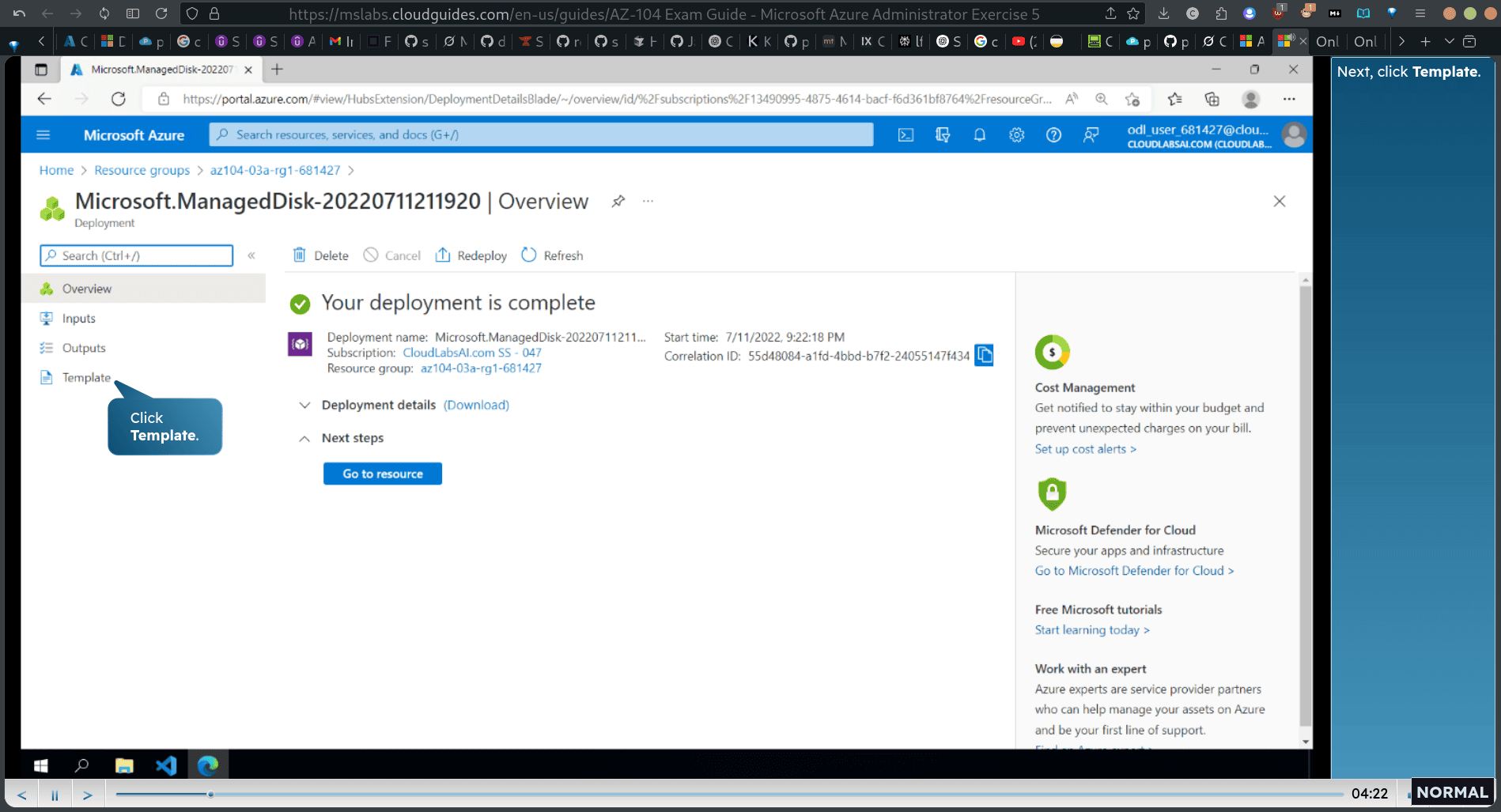

Task 1: Review an ARM template for deployment of an Azure managed disk

deployment

select one and → template

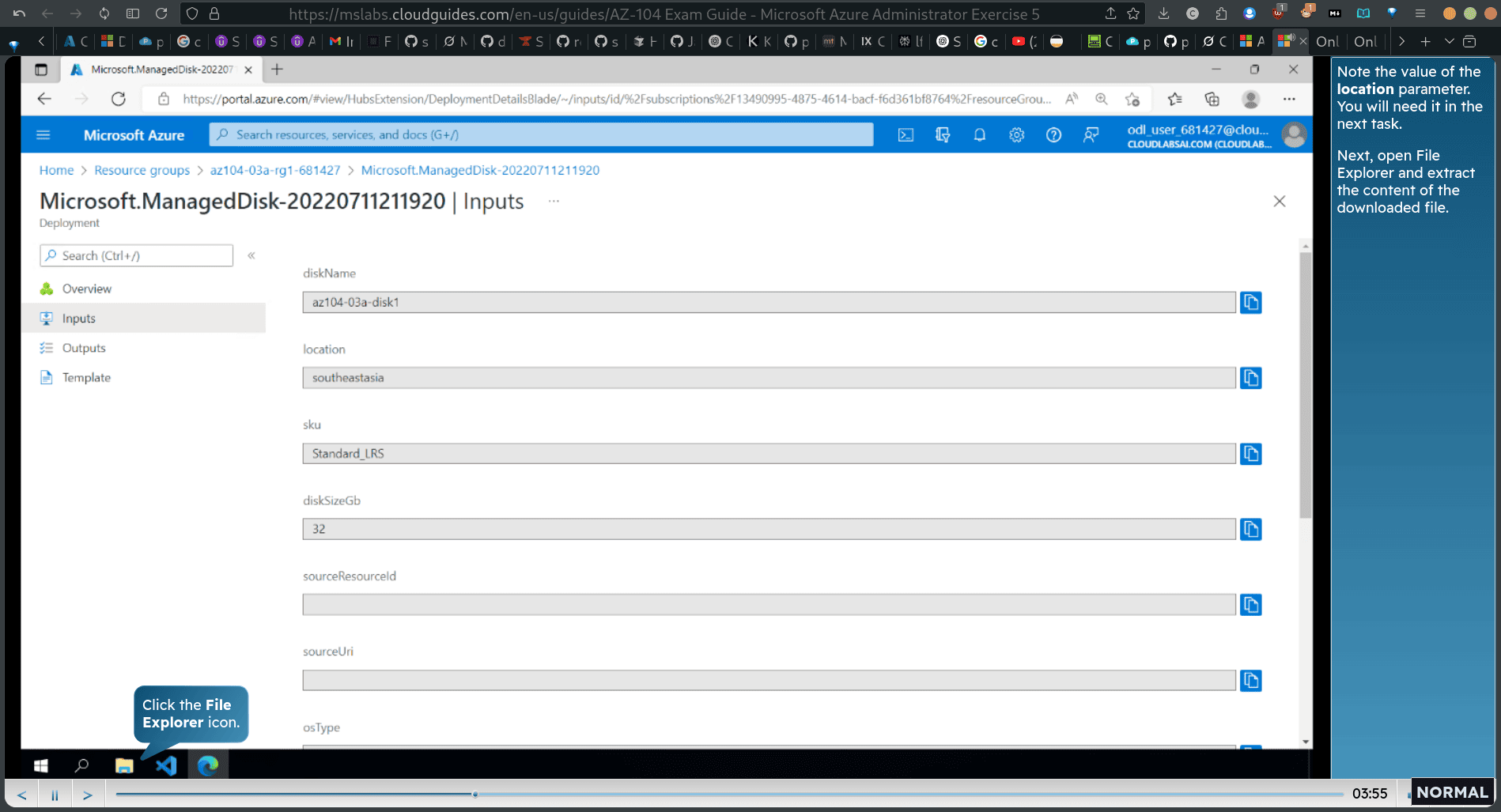

click input and look for the info

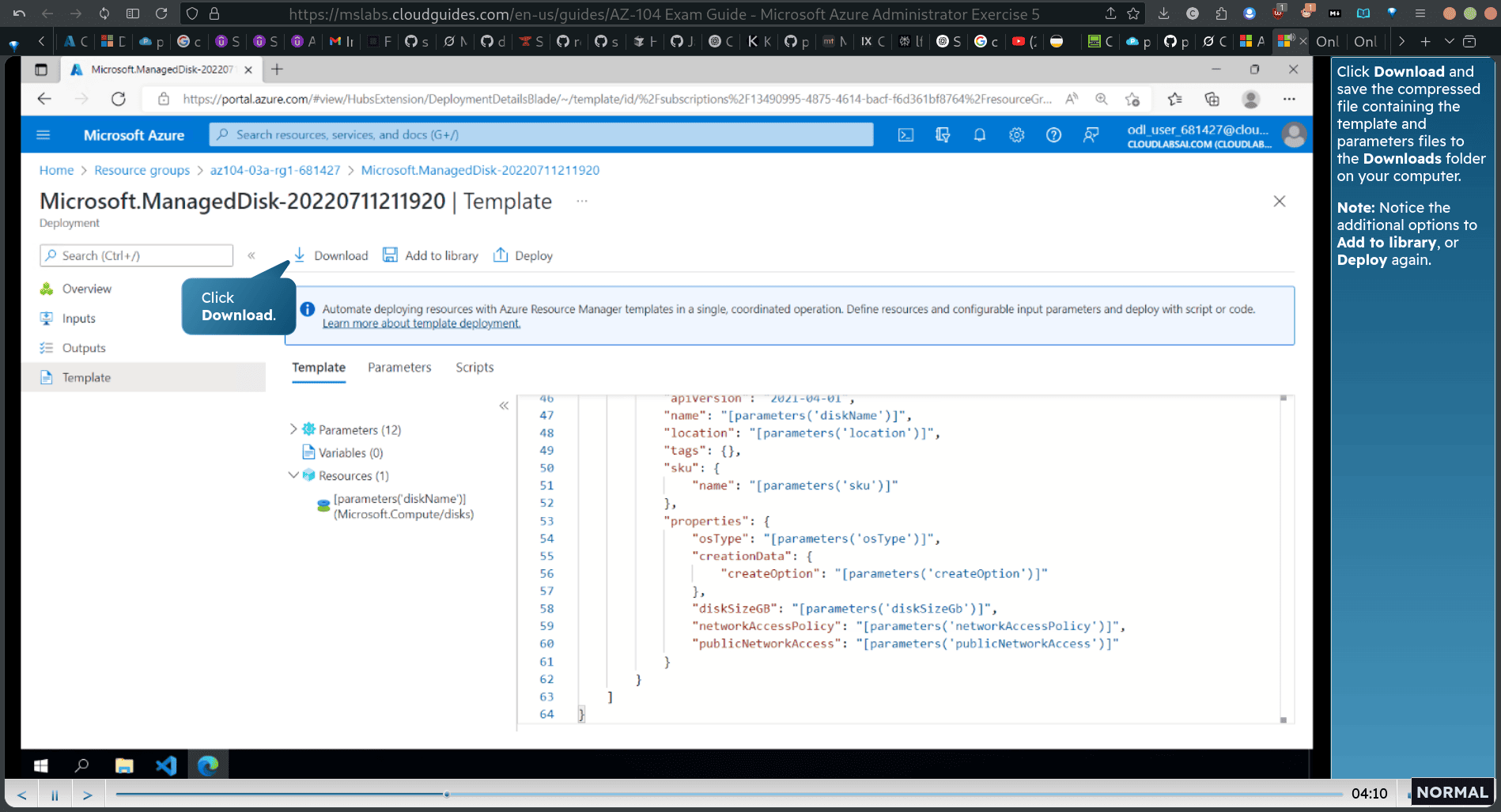

extract the downloaded file

Task 2: Create an Azure managed disk by using an ARM template

Search Deploy a custom template in portal

click build your won template

load file

upload the download and extracted template

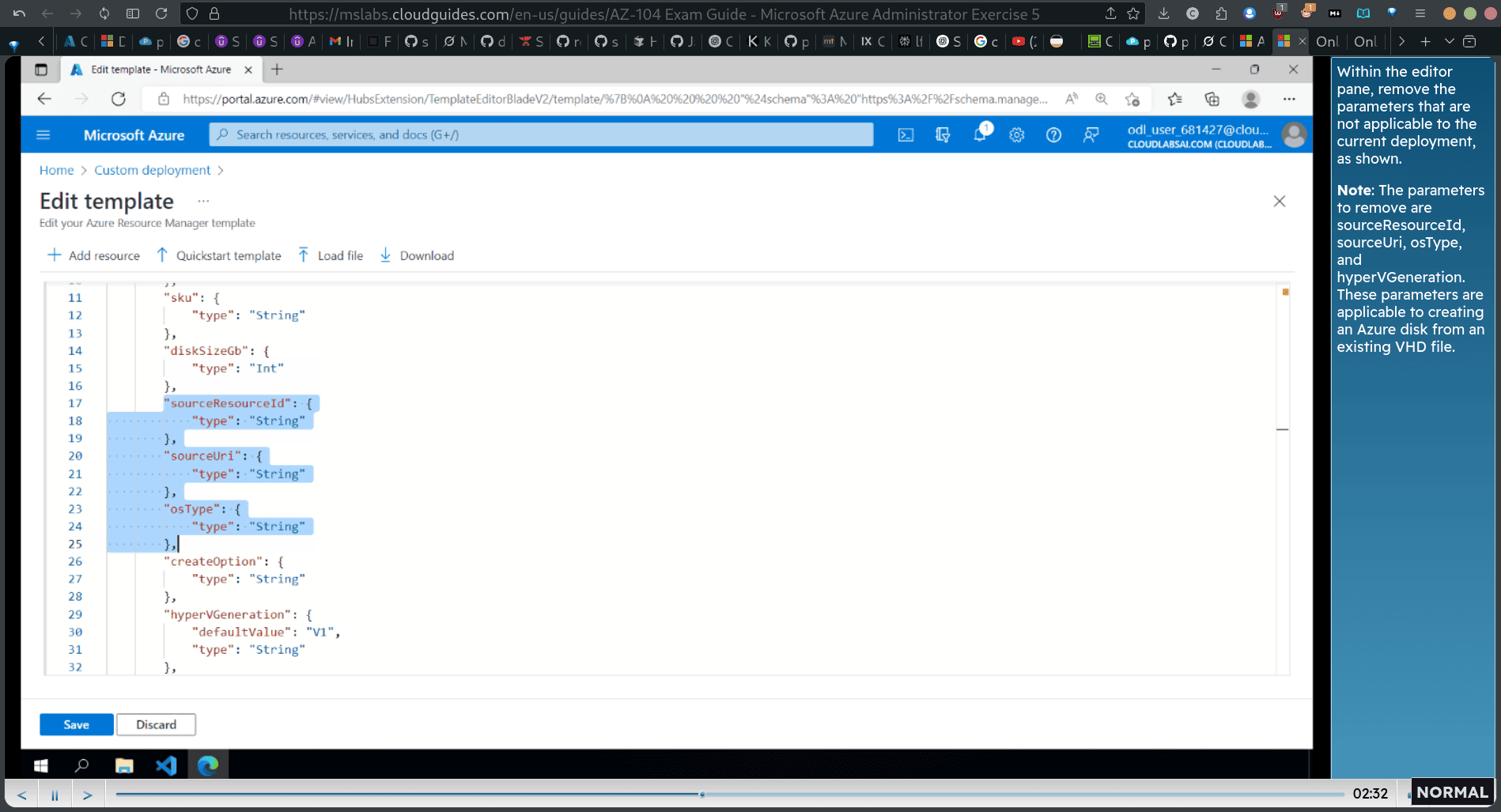

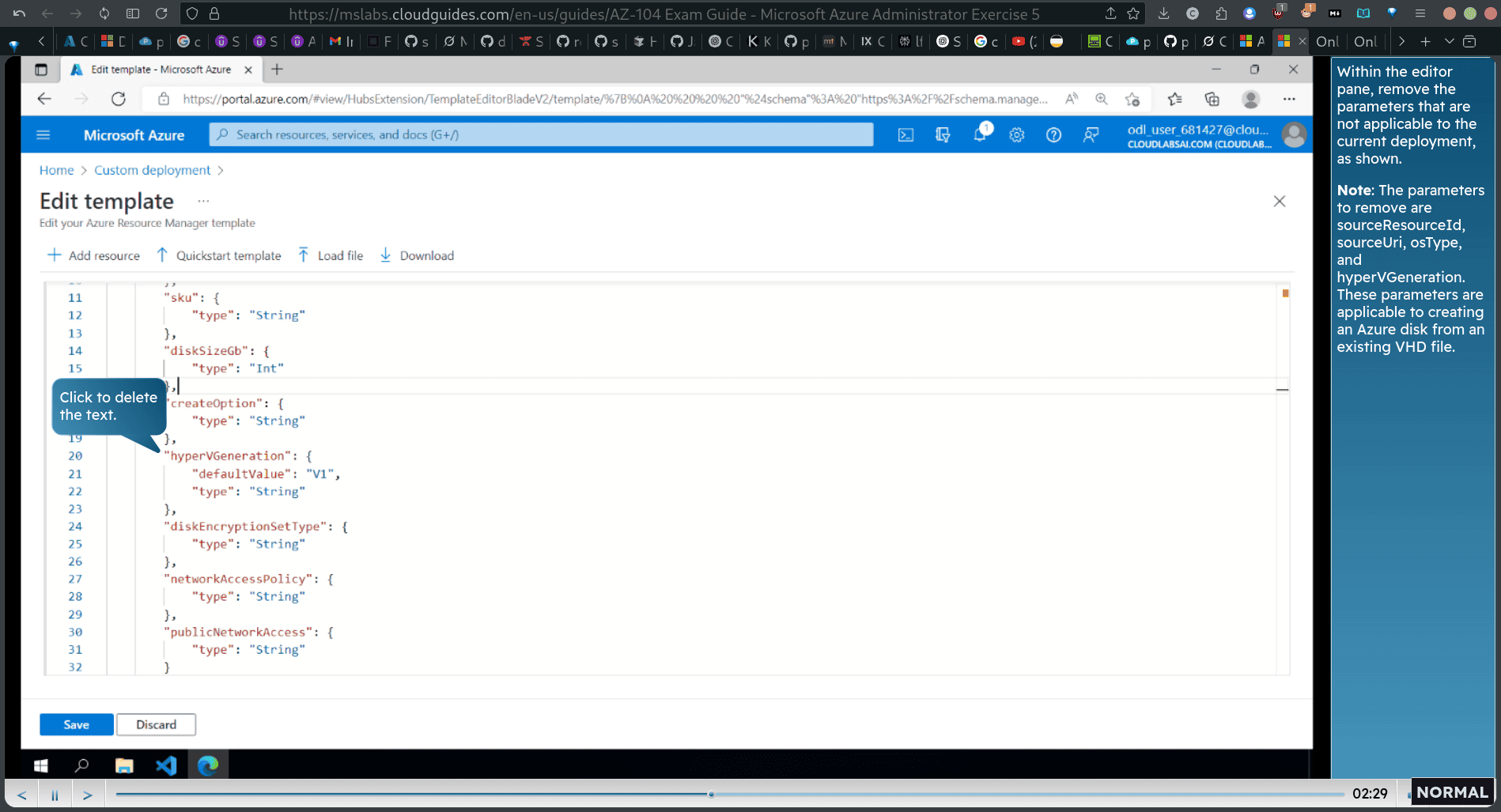

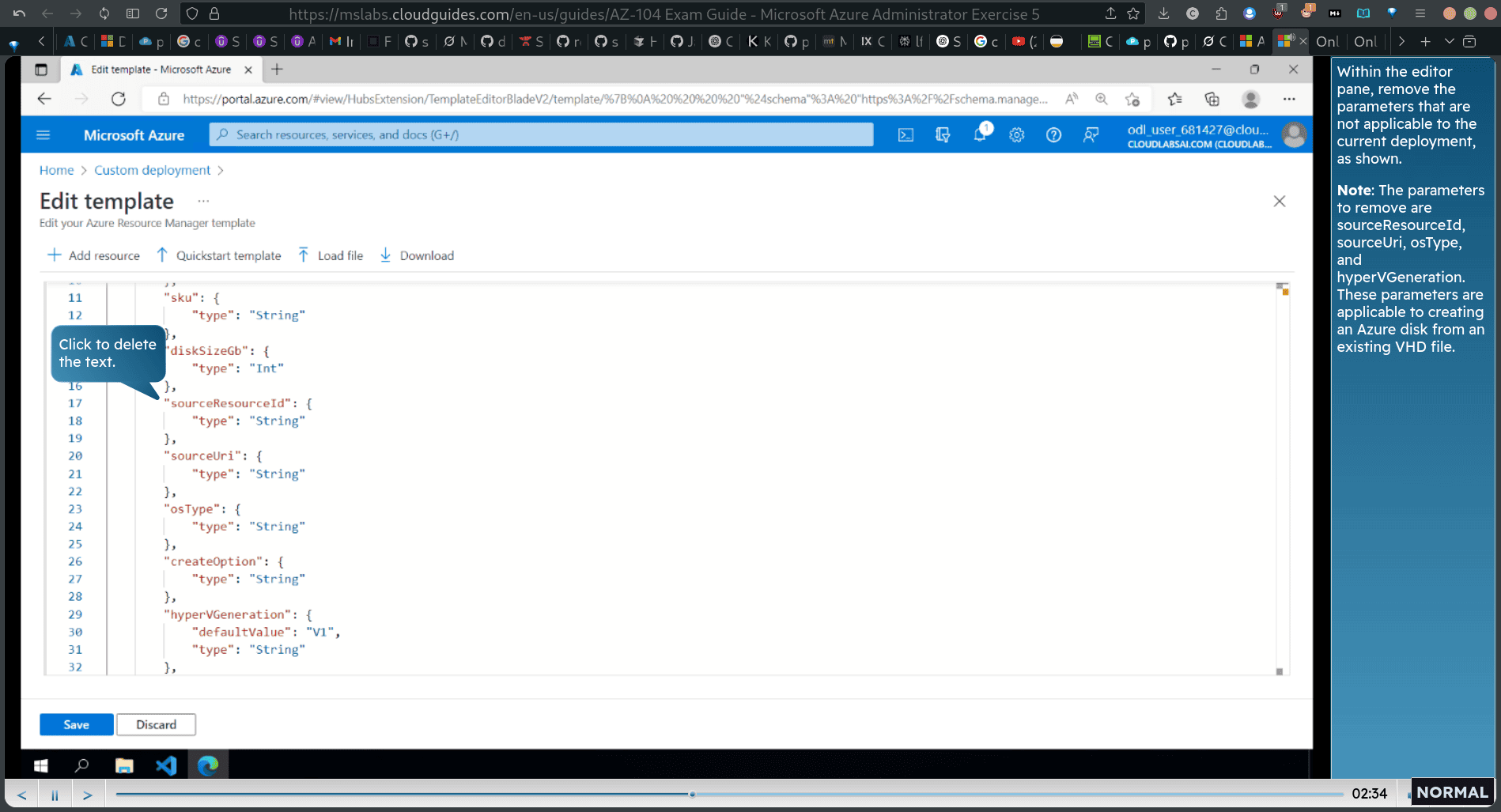

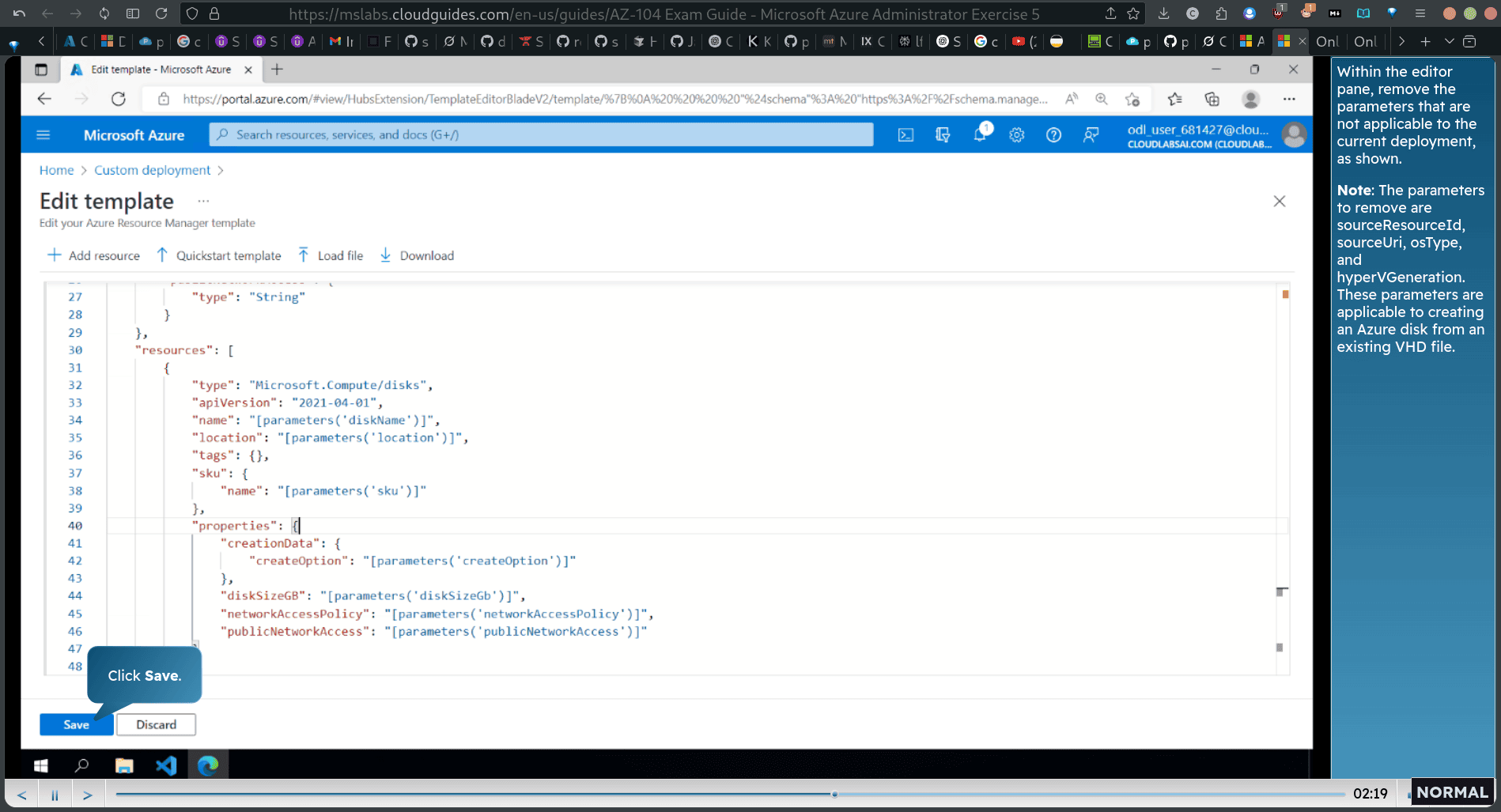

remove the unnessary item in json

delete these three

and this one

delete the os line as well

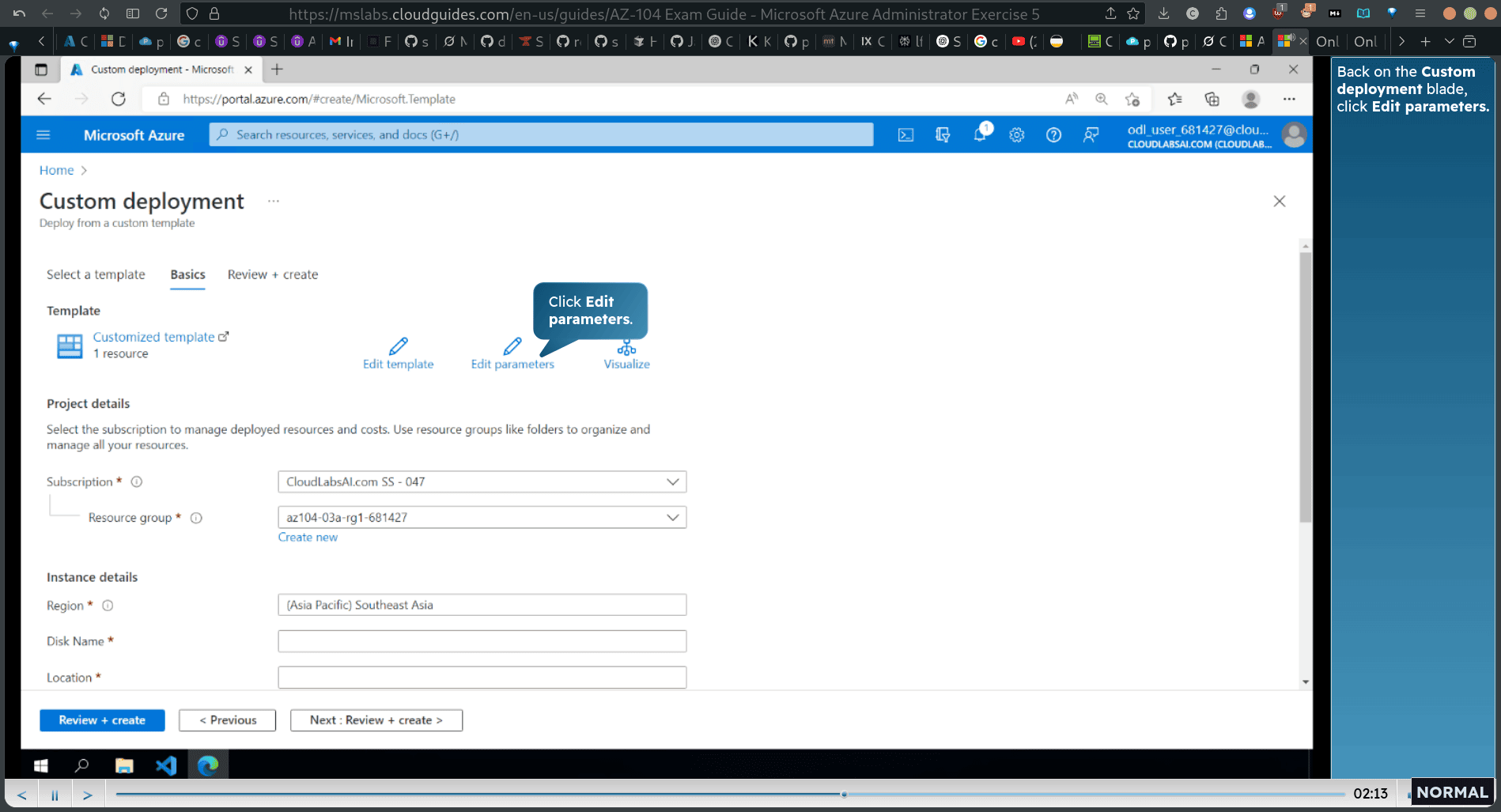

edit parameters

click load file and upload parameter from extrated file

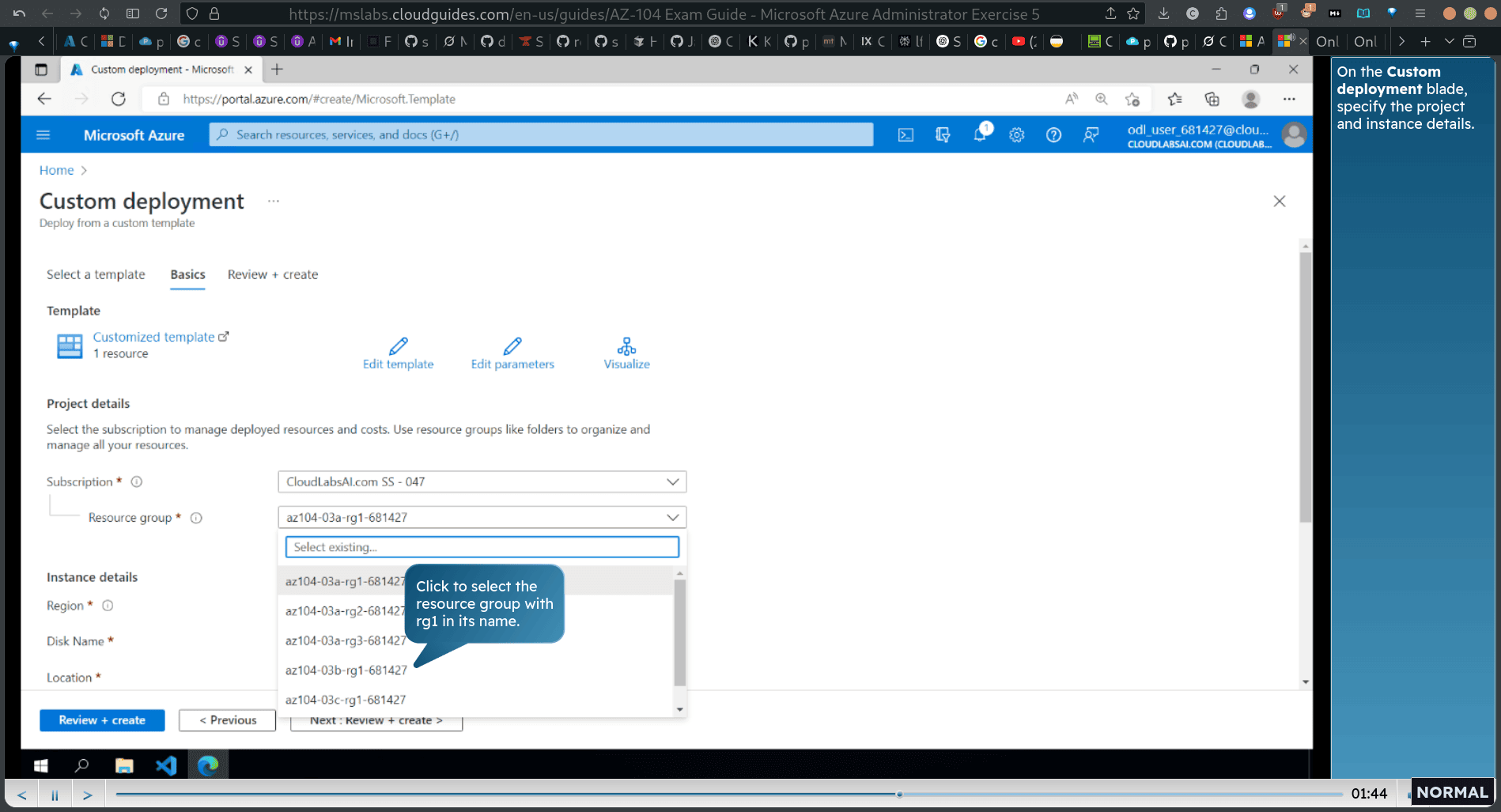

change the resource group if necessary, like disk name

create

Task 3: Review the ARM template-based deployment of the managed disk

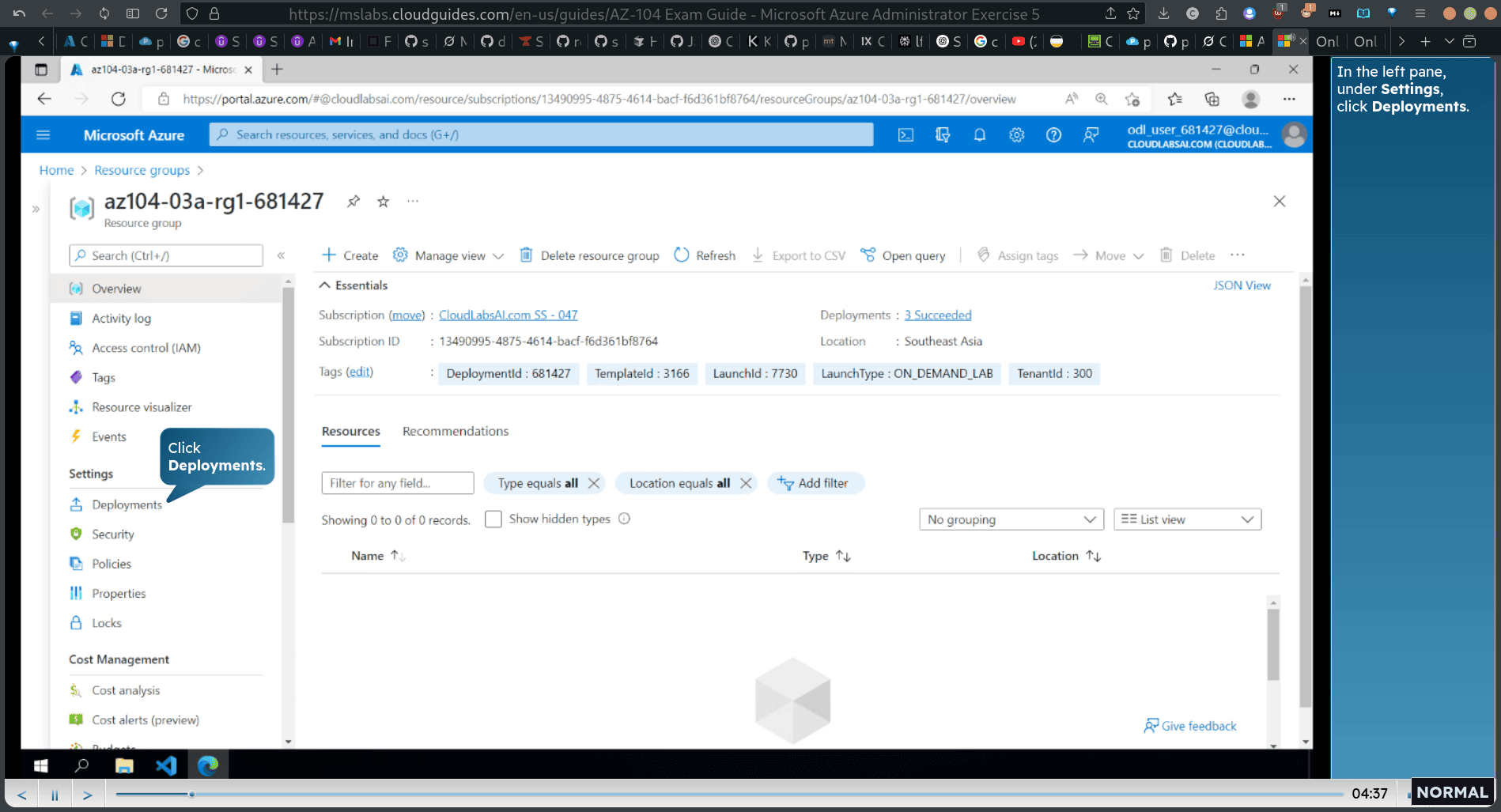

search resource group → deployment → select → inputs and templates

6. Manage Azure resources by using Azure PowerShell

Task 1: Start a PowerShell session in Azure Cloud Shell

cloud shell → powershell

Task 2: Create a resource group and an Azure managed disk by using Azure PowerShell

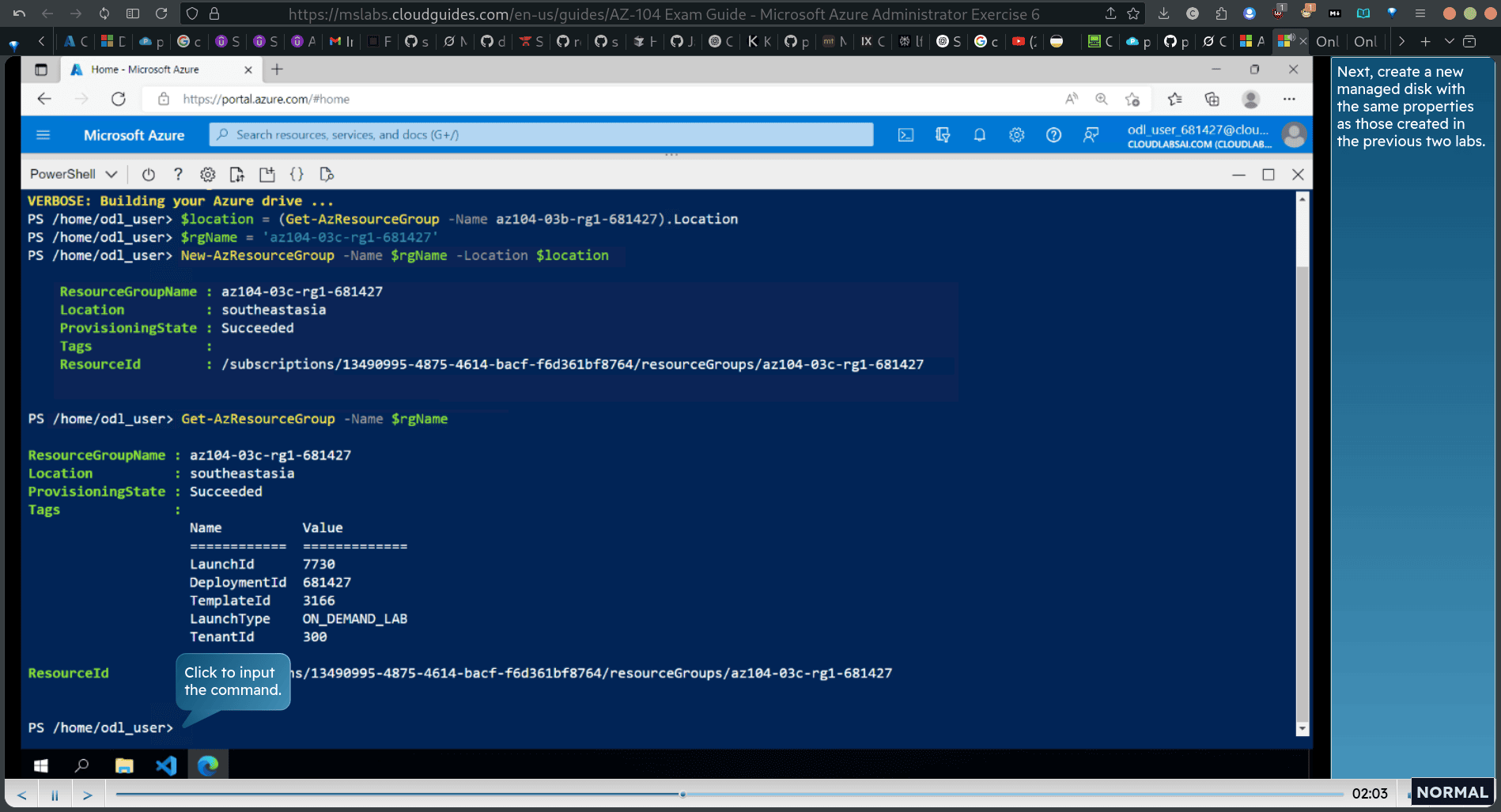

$location = (Get-AzResourceGroup -Name az104-03b-rgl-681427).Location

From the PowerShell session within Azure Cloud Shell, run the commands as shown to create a resource group in the same Azure region as the resource group you created in the previous lab.

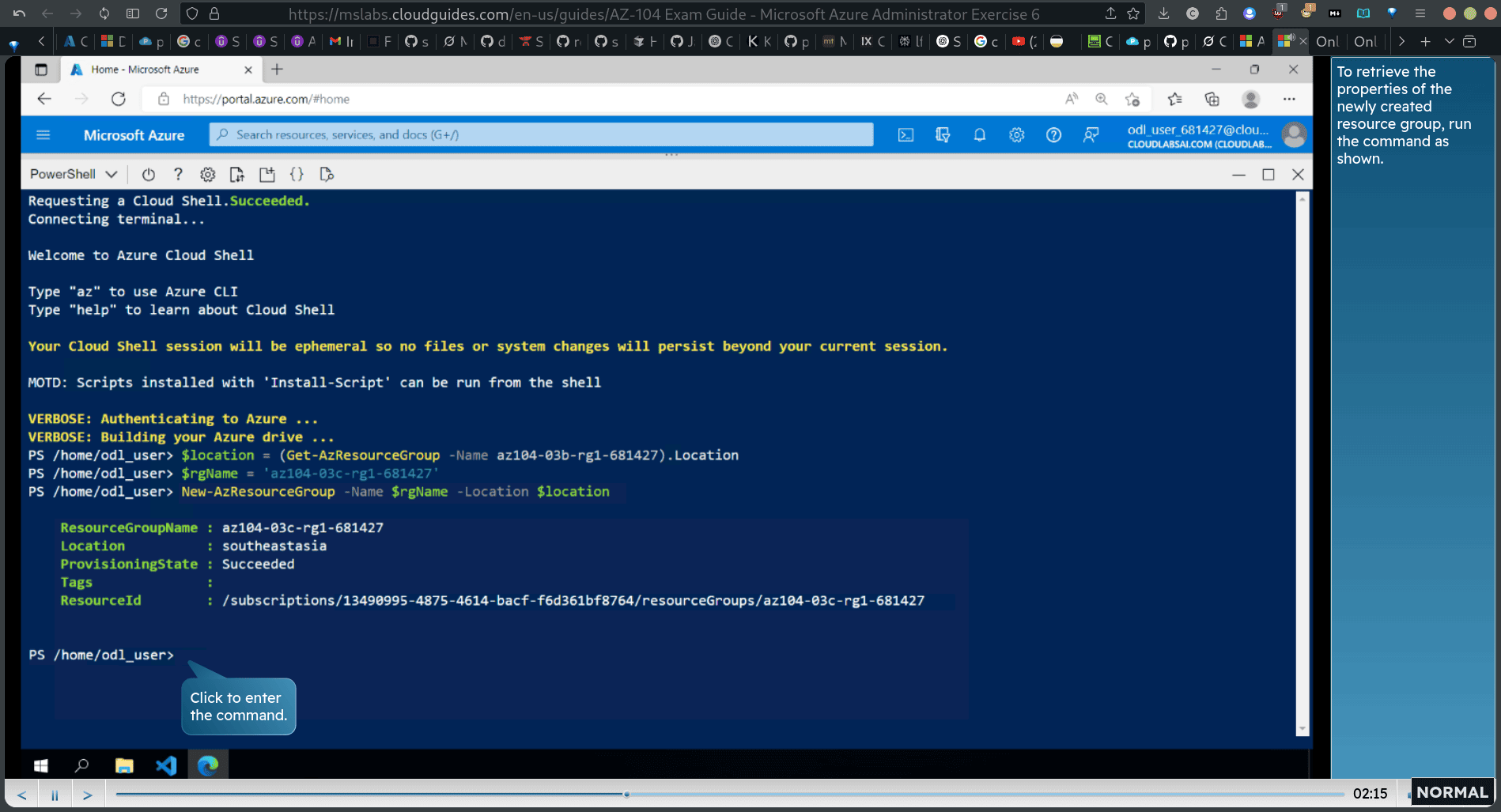

New-AzResourceGroup -Name $r g N am e - L oc a t i o n$ location

Get-AzResourceGroup -Name $rgName

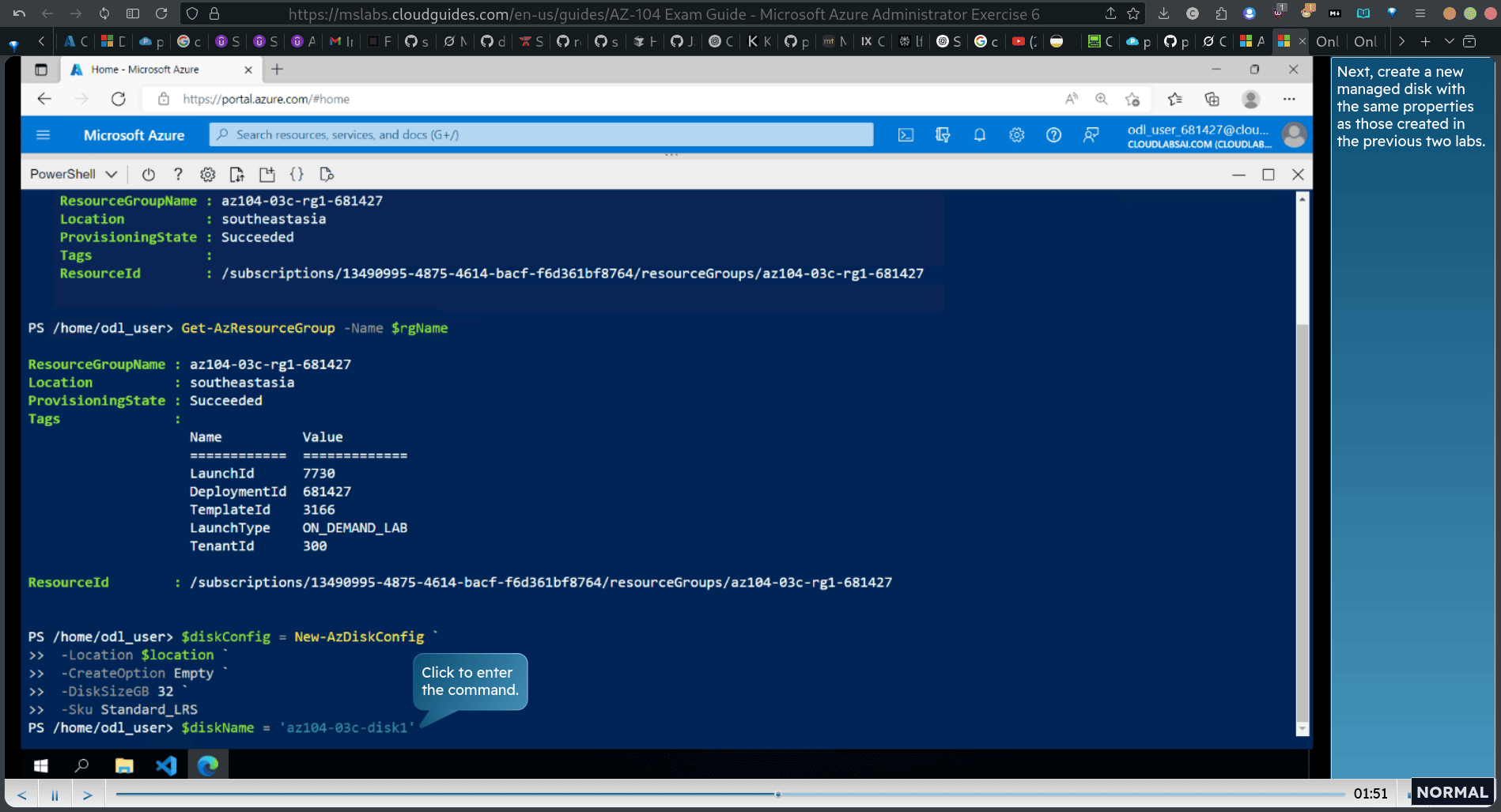

Next, create a new managed disk with the same properties as those created in the previous two labs.

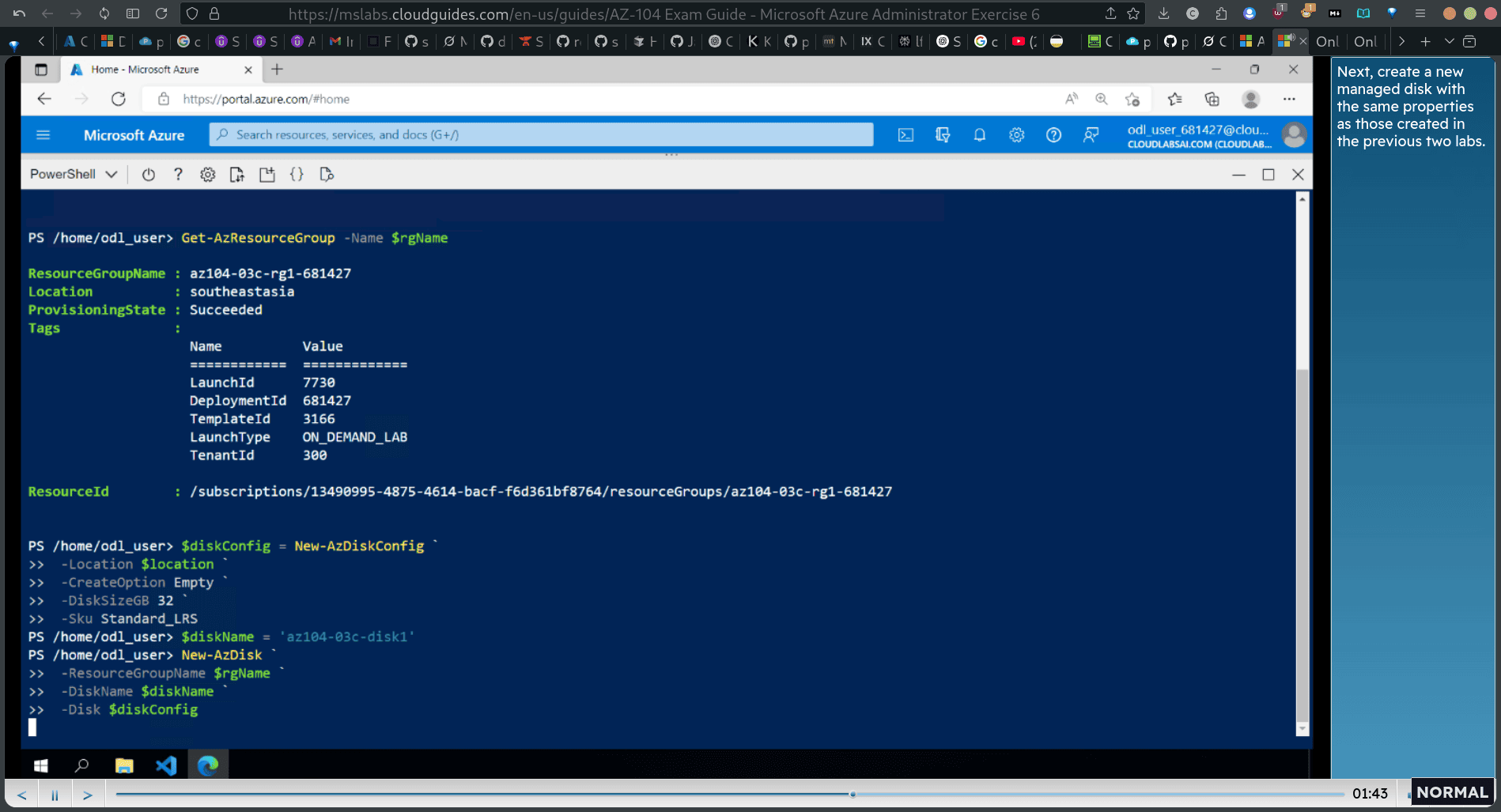

$diskConfig = New-AzDiskConfig `

properitis

Get-AzDisk -ResourceGroupName $r g N am e - N am e$ diskName

Task 3: Configure the managed disk by using Azure PowerShell

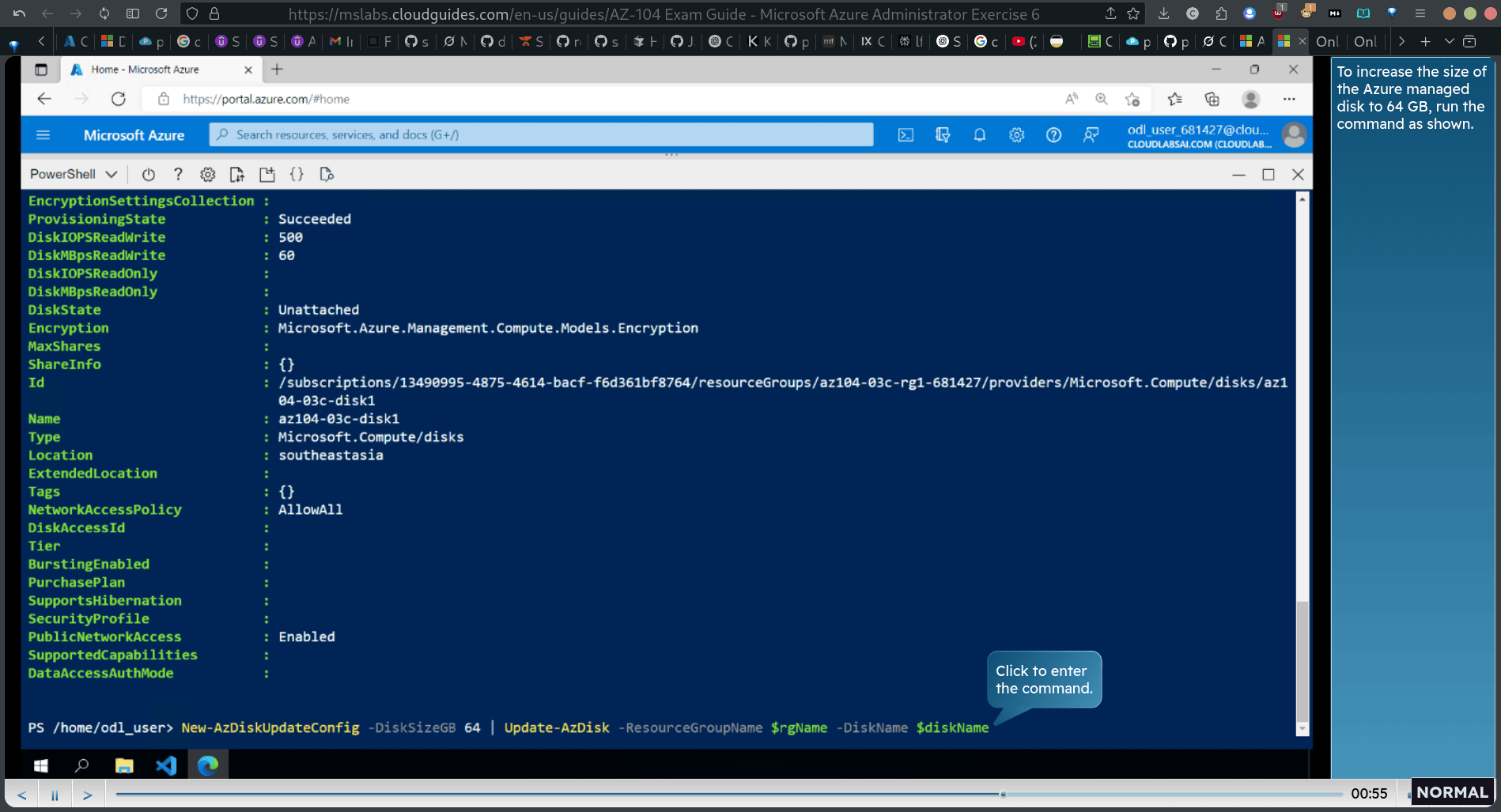

New-AzDiskUpdateConfig -DisksizeGB 64 | Update-AzDisk -ResourceGroupName $r g N am e - D i s k N am e$ diskName

verify the change

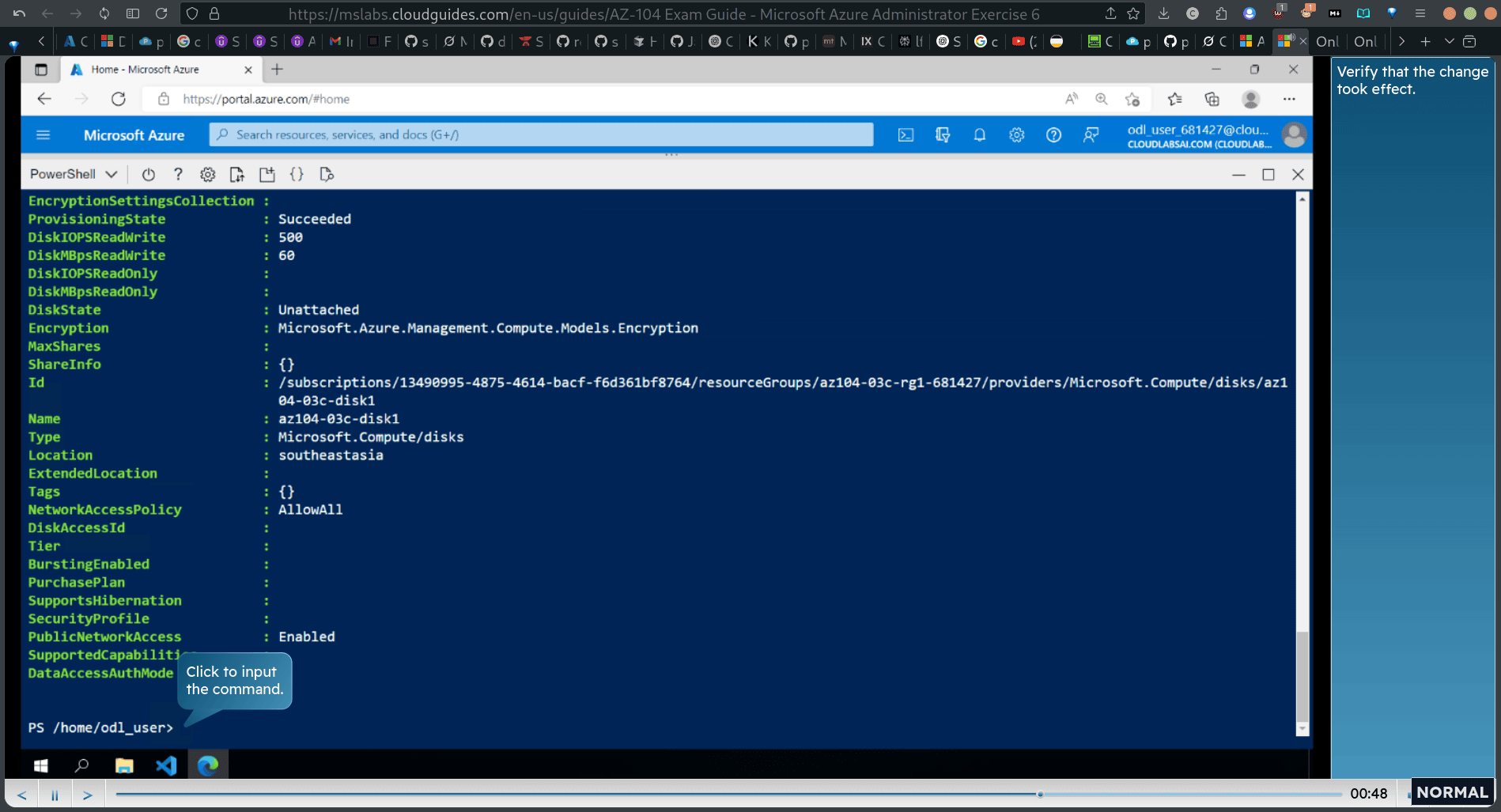

Get-AzDisk -ResourceGroupName $r g N am e - N am e$ diskName

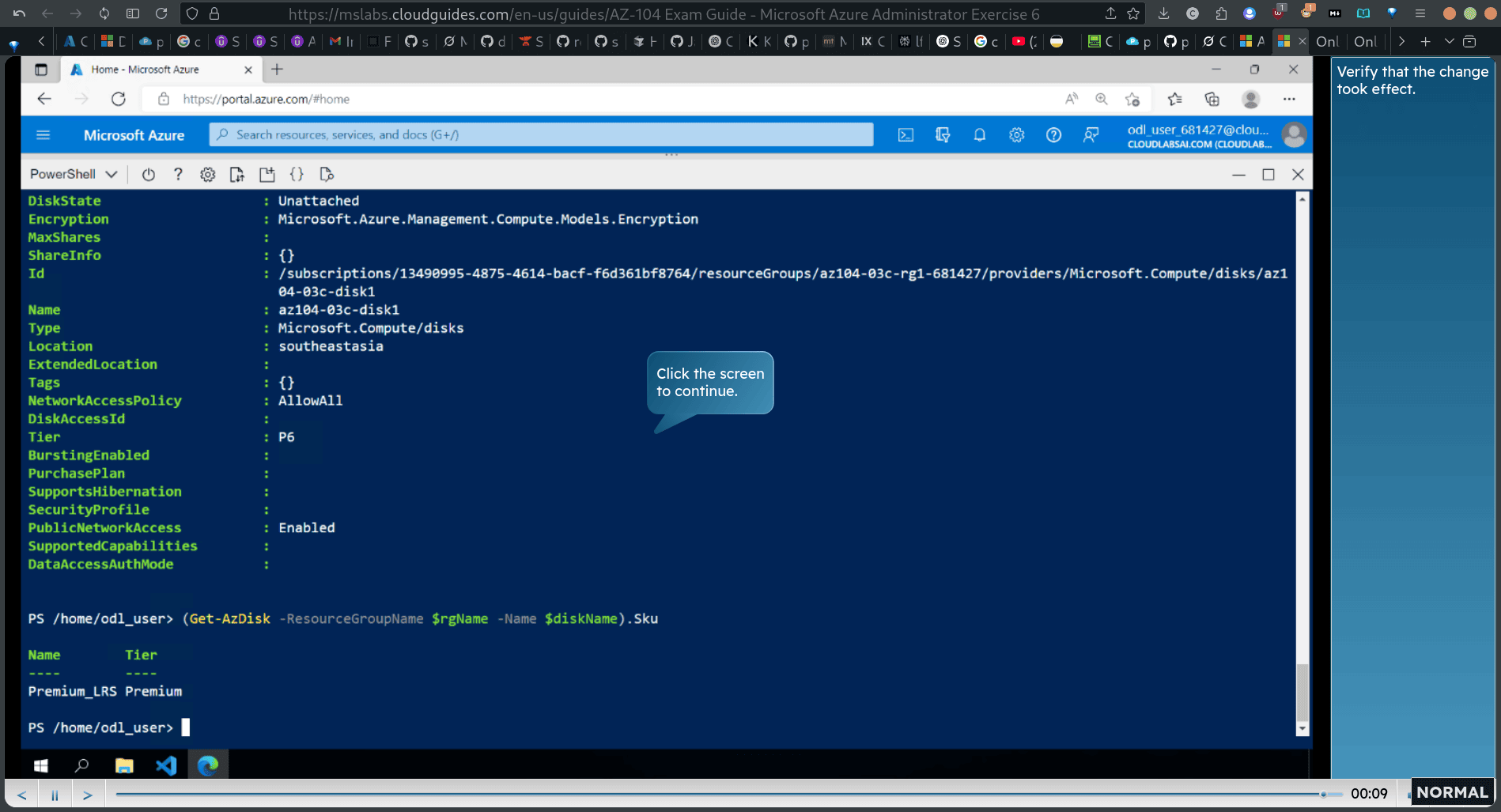

(Get-AzDisk -ResourceGroupName $r g N am e - N am e$ diskName).Skul verify the current sku

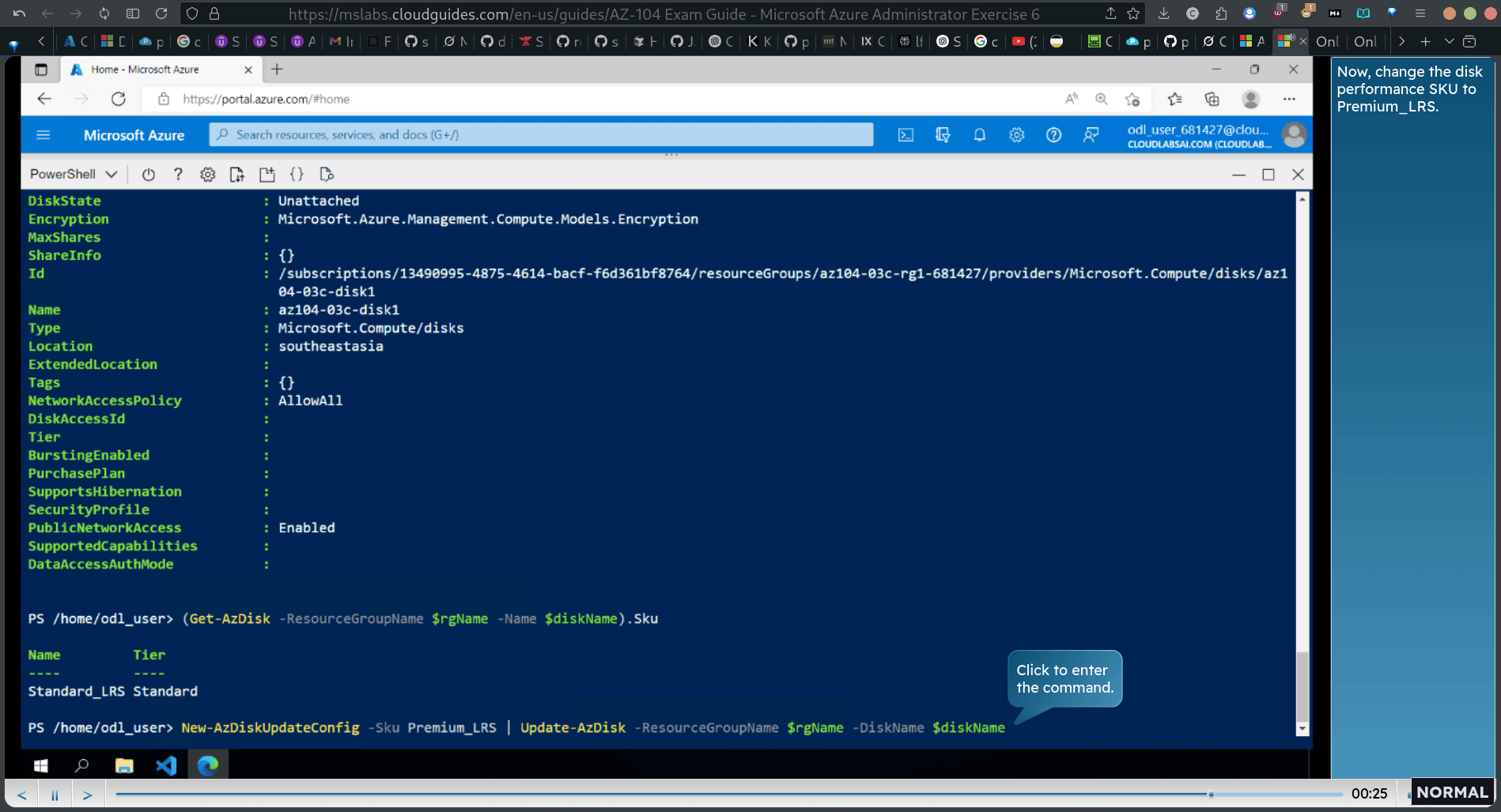

New-AzDiskUpdateConfig -Sku Premium_LRS | Update-AzDisk -ResourceGroupName $r g N am e - D i s k N am e$ diskName

chanage the premium verify the change

7. Manage Azure resources by using the Azure CLI > bash

Task 1: Start a Bash session in Azure Cloud Shell

cloud → bash

Task 2: Create a resource group and an Azure managed disk by using Azure CLI

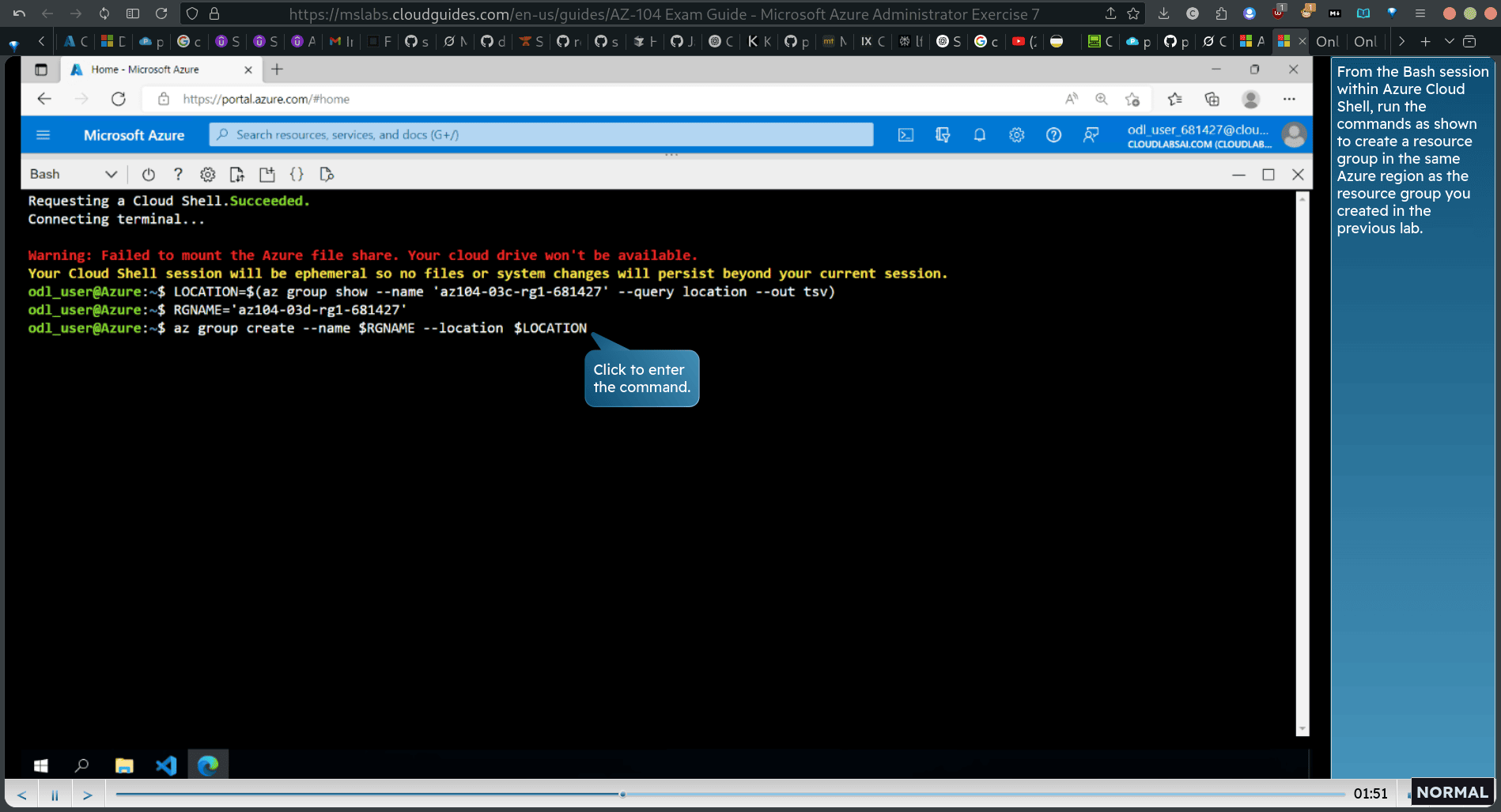

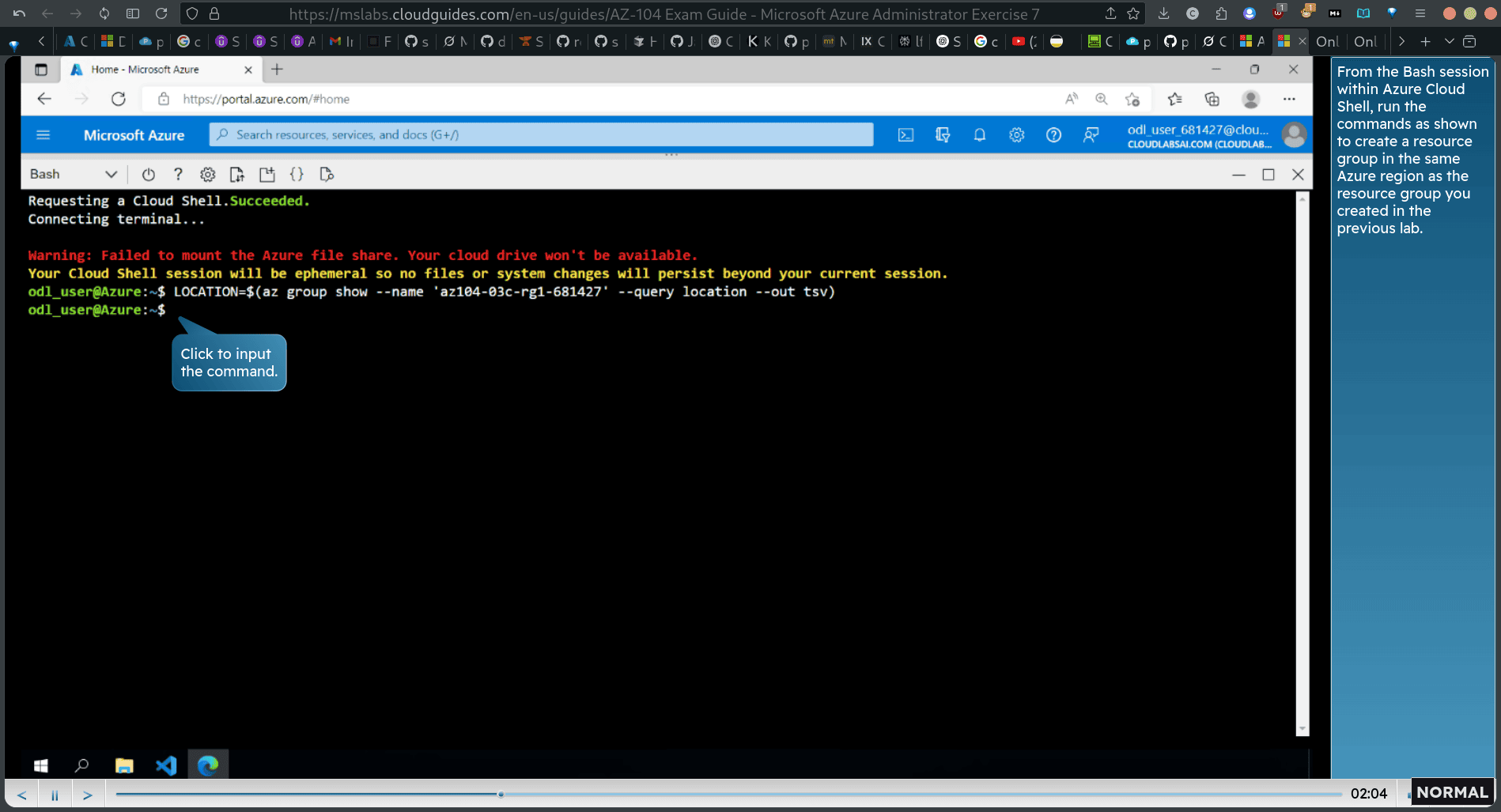

LOCATION=$(az group show —name ‘lle-QZc-rgl-&SlléT —query location —out tsv)

RGNAME=‘az104-03d-rgl-681427”

az group create —name $RGN A ME - - l oc a t i o n$ LOCATION

az group show —name $RGNAME

checking

DISKNAME=‘az104-03d-diskl”

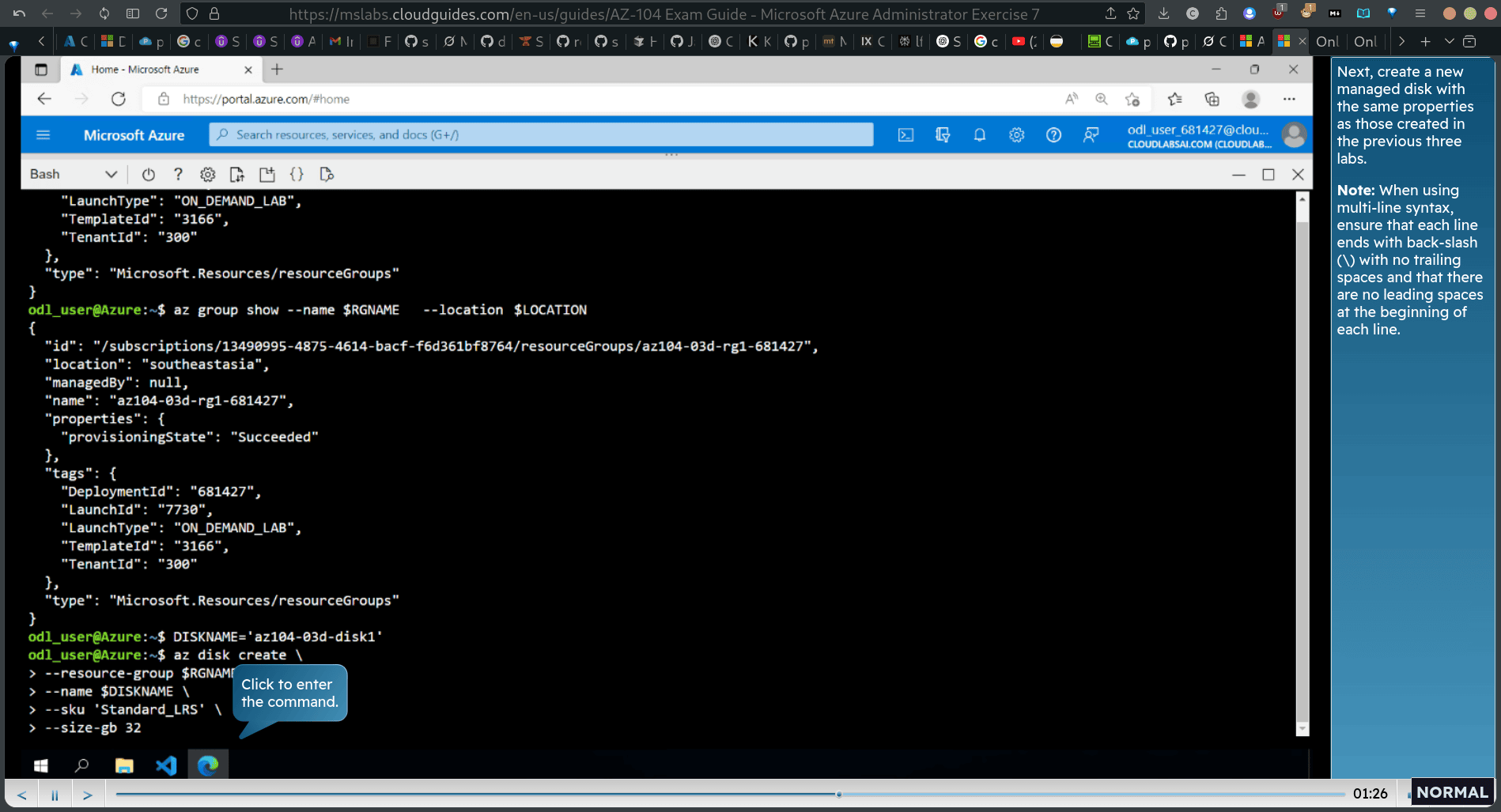

az disk create \ resource group , name $Disname , sku ‘Standard_LRS’, —size-gb 32

az disk show —resource-group $RGN A ME - - nam e$ DISKNAME

retrieve the property on newly created disk

Task 3: Configure the managed disk by using Azure CLI

az disk update —resource-group $RGN A ME - - nam e$ DISKNAME —size-gb 64 az disk show —resource-group $RGN A ME - - nam e$ DISKNAME —query diskSizeGb

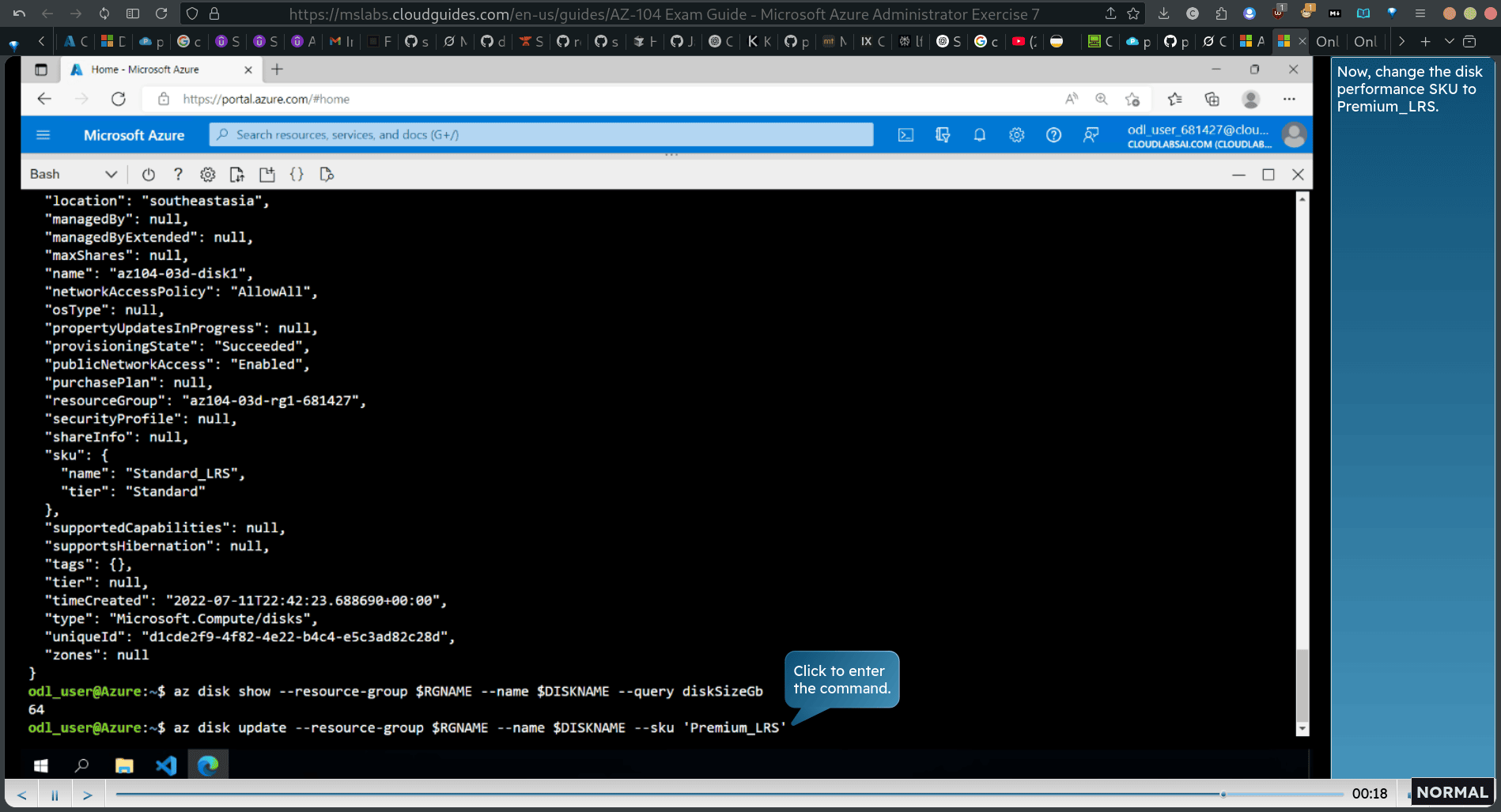

az disk update —resource-group $RGN A ME - - nam e$ DISKNAME —sku ‘Premium_LRS’

verify: az disk show —resource-group $RGN A ME - - nam e$ DISKNAME —query sku

8. Implement virtual networking >

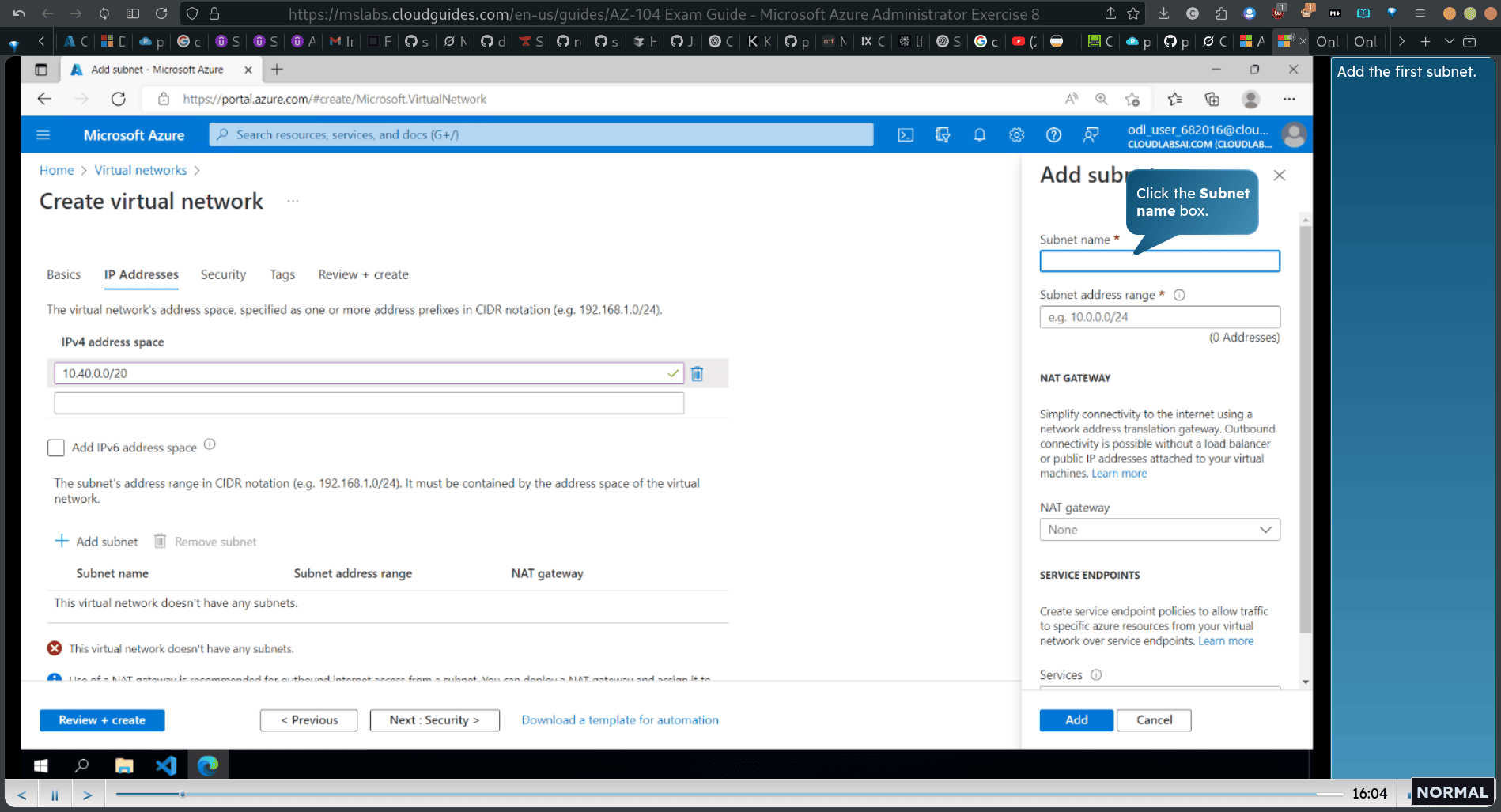

Task 1: Create and configure a virtual network

Virtual network

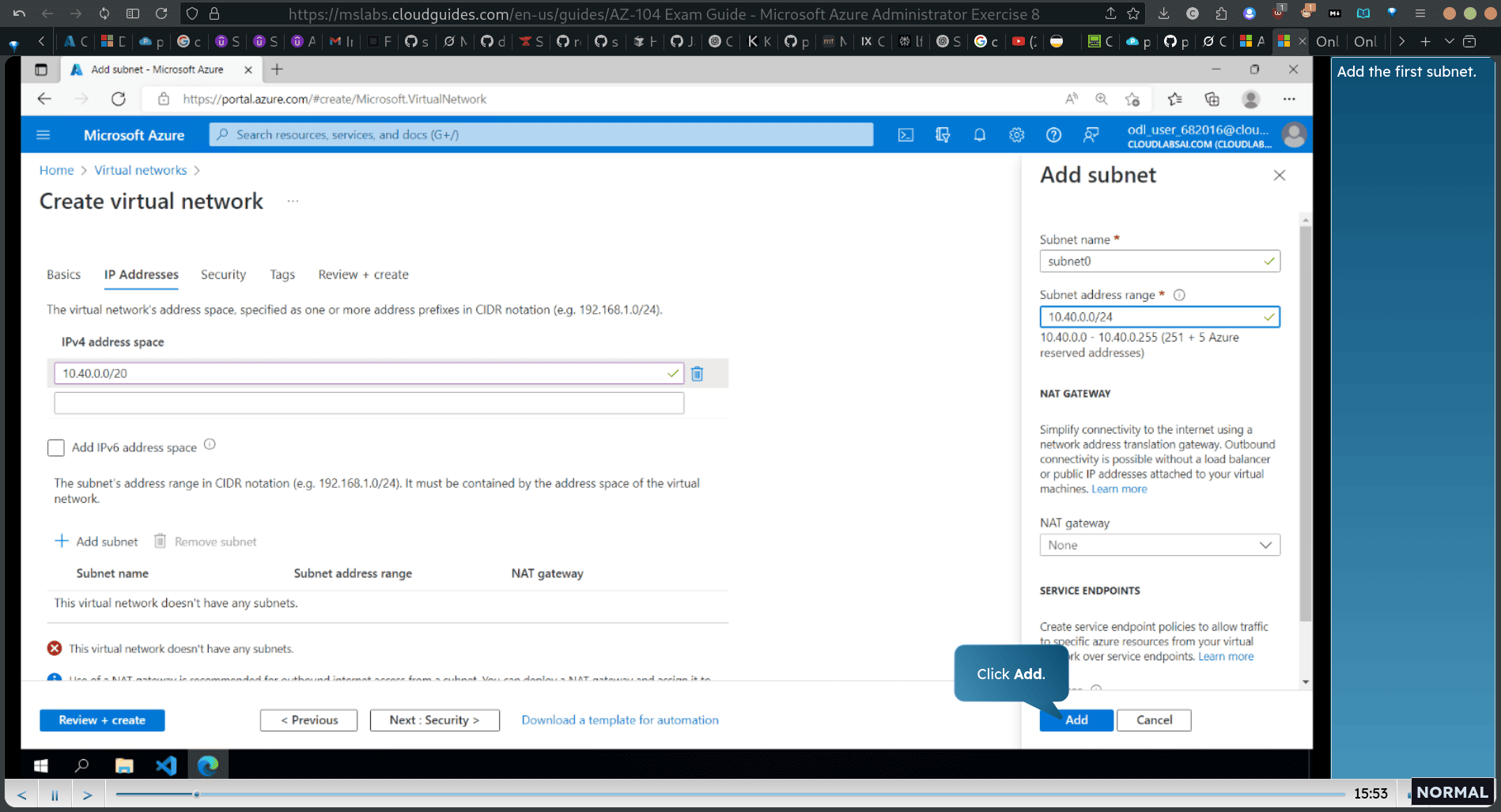

modify the ip address /20

subnet /24

10.40.0.0/20 → 10.40.0.0/24

Sure! Here’s how to choose the right subnet size based on your scenario in Azure.

🔍 1. Ask: How many IP addresses do you need?

Azure reserves 5 IPs per subnet, so subtract that from the total.

CIDR	Usable IPs	Typical Use
`/30`	1	Point-to-point links
`/29`	3	Tiny test environments
`/28`	11	Small dev/test subnet
`/27`	27	Small VM group or service tier
`/26`	59	Medium-sized web tier
`/24`	251	Larger services or databases
`/20`	4091	Whole VNet address space (avoid using this as a subnet!)

📘 Example Use Cases

🔸 If you’re creating:

A dev/test subnet with 2–5 VMs → use /28 or /27
A frontend subnet for 20-30 web servers → use /26
A shared services subnet (DNS, AD) → use /27
A future-proof subnet for scalable apps → use /24

🧮 How to calculate the subnet size

Use the formula:

2^(32 - CIDR block) - 5 = usable IPs

So for /26:

2^(32-26) - 5 = 64 - 5 = 59 usable IPs

✅ Subnet Planning Tips for Azure

Start small, but leave space to scale (e.g., use /27 instead of /28)
Separate roles into subnets: frontend, backend, database, management
Avoid using the entire address space in a single subnet
Leave gaps for future subnets when designing your CIDR blocks

If you tell me:

How many VMs or services you want to deploy
Whether it’s dev, test, or production
How much room you want for future expansion

… I can recommend the best CIDR for your subnet. Want to do that?

Great question! You subtract 5 IP addresses from each Azure subnet because Azure reserves them for internal use. Here’s the breakdown:

🔹 Why does Azure reserve 5 IP addresses per subnet?

When you create a subnet in Azure, it automatically reserves 5 IPs for internal functions:

Reserved IP	Purpose
.0	Network address (e.g., `10.40.0.0`) — identifies the subnet
.1	Default gateway — used by Azure for routing outbound traffic
.2 - .3	Reserved by Azure for future use
.255	Broadcast address (in traditional networking), reserved

So: First 4 + last 1 = 5 reserved IPs

🔸 Example: `10.40.0.0/24` subnet

Total IPs: 2^(32 - 24) = 256
Reserved by Azure: 5
Usable IPs: 256 - 5 = 251

✅ Why this matters:

When planning your subnets, always keep these 5 reserved IPs in mind. If you need 20 VMs, a /27 (32 total IPs → 27 usable) would work. But if you use /28 (16 total IPs), you’d only get 11 usable — maybe not enough.

Let me know how many machines or services you’re planning, and I can suggest a subnet size that leaves enough usable space!

Why does Azure reserve 5 IP addresses per subnet?

When you create a subnet in Azure, it automatically reserves 5 IPs for internal functions: Reserved IP Purpose .0 Network address (e.g., 10.40.0.0) — identifies the subnet .1 Default gateway — used by Azure for routing outbound traffic .2 - .3 Reserved by Azure for future use .255 Broadcast address (in traditional networking), reserved

So: First 4 + last 1 = 5 reserved IPs

create

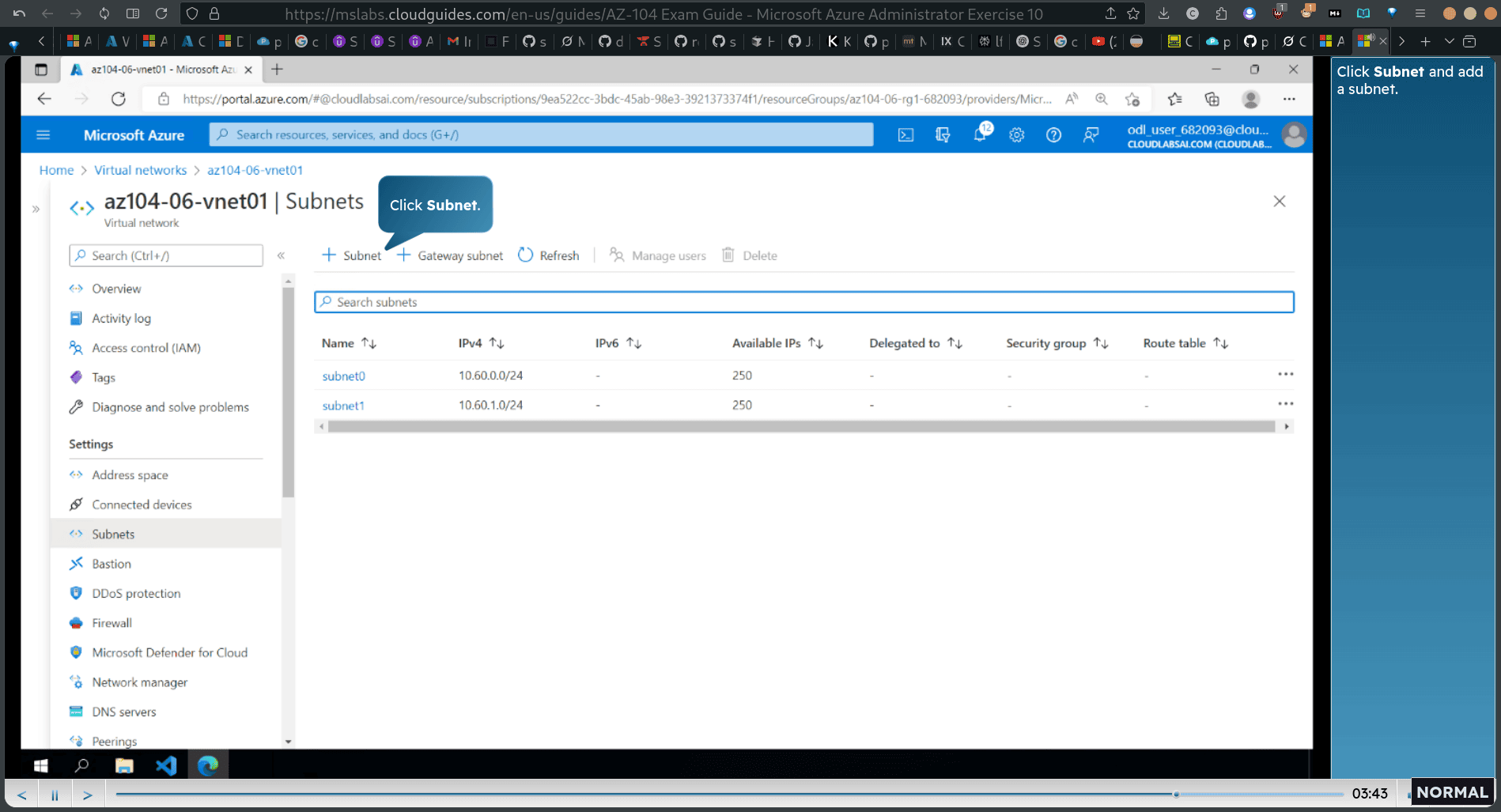

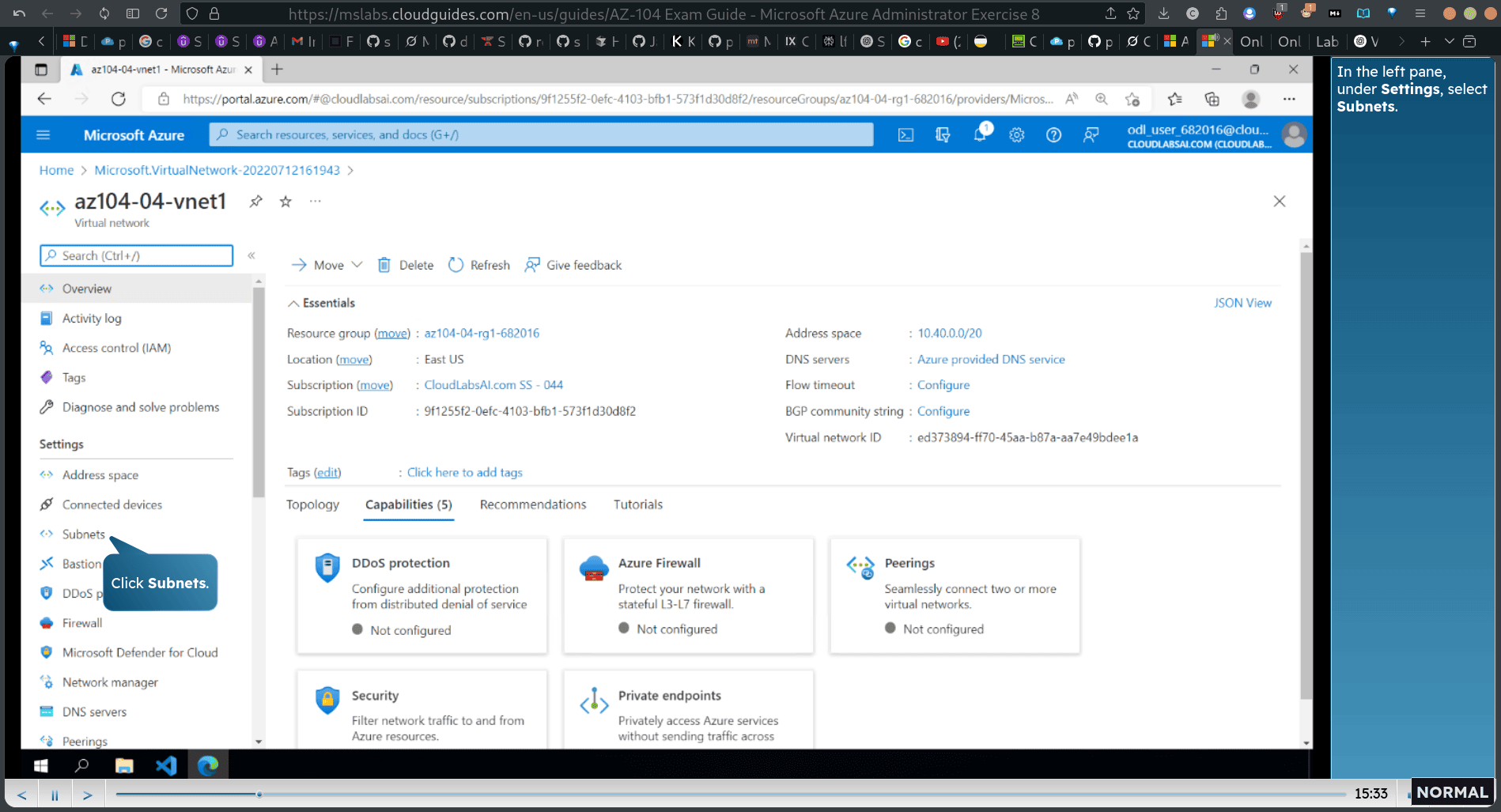

select subnet

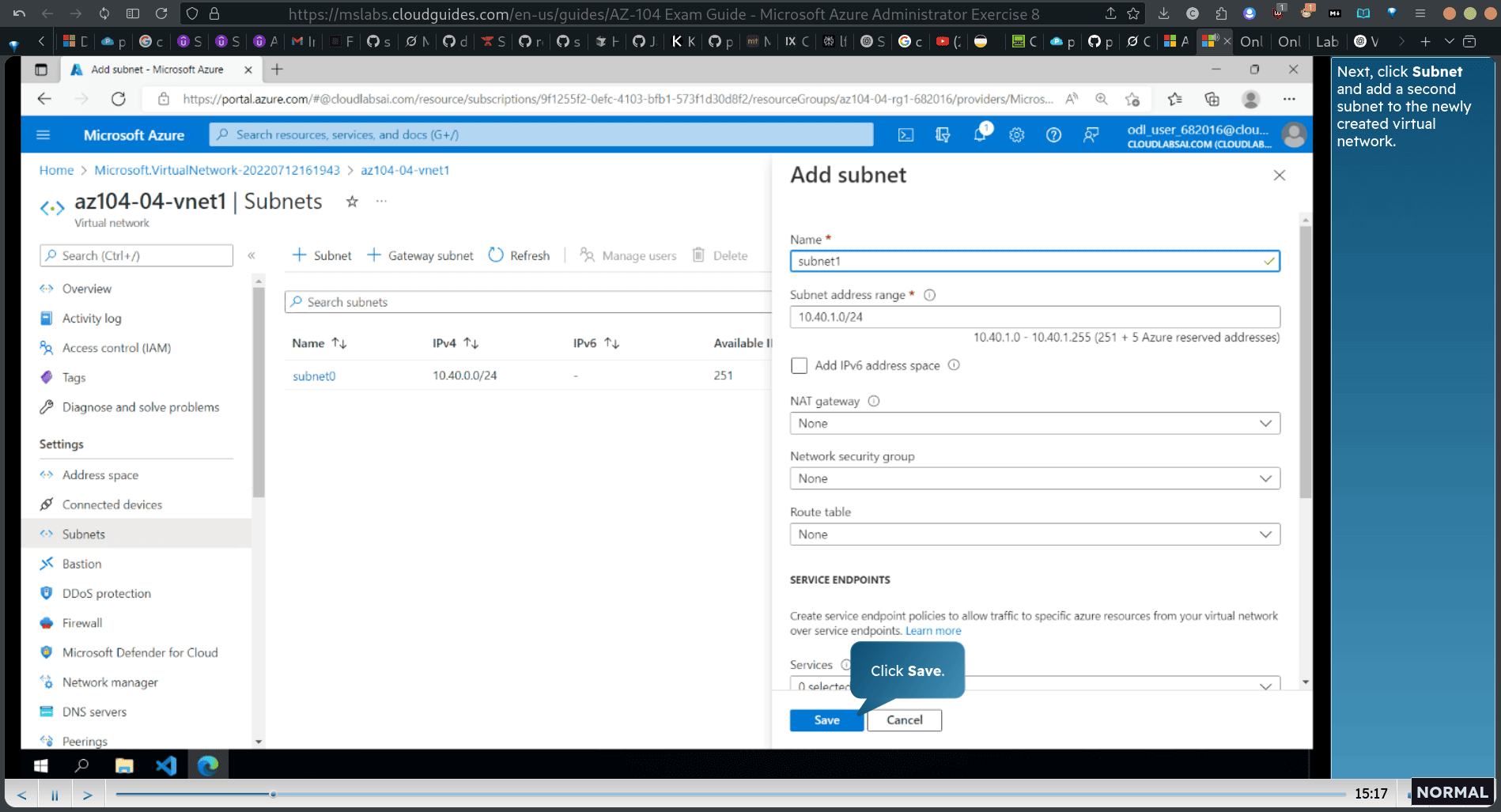

add new subnet for newly

10.40.1.0/24

Task 2: Deploy virtual machines into the virtual network

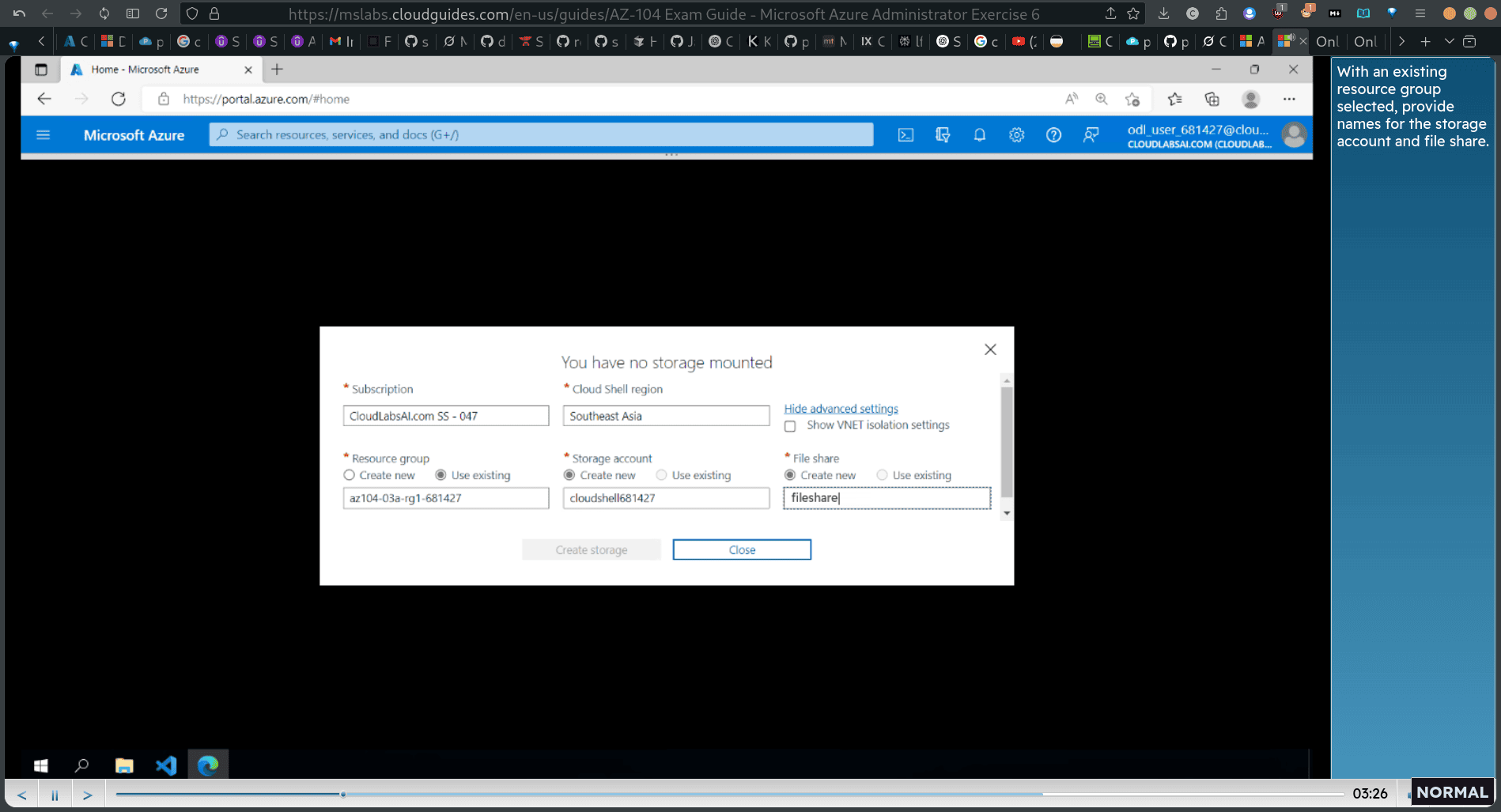

cloud → powershell →storage

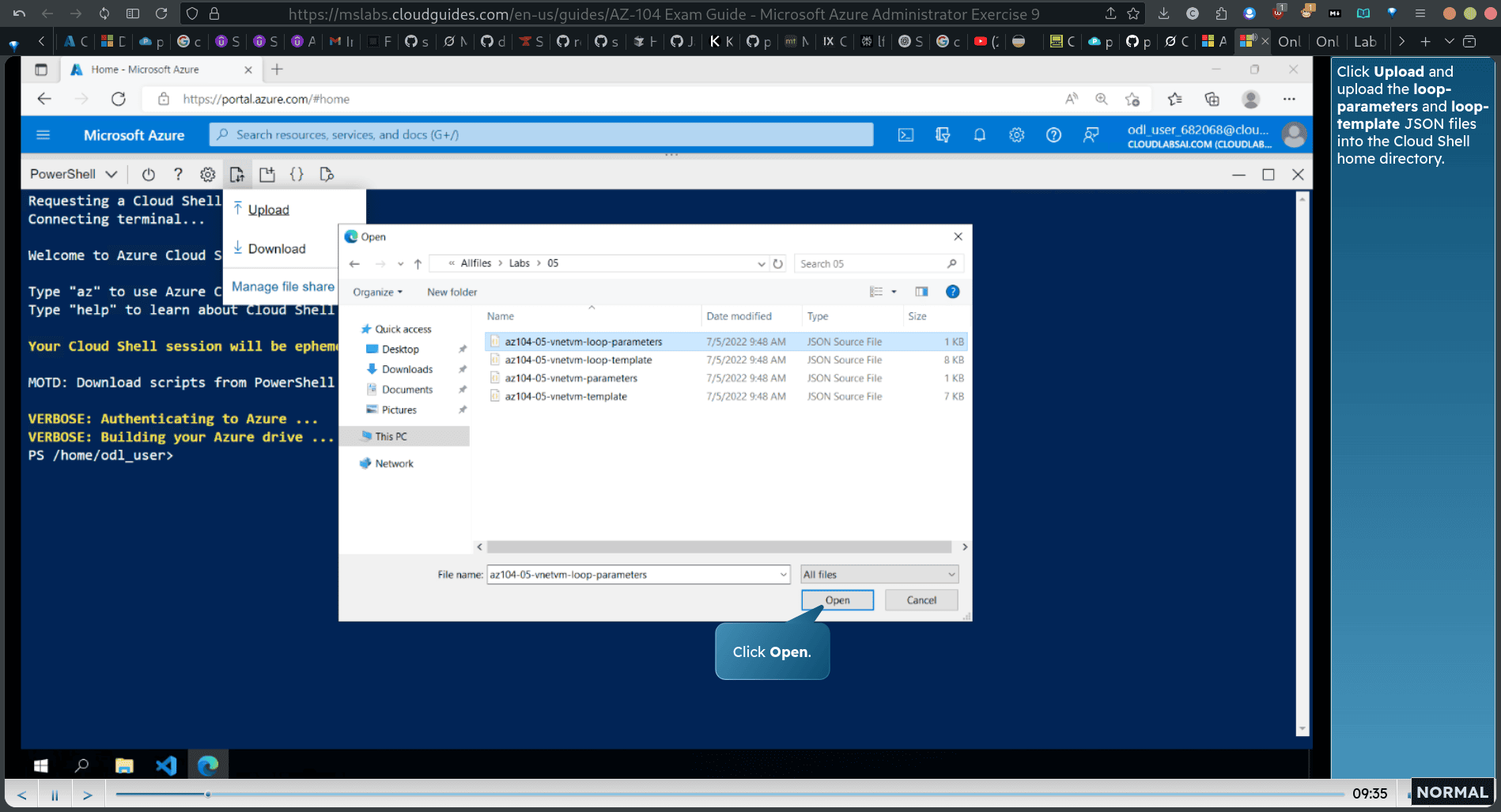

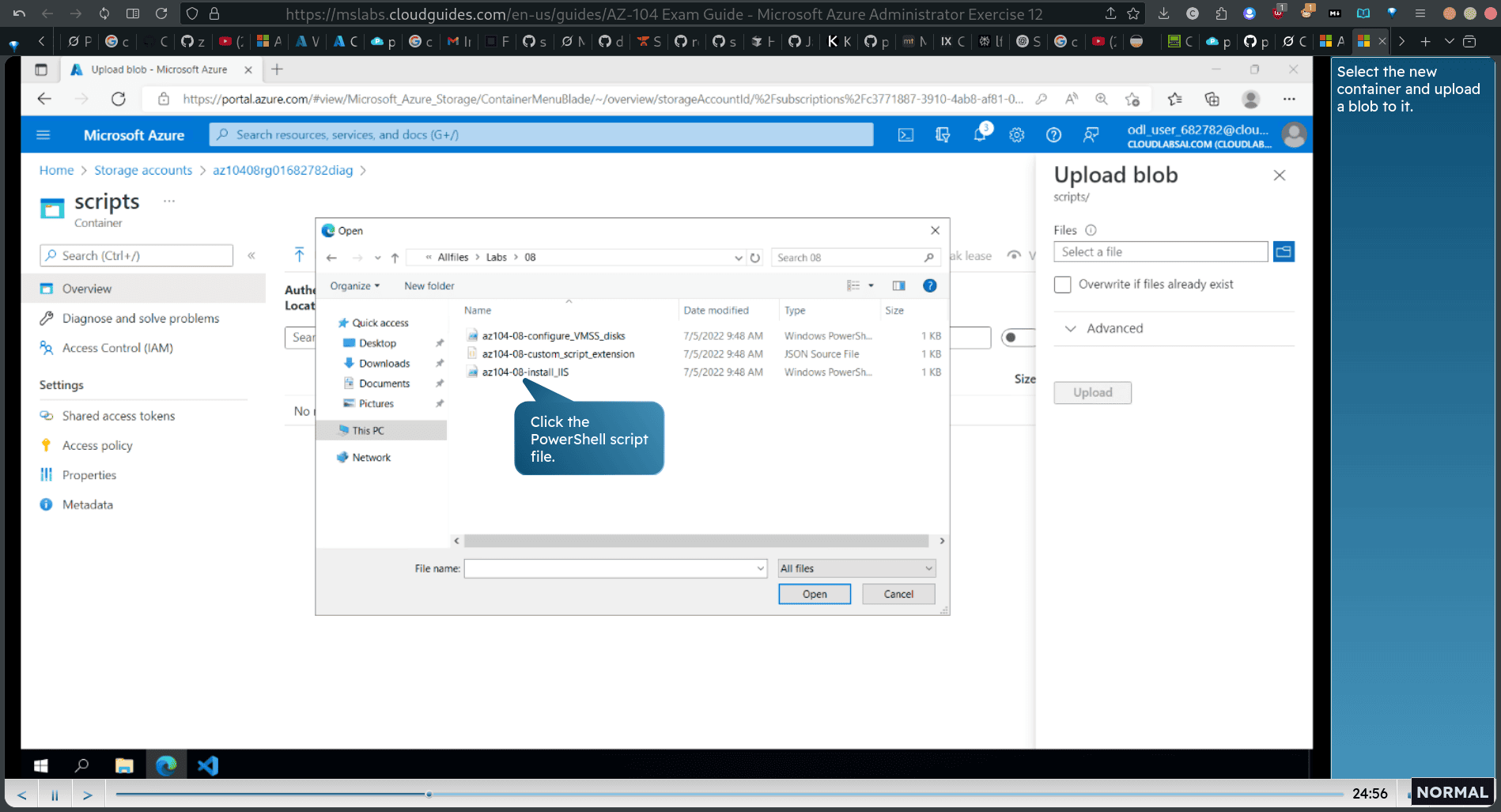

upload

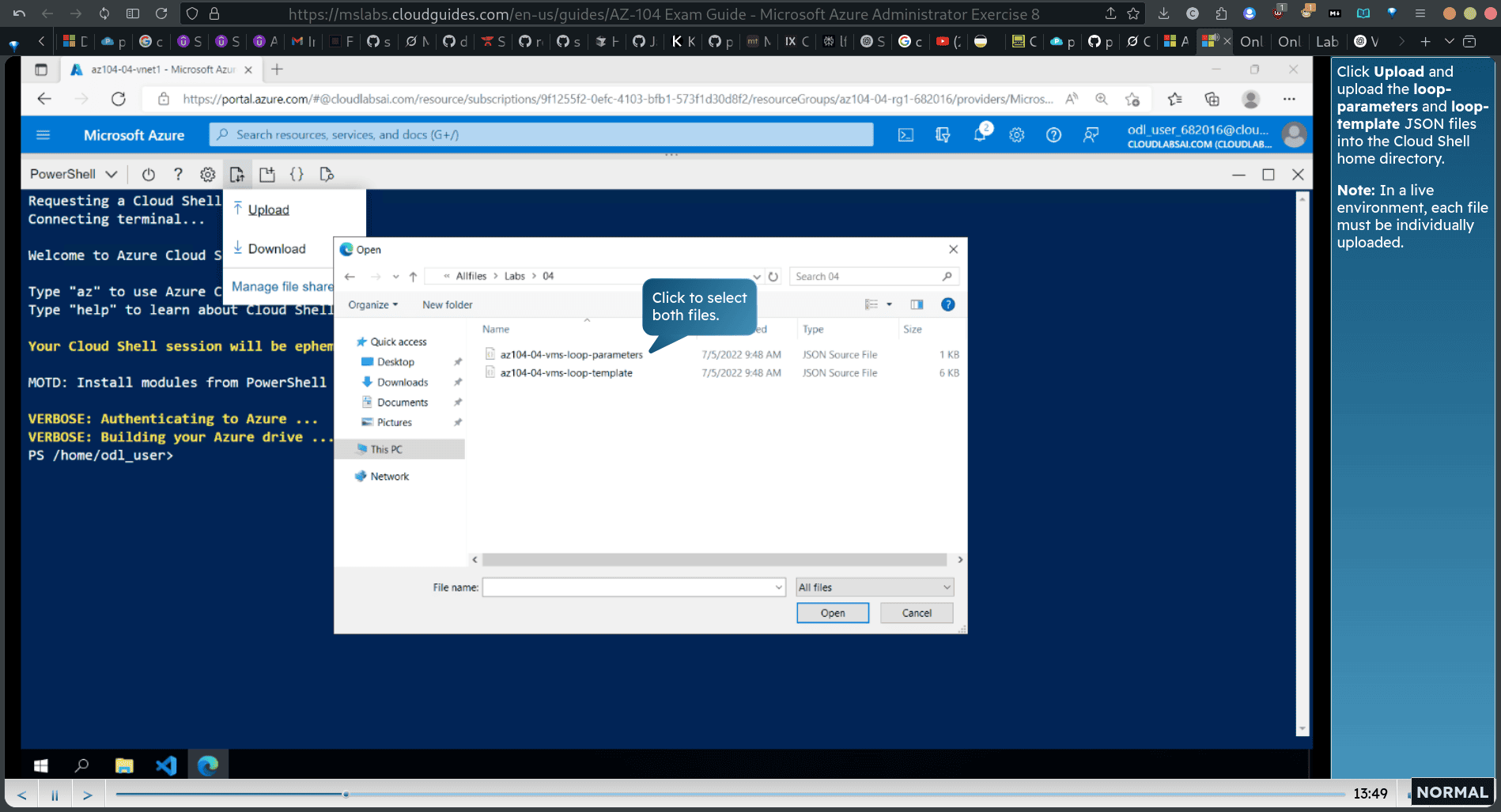

upload both VM → vms loop parameters and template

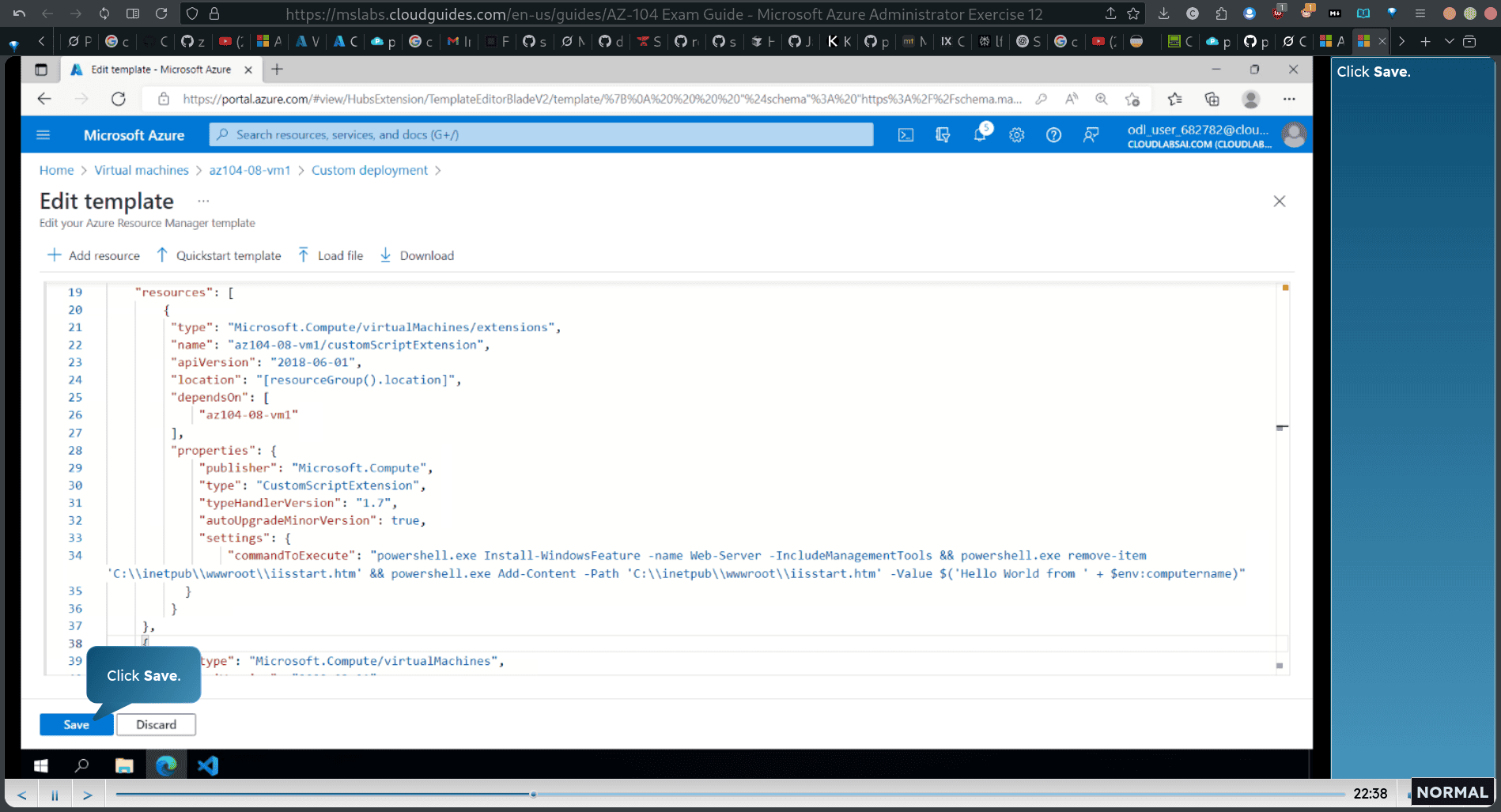

code . → vs code

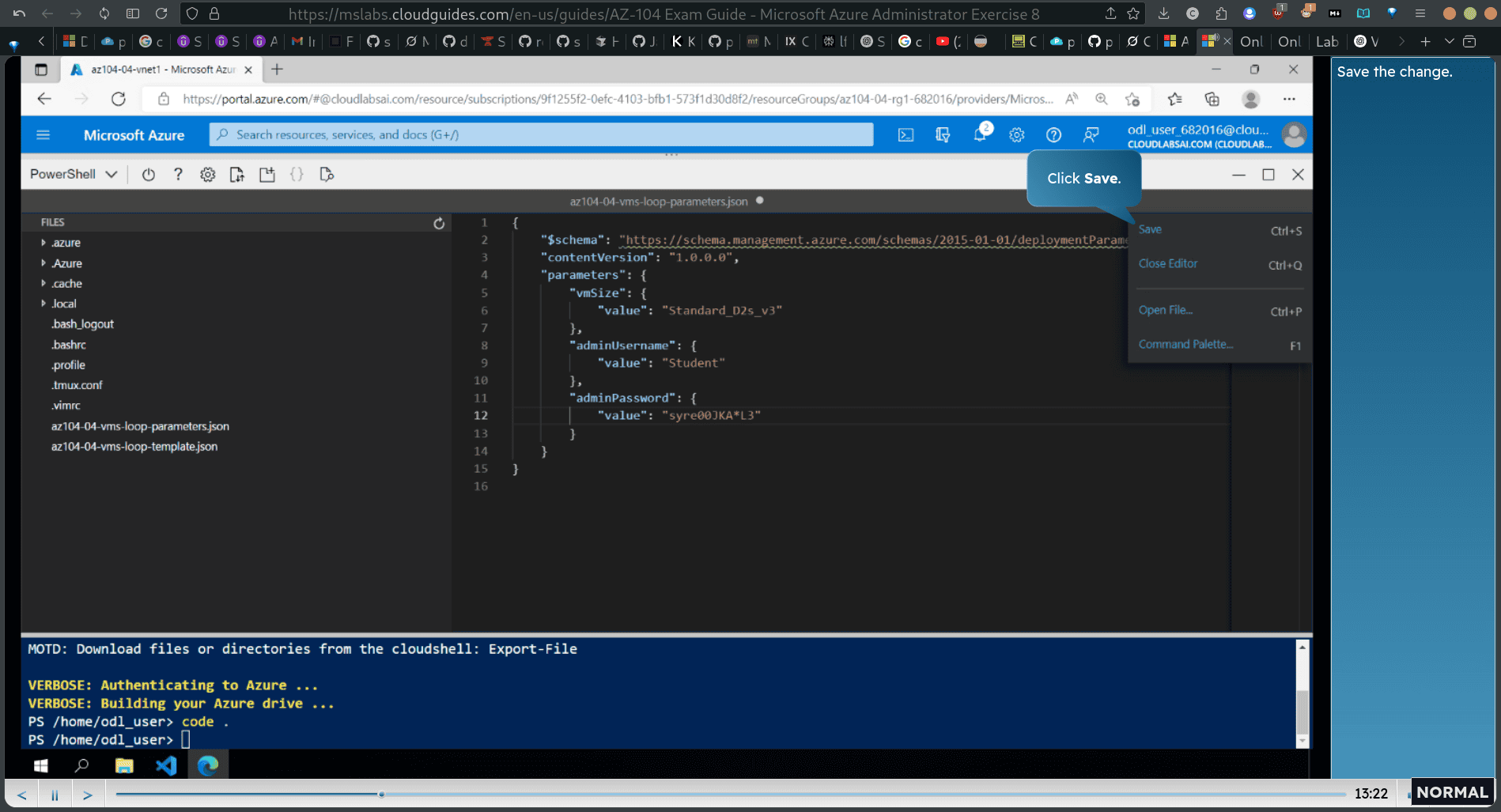

parameter → change the password

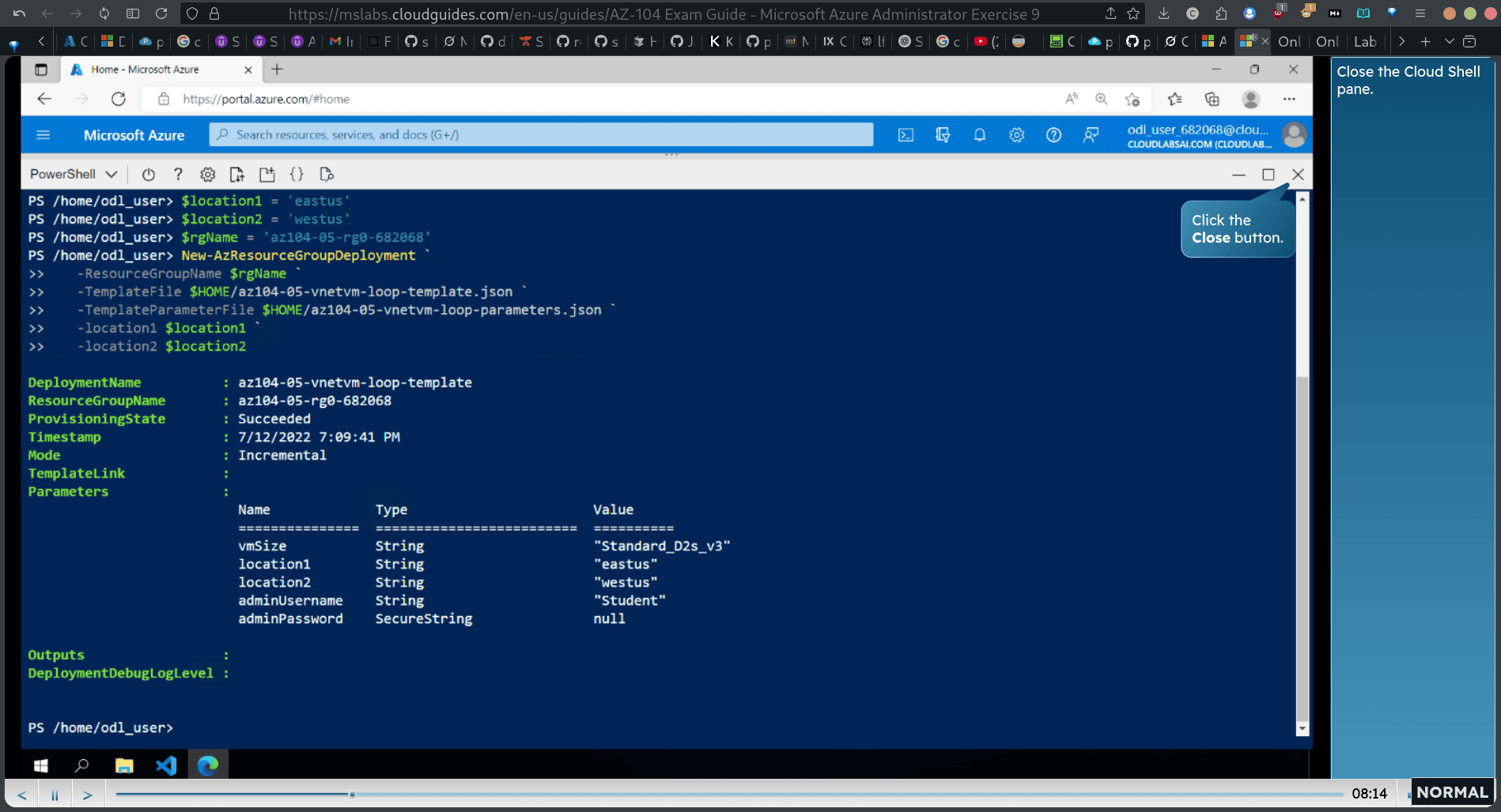

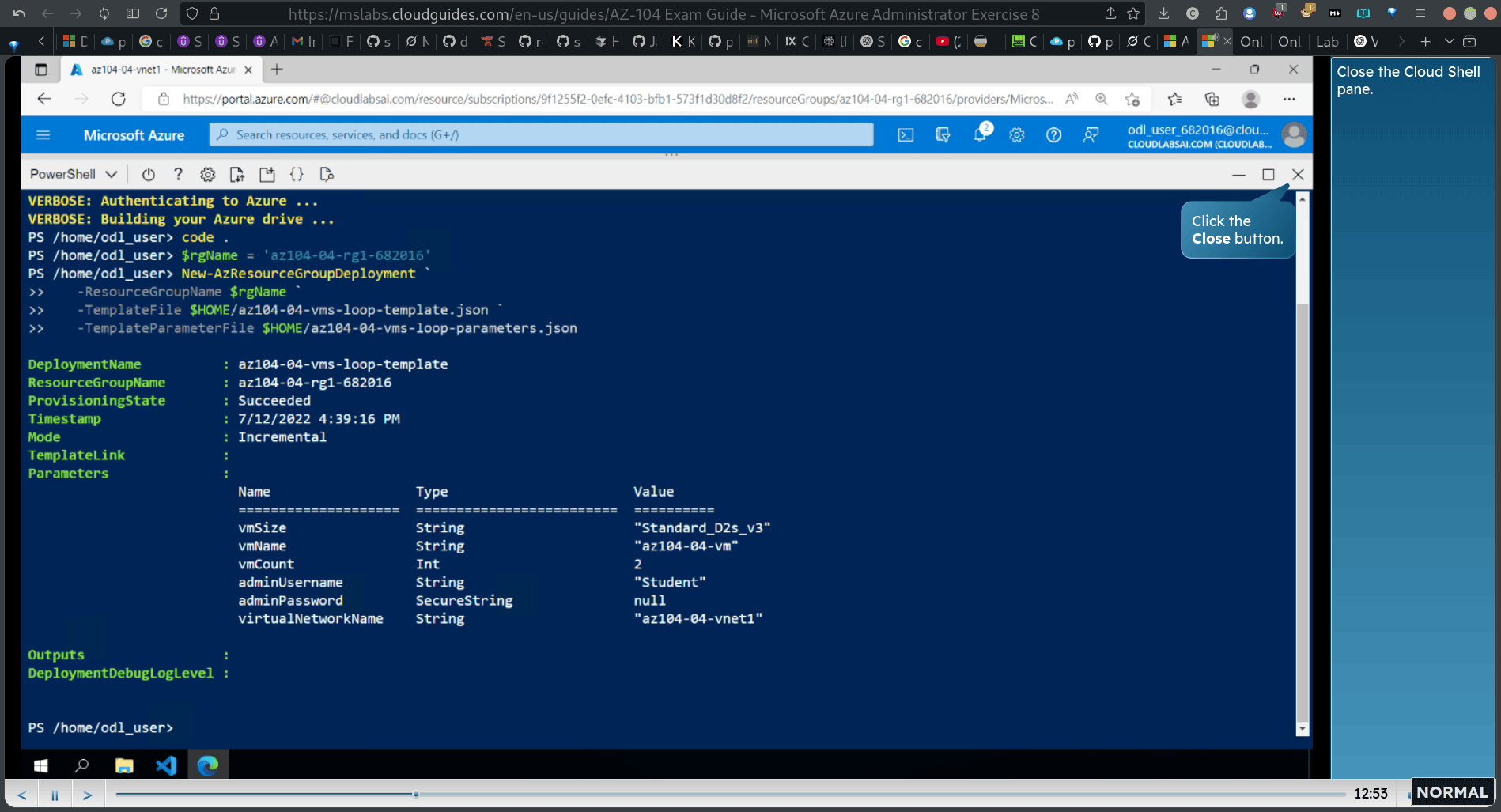

$rgName = ‘az104-04-rgl-682016”

New-AzResourceGroupDeployment `

Task 3: Configure private and public IP addresses of Azure VMs

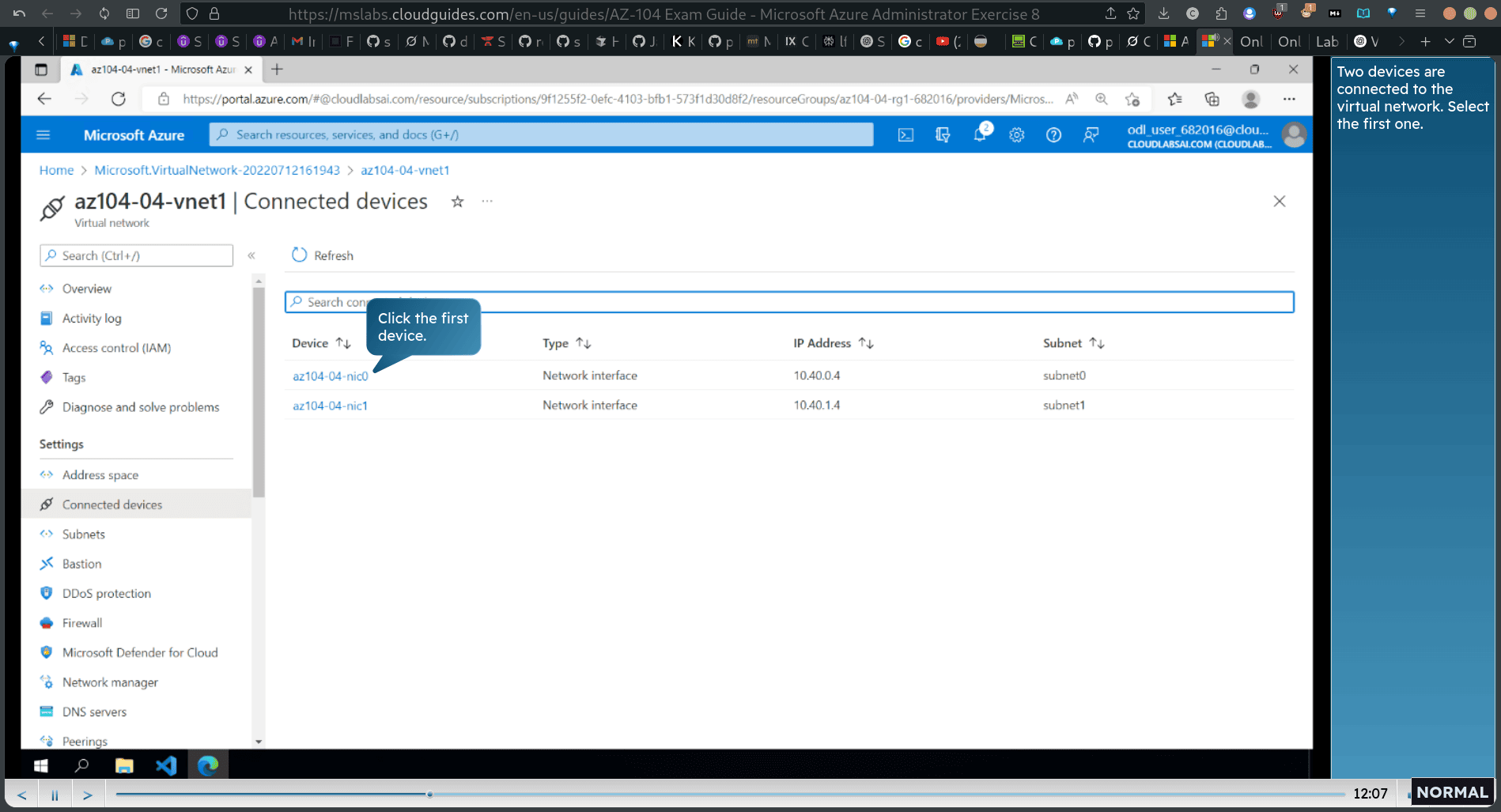

connect device → ip config

associate

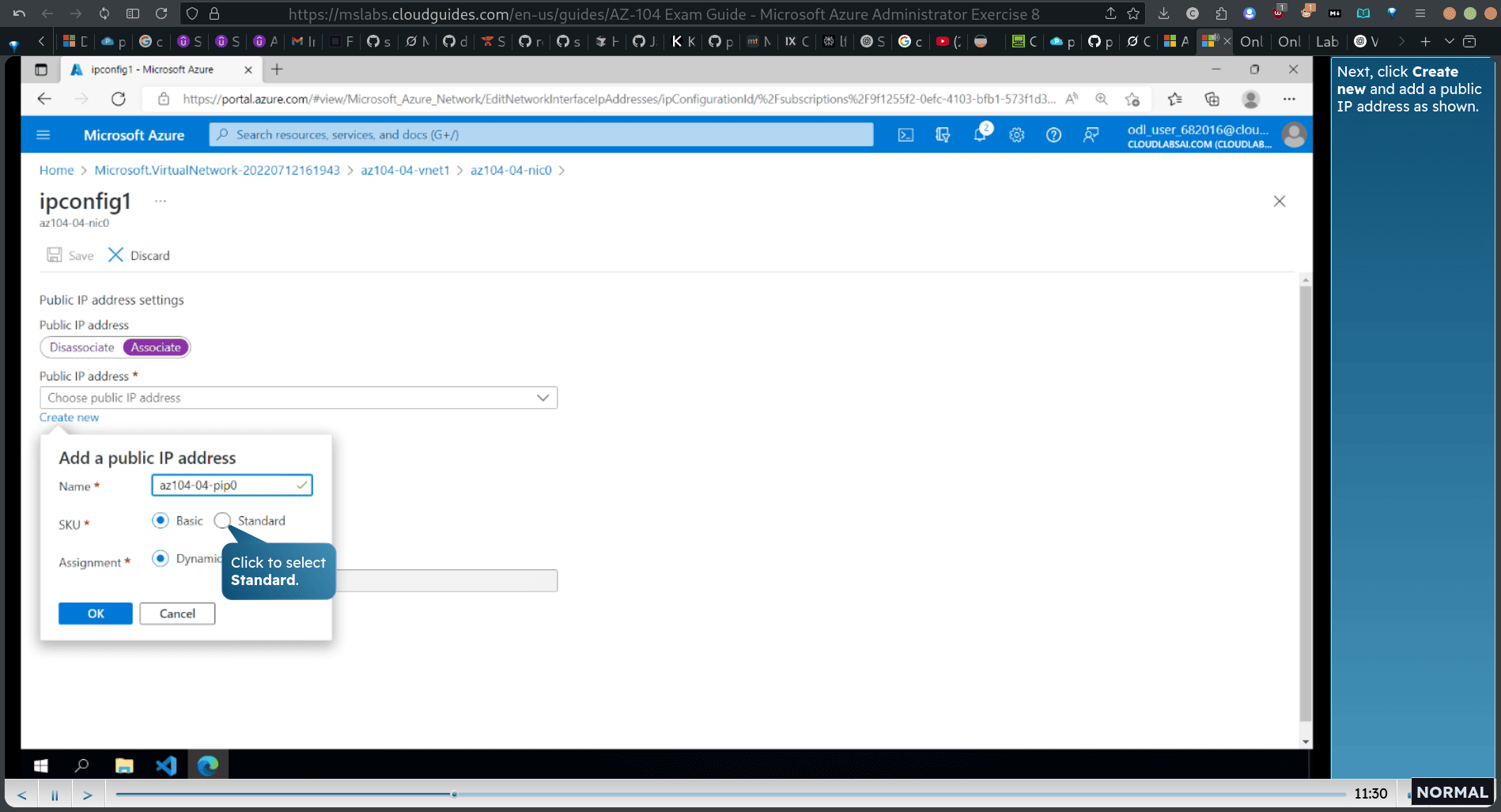

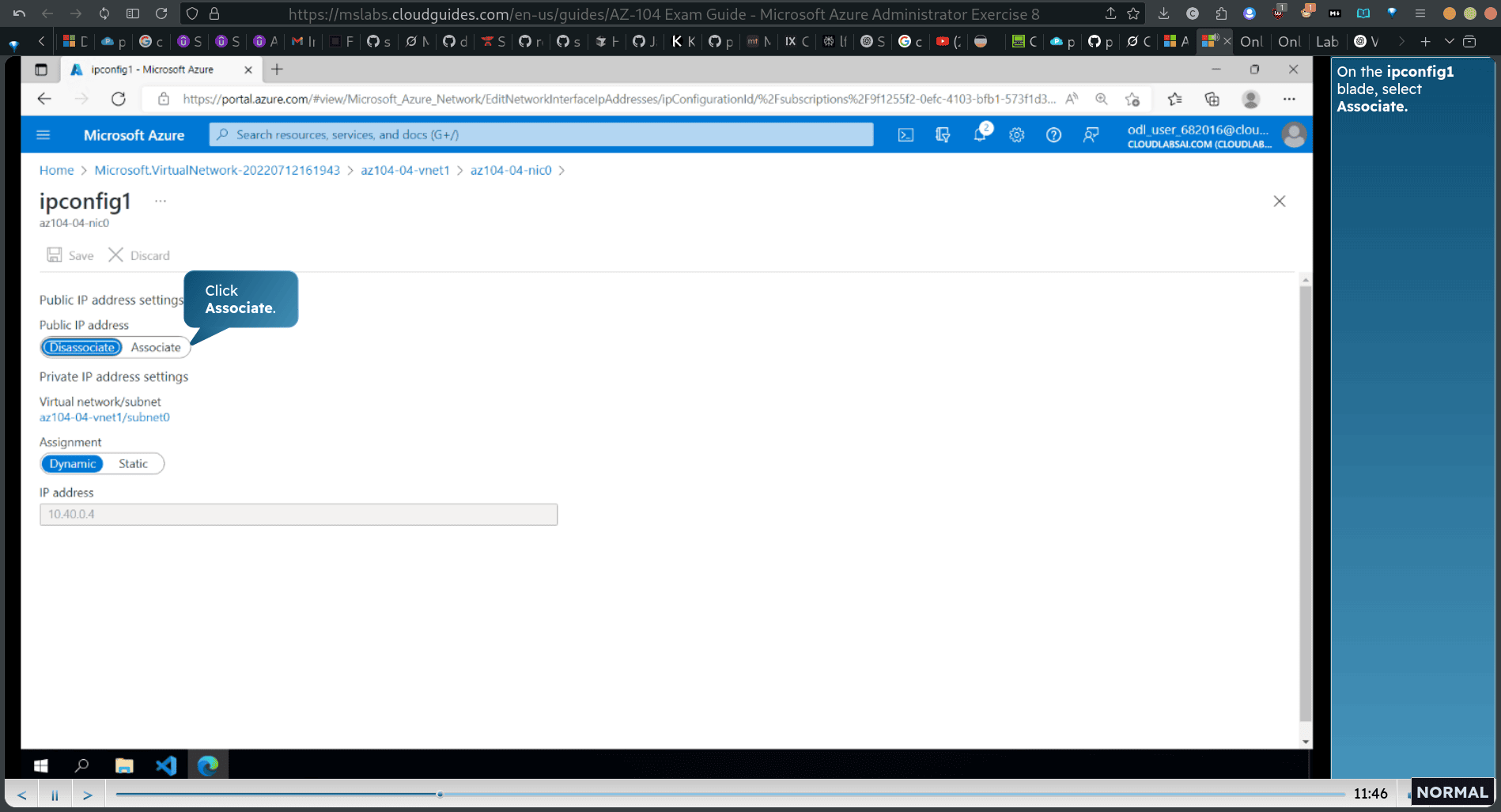

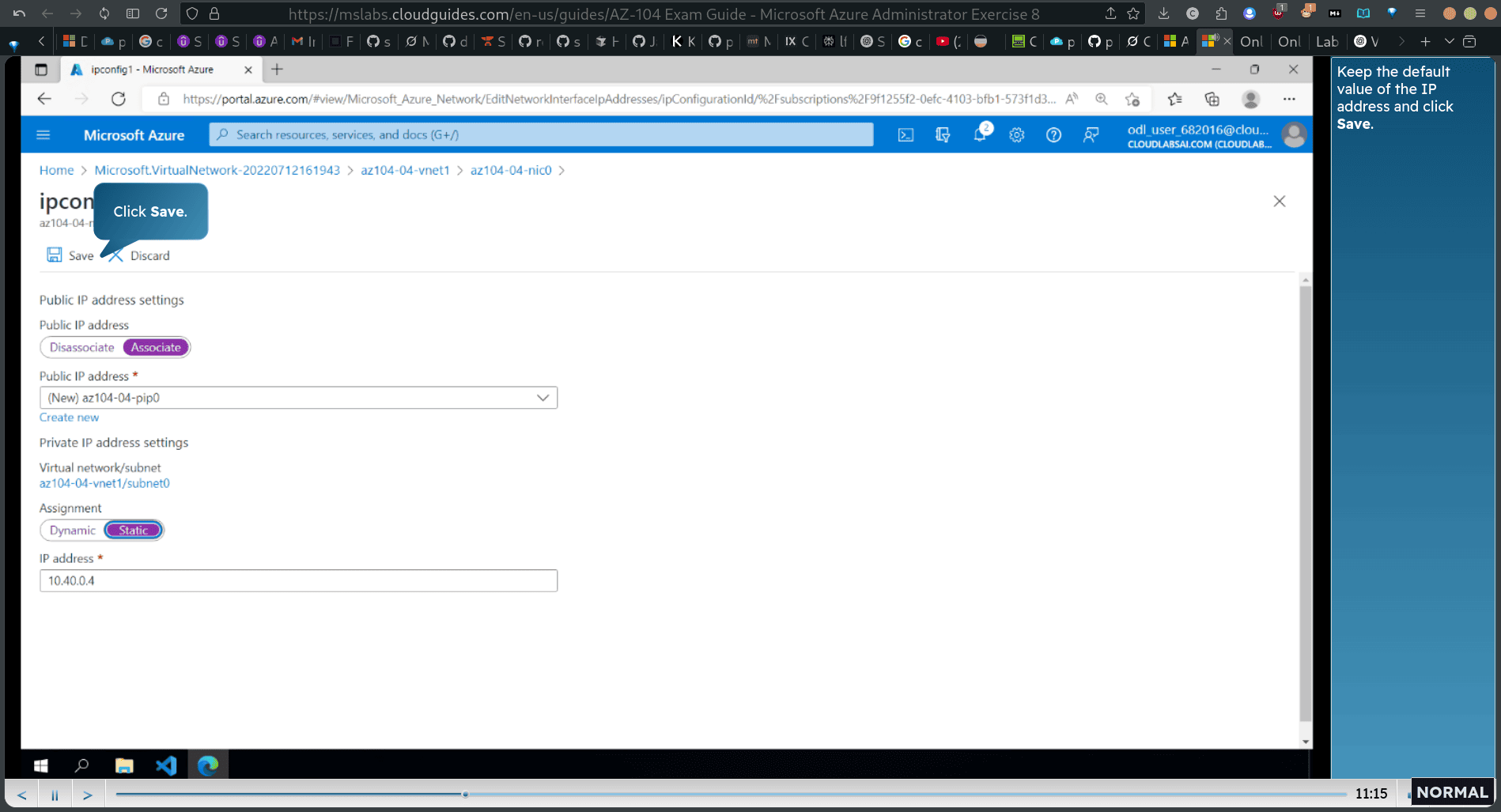

add public id address

assignment → static 10.40.0.4

select second device

ip config →

again

Task 4: Configure network security groups

Search VM select the first VM

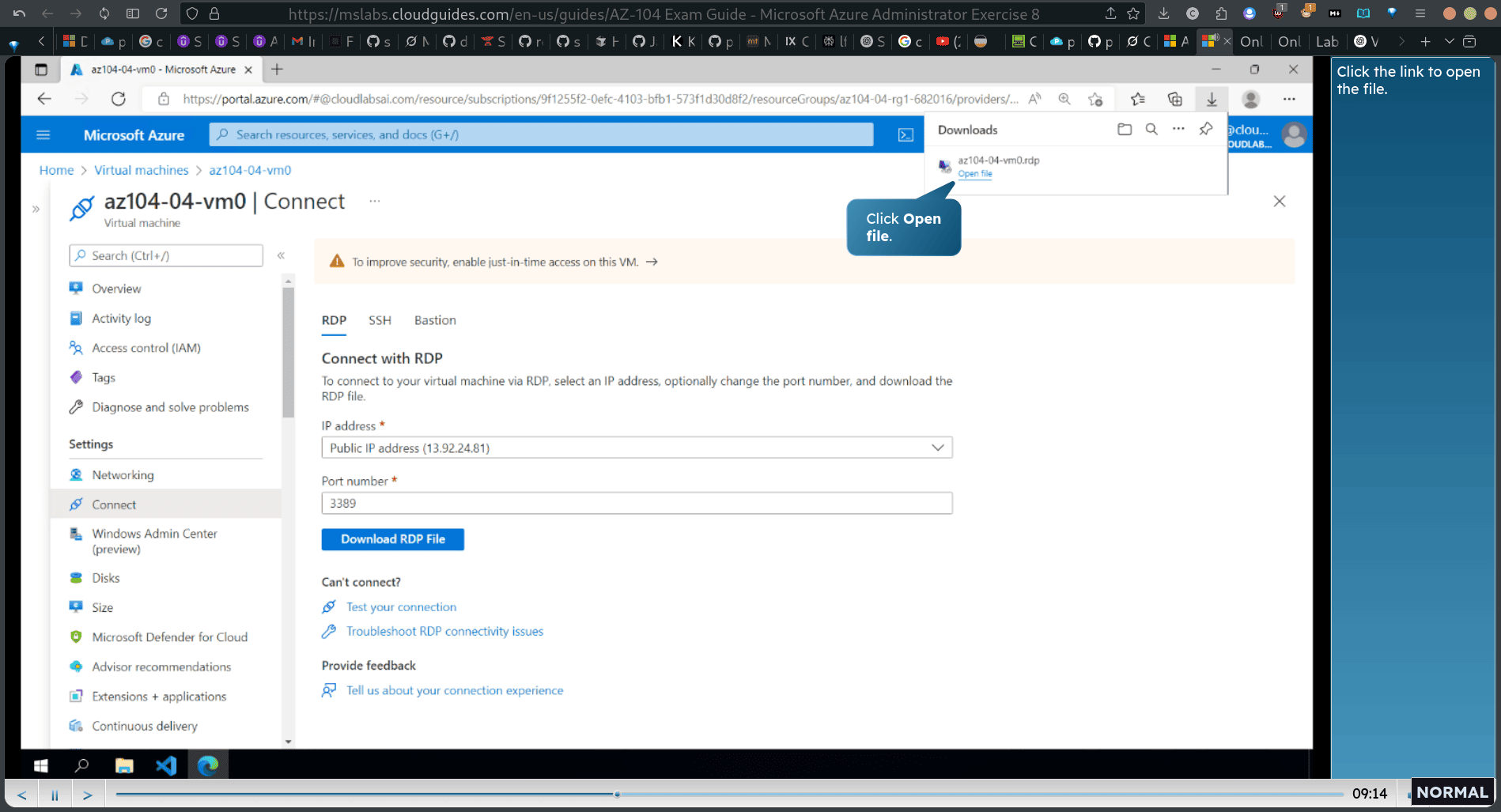

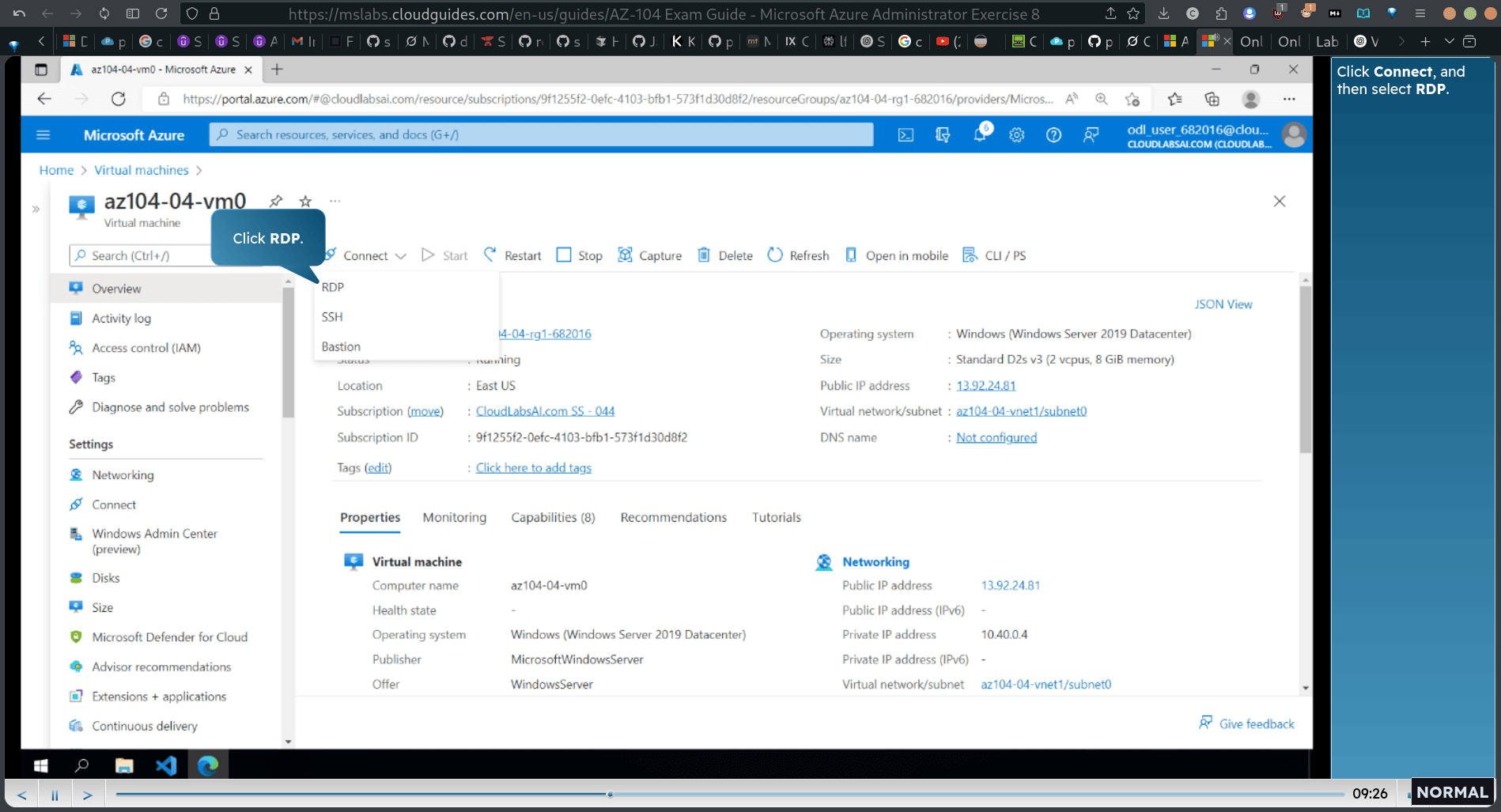

connect → RDP → Remote desktop → download RDP file

using public addres → port 3389 → RDP

connect fail as expected

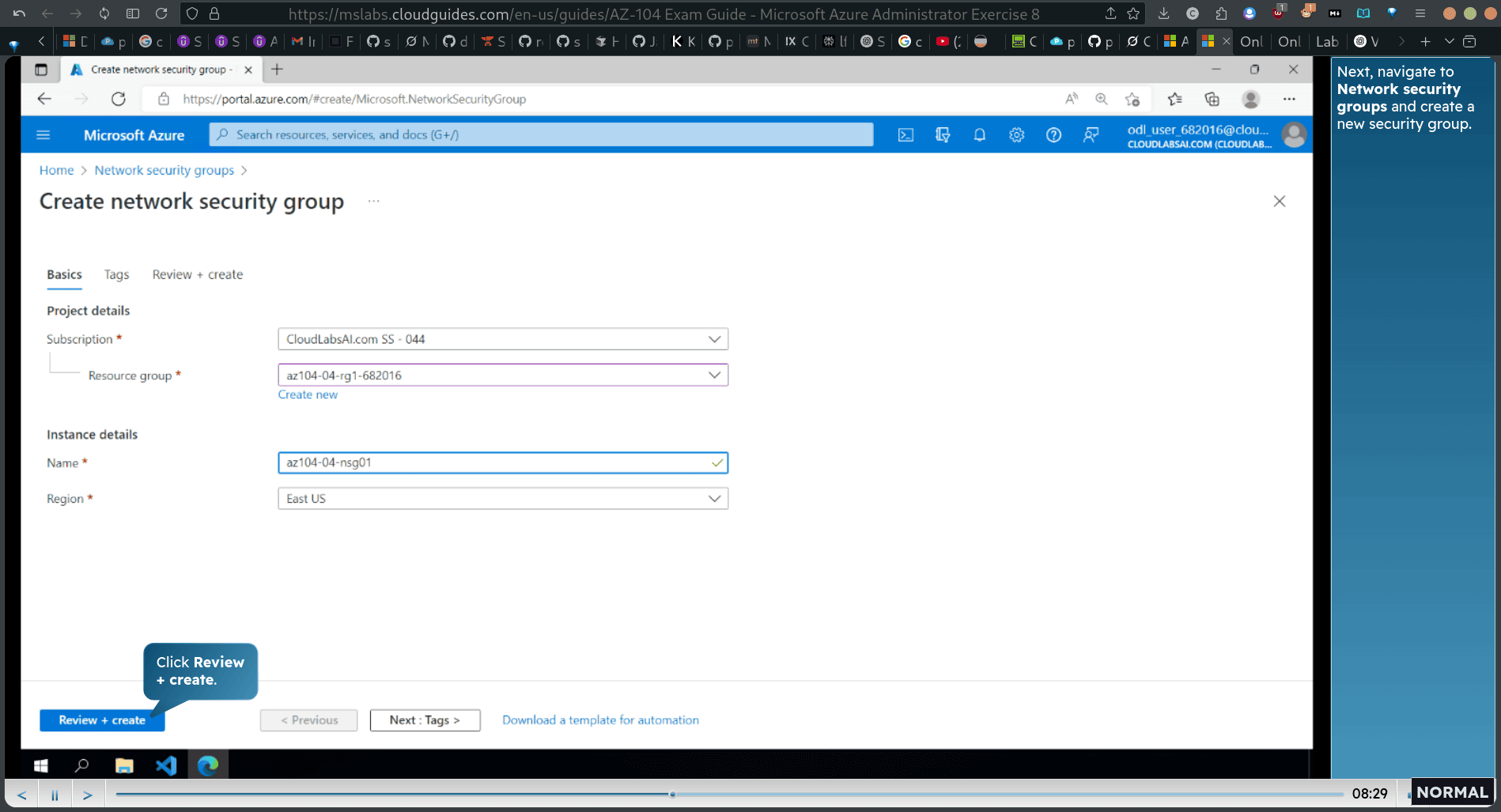

→ network security group

go to resource

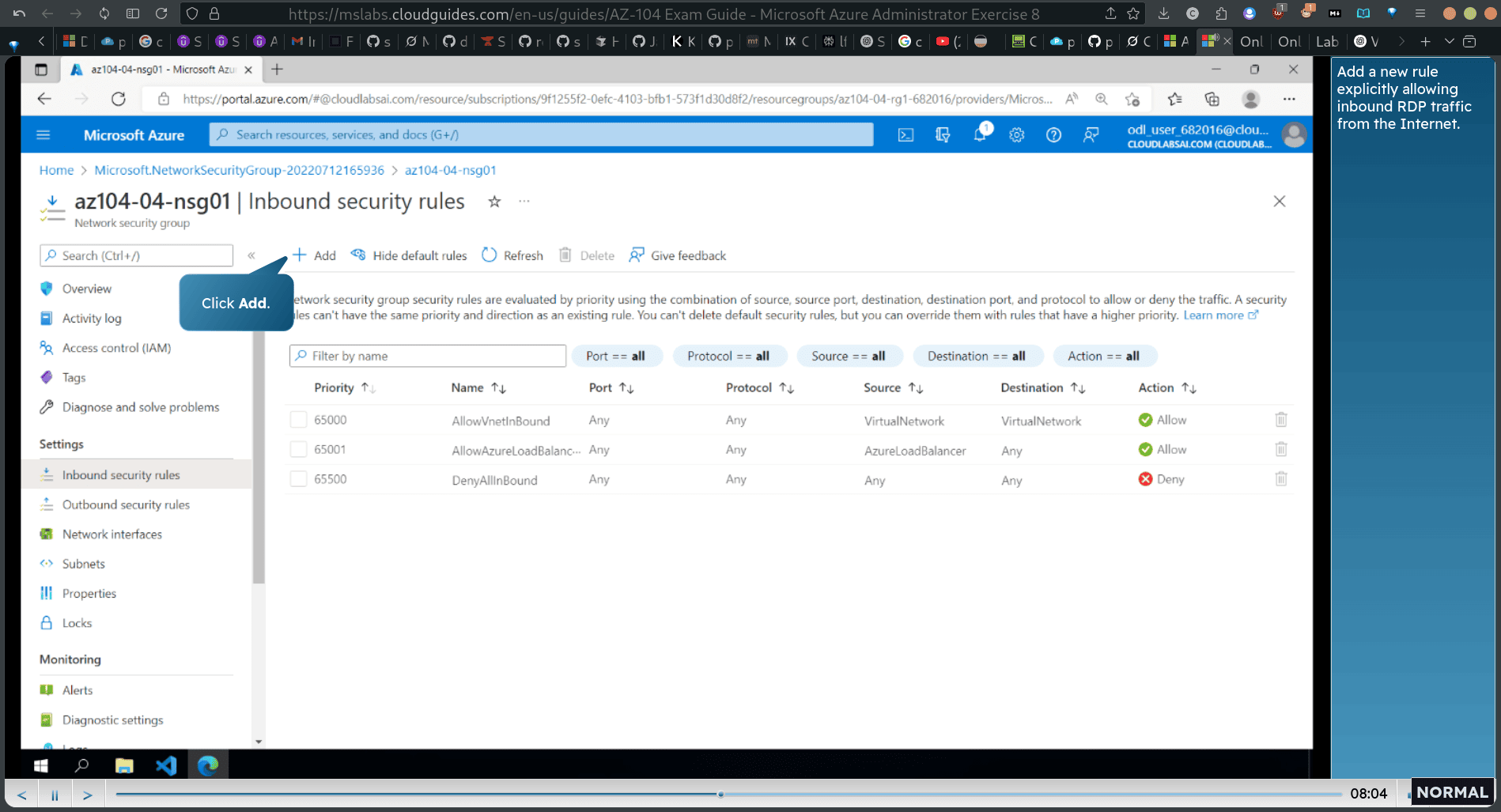

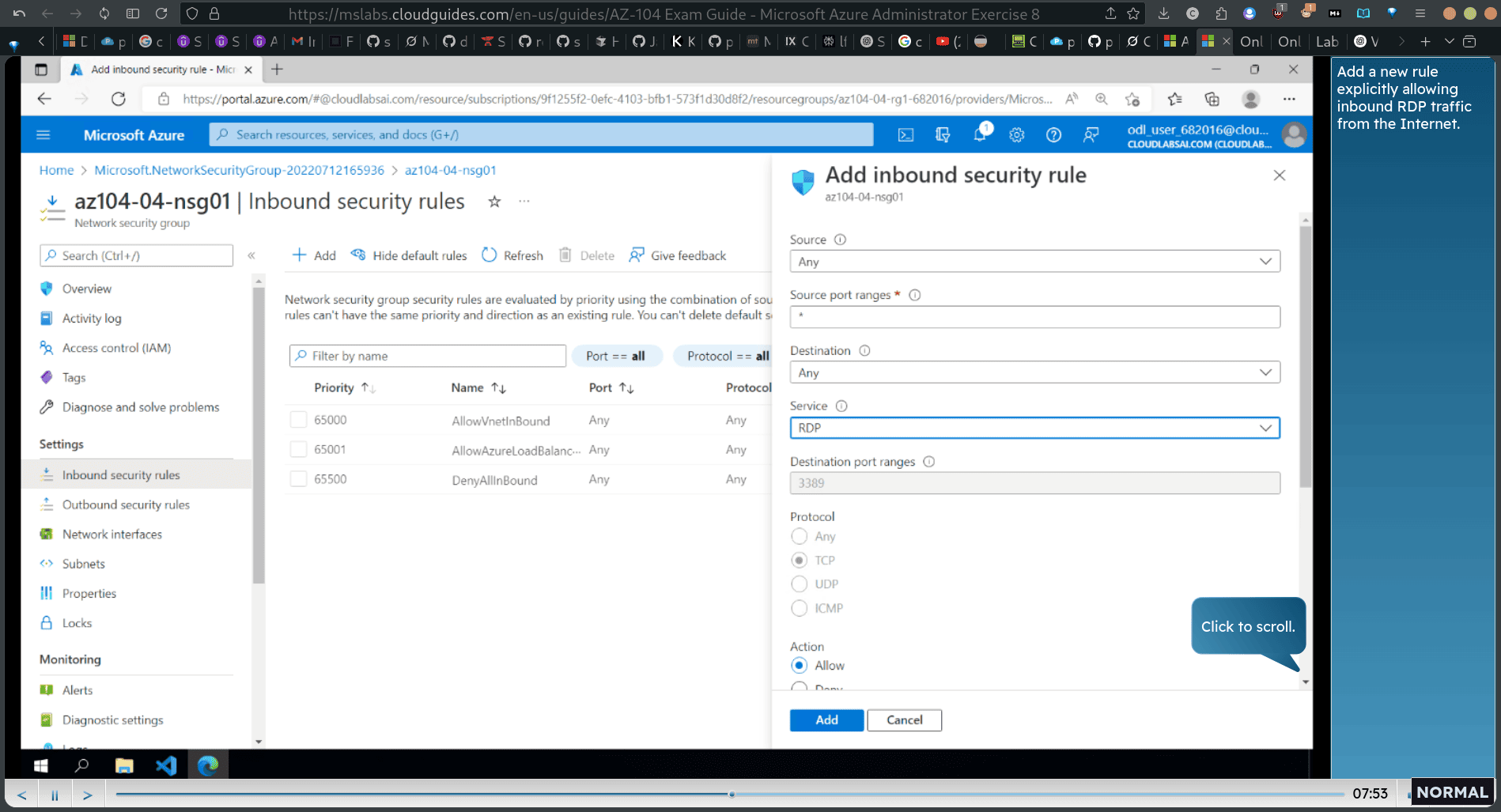

allow inbond security rules

allow rdp

click priority , → 300 , name

Network interfaces → associate

select associated to network security group

select both newly

go back to VM

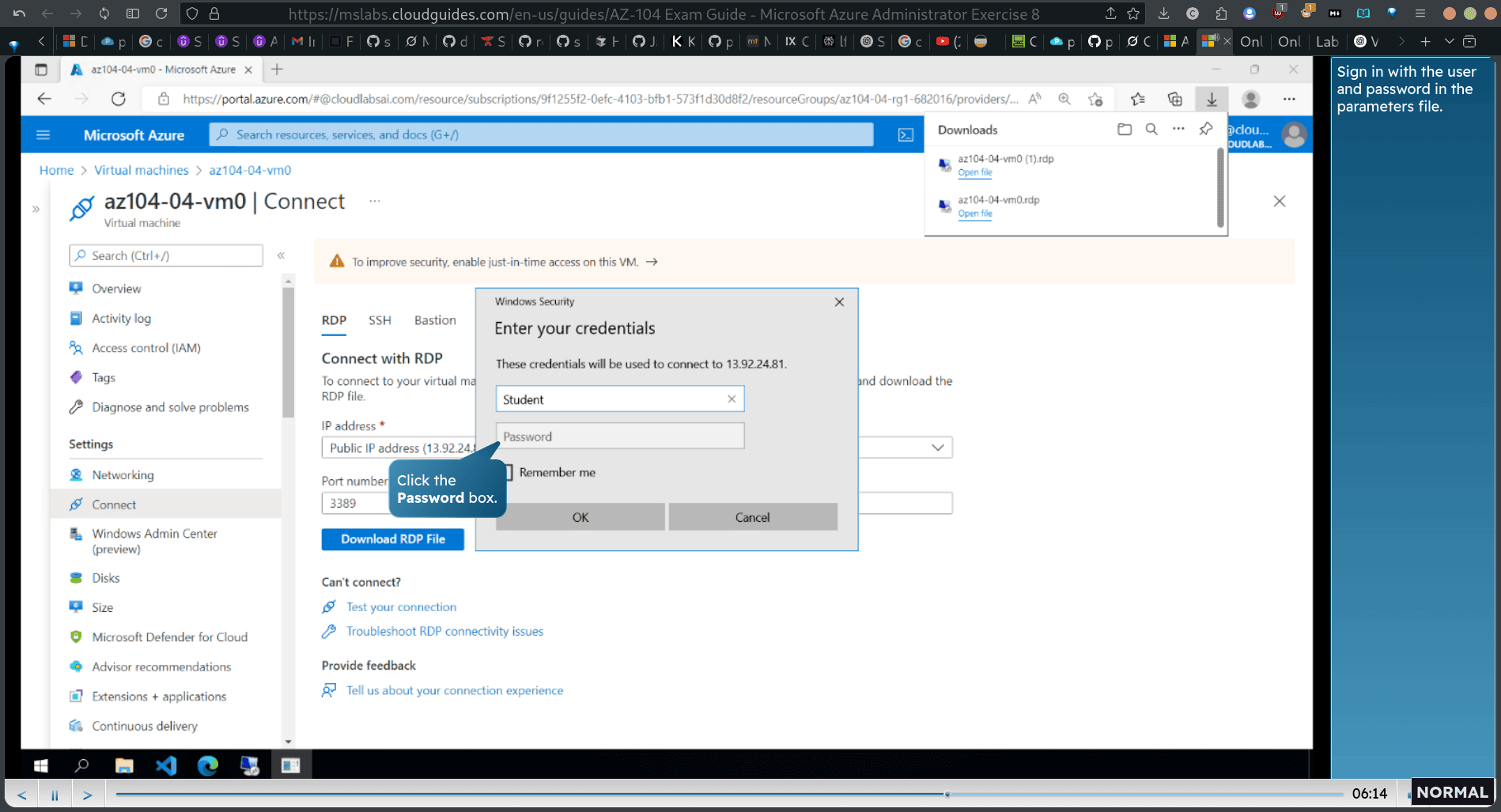

now can be used in rdp

Task 5: Configure Azure DNS for internal name resolution

private azure dns zones

search private azure dns zones

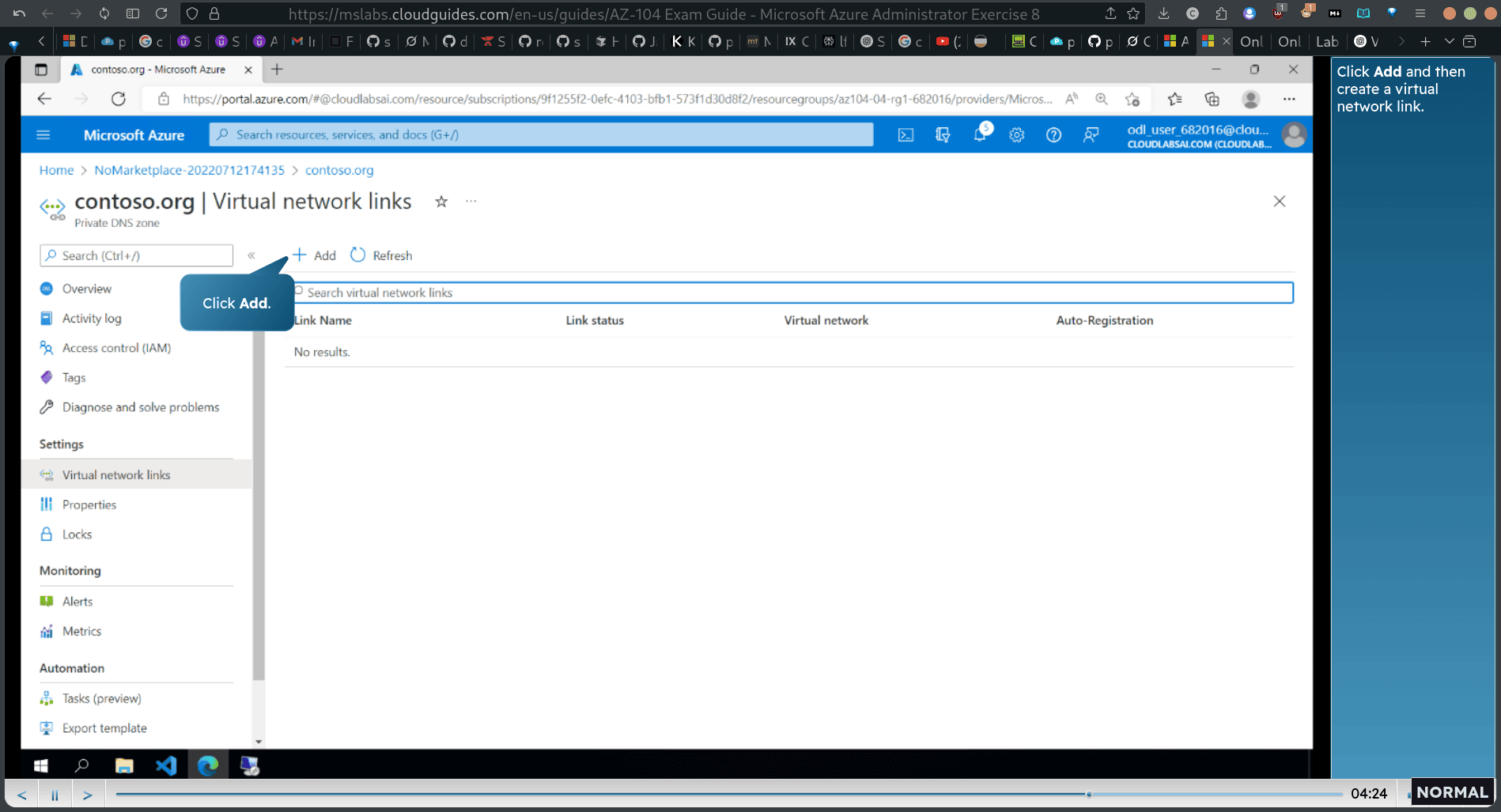

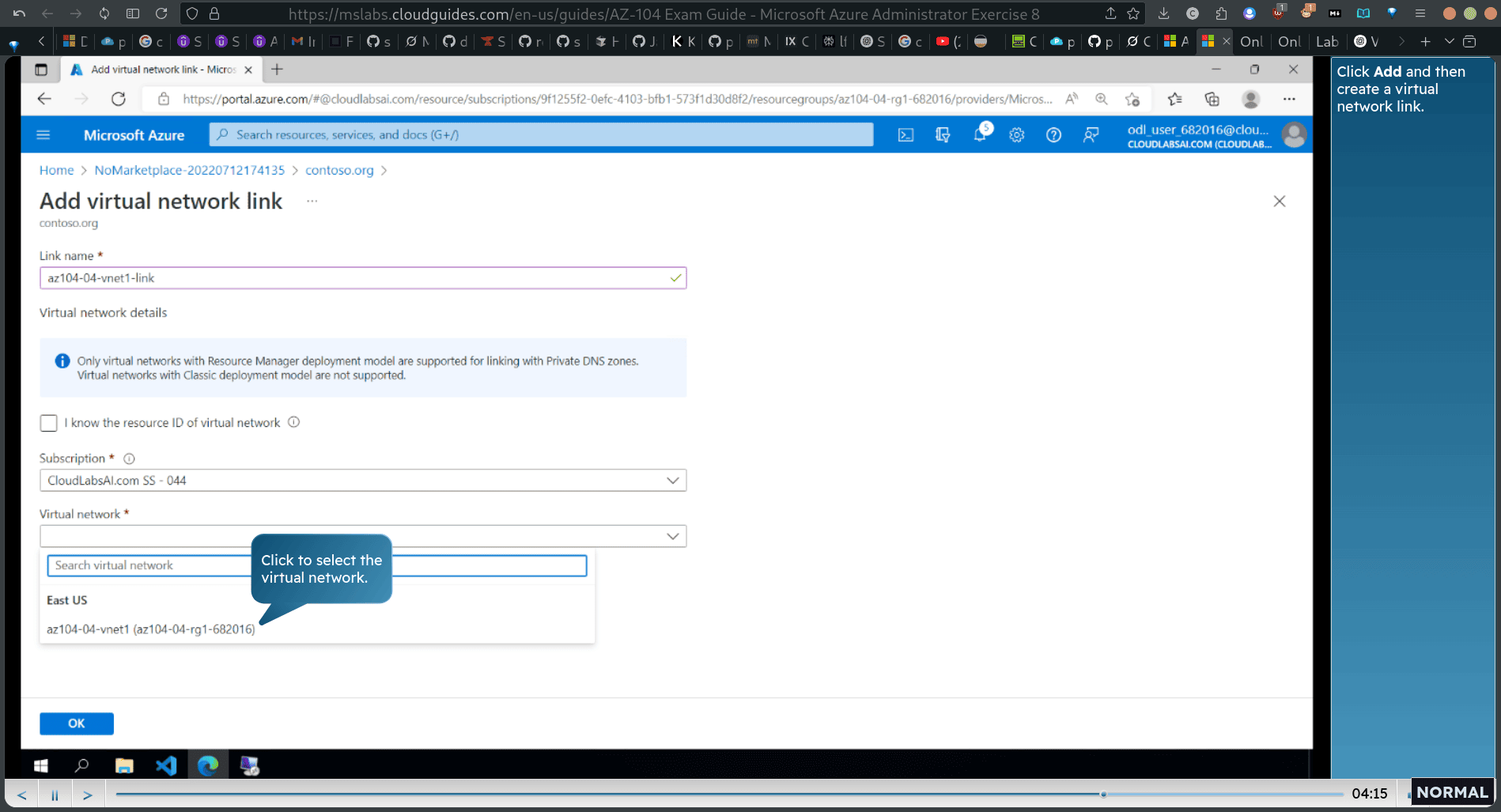

Virtual network links → add

Enable auto registration

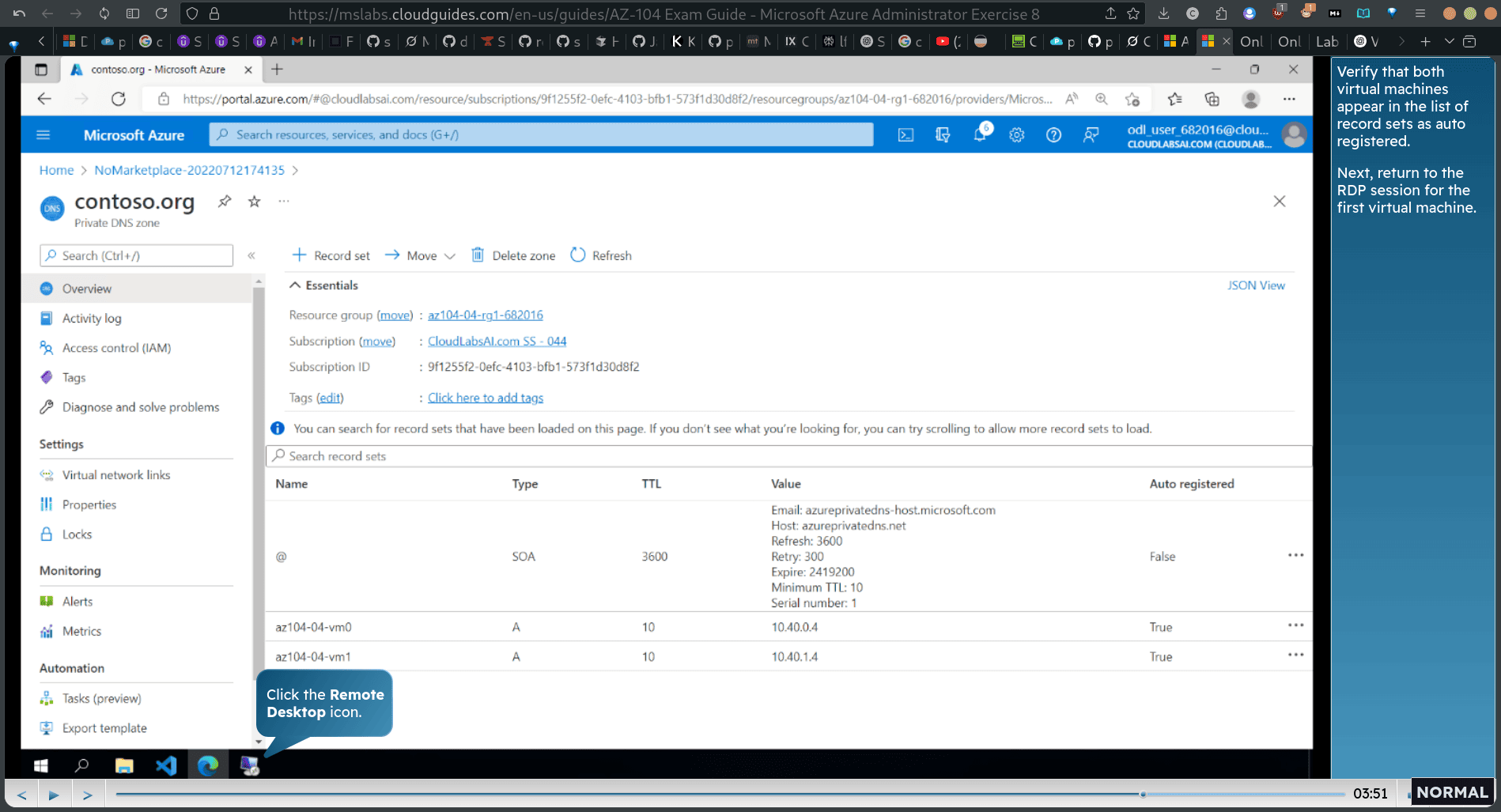

Verify that both virtual machines appear in the list of record set as auto registered. Next, return to the RDP session for the first virtual machine.

back to rdp window → , run as admin powershell :

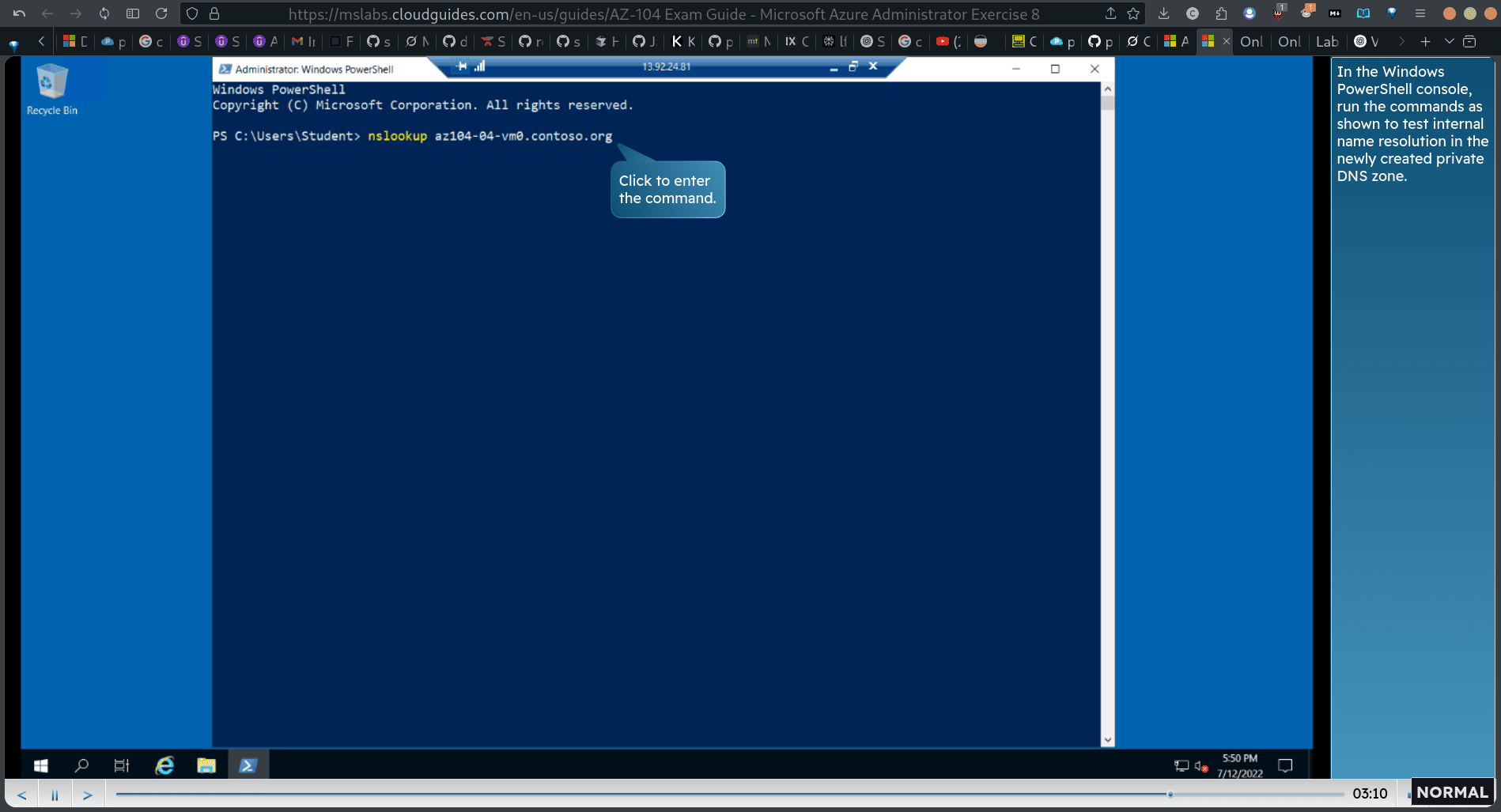

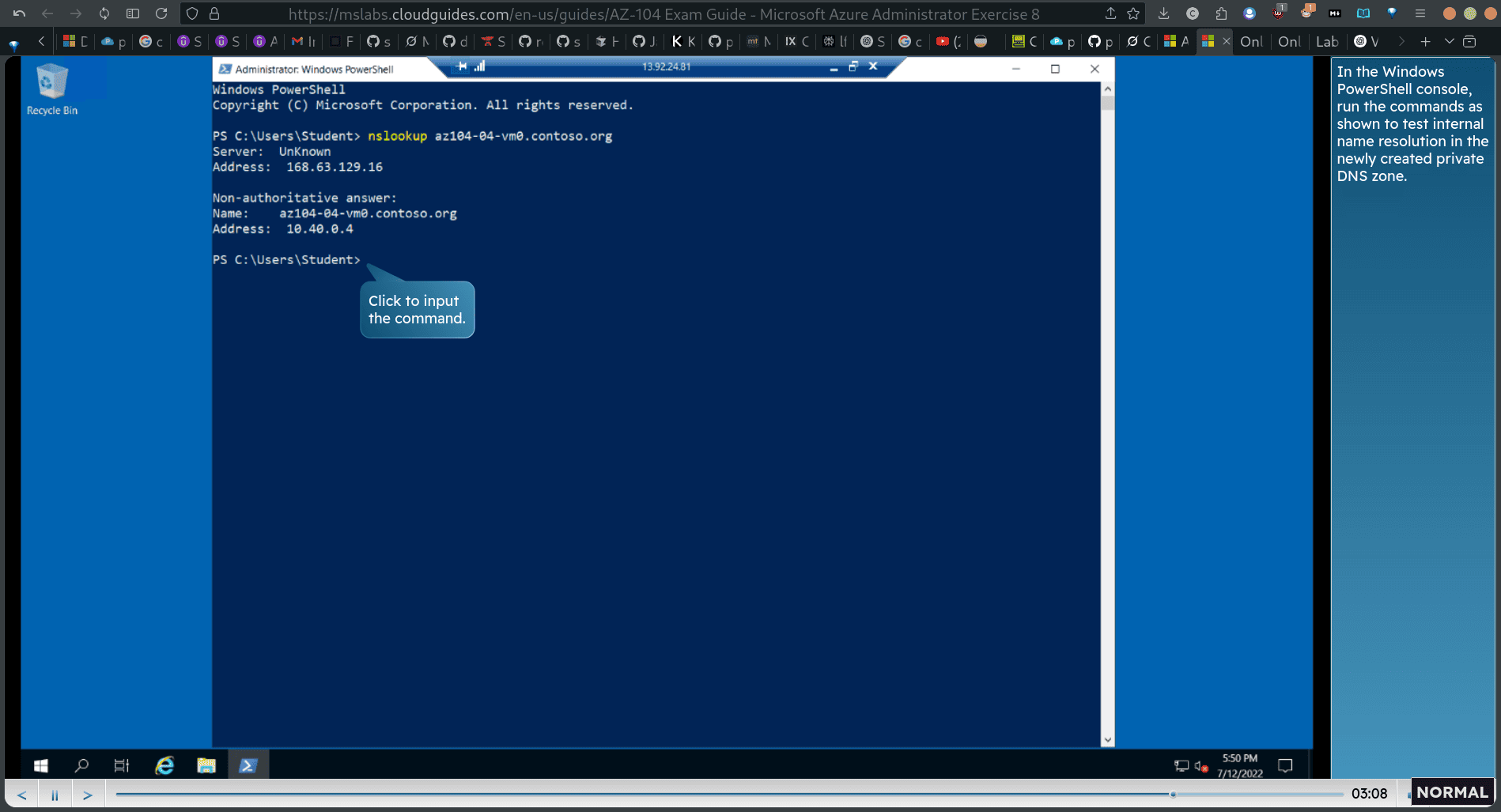

nslookup az104-04-vm0.contoso.org In the Windows PowerShell console, run the commands as shown to test internal name resolution in the newly created private DNS zone.

nslookup az104-84-vm1.contoso.org

Task 6: Configure Azure DNS for external name resolution

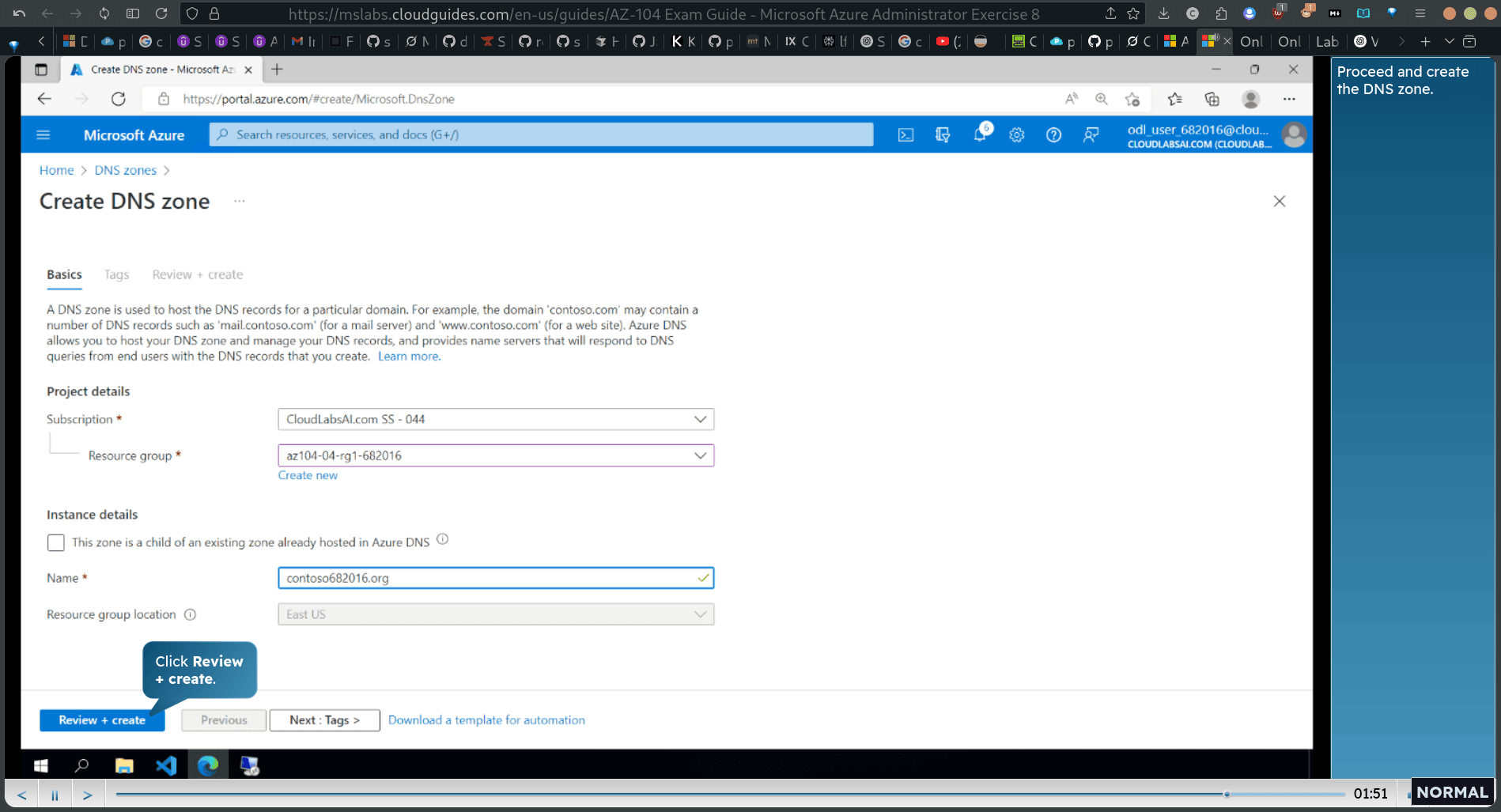

search dns zone

name → dns name

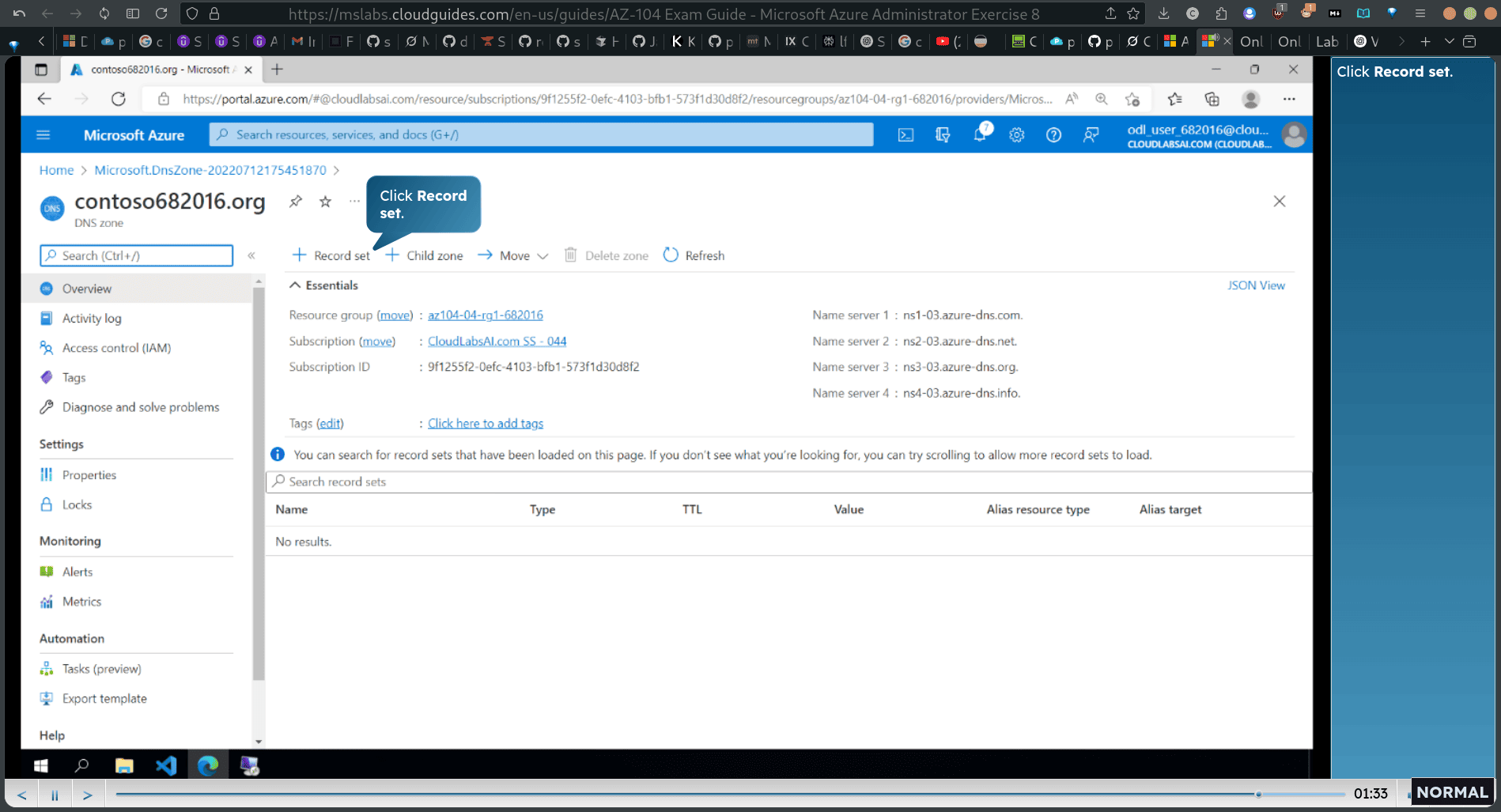

overview → record set

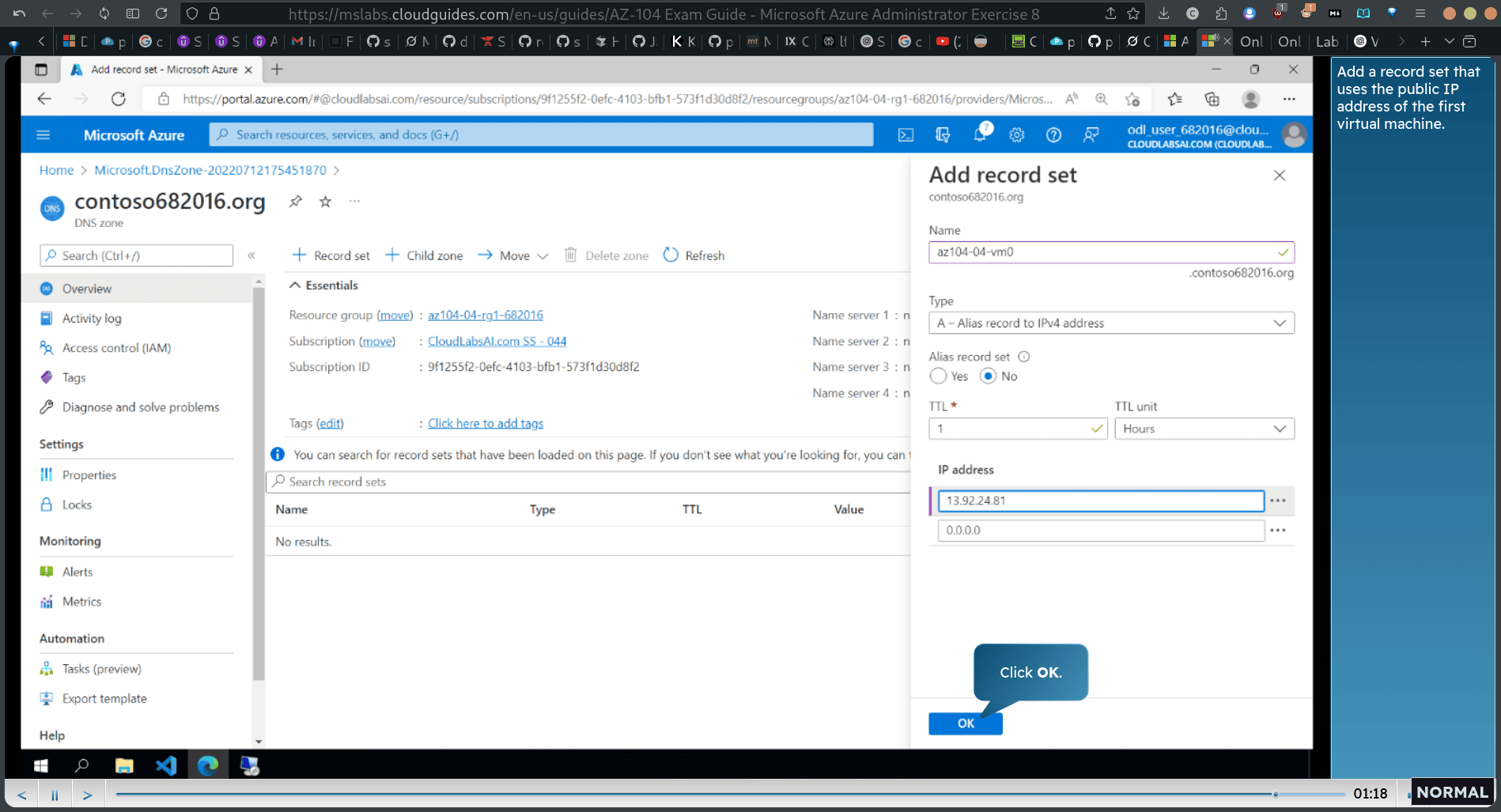

Add a record set that uses the public IP address of the first virtual machine.
Next, add a record set that uses the public IP address of the second virtual machine.

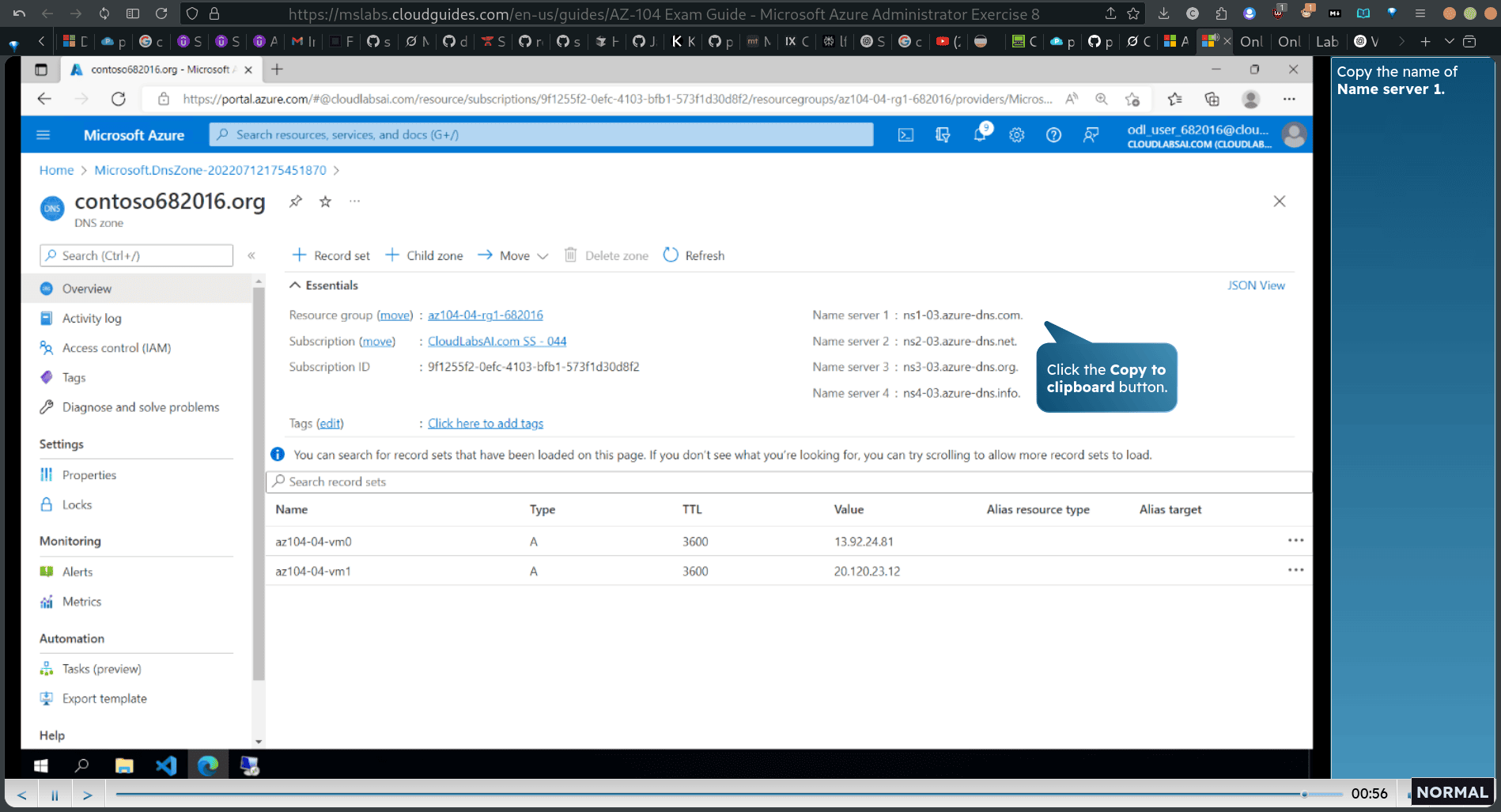

copy the name of name sever 1

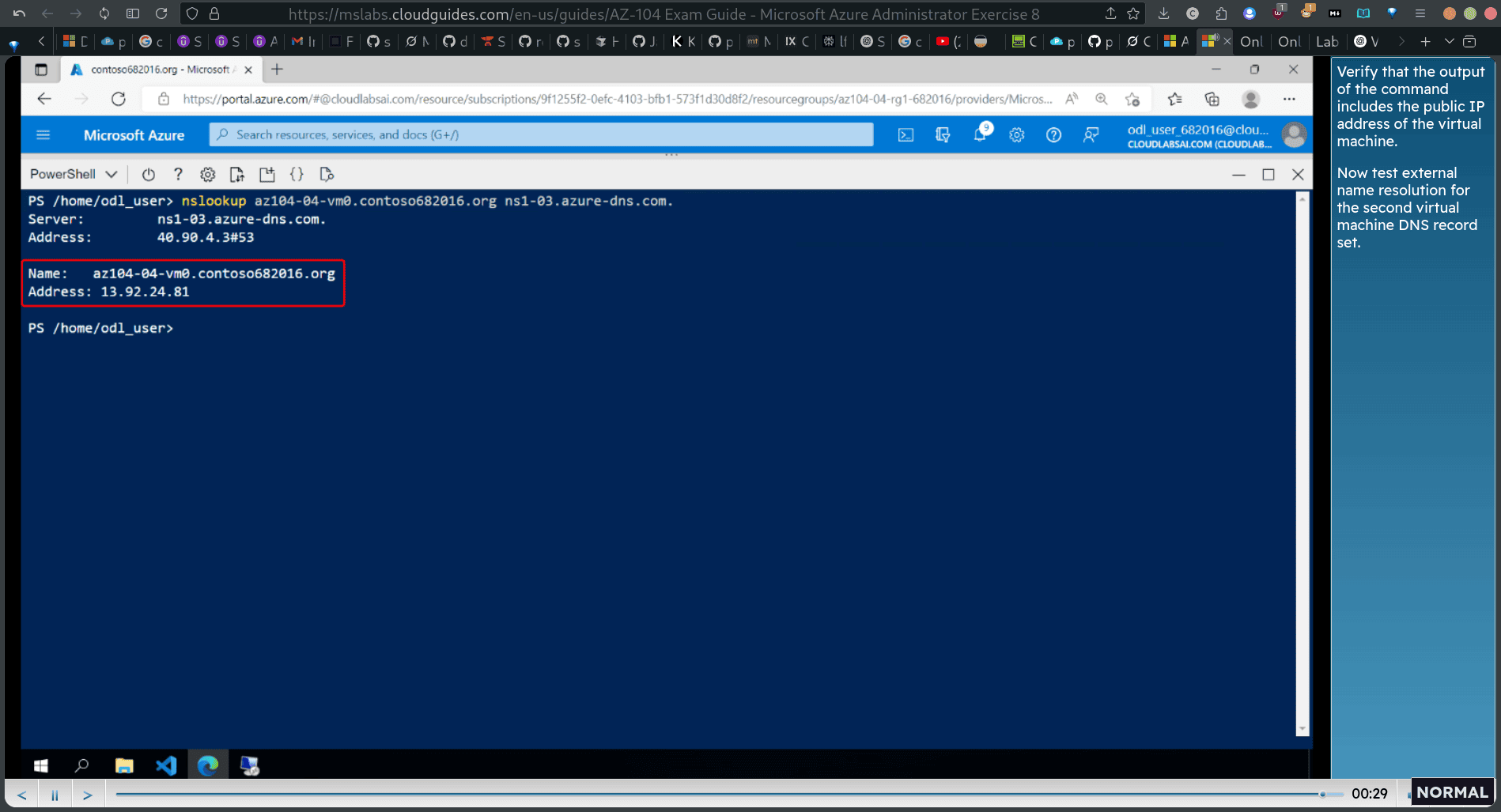

cloud shell → nslookup az104-84-vm@.contoso682016.org nsl1-03.azure-dns.com.

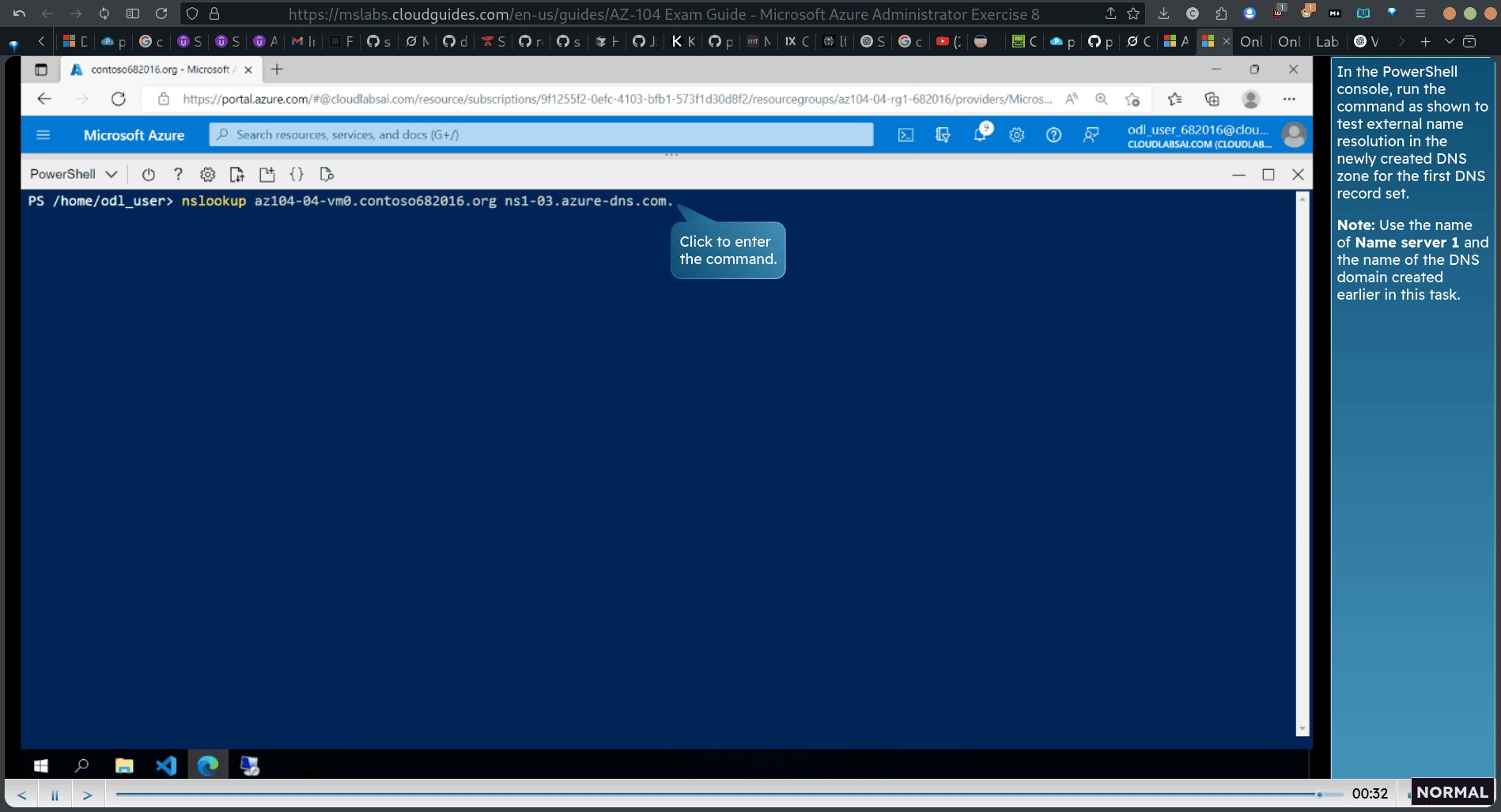

In the PowerShell console, run the command as shown fo test external name resolution in the newly created DNS zone for the first DNS record set. Note: Use the name of Name server 1 and the name of the DNS domain created earlier in this task.

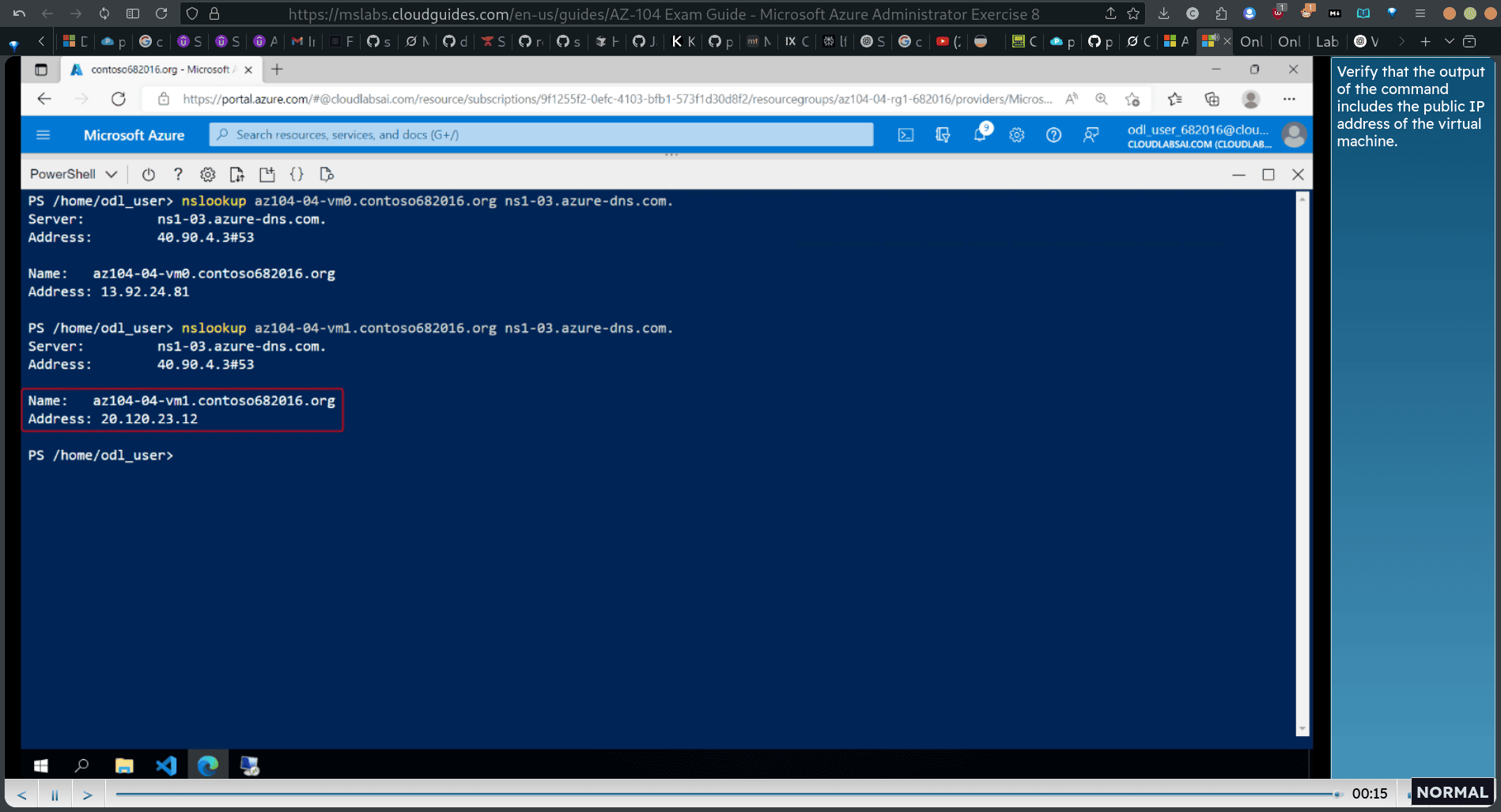

Verify that the output of the command includes the public IP address of the virtual machine. Now test external name resolution for the second virtual machine DNS record set.

nslookup az104-84-vml.contoso682016.org ns1-83.azure-dns.com.

9. Implement inter- site connectivity >

Task 1: Create and configure a virtual network

In this first task, you will deploy three virtual machines, each into a separate virtual network, with two of them in the same Azure region and the third one in another Azure region.

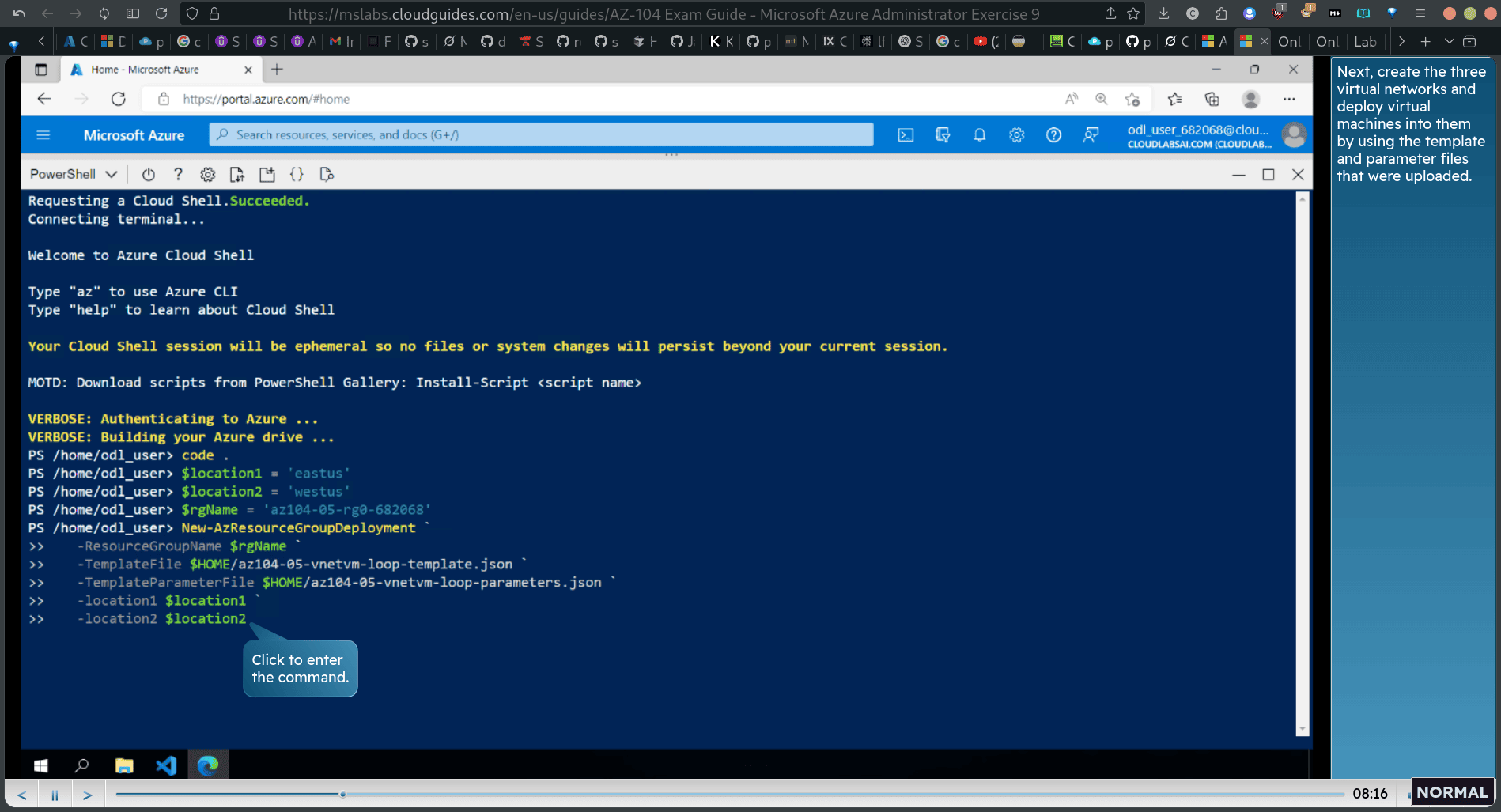

cloud shell → power → storage → upload

loop paraetmers → loop template

code . → change the password (seem like a azure policy ? have to change password)

Note: The first two virtual networks and a pair of virtual machines will be deployed in East US [Azure_region_1]. The third virtual network and the third virtual machine will be deployed in the same resource group but in West US [Azure_region_2].

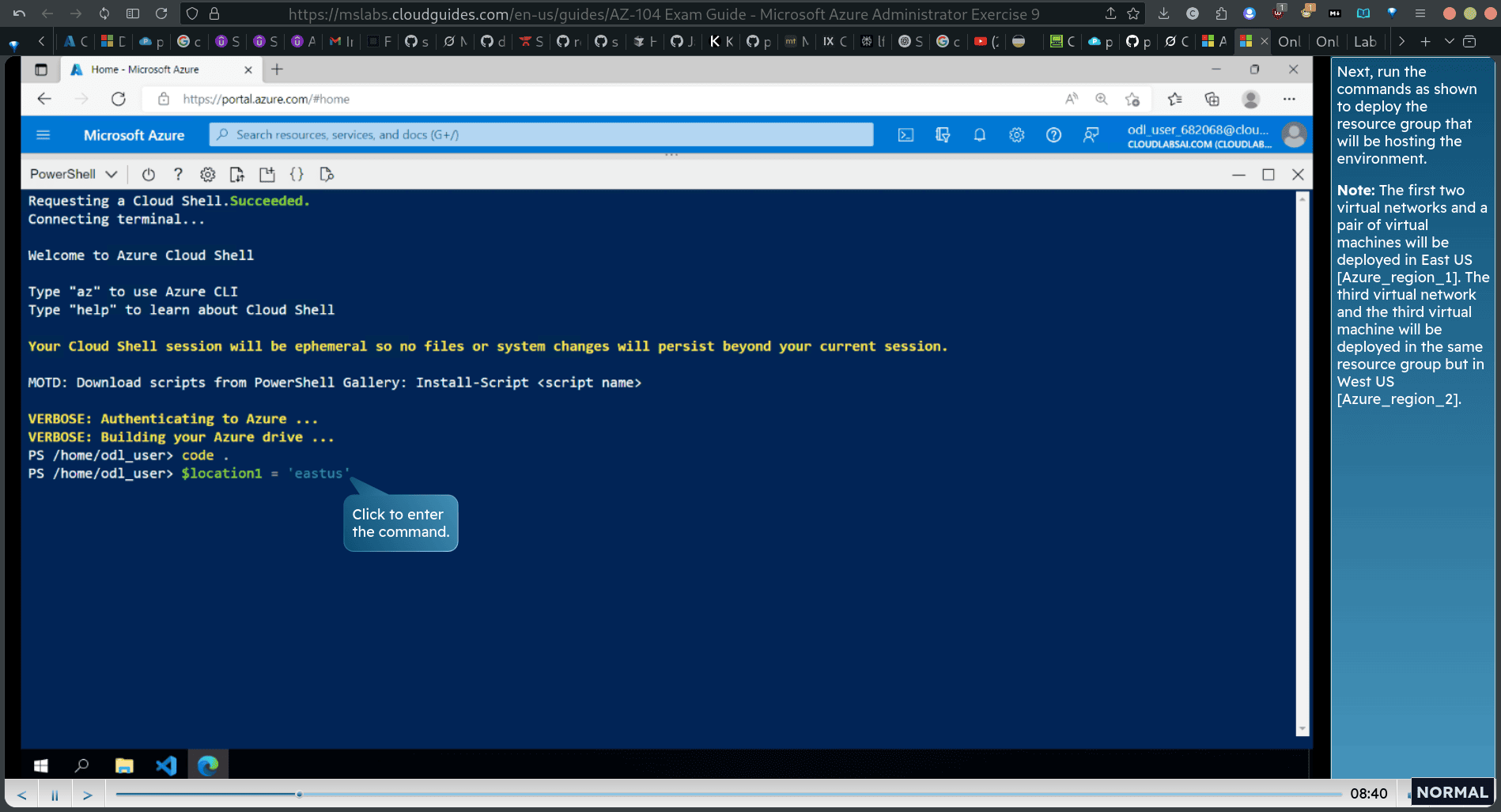

$location1=‘eastus’

$l oc a t ... =^{'} w es t u s^{'}$ rgName = ‘2z104-85-rg0-682068”

using loop template :

Task 2: Configure local and global virtual network peering

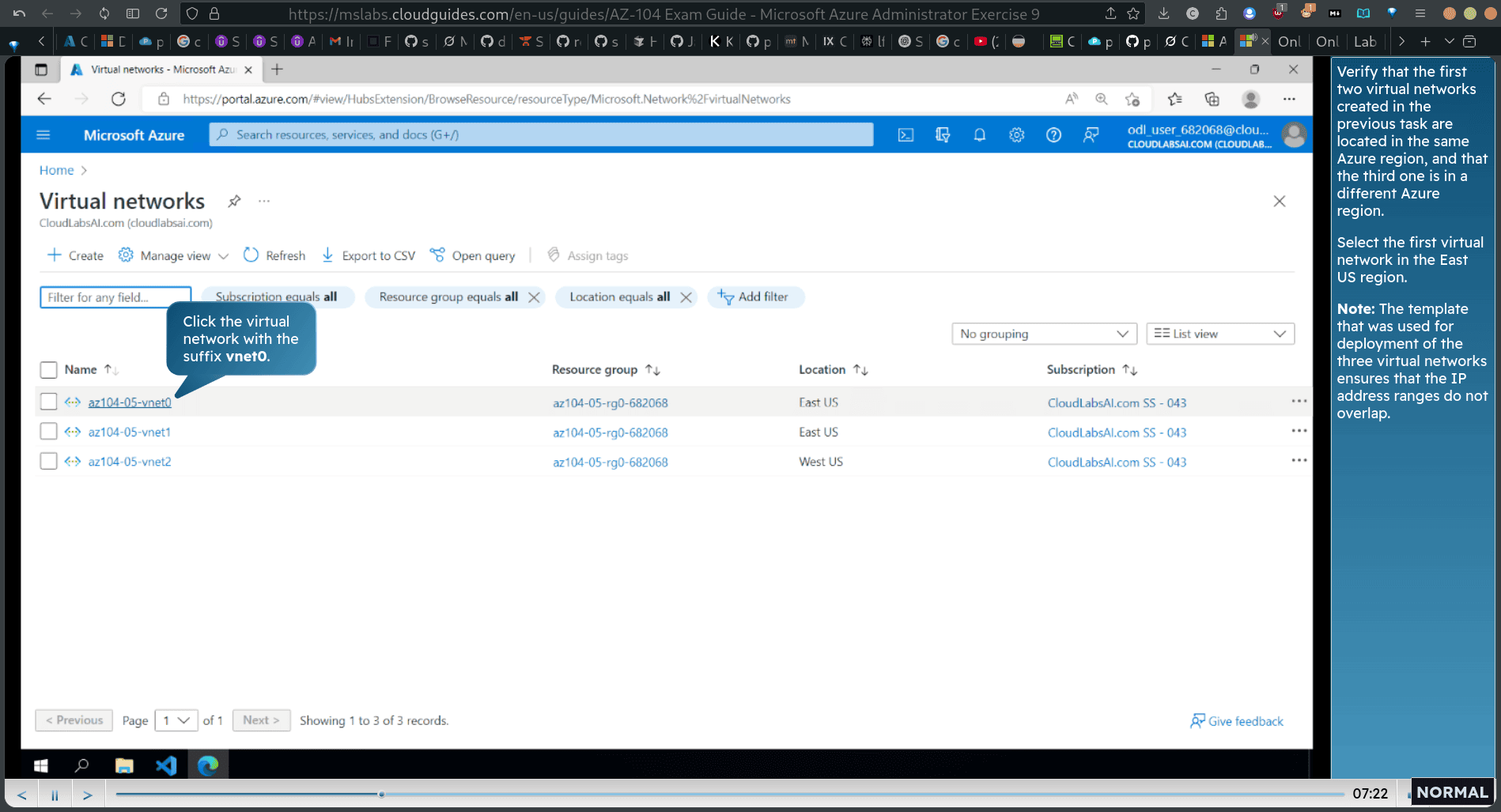

search Virtual network

verify the cli result:

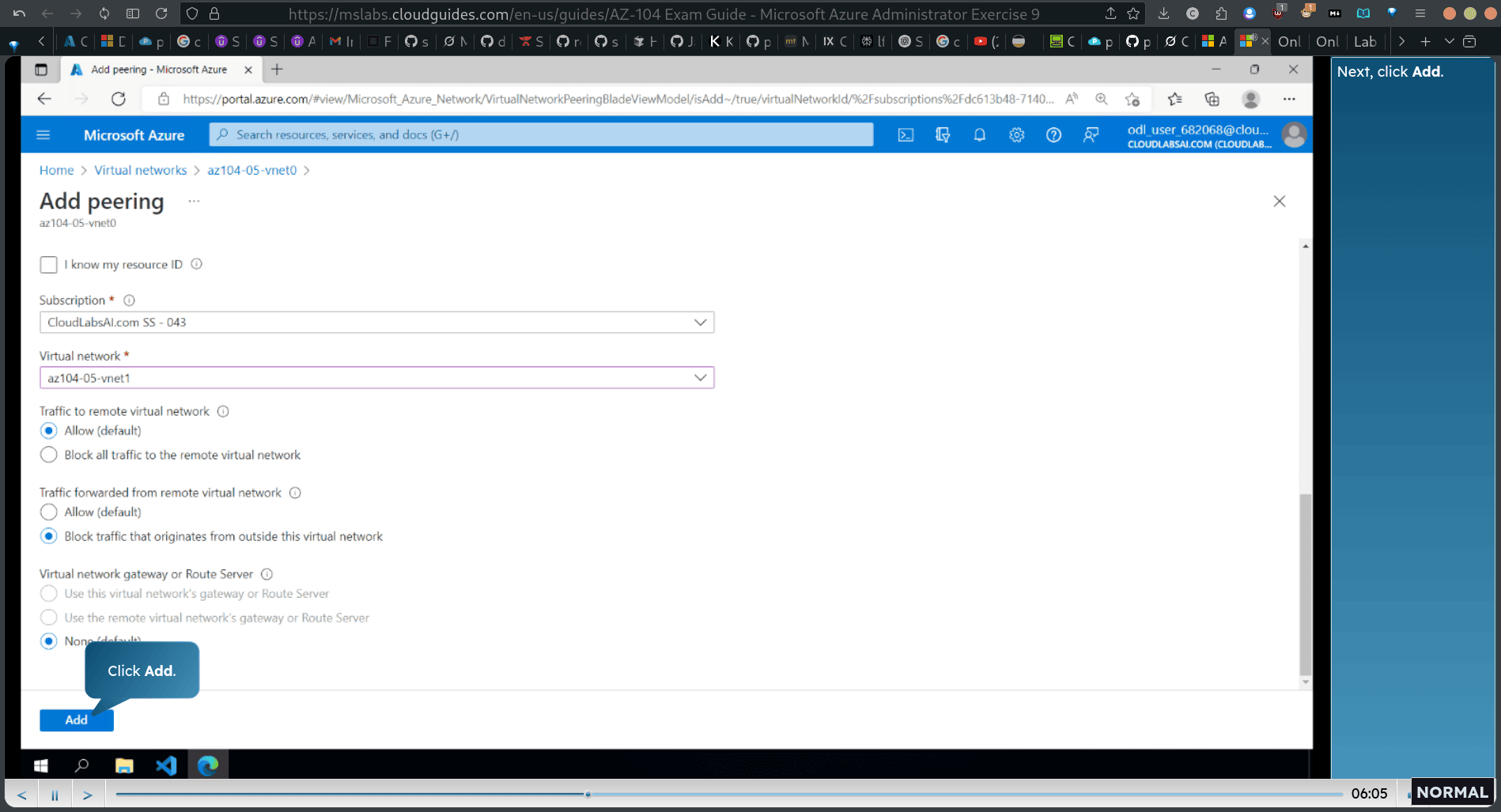

click → peering → add

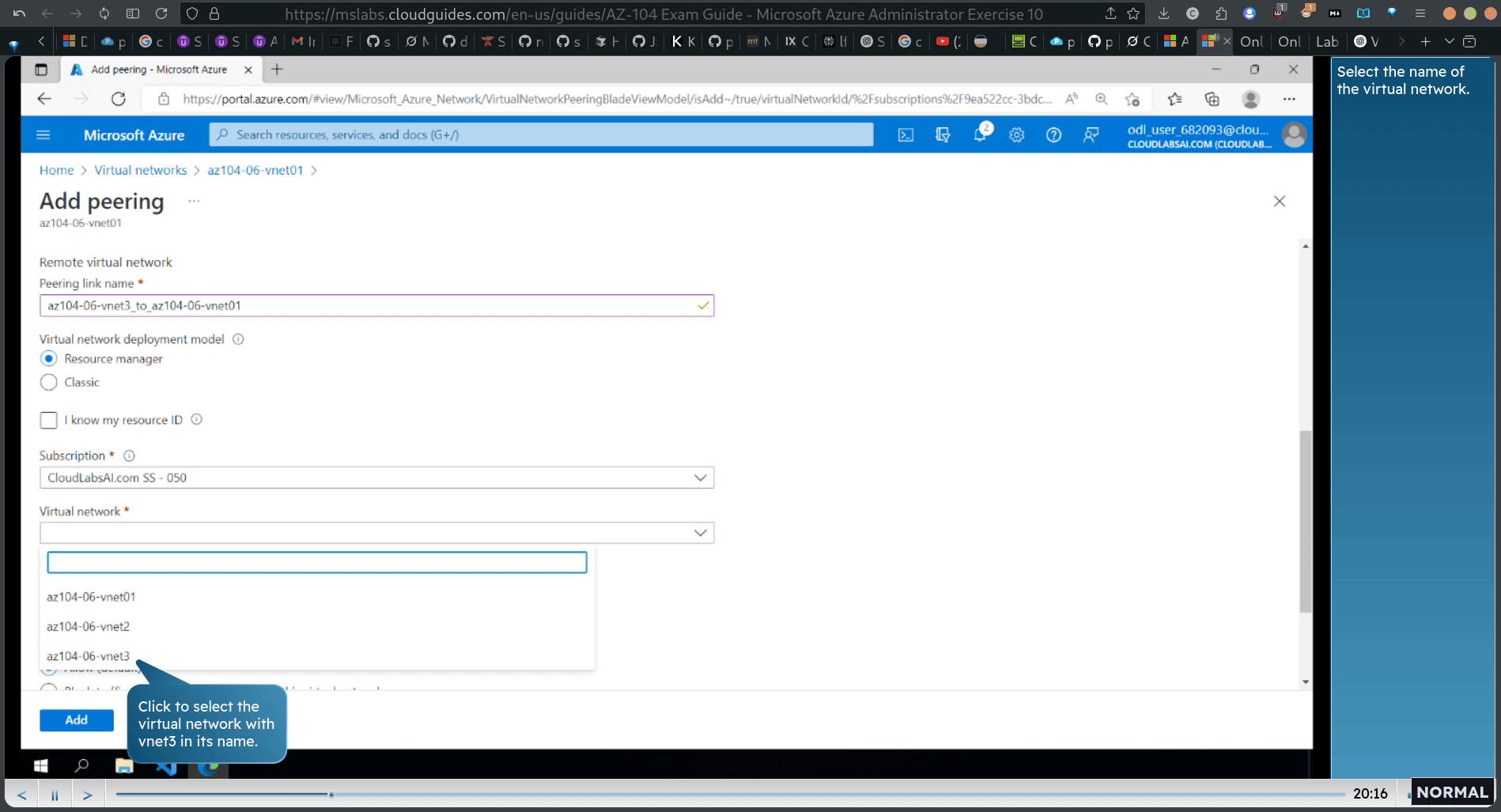

name (from .. to )

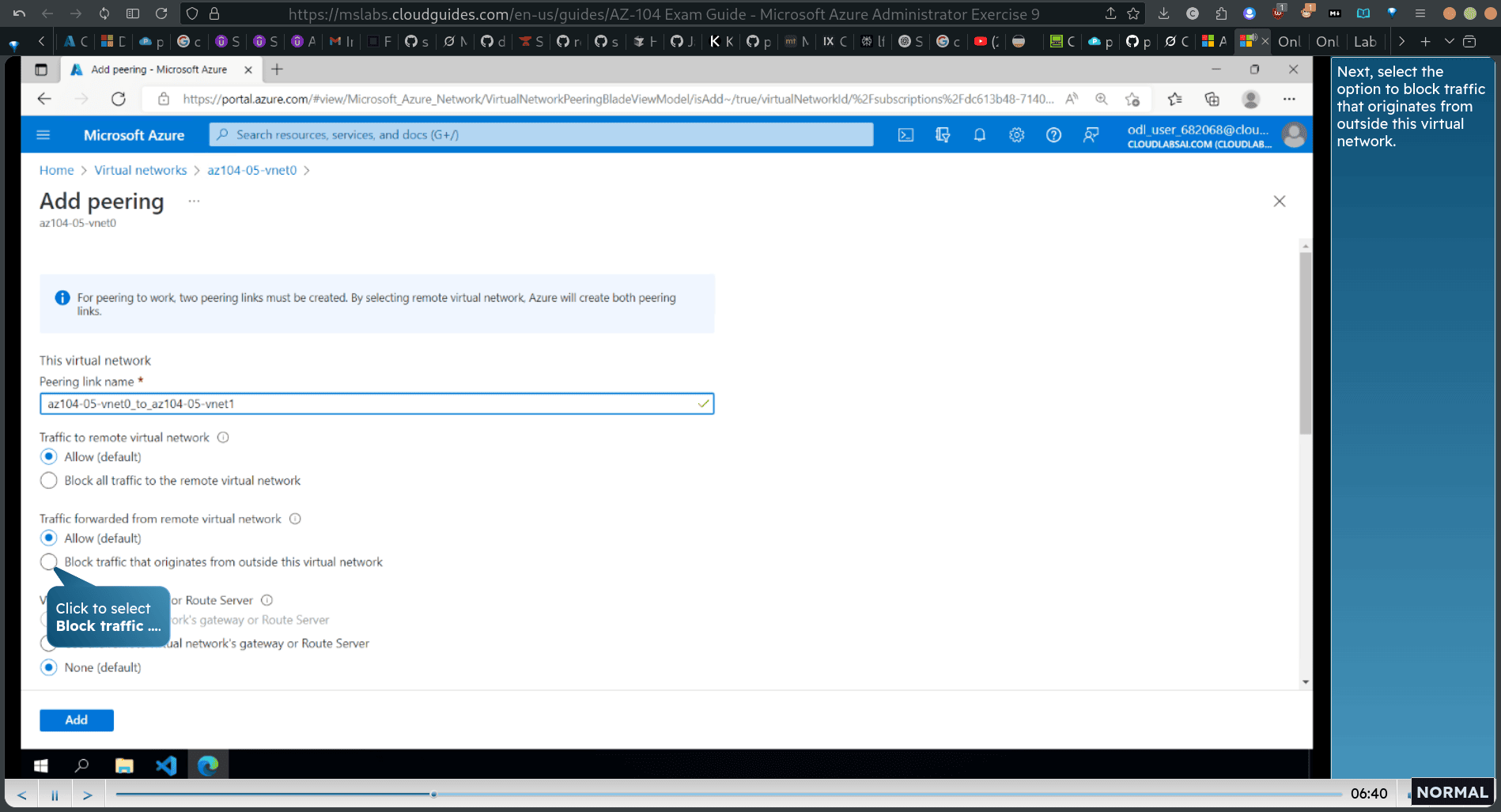

Next, select the option to block traffic that originates from outside this virtual network.

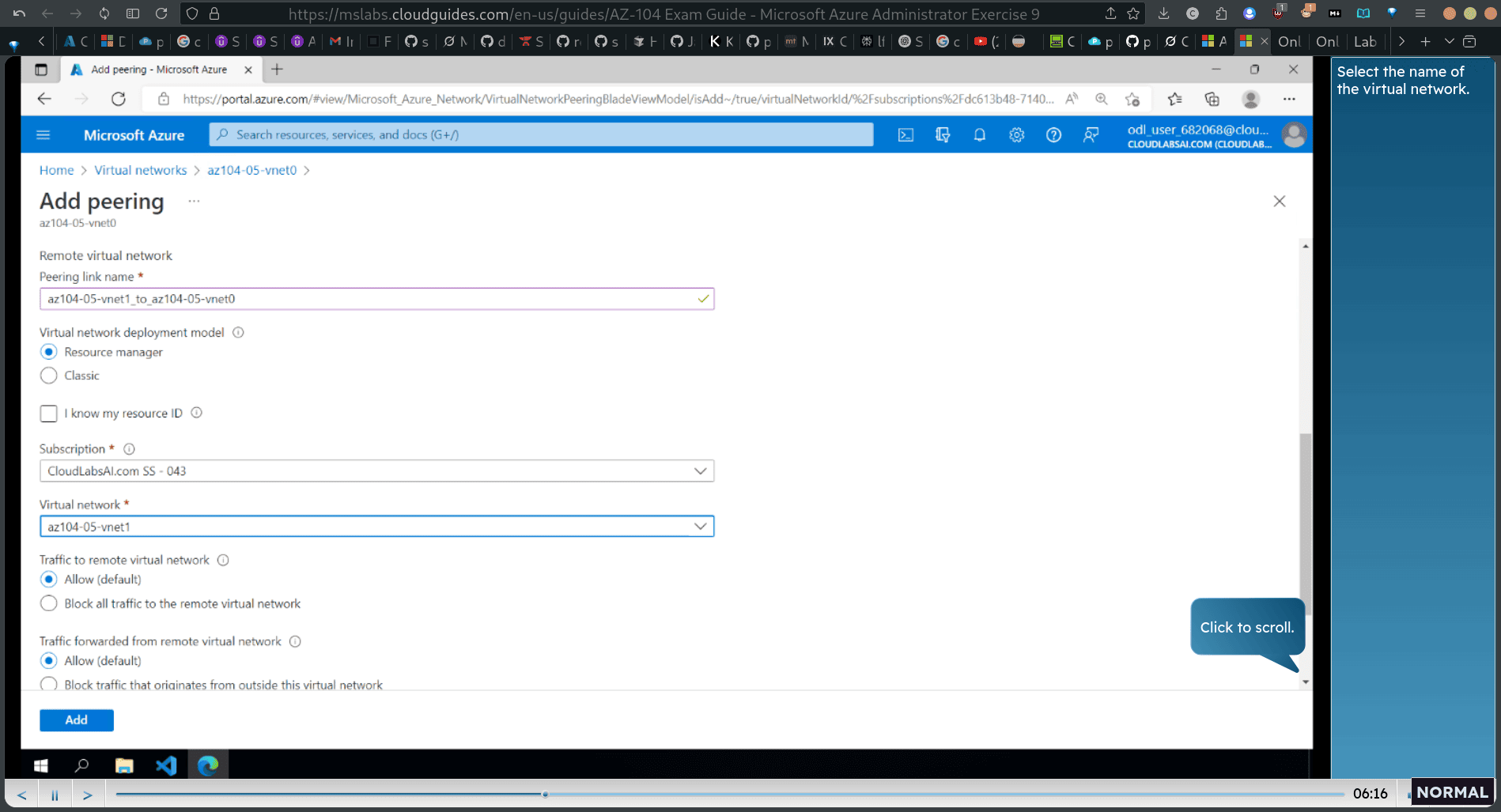

scroll down: (for remote Virtual network)

block traffic aswell
Provide the information fo establish global peering between this virtual network in the East US region and the virtual network in the West US region.
First, provide the peering link name for this virtual network. Note: This step establishes two global peerings: one from az104-05-vnet0 to az104-05-vnet2 and the other from az104-05-vnet2 fo az104-05-vnet0.

block traffic as well

back to network :

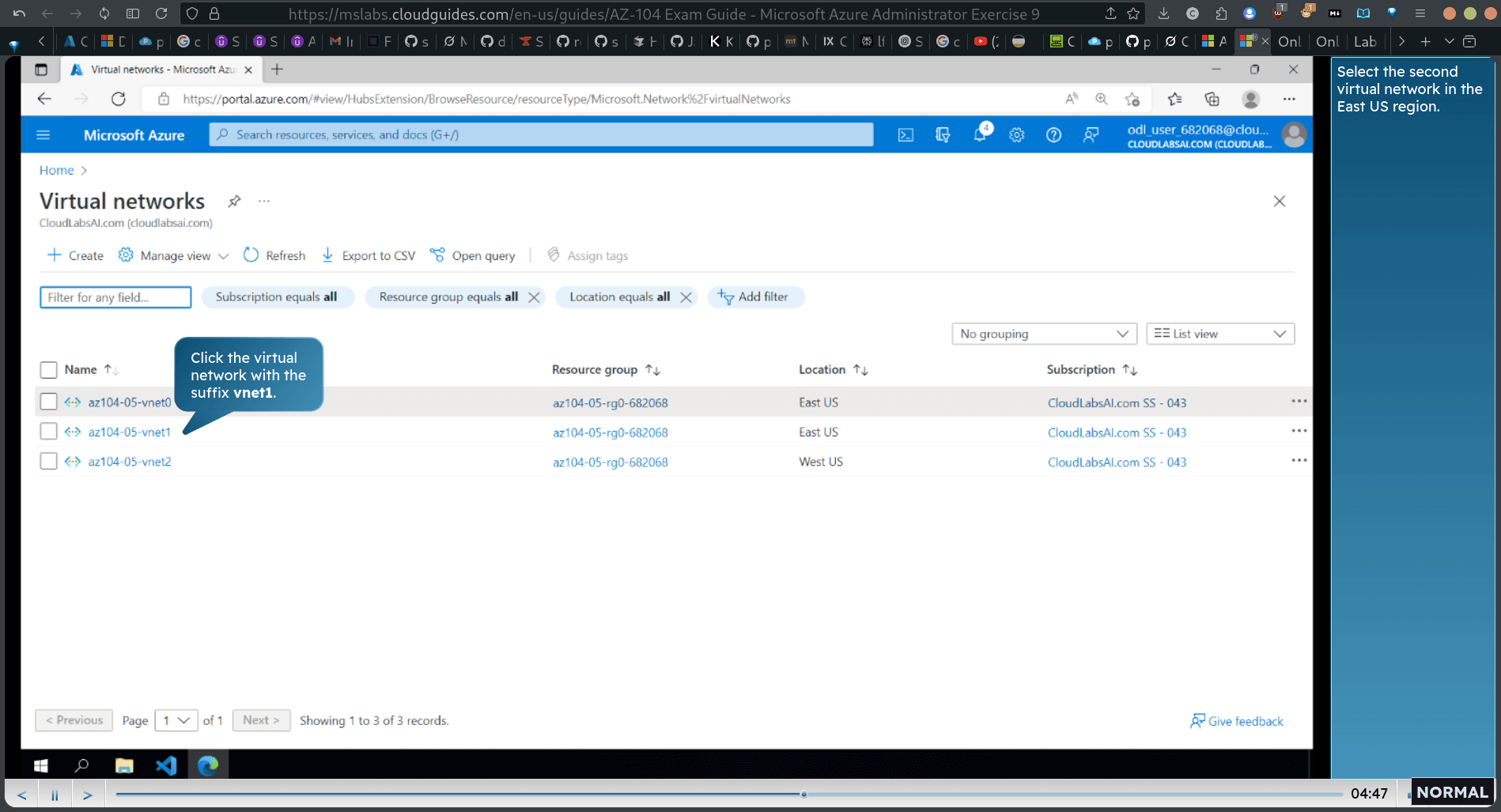

select second vnet1

peering again

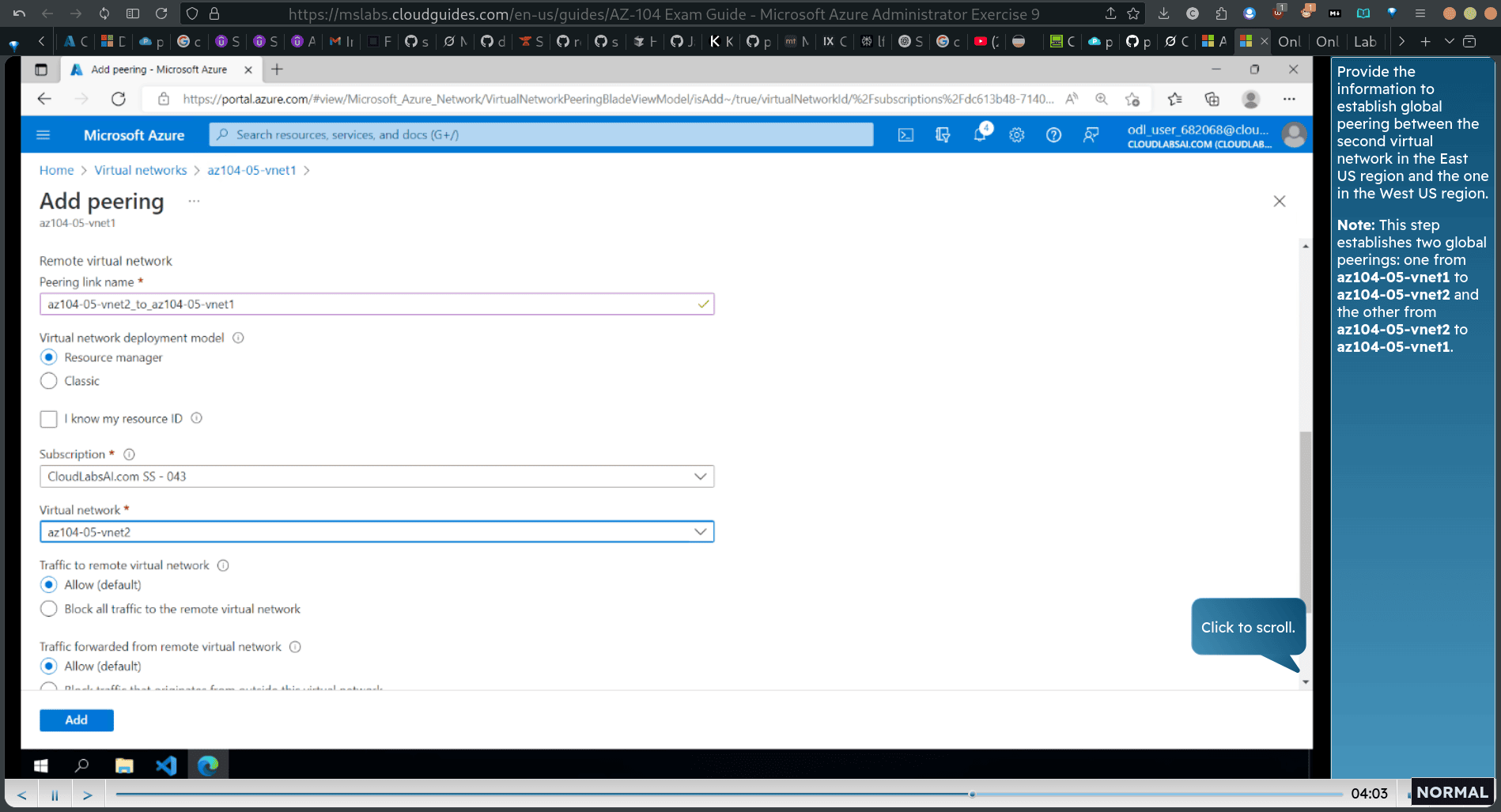

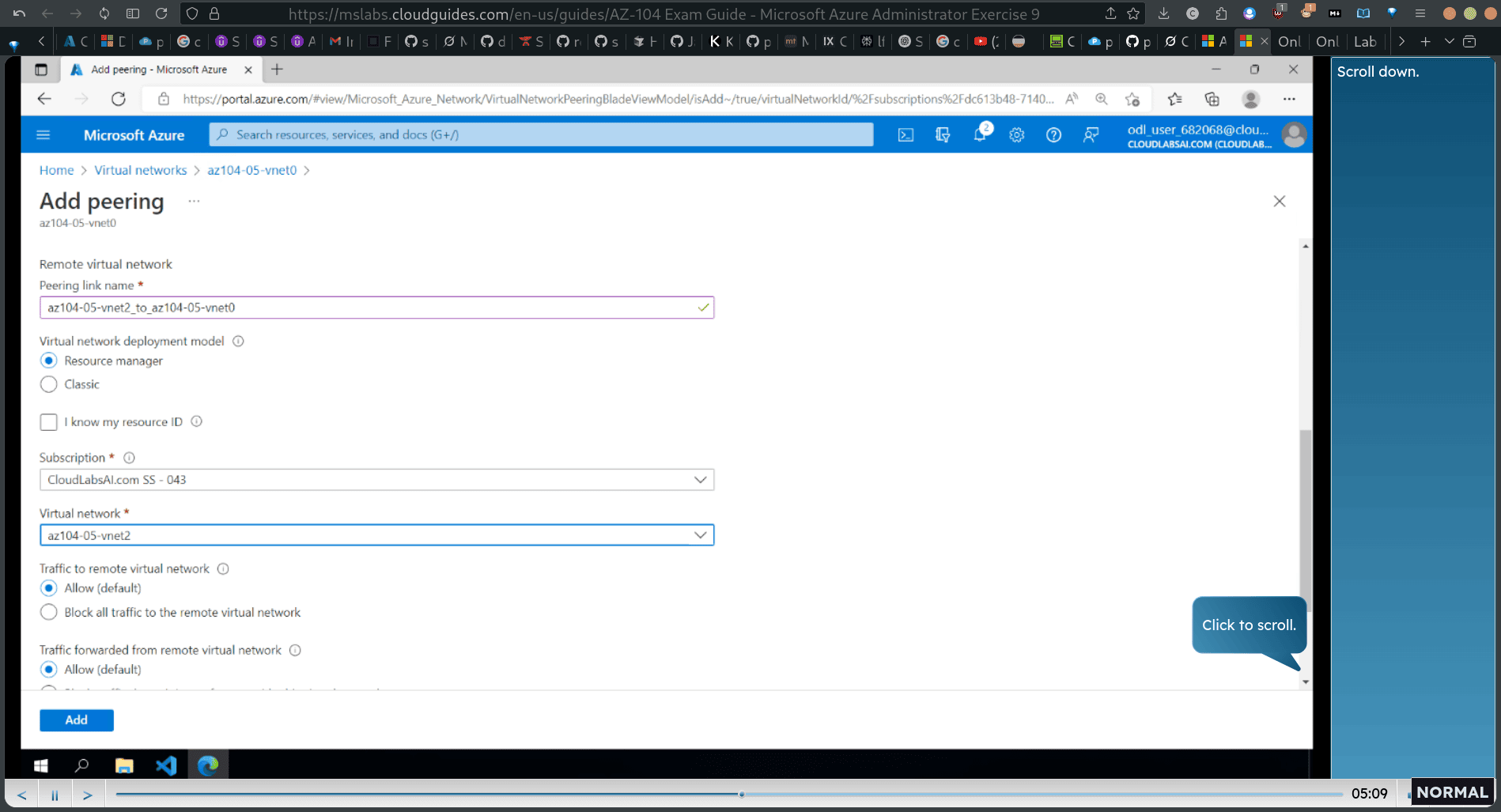

Provide the information fo establish global peering between the second virtual nefwork in the East US region and the one in the West US region.
Note: This step establishes two global peerings: one from az104-05-vnet1 to az104-05-vnet2 and the other from az104-05-vnet2 to az104-05-vnet1.

Task 3: Test inter-site connectivity

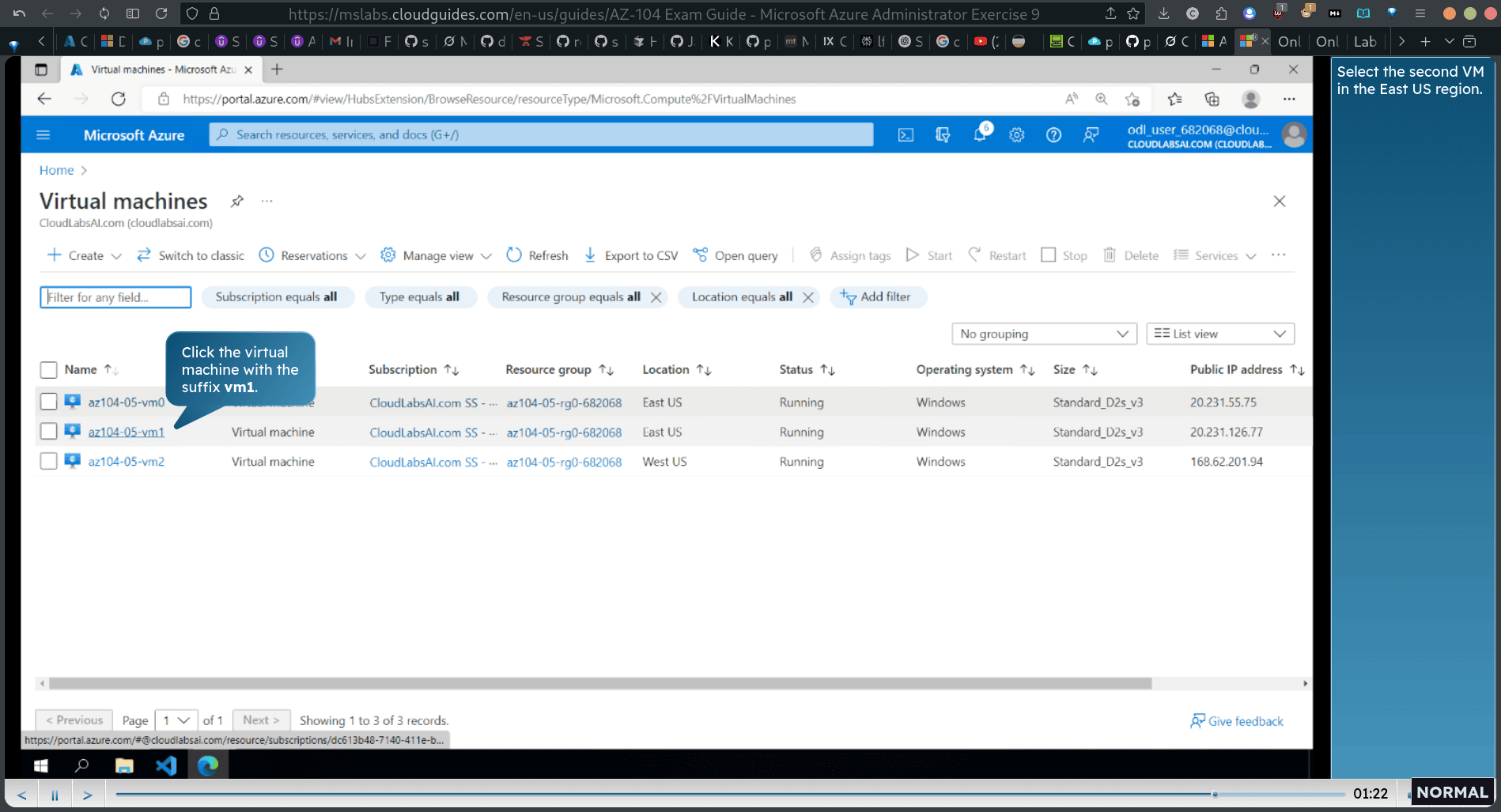

Search VM select the firts in east us

click onlien → rdp

run powershell as admin

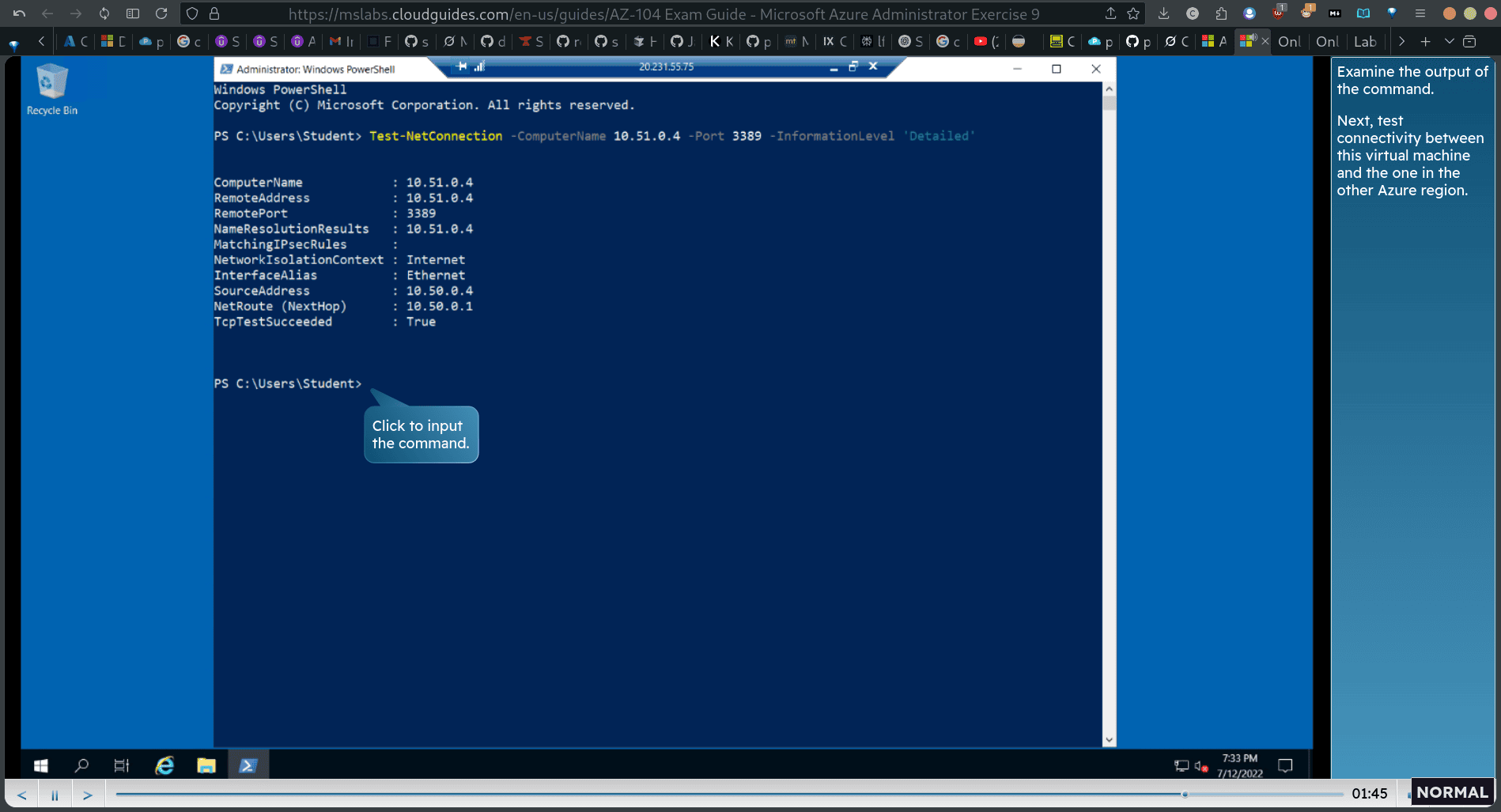

Test-NetConnection -ComputerName 10.51.0.4 -Port 3389 -InformationLevel ‘Detailed’ Note: The test uses TCP 3389 since this is this port is allowed by default by operating system firewall.

exam the output

Test-NetConnection -ComputerName 10.52.0.4 -Port 3389 -InformationLevel ‘Detailed’

select the second vm

Test-NetConnection -ComputerName 10.52.0.4 -Port 3389 -InformationLevel ‘Detailed’

10. Implement traffic management >

Task 1: Deploy virtual machines

The first two will reside in a hub virtual network, and the remaining two will reside in separate spoke virtual networks.

upload loop json , change the password , then

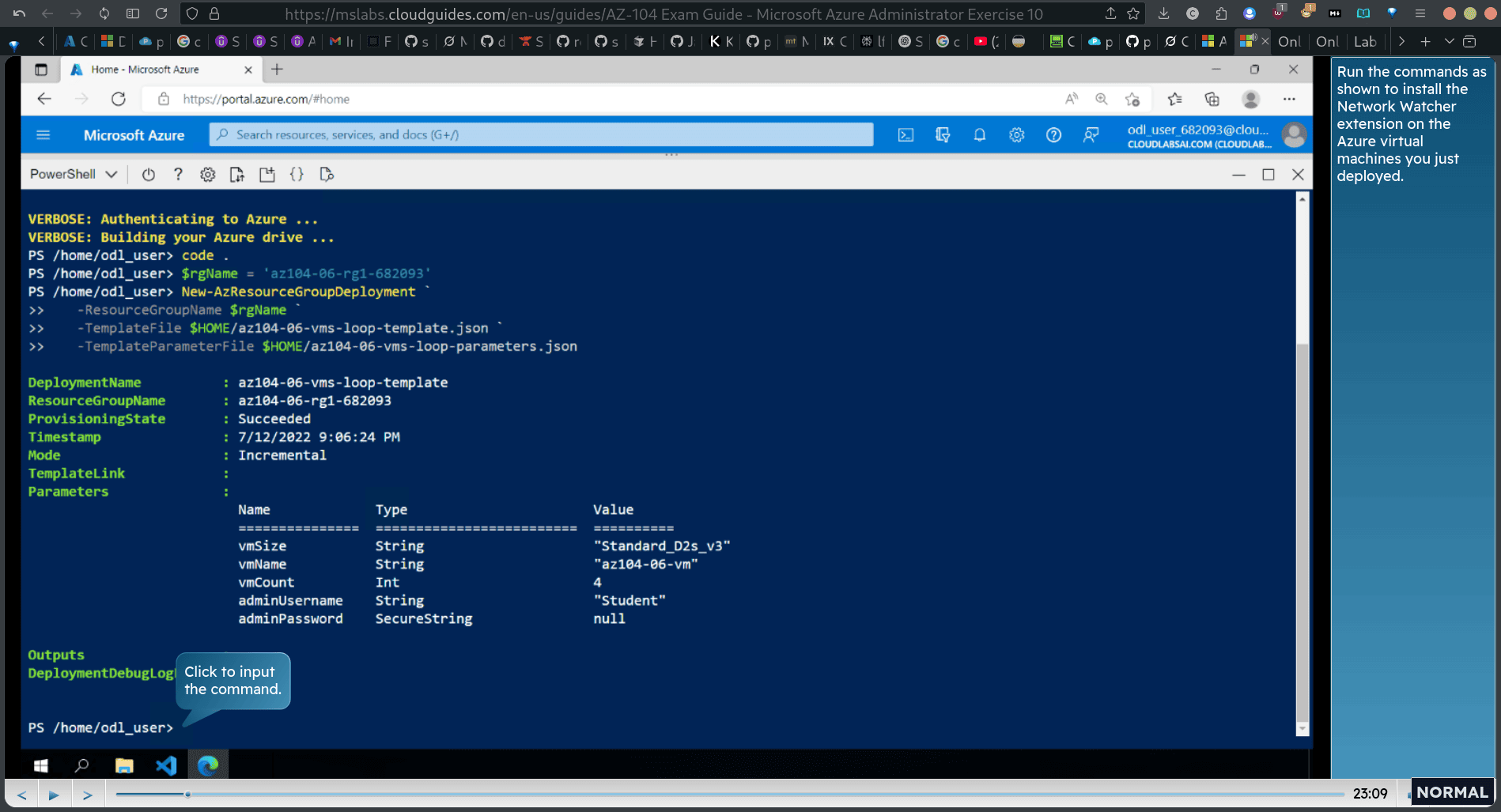

New-AzResourceGroupDeployment

$l oc a t i o n = (G e t - A z R eso u rce G ro u p - R eso u rce G ro u p ham e$ rgName).location $v m N am es = (G e t - A z V M - R eso u rce G ro u pN am e$ rgName).Name

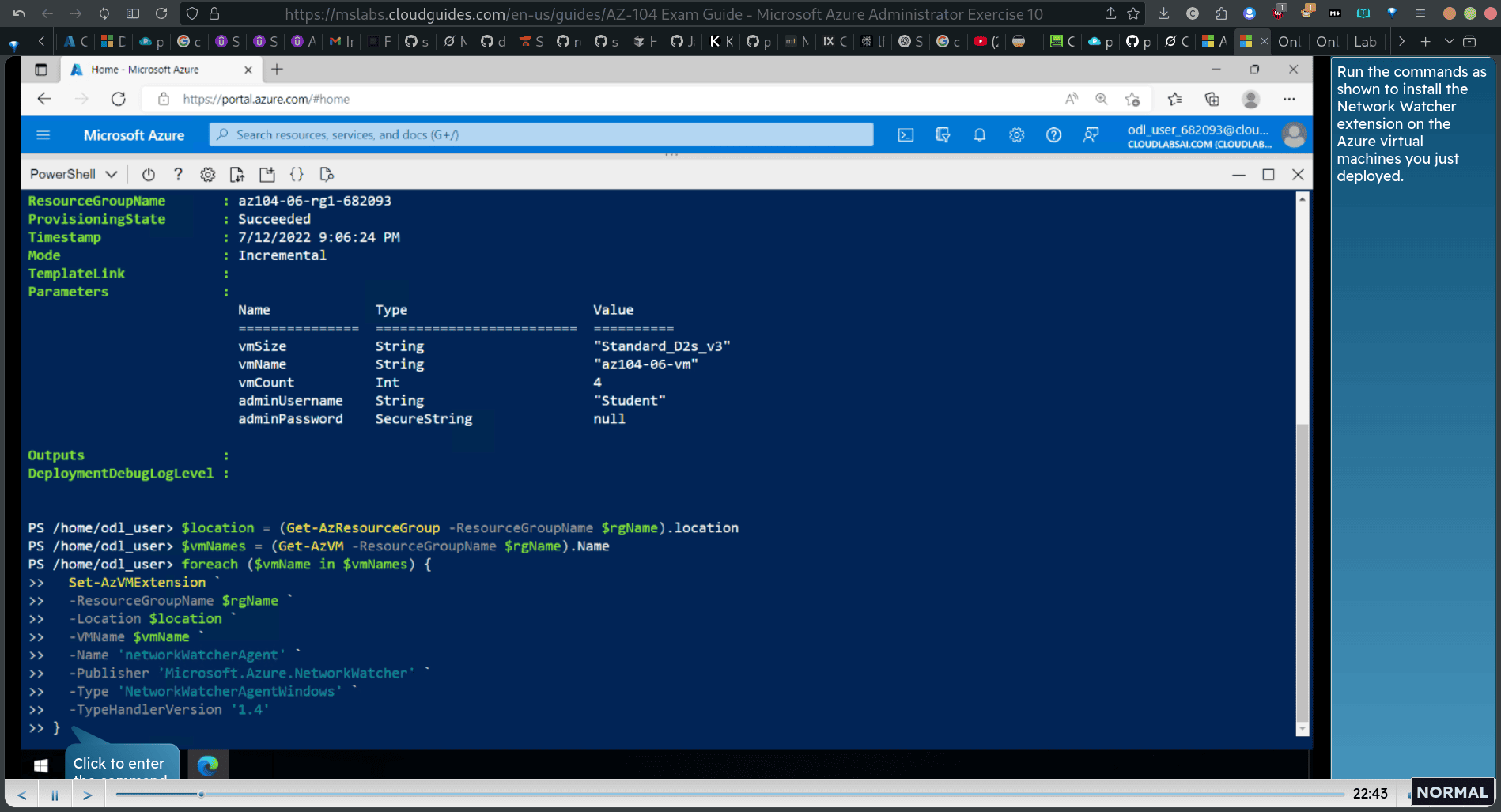

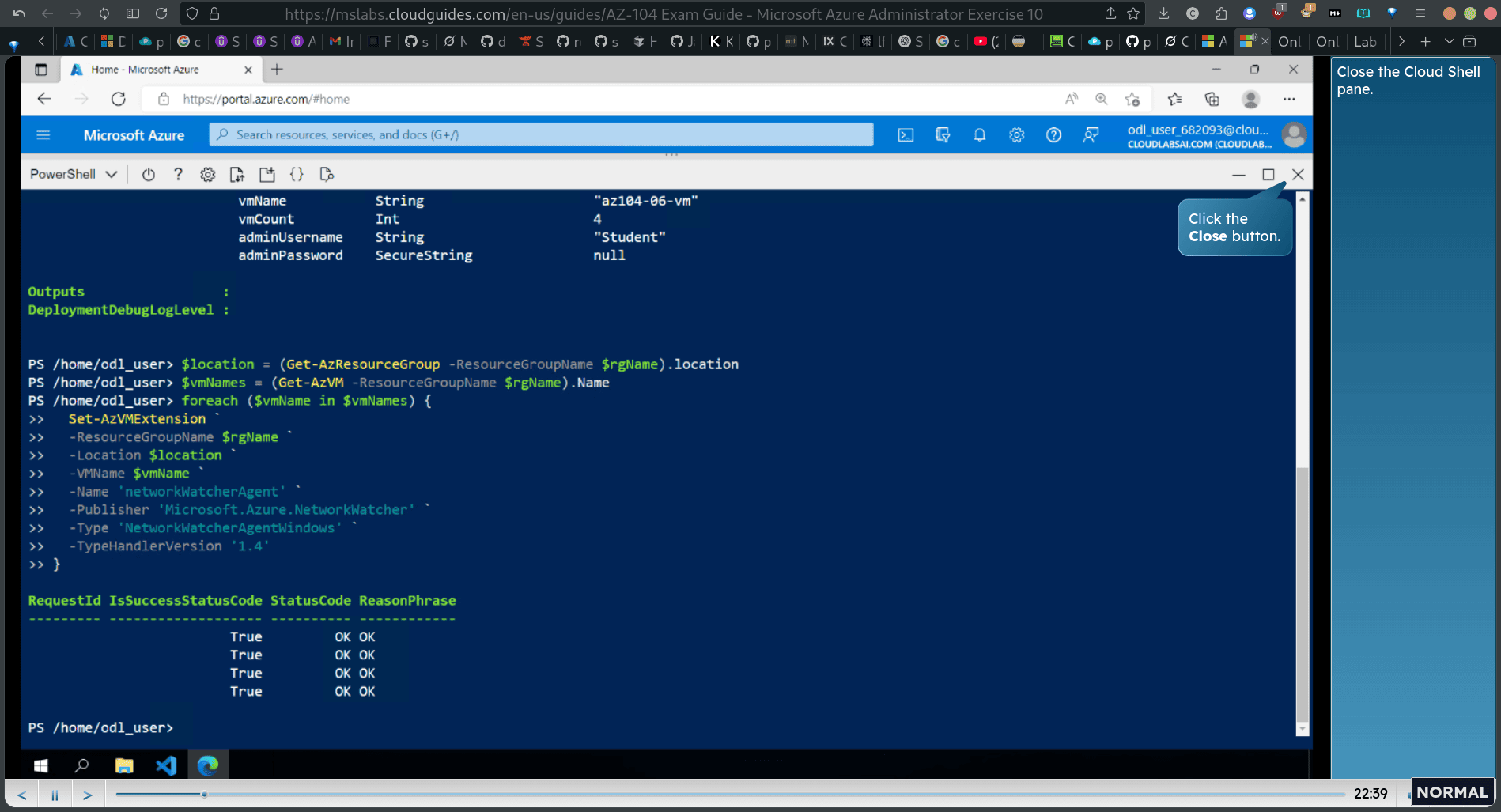

foreach ( $v m N am e in$ vmNames) {

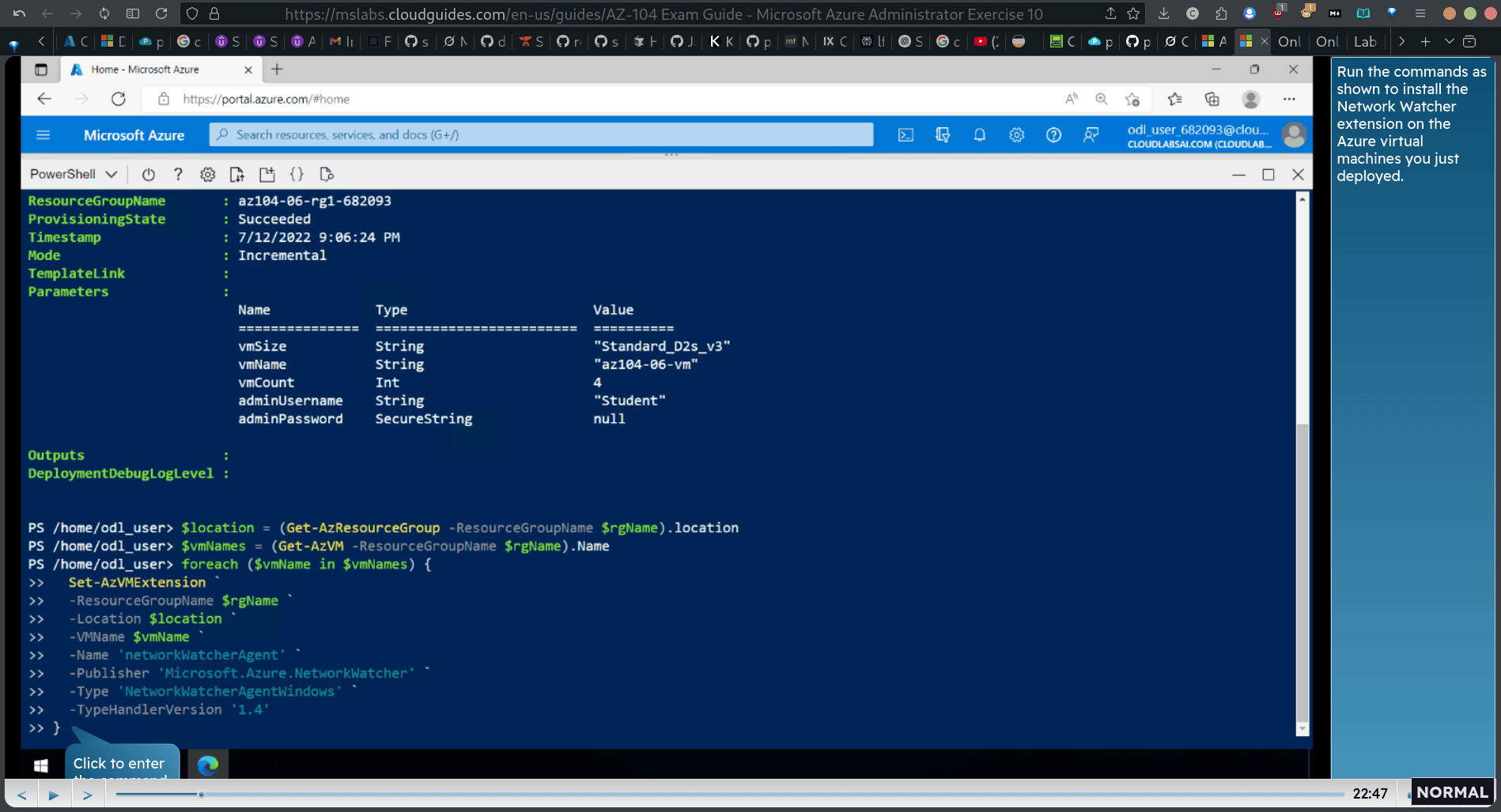

Set-AzVMeExtension ° -ResourceGroupName $r g N am e - L oc a t i o n$ location _ -VMName $vmName _ -Name ‘networkWatcherAgent’ ° -Publisher ‘Microsoft.Azure.NetworkWatcher -Type ‘NetworkWatcherAgentilindows’ * -TypeHandlerVersion ‘1.4’

Task 2: Configure the hub and spoke network topology

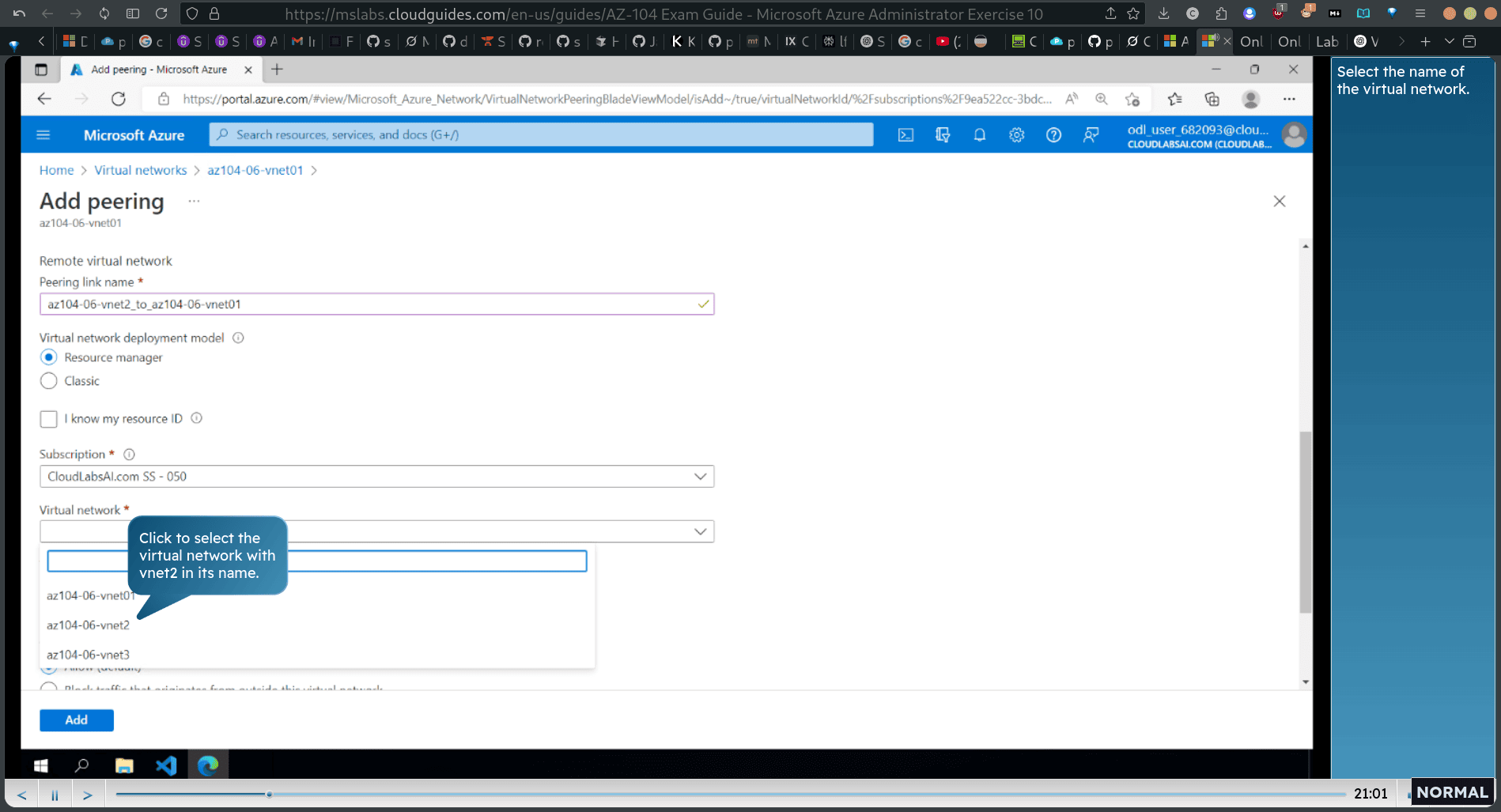

virtual netowrk → first → scroll peering

between the hub virtual network and the first spoke virtual nefwork.
Note: This step establishes two local peerings: one from az104-06-vnet01 to az104-06-vnet2 and the other from az104-06-vnet2 fo az104-06-vnet0l1.

Note: This step establishes two local peerings: one from az104-06-vnet01 to az104-06-vnet3 and the other from az104-06-vnet3 to az104-06-vnet01, which will complete the hub and spoke topology.

above operation block traffic as well

Task 3: Test transitivity of virtual network peering

using network watcher

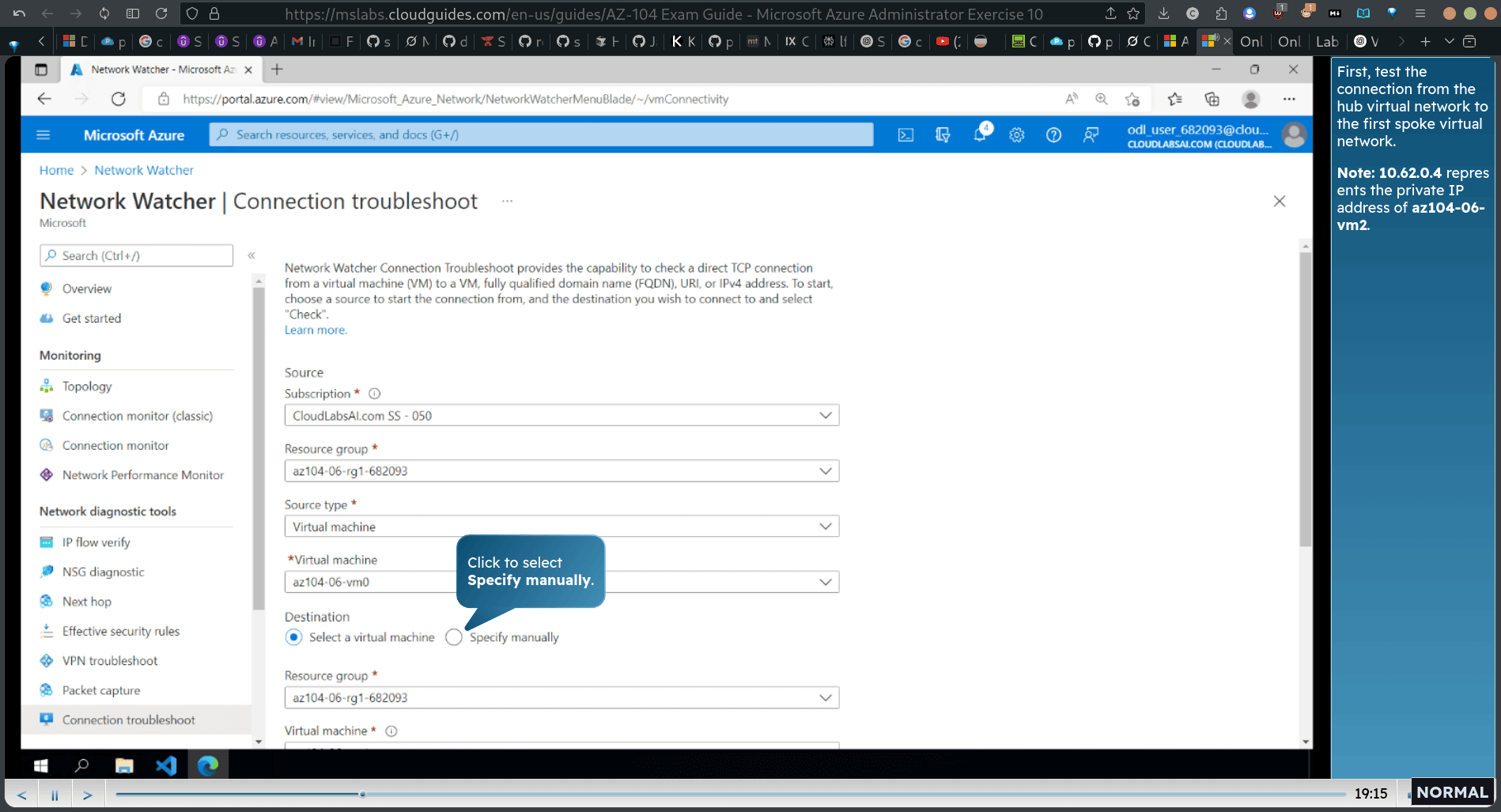

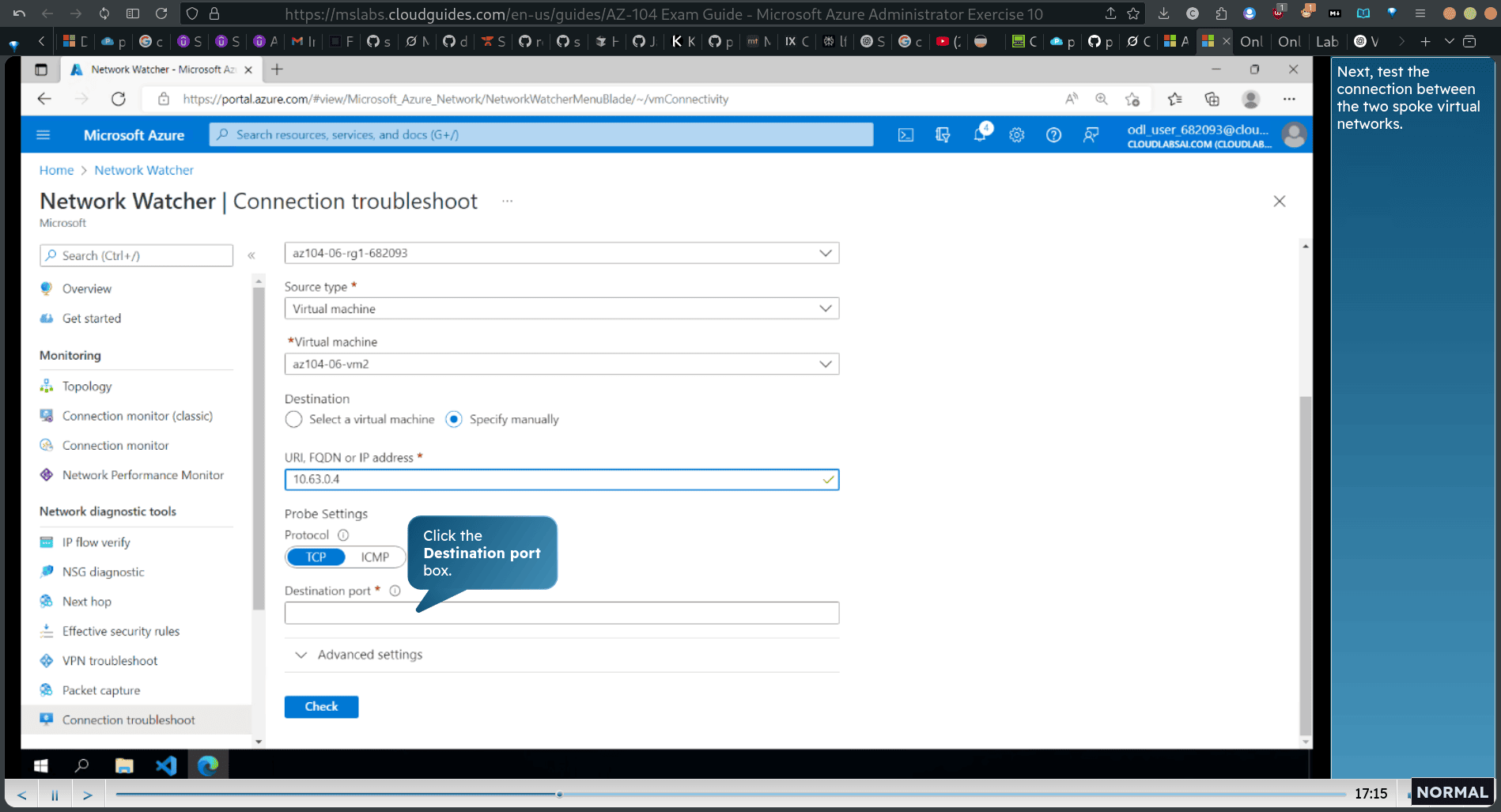

→ connection troubleshot

First, test the connection from the hub virtual network to the first spoke virtual network.
Note: 10.62.0.4 repres ents the private IP address of az104-06- vm2.

destination → manually → private ip of vm2

destination port → 3382 rdp

grid view

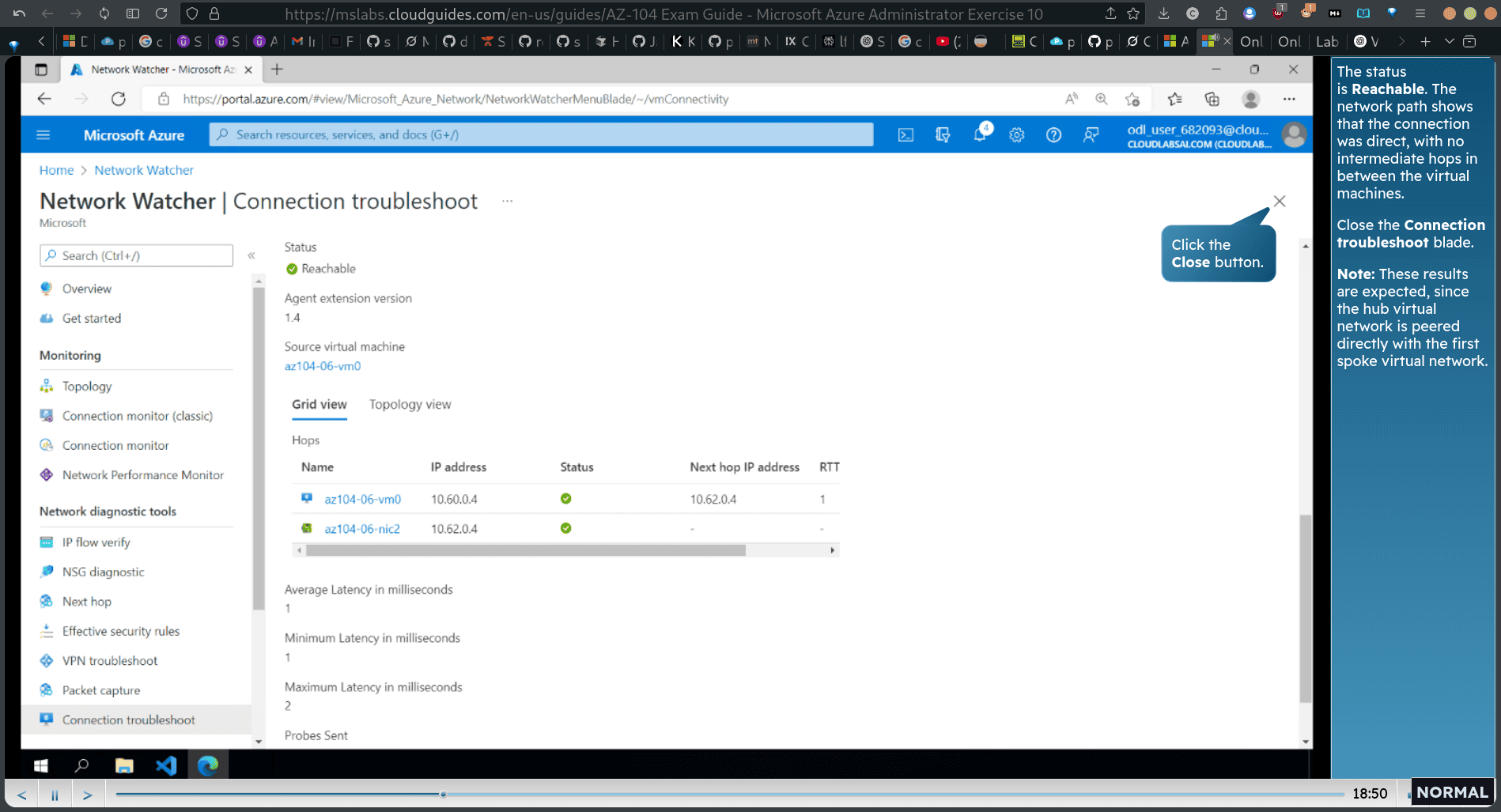

The status is Reachable. The network path shows that the connection was direct, with no intermediate hops in between the virtual machines.

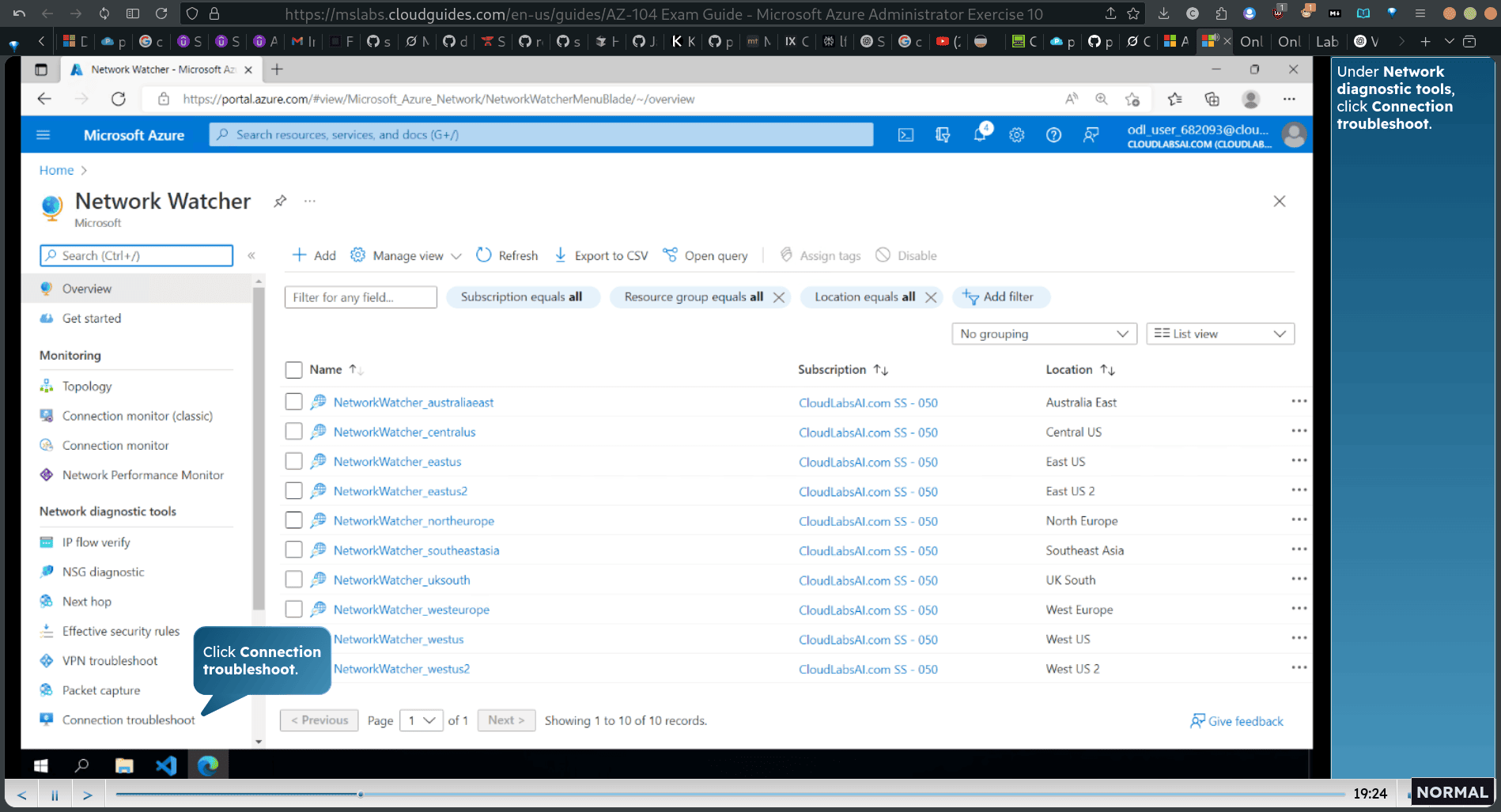

network watcher → connection troubleshoot

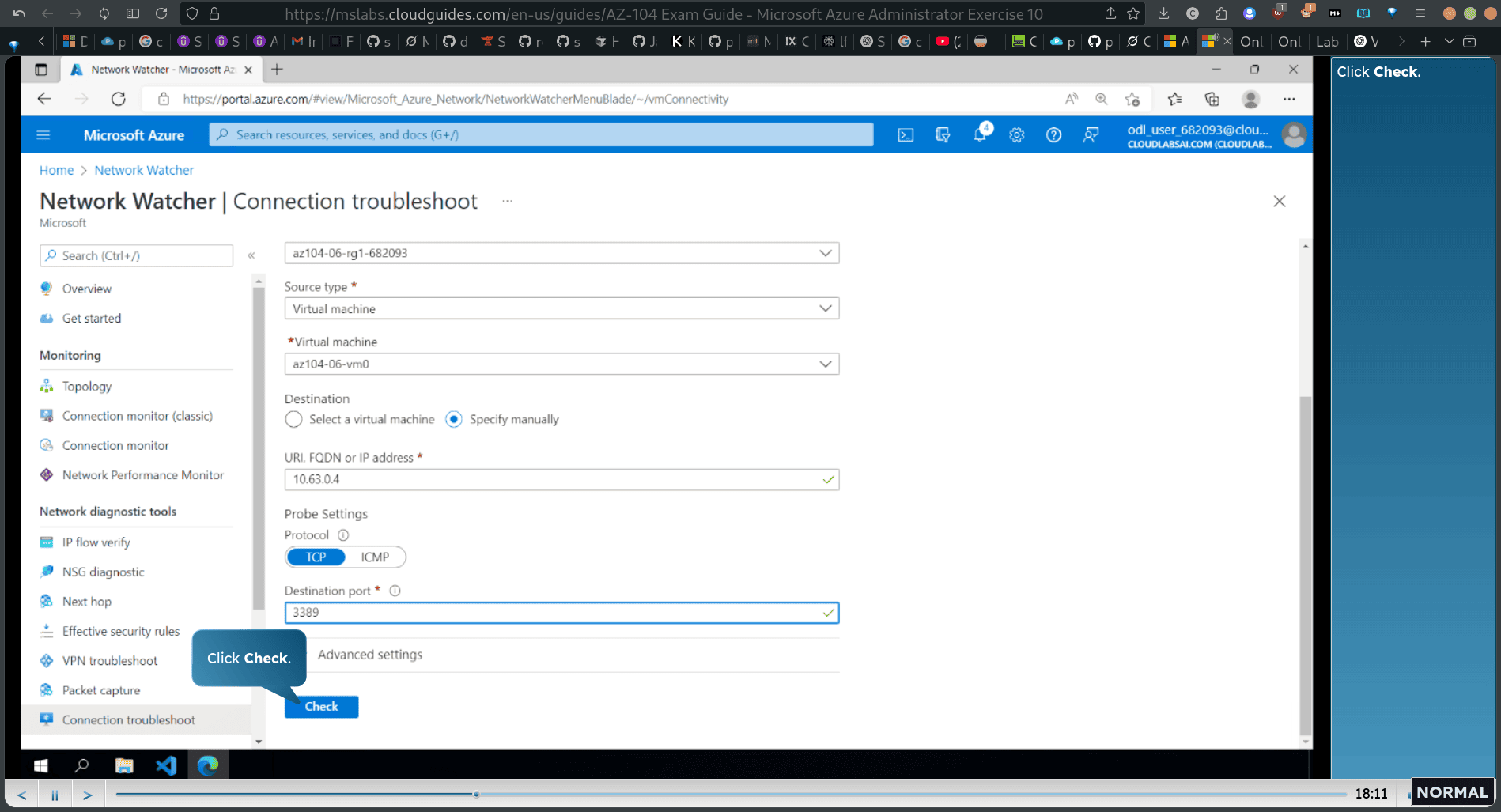

Next, test the connection from the hub virtual network to the second spoke virtual network. Note: 10.63.0.4 repre sents the private IP address of az104-06- vm3.

vm2 → private ip of vm3

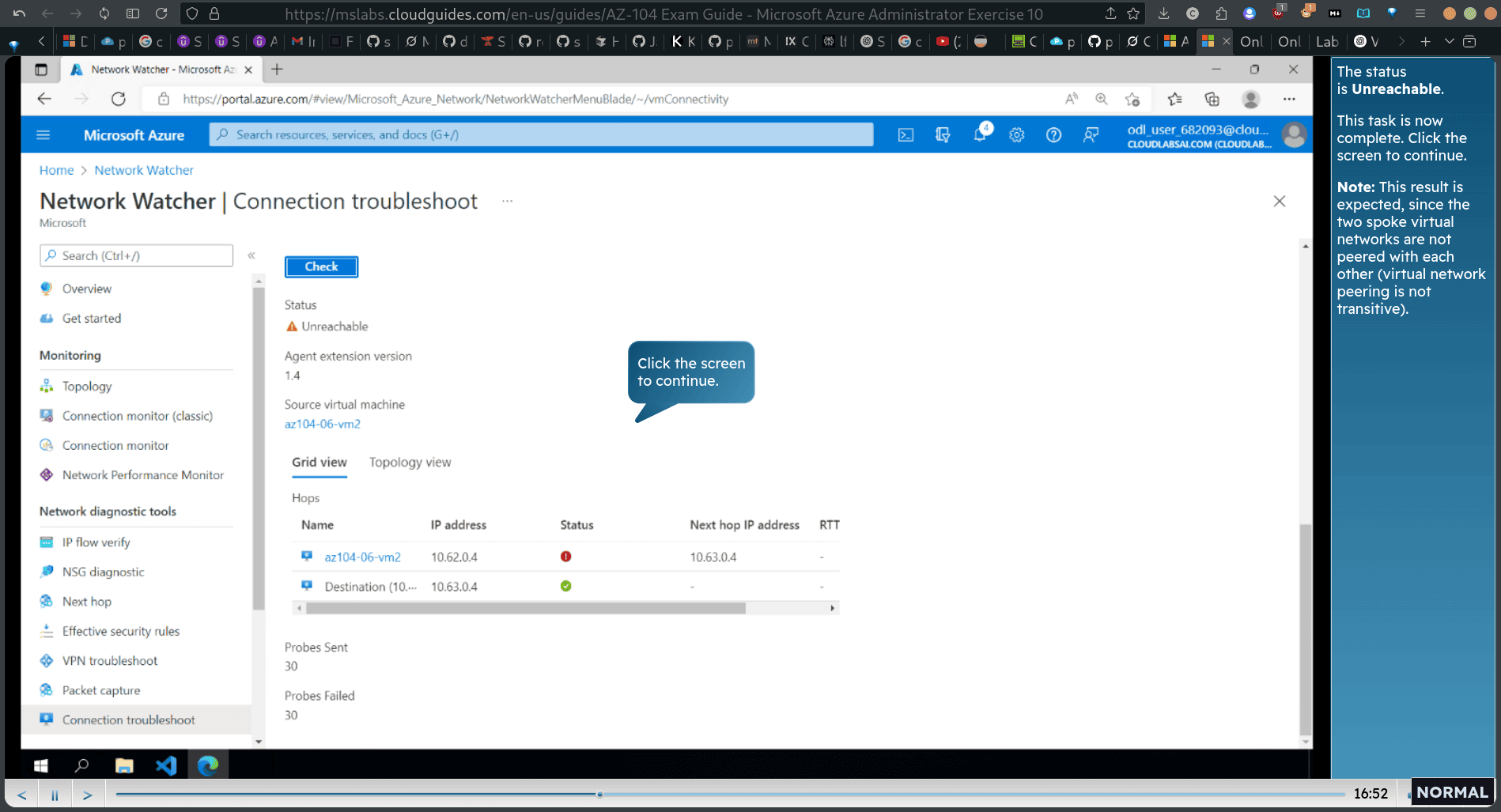

The status is Unreachable. This task is now complete. Click the screen to continue.

alarm result :

Task 4: Configure routing in the hub and spoke topology

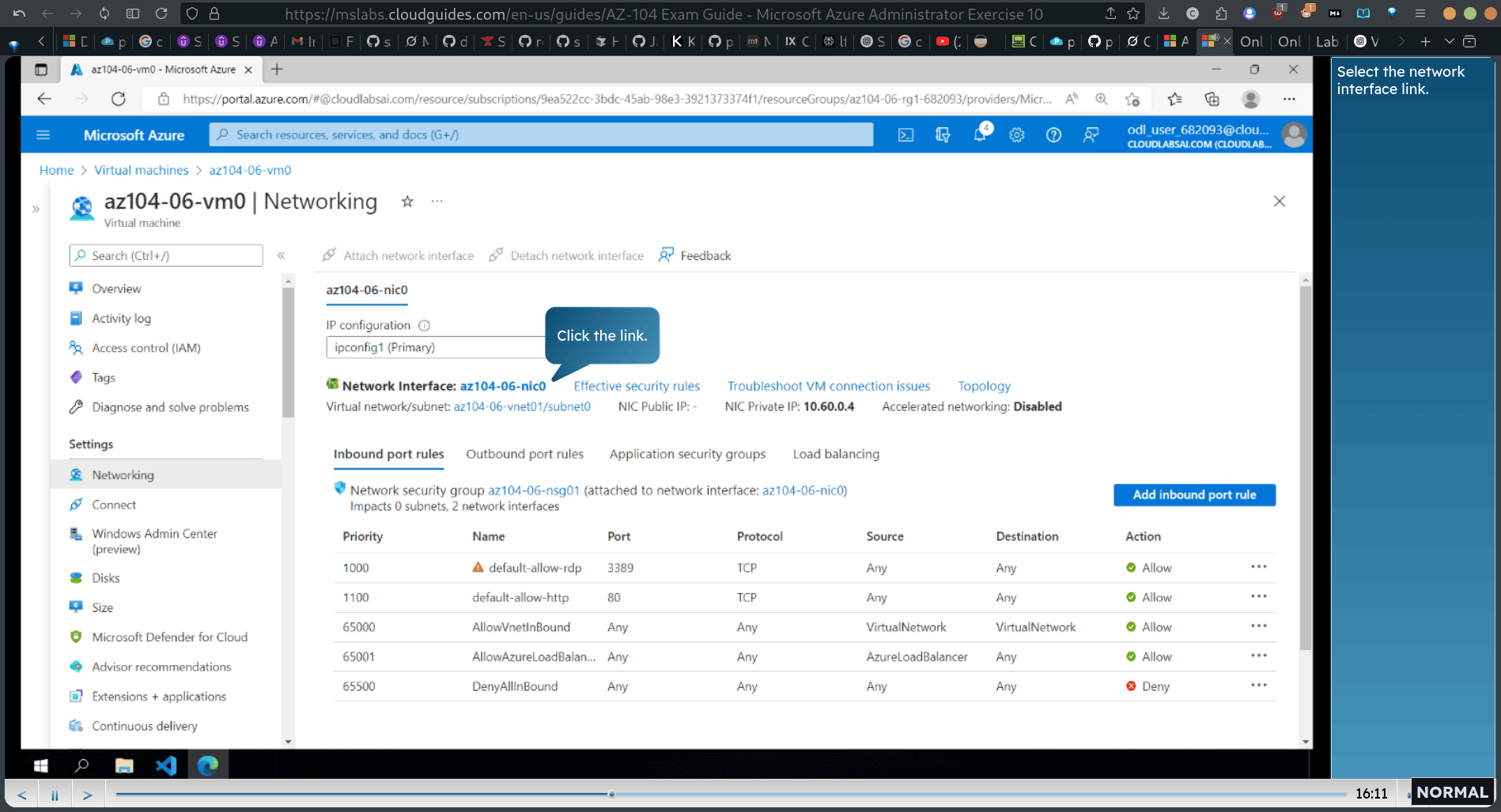

search vm → frist vm0→ networking → network interface link

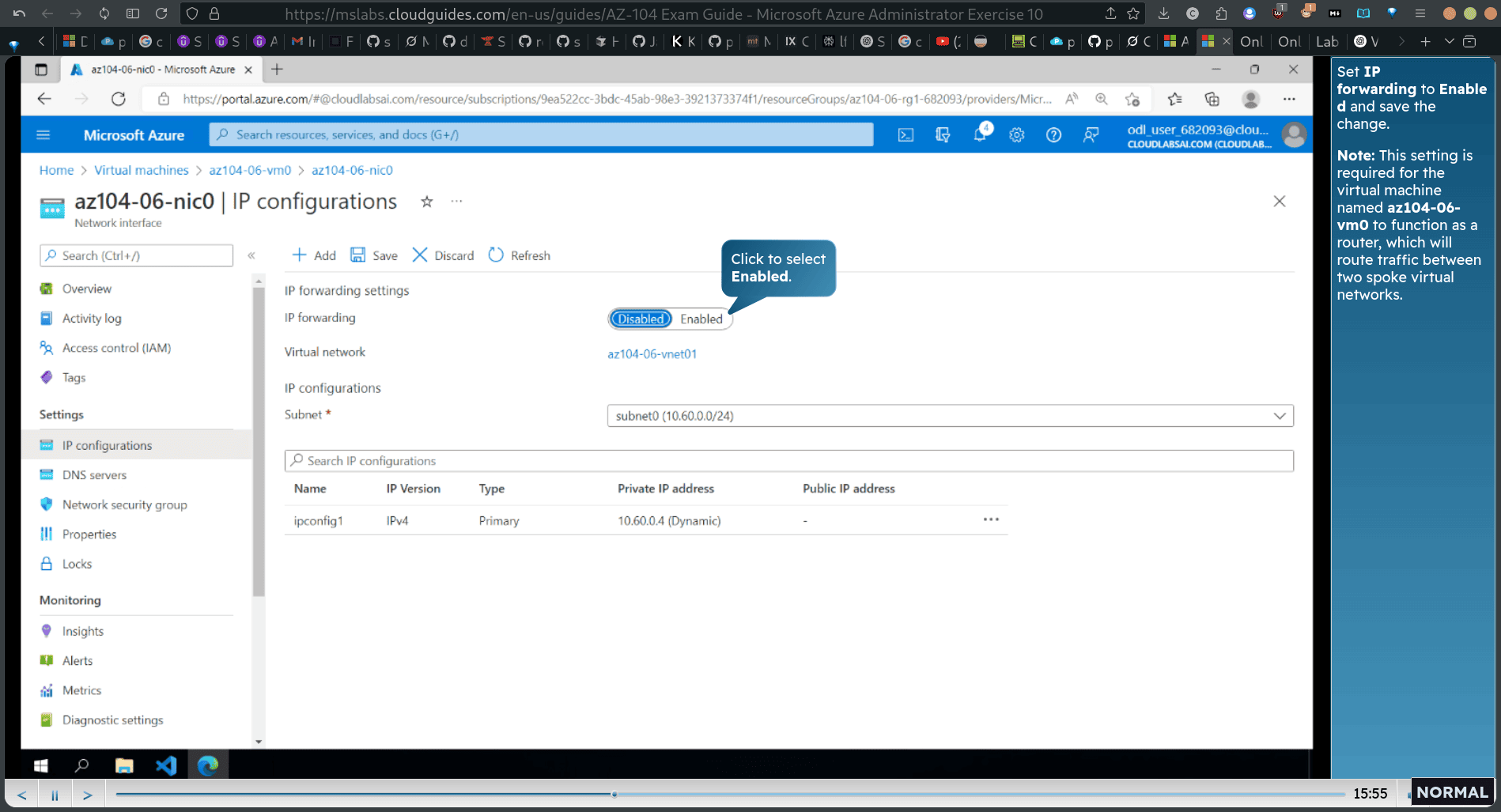

ip config → ip forwarding → enable

Set IP forwarding to Enable d and save the change.
Note: This setting is required for the virtual machine named az104-06- vm0 to function as a router, which will route traffic between two spoke virtual networks.

→ click save

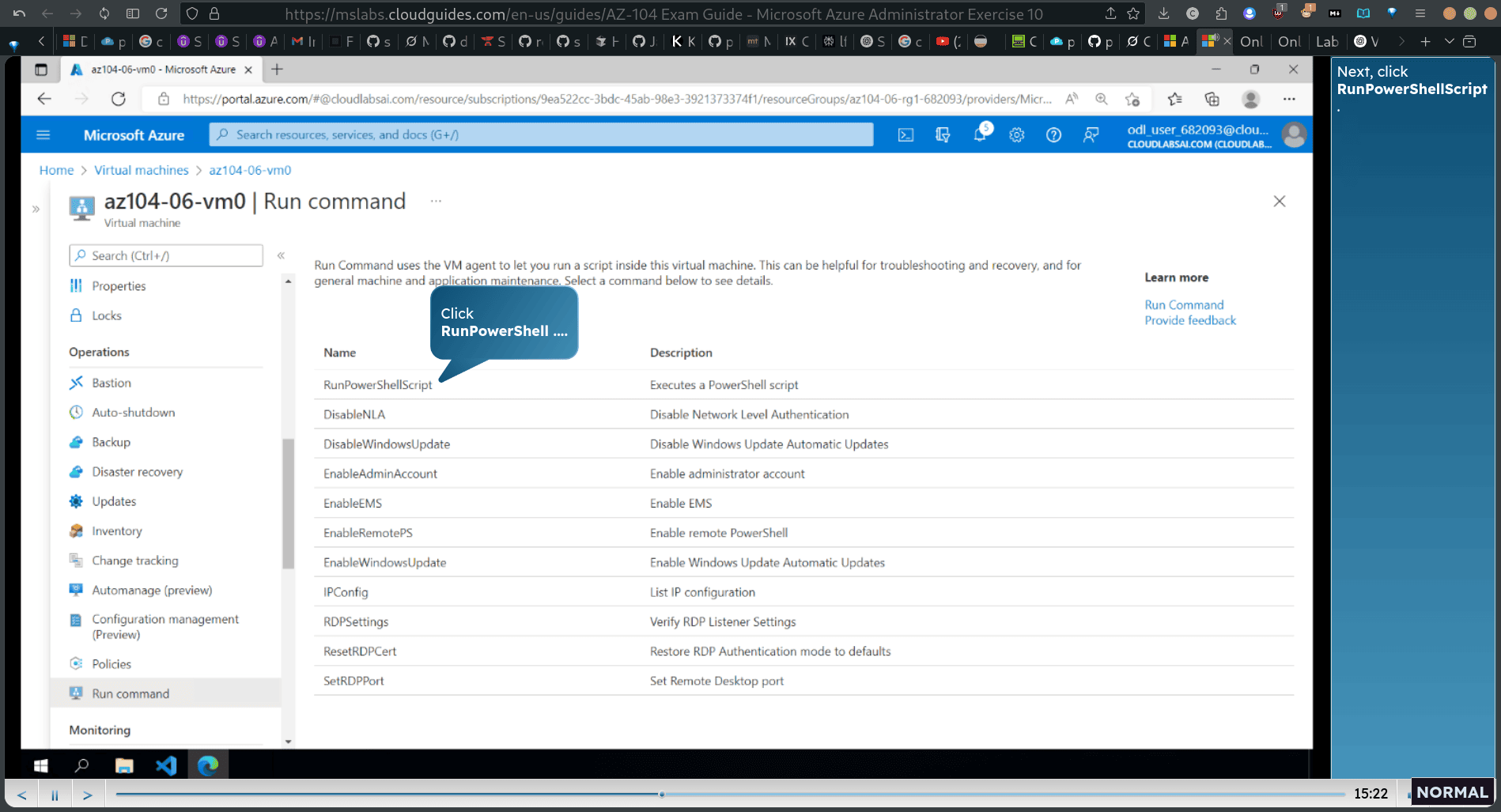

→ click vm0 overview → run command (under operation )

run commad → powershell (turn it into router lol)

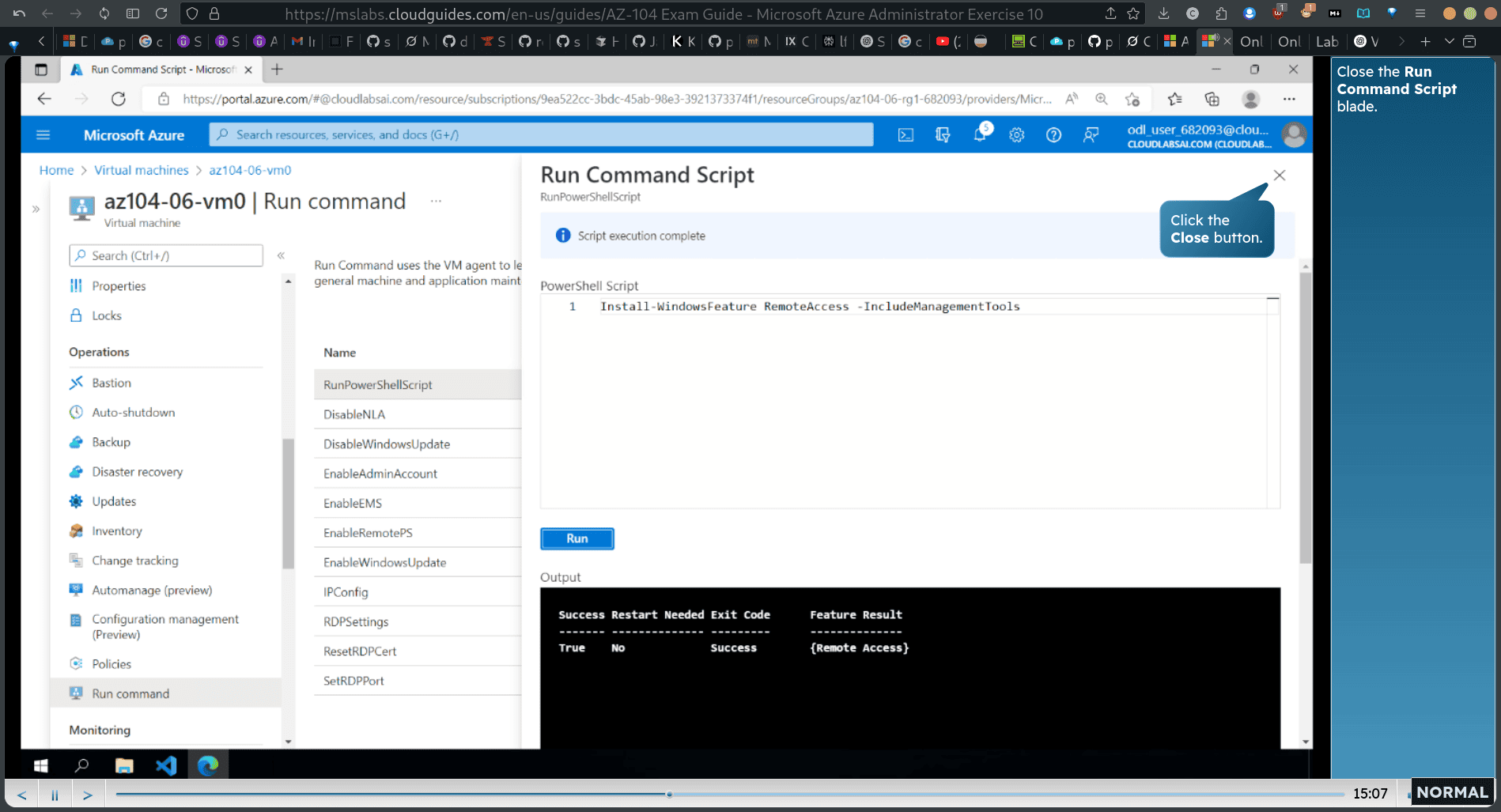

Install-WindowsFeature RemoteAccess -IncludeManagementTools

Run the script as shown fo install the Remote Access Windows Server role.

back , and click run powershell script

Install-WindowsFeature -Name Routing -IncludeManagementTools -IncludeAllSubFeature Install-WindowsFeature -Name “RSAT-RemoteAccess-Powershell” TInstall-RemoteAccess -VpnType RoutingOnly Get-NetAdapter | Set-NetIPInterface -Forwarding Enabled

Run the script as shown fo install the Routing role service.

Next, you’ll create and configure user- defined routes on the spoke virtual networks.

Search for and select Route tables.

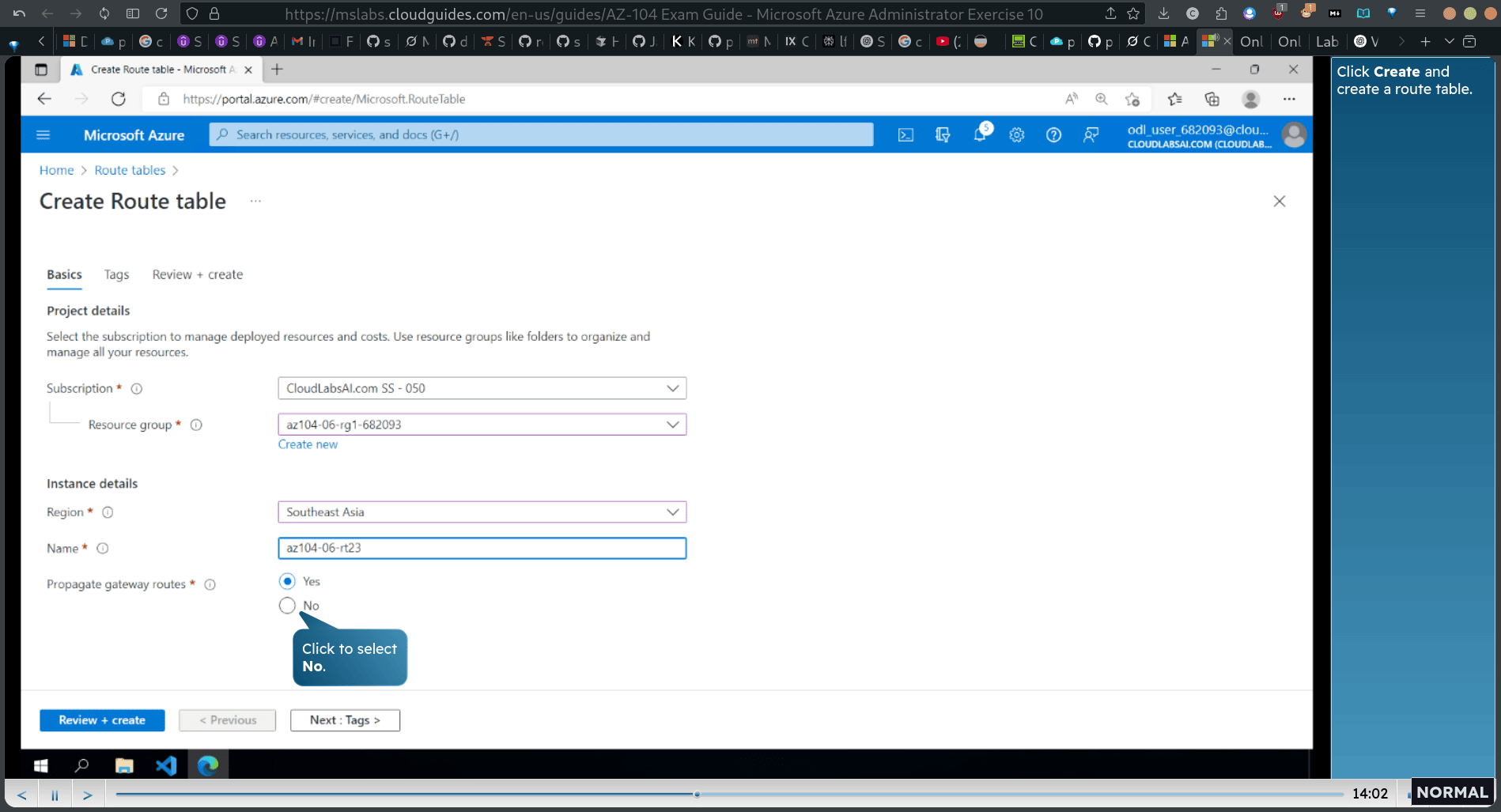

In Azure Route Tables, the setting “Propagate gateway routes” controls whether routes from a Virtual Network Gateway (VPN or ExpressRoute) are automatically added to your custom route table.

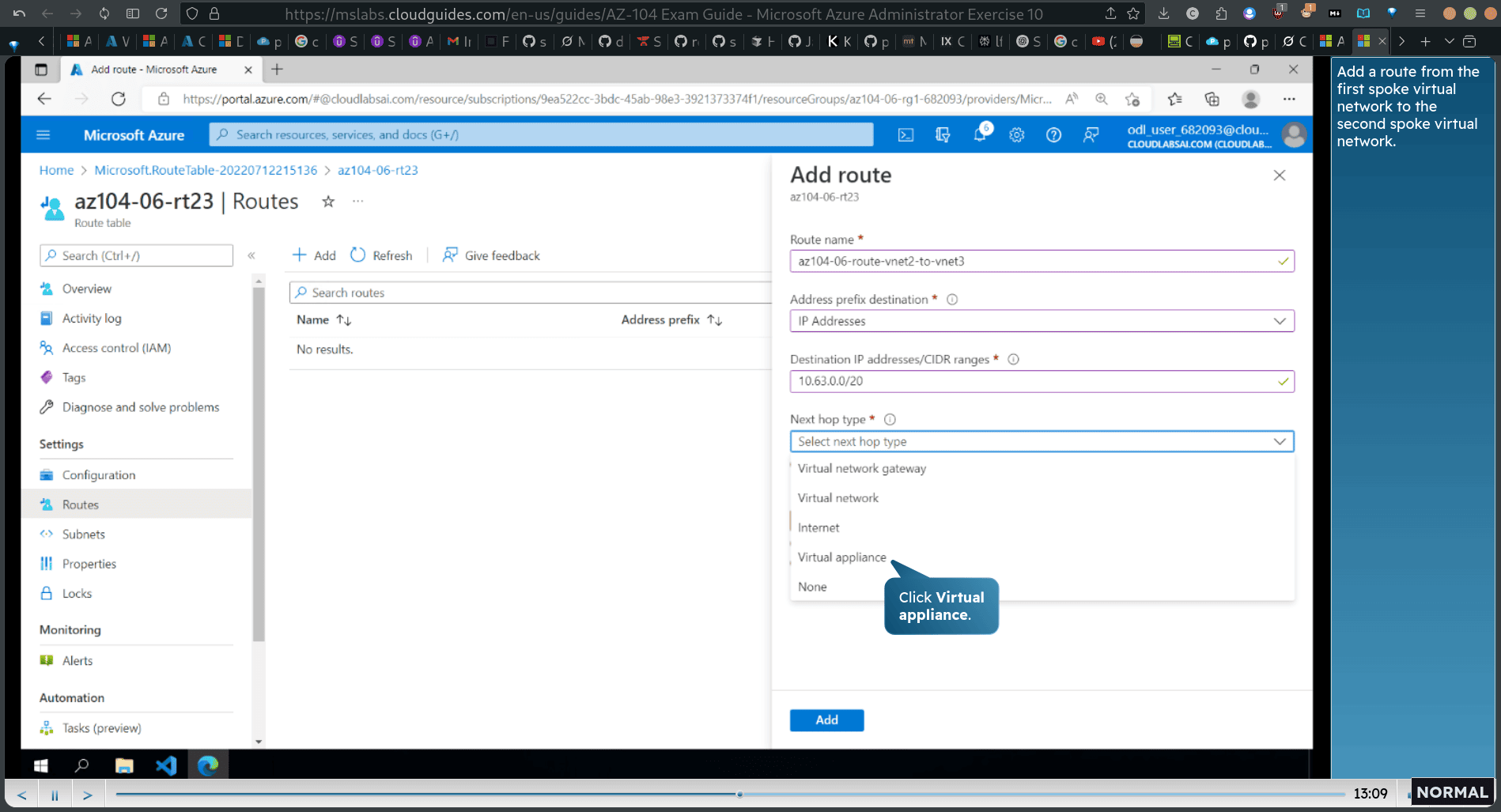

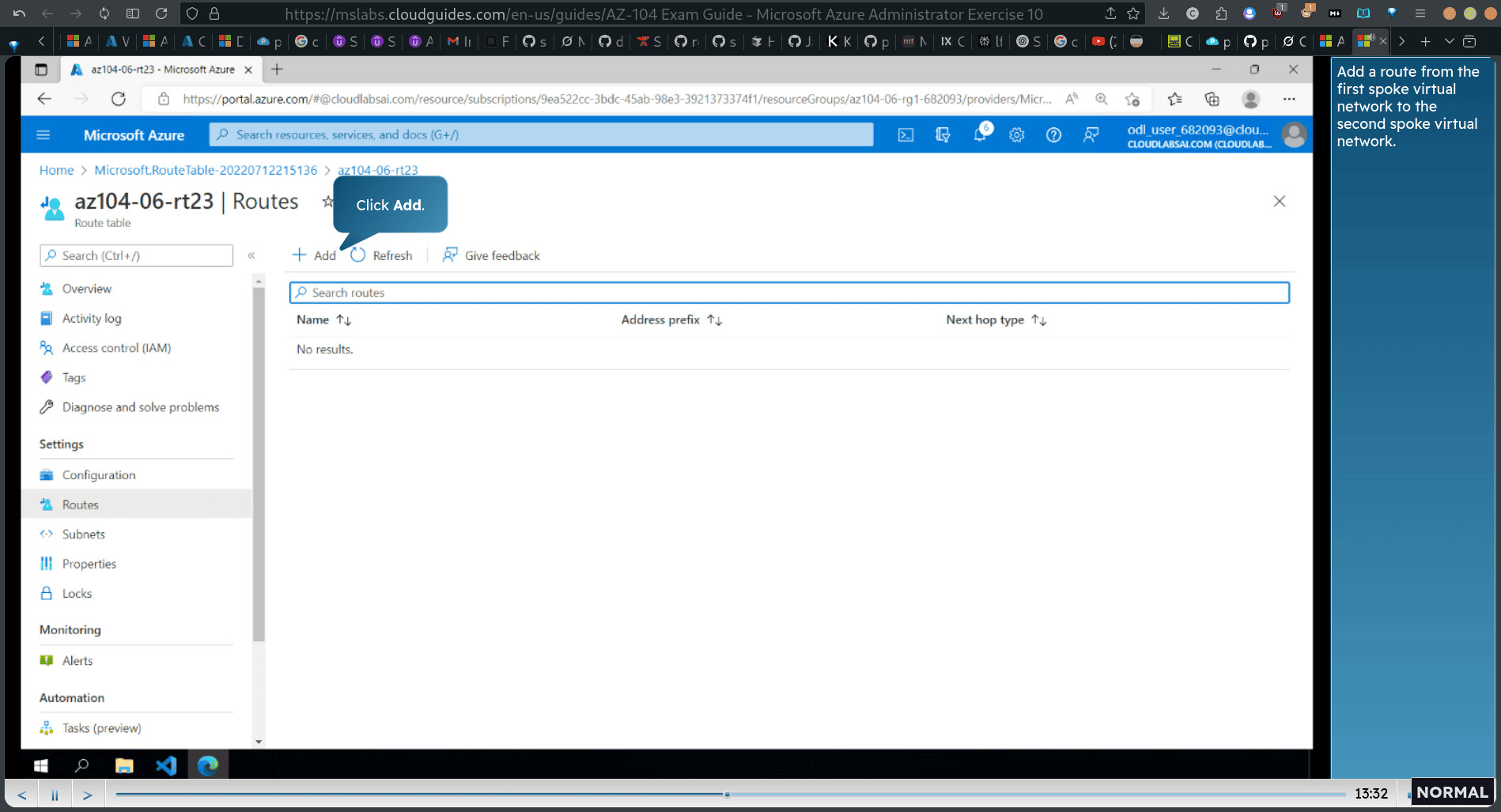

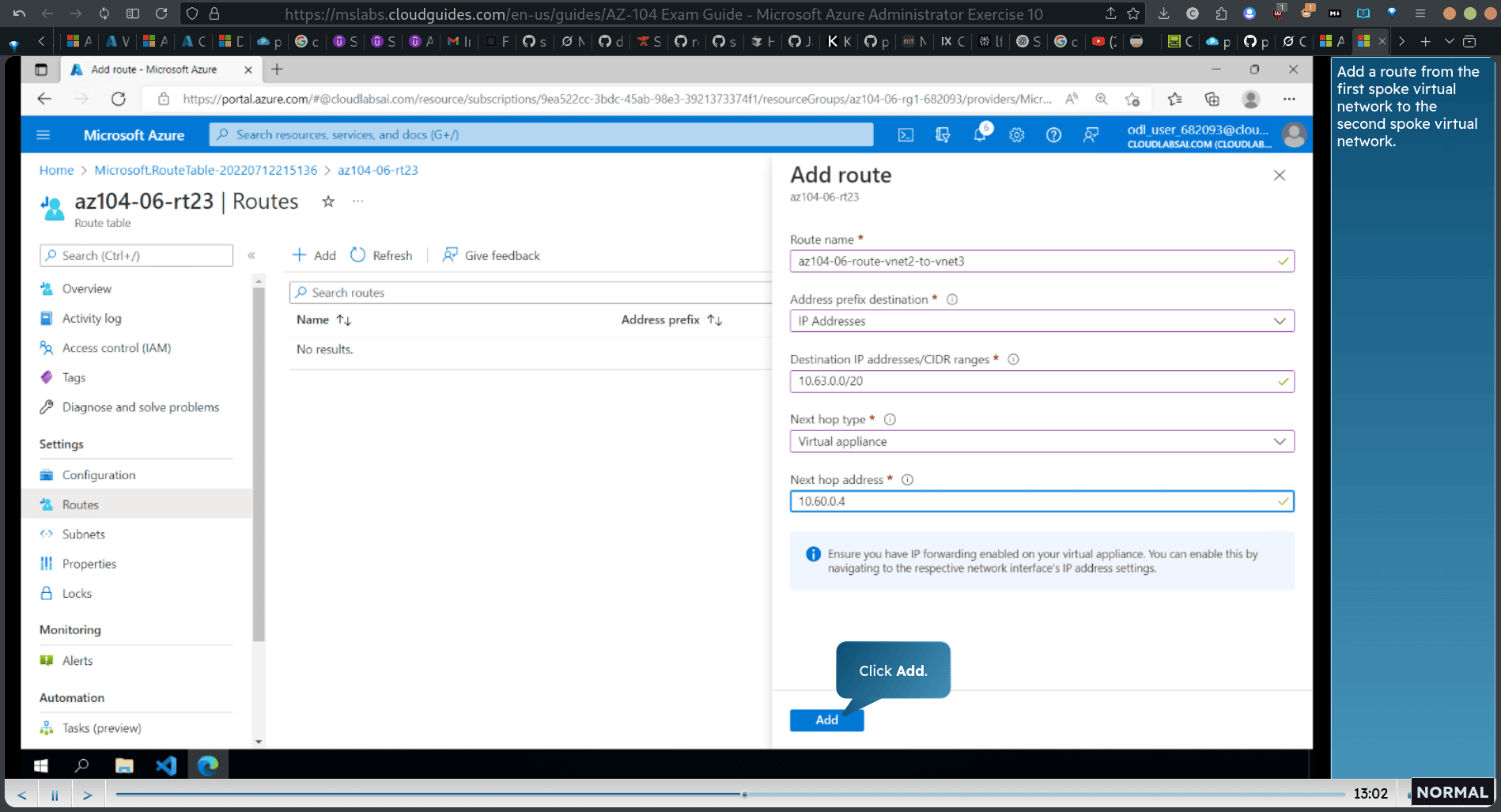

Add a route from the first spoke virtual nefwork to the second spoke virtual network.

Next hop type Select next hop type Virtual network gateway Virtual network Internet Virtual appliance None

🔹 1. Virtual Network Gateway

Used when: You want traffic to go through a VPN gateway or ExpressRoute gateway.
Example: Sending traffic to an on-premises network via VPN.
Use case:
- Destination: 192.168.0.0/16
- Next hop: Virtual Network Gateway → Tells Azure: “Send this traffic to my on-premises network through the gateway.”

🔹 2. Virtual Network

Used when: Traffic should stay within the Azure virtual network.
Effect: Tells Azure: “This traffic is local. Keep it inside the VNet.”
Use case: You don’t usually set this manually because VNet-to-VNet traffic is routed automatically by Azure. But in complex setups, you might override a more specific route.

🔹 3. Internet

Used when: You want traffic to go directly to the internet.
Effect: Sends packets out through the Azure default internet gateway.
Use case:
- Destination: 0.0.0.0/0
- Next hop: Internet → All outbound traffic not matching any other route goes to the internet.

🔹 4. Virtual Appliance

Used when: You have a Network Virtual Appliance (NVA), such as:
- A firewall
- A router (e.g., a Fortinet, Palo Alto, or pfSense VM)
You need to specify the IP address of that NVA.
Use case:
- Destination: 0.0.0.0/0
- Next hop: Virtual Appliance
- IP address: 10.40.0.4 → Routes all internet-bound traffic through your firewall first.

✅ This is what your tutorial likely uses — to inspect/filter traffic through a custom appliance (for learning or security).

🔹 5. None

Used when: You want to block traffic to a specific range.
Effect: Azure drops the traffic (no next hop).
Use case:
- Destination: 10.0.0.0/8
- Next hop: None → Blocks traffic to that network. Used in network segmentation or security policies.

🧠 Summary Table

Next Hop Type	Sends Traffic To…	Typical Use
Virtual Network Gateway	VPN/ExpressRoute gateway to on-premises	Hybrid networking
Virtual Network	Inside same Azure VNet	Local routing override
Internet	Azure internet gateway	Public outbound
Virtual Appliance	Your own firewall/router VM	Custom inspection or control
None	Nowhere (drop traffic)	Blocking or isolating

Great! Let’s break down this route:

🧭 Route Details

Destination IP/CIDR: 10.63.0.0/20
Next hop type: Virtual appliance
Next hop address: 10.60.0.4

🧠 What This Route Means

“Any traffic going to the IP range 10.63.0.0 – 10.63.15.255 should be sent to the virtual appliance at IP 10.60.0.4.”

✅ Why it’s configured this way

This is a custom route in Azure, probably set up for traffic inspection or control.

The reasons behind it likely include:

🔸 1. Security filtering

10.60.0.4 is likely a Network Virtual Appliance (NVA) (e.g., a firewall).
Traffic destined for 10.63.0.0/20 (another subnet or VNet) is forced to pass through the firewall for inspection, logging, or policy enforcement.

🔸 2. Centralized routing

All routes to certain networks (like 10.63.0.0/20) are sent to a central appliance.
This allows for:
- Traffic monitoring
- Access control
- Packet filtering
- NAT or proxy services

🔸 3. Hub-and-spoke network design

10.60.0.4 is likely in the hub VNet.
10.63.0.0/20 may be in a spoke VNet.
This route forces spoke-to-spoke or spoke-to-on-prem traffic to go via the hub, using 10.60.0.4 as a gateway.

🔐 Why not route directly?

Azure by default allows traffic between subnets in the same VNet, or between peered VNets if allowed. However, this route overrides that to:

Enforce security policies
Apply custom logic via the appliance
Enable logging, IDS/IPS, or DLP controls

📘 Visual Representation

[ VM in Subnet A ]
     |
     |--(Route to 10.63.0.0/20)-->
     |       via Virtual Appliance (10.60.0.4)
     |
[ Firewall or Router VM (NVA) ]
     |
     |--> Forwards traffic to 10.63.0.0/20

🚦 Final Note

This type of setup is common in production-grade Azure environments where segmentation and security are critical.
Without this route, traffic might bypass security controls and go directly to 10.63.0.0/20.

22104-06-route-vnet2-to-vnet3

back to routes → setting → subnets → add subnets

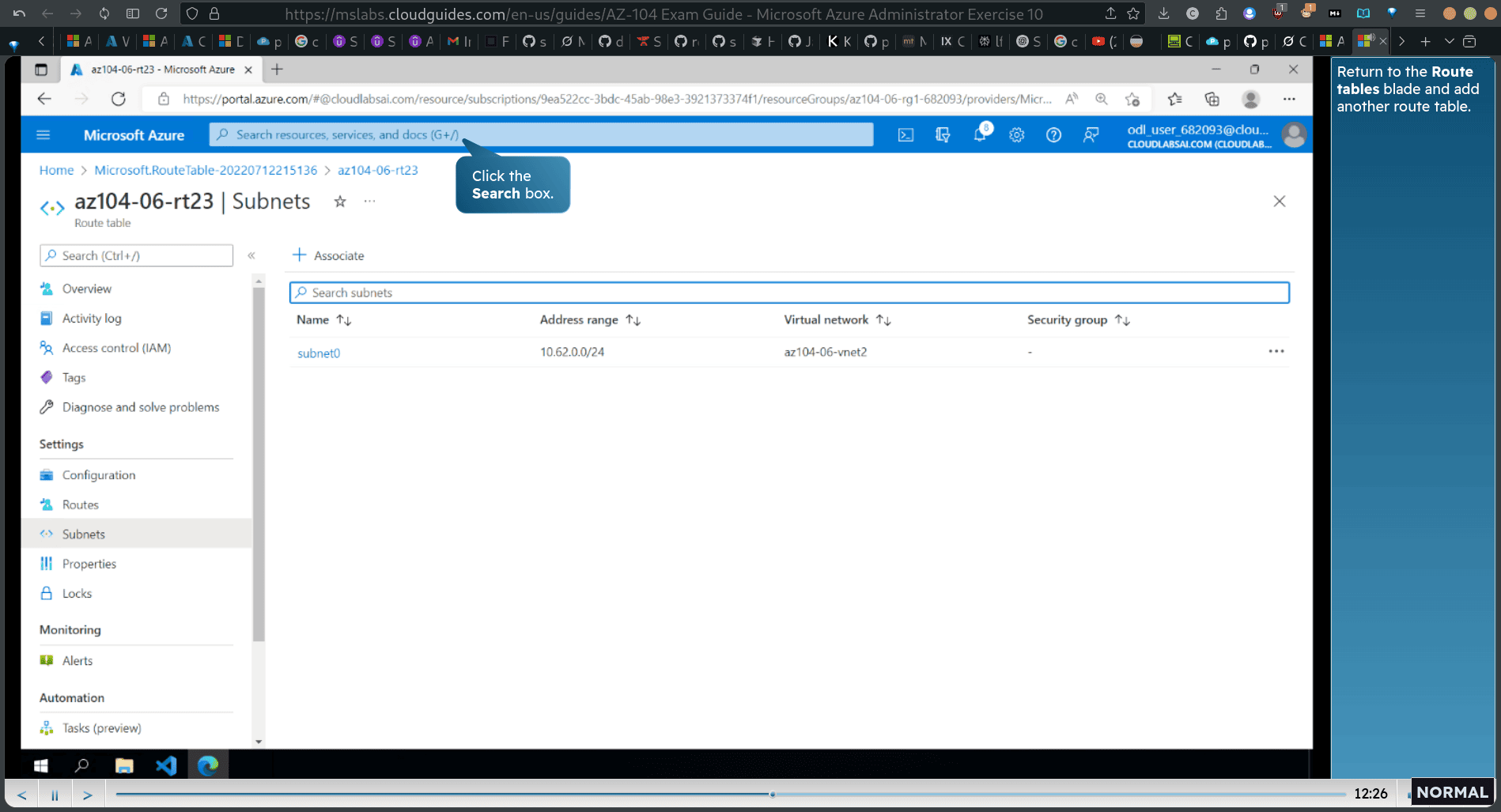

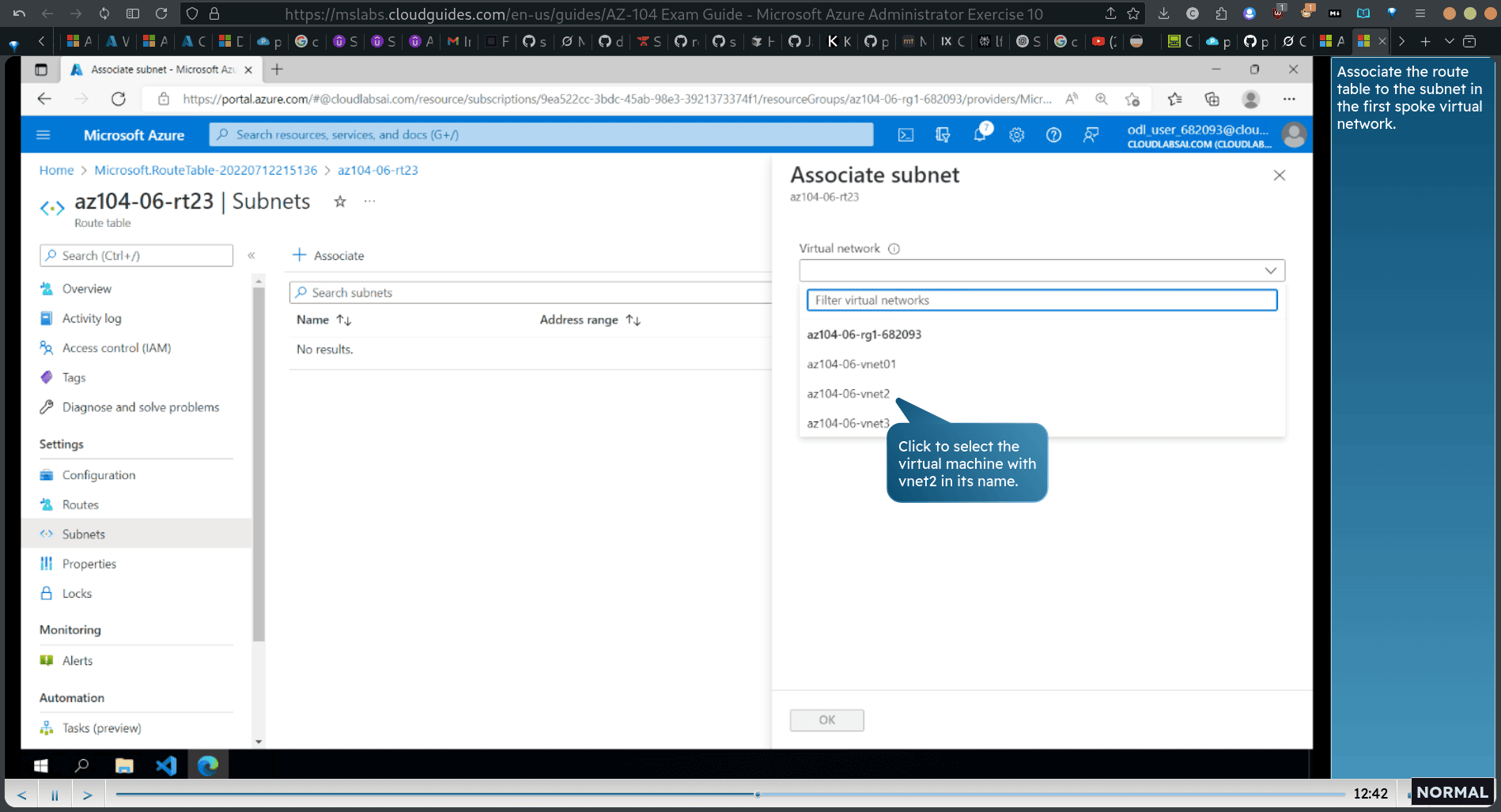

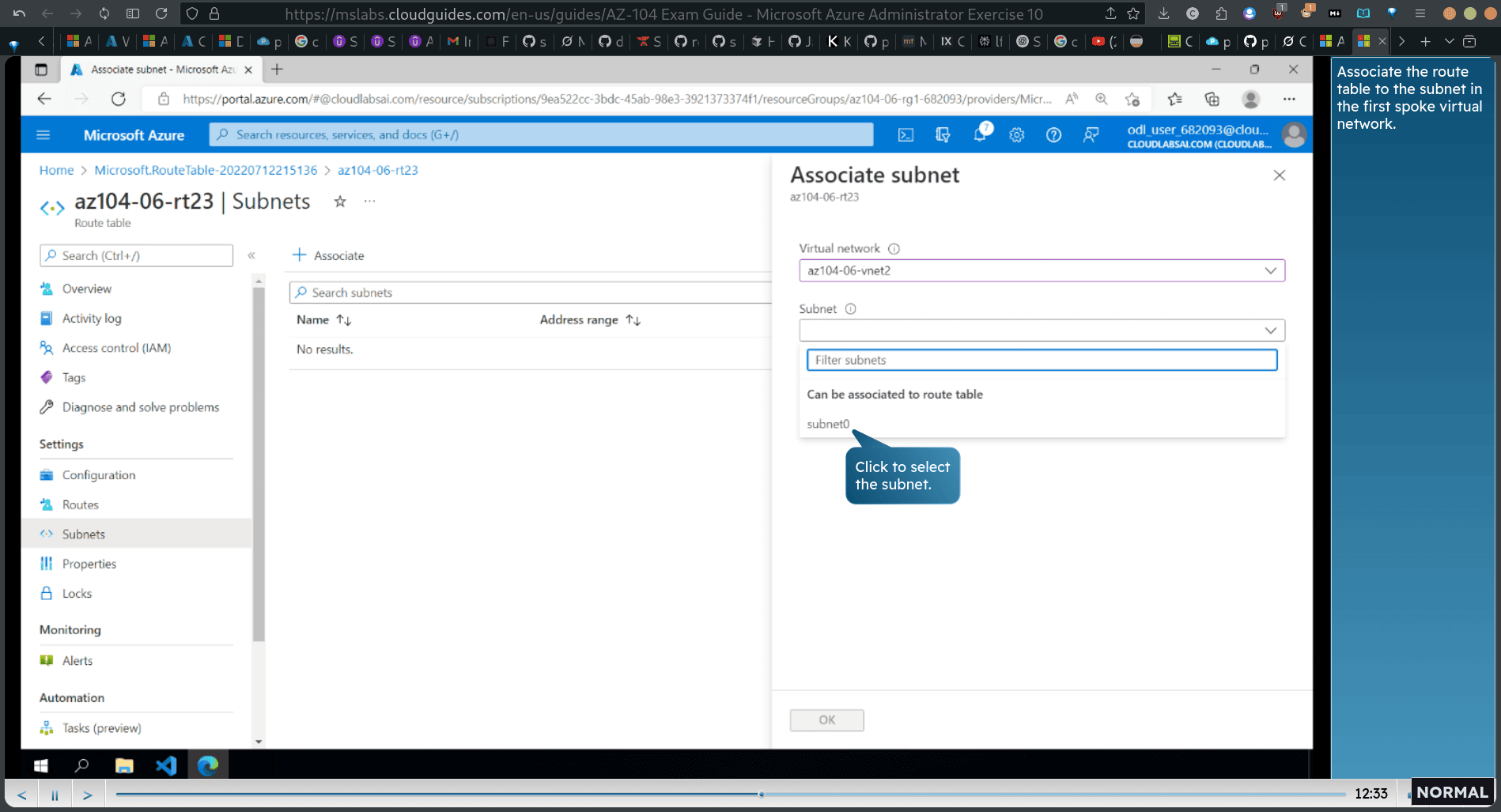

Associate the route table to the subnet in the first spoke virtual nefwork.

search route table and add another

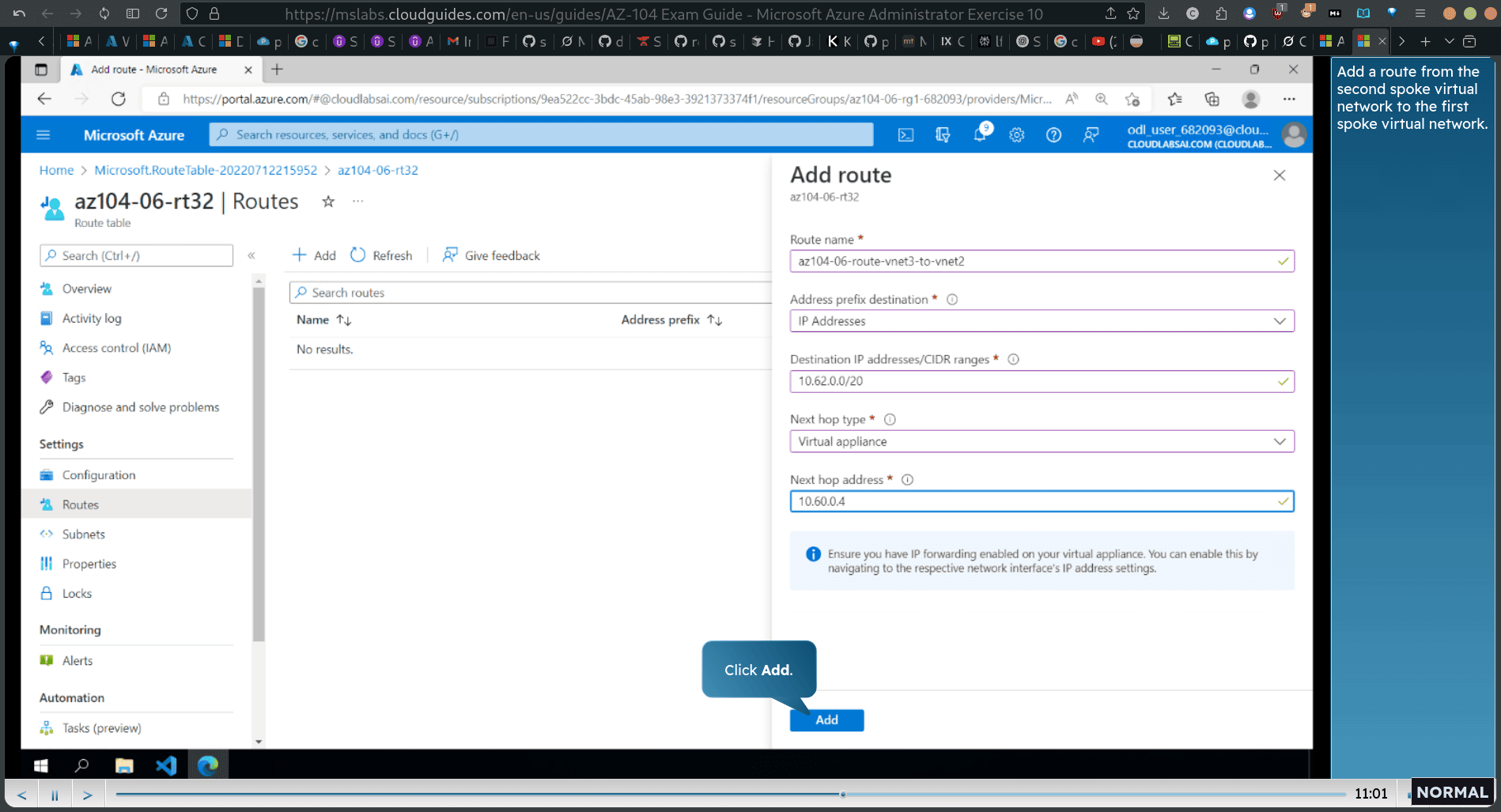

Add a route from the second spoke virtual network to the first spoke virtual network.
10.62.0.0/20 (destination ip) → 10.60.0.4 (next hub address)

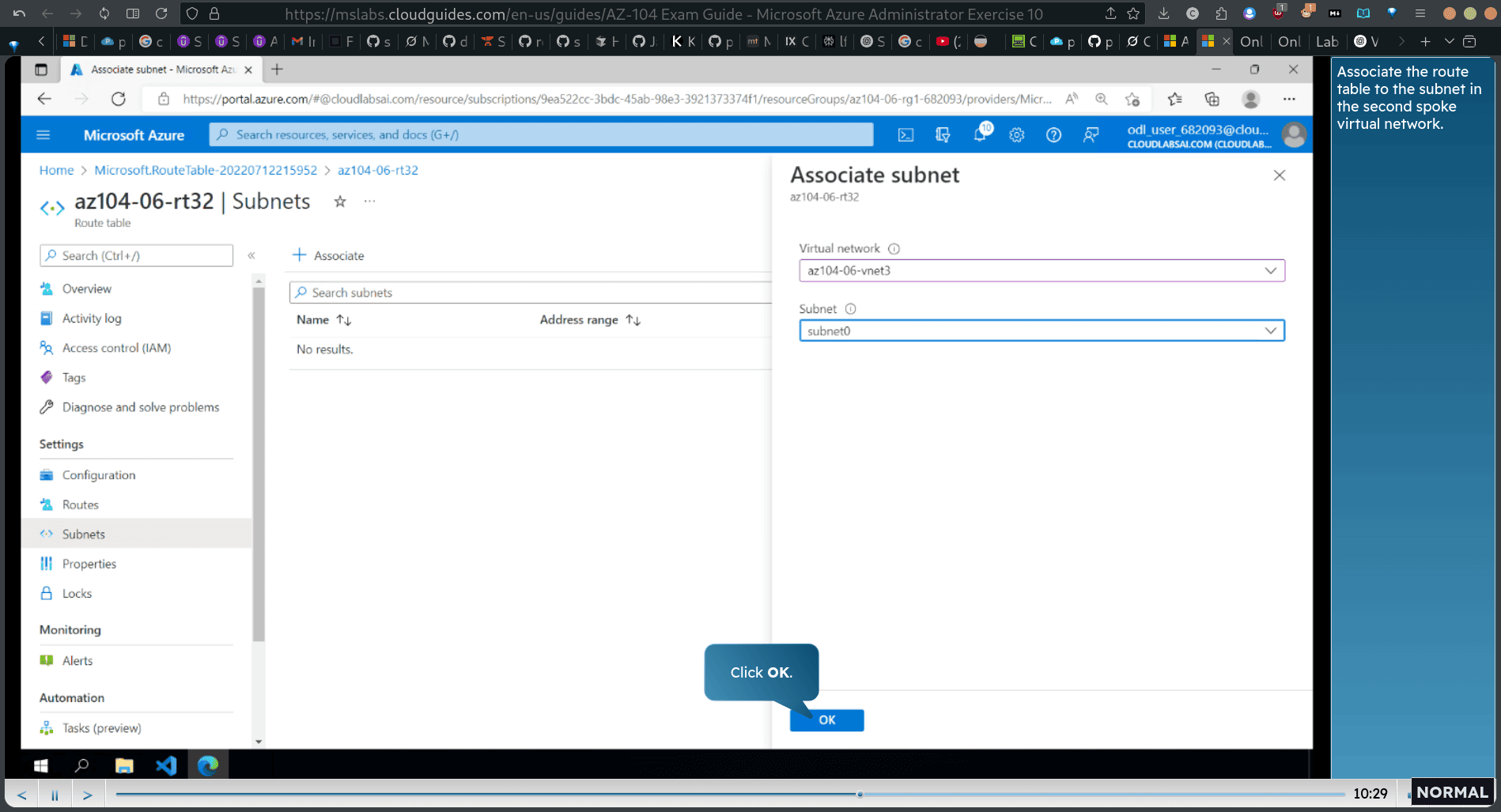

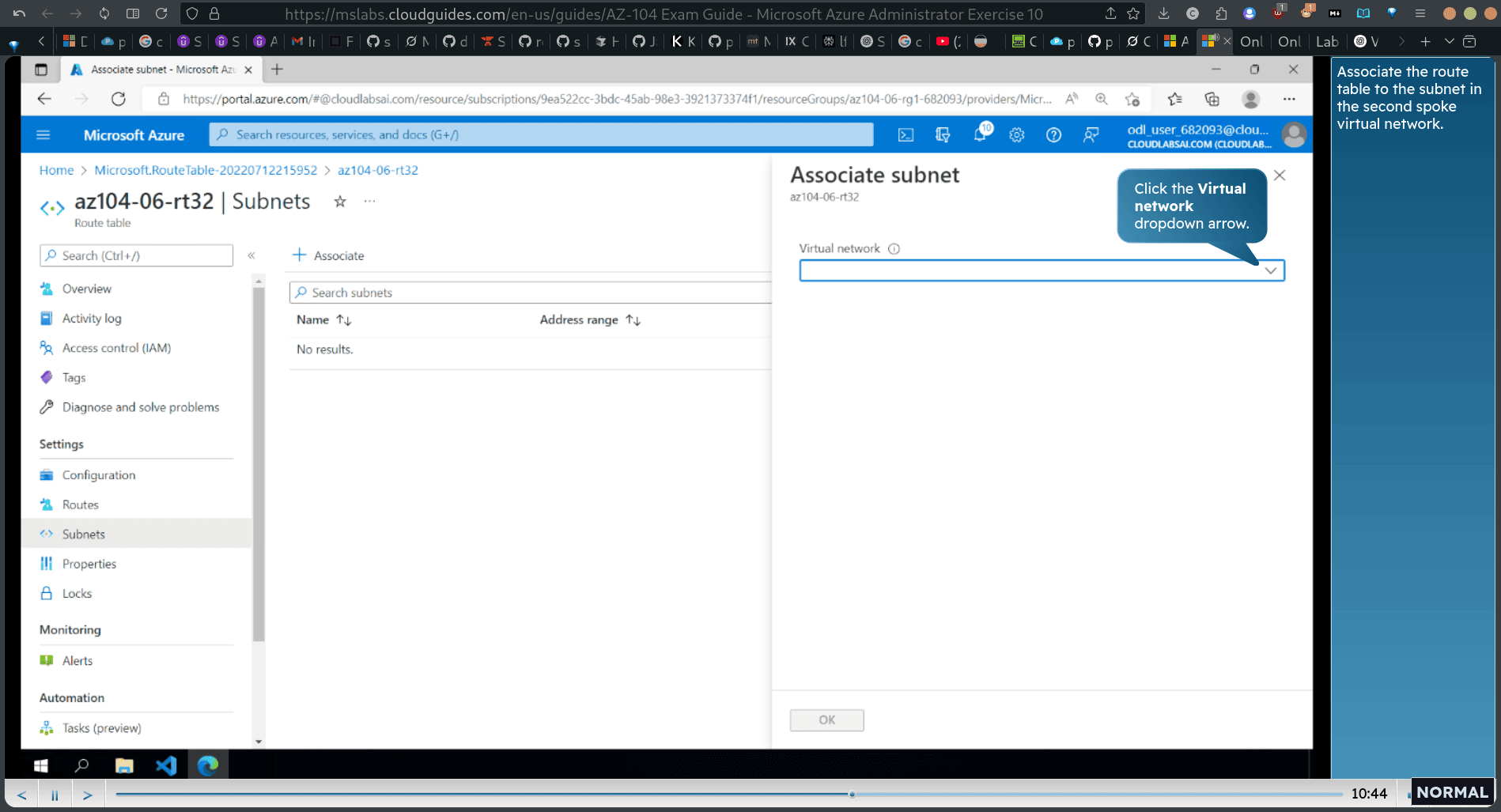

Associate the route table to the subnet in the second spoke virtual network.

return network watcher → troubleshoot

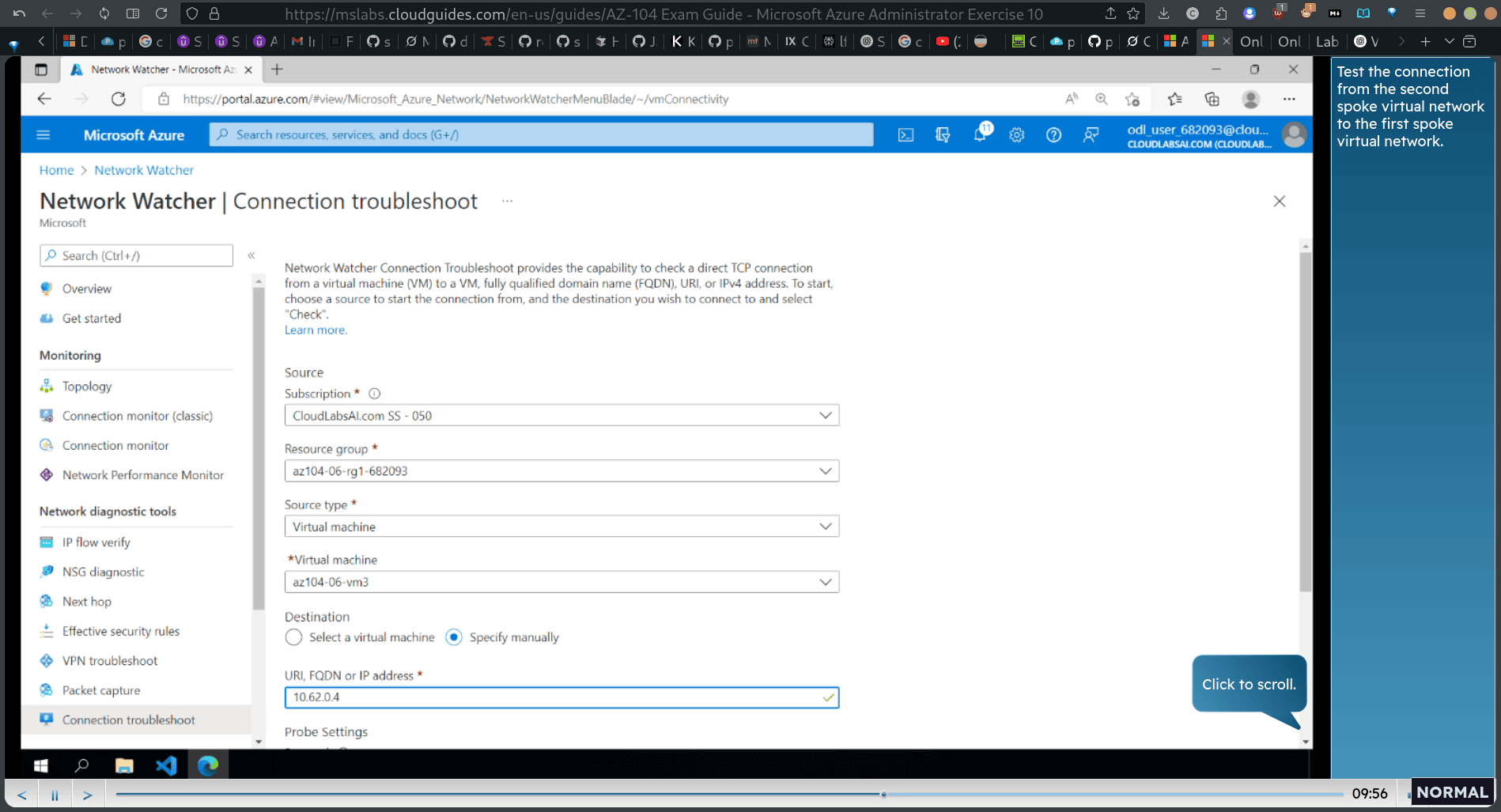

Test the connection from the second spoke virtual network to the first spoke virtual network.

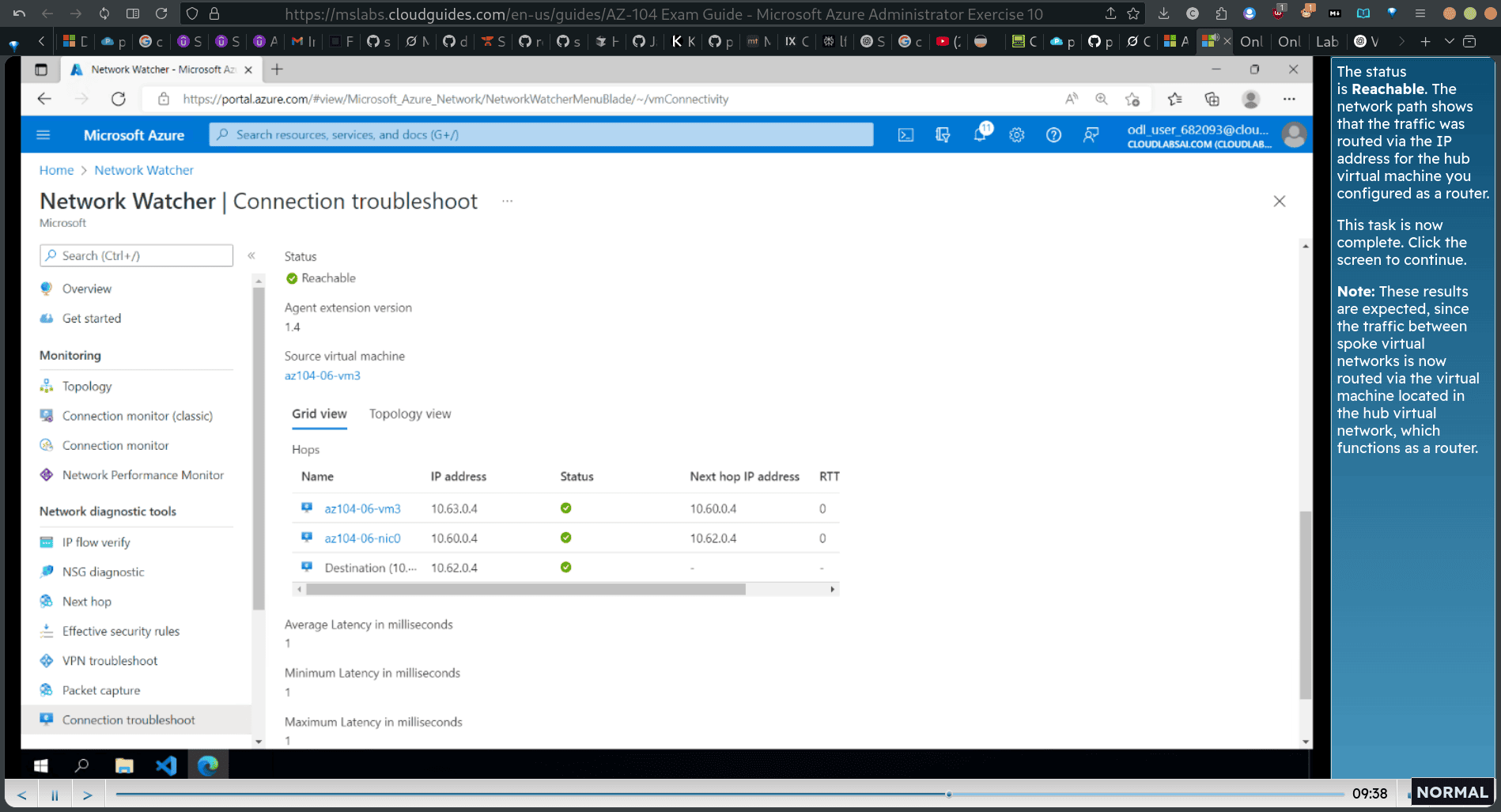

The status is Reachable. The network path shows that the traffic was routed via the IP address for the hub virtual machine you configured as a router.

Note: These results are expected, since the traffic between spoke virtual networks is now routed via the virtual machine located in the hub virtual network, which functions as a router.

Task 5: Implement Azure Load Balancer

search load balancer

create

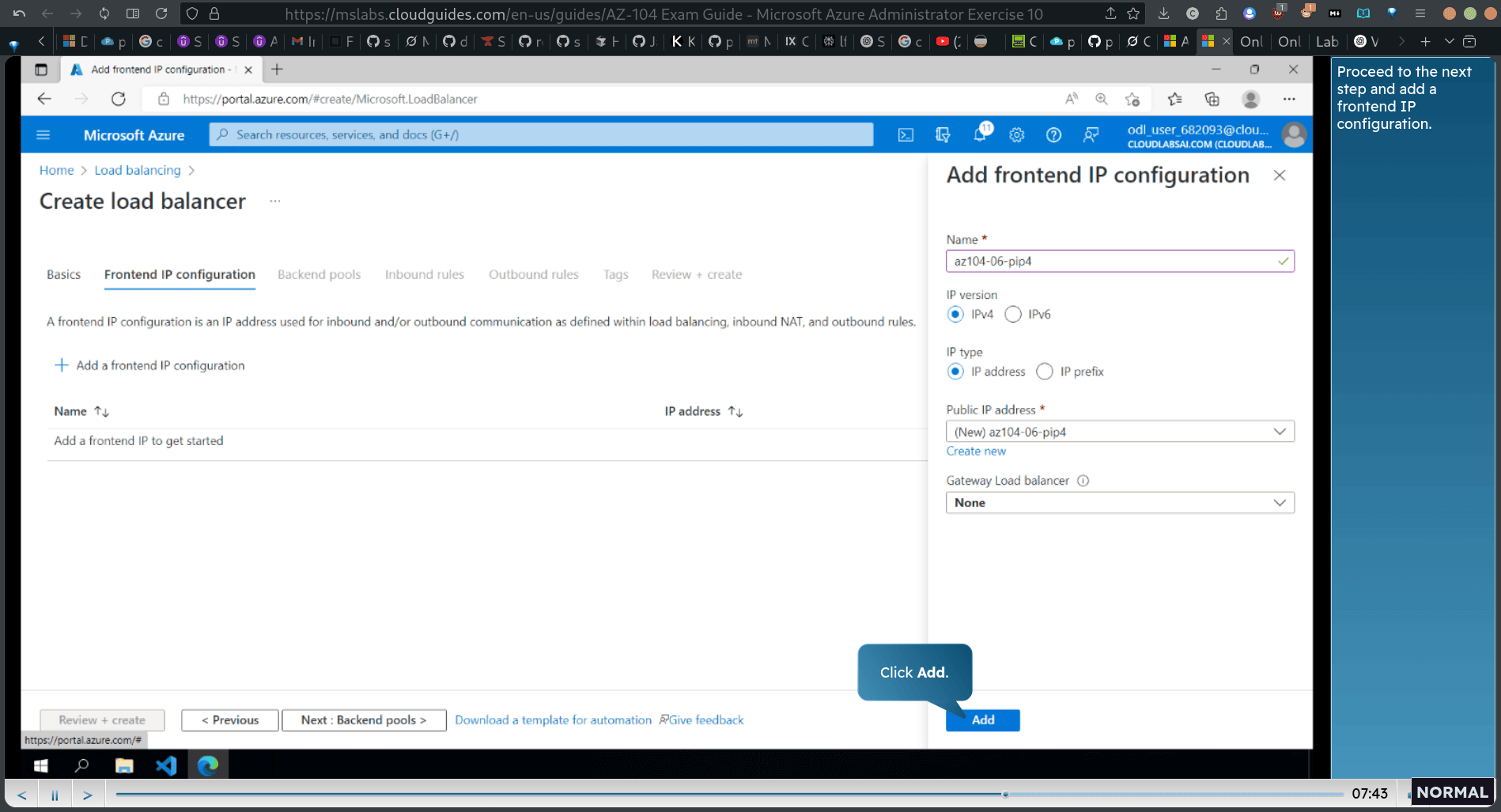

add a frontend ip confirm

no zone (testing)

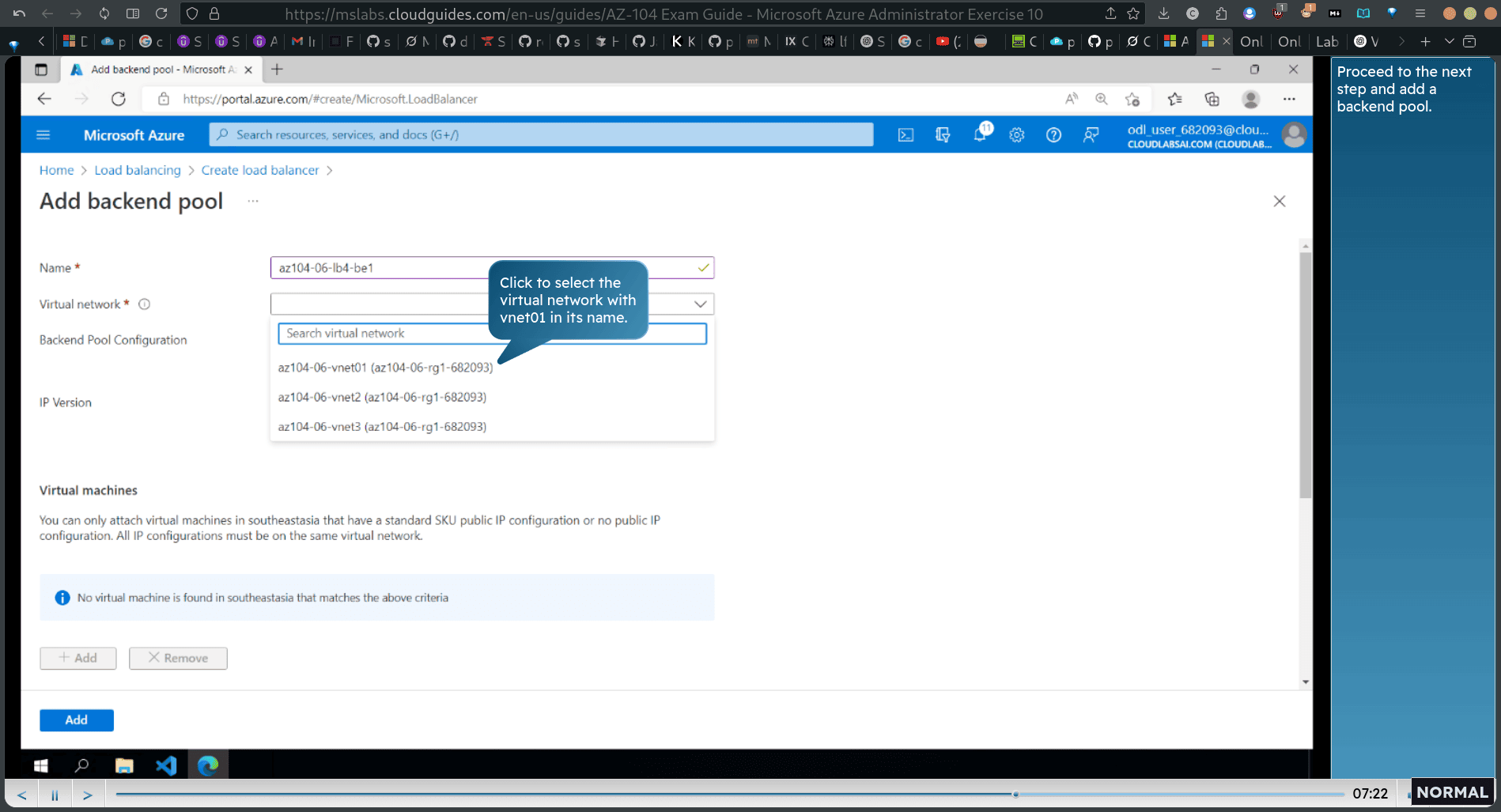

adding backend pool

vnet01

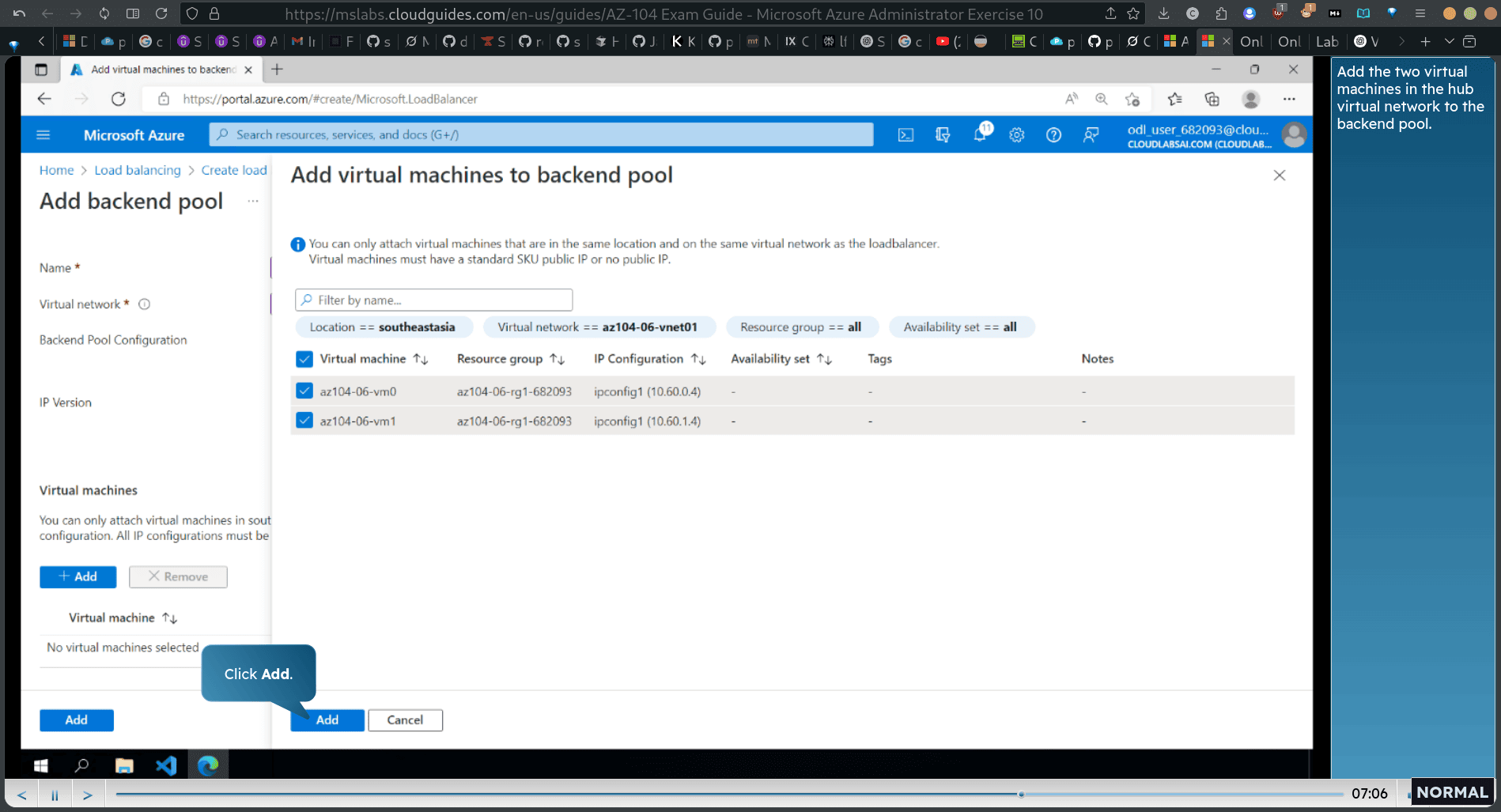

Add the two virtual machines in the hub virtual network to the backend pool.

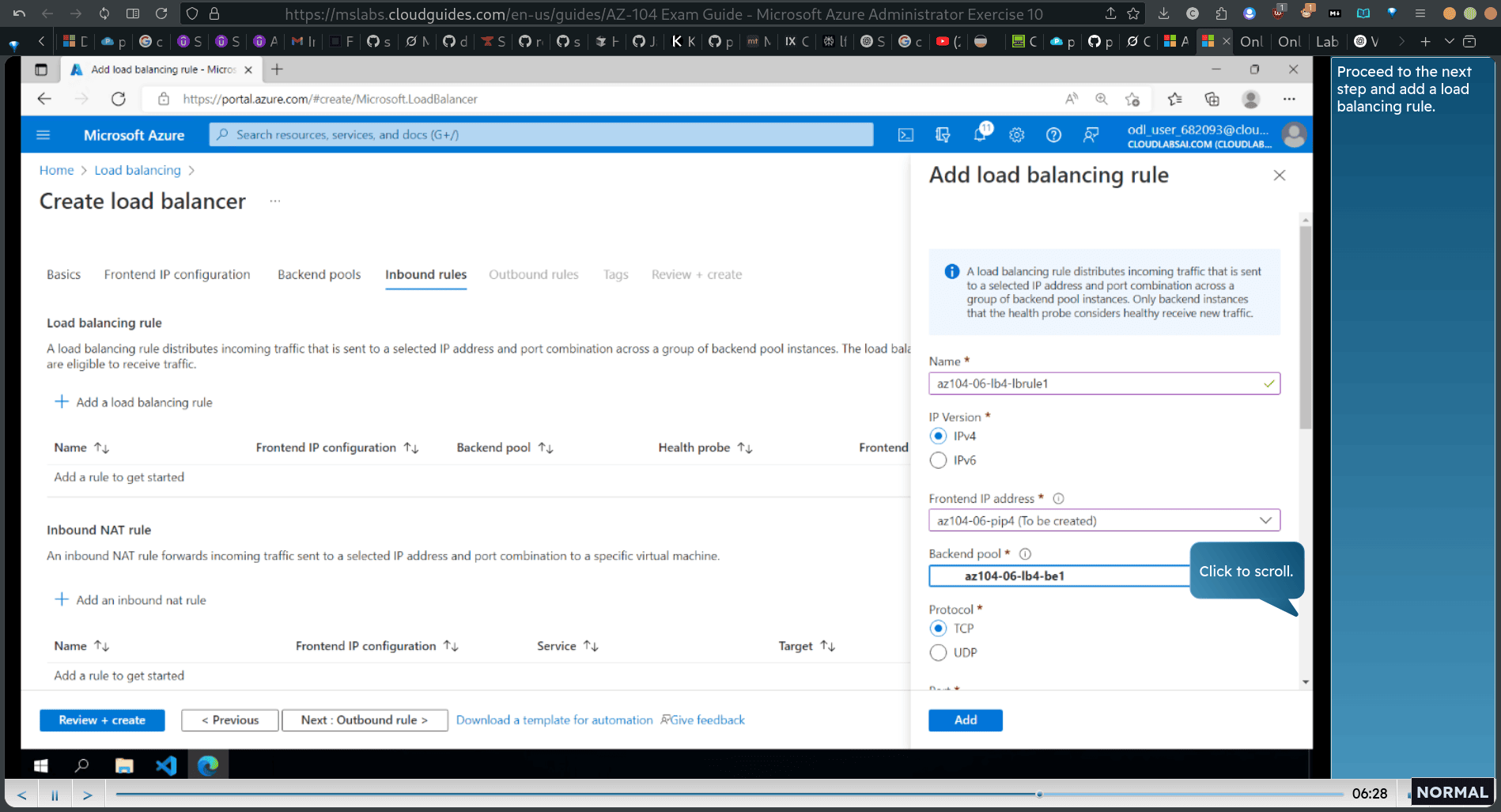

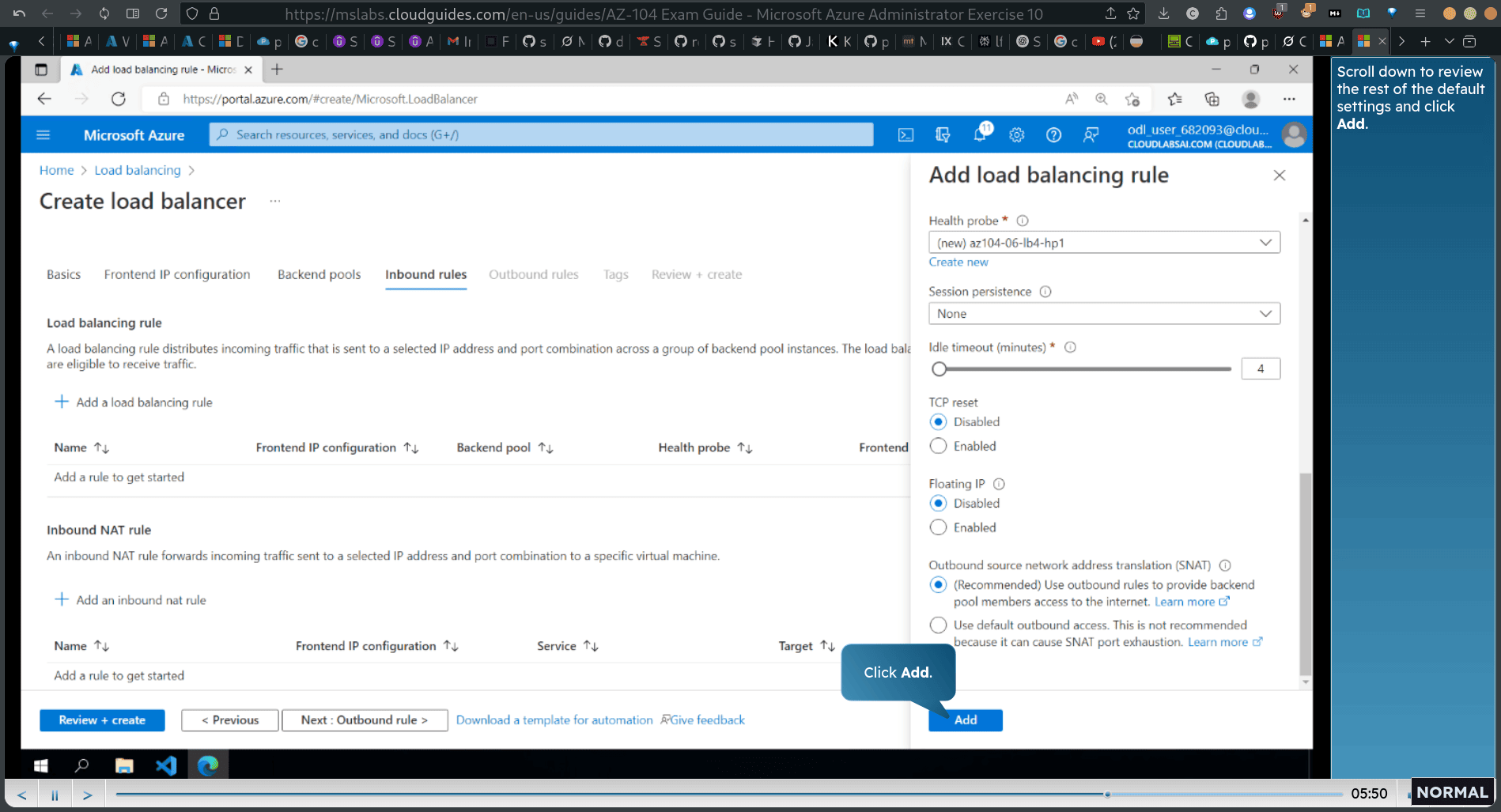

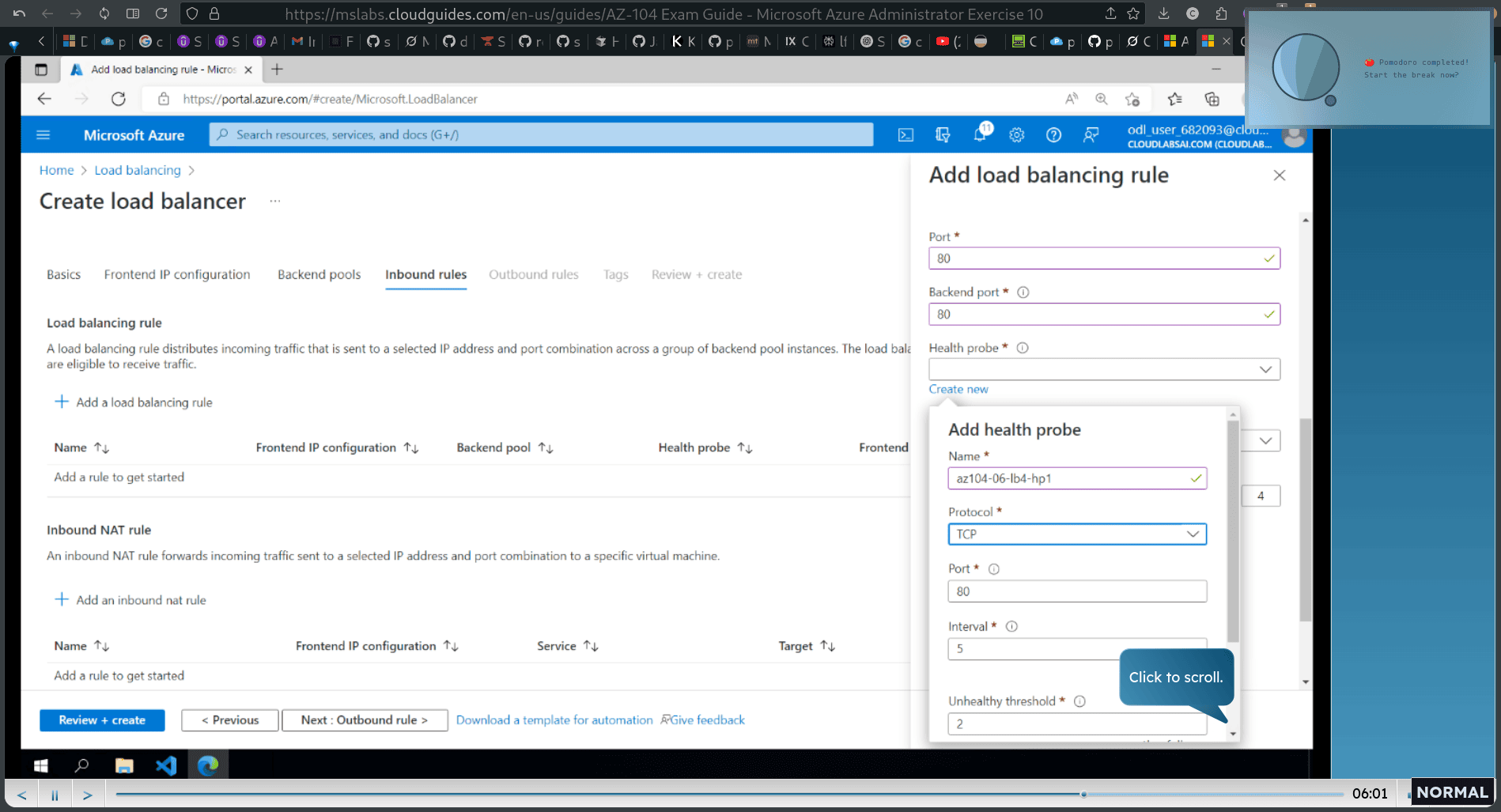

add load balancing rule

port , backend port 80

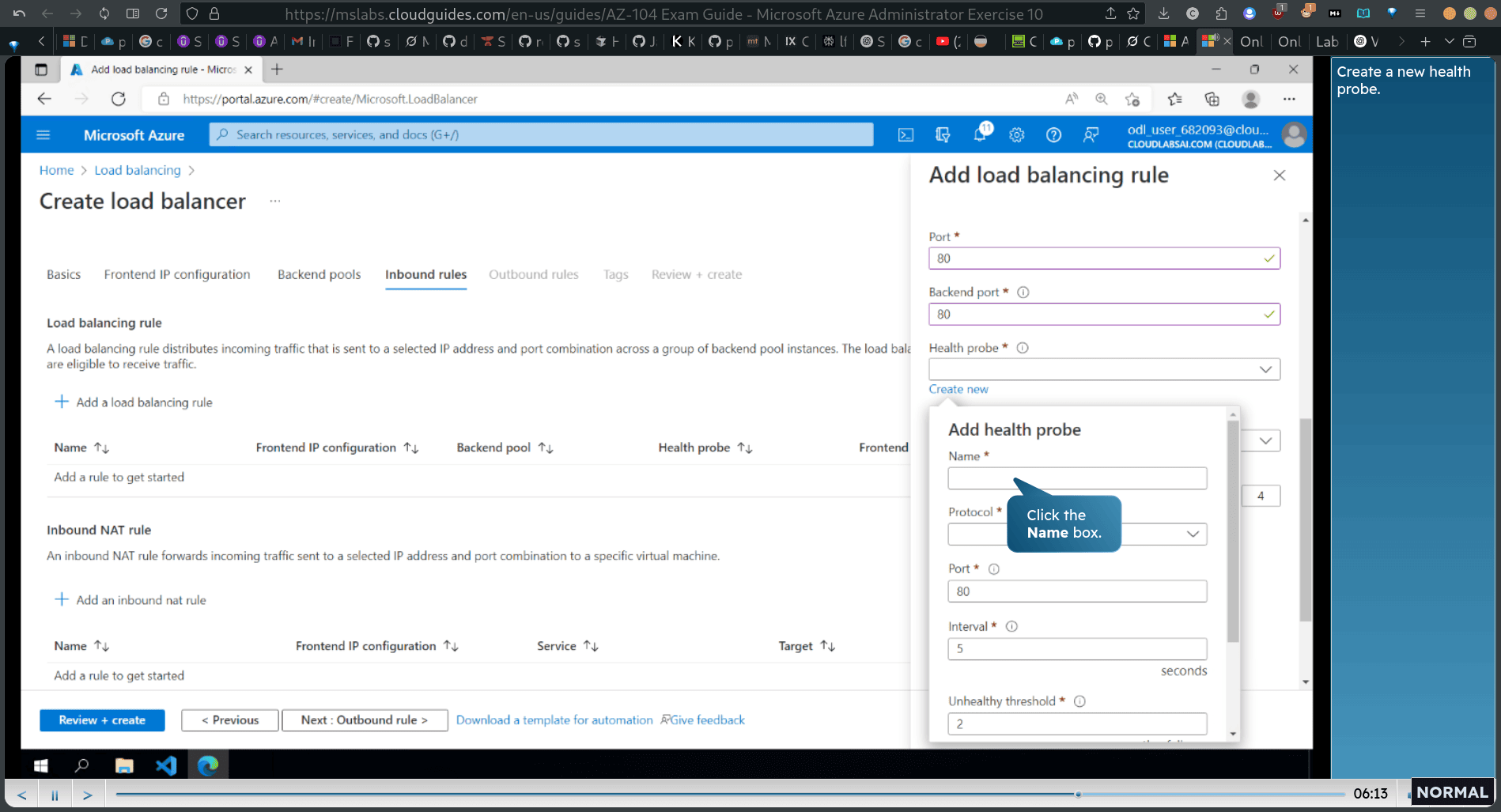

new health probe

Great question! Here’s why port 80 is often used for both the frontend port (on the Azure Load Balancer) and the backend port (on your VM or service):

🔹 What is Port 80?

Port 80 is the default port for HTTP (unencrypted web traffic).
It’s what browsers use when you type a URL without “https://” — e.g., http://example.com.

🔄 Frontend Port vs. Backend Port in Azure Load Balancer

Term	Meaning
Frontend port	The port that users connect to on the load balancer’s public IP
Backend port	The port on the virtual machine (backend) where the request is forwarded

✅ Why both are set to 80 in most tutorials:

🔸 1. Simple Web Server Demo

Most basic web apps or test VMs run HTTP servers like Nginx, Apache, or IIS on port 80.
Matching frontend and backend ports = straightforward setup.

🔸 2. No Port Translation Needed

Setting both ports to 80 means:
- The user accesses: http://<load-balancer-ip>:80
- Azure forwards it directly to http://<backend-vm-ip>:80
This avoids confusion and makes debugging easier.

🔸 3. Browser Compatibility

Browsers automatically assume port 80 for HTTP.
Users don’t need to specify a port in the URL.

🧪 Example

You deploy a load balancer in front of 3 VMs.
Each VM runs a web server on port 80.
You configure:
- Frontend port: 80
- Backend port: 80
A user hits http://<LB-IP>, and Azure routes the request to a healthy backend VM on port 80.

🔐 What if you want to use HTTPS (secure)?

Then you’d use port 443 instead:
- Frontend port: 443
- Backend port: 443
You’d also need an SSL certificate installed.

🔁 What if frontend ≠ backend ports?

You can set:

Frontend: 8080
Backend: 80

Then users would need to access: http://<LB-IP>:8080 Azure would forward it to port 80 on the backend.

This is useful in special cases, like:

Port conflict on frontend IP
Hosting multiple services with different public ports

✅ Summary

Setting	Reason
Port 80	Default for HTTP traffic
Same frontend & backend ports	Simplifies setup and avoids translation
Tutorials use it	Because it’s the most common web app scenario

outbond rules→ none here

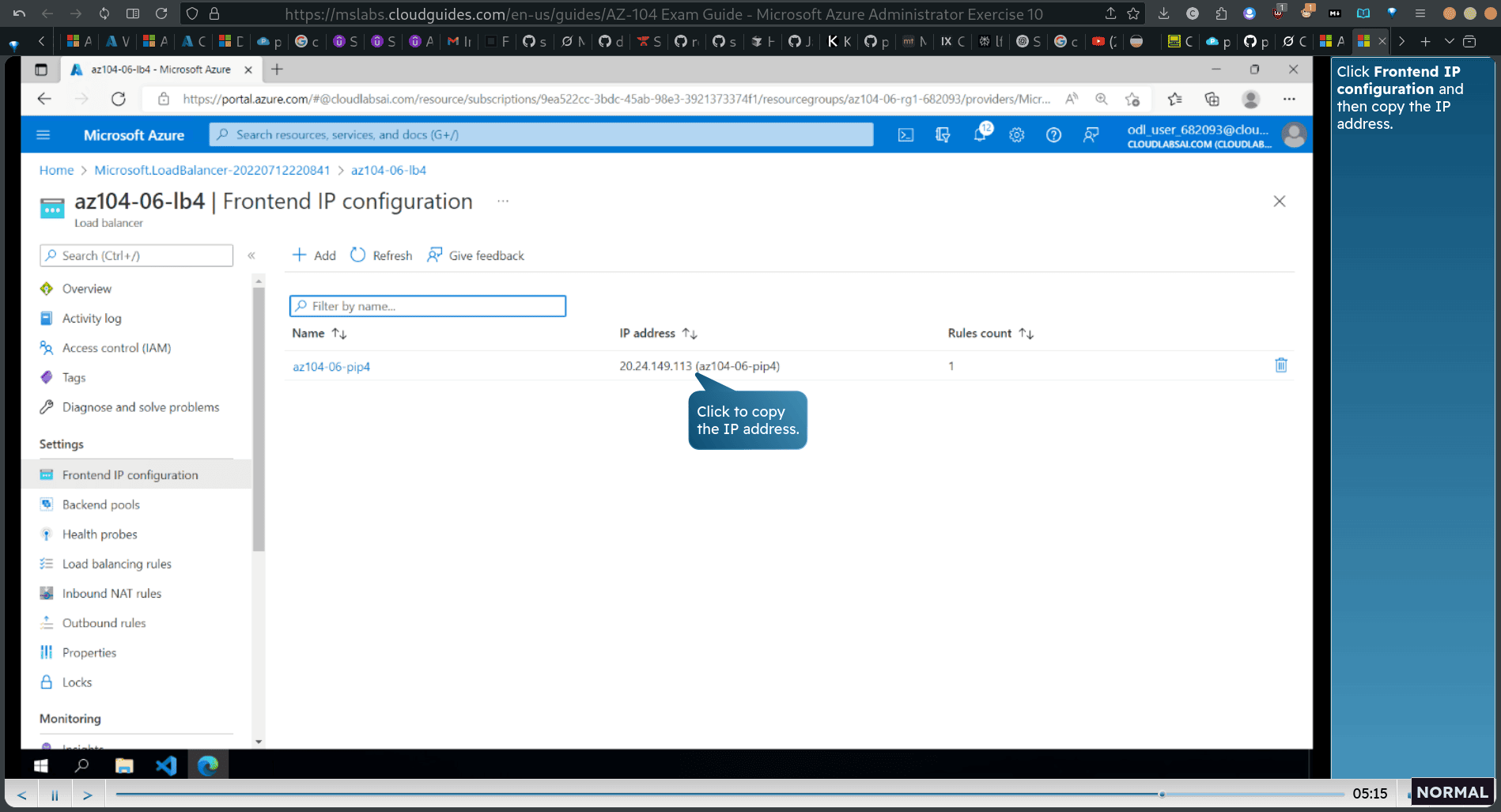

go to resource → frontend ip config → copy the ip address

test it in local browser

The target virtual machine changed to the second VM in the hub virtual network, as indicated by the message. This task is now complete. Close the browser tab.

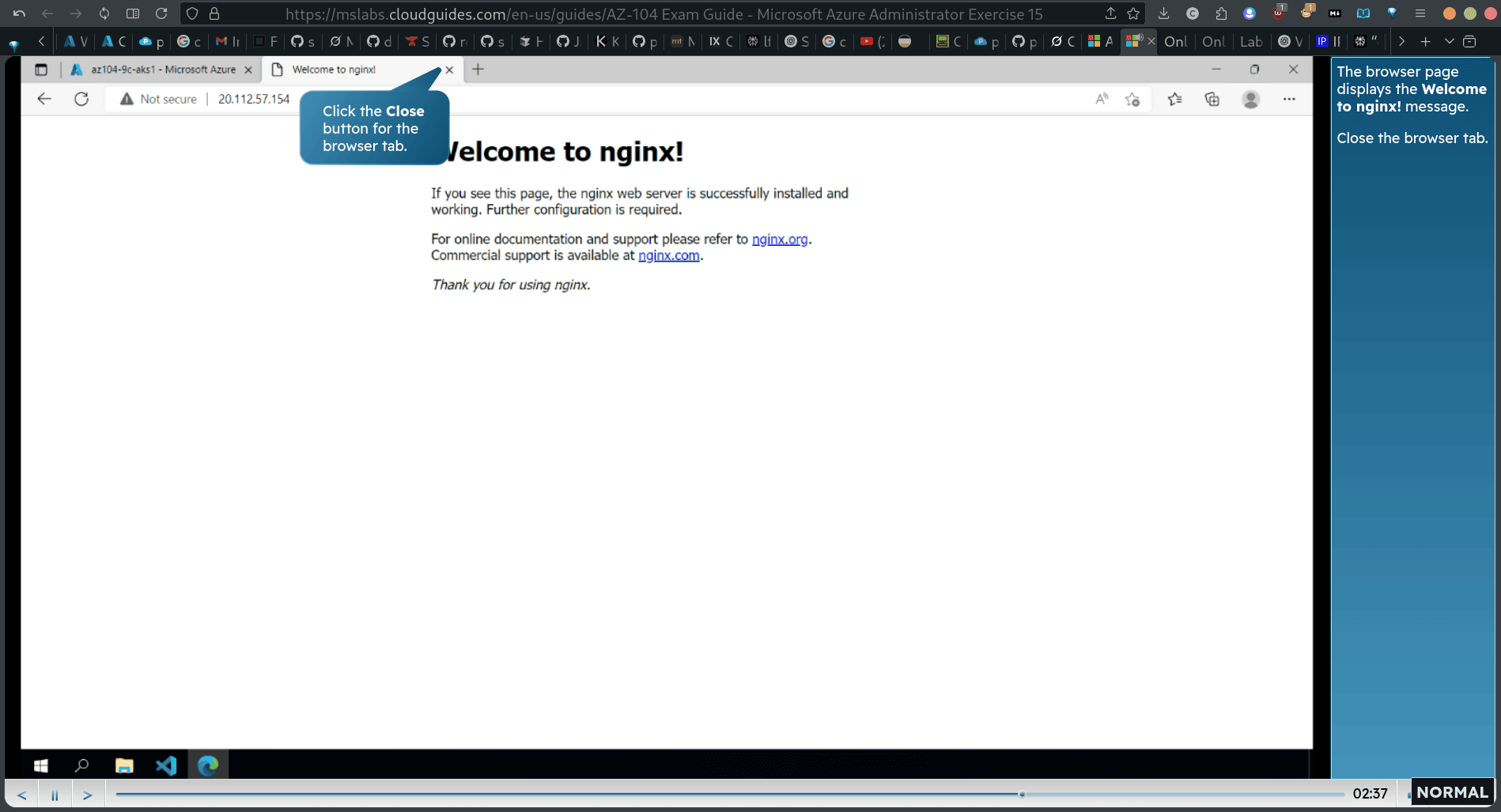

refresh the ip → from vm0 to vm1 (load balanced)

Task 6: Implement Azure Application Gateway

In this next task, you will implement an Azure Application Gateway in front of the two Azure virtual machines in the spoke virtual networks.

vnet01 → subnet → add subnet

Click save.

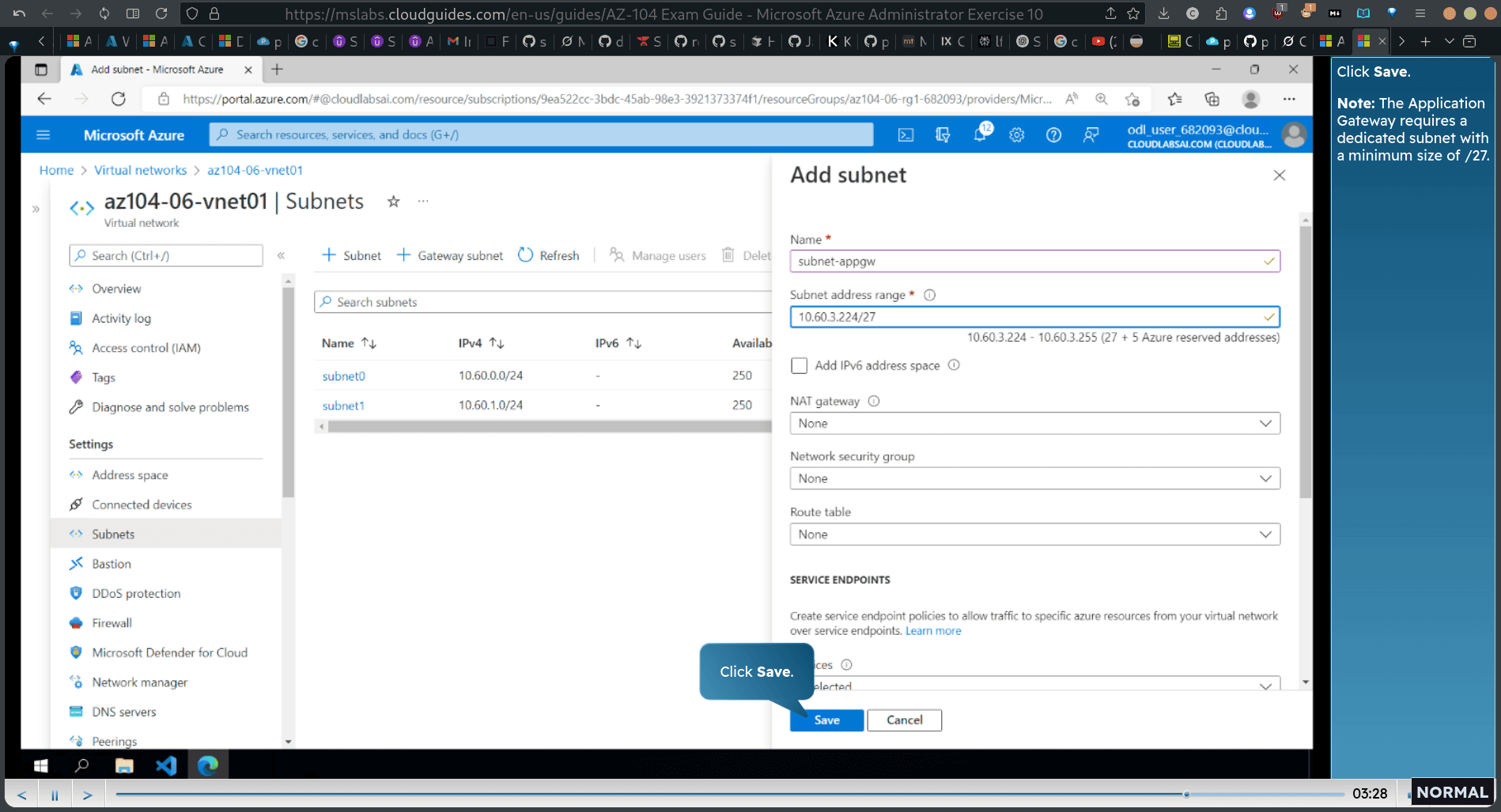

Note: The Application Gateway requires a dedicated subnet with a minimum size of /27.

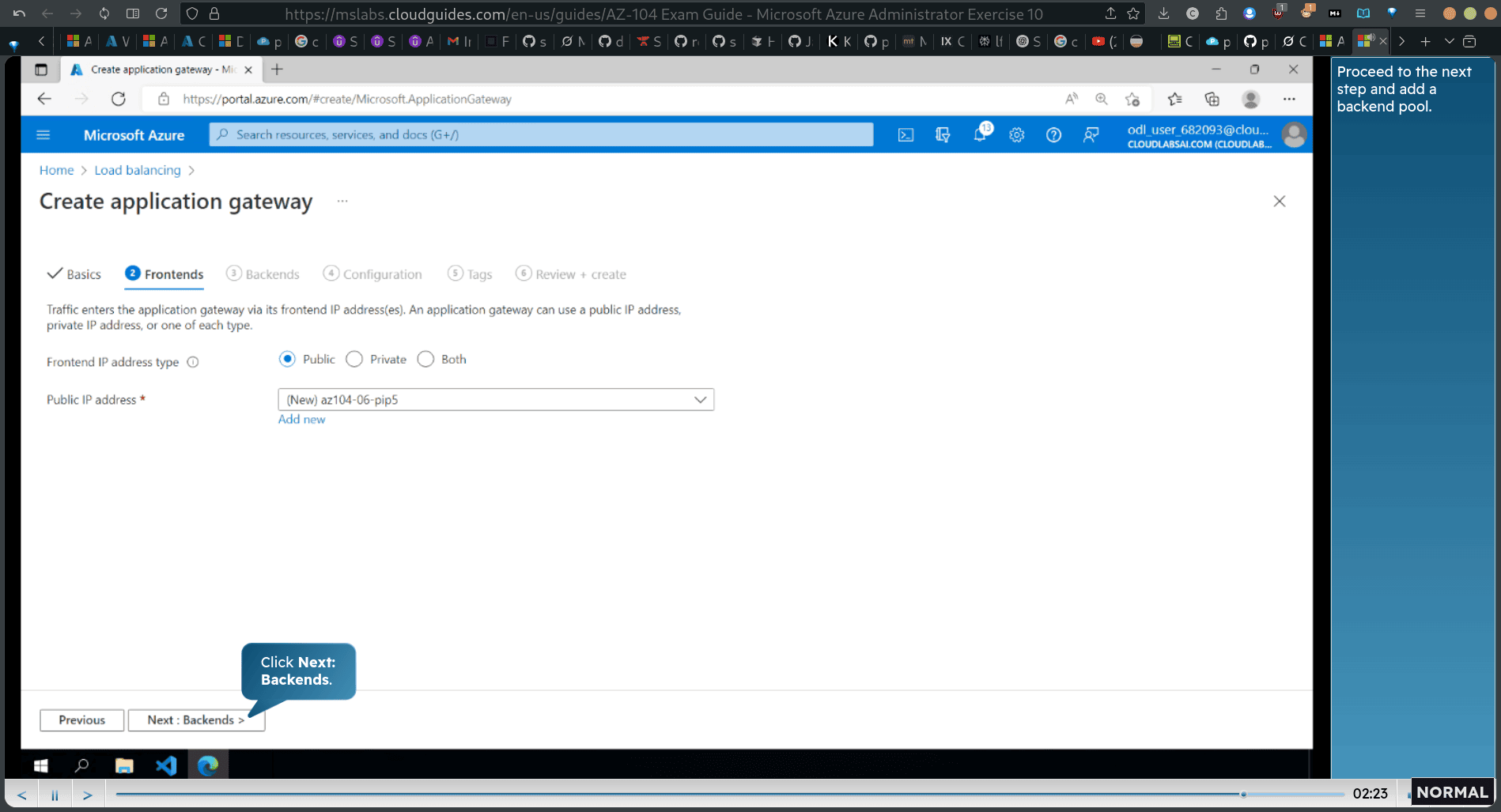

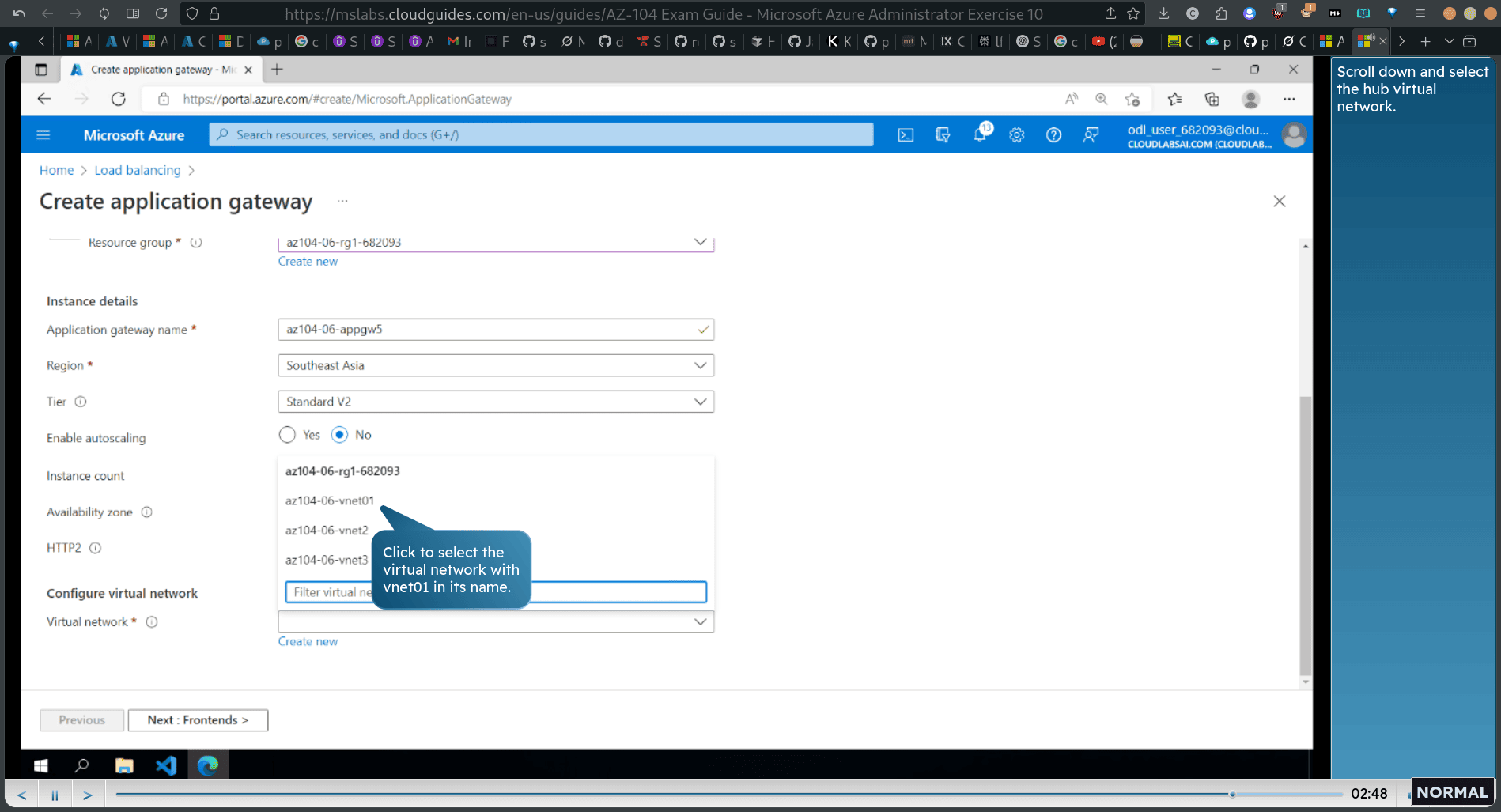

search application gateway → creat

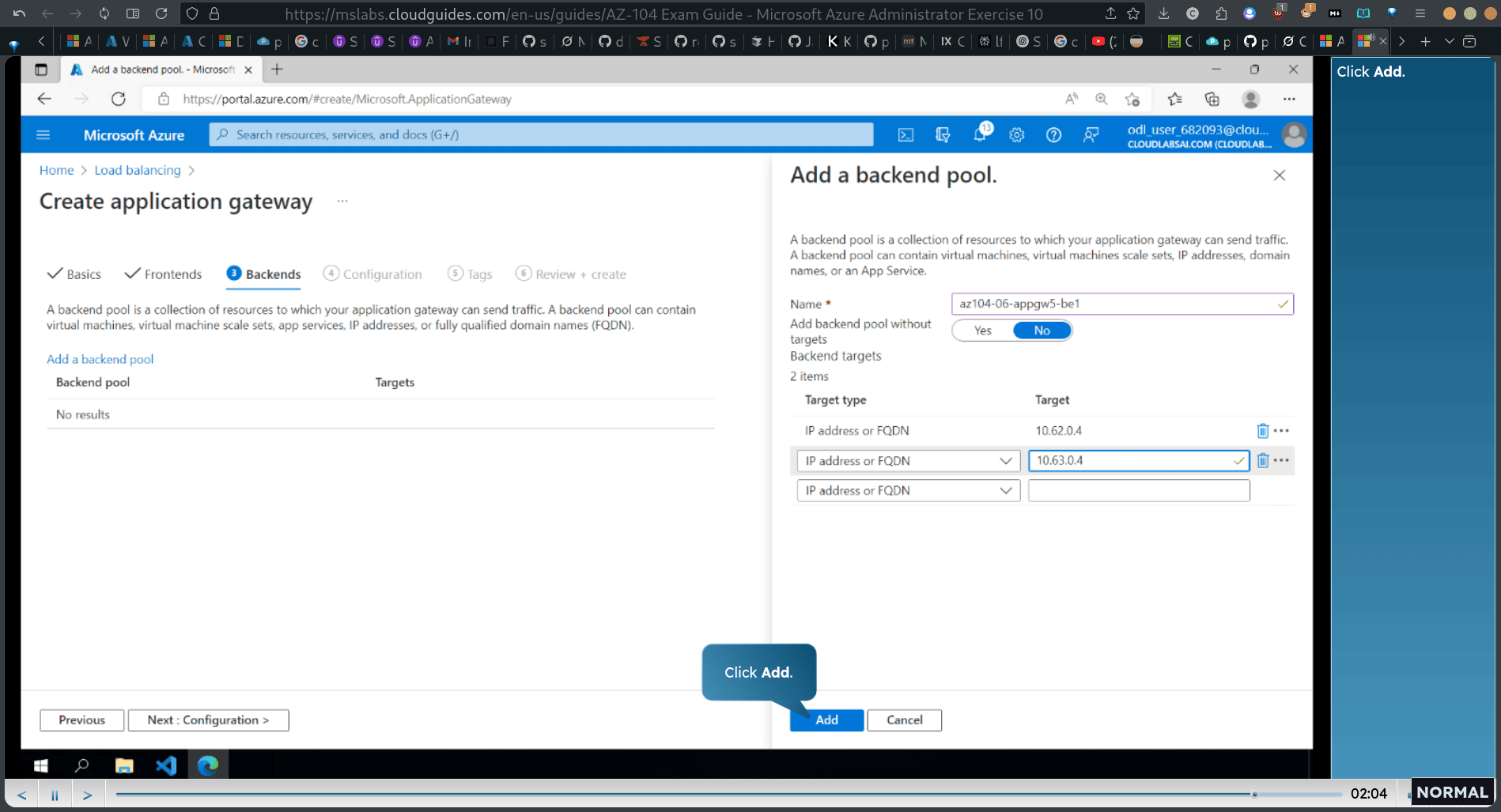

In the Target column, enter the private IP addresses of virtual machines in the spoke virtual networks.

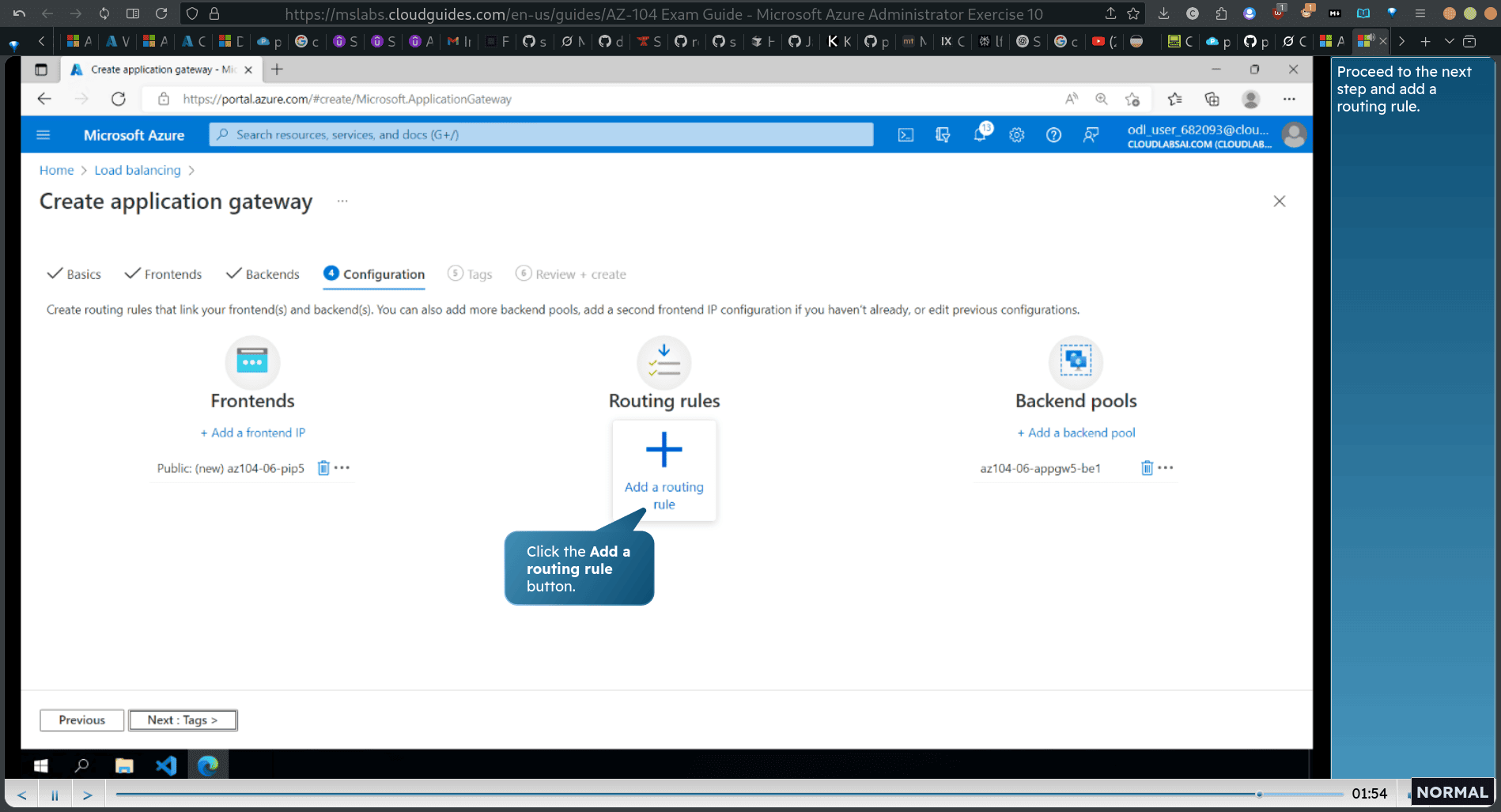

adding routing rule

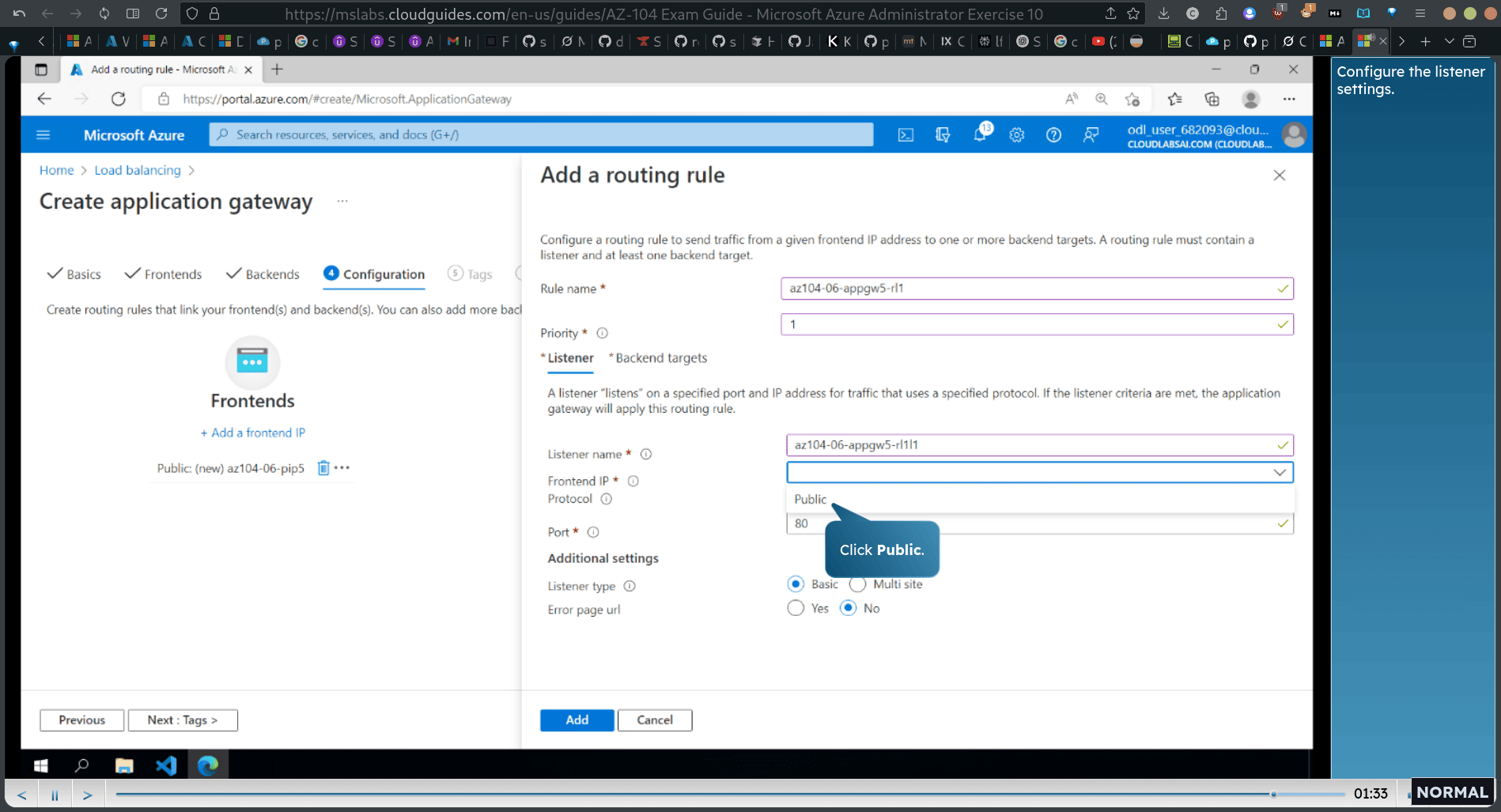

listener

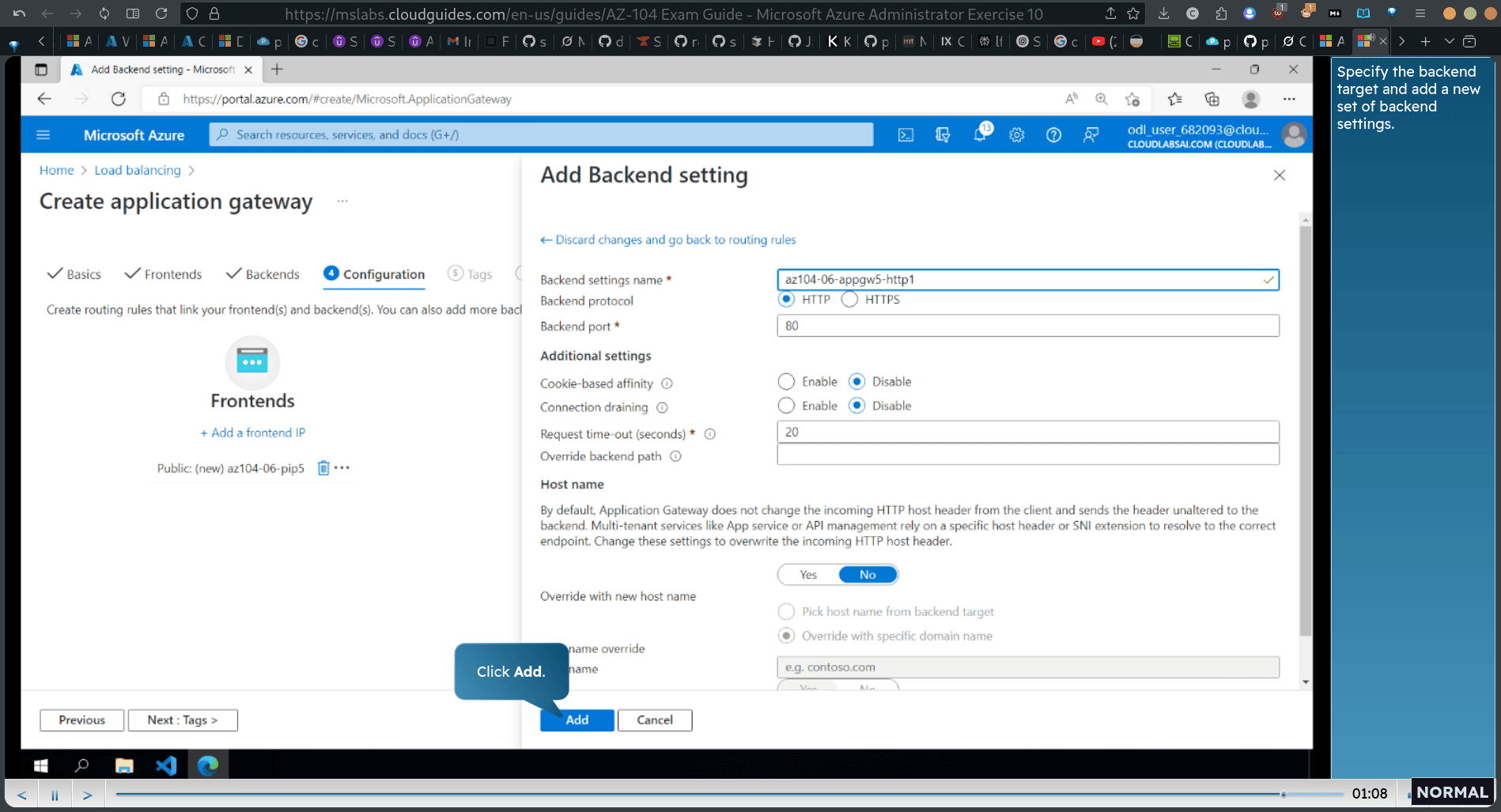

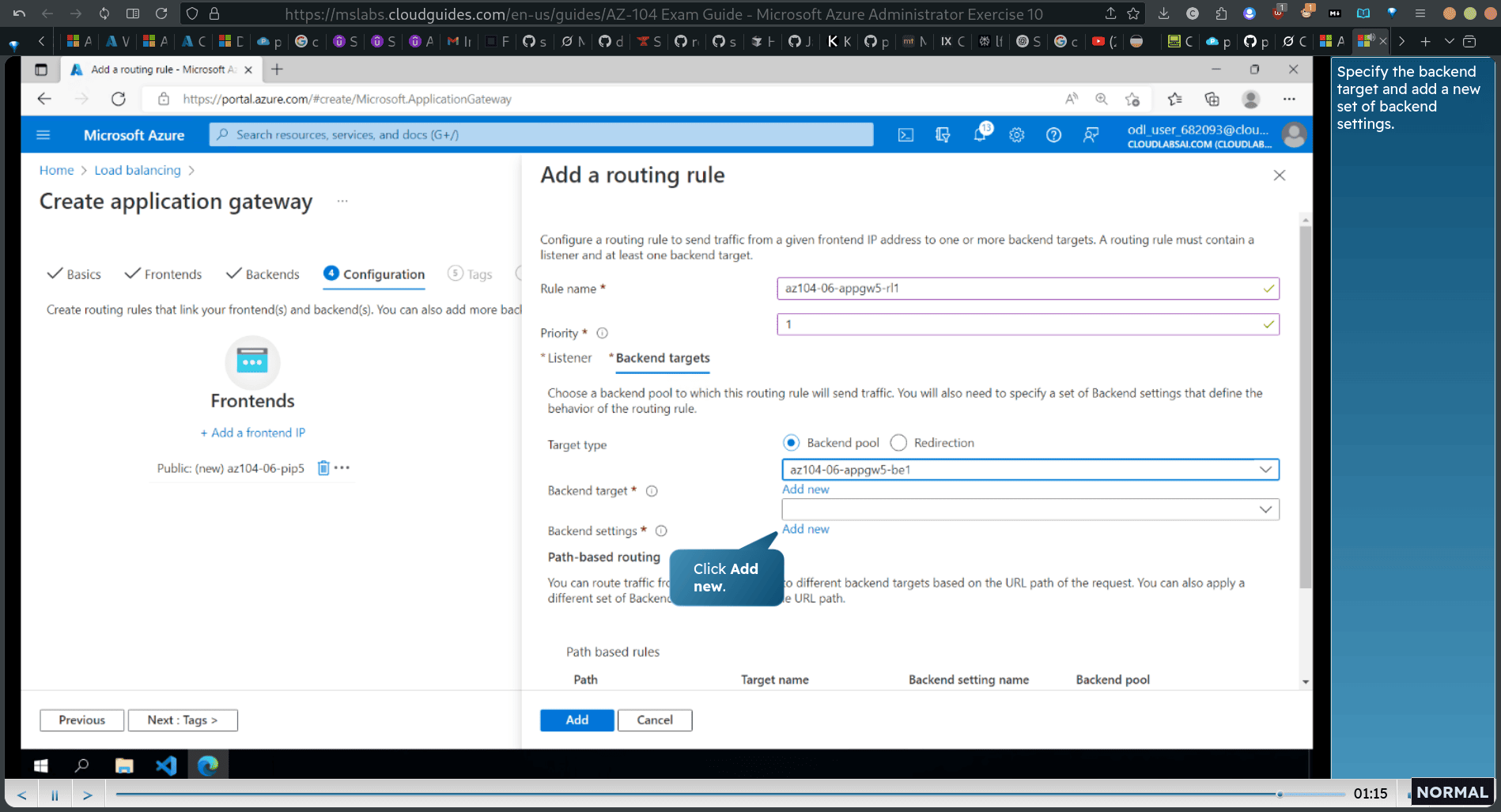

backend setting:

add new backend setting

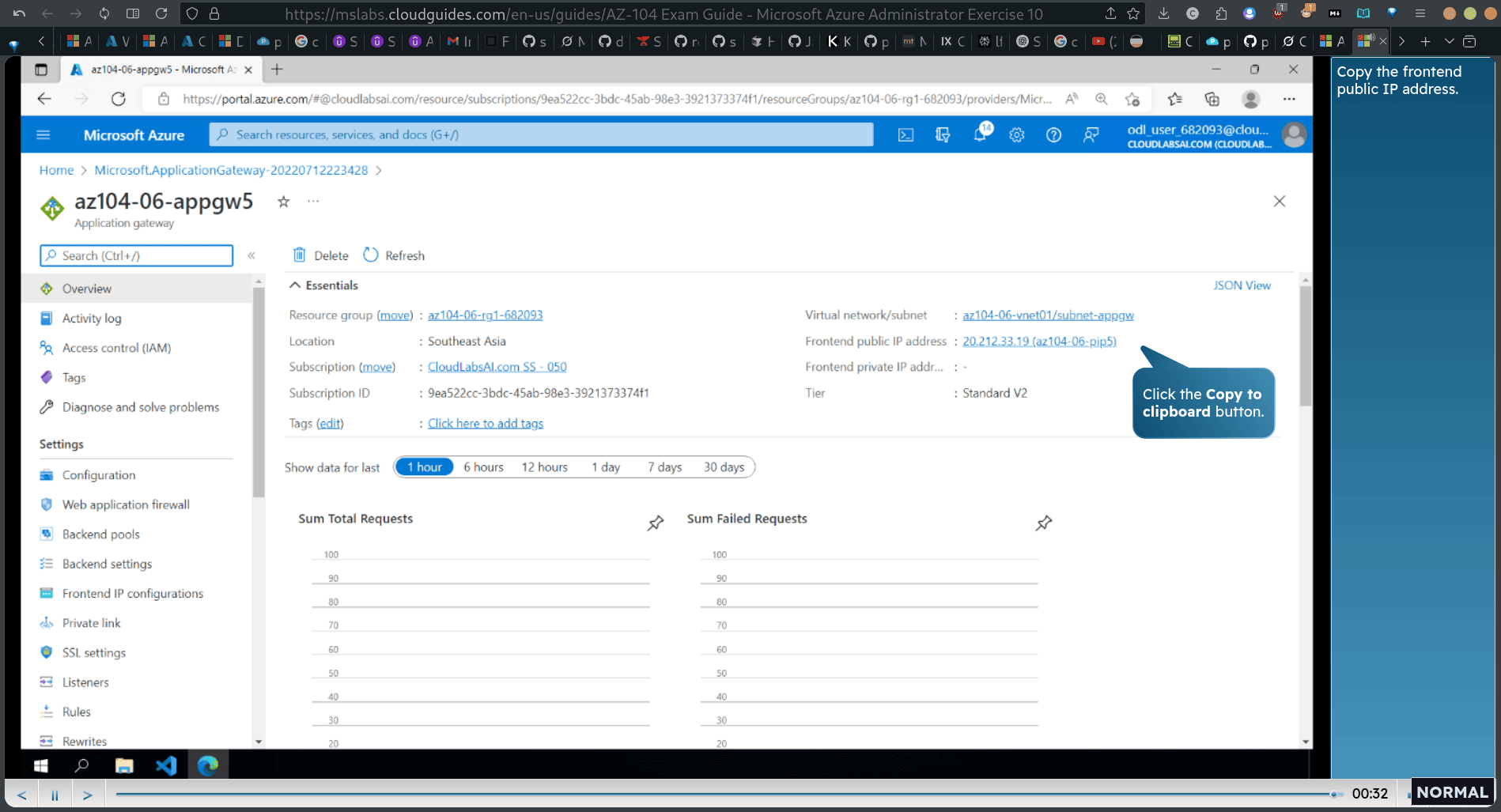

copy the frontend ip address The target virtual machine changed to the VM in the second spoke virtual network, as indicated by the message.

Note: This result illustrates that Application Gateway can target virtual machines on multiple virtual networks. Additionally, Application Gateway can target endpoints in other Azure regions or even outside of Azure, - unlike Azure Load Balancer, which load balances across virtual machines in the same virtual network.

11. Manage Azure Storage

Lab scenario: In this lab, you’ll evaluate the use of Azure Storage for storing files currently residing in on-premises data stores. To minimize the cost of storage, you’ll place less frequently accessed files in lower-priced storage ftiers. You’ll also explore different protection mechanisms that Azure Storage offers, including network access, authentication, authorization, and replication. Finally, you’ll determine to what extent the Azure Files service might be suitable for hosting your on-premises file shares.

Task 1: Deploy an Azure virtual machine

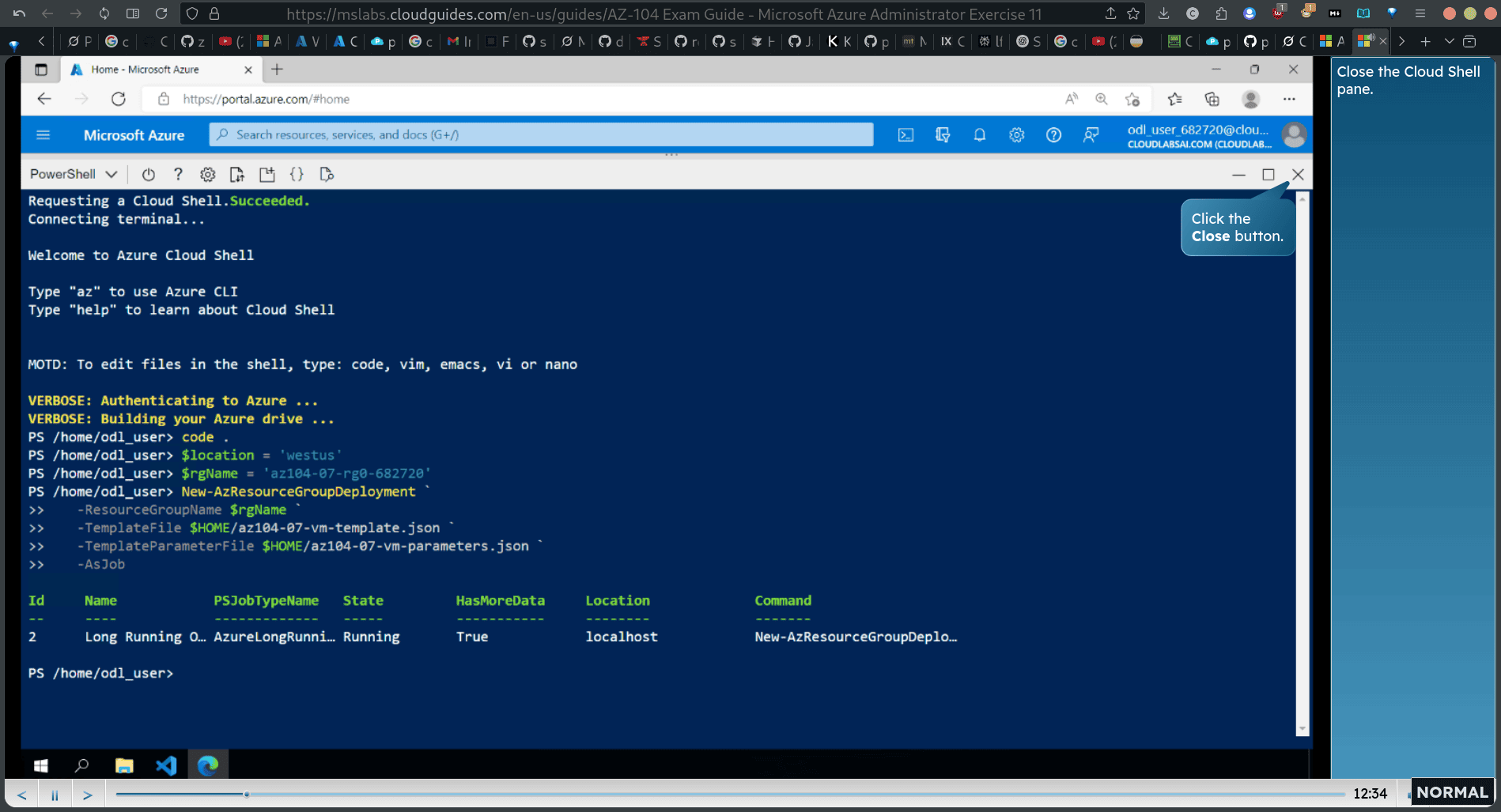

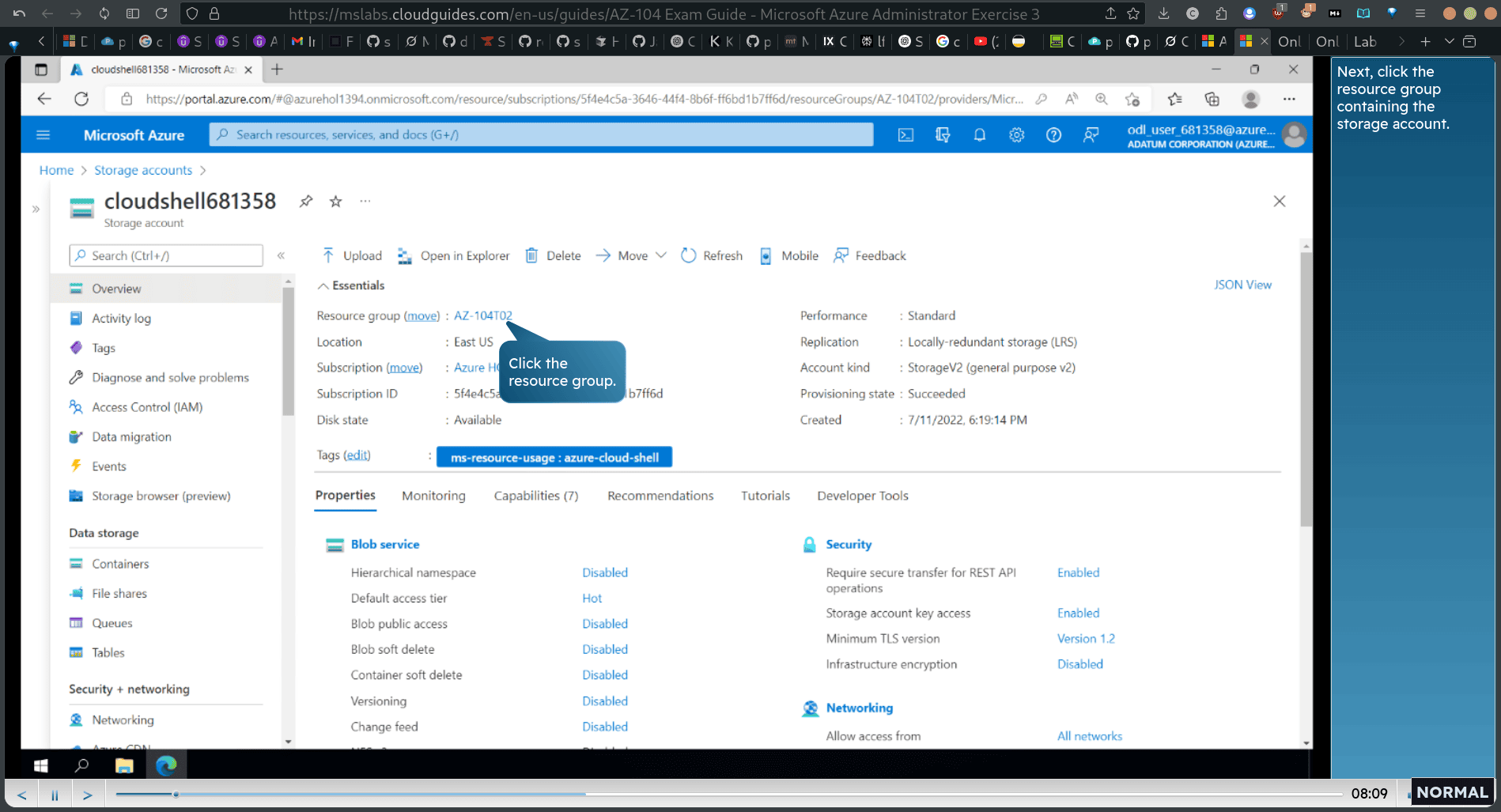

Task 2: Create and configure an Azure Storage account

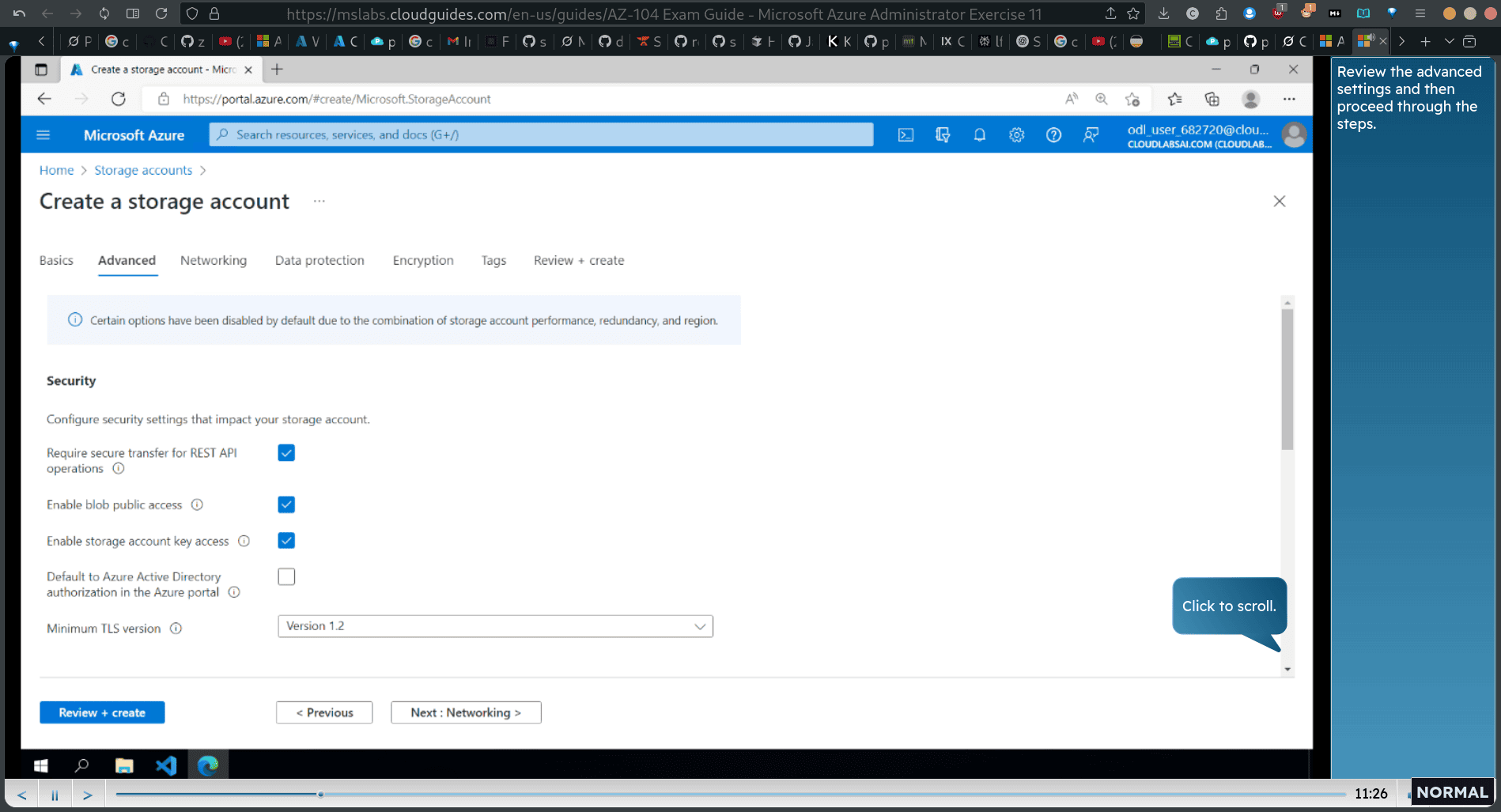

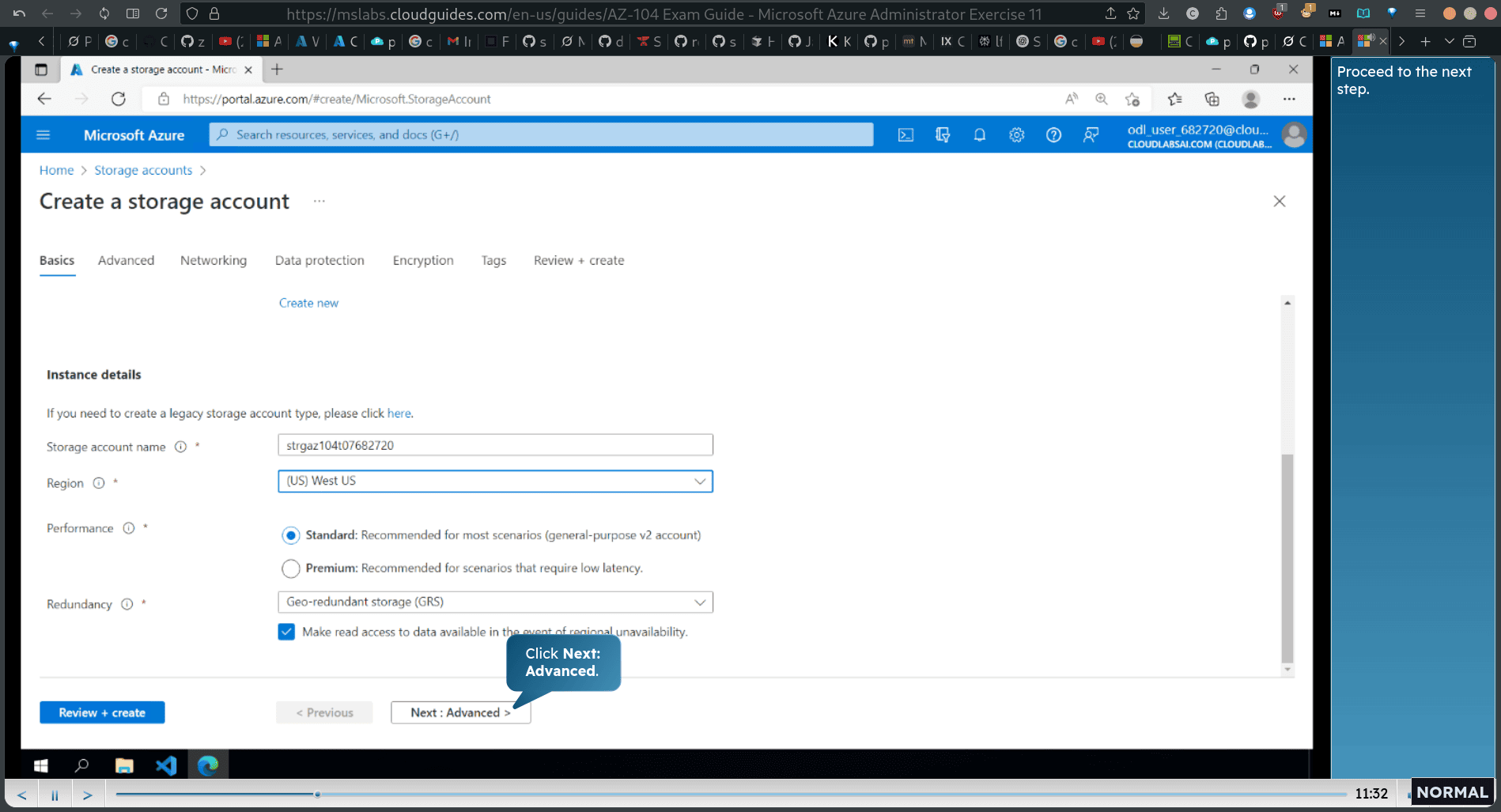

storage ac → rg1

hot type

enable soft delete

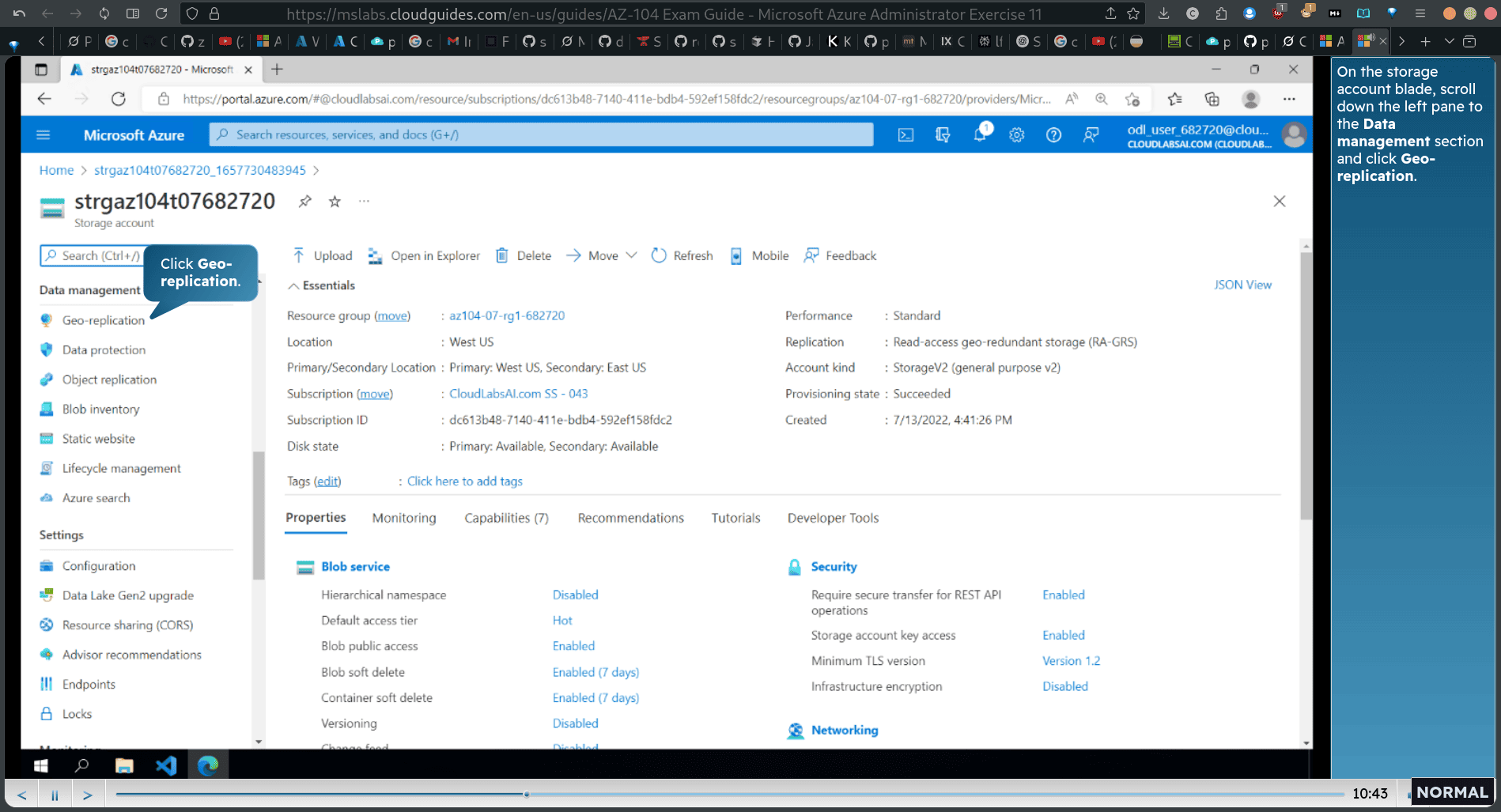

click the new ac → geo replication→ setting → config

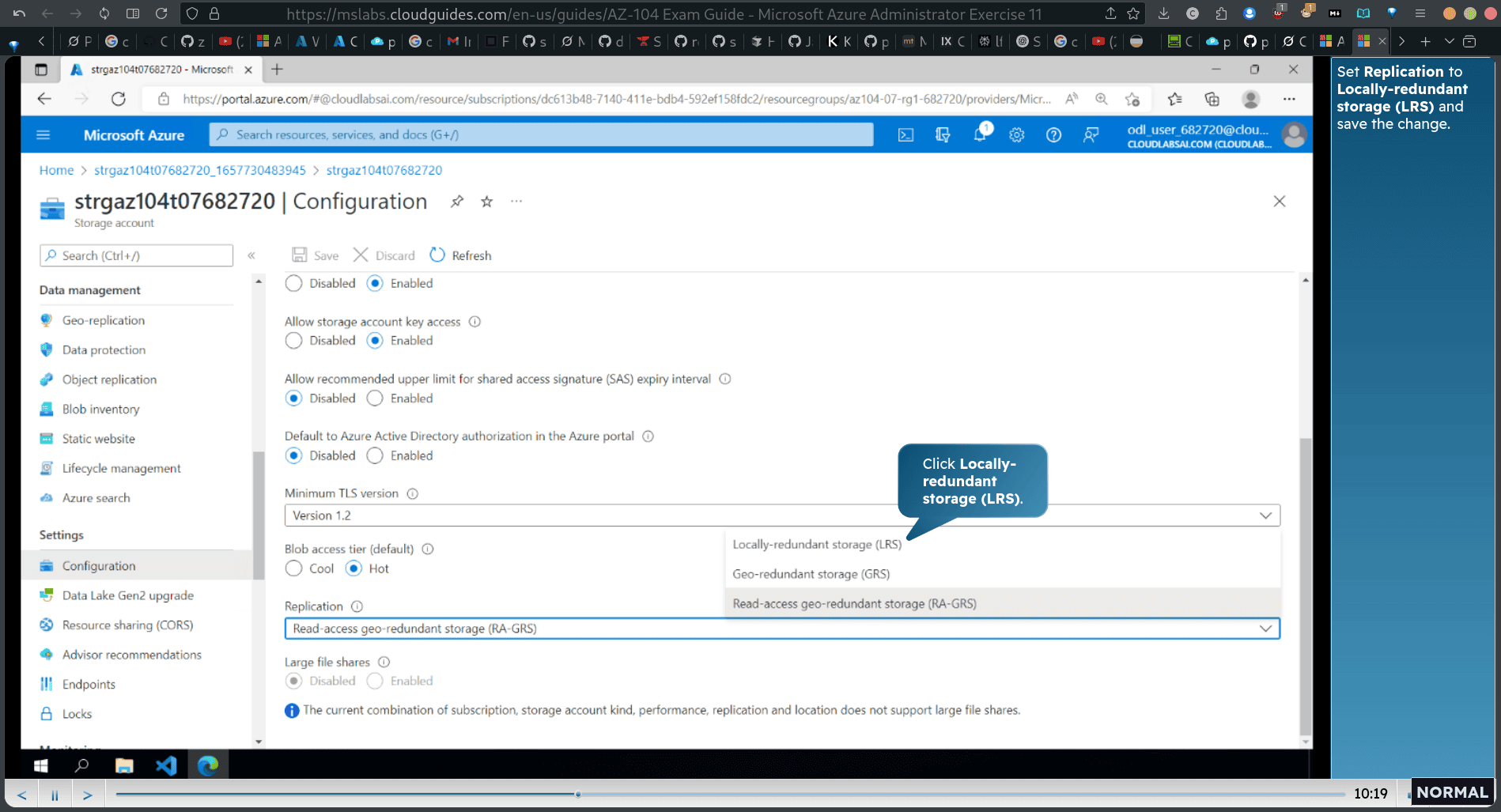

Set Replication to Locally-redundant storage (LRS) and save the change.

Note that the storage account only has the primary location. Return to the Configuration blade.

Set Blob access tier (default) to Cool and save the change. Note: The cool access tier is optimal for data that is not accessed frequently.

save

Task 3: Manage blob storage

ac → container → new → upload a blob

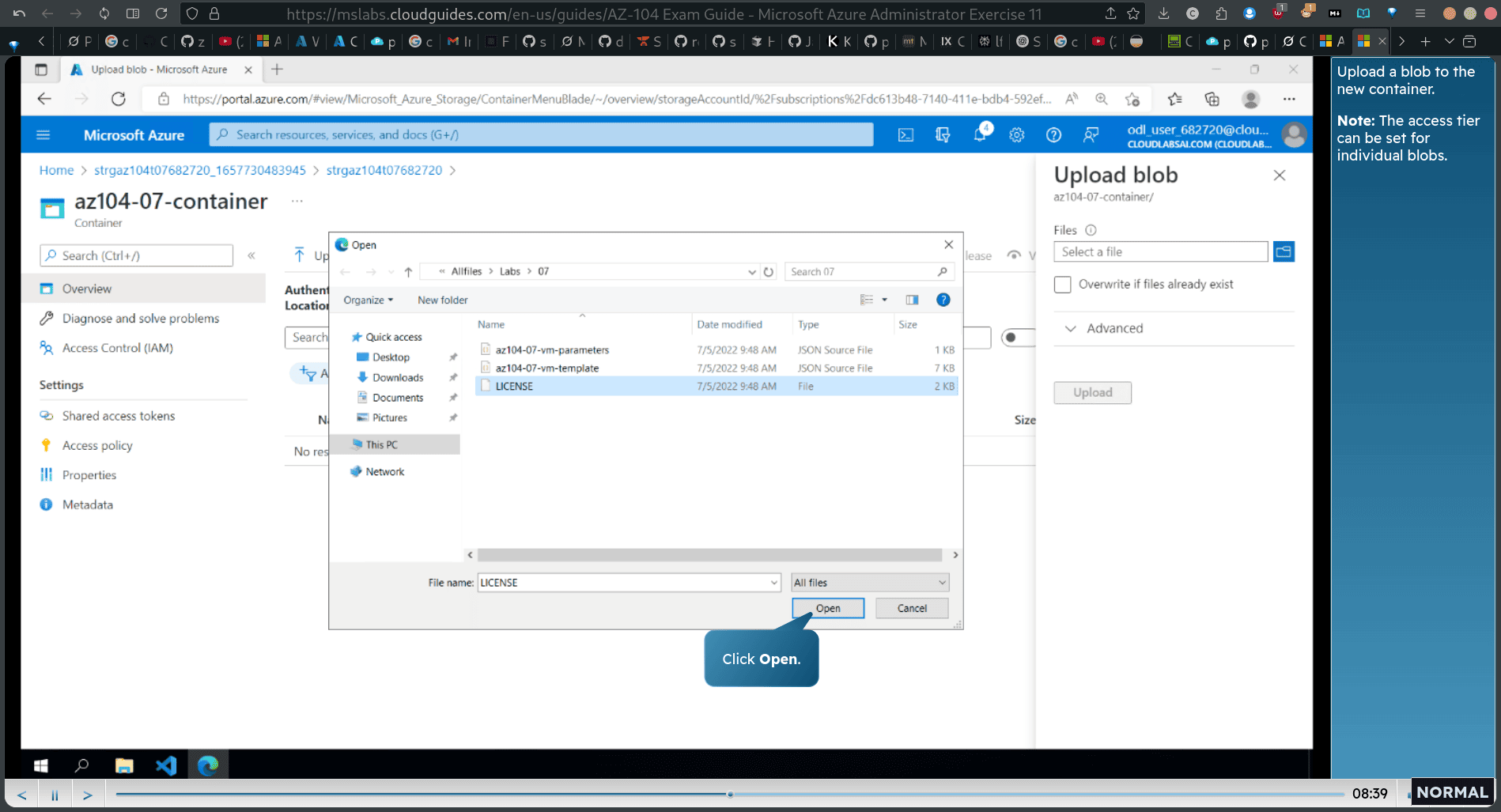

upload license

hot type

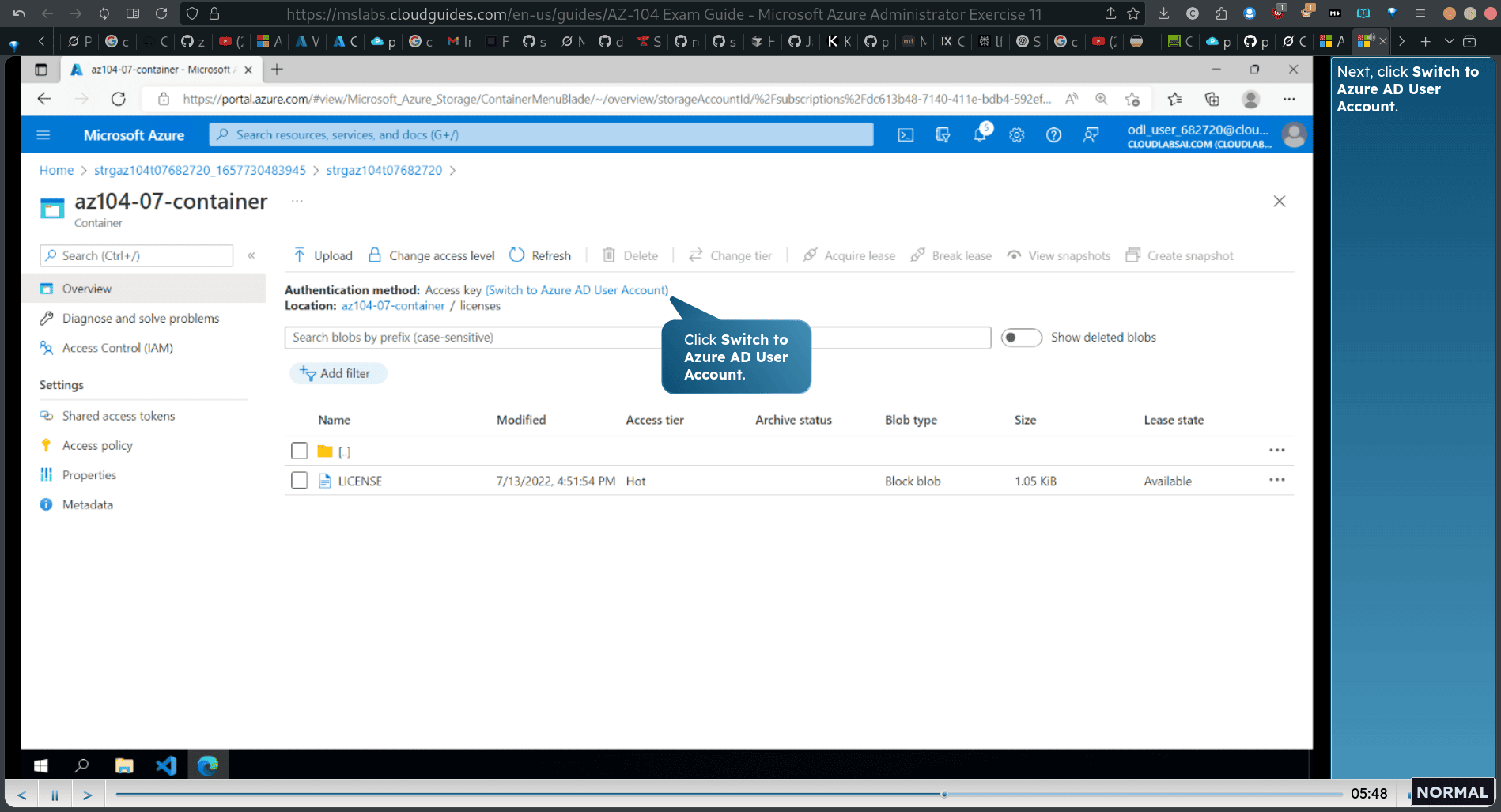

Note: You can download the blob, change its access tier, acquire a lease, and assign custom metadata. You can also edit the file directly within the Azure portal, create snapshots, and generate an SAS token.

Task 4: Manage authentication and authorization for Azure Storage

copy the blob url → firefox → url

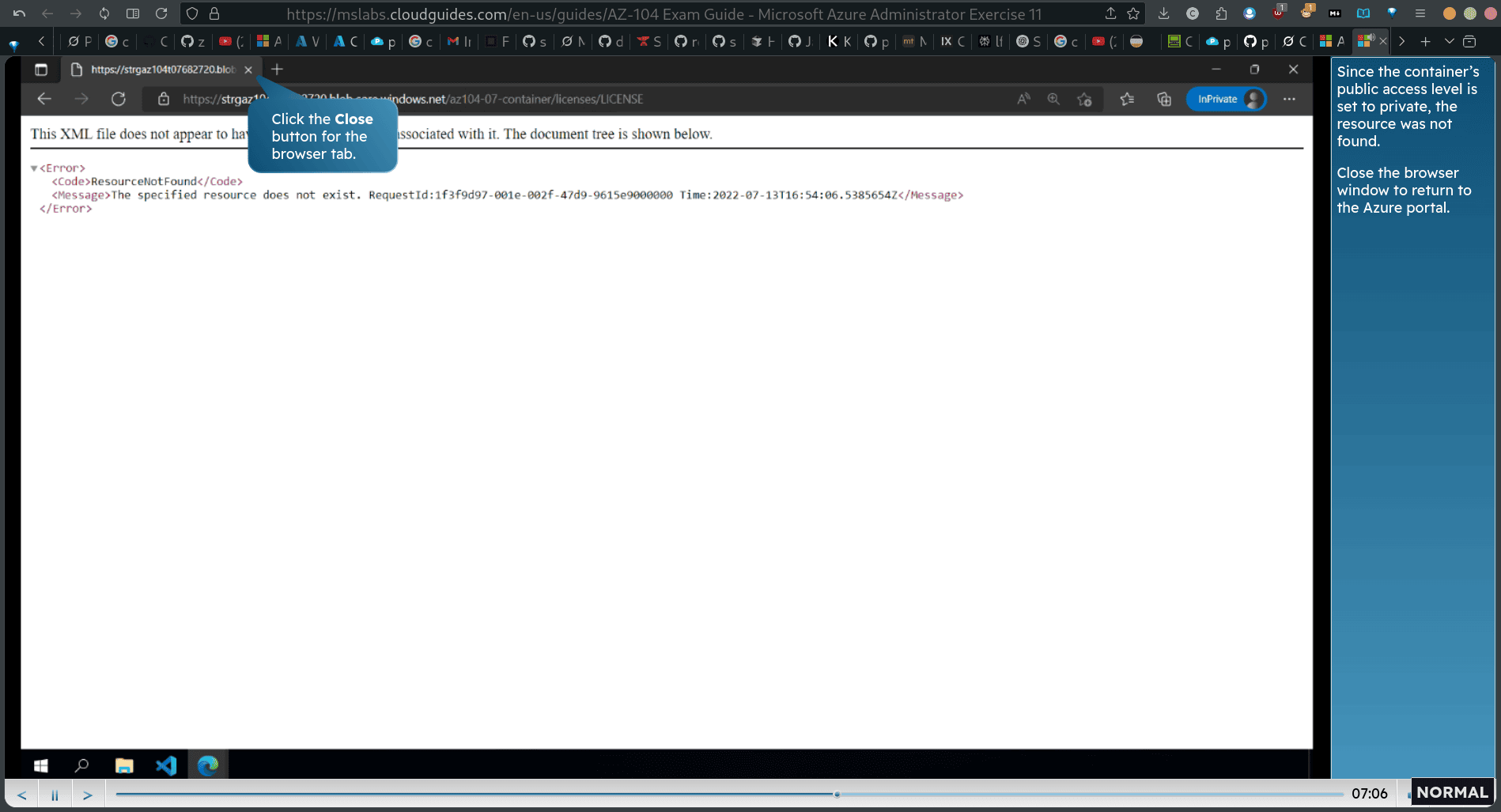

Since the container’s public access level is set to private, the resource was not found. Close the browser window to return to the Azure portal.

Open the Generate SAS tab.
Update the start date and then click Generate SAS token and URL.

generate the real url

now the browser can view it

Next, click Switch to Azure AD User Account.

An error appears because you do not have permission to change the authentication method. In the left pane, click Access Control (IAM).

add role assignment

Search for and then select the Storage Blob Data Owner role.

select member , search for username → review and assign

back to

Click Switch to Azure AD User Account fo verify that you can change the authentication method.

container → file share

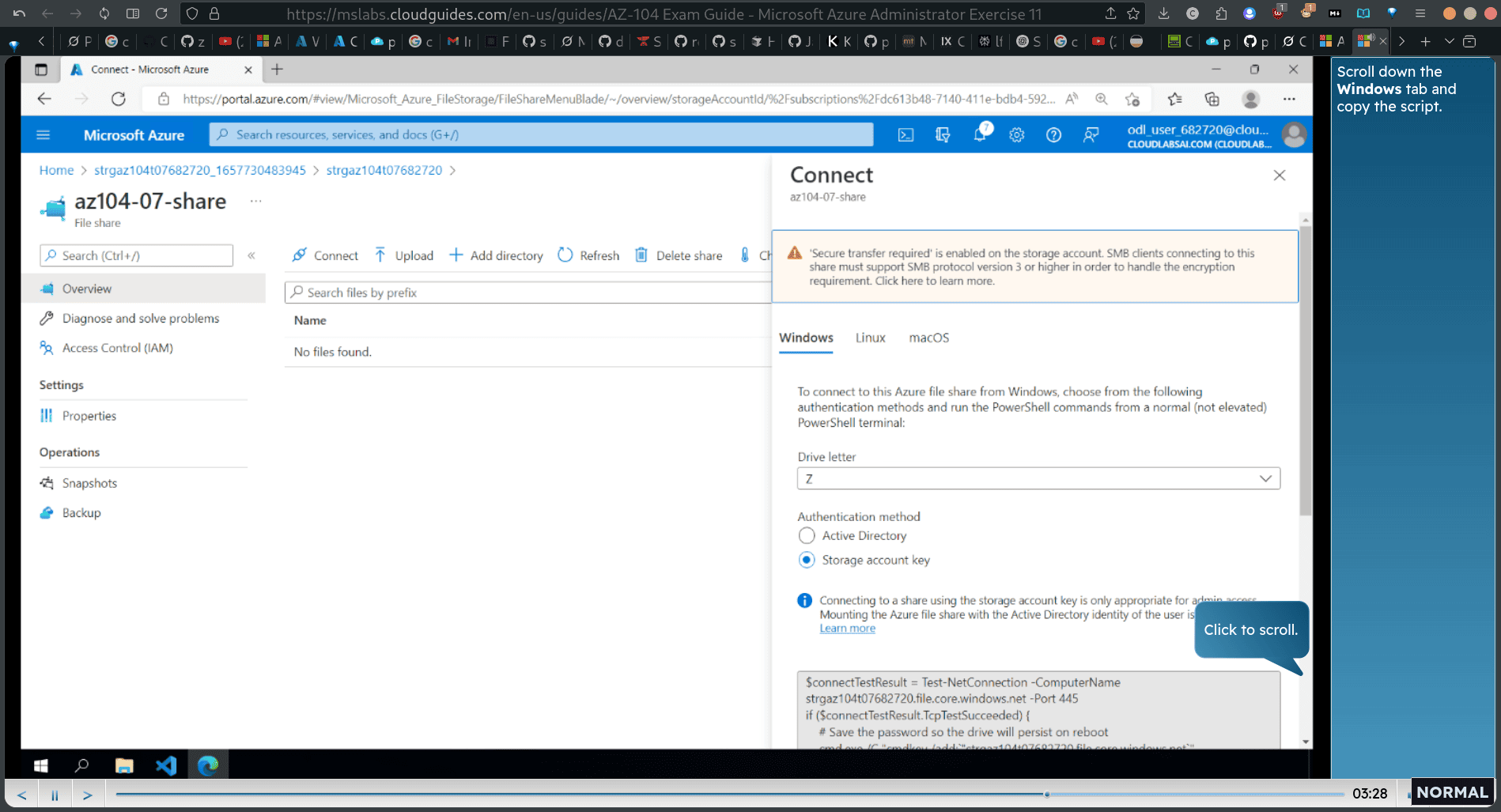

new share Scroll down the Windows tab and copy the script.

you can select different os here

search VM

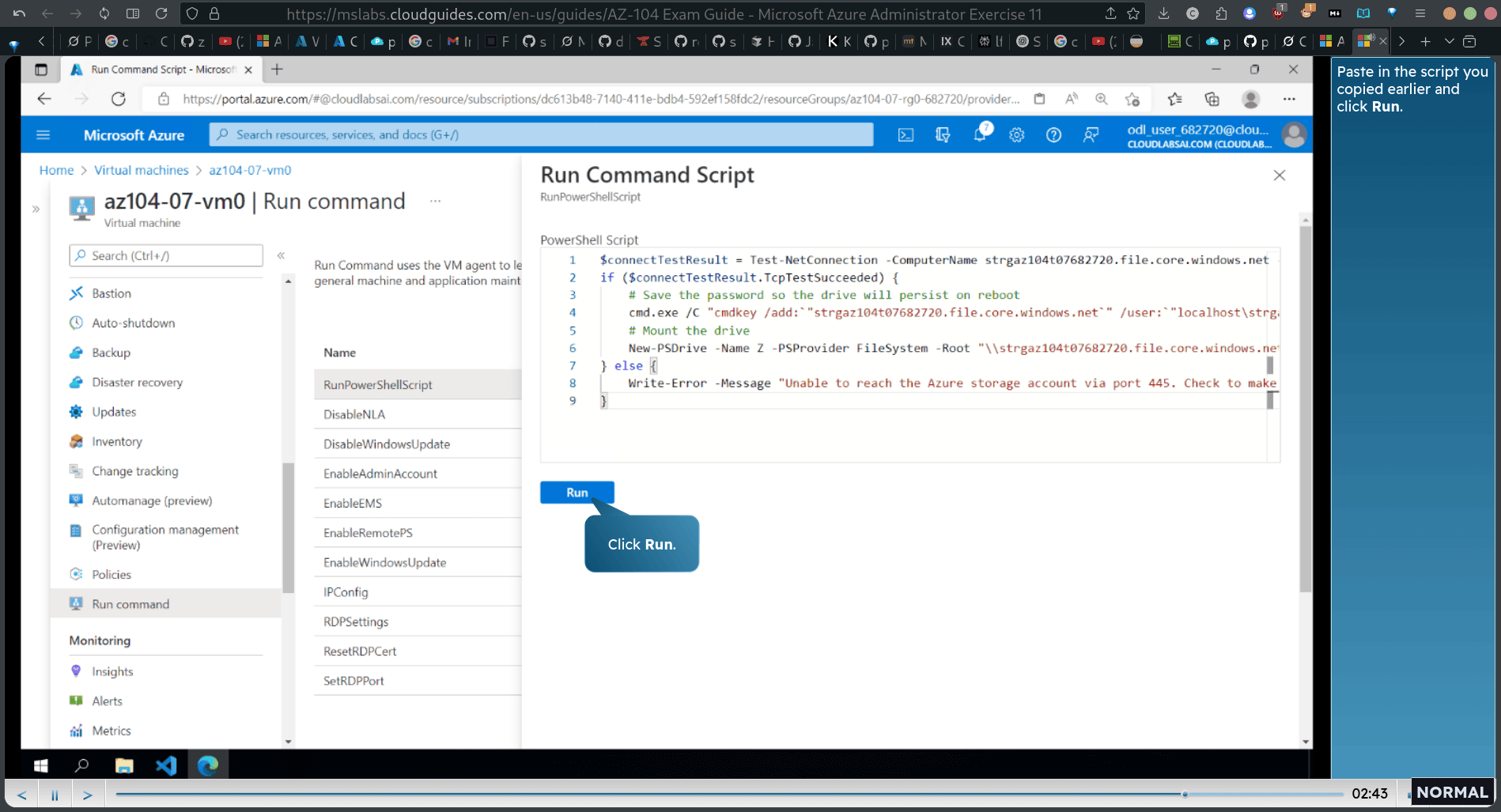

paste the scrpit you copy early

$connectTestResult = if (SconnectTestResult.TcpTestSucceeded) {

Save the password so the drive will persist on reboot

cmd.exe /C “cmdkey /add:® “strgaz104t07682720.file.core.windows.net™ ” /user:” “localhost\strg:

Test-NetConnection -ComputerName strgaz104t07682720.file.core.windows.net

Mount the drive

New-PSDrive -Name Z -PSProvider FileSystem -Root “\strgaz104t07682720.file.core.windows.ne’

} else [ Write-Error -Message “Unable to reach the Azure storage account via port 445. Check to make

another script:

New-Item -Type Directory -Path ‘Z:\az104-07-folder’

New-Item -Type File -Path ‘Z:\az104-07-folder\az-104-07-file.txt”

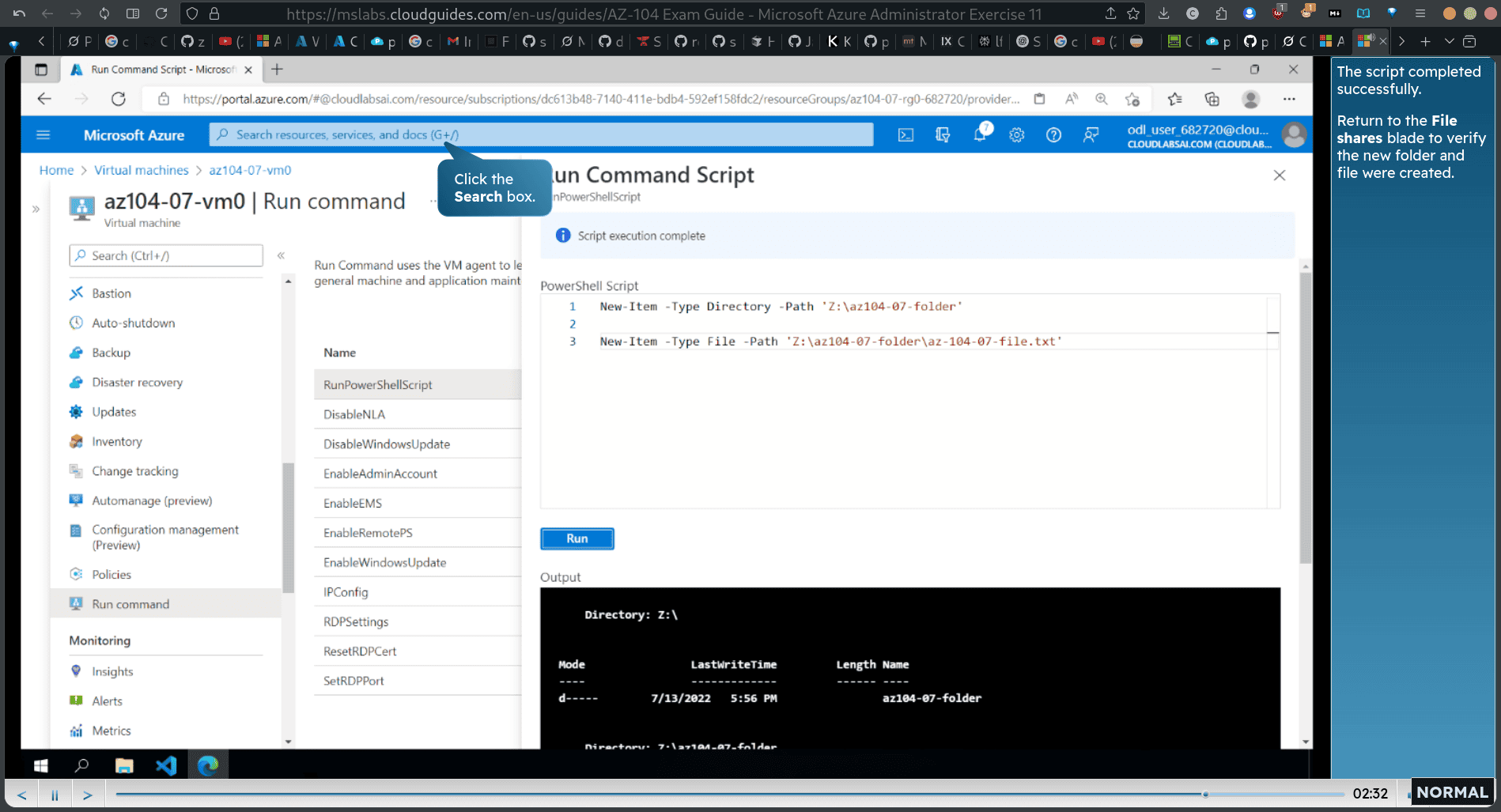

Return fo the File shares blade to verify the new folder and file were created.

the folder and the file is created (lol why need this part)

Task 6: Manage network access for Azure Storage

back to file share blades (storage ac)

Under Security + networking in the left pane, click Networking.

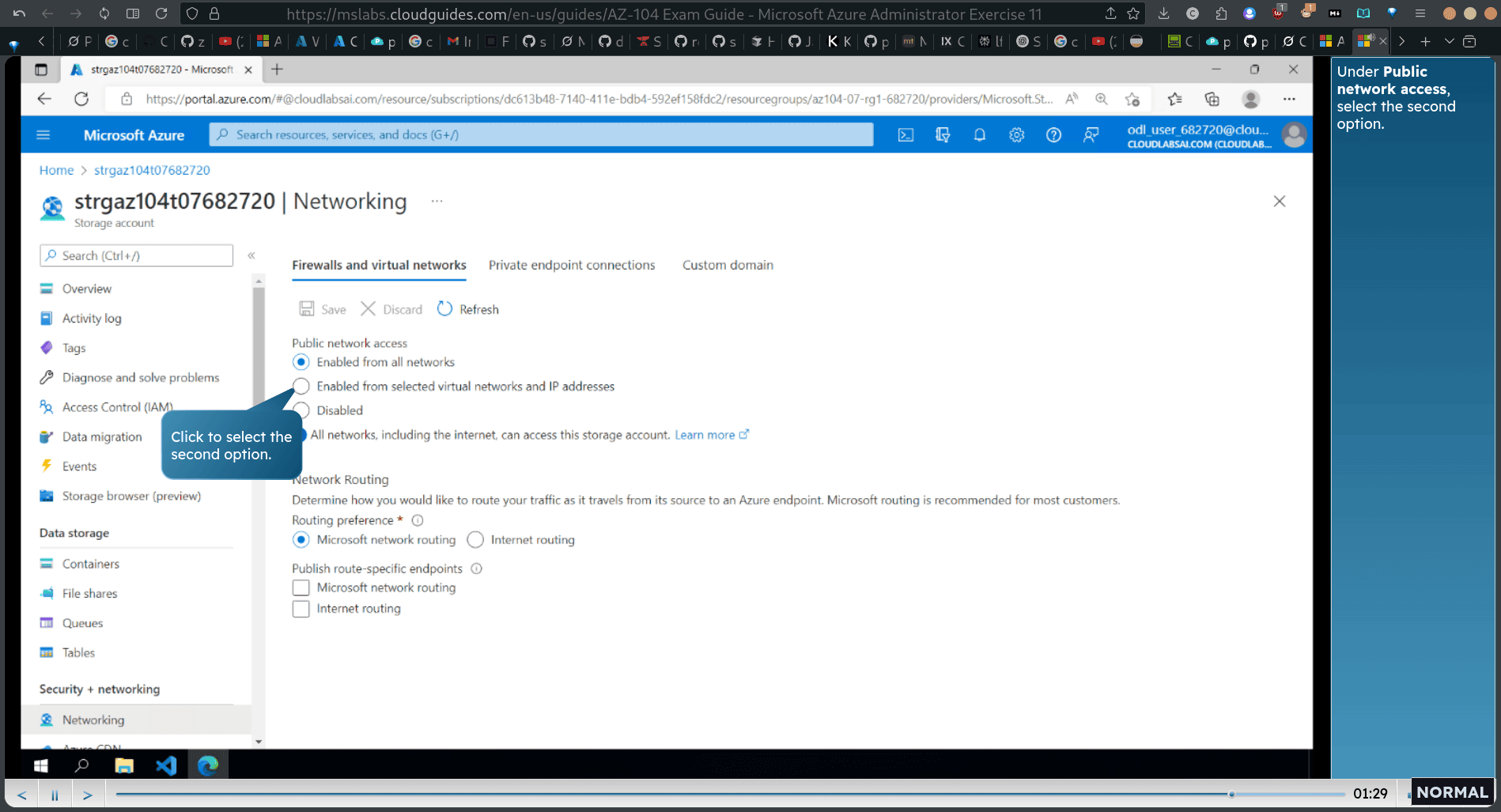

Enabled from selected virtual networks and IP addresses rather than all networks

Note: You can use these settings to configure direct connectivity between Azure virtual machines on designated subnets of virtual networks and the storage account by using service endpoints.

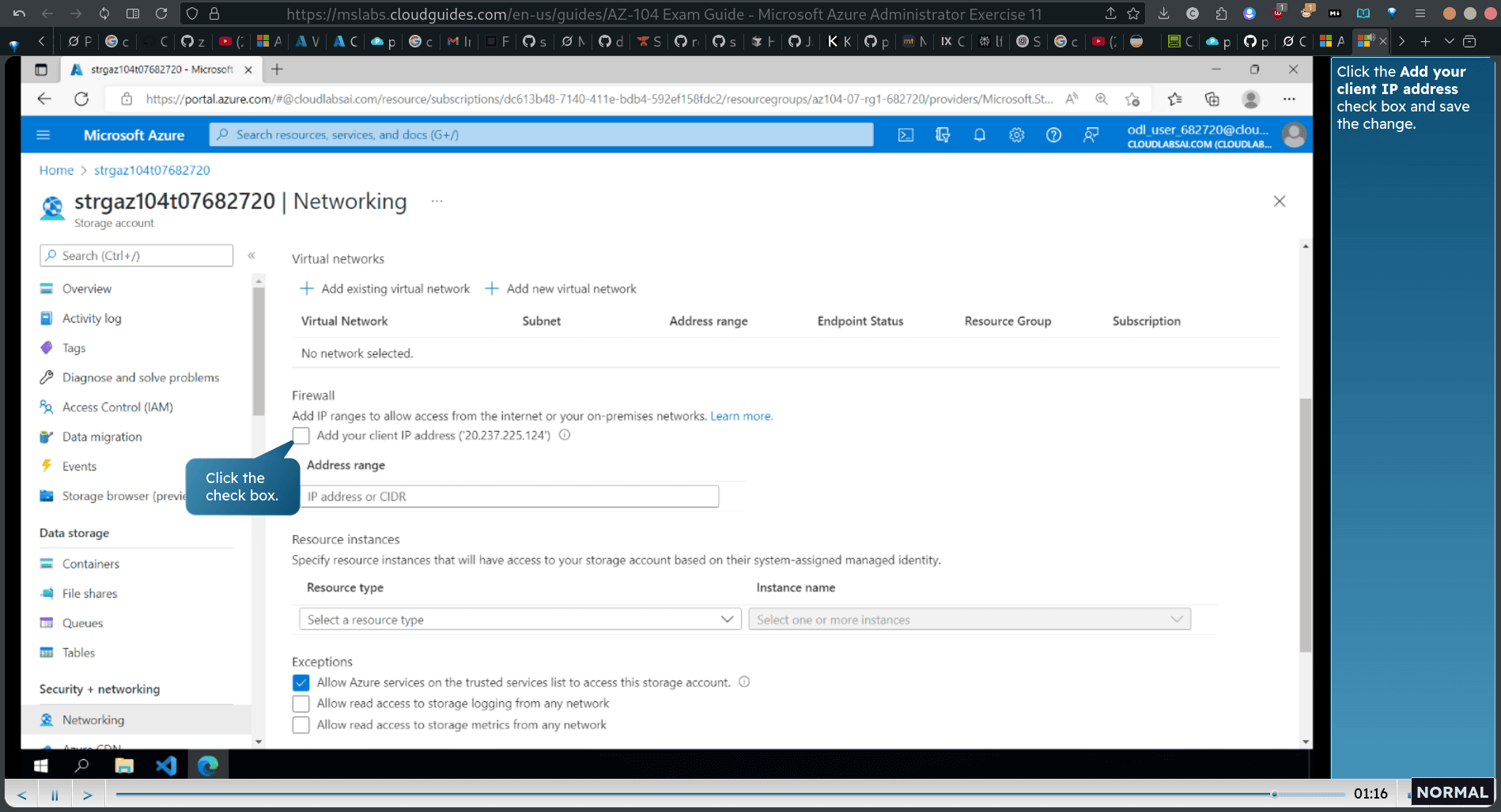

Click the Add your client IP address check box and save the change.

Next, open a new InPrivate window and navigate to the blob SAS URL you generated previously. Since you are connecting from your client IP address, the license file downloaded successfully.

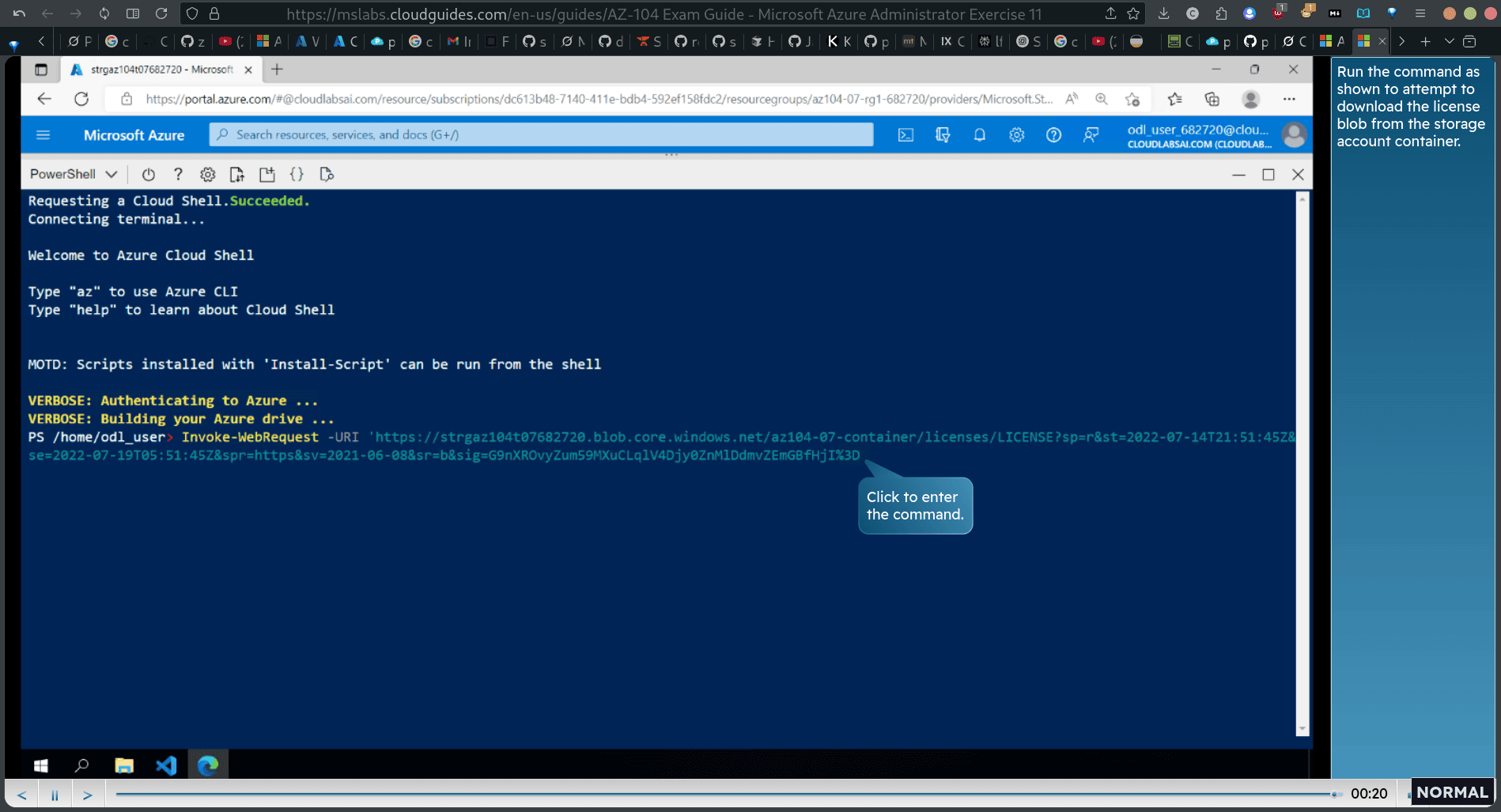

Invoke-WebRequest -URI ‘your sas url’

Since you are connecting from the IP address assigned to an Azure virtual machine hosting the Cloud Shell instance, the download attempt failed. red word

12. Manage virtual machines >

Lab scenario: In this lab, you’ll identify different options for deploying and configuring Azure virtual machines. First, you’ll determine different compute and storage resiliency and scalability options you can implement when using Azure virtual machines. Next, you’ll investigate compute and storage resiliency and scalability options that are available when using Azure virtual machine scale sets. You’ll also explore the ability to automatically configure virtual machines and virtual machine scale sets by using the Azure virtual machine Custom Script Extension.

Task 1: Deploy zone-resilient Azure virtual machines using the Azure portal and an Azure Resource Manager template

new vm , window server , zone 1

none public inbond ports

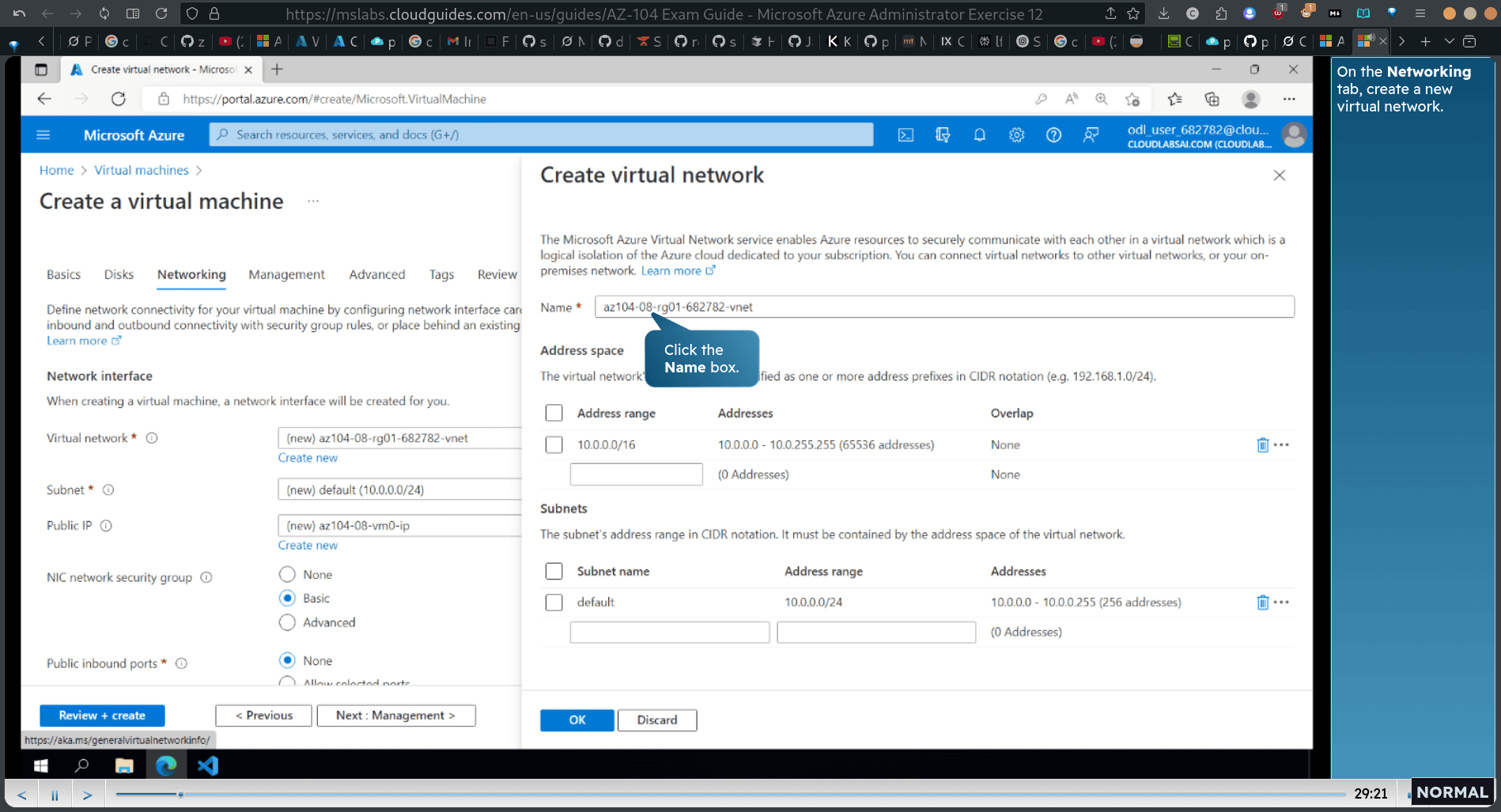

craet new vnet

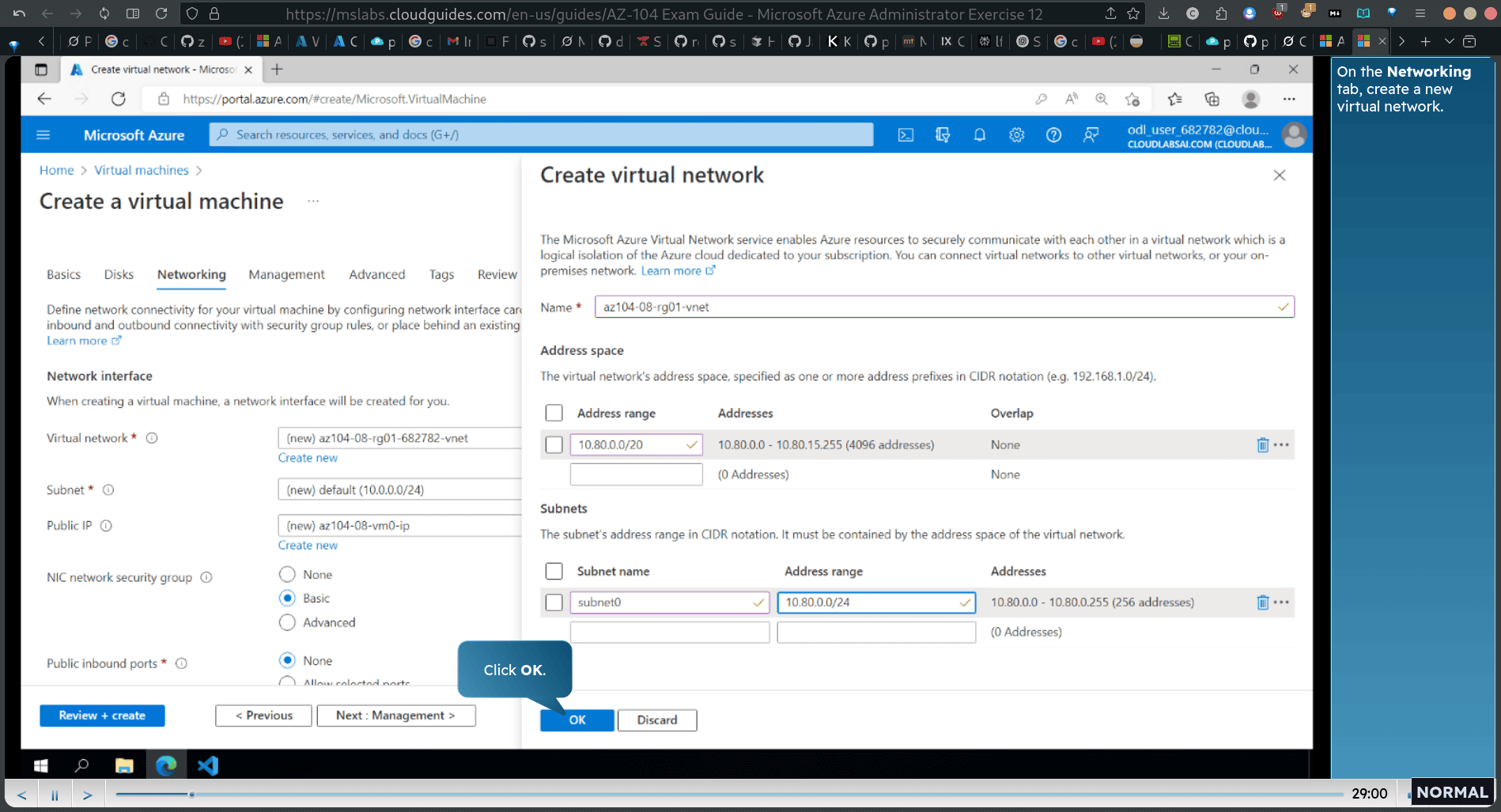

new subnet address range: 10.80.0.0/20 (10.80.0.0 - 10.80.15.255 (4096 addresses)) Address: 10.80.0.0 00001010.01010000.0000 0000.00000000 Netmask: 255.255.240.0 = 20 11111111.11111111.1111 0000.00000000 Wildcard: 0.0.15.255 00000000.00000000.0000 1111.11111111 ⇒ Network: 10.80.0.0/20 00001010.01010000.0000 0000.00000000 (Class A) Broadcast: 10.80.15.255 00001010.01010000.0000 1111.11111111 HostMin: 10.80.0.1 00001010.01010000.0000 0000.00000001 HostMax: 10.80.15.254 00001010.01010000.0000 1111.11111110 Hosts/Net: 4094 (Private Internet)

subnet address range 10.80.0.0/24 , 10.80.00 - 10.80.0.255 (256 addresses)

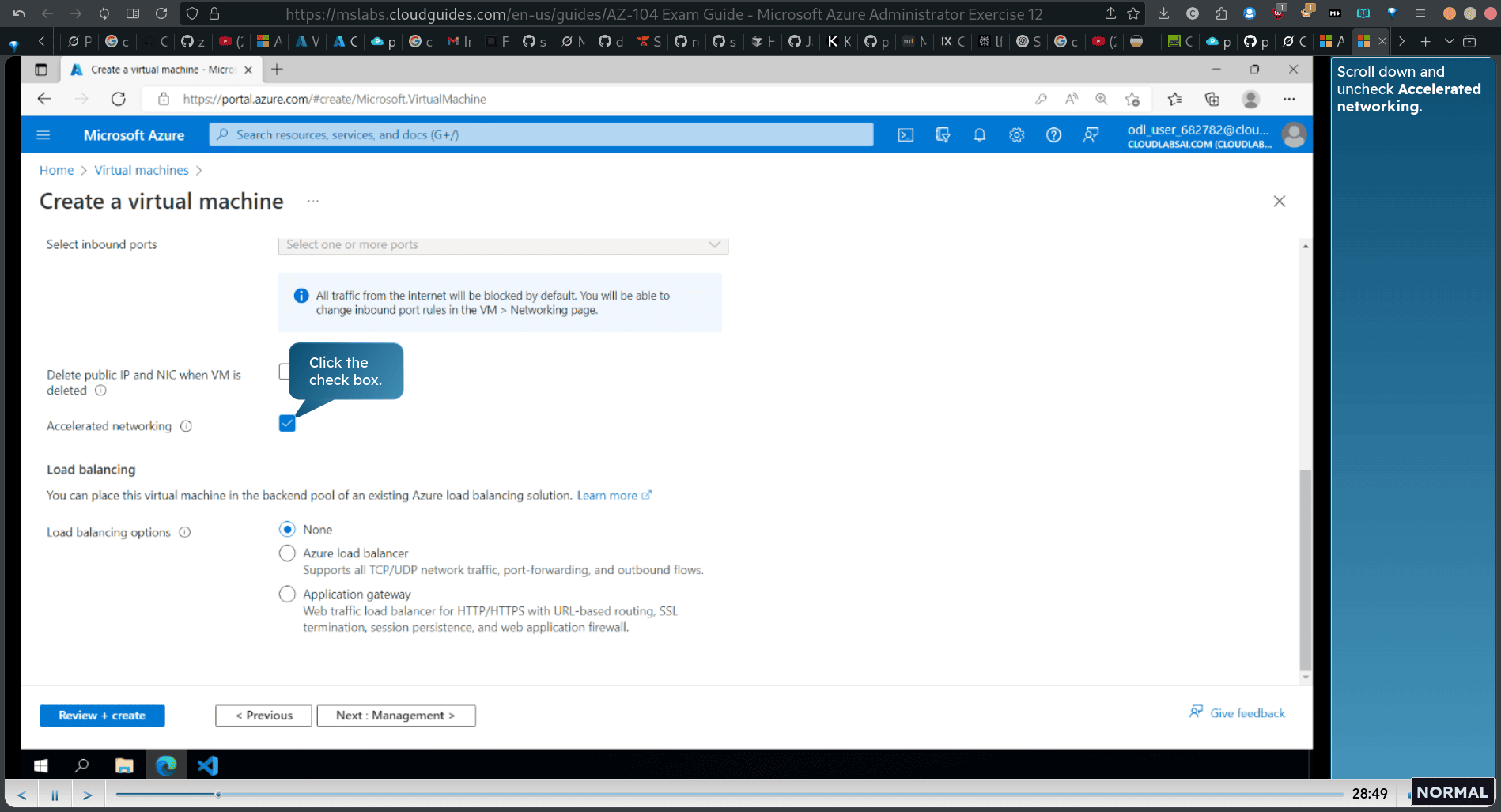

unselect accelerated networking

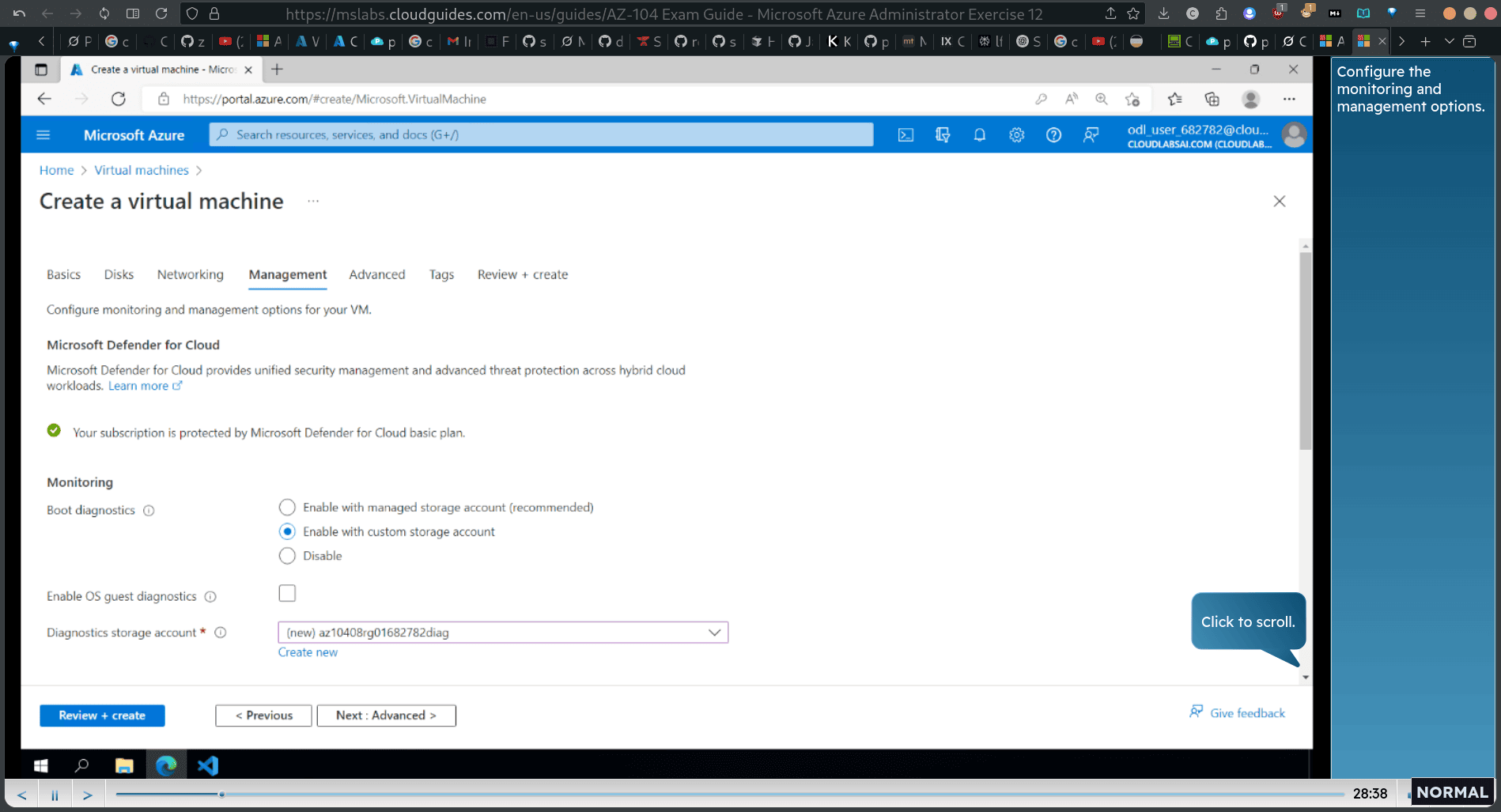

Enable with custom storage account

Os manual update

creat

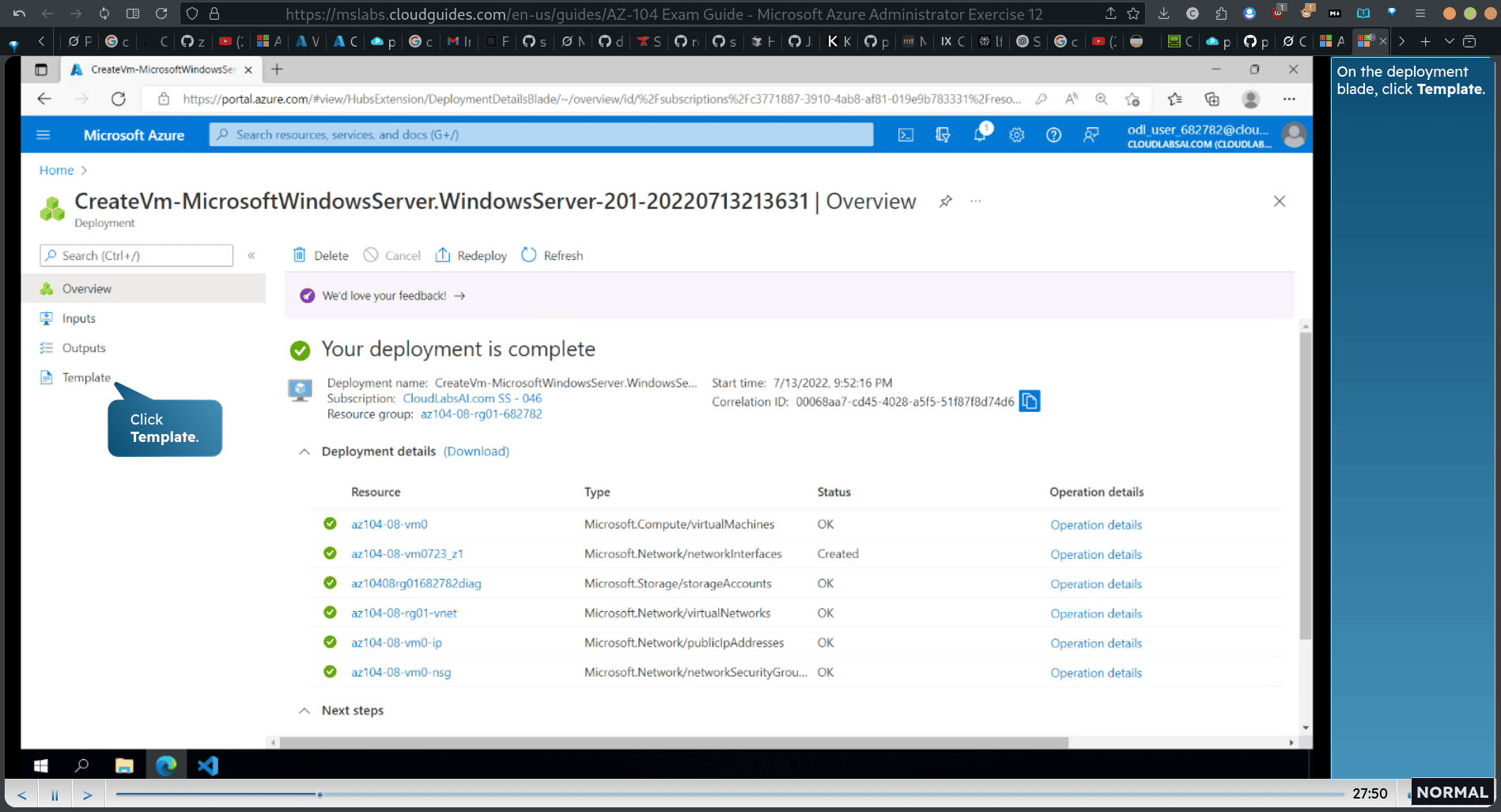

deploment → template

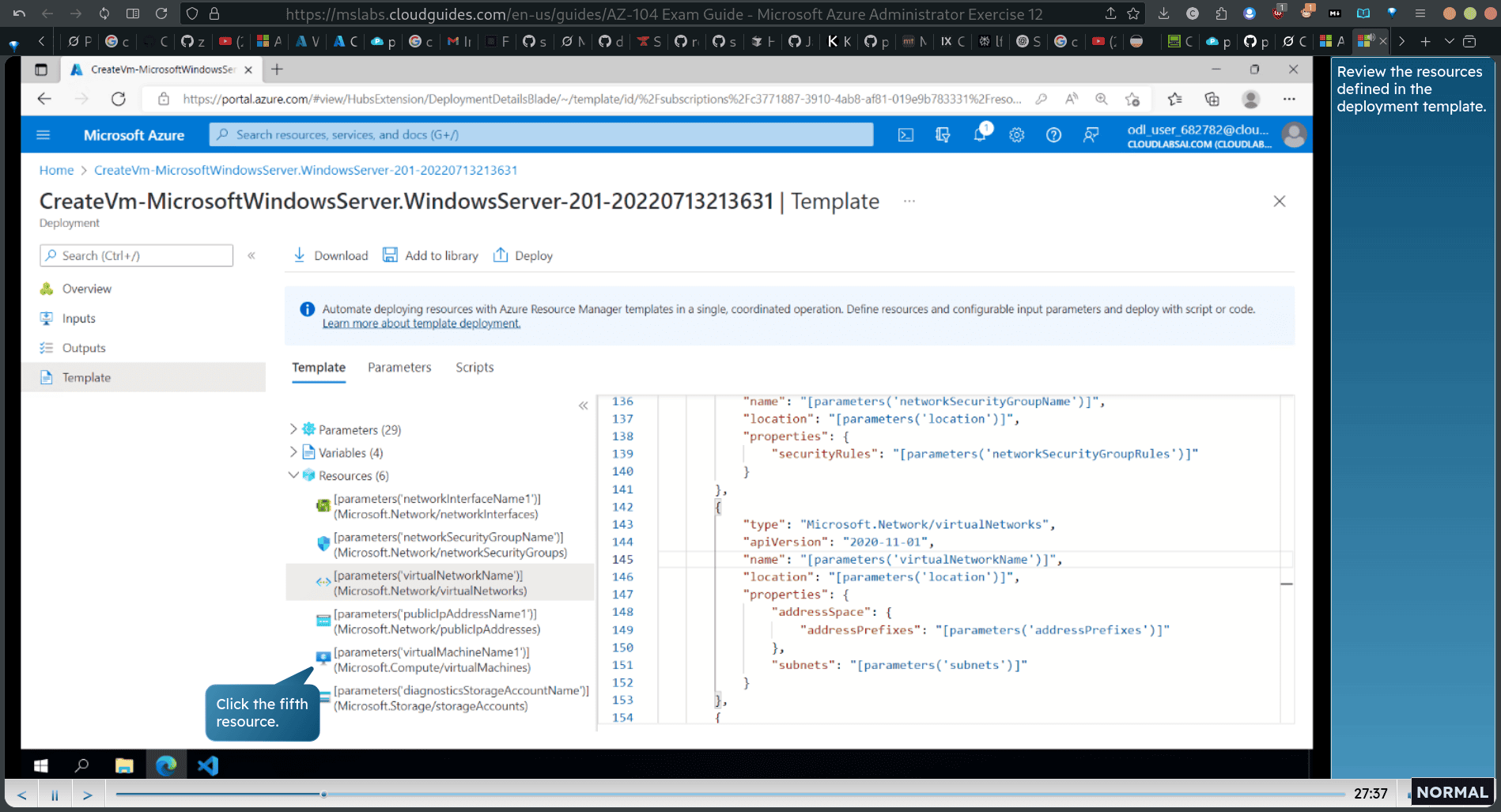

review

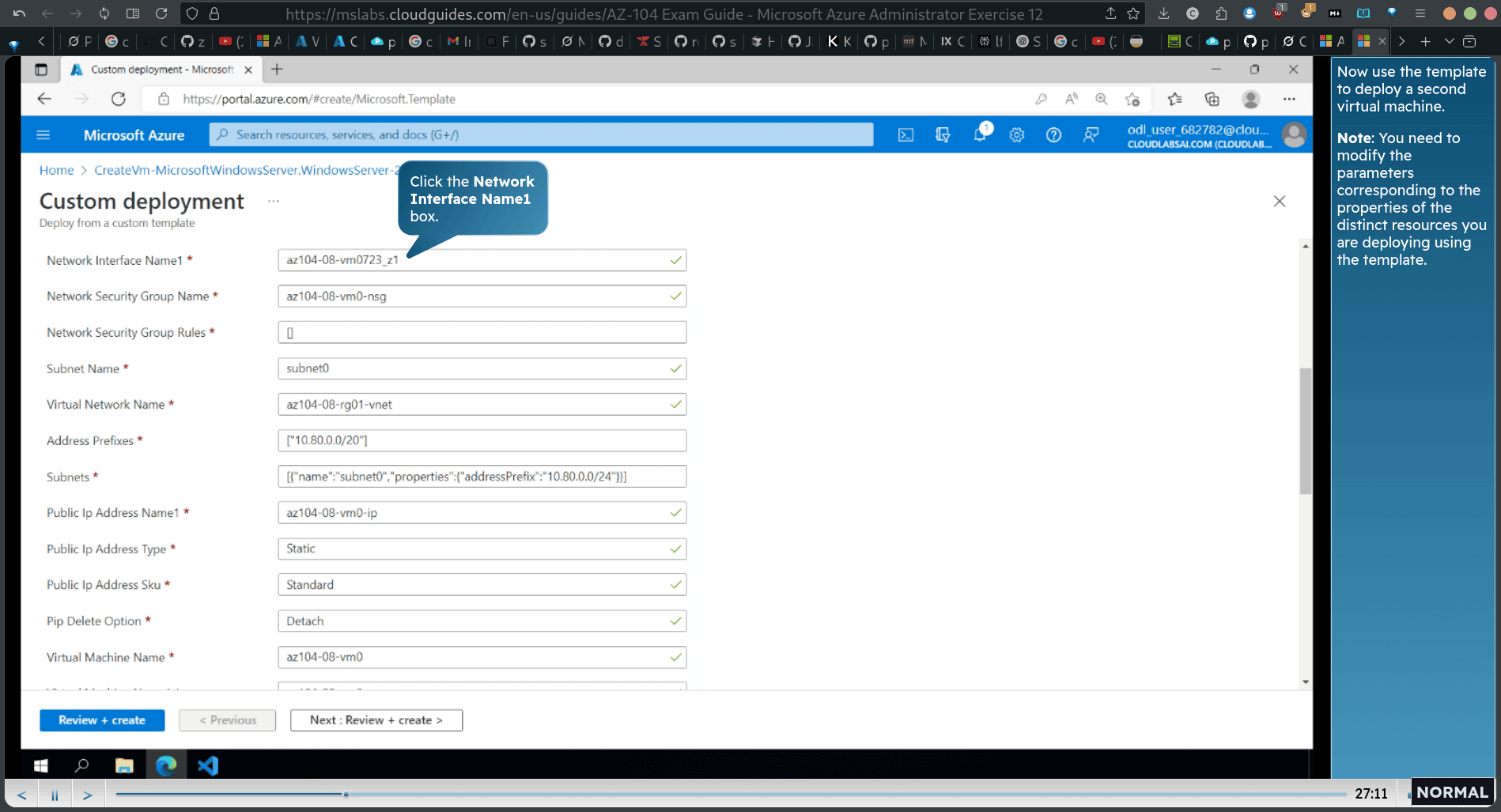

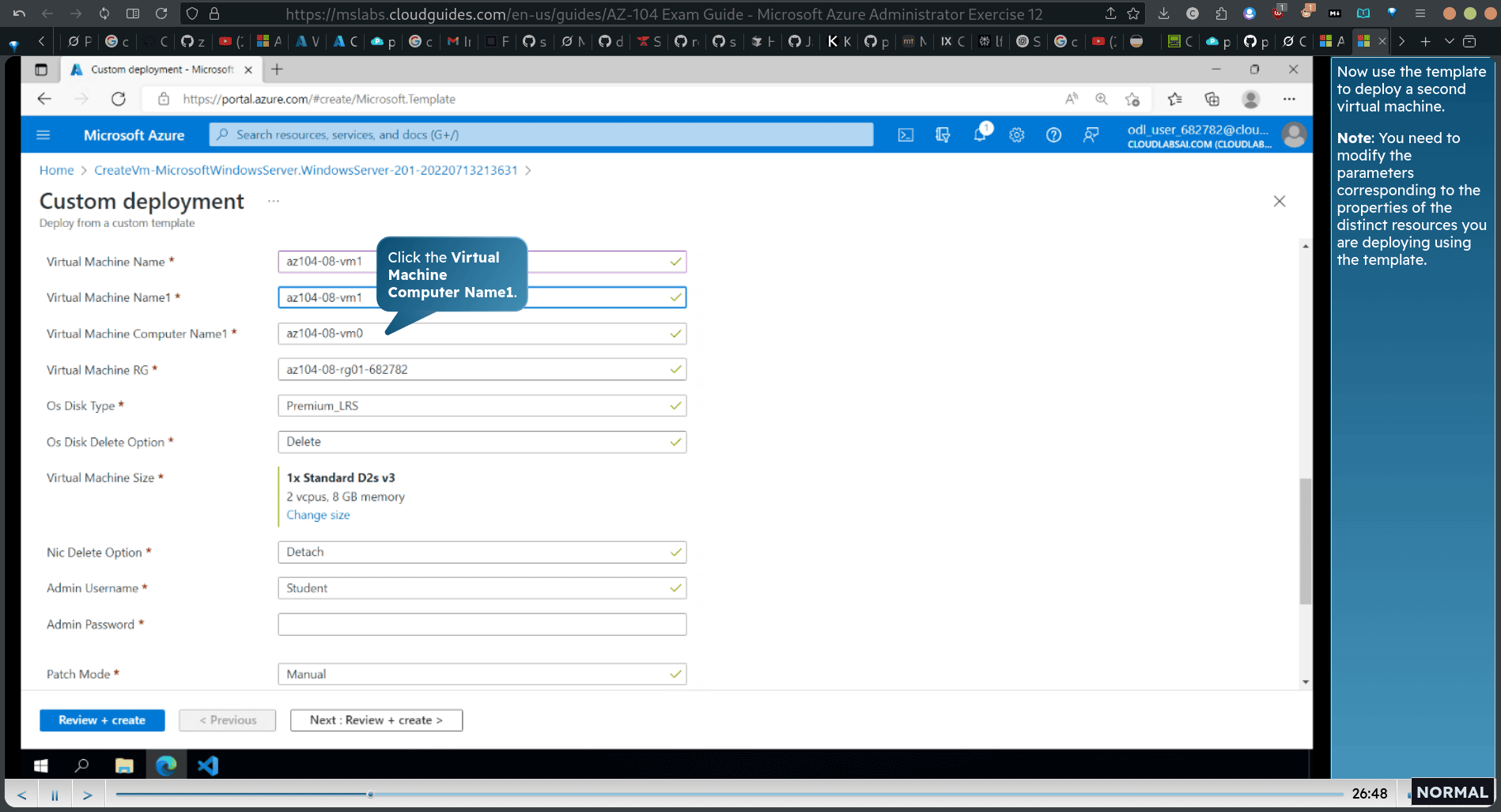

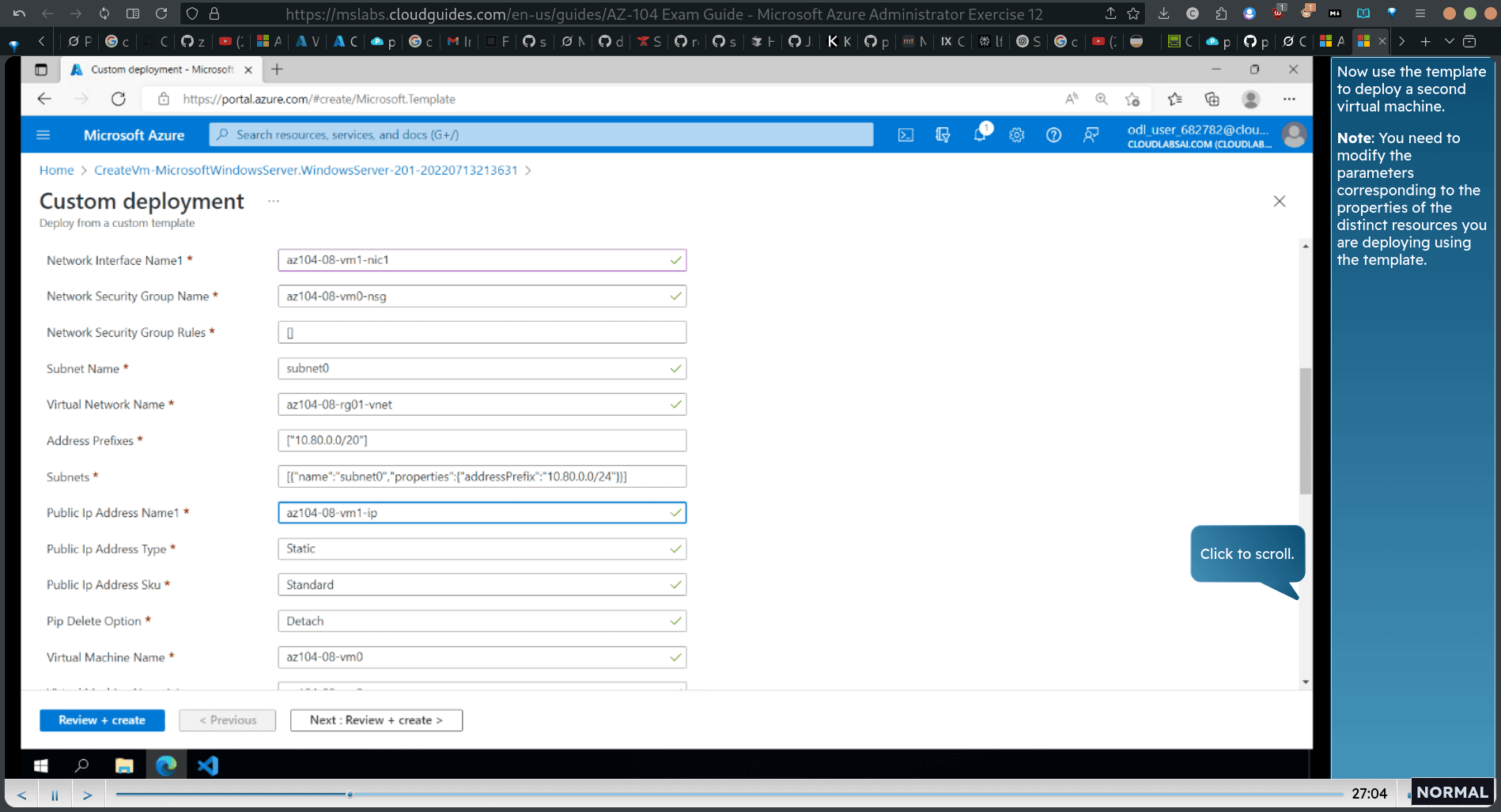

Now use the template to deploy a second virtual machine.
Note: You need to modify the parameters corresponding to the properties of the distinct resources you are deploying using the template.

click deploy

changed it

from vm0 to vm1

zone → 2

Task 2: Configure Azure virtual machines using a virtual machine extension

storage → container → new container

search → vm → first vm0

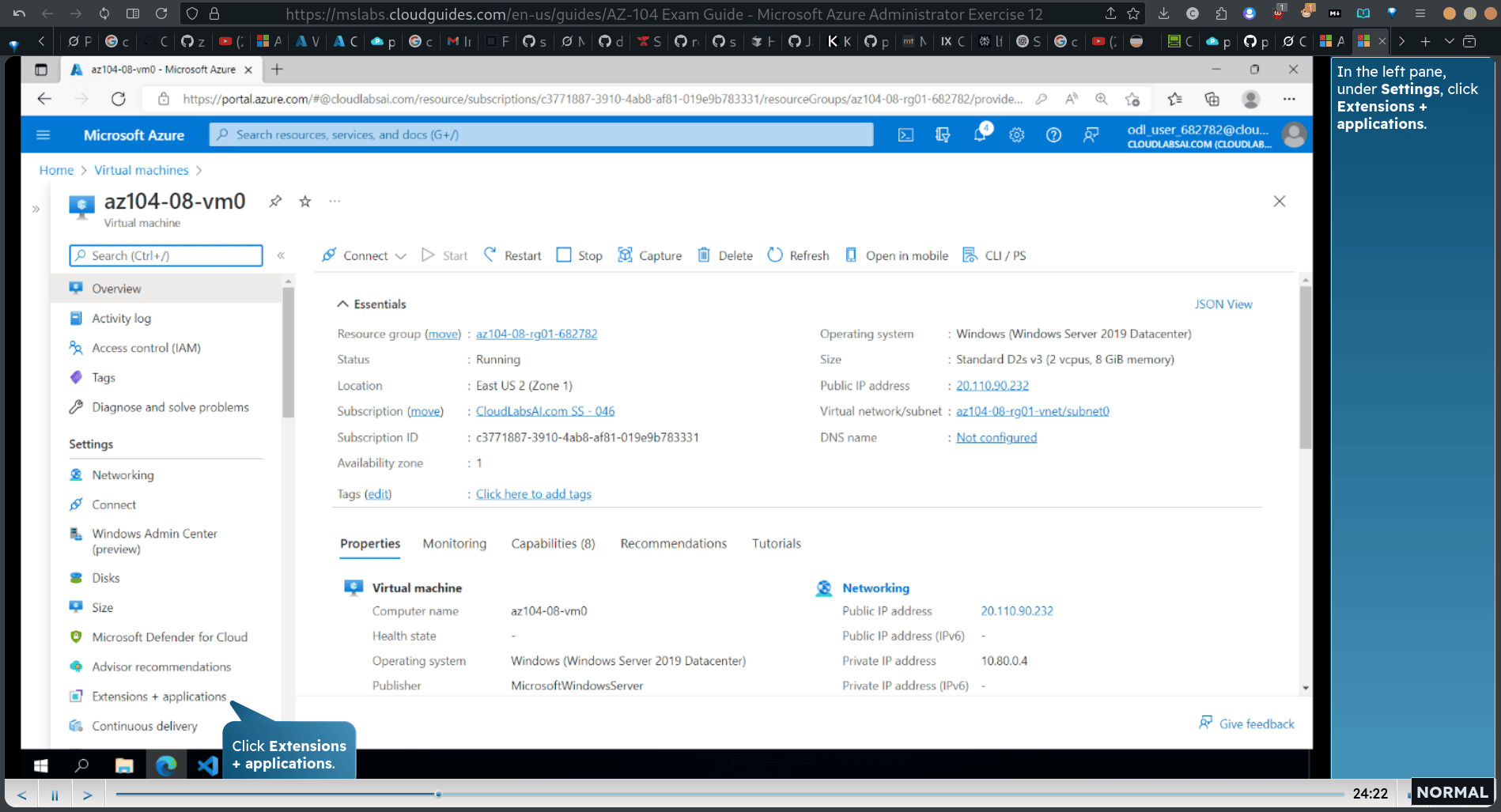

Extensions + applications

add ing Search for Custom Script Extension and select it.

browser → click the scrip that upload early

review and create

select the second vm(vm1)

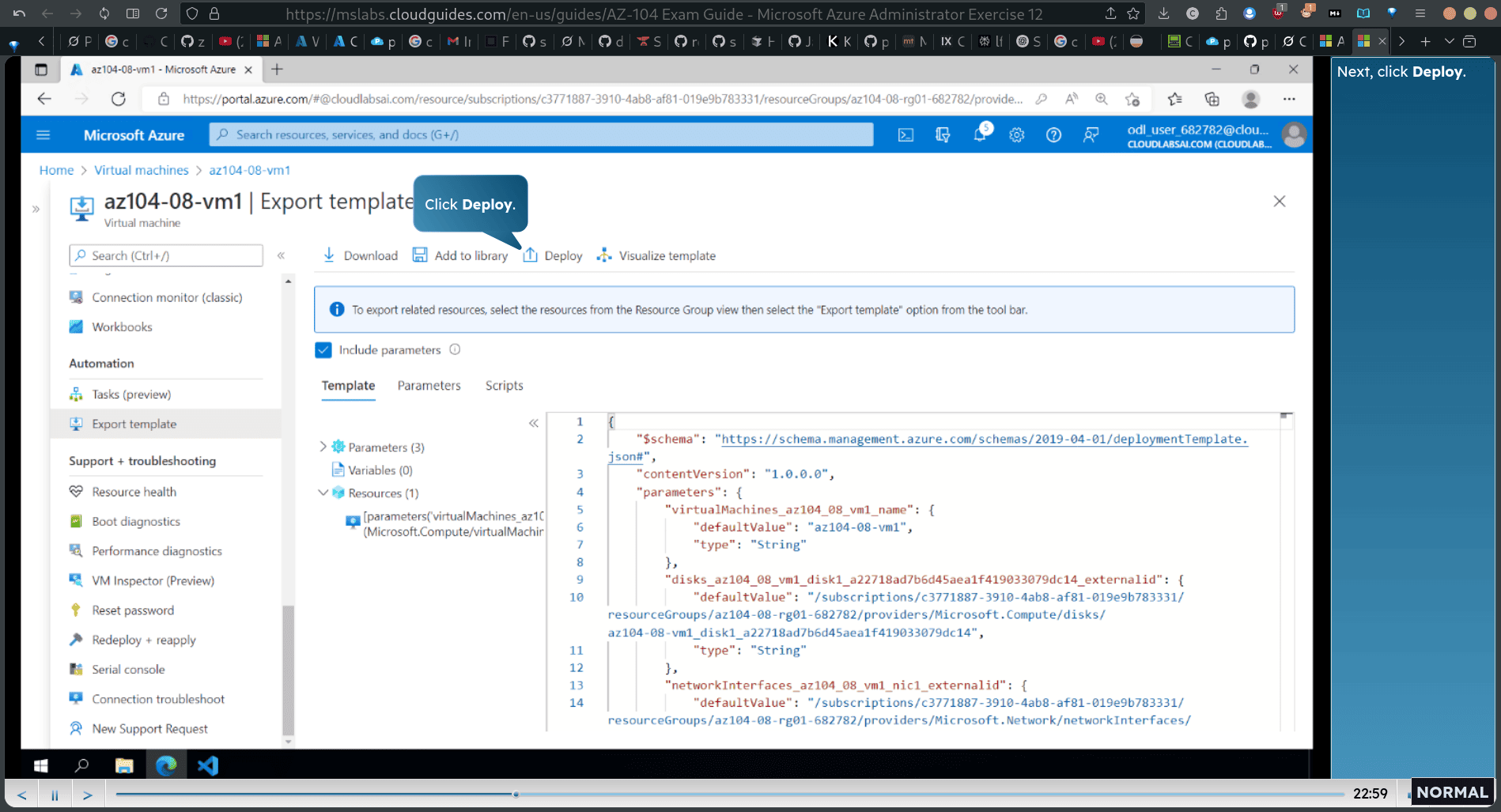

→ automation → export template → deploy (wtf)

On the Custom deployment blade, click Edit template.

edit Note: This section of the template defines the same Azure virtual machine Custom Script Extension that you deployed earlier to the first virtual machine via Azure PowerShell.

insert in 20 line that extension :

below resource


“"Microsoft.Compute/virtualMachines/extensions™,
“az104-08-vml/customScriptExtension®,
“apiVersion”: "2018-06-01",
“location": "[resource6roup().location]",
“dependsOn”: [
"az104-08-vm1"

1
“properties”: {
“publisher”: "Microsoft.Compute”,
“type": “"CustomScriptExtension”,
"typeHandlerVersion”: "1.7",
“autoUpgradeMinorVersion”: true,
"settings": {
“commandToExecute”: “"powershell.exe Install-WindowsFeature -name Web-Server -IncludeManagementTools & powershell.exe remove-item
'C:\\inetpub\\wwwroot\\iisstart.htm' && powershell.exe Add-Content -Path 'C:\\inetpub\\wwwroot\\iisstart.htm' -Value $('Hello World from ' + $env:computername)"

powershell.exe Install-WindowsFeature -Name Web-Server -IncludeManagementTools; `powershell.exe Remove-Item 'C:\inetpub\wwwroot\iisstart.htm' -Force;`
powershell.exe Add-Content -Path 'C:\inetpub\wwwroot\iisstart.htm' -Value ("Hello World from " + $env:COMPUTERNAME)

create

verify the vm1 that just craetd

run powershellscrpit in that

Note: The - UseBasi Parslng parameter is necessary to eliminate dependency on Microsoft Edge to complete the execution of the cmdlet.

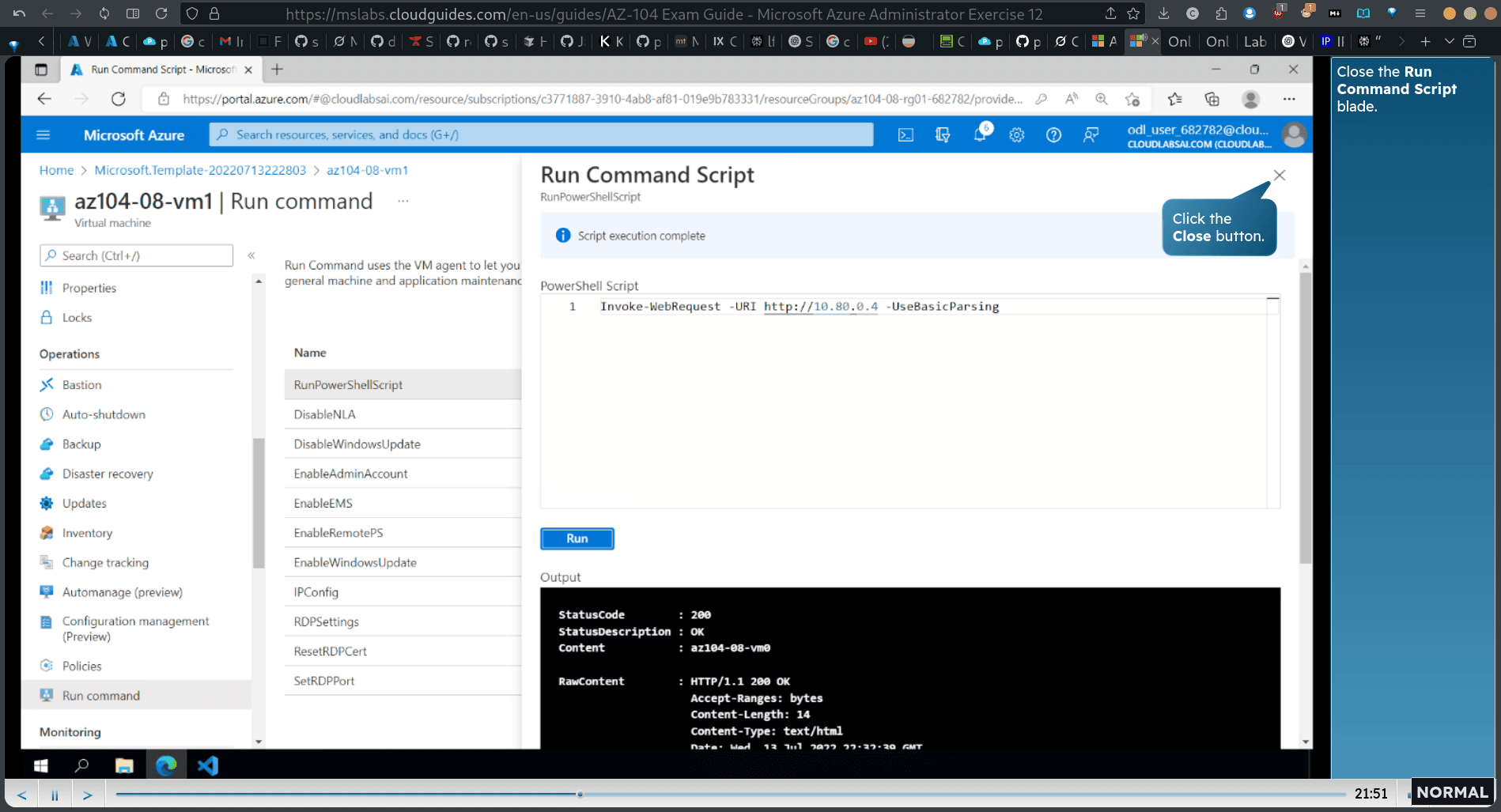

Invoke-WebRequest -URI http://10.80.0.4 -UseBasicParsing

Task 3: Scale compute capacity and storage for Azure virtual machines

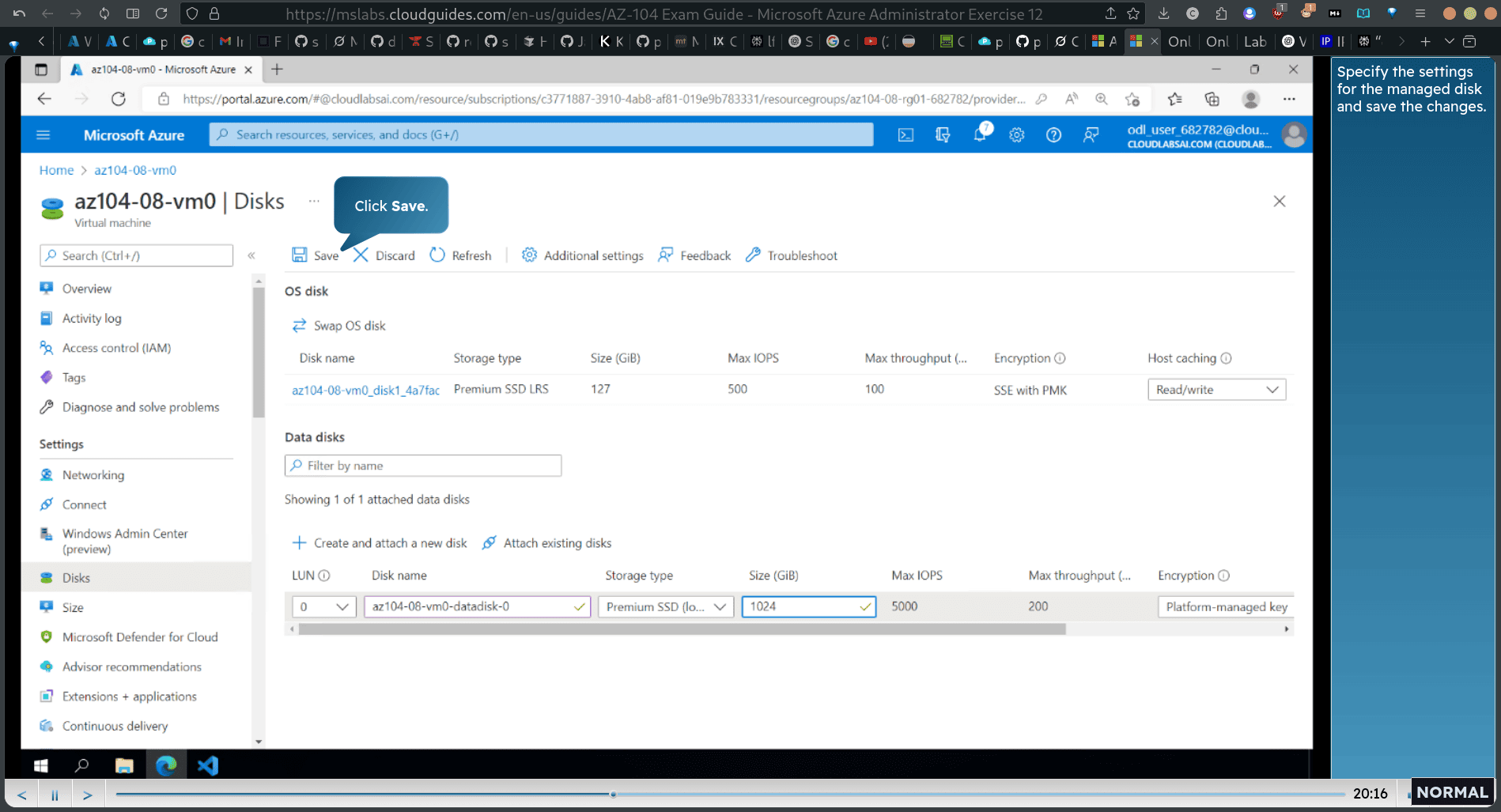

vm0 → size → ds1_v2 disk → creat and attach a new disk

powershellscrpit

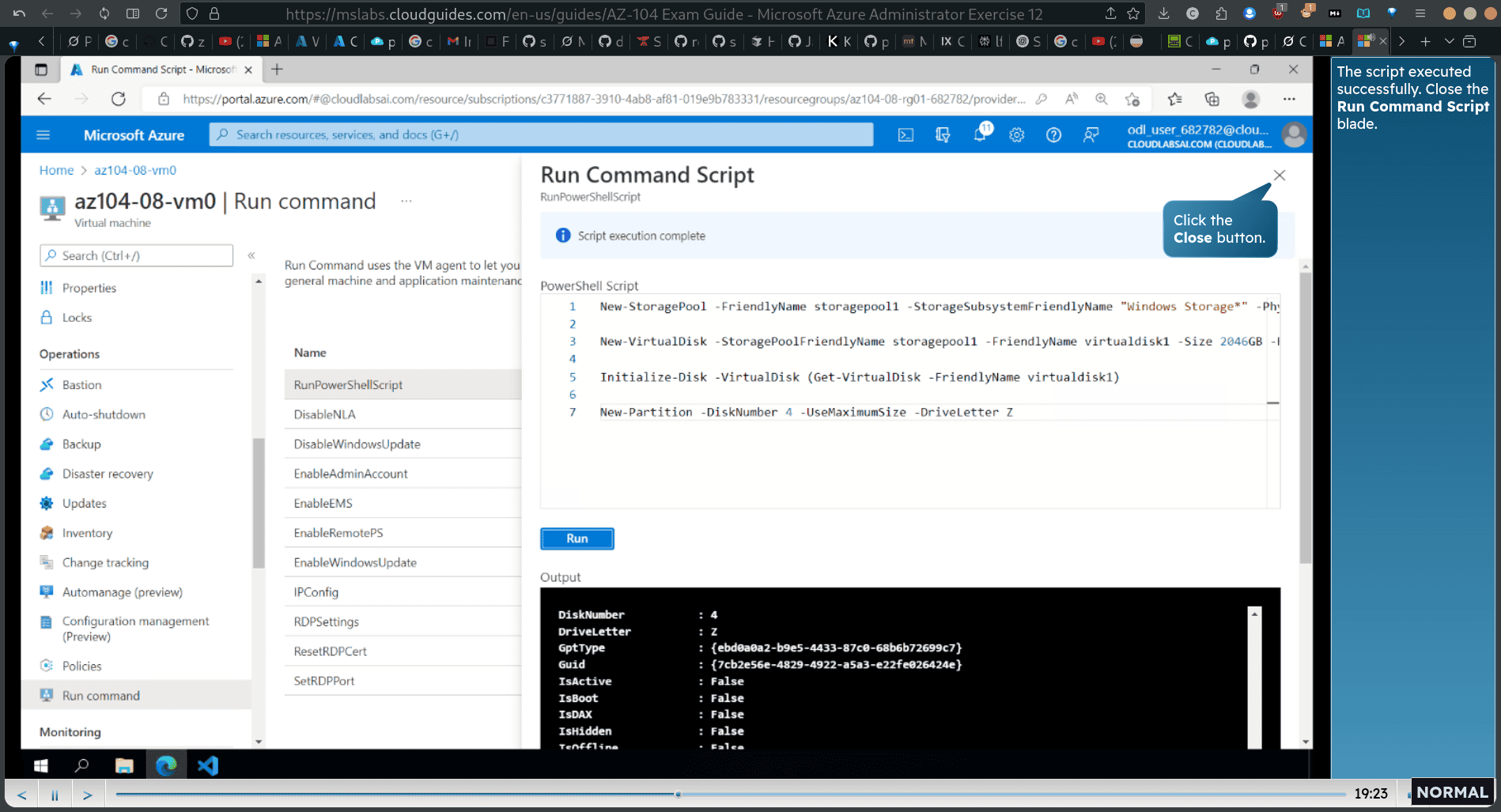

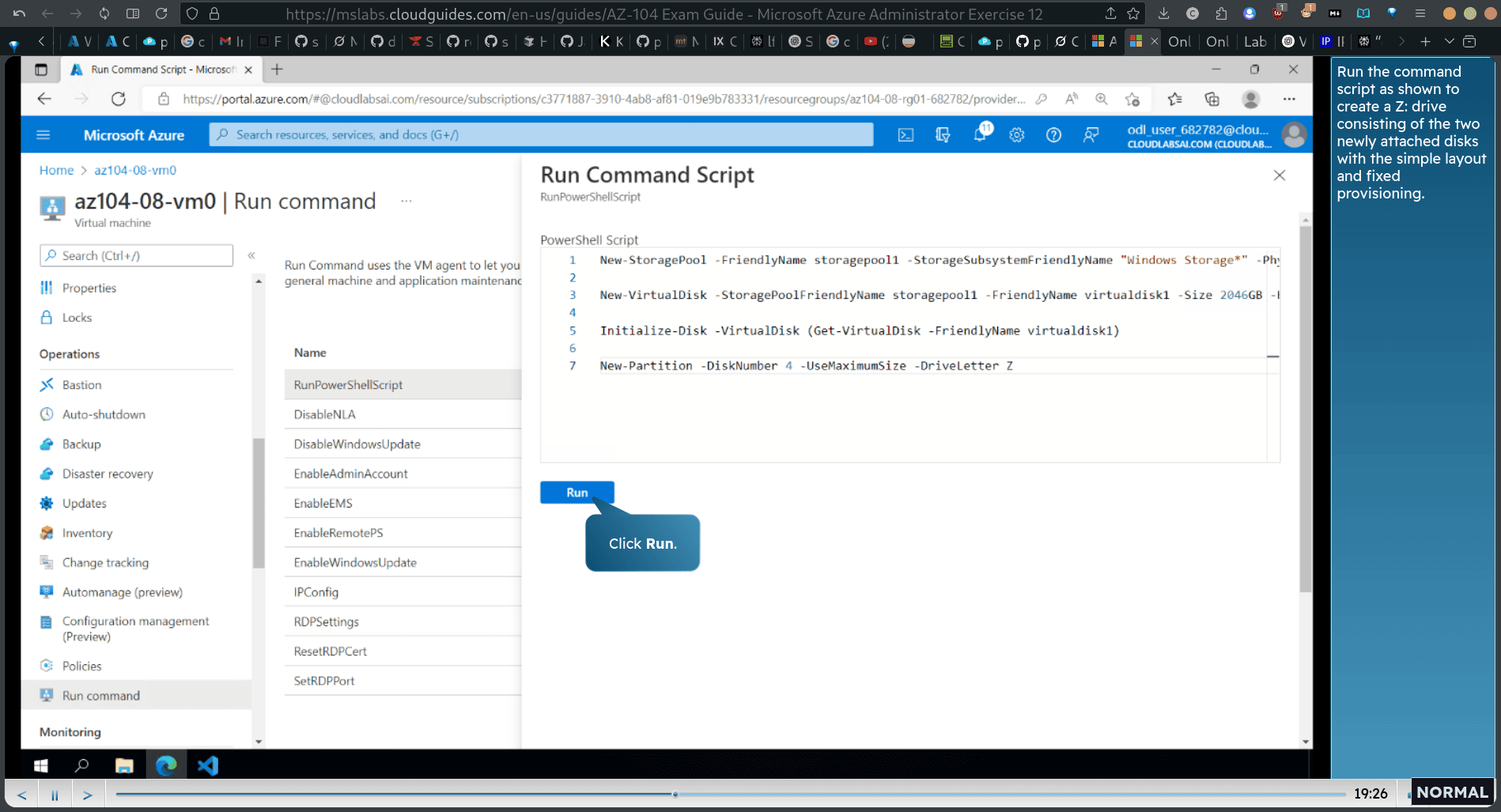

Run the command script as shown to create a Z: drive consisting of the two newly attached disks with the simple layout and fixed provisioning.

Sure! Let’s reconstruct the correct full PowerShell script based on the OCR output and your goal:

🎯 Goal:

Create a Z: drive
Combine 2 newly attached disks
Use:
- Simple layout (striped, no resiliency)
- Fixed provisioning
Likely in Windows (e.g., Azure VM with Windows Server)

✅ Corrected & Completed PowerShell Script:

# Step 1: Create a storage pool from available physical disks
New-StoragePool -FriendlyName "storagepool1" `
  -StorageSubsystemFriendlyName "Windows Storage*" `
  -PhysicalDisks (Get-PhysicalDisk -CanPool $True)

# Step 2: Create a virtual disk using the storage pool
New-VirtualDisk -StoragePoolFriendlyName "storagepool1" `
  -FriendlyName "virtualdisk1" `
  -Size 2046GB `
  -ResiliencySettingName "Simple" `
  -ProvisioningType "Fixed"

# Step 3: Initialize the new virtual disk
Initialize-Disk -VirtualDisk (Get-VirtualDisk -FriendlyName "virtualdisk1")

# Step 4: Create a new partition and assign drive letter Z
New-Partition -DiskNumber (Get-Disk | Where-Object PartitionStyle -Eq "RAW").Number `
  -UseMaximumSize `
  -DriveLetter Z | Format-Volume -FileSystem NTFS -Confirm:$false

🧠 Explanation:

Command	Purpose
`New-StoragePool`	Creates a storage pool from all available unpooled disks
`New-VirtualDisk`	Creates a simple (striped) virtual disk with fixed provisioning
`Initialize-Disk`	Prepares the virtual disk for use
`New-Partition`	Creates a full-size partition and assigns drive letter Z
`Format-Volume`	Formats the partition as NTFS without confirmation

⚠️ Important Notes:

-ResiliencySettingName "Simple" = No redundancy (good for performance but no fault tolerance).
-ProvisioningType "Fixed" = Pre-allocates the full 2046GB (not thin).
-StorageSubsystemFriendlyName "Windows Storage*" matches the Windows Storage Spaces subsystem.

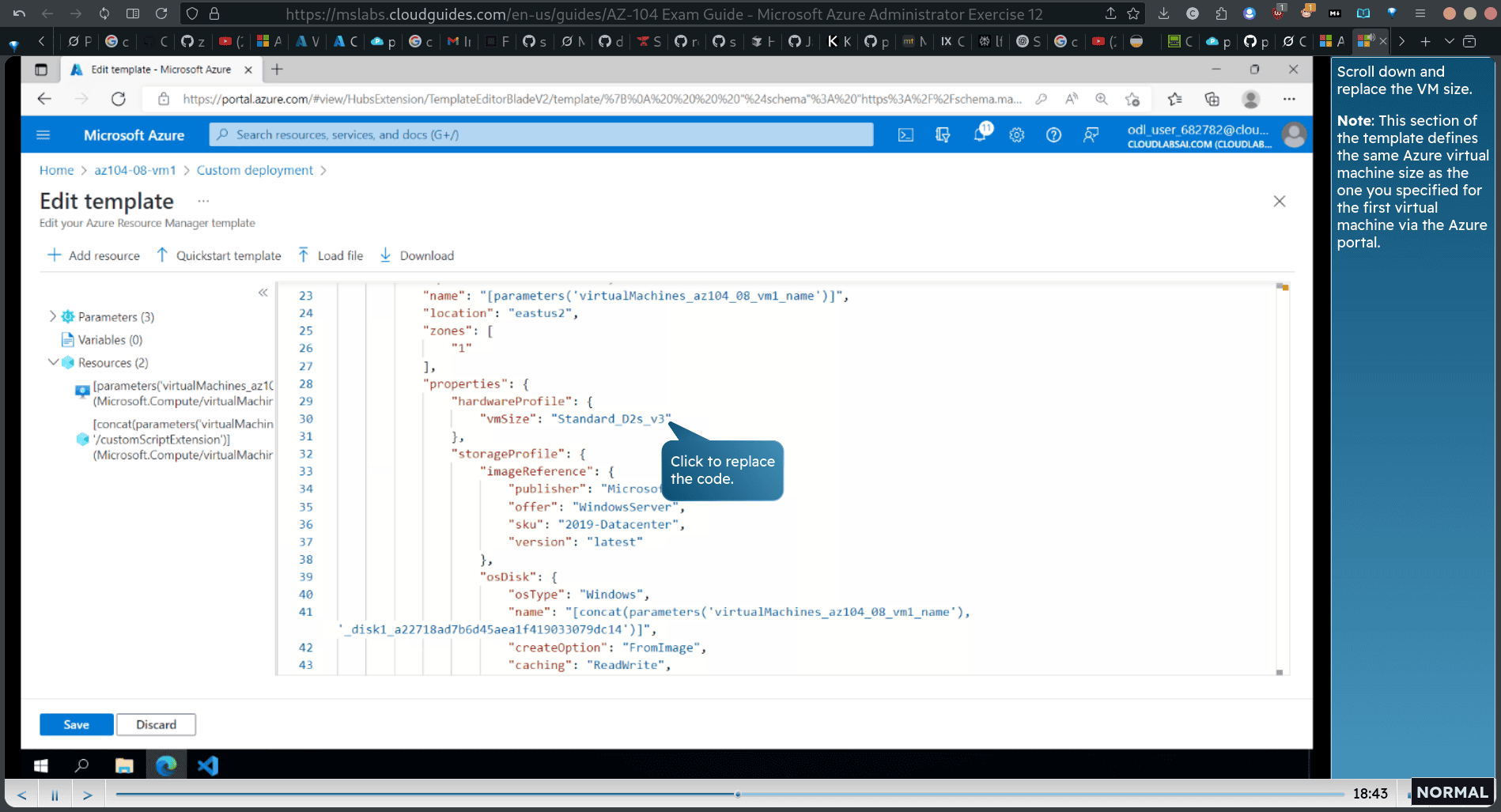

another vm → vm1 → export tempalet → deploy edit template → scroll down and replace the vm size

to ds1_v2

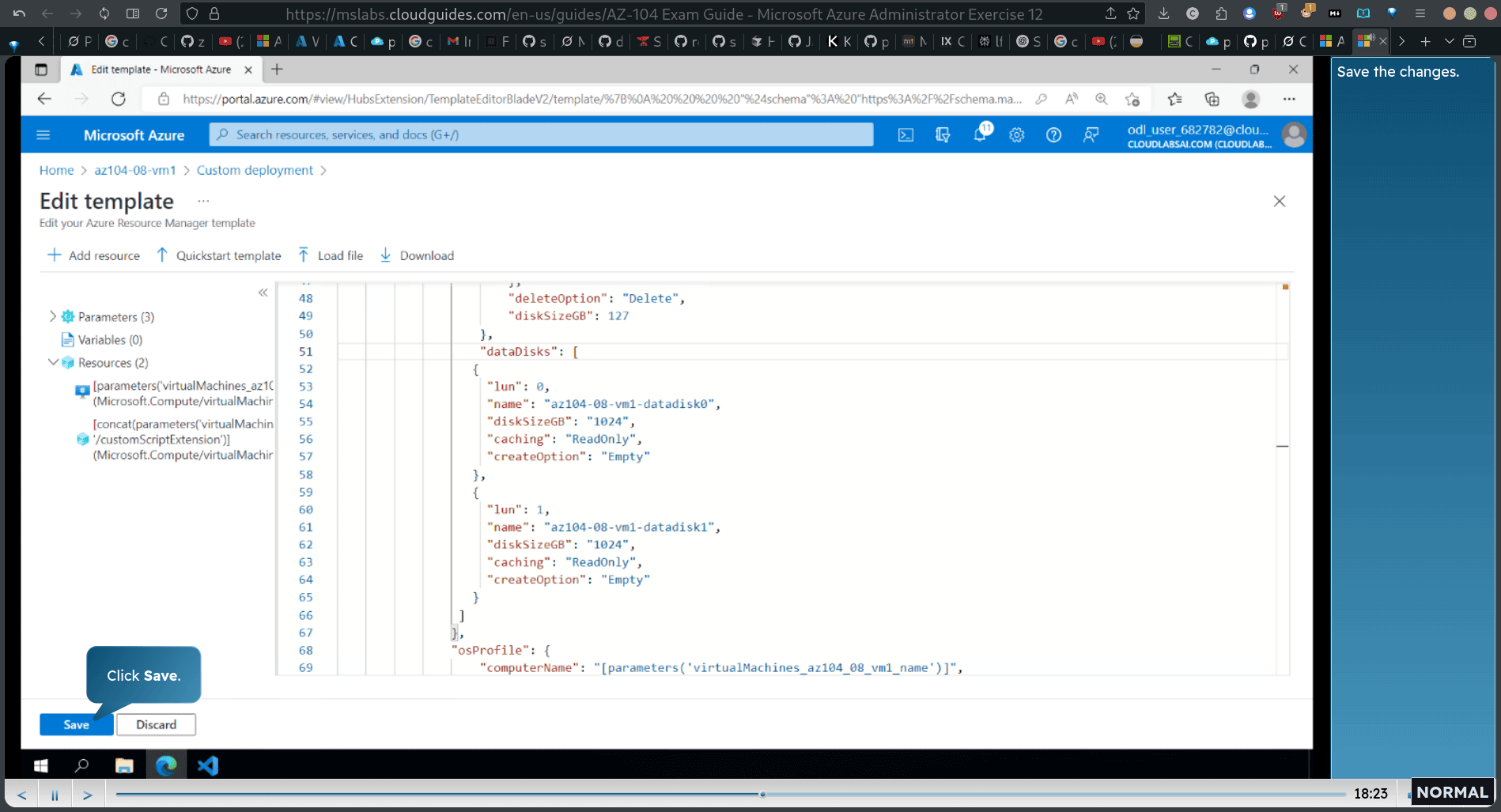

Replace line 51 with the code as shown to create two managed disks and attach them to the virtual machine.

adding two data disks

craete

click vm1 → run command

Run the command script as shown to create a Z: drive consisting of the two newly attached disks with the simple layout and fixed provisioning.

same as previous

Task 4: Register resource providers

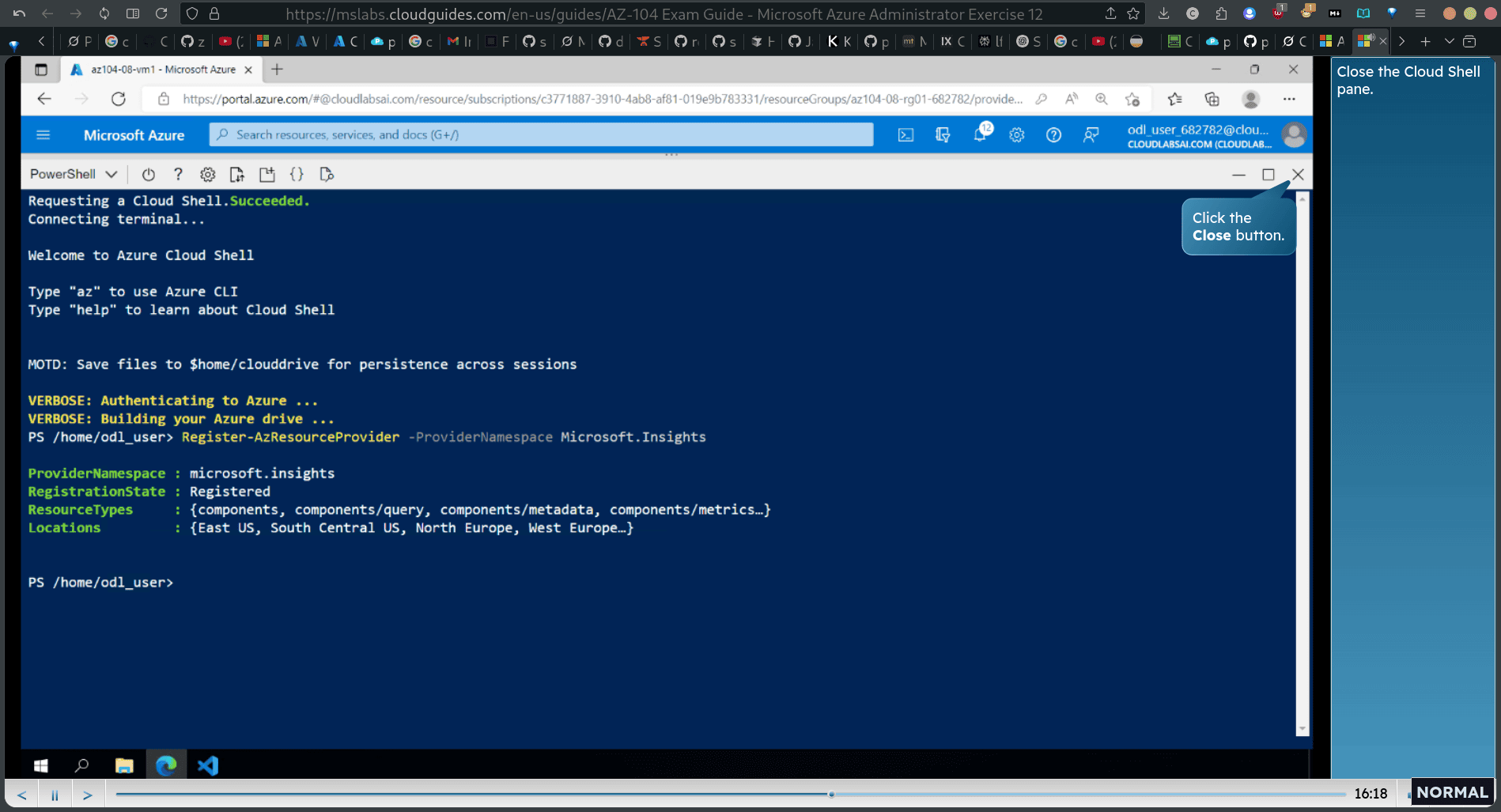

Run the commands as shown tfo register the Microsoft.Insights and Microsoft.AlertsMana gement resource providers.

Task 5: Deploy a zone-resilient Azure virtual machine scale set using the Azure portal

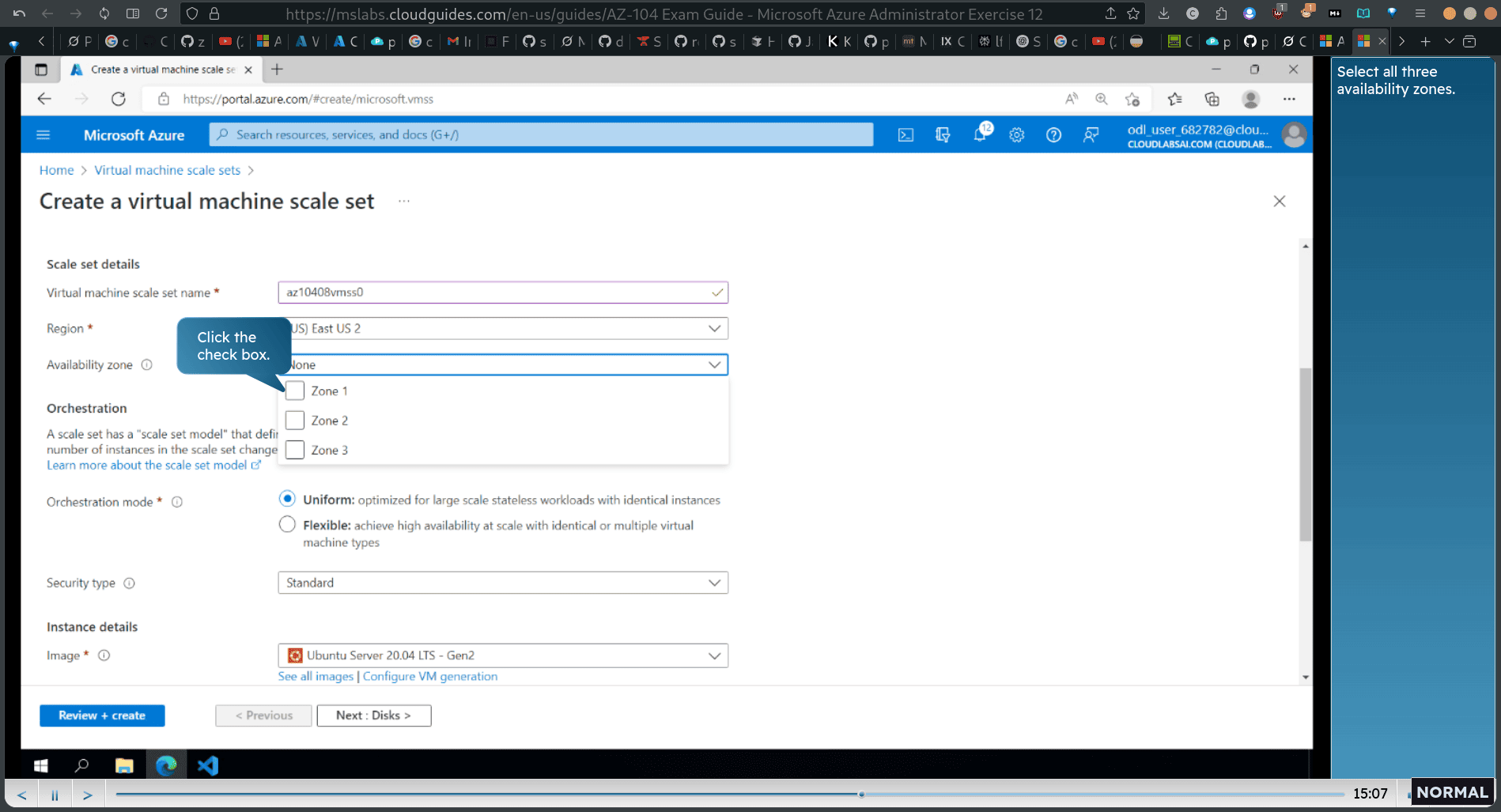

search vm scale set

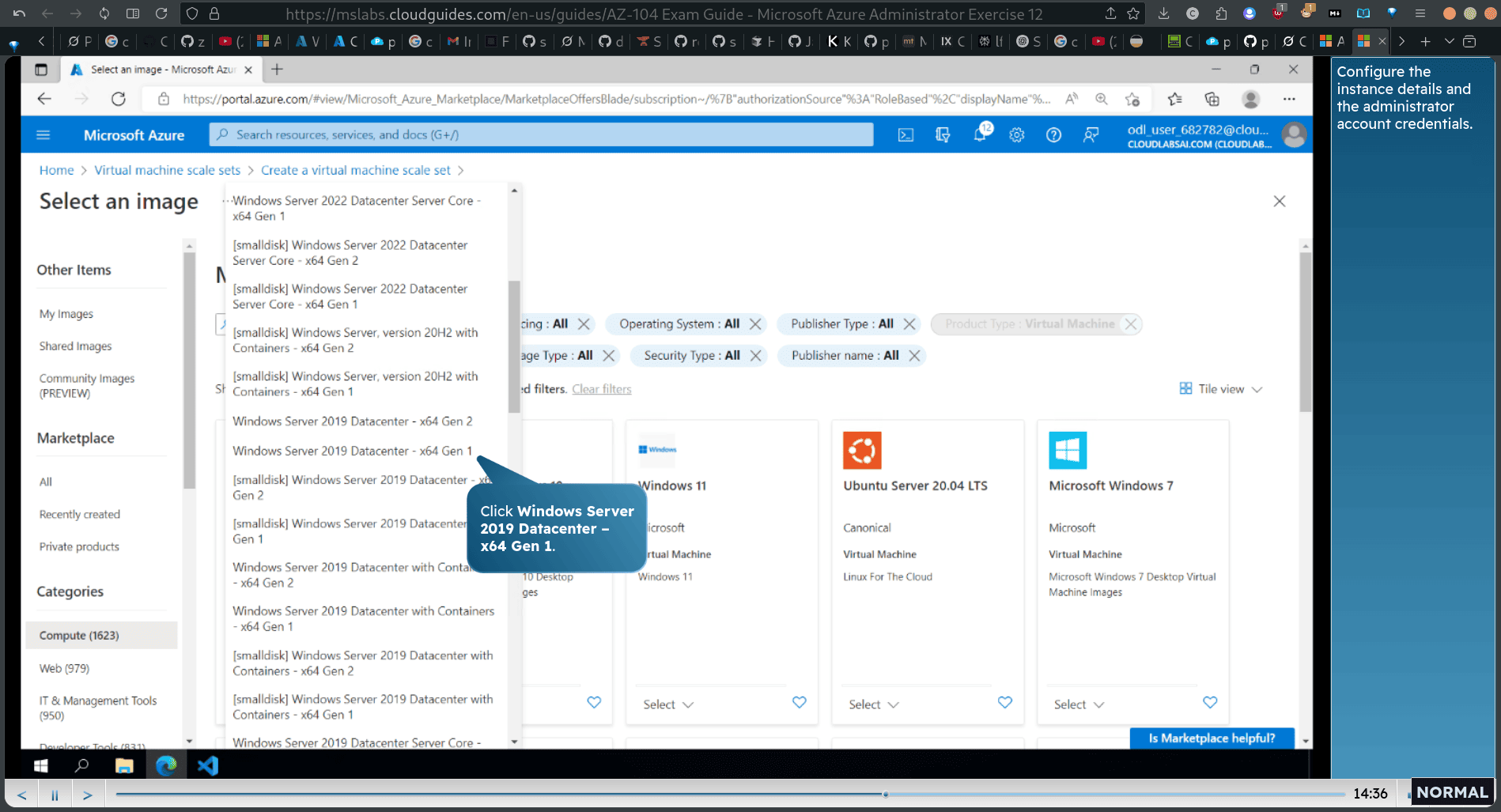

window datacenter 2019 x64 gen1

new vnet

Set NIC network security group fo Advanced and then create a new network security group.
create new network security group

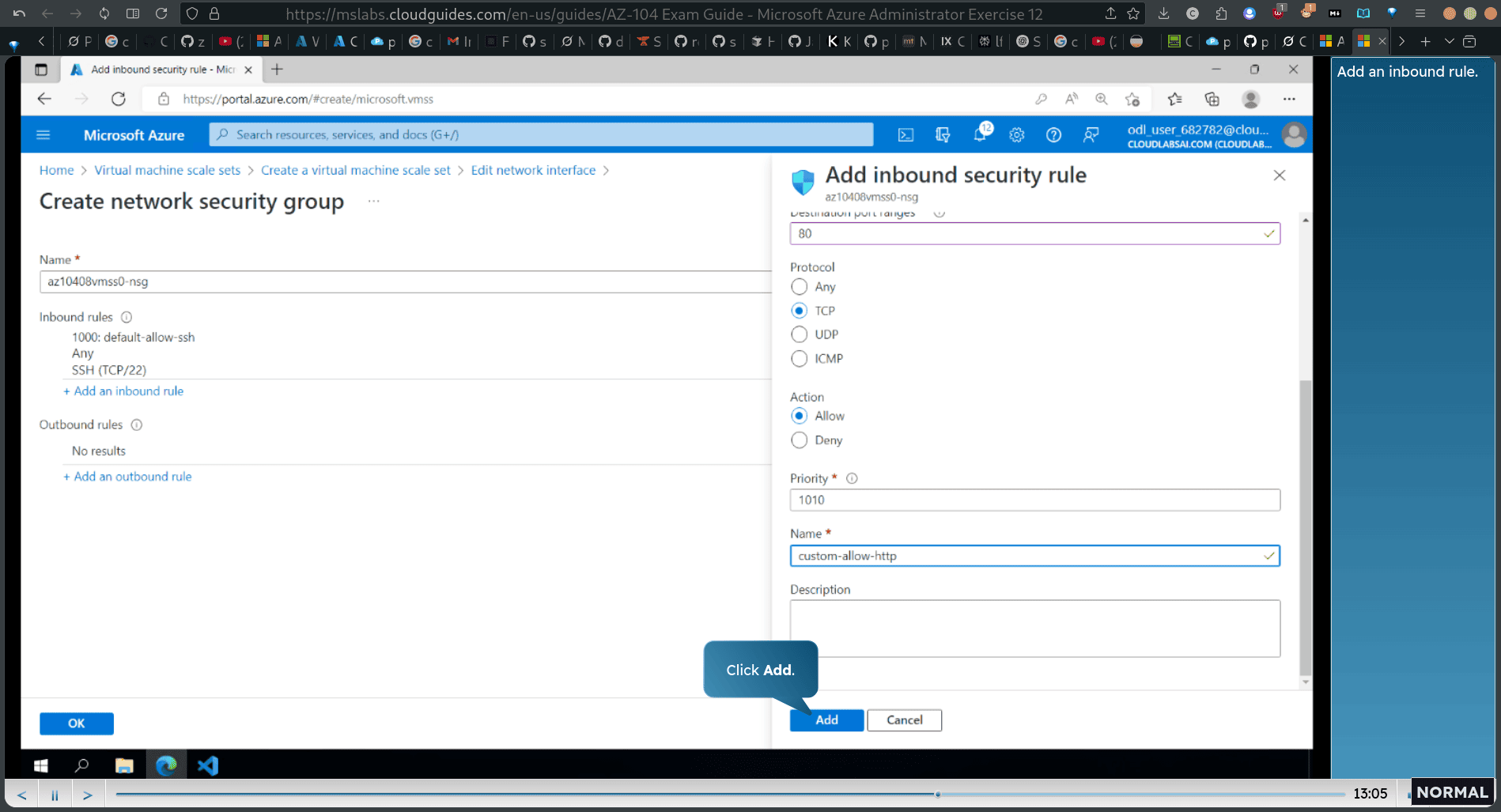

adding inbond rule

set enable public ip address

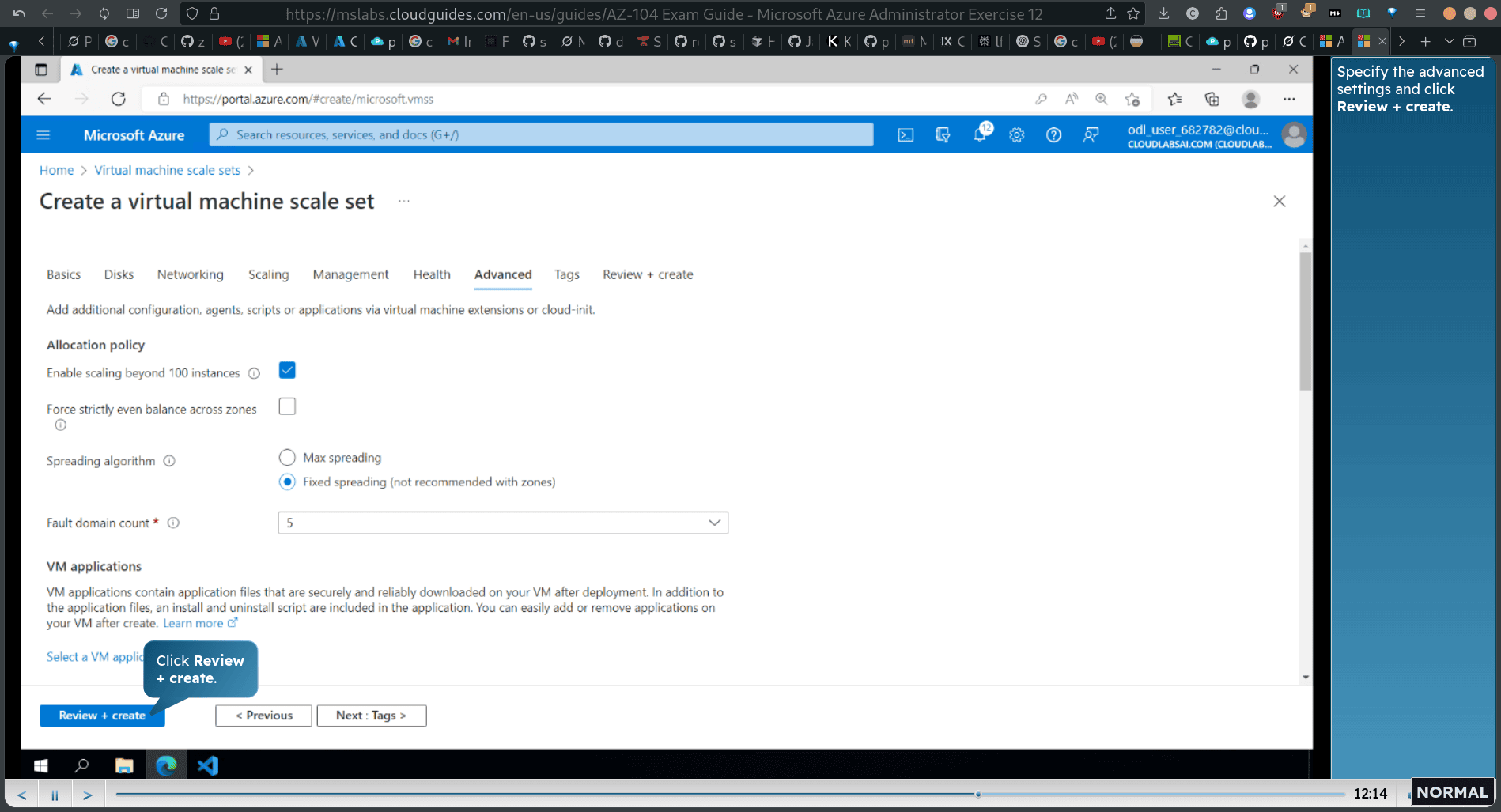

enable Fixed spreading (not recommended with zones)

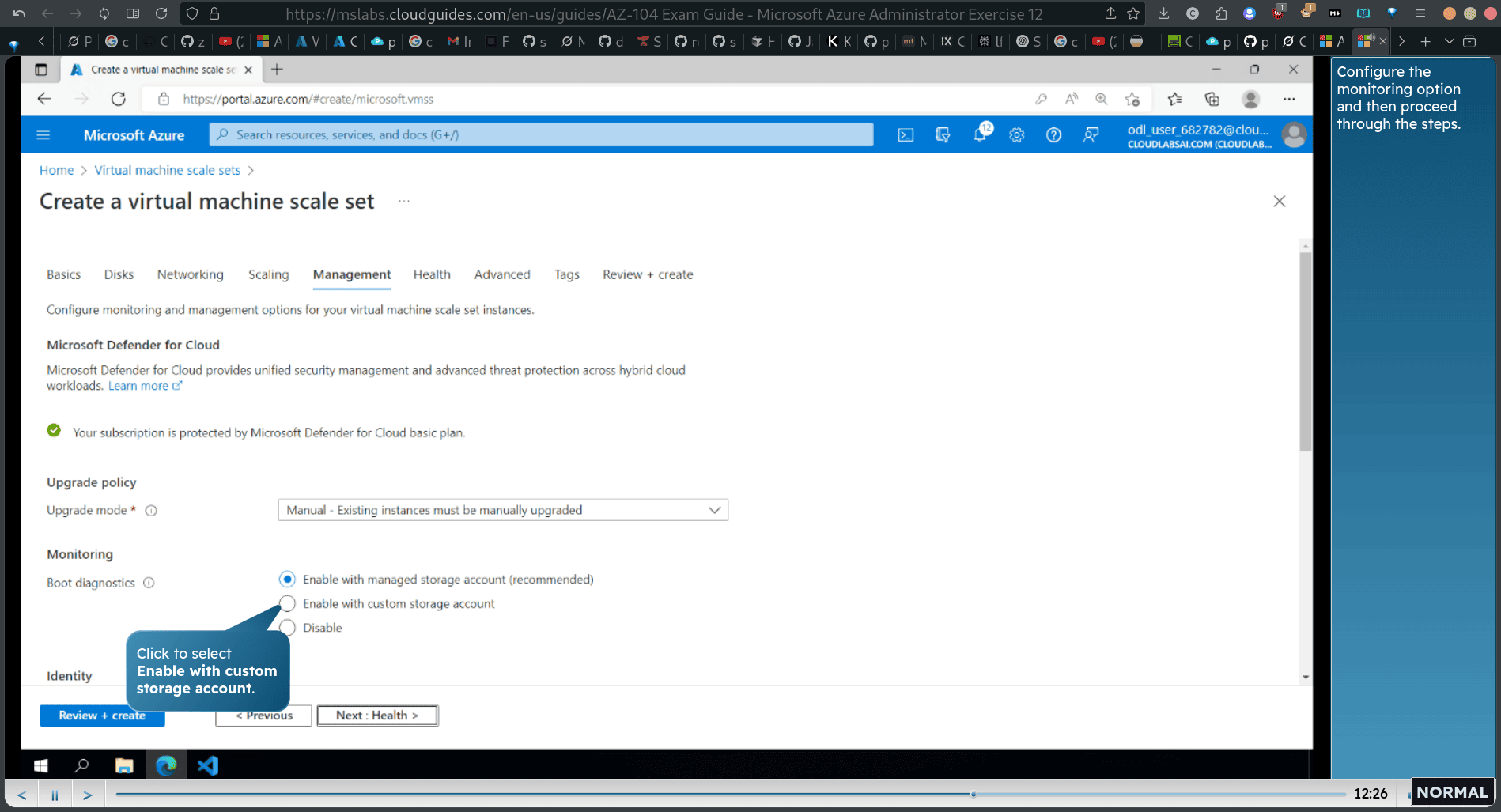

click the vm scale set newly

Task 6: Configure an Azure virtual machine scale set using a virtual machine extension

storage ac(second one ) → container → new container (scrpt) → upload a blog → script

return to previous vm scale set item → extention & applicaton→ search customer scrip ext → select prvieous uploaded blog script

return to previous vm scale set item → instances Select the check boxes next to the virtual machine scale set instances and then click Upgrade.

search load balancer → select → frontend ip → copy public ip →test the ip

Task 7: Scale compute and storage for the Azure virtual machine scale set

return to previous vm scale set item → size → ds1_v2 → resize → insance → upgrade → select the first instance

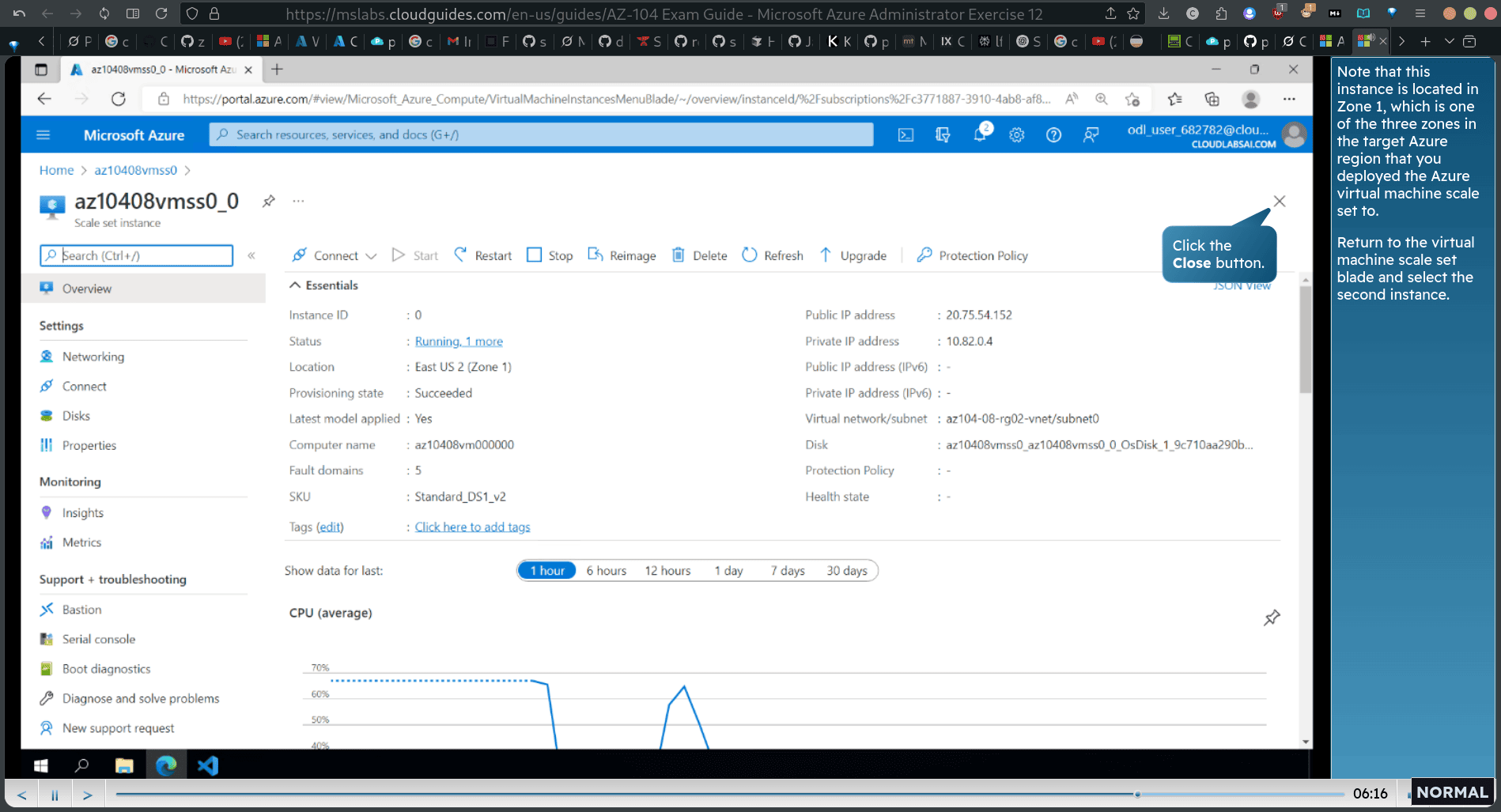

Note that this instance is located in Zone 1, which is one of the three zones in the target Azure region that you deployed the Azure virtual machine scale set to. Return to the virtual machine scale set blade and select the second instance.

2nd instance Note that this instance is located in Zone 2, which is another one of the three zones that you deployed the Azure virtual machine scale set fo. Refurn to the Instances blade.

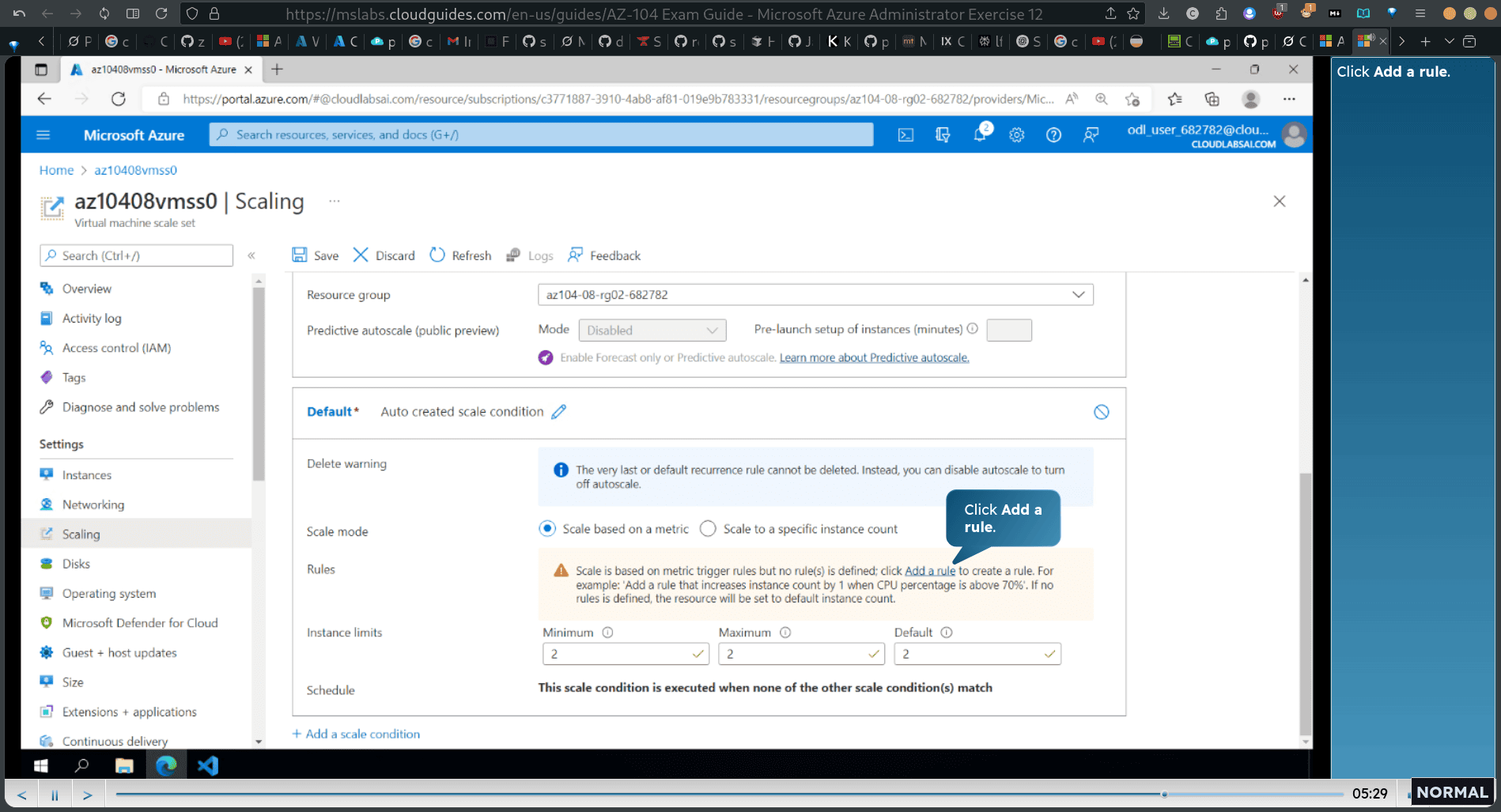

→ scaling → custom autoscale

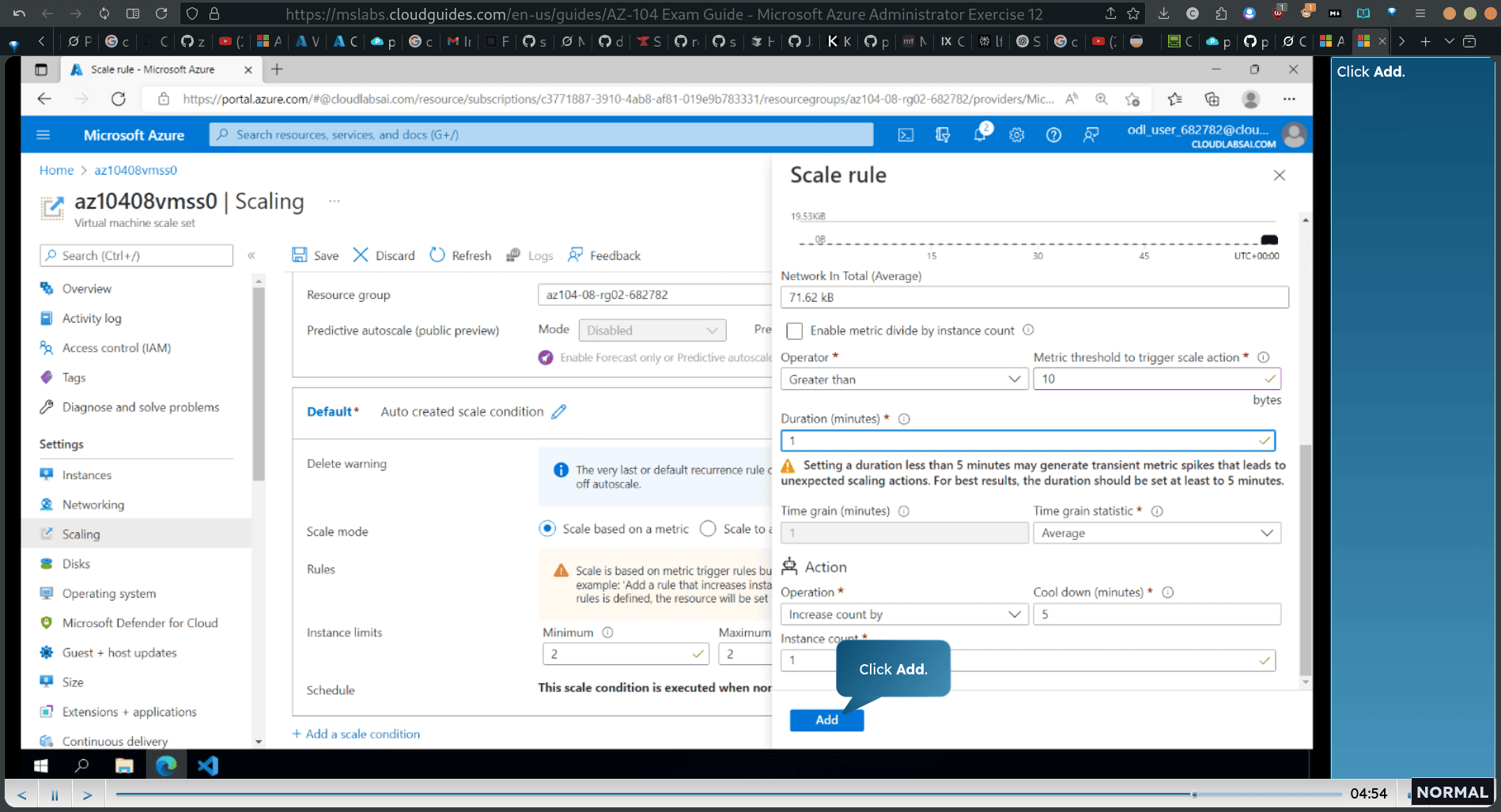

add rule

select ‘network in total’

set the instance limit

SrgName = ‘az104-08-rgh2-682782”

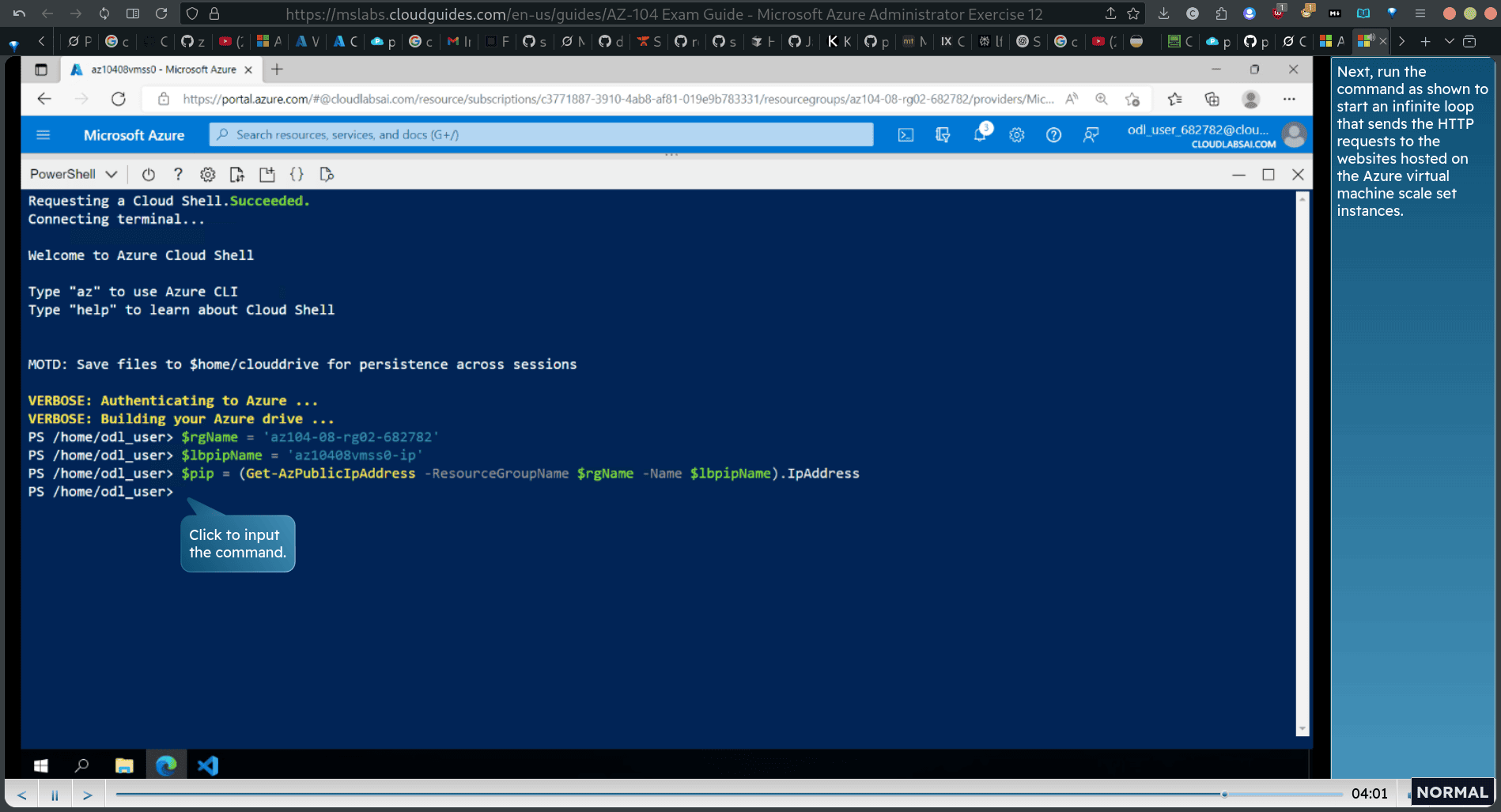

Run the commands as shown to identify the public IP address of the load balancer in front of the Azure virtual machine scale set.

$1 b p i pN am e " a z 10408 v m sse - i p ’$ pip = (Get-AzPublicIpAddress -ResourceGroupName $r g N am e - N am e$ lbpipName).IpAddress

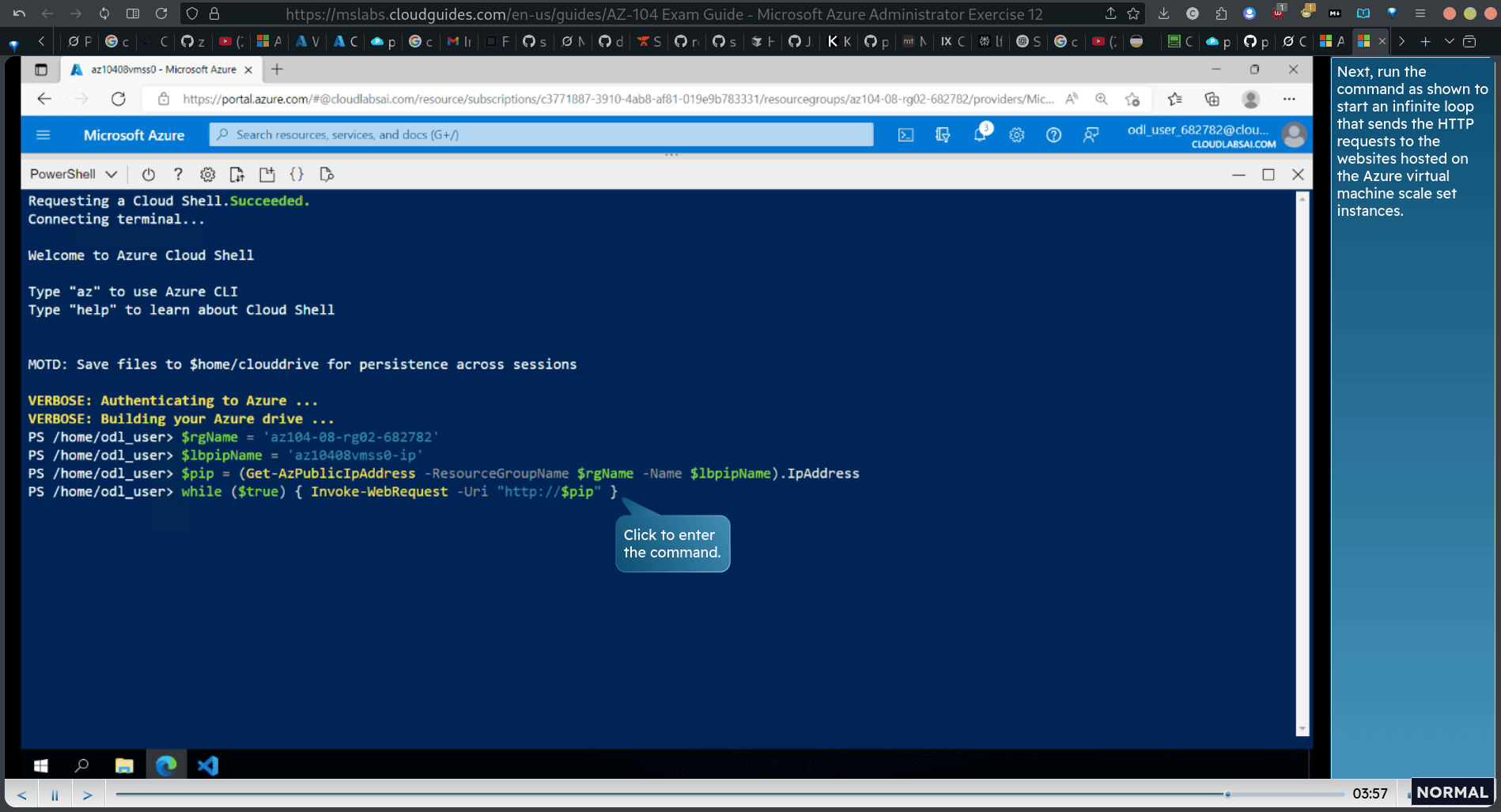

Next, run the command as shown fo start an infinite loop that sends the HTTP requests to the websites hosted on the Azure virtual machine scale set instances. while ( $true) { Invoke-WebRequest -Uri “http://$ pip”” }

return the instance

The third instance has been provisioned. Select it fo view its location.

The location is Zone 3, which is different than the two zones you identified earlier in this task.

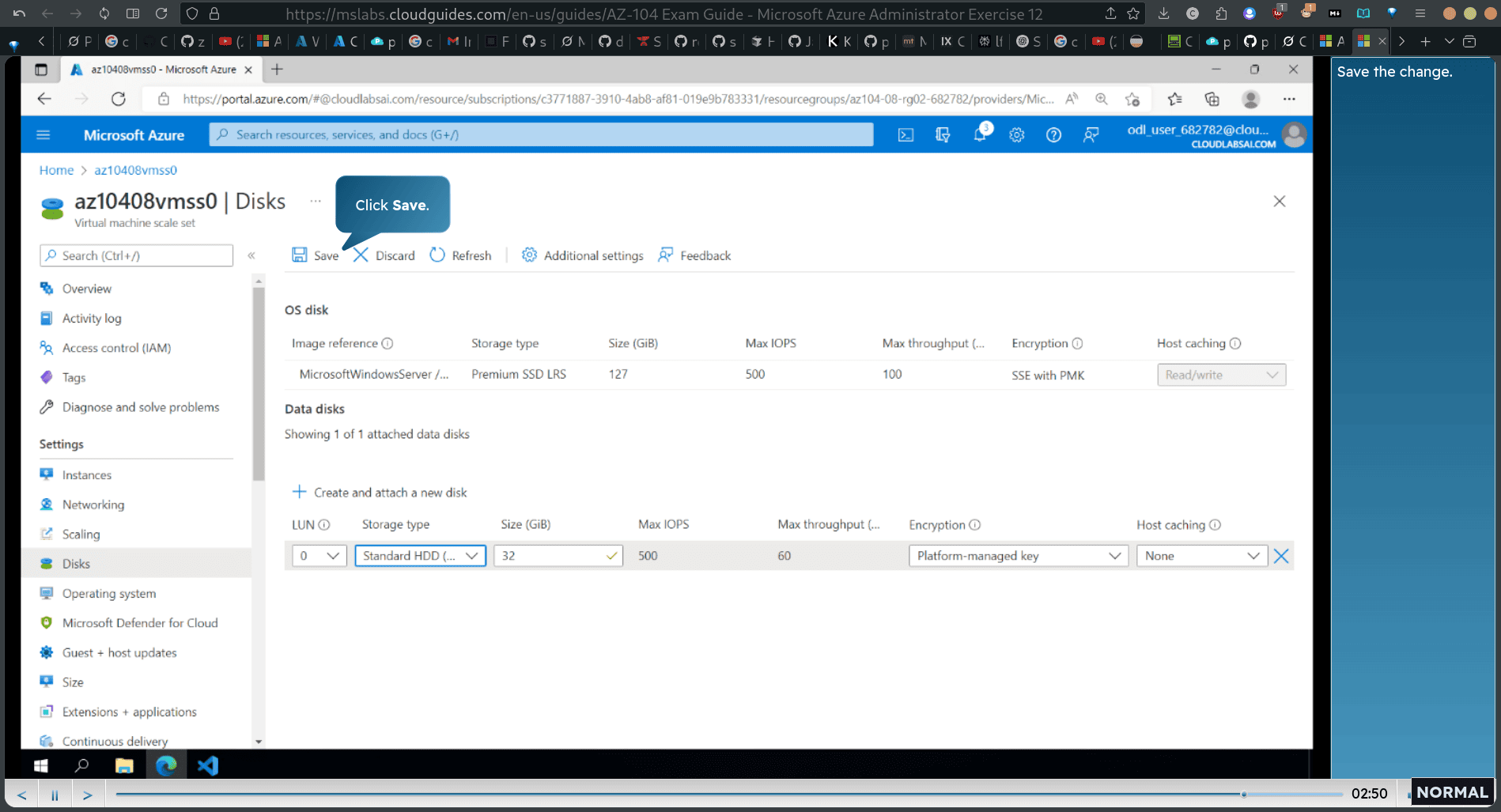

back to vm scale set → disk → craeate and attach disk HDD 32 gb

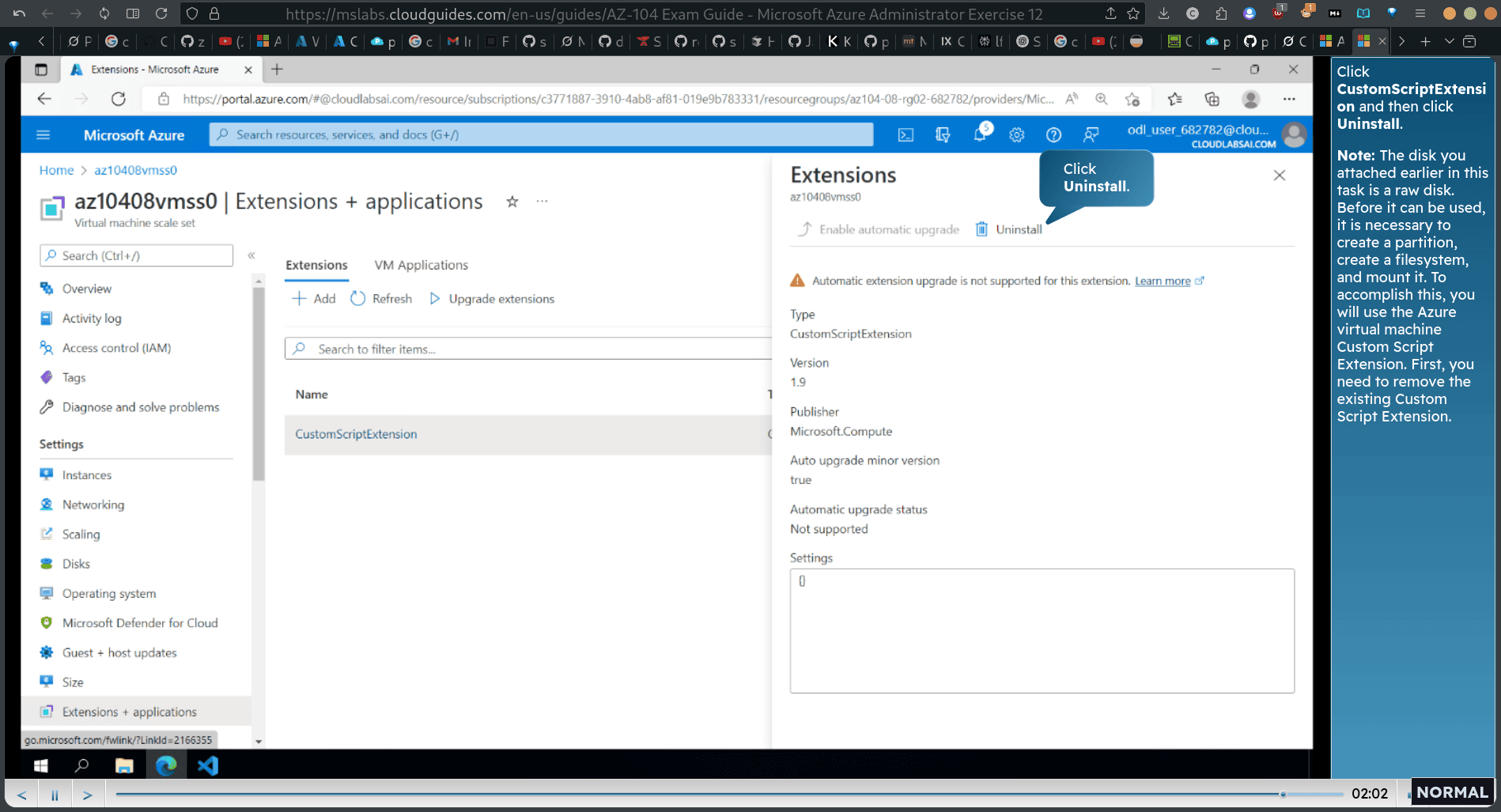

back → instance → select all → upgrade → extenstion → click customscrip extension → click unintsall

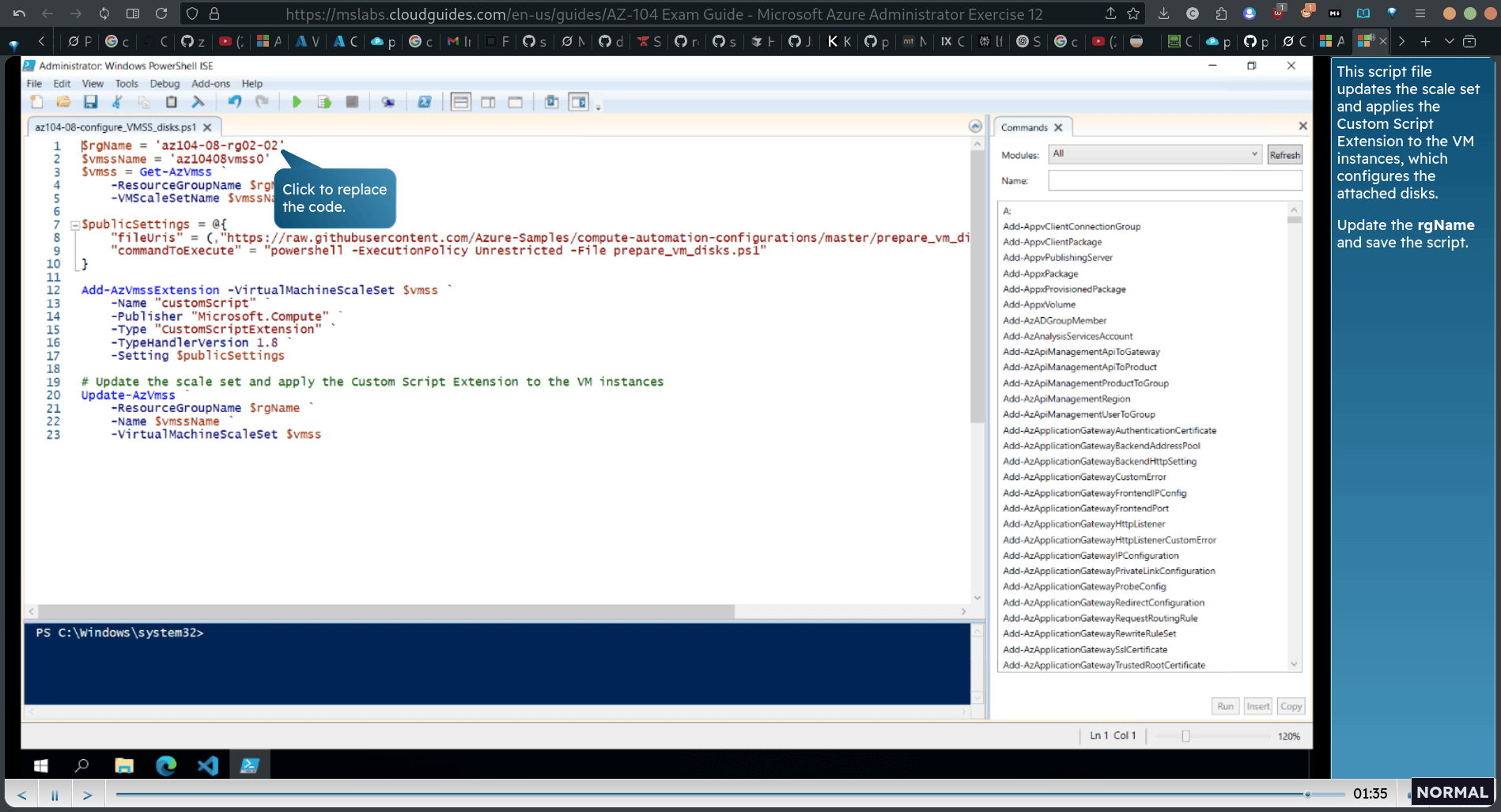

edit the config for vm scale set script (firs file)

This script file updates the scale set and applies the Custom Script Extension to the VM instances, which configures the attached disks. Update the rgName and save the script.

upload the edited script

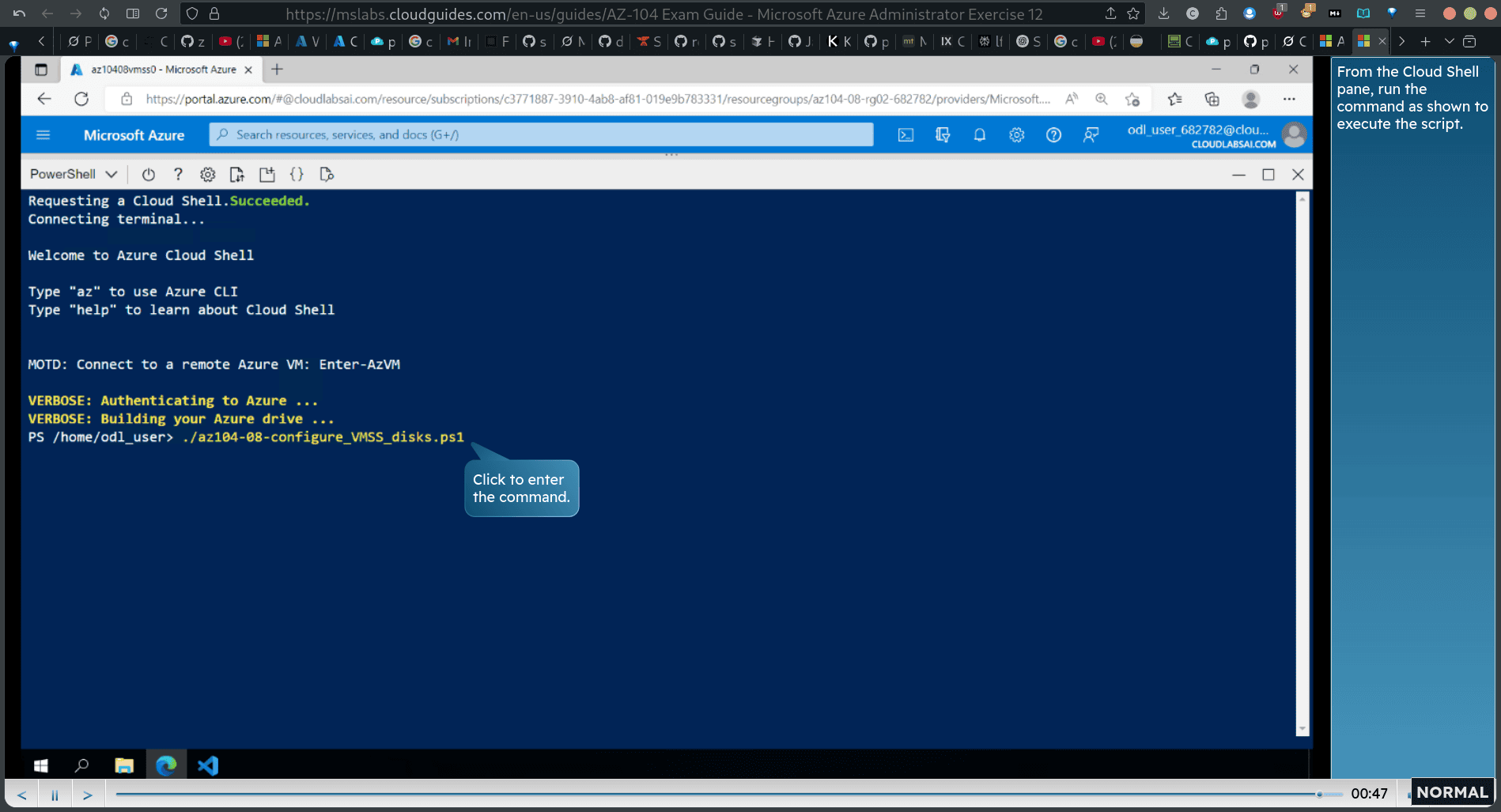

./az104-08-configure_VMSS_disks.psl

back → instance → upgrade

13. Implement Azure Web Apps >

Lab scenario: In this lab, you’ll evaluate the use of Azure Web Apps for hosting websites that are currently hosted in on-premises data centers. The websites are running on Windows servers using the PHP runtime stack. You’ll also determine how you can implement DevOps practices by leveraging Azure Web Apps deployment slots.

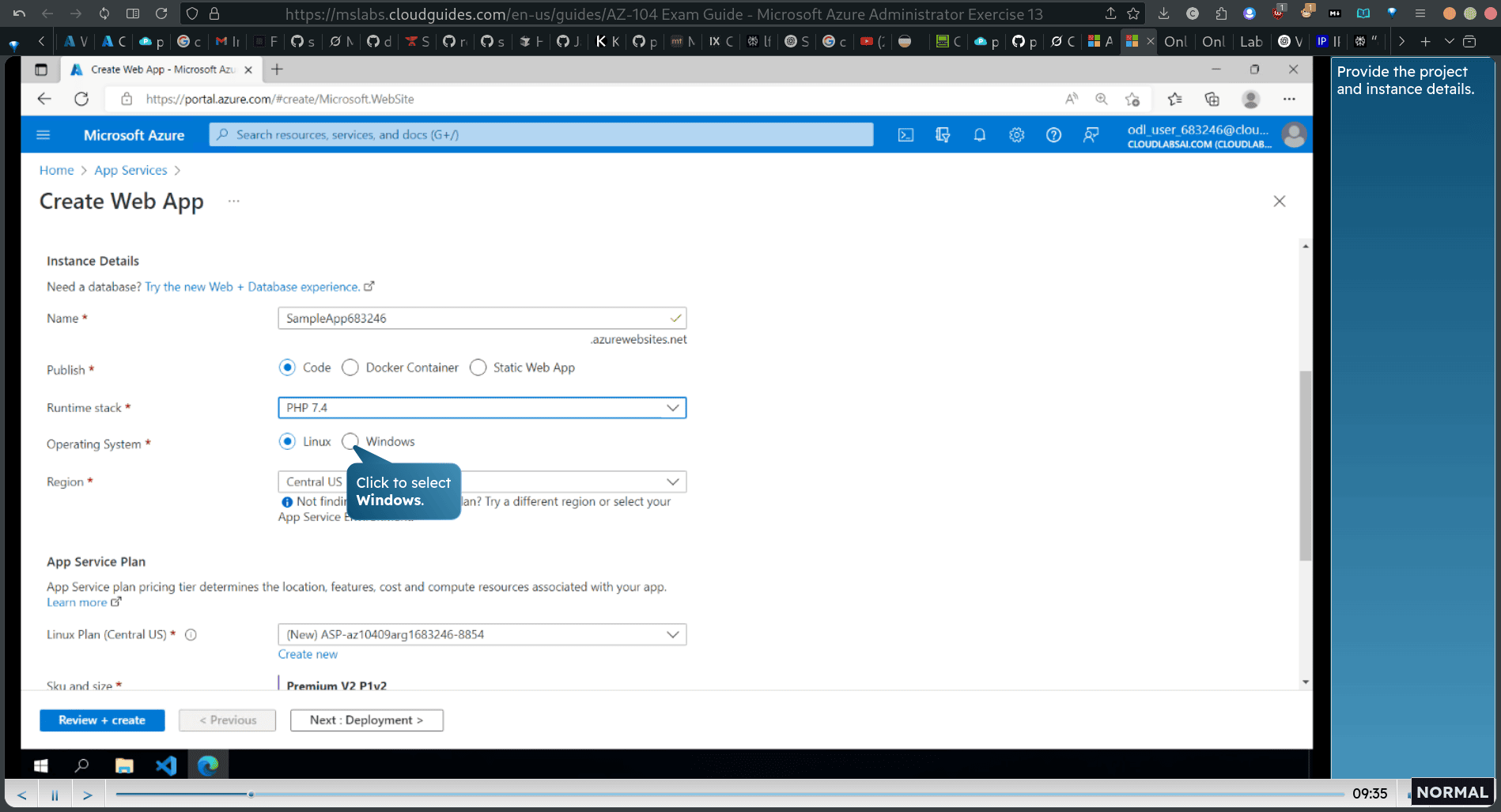

Task 1: Create an Azure web app

Task 2: Create a staging deployment slot

click overview url in browser

deploymen slot → add slot → stag(name)

click the new stage slot

Task 3: Configure web app deployment settings

deployment center

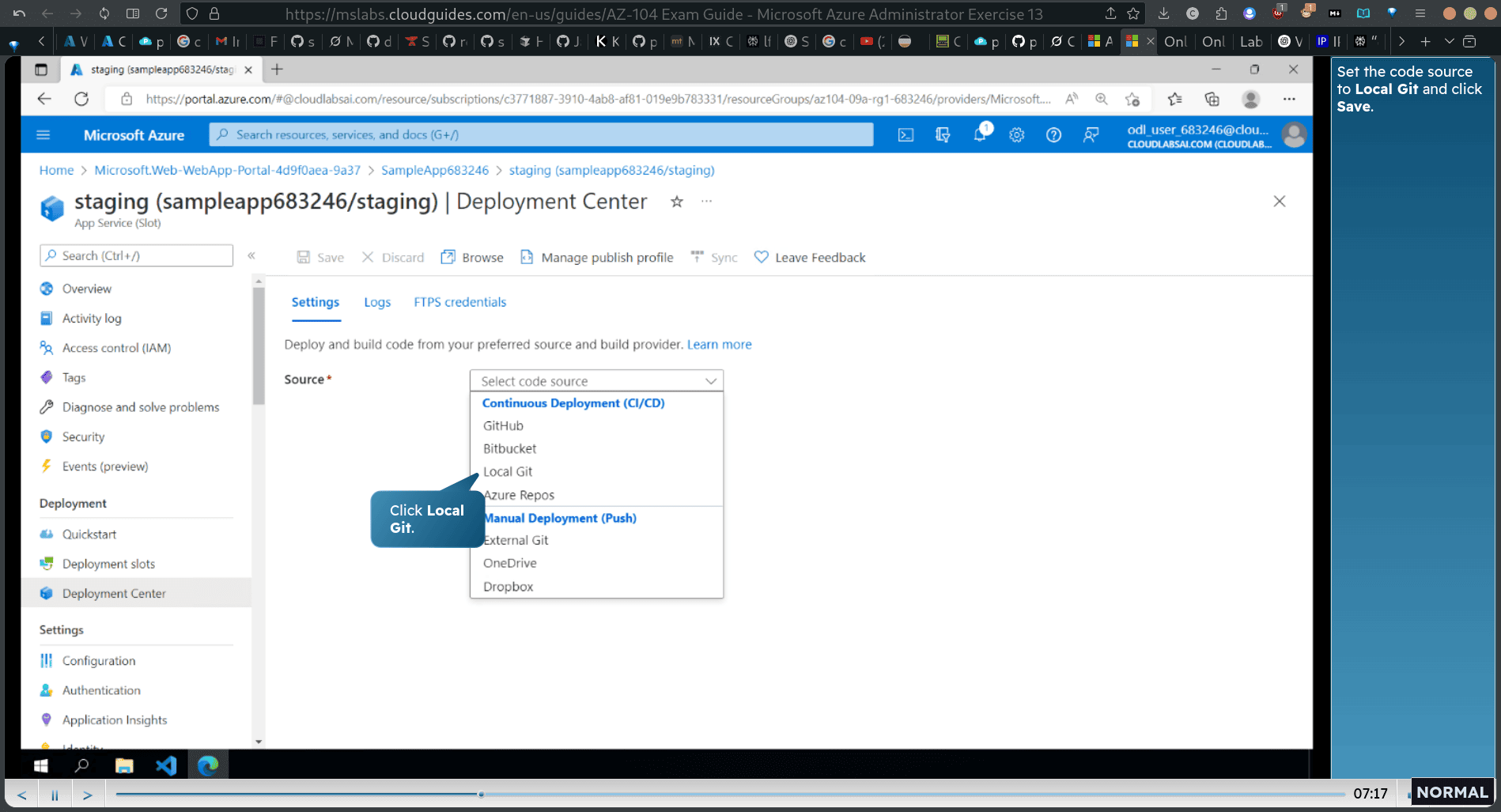

→ local git

save Git Clone Uri

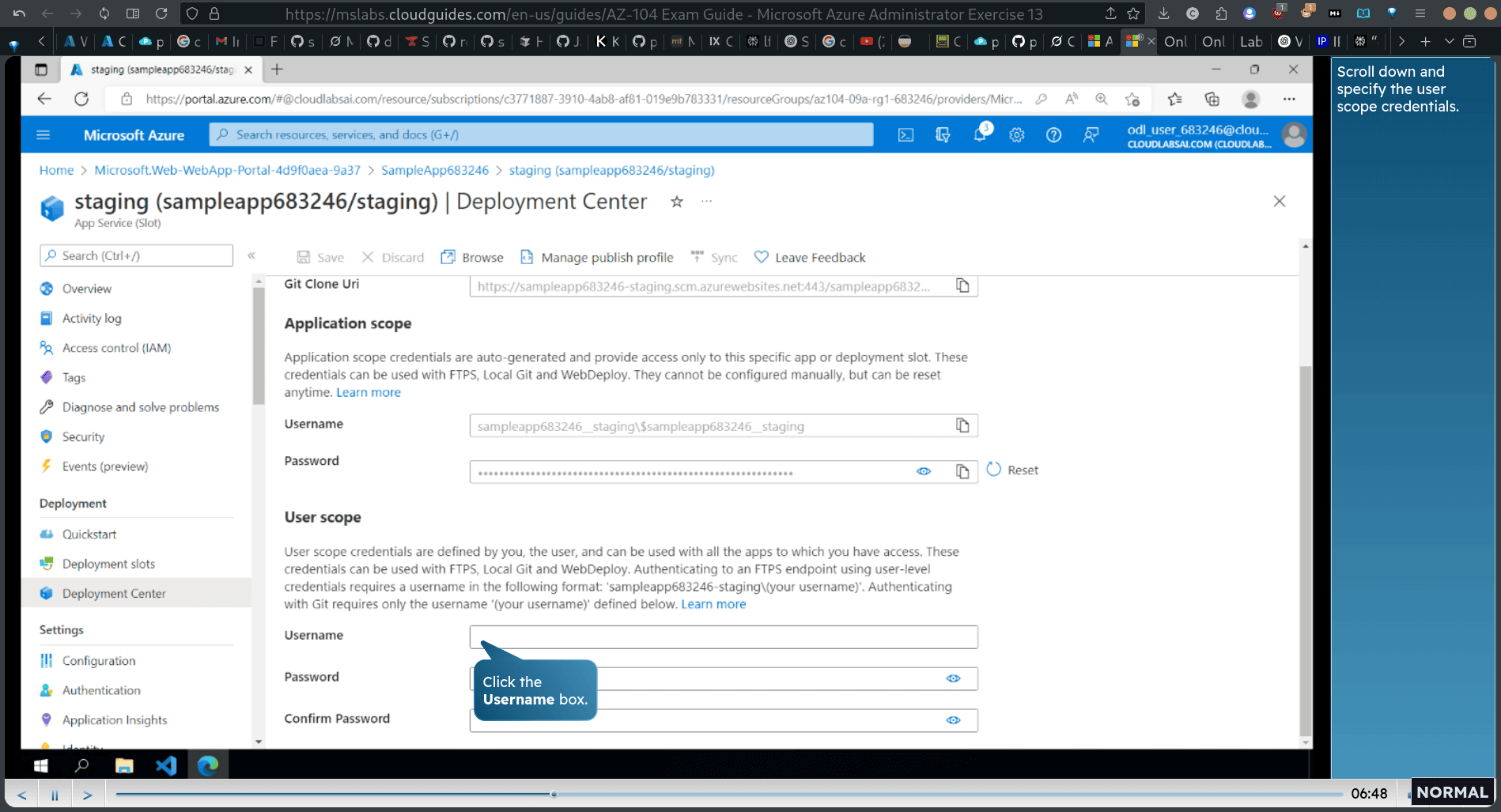

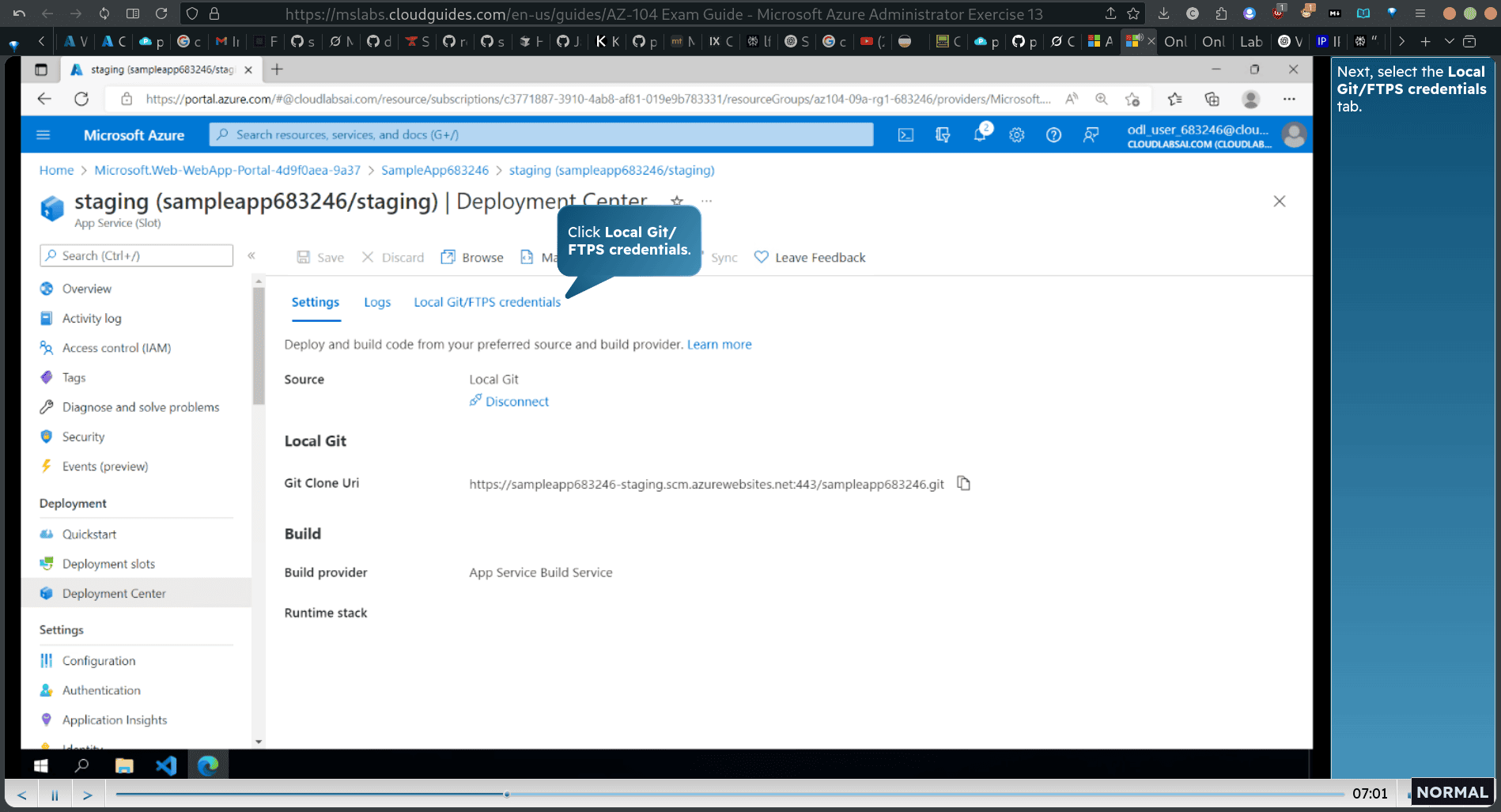

→ Local GIt/FTPS credentials

set user scope

save

Task 4: Deploy code to the staging deployment slot

git clone https://github.com/Azure-Samples/php-docs-hello-world in the cloud powershell

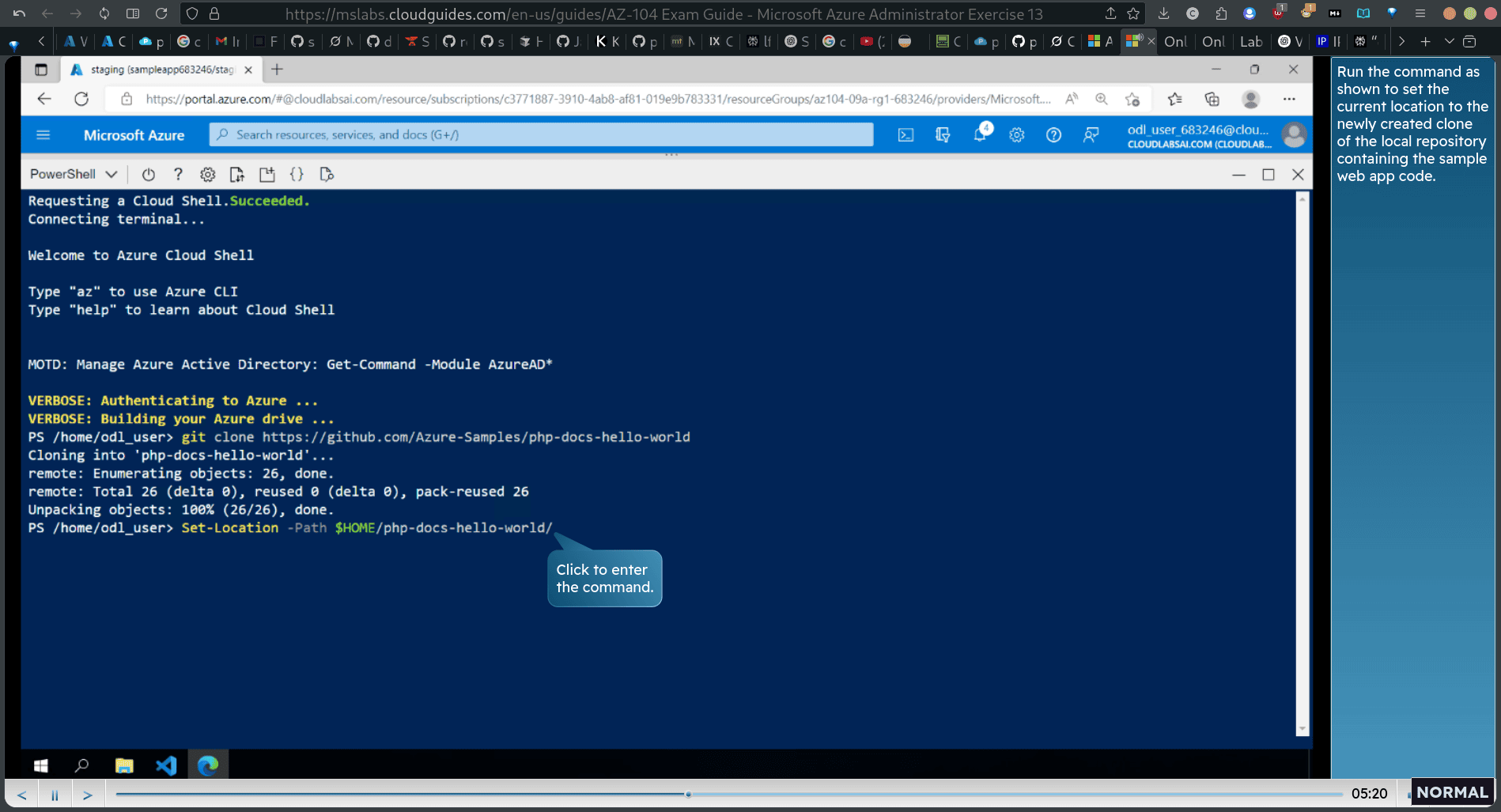

Set-Location -Path $HOME/php-docs-hello-world/

git remote add ContosoDev683246 https://sampleapp683246-staging.scm.azurewebsites.net:443/sampleapp683246.git

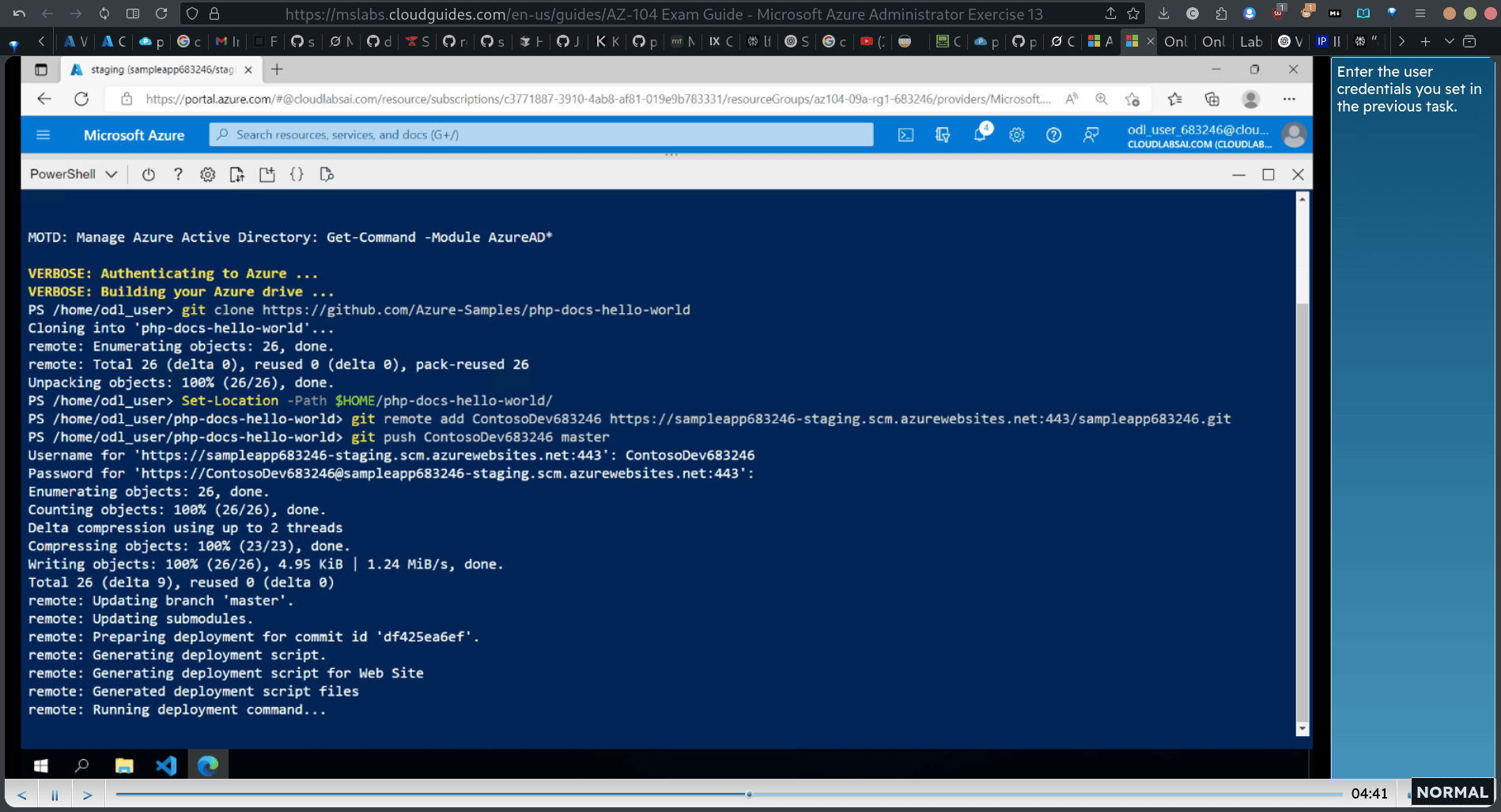

git push ContosoDev683246 master

Run the command as shown to push the sample web app code from the local repository to the Azure web app staging deployment slot.

enter previous set user ac

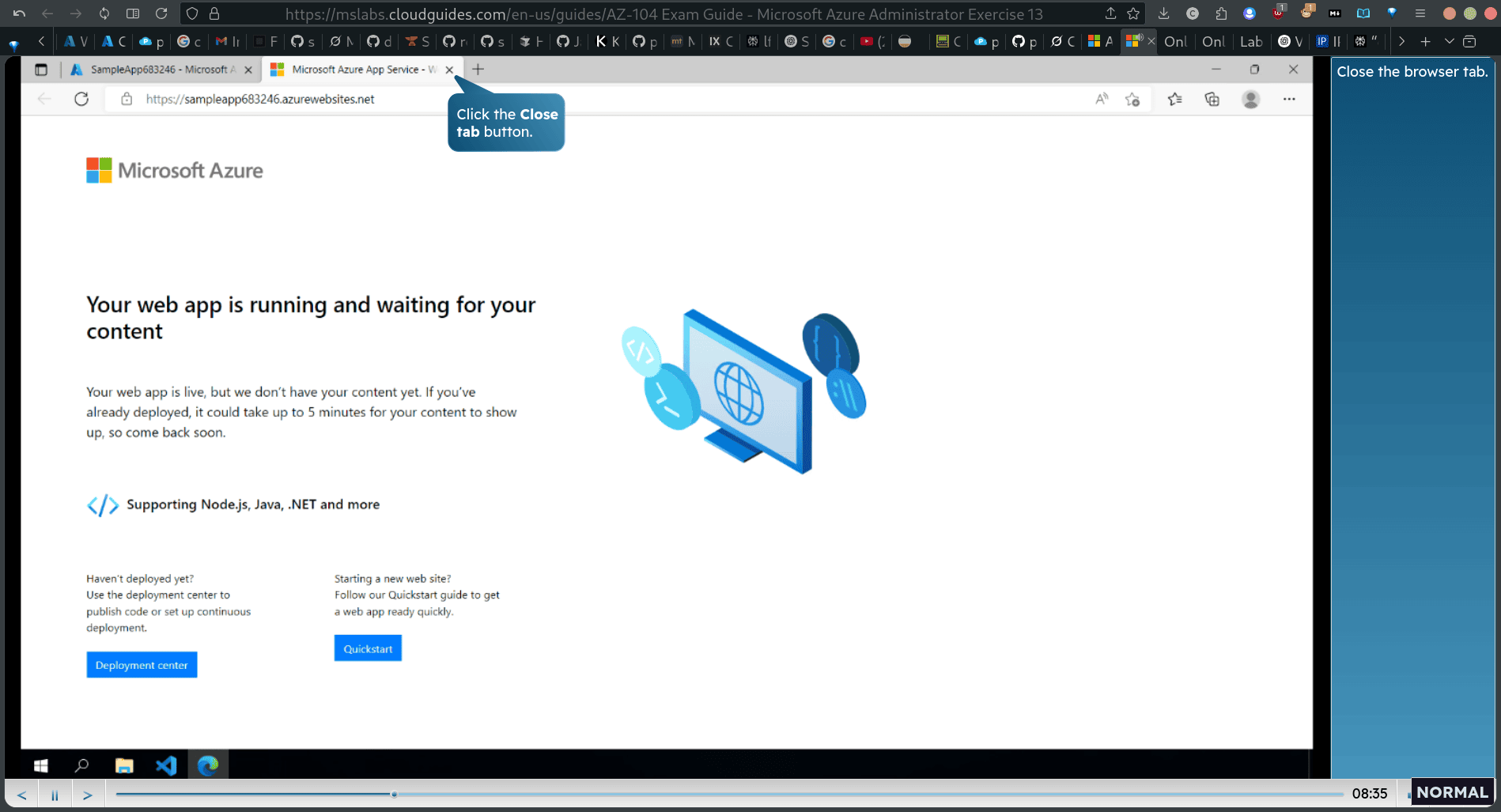

Next, click the URL link to open the web page in a new browser tab. from stage item

→ url work in php now → hello world

Task 5: Swap the staging slots

return to the app service blade → deployment slot

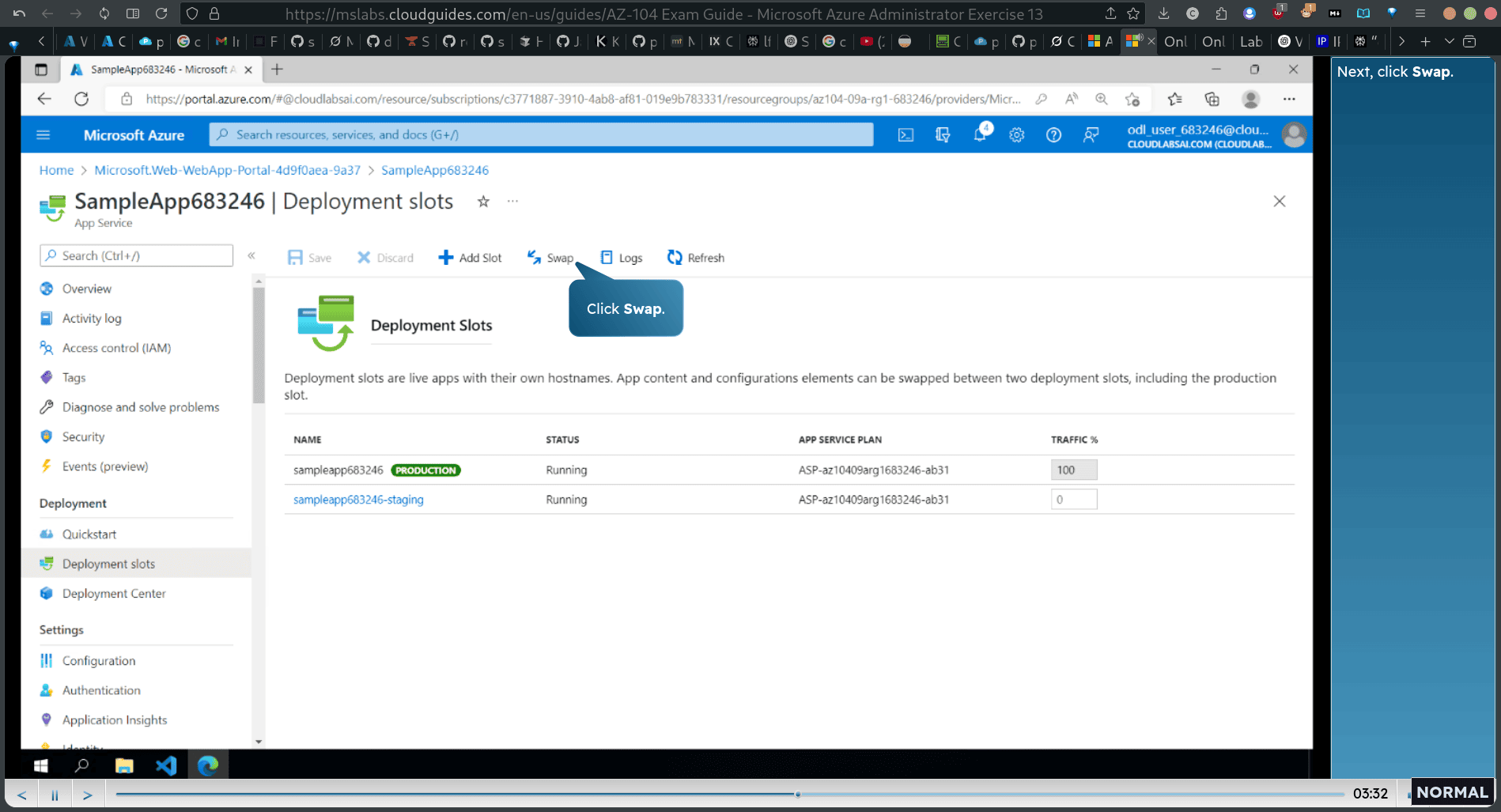

click swap

app service → url

Task 6: Configure and test autoscaling of the Azure web app

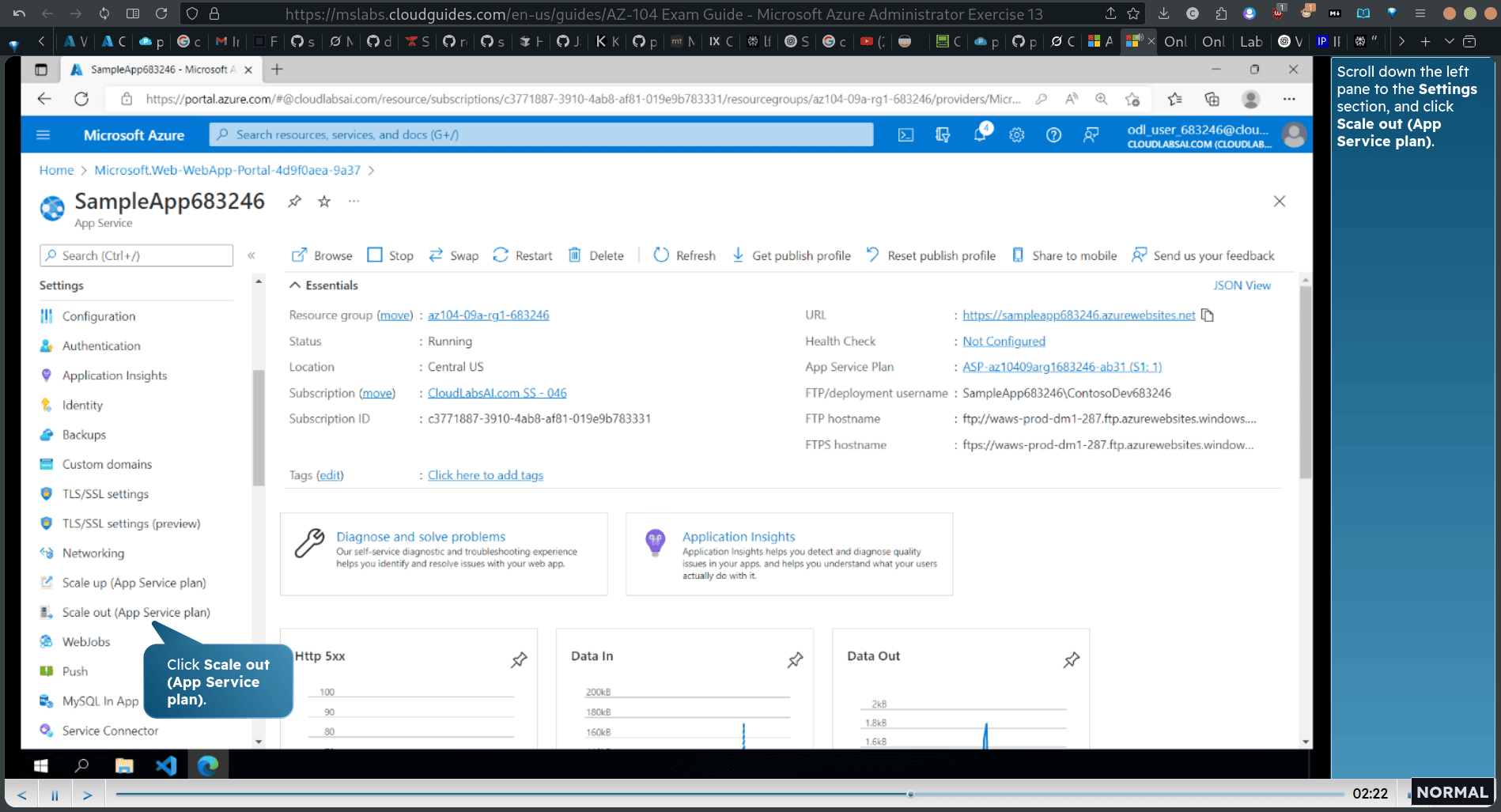

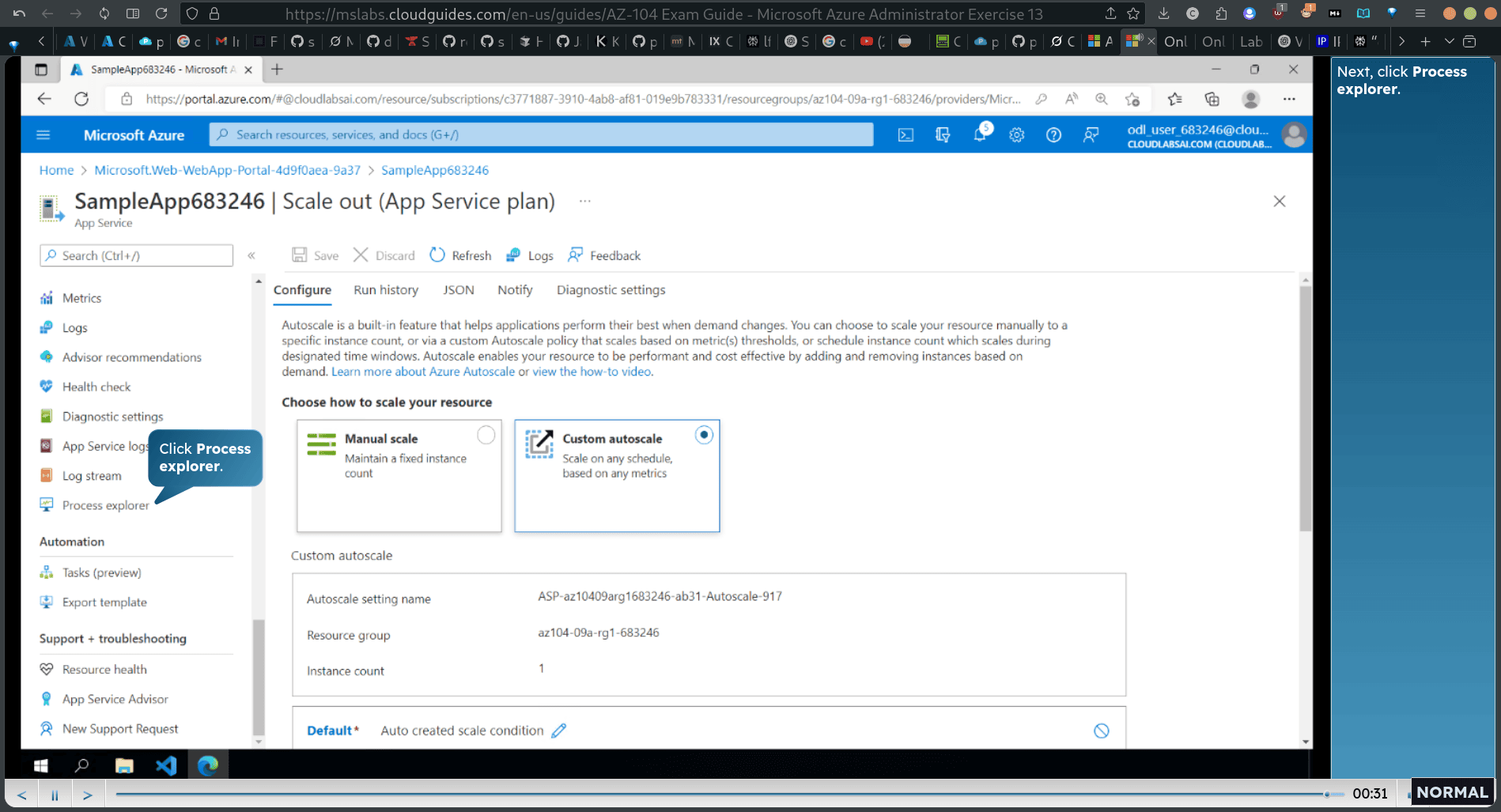

scale out (app service plan)

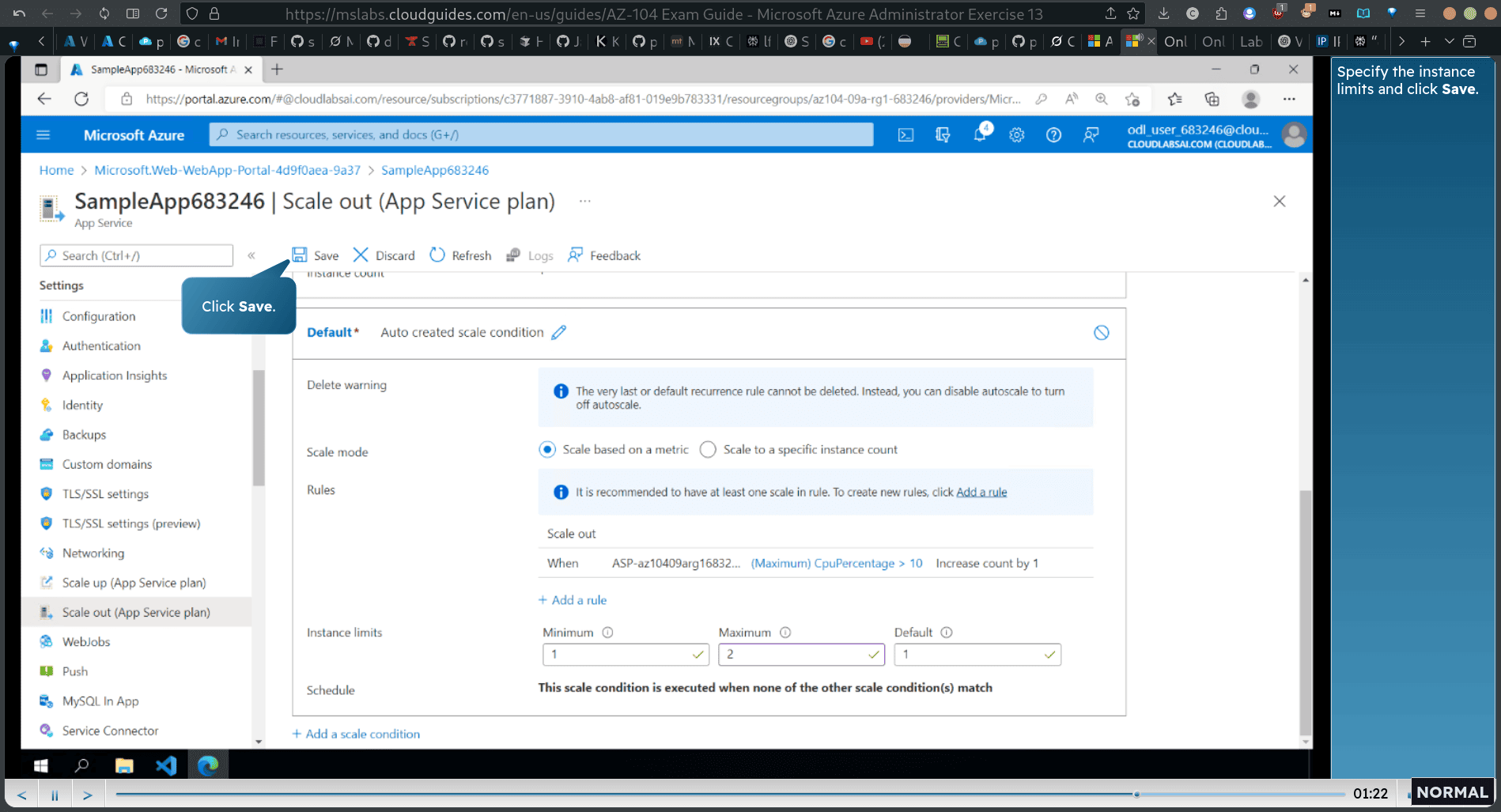

custom auto scale

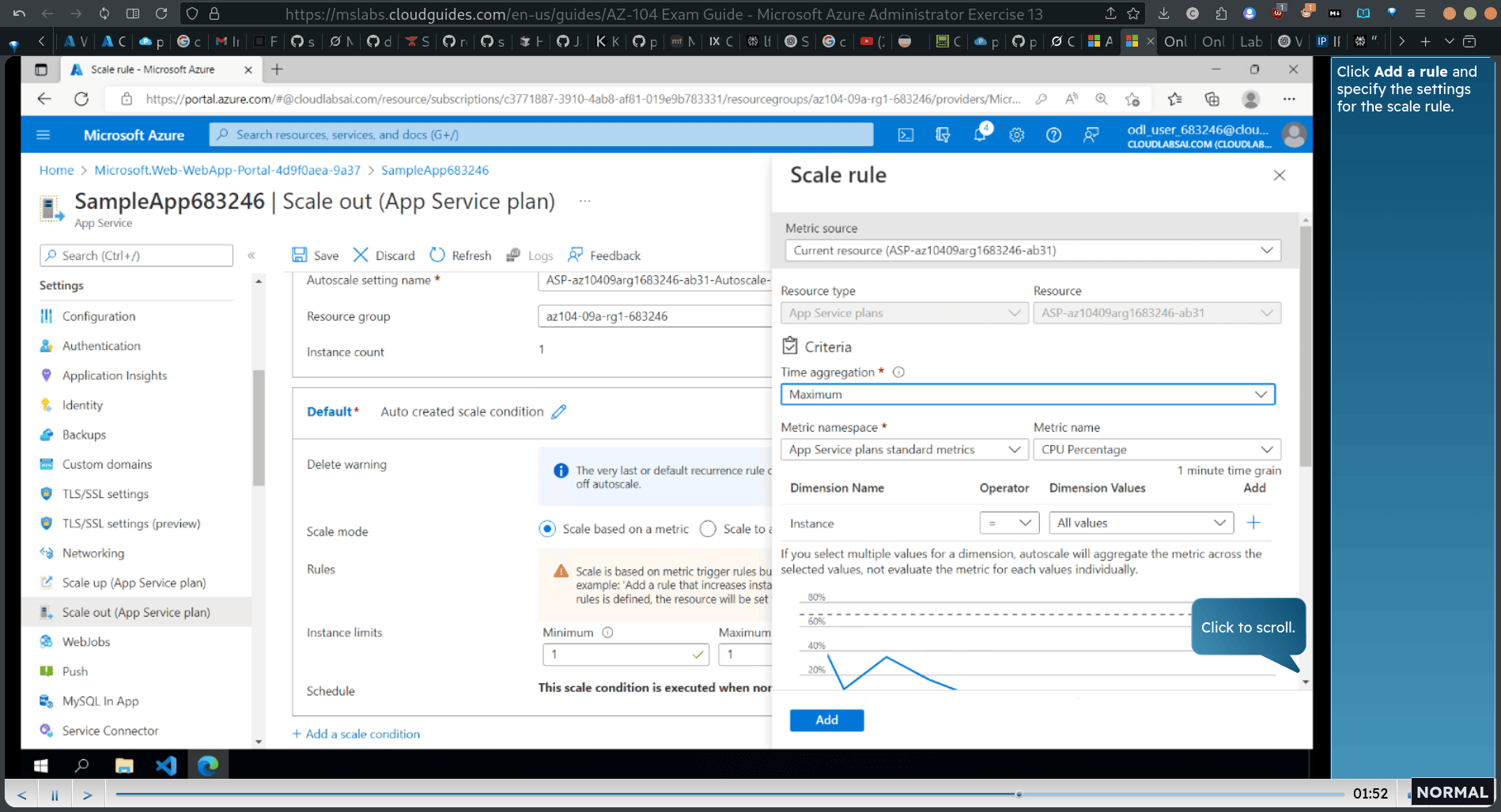

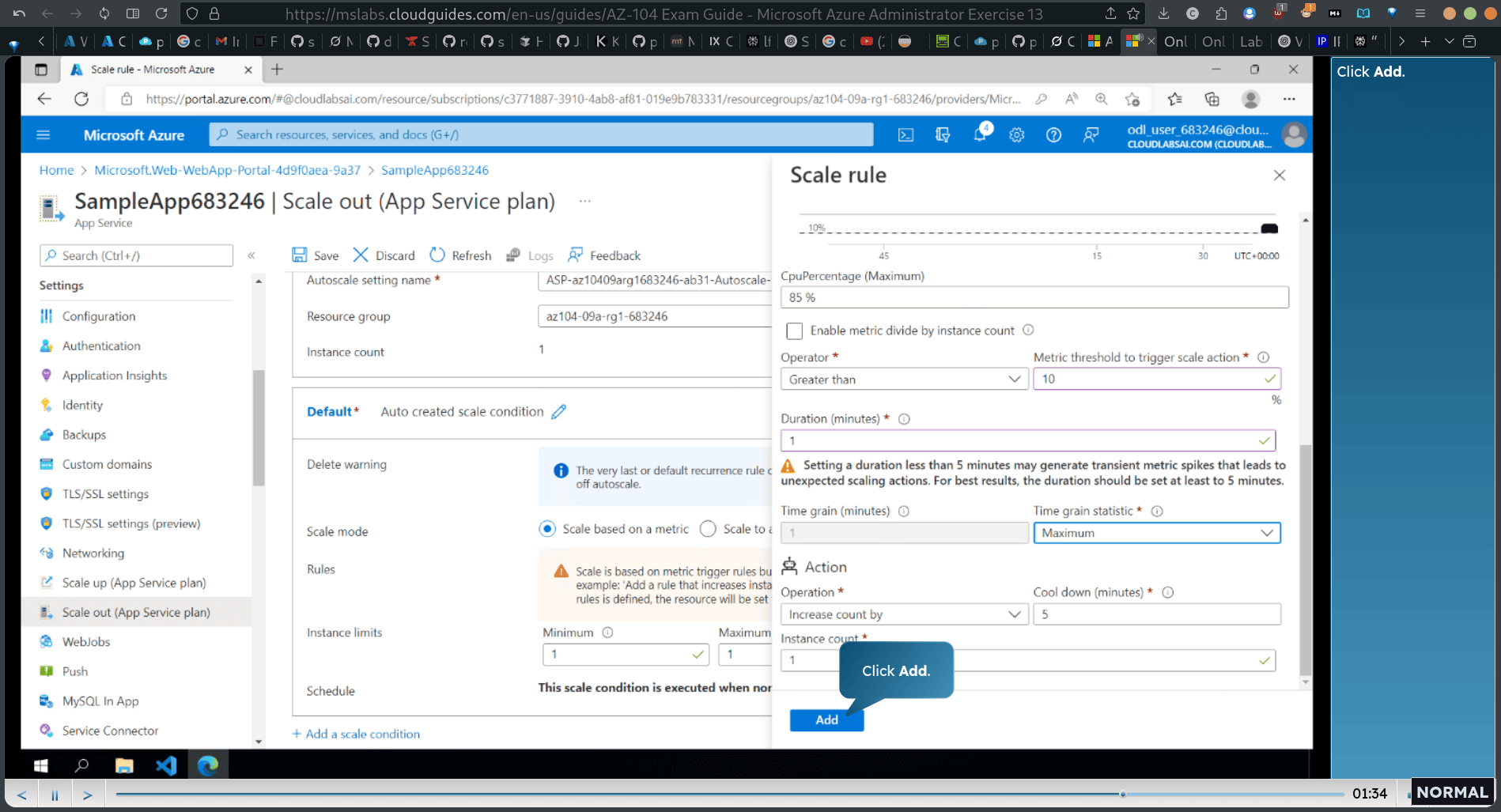

time aggregation + cpu percentage

$r g N am e " a z 104 - 09 a - r g l - 683246"$ webapp Get-AzWebApp -ResourceGroupName $rgNam=‘

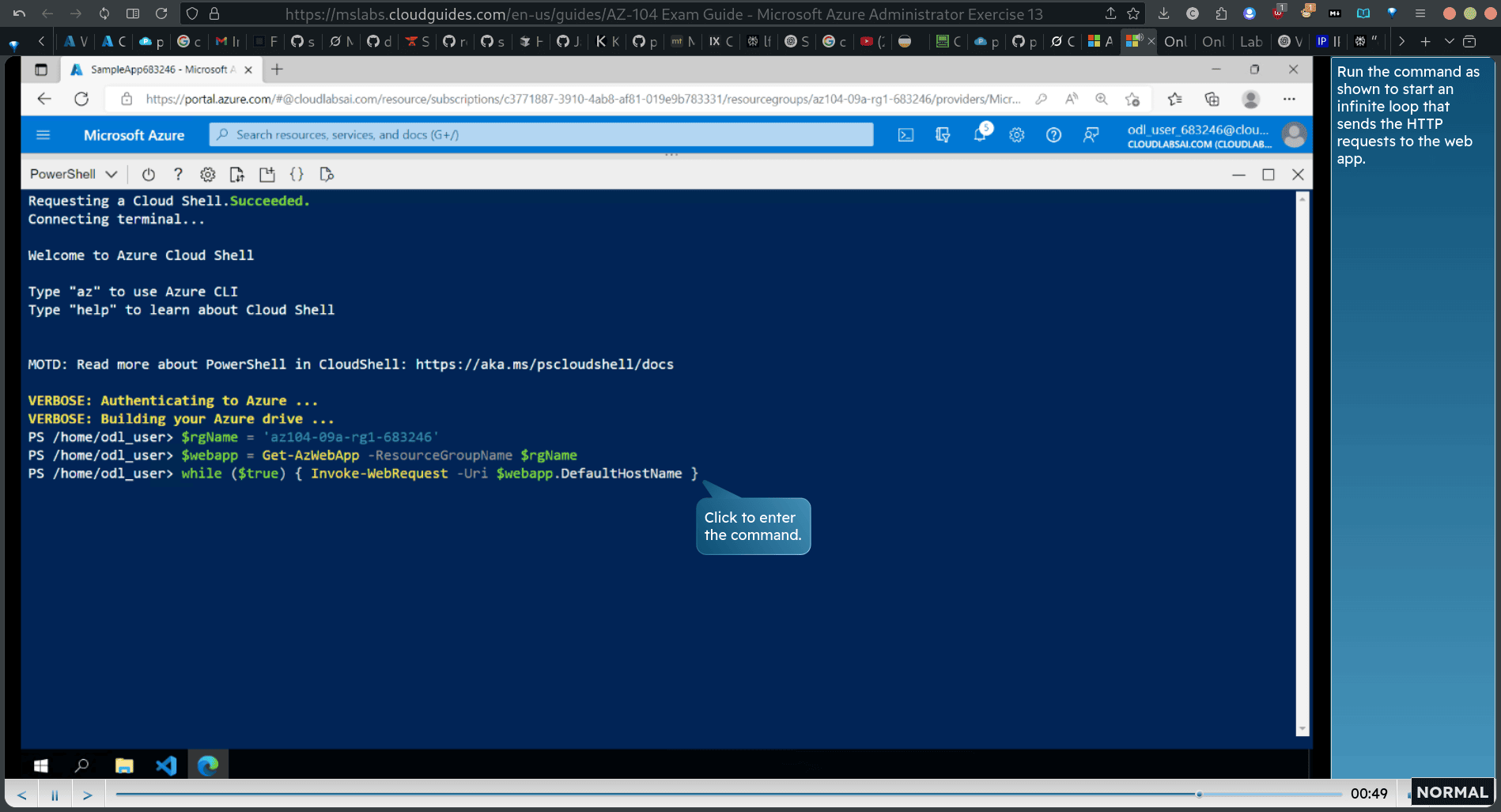

Run the command as shown fo start an infinite loop that sends the HTTP requests to the web app.

while ( $true) { Invoke-WebRequest -Uri$ webapp.DefaultHostName }

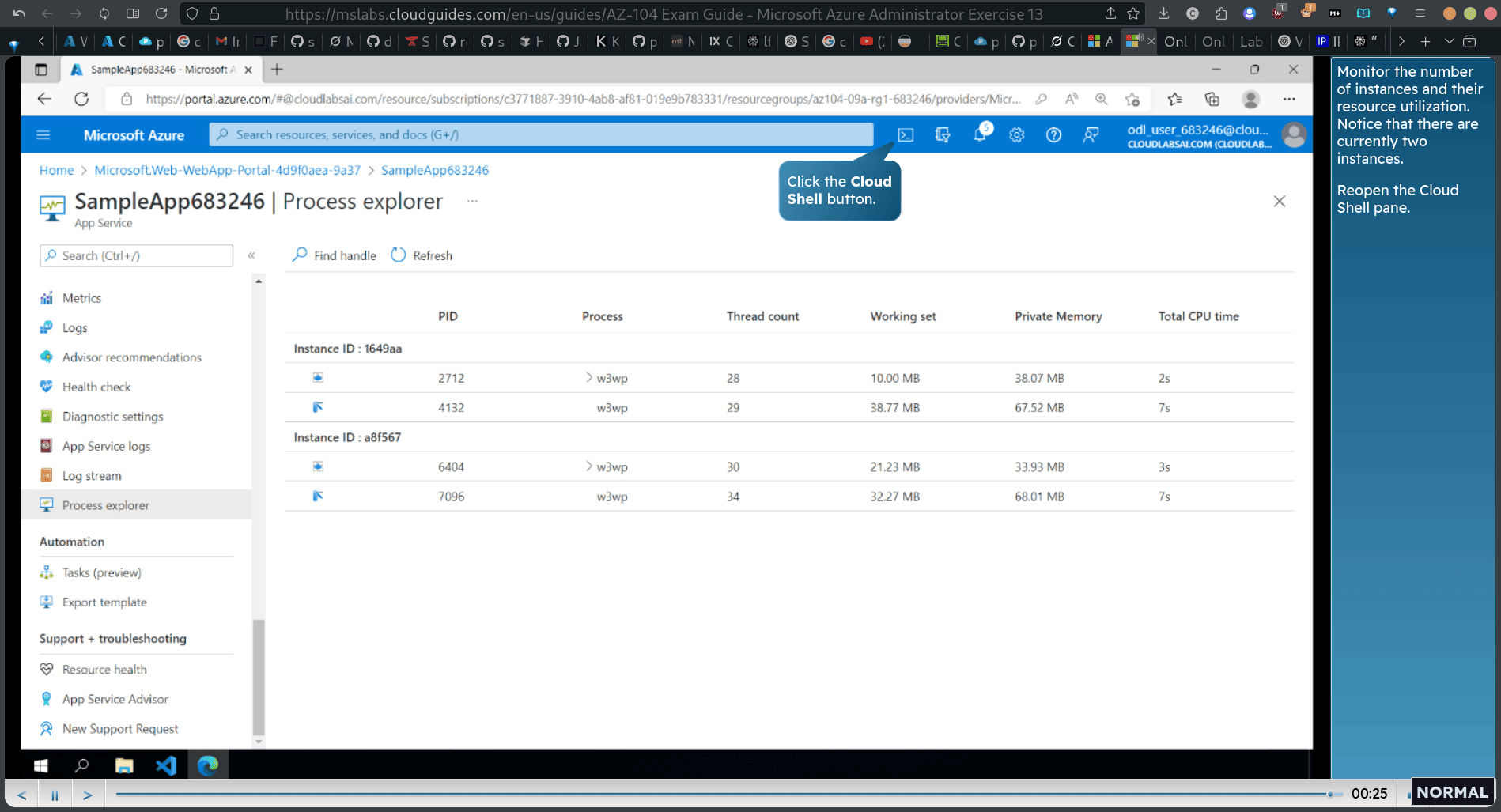

→ process explorer

Monitor the number of instances and their resource utilization. Notice that there are currently two instances. Reopen the Cloud Shell pane.

14. Implement Azure Container Instances >

In this lab, you will complete the tasks listed on your screen. Lab scenario: In this lab, you’ll evaluate the use of Azure Container Instances for the deployment of Docker images to minimize container management.

Task 1: Deploy a Docker image using the Azure Container Instance

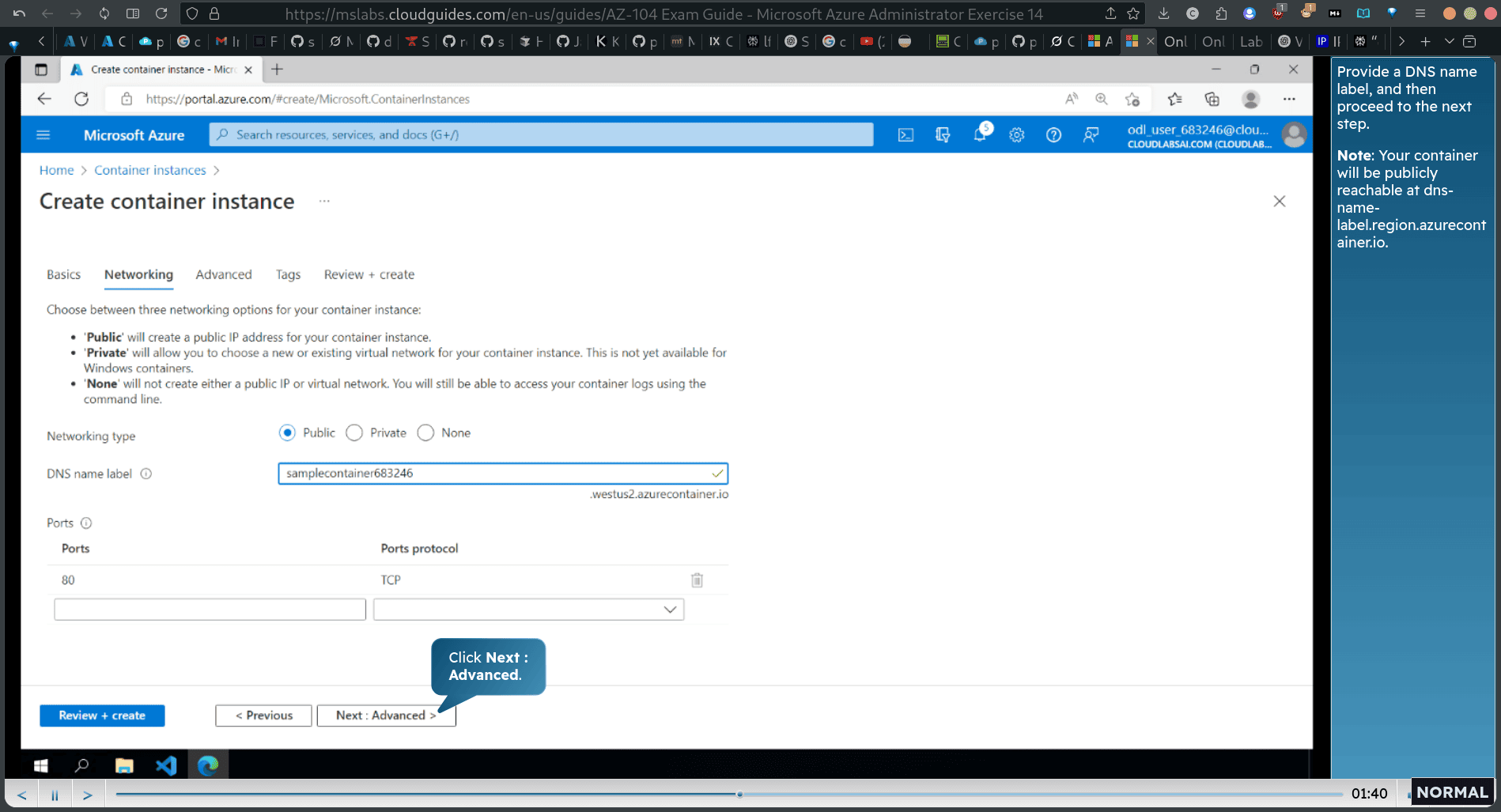

→ Container instance → dns name label

Task 2: Review the functionality of the Azure Container Instance

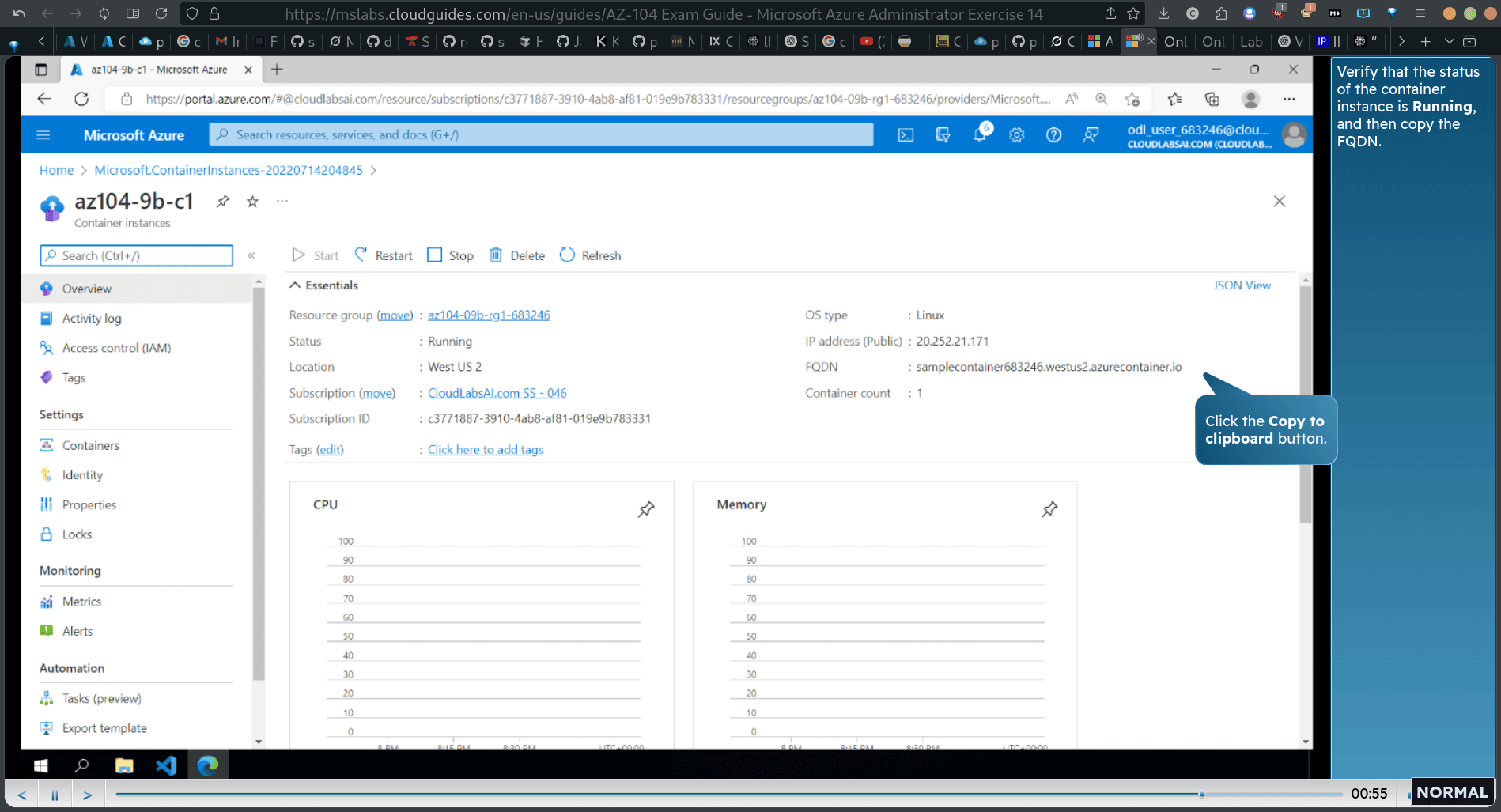

Verify that the status of the container instance is Running, and then copy the FQDN.

url → io in browser

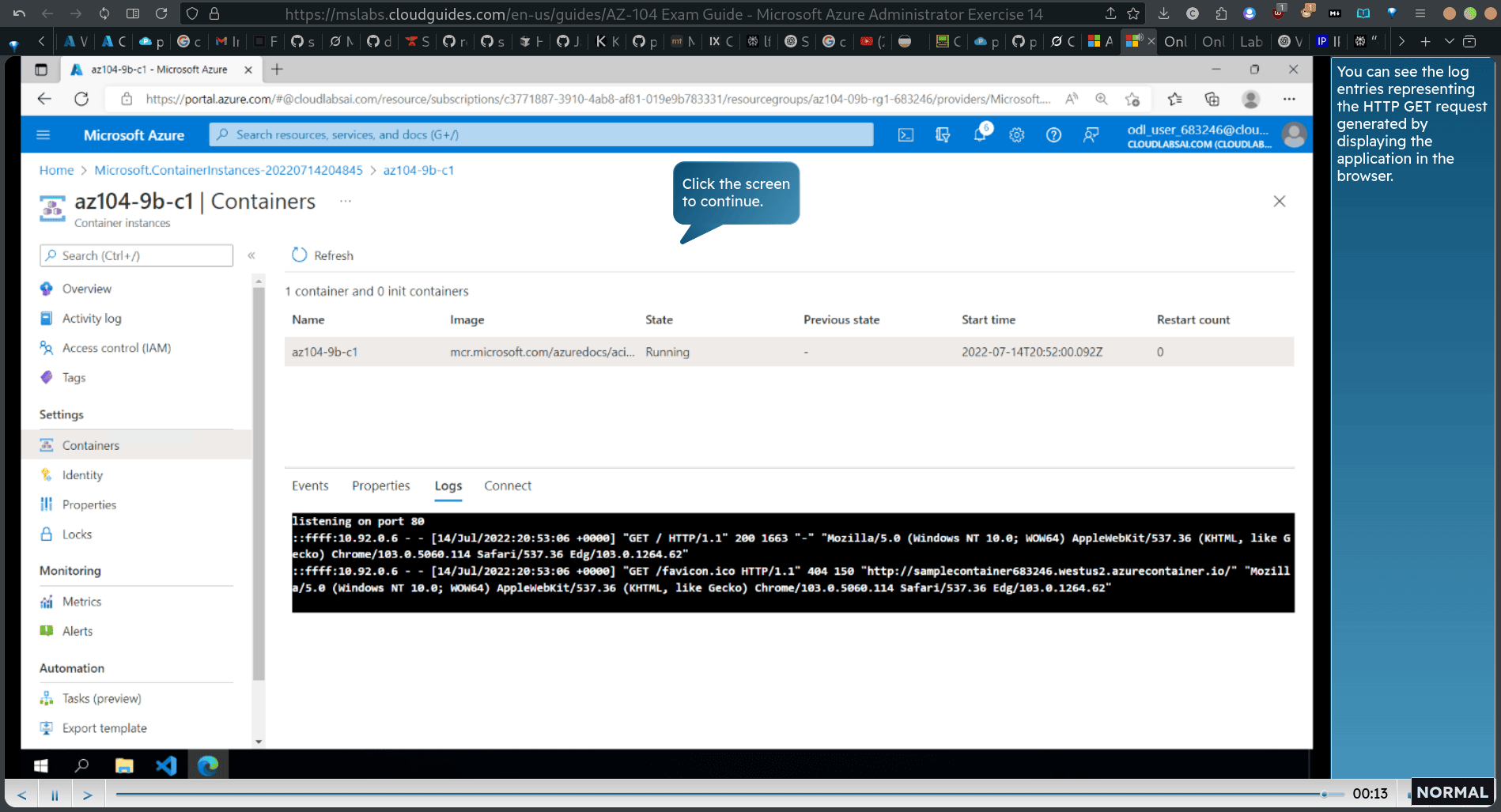

→ container → logs You can see the log entries representing the HTTP GET request generated by displaying the application in the browser.

15. Implement Azure Kubernetes Service >

Task 1: Register resource providers

→ subscription → resource provider → search k8s

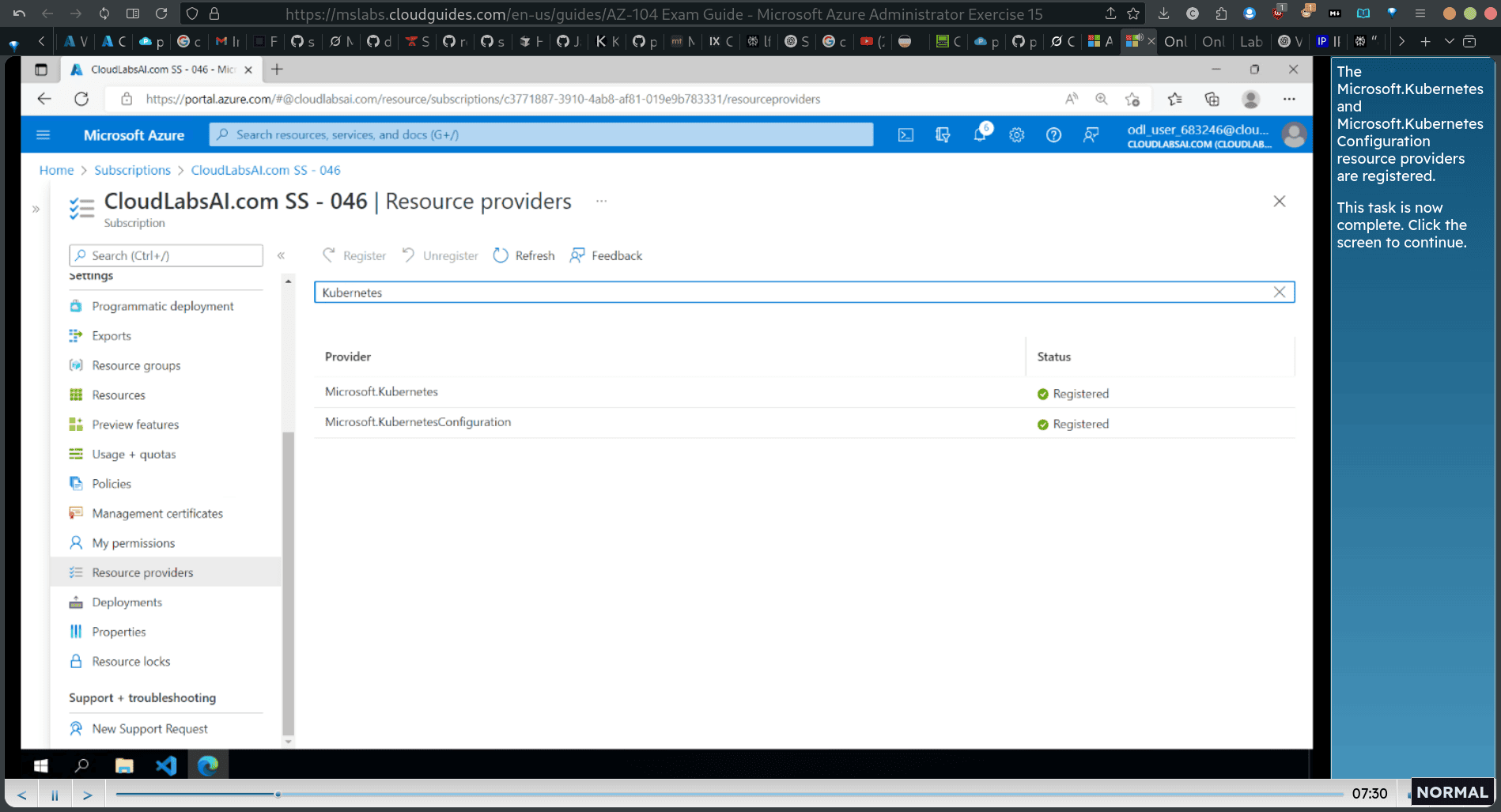

The Microsoft.Kubernetes and Microsoft.Kubernetes Configuration resource providers are registered. This task is now complete. Click the screen to continue.

Task 2: Deploy an Azure Kubernetes Service cluster

→ search k8s service → craeter k8s cluster

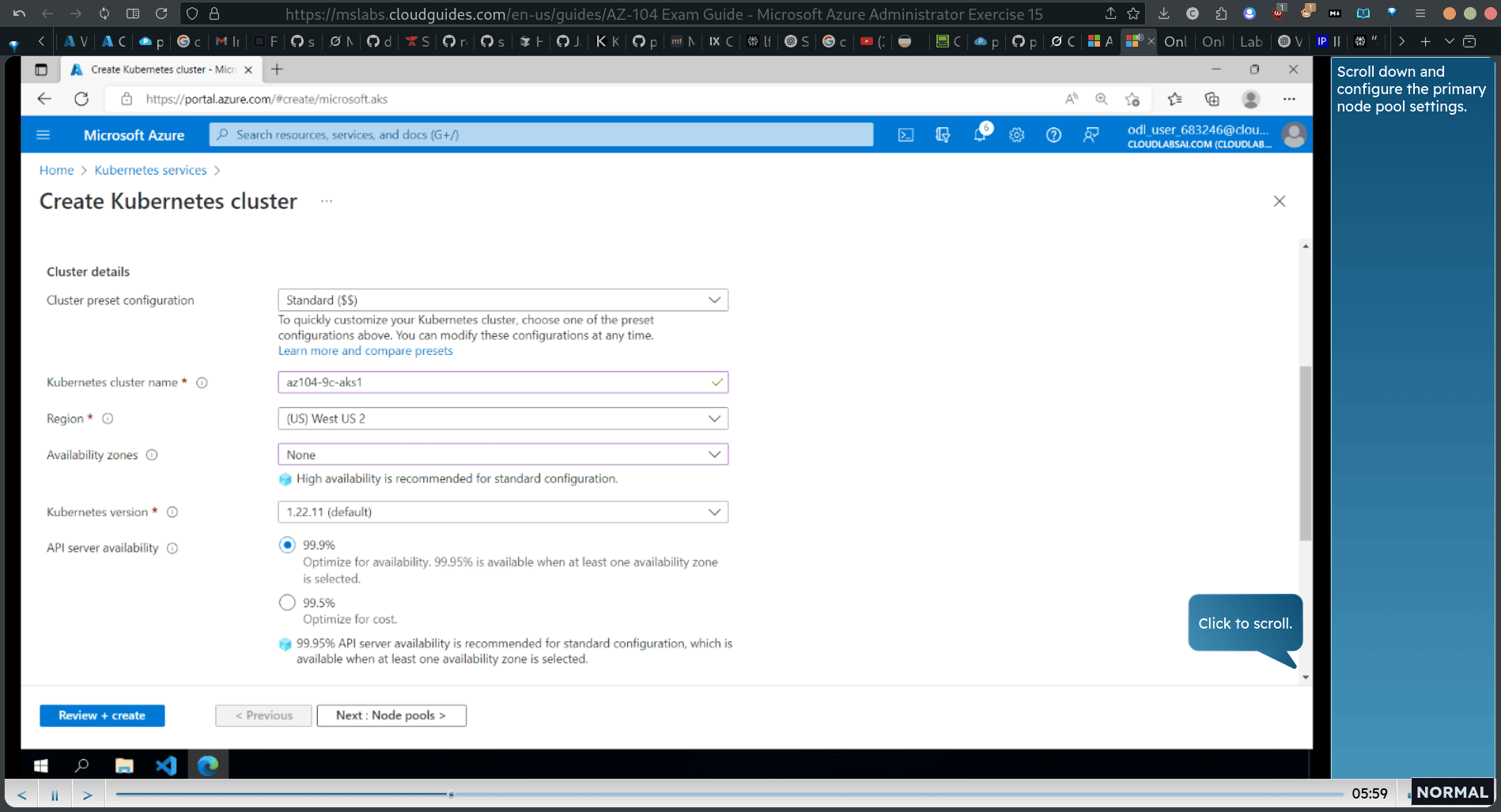

Scroll down and configure the primary node pool settings.

manual → 1 here

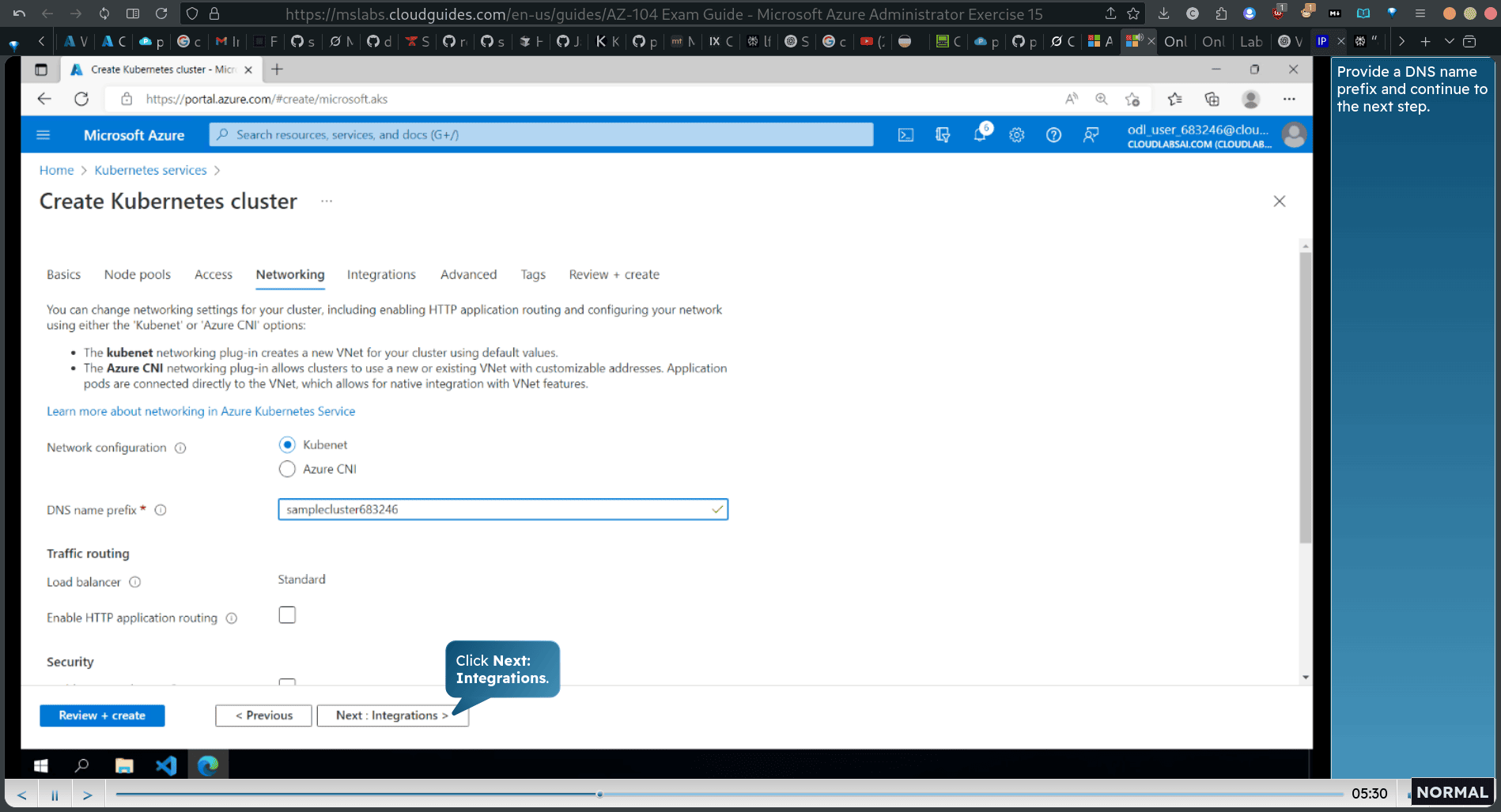

Provide a DNS name prefix and continue to the next step.

disable container monitoring

Task 3: Deploy a pod into the Azure Kubernetes Service cluster

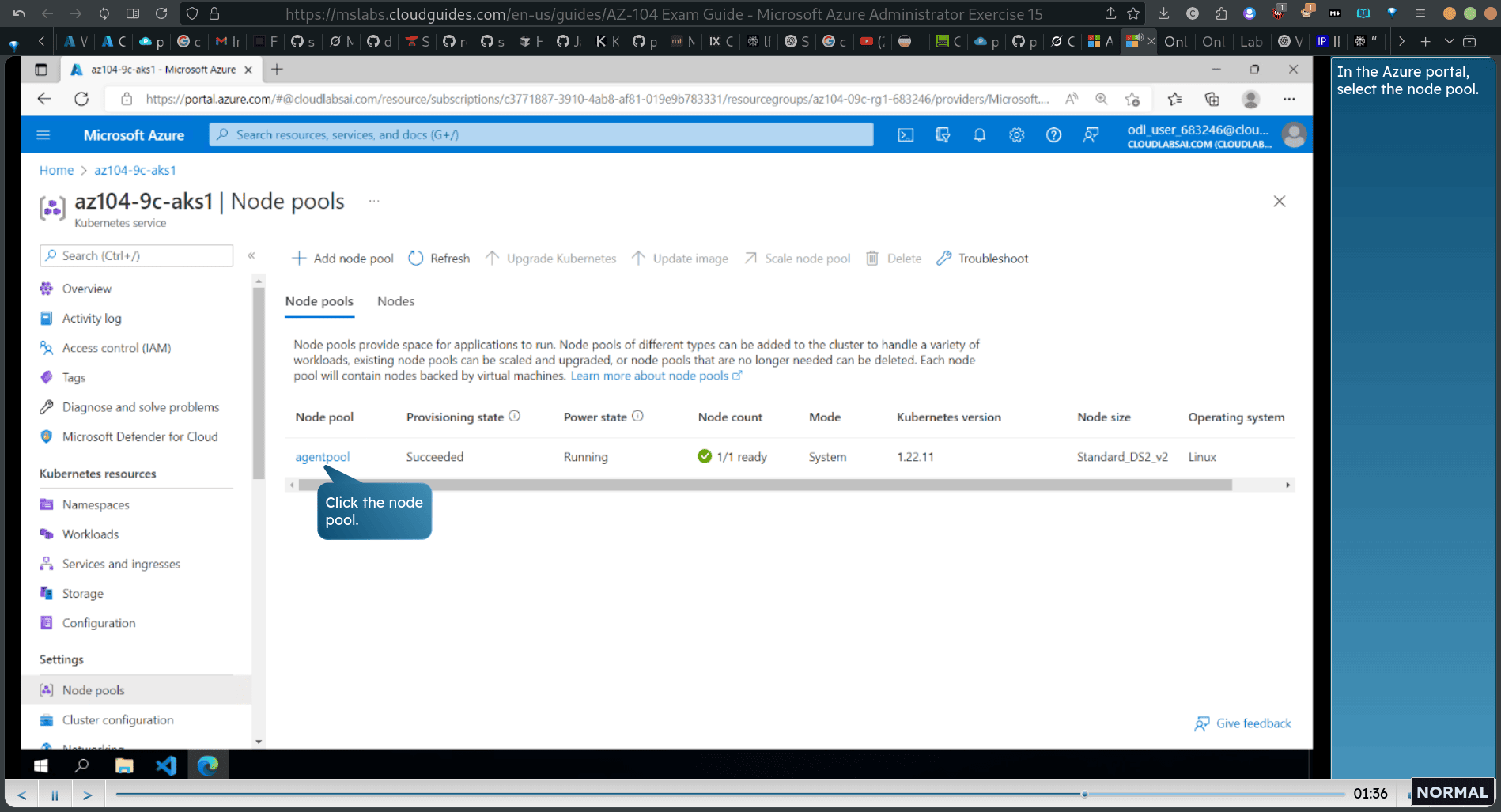

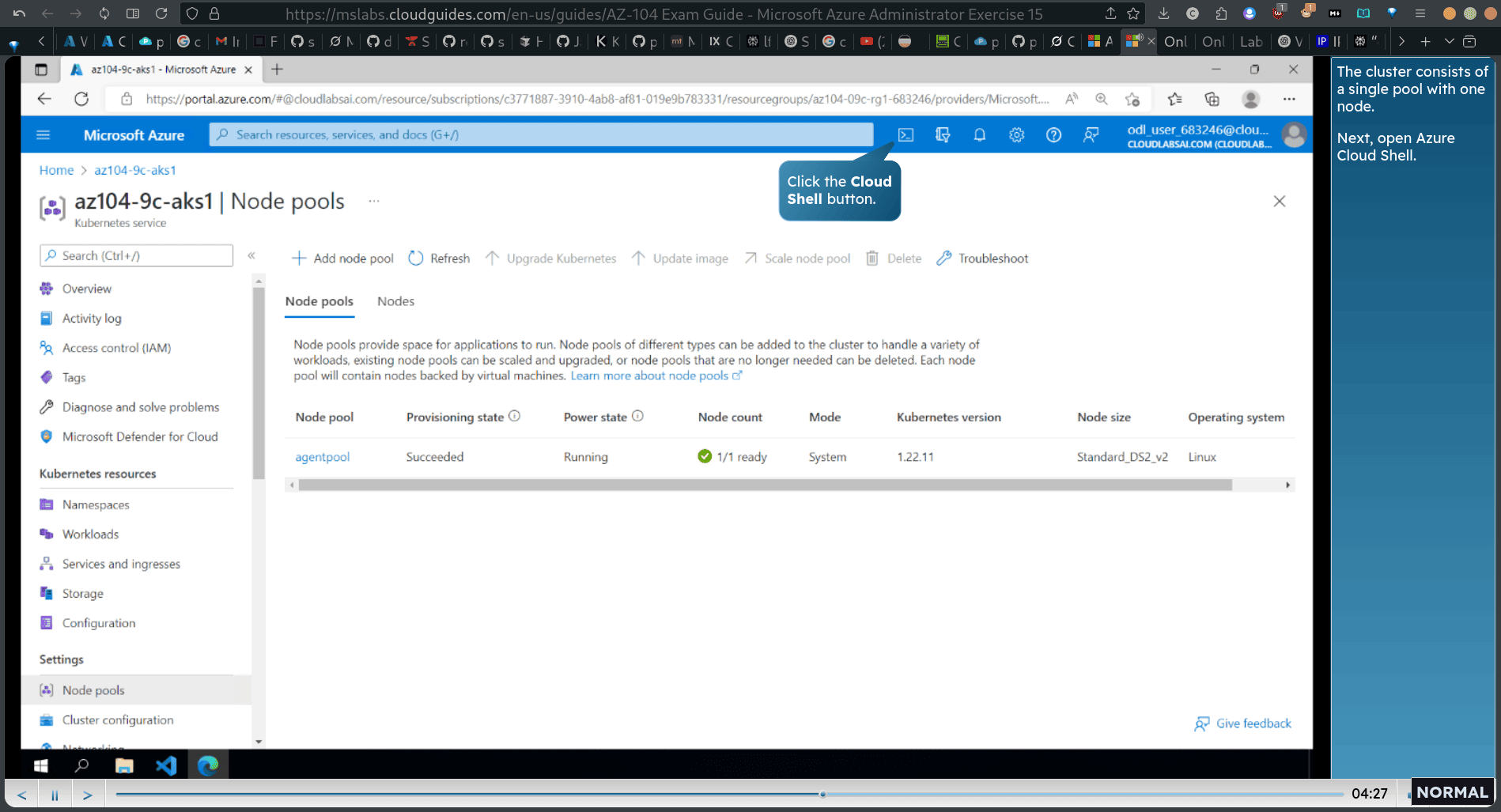

→ k8s service → node pools

cloud → bash
RESOURCE_GROUP=“‘az104-09c-rgl-683246 AKS_CLUSTER=“az104-9c-aks1’

az aks get-credentials —resource-group $RESO U RC E_{G} RO U P - - nam e$ AKS_CLUSTER

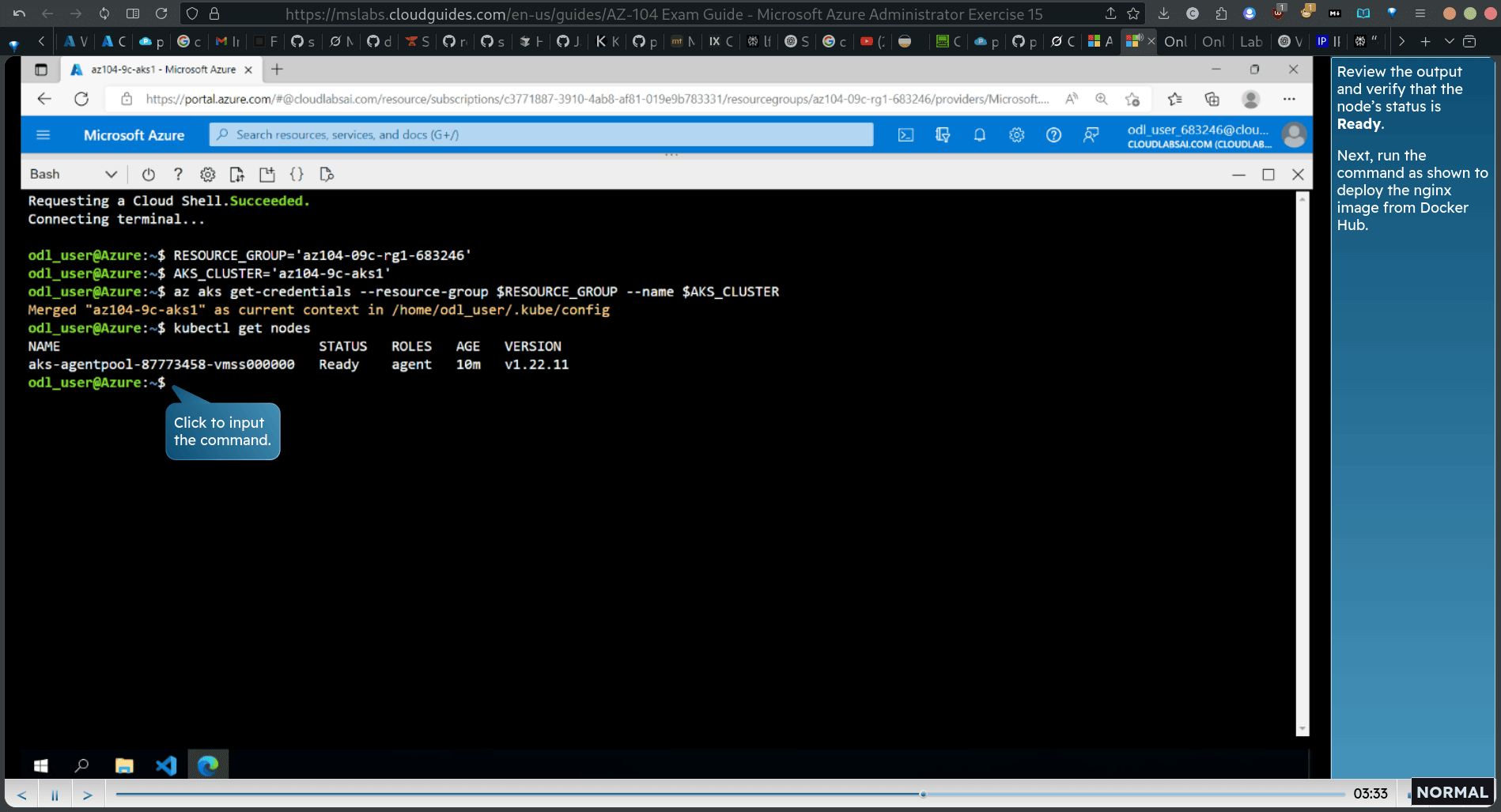

kubectl get nodes

kubectl create deployment nginx-deployment —image=nginx

kubectl get pods

kubectl get deployment

kubectl expose deployment nginx-deployment —port=80 —type=LoadBalancer

kubectl get service

(public ip address provisioned)

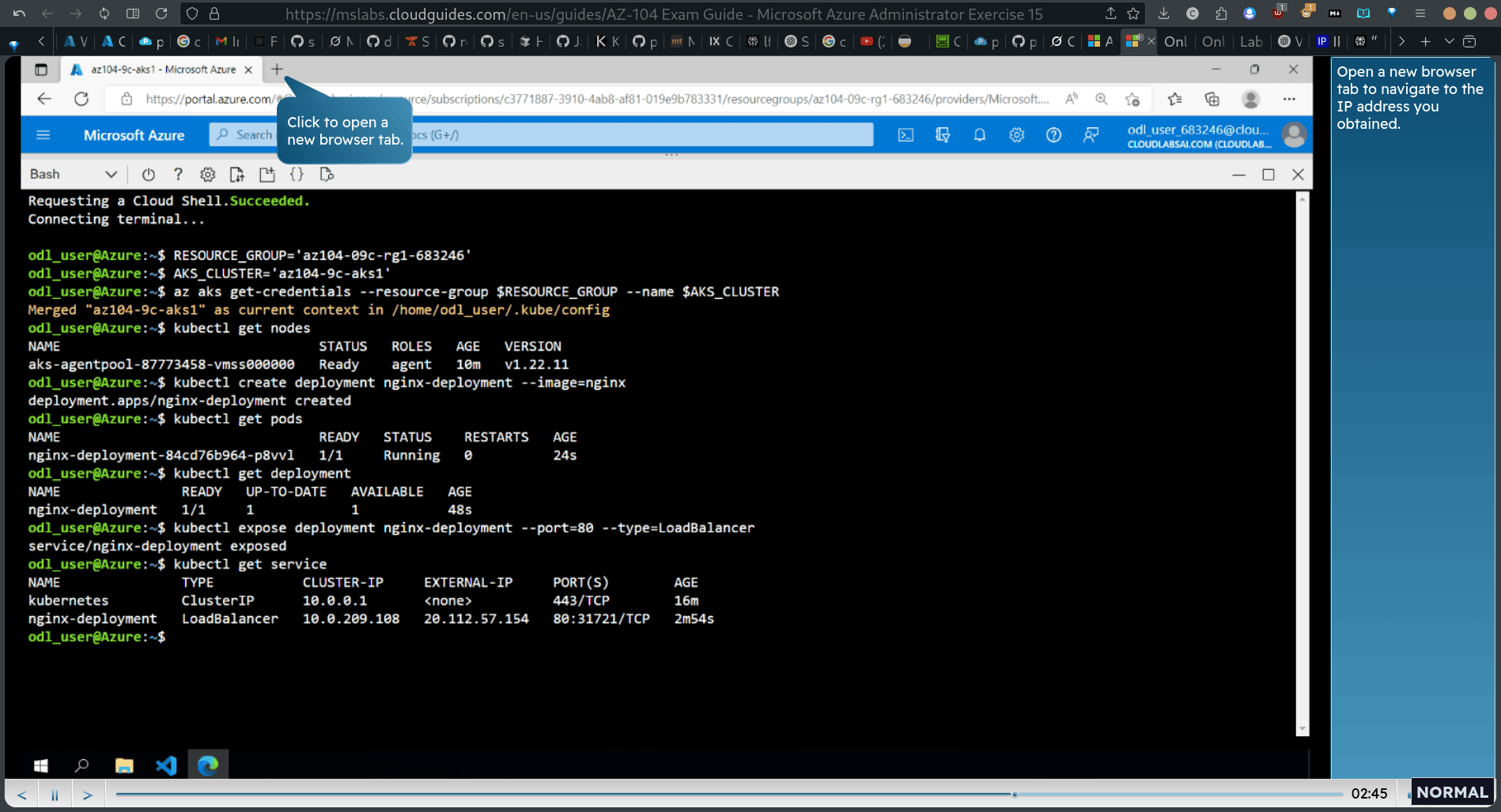

browser get the ip address from kubectl get service

Task 4: Scale containerized workloads in the Azure Kubernetes Service cluster

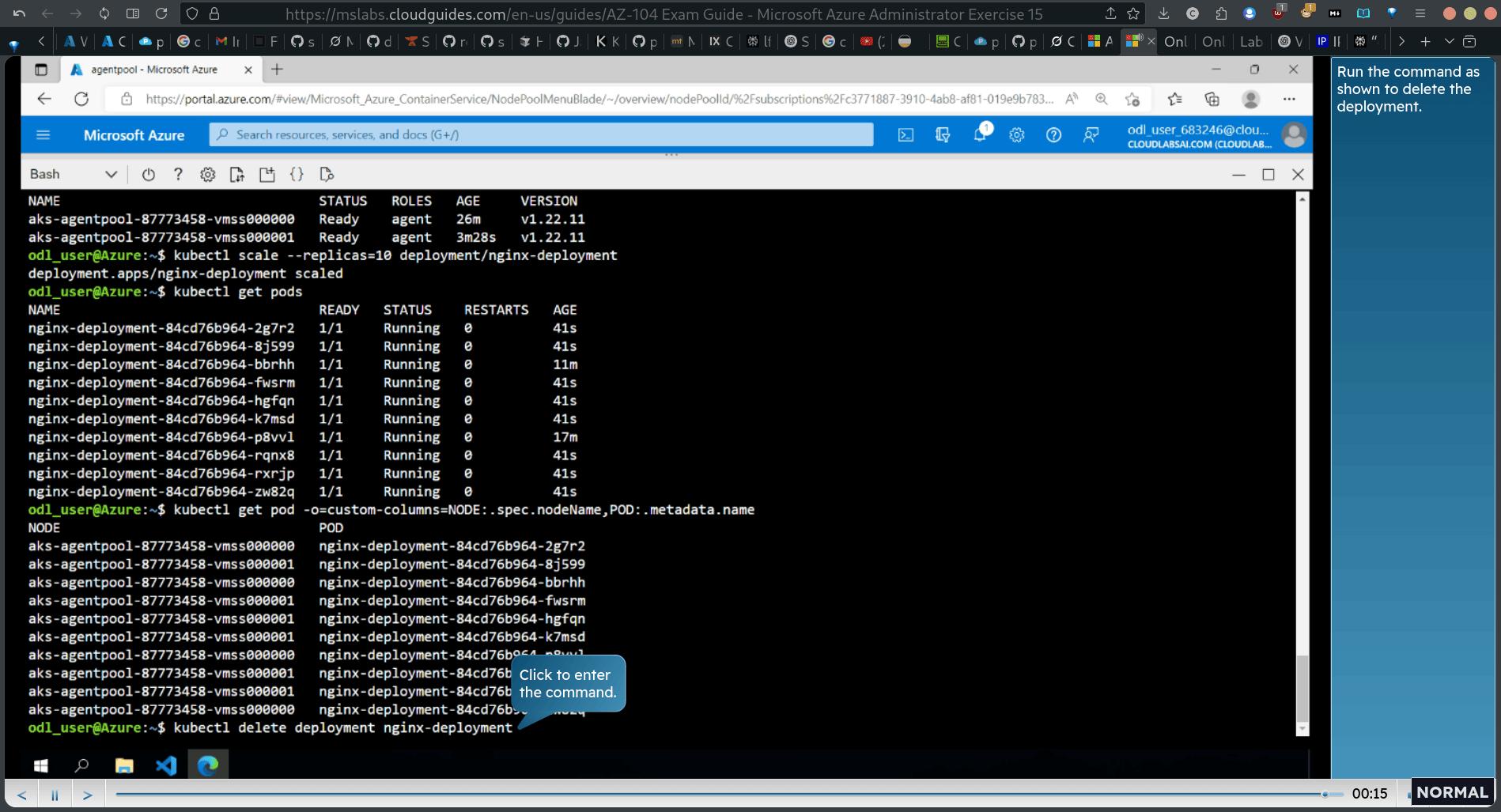

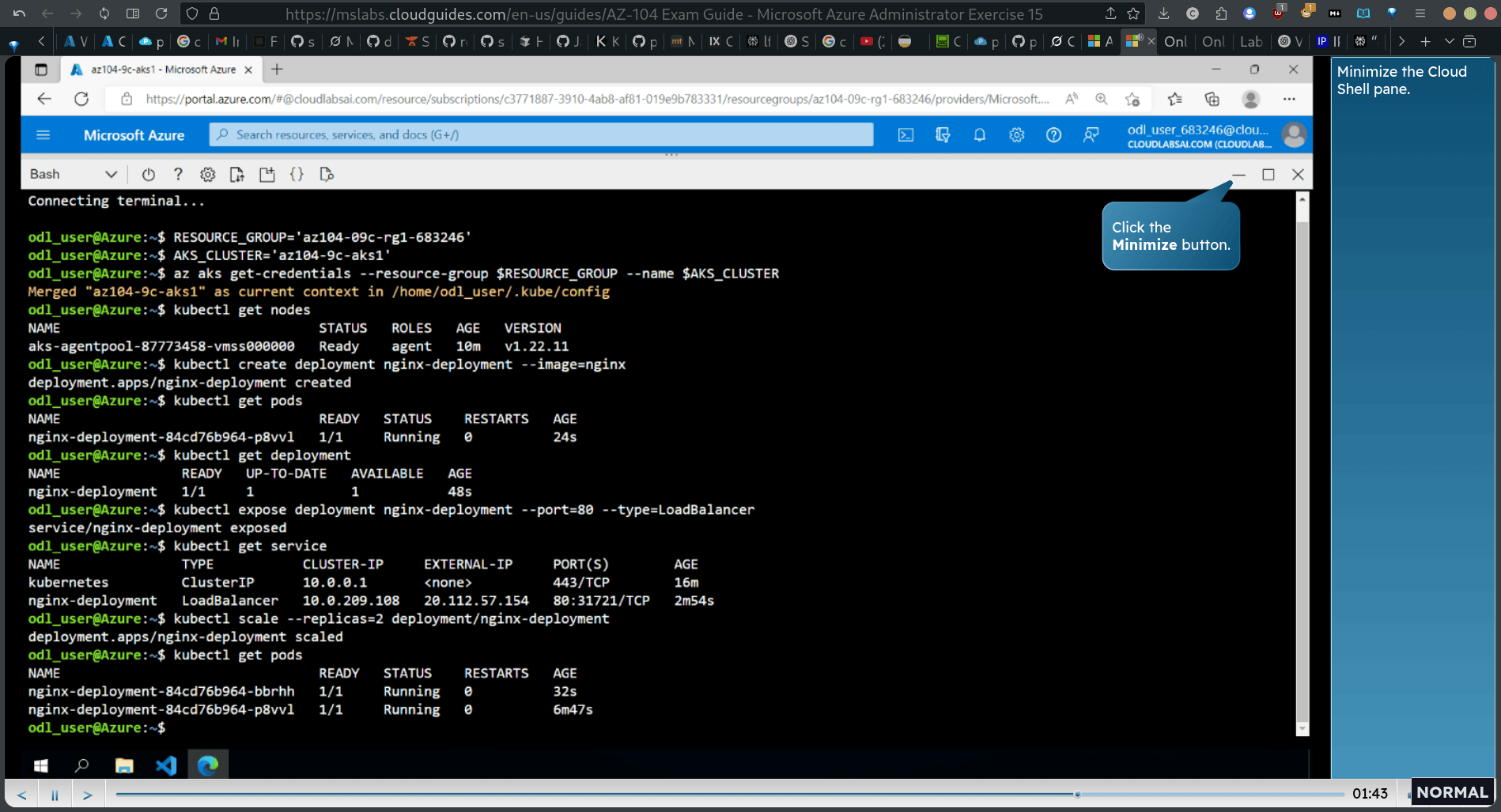

kubectl scale —replicas=2 deployment/nginx-deployment

increase pod

→ scaled

kubectl get pods

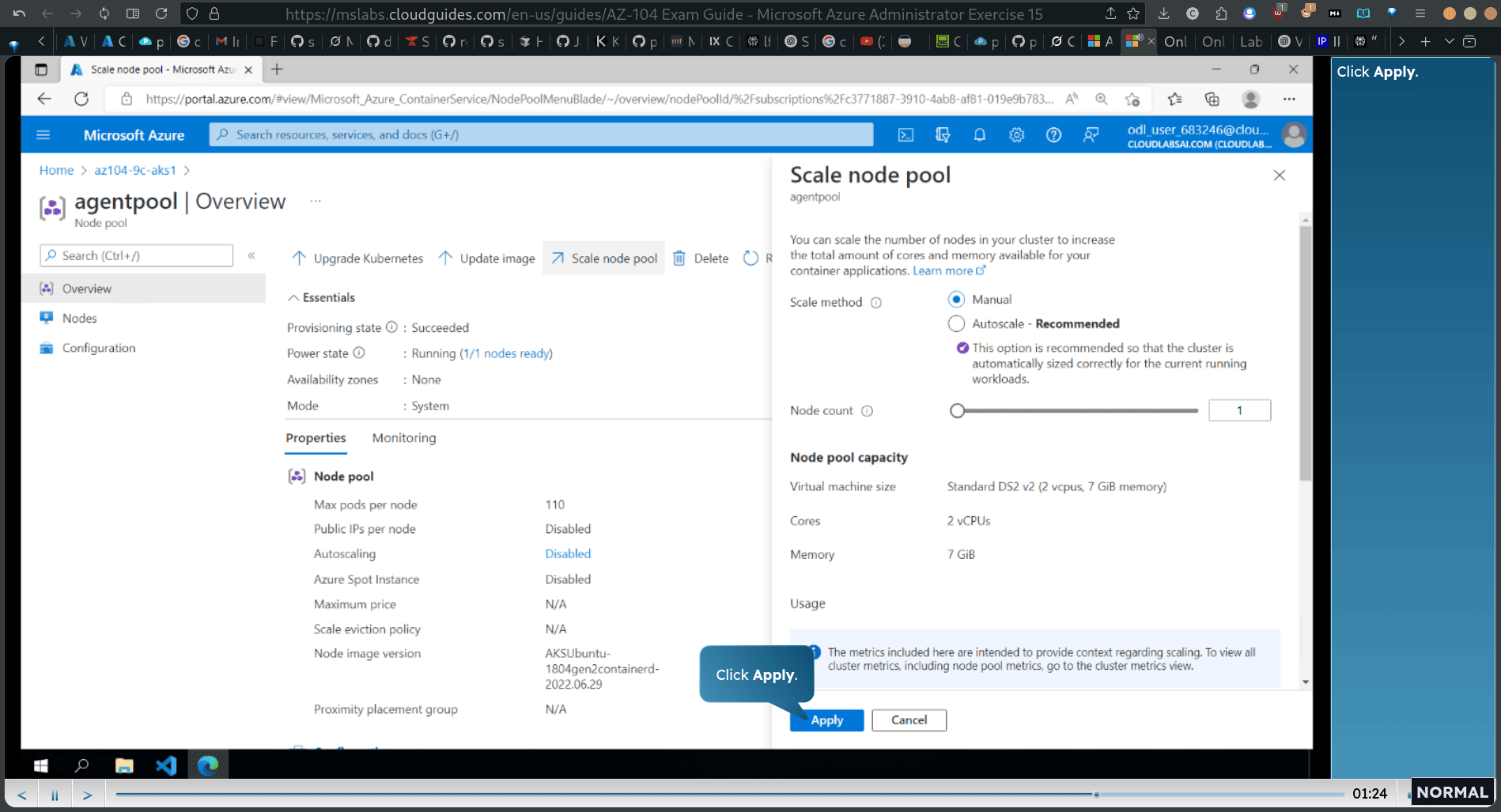

back → node pools → scale node pools

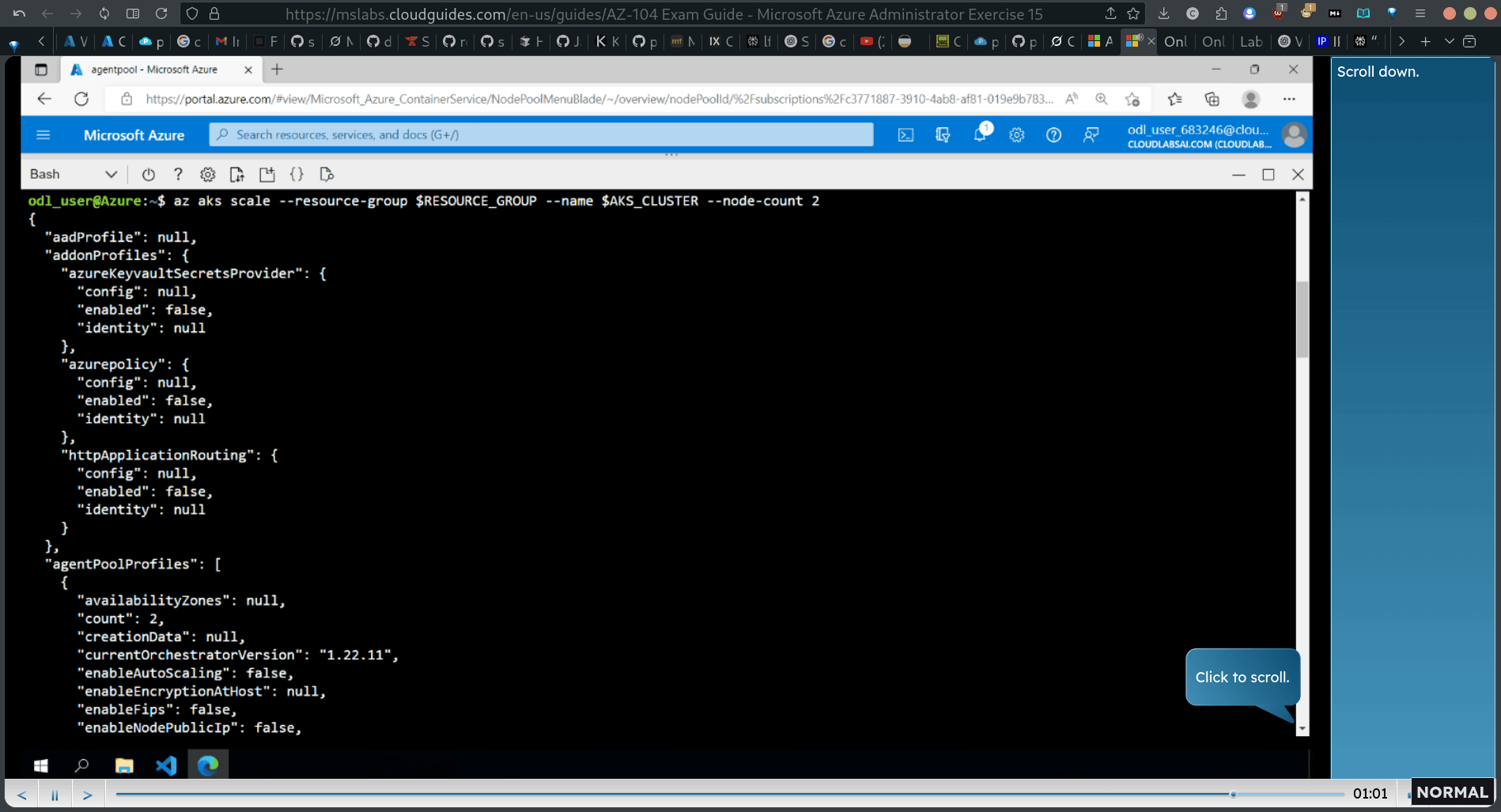

az aks scale —resource-group $RESO U RC E_{G} RO U P - - nam e$ AKS_CLUSTER —node-count 2

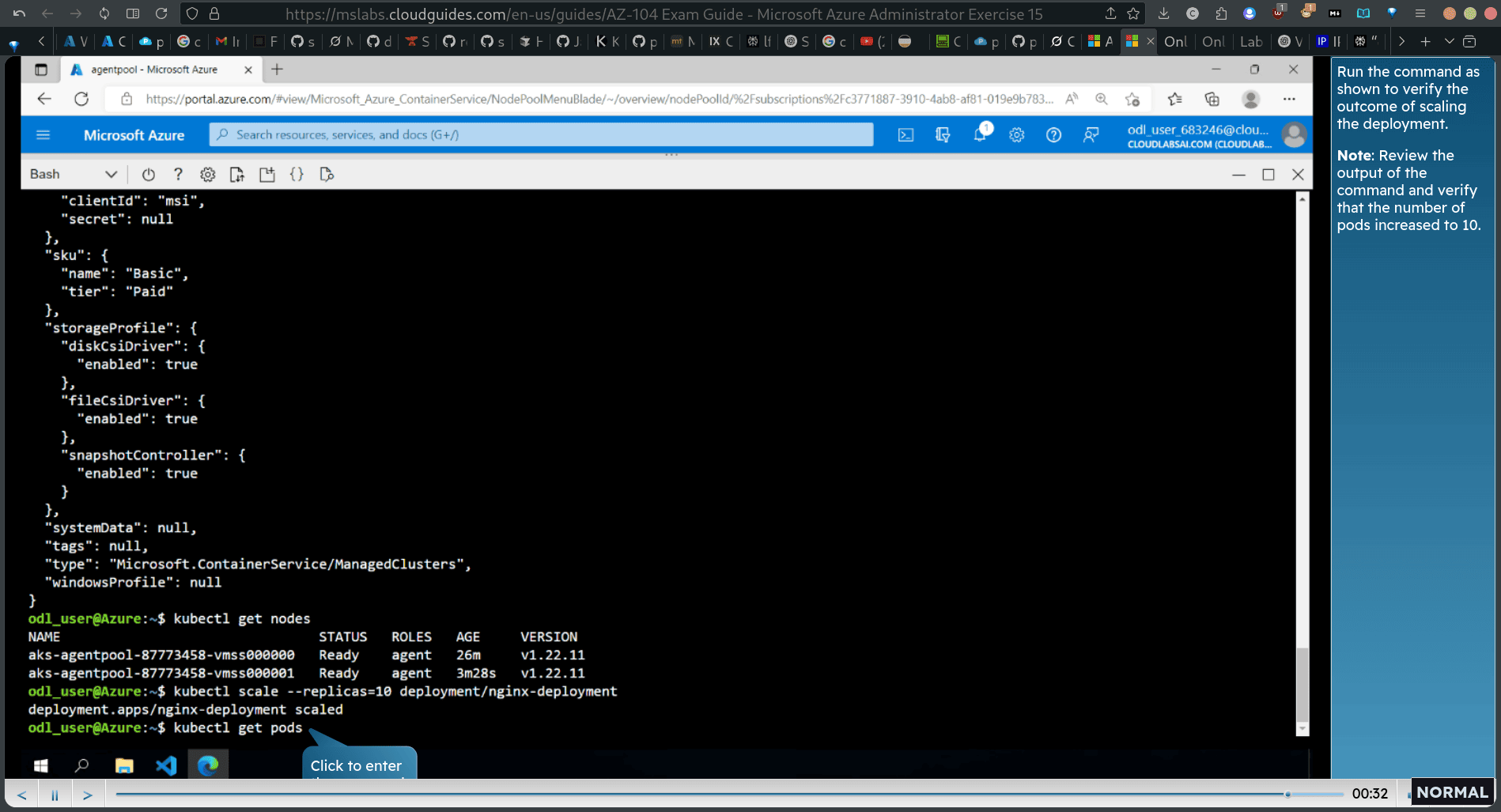

kubectl get nodes kubectl scale —replicas=1@ deployment/nginx-deployment

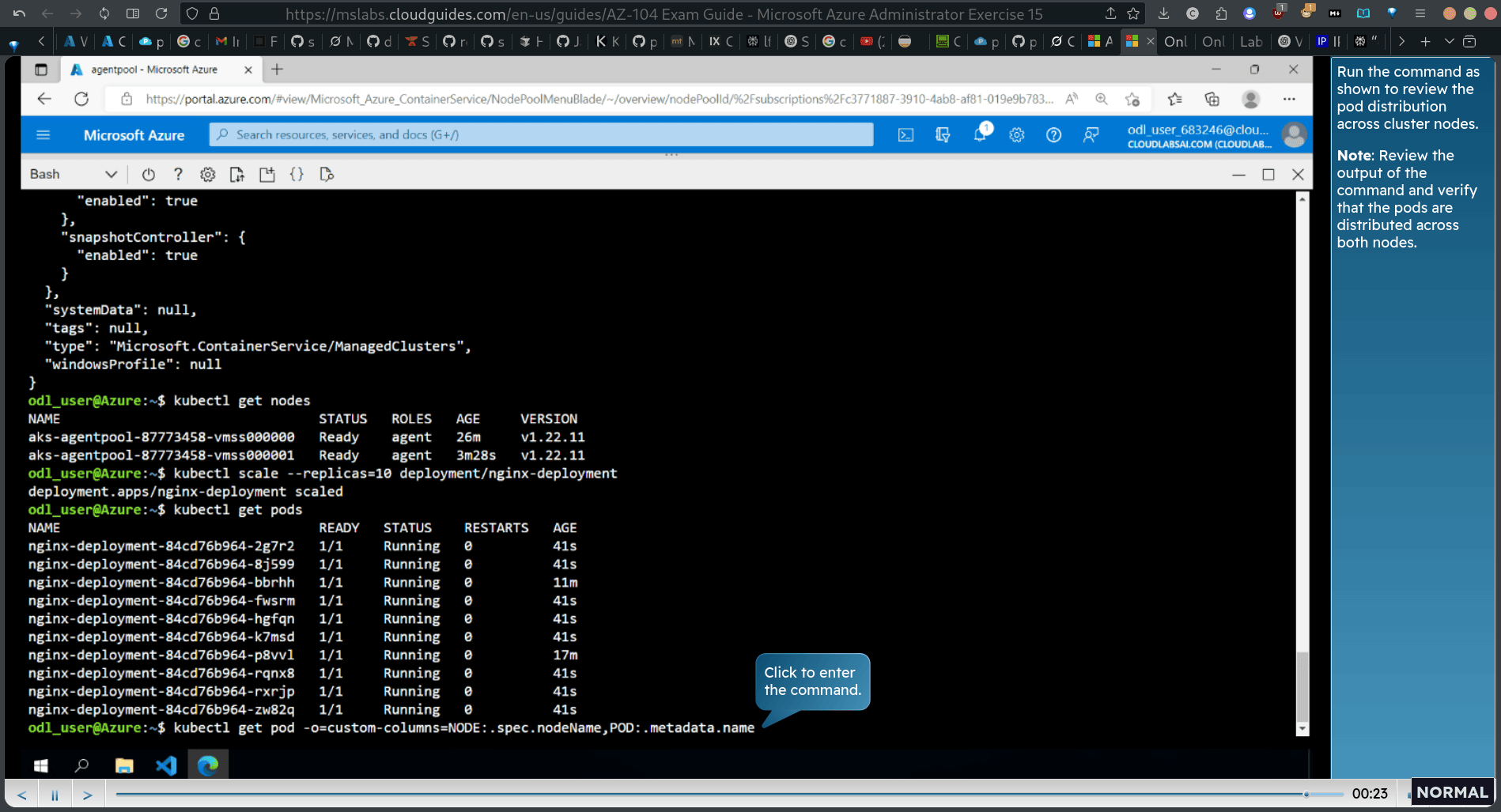

kubectl get pods kubectl get pod -o=custom-columns=NODE:.spec.nodeName,POD: .metadata.name

Run the command as shown fo review the pod distribution across cluster nodes. Note: Review the output of the command and verify that the pods are distributed across both nodes.

kubectl delete deployment nginx-deployment

16. Back up virtual machines >

Recent Writing

20250518-777-azure-notes-3az-104

777-azure-notes-3(az-104)

Task 3: Create an Azure AD tenant

Task 4: Manage Azure AD guest users

2. Manage subscriptions and RBAC >

Task 1: Implement management groups

Task 2: Create custom RBAC roles

Task 3: Assign RBAC roles

3. Manage governance via Azure Policy >

Task 2: Create Azure AD groups with assigned and dynamic membership

Task 3: Create an Azure AD tenant

3. Manage governance via Azure Policy ( real one)

Task 1: Create and assign tags via the Azure portal

Task 2: Enforce tagging via an Azure policy

Task 3: Apply tagging via an Azure policy

4. Manage Azure resources by using the Azure portal >

Task 1: Deploy resources to an existing resource group

Task 2: Move a resource between resource groups

Task 3: Implement and test a resource lock

5. Manage Azure resources by using Azure Resource Manager templates >

Task 1: Review an ARM template for deployment of an Azure managed disk

Task 2: Create an Azure managed disk by using an ARM template

Task 3: Review the ARM template-based deployment of the managed disk

6. Manage Azure resources by using Azure PowerShell

Task 1: Start a PowerShell session in Azure Cloud Shell

Task 2: Create a resource group and an Azure managed disk by using Azure PowerShell

Task 3: Configure the managed disk by using Azure PowerShell

7. Manage Azure resources by using the Azure CLI > bash

Task 1: Start a Bash session in Azure Cloud Shell

Task 2: Create a resource group and an Azure managed disk by using Azure CLI

Task 3: Configure the managed disk by using Azure CLI

8. Implement virtual networking >

Task 1: Create and configure a virtual network

🔍 1. Ask: How many IP addresses do you need?

📘 Example Use Cases

🔸 If you’re creating:

🧮 How to calculate the subnet size

✅ Subnet Planning Tips for Azure

🔹 Why does Azure reserve 5 IP addresses per subnet?

🔸 Example: 10.40.0.0/24 subnet

✅ Why this matters:

Task 2: Deploy virtual machines into the virtual network

Task 3: Configure private and public IP addresses of Azure VMs

Task 4: Configure network security groups

Task 5: Configure Azure DNS for internal name resolution

Task 6: Configure Azure DNS for external name resolution

9. Implement inter- site connectivity >

Task 1: Create and configure a virtual network

Task 2: Configure local and global virtual network peering

Task 3: Test inter-site connectivity

10. Implement traffic management >

Task 1: Deploy virtual machines

Task 2: Configure the hub and spoke network topology

Task 3: Test transitivity of virtual network peering

Task 4: Configure routing in the hub and spoke topology

🔹 1. Virtual Network Gateway

🔹 2. Virtual Network

🔹 3. Internet

🔹 4. Virtual Appliance

🔹 5. None

🧠 Summary Table

🧭 Route Details

🧠 What This Route Means

✅ Why it’s configured this way

The reasons behind it likely include:

🔸 1. Security filtering

🔸 2. Centralized routing

🔸 3. Hub-and-spoke network design

🔐 Why not route directly?

📘 Visual Representation

🚦 Final Note

Task 5: Implement Azure Load Balancer

🔹 What is Port 80?

🔄 Frontend Port vs. Backend Port in Azure Load Balancer

✅ Why both are set to 80 in most tutorials:

🔸 1. Simple Web Server Demo

🔸 2. No Port Translation Needed

🔸 3. Browser Compatibility

🧪 Example

🔸 Example: `10.40.0.0/24` subnet
