777-Compiler

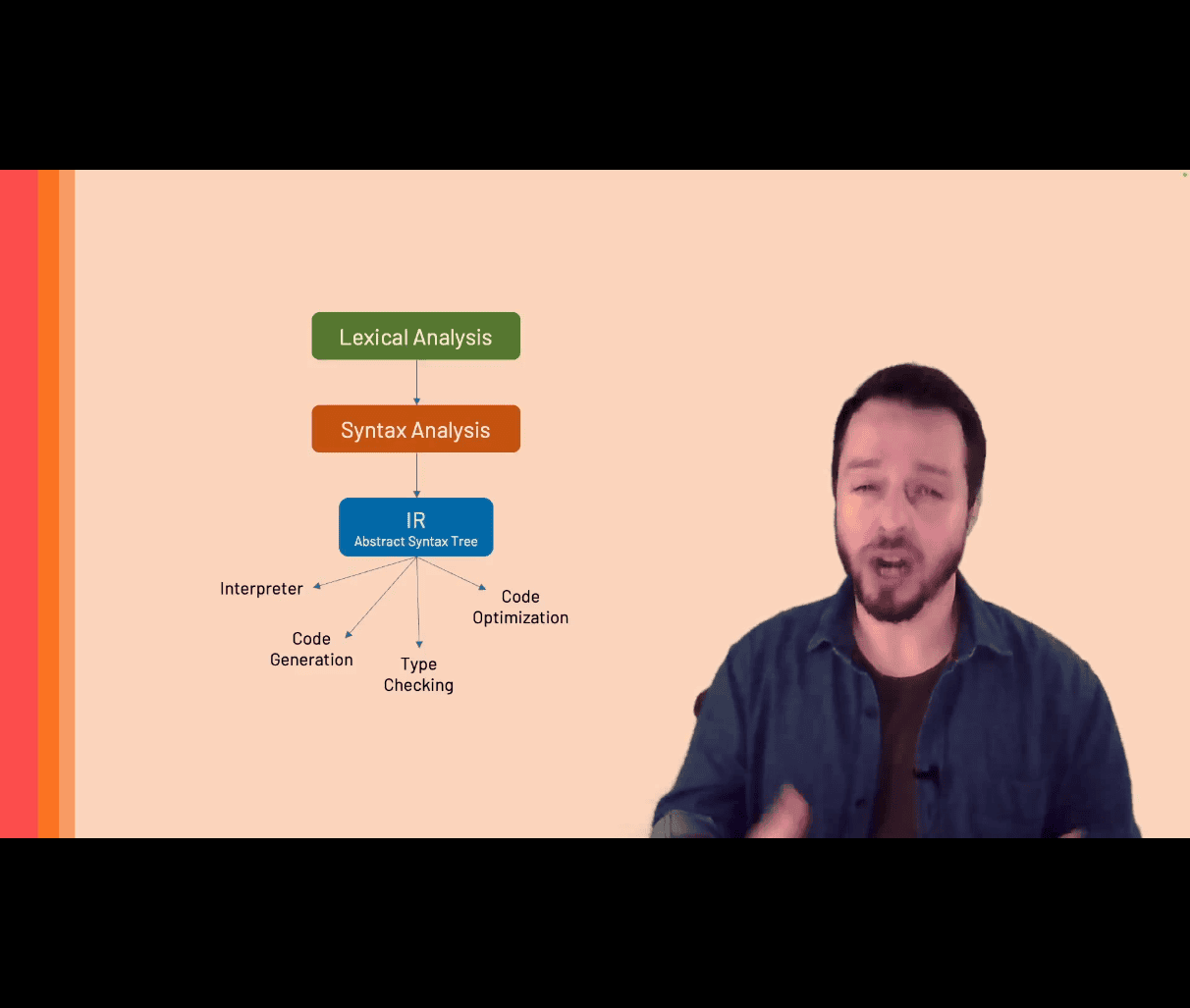

Lexical Analysis (scanning and finding token) Syntax Analysis (parsing) , grammar, dnf form IR (Abstract Syntax Tree) model in memory
Compiler and Interprets
python > allow focus on these concept
native C optimize
- code in parallel with the writer
head in time just in time interpretation
CPU pikuma
even for VM

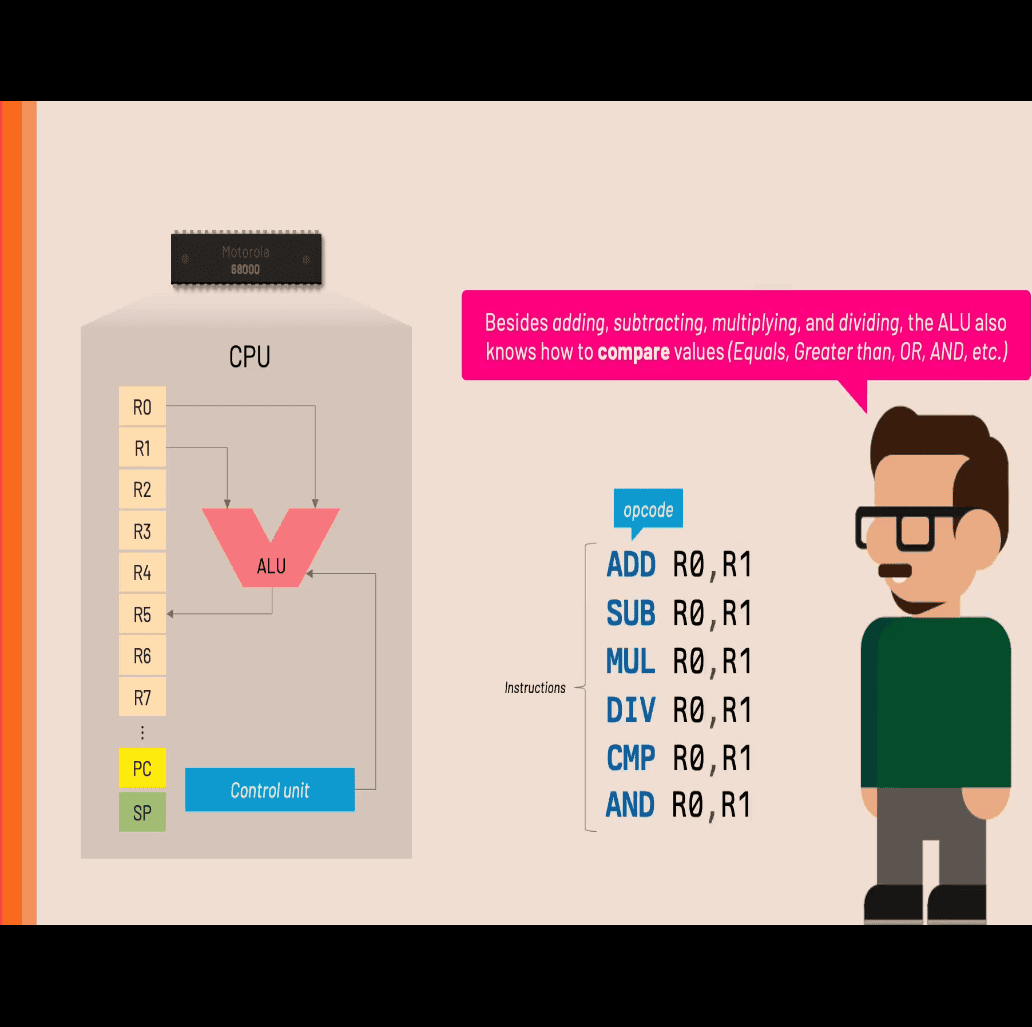

math , logic part is done by ALU
Control unit → ALU , where we are going excute the program
like
control unit aka instruction pointer SP → Stack Pointer
load and store from memory btw register cpu ⇐> Memory

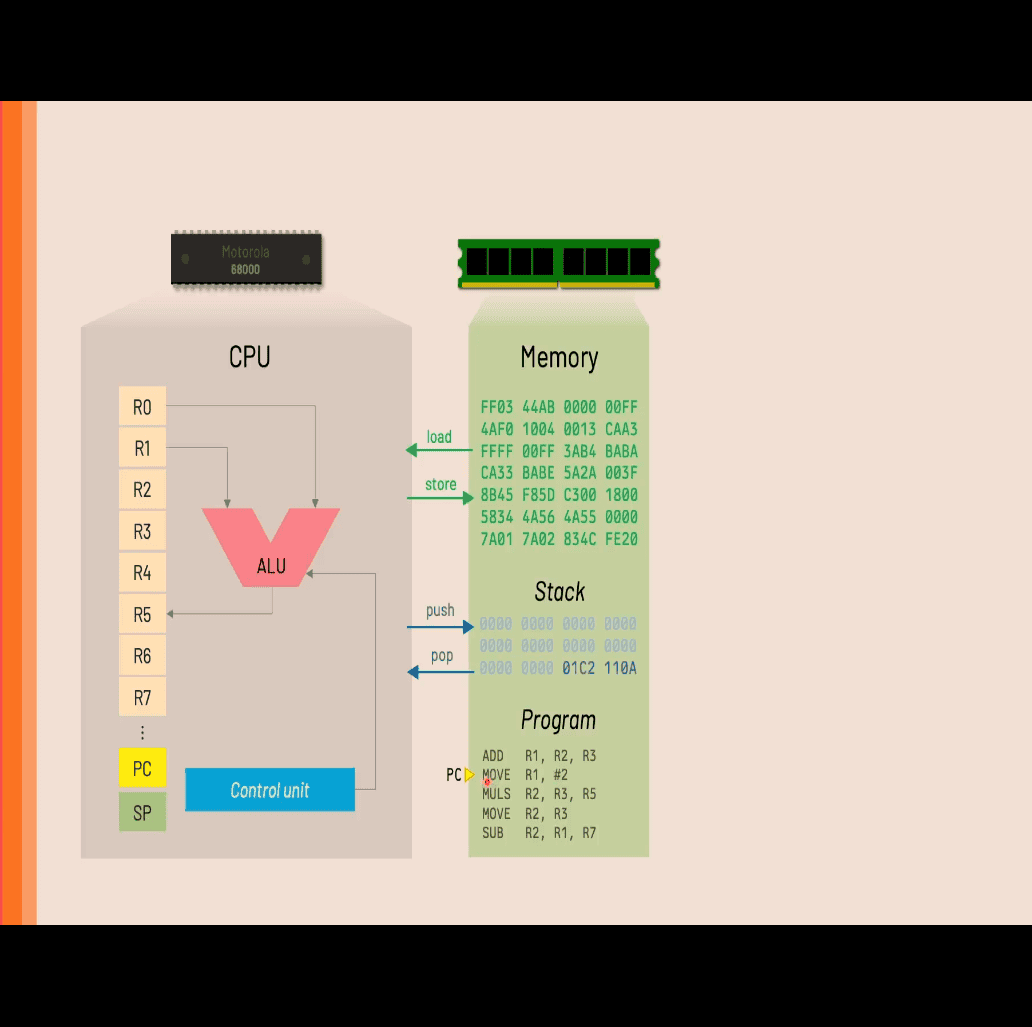

Program is also in memory
- different cpu have different instruction set

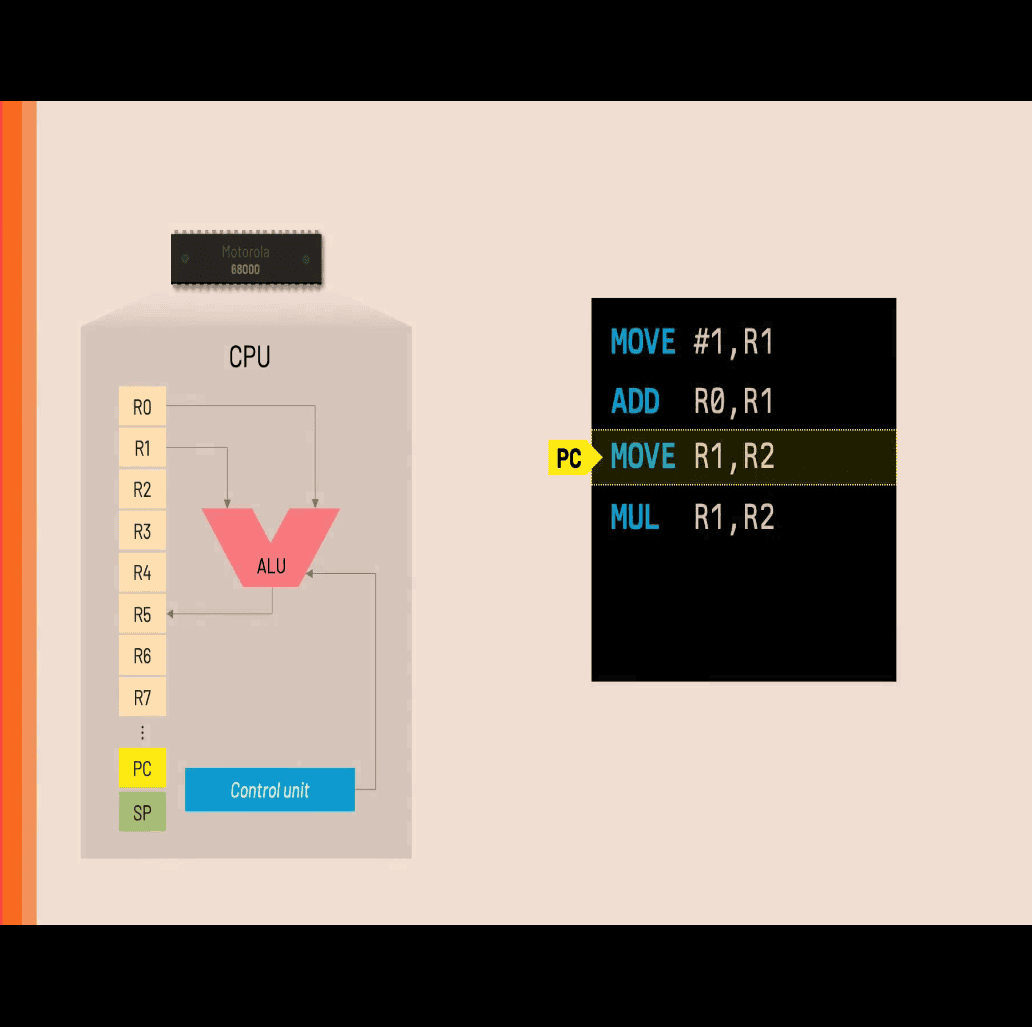

Executing cpu instruction
e.g. 2+4 * 3-6 PC → Move #2, DO
load the value into register first then doing the operation
MULS ( S ~> mean Sign) ADD D0,D2 SUB D3,D2
-
math rule (manually) ⇒ instruction important
-
what if we run out of register? 1.stack for temporary storage for
+-\*/Specy/asm-editor: A modern webapp to write, run and learn M68K and MIPS assembly code
when mul and add , the value store in D2, (update D2)
using cpu (stack) only yet

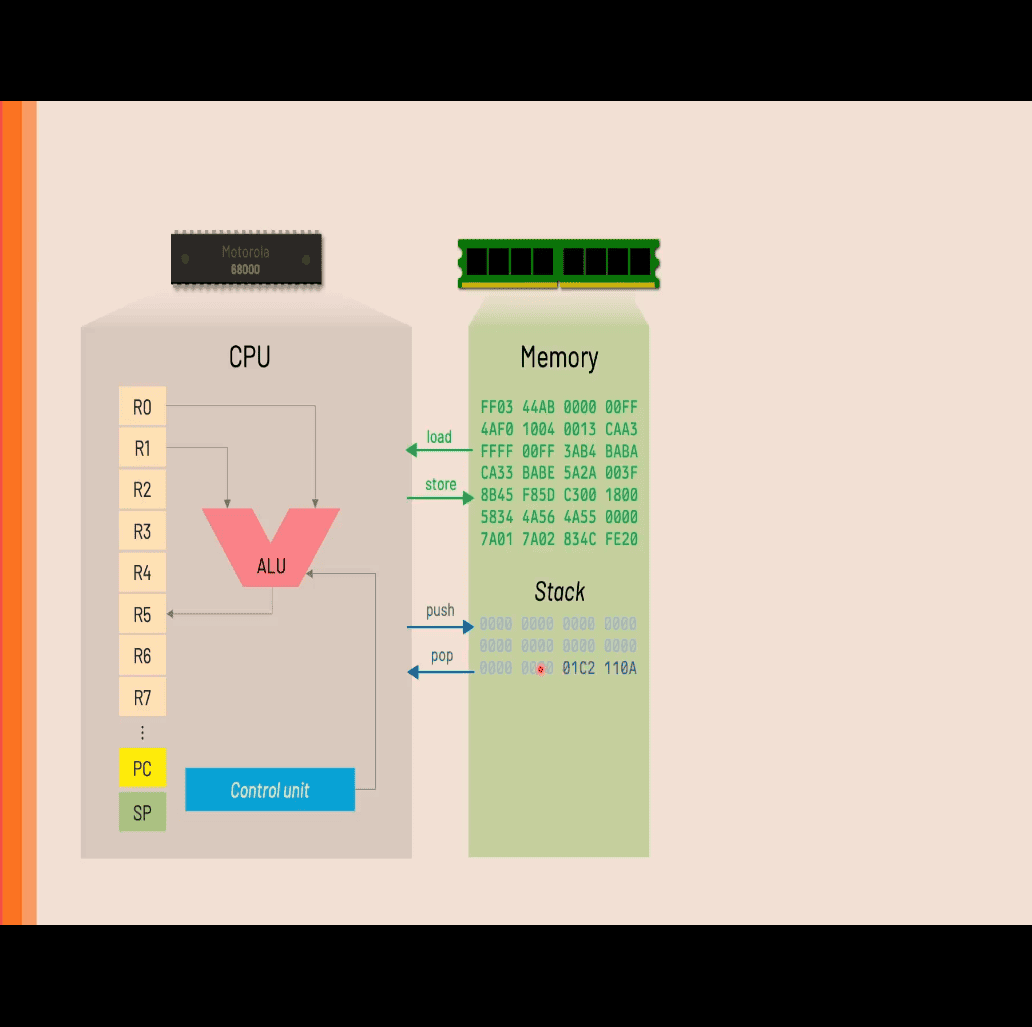

Push and Pop
MOVE D2, -(SP)
- decrement the stack pointer and store the value in the stack, = push
it seems like store in the last value from the stack first
MOVE D7, (SP)+ ; D7 didn’t used yet
- this is typo, because it is store in the SP
MOVE (SP)+, D7 ; pop back in the register
backup place from the stack e.g. box
Control Flow Instruction

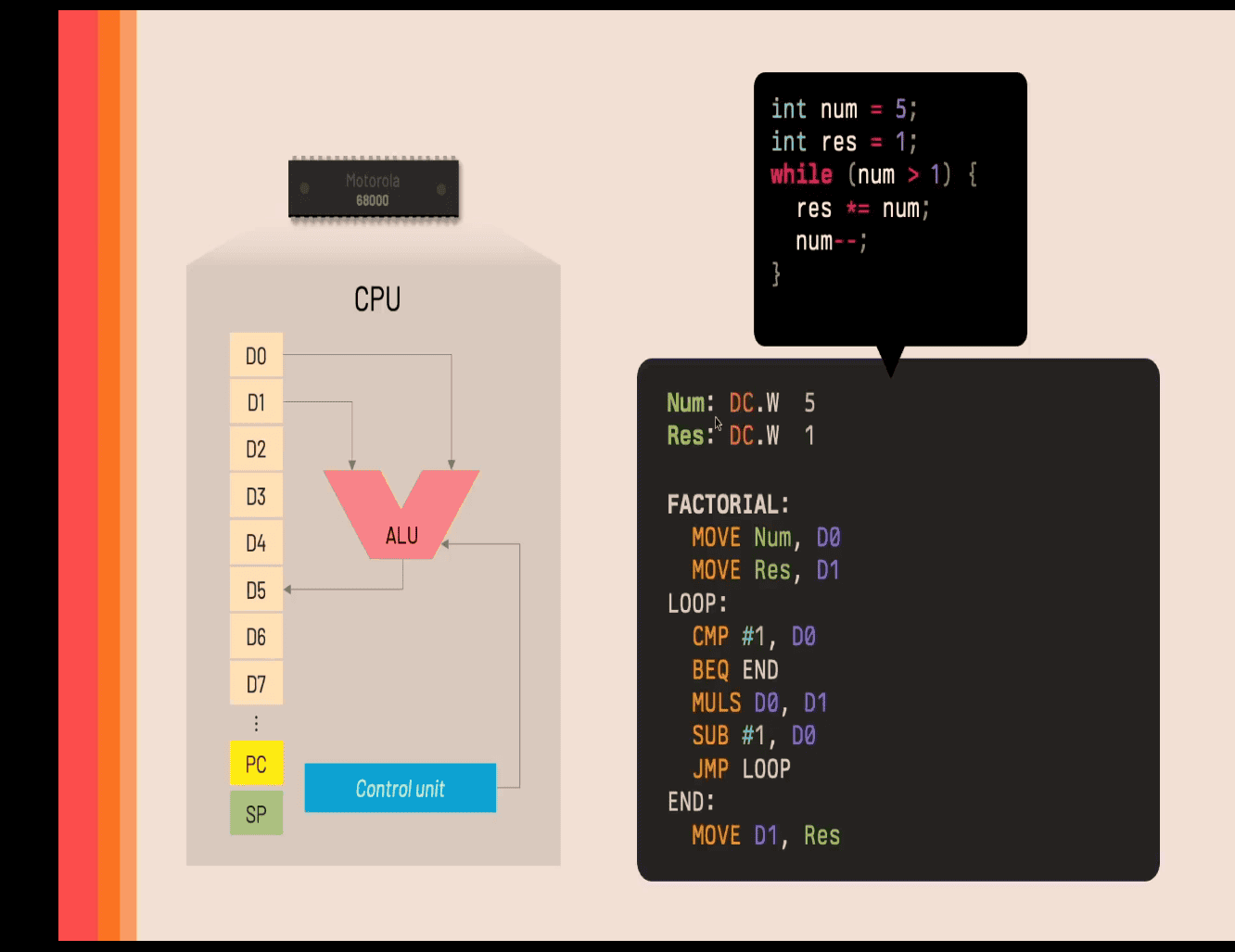

what is a program? 5! = 5 * 4 * 3 * 2 * 1
int num=5; // number store
int res=1; // result
while (num>1){
res *= num;
num--;
}

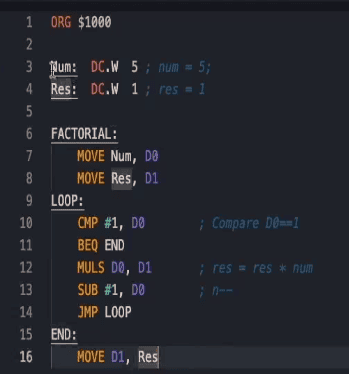

Num: (label) DC.W 5 , data label,
Res: DC.W 1
int num = 5
seting up alias, reserving data
factorial: move num, d0 move res, d1
everything has to be done in the register
CMP #1, D
JMP LOOP jump back to loop JMP ~> LOOP:
CMP → compare BEQ END → branch if equal
END ~> END: part
Branching and jumping : = processor in the program counter
blue part of the picture, control unit
PC = Program counter SP = Stack Pointer
FLOW >= nature of loop 🔥
SP → stack pointer is more giving more space to the register to work
cash mechine box
from the e.g. the SP seems start from the maximum value of the memory

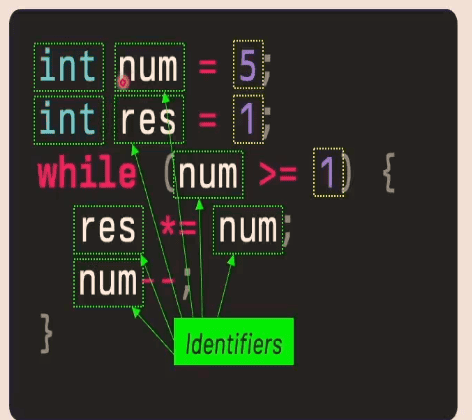

Program Structure
.c file is just are characters with ascil2 code

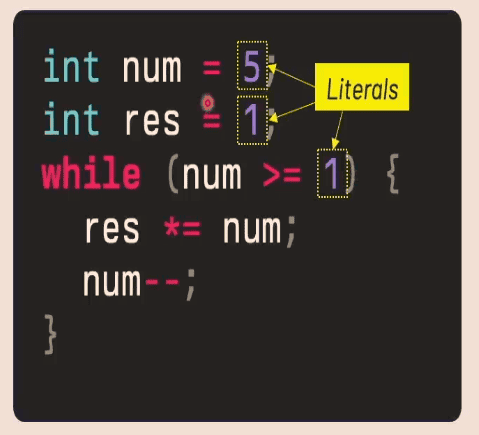

number = literals
= , + , etc , ⇒ operators
token >= → operators
{}, () ⇒ grouping
-- ⇒ decrement
aka Binary Operator
only on one variable → unary operator

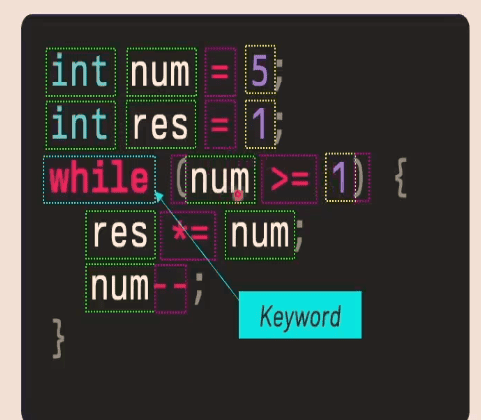

while , if , else
- resersed word / keyword

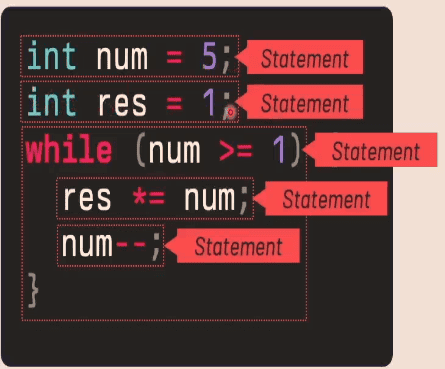

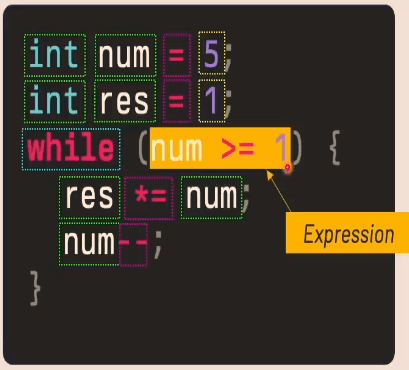

- evaluating the expression
- executing something

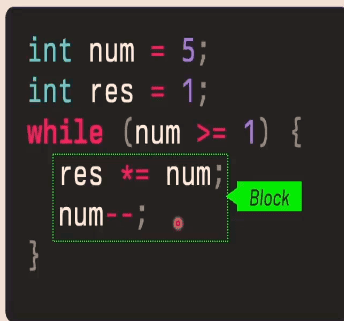

- block , nested statement → keep in control
- unary operator, binary operator
how do we represent a program using a data structure?
- data structure in memory memory model ?

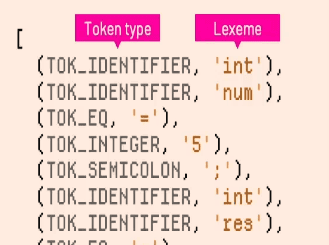

Tokens &lexemes
grammar , expression, statement for that program in memory
1 characters after characters,

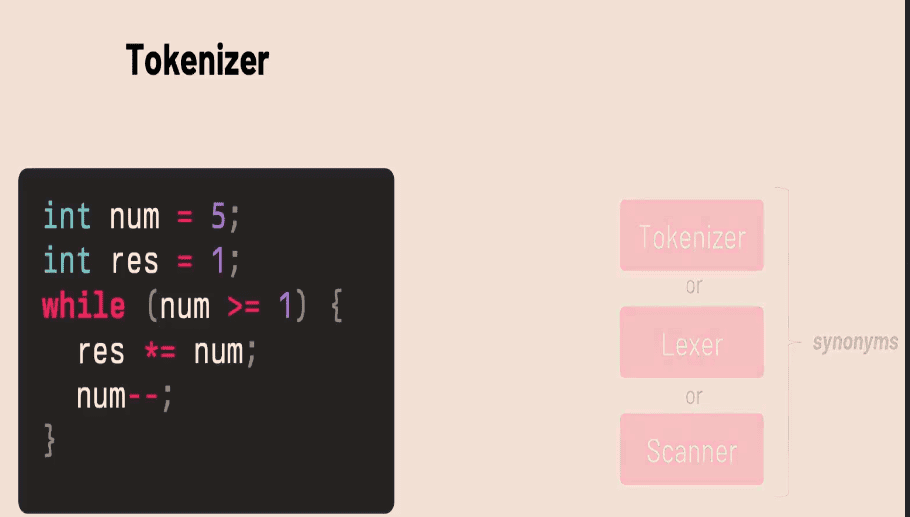

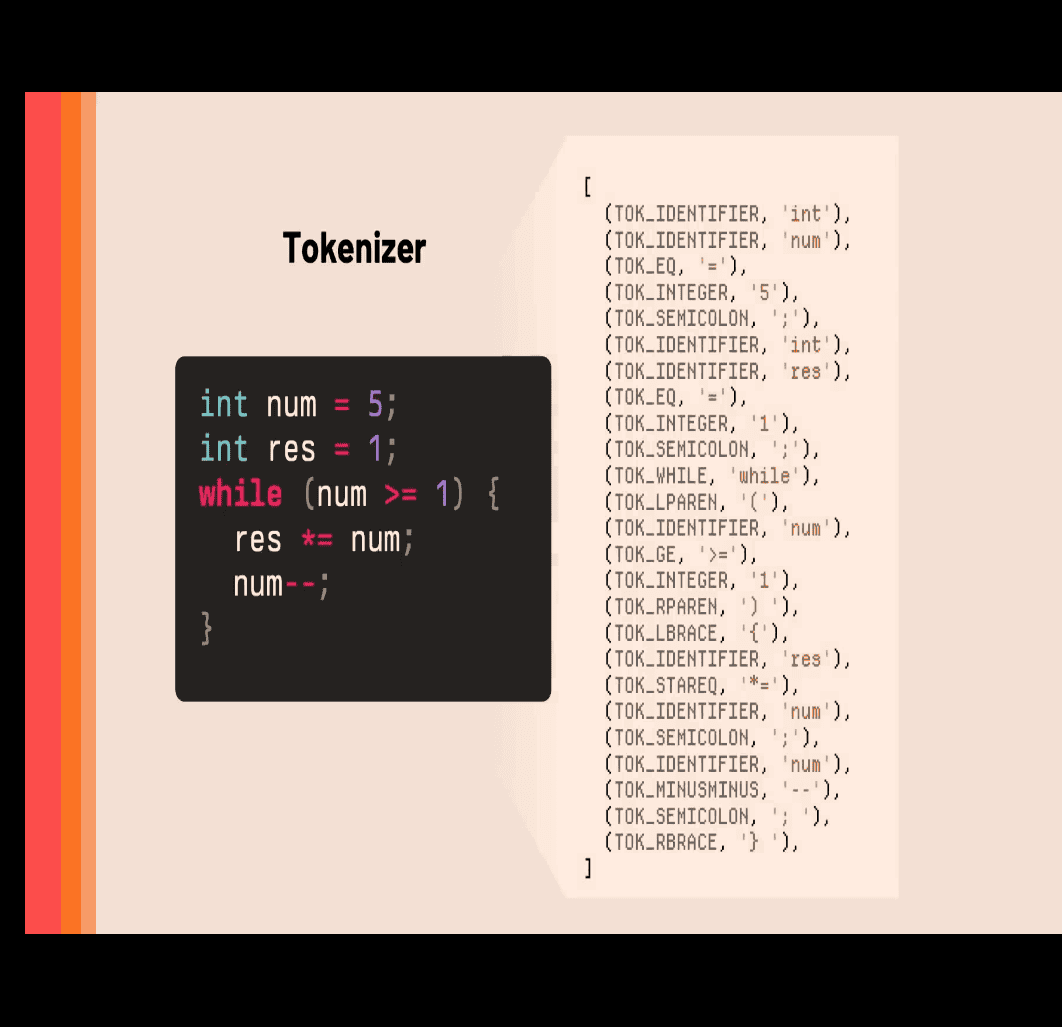

tokenizer
- using tokenizer to scan all the characters → into useful memory
lexemes > raw data
- don’t have ‘white space’

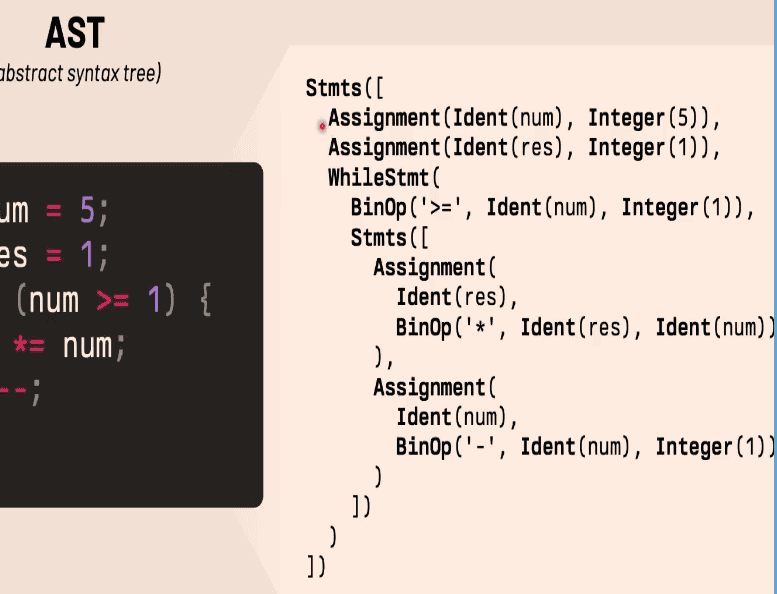

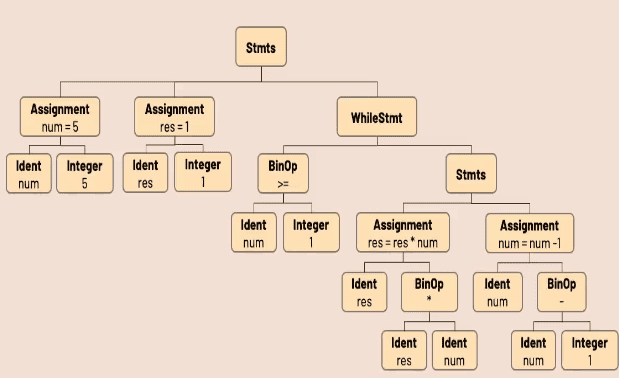

AST (Abstract Syntax Tree)
syntax tree
- tree like structure in memory
memory model ~= AST tree
AST → for better assembly usage just like hex number to bit

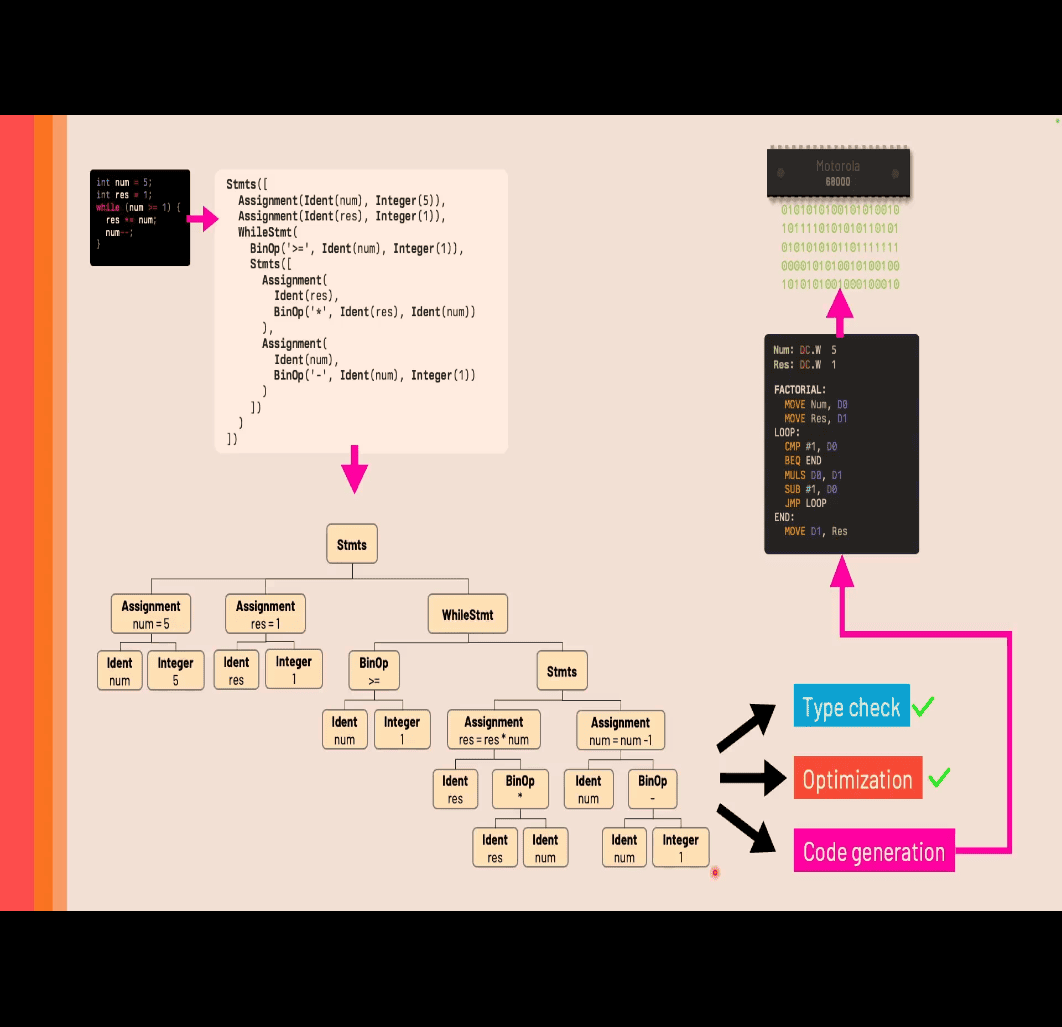

the ast is the center of everything -. type checker(left hand side = right hand side) -. optimization
- code generation, bit code or machine code
- llvm
So , as I can understand the AST, doesn’t mean I can quickly pickup a new language? 🤔
tree walking interpretator
IR → LLVM → code generation based on the AST
- modern compiler → AST (Grammar) → IR → code generation
Configuring our project folder
Lexer

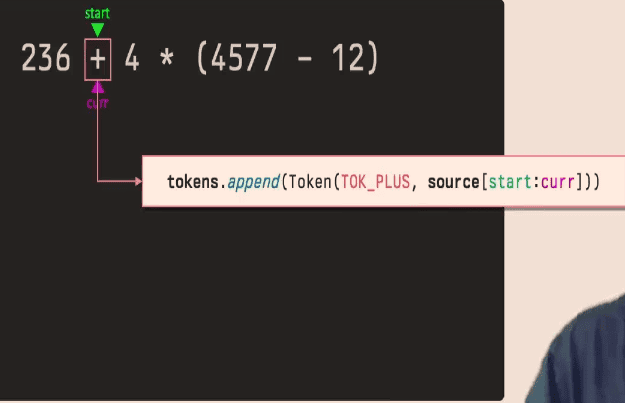

- finding pattern characters by characters → token part comparsing

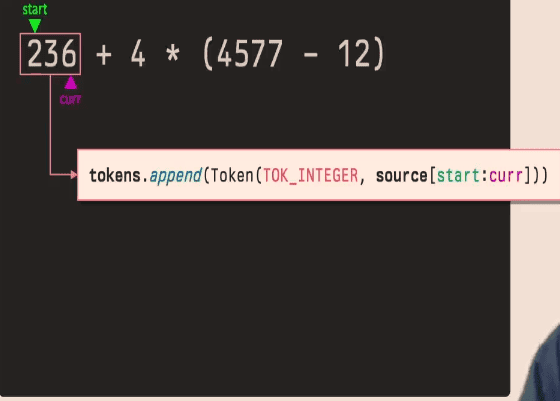

start characters and end characters

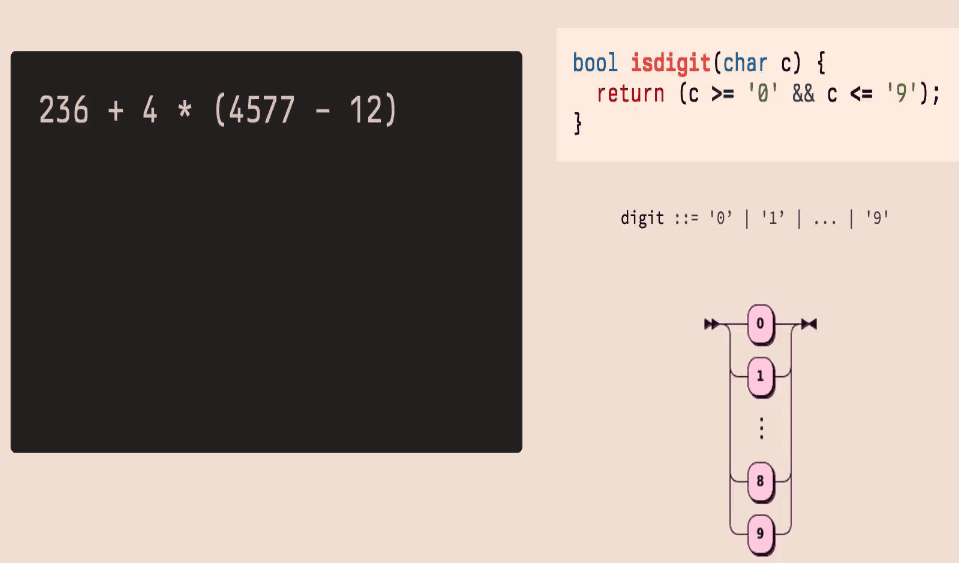

if digit → number {0..9}
next , is it still a number?
curr mean end characters
- Token ~> oject
- integer only
- position of the token
list of token
ignore space, tab
1.digit 2.whitespace 3.operator? 4.

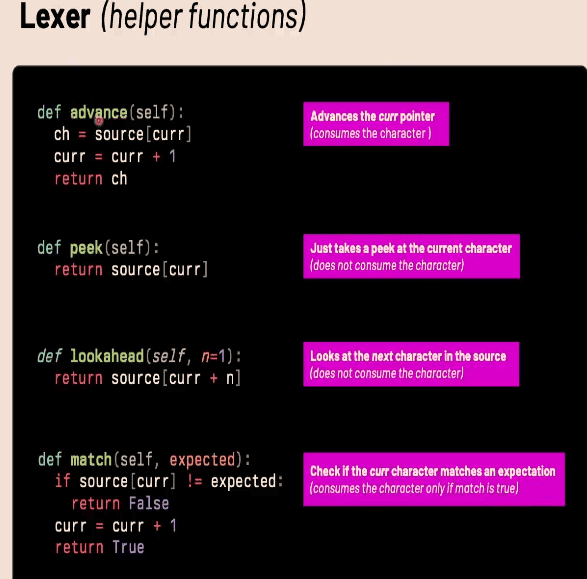

Lexer (helper fucnctions)
def advance return the ch → that moment curr
def peek: peek what is the grammar of that thin , current position
def lookahead(self, n = 1): (maximum n 1) look a next characters in the sources return curr + n
def match (self, expected):
all characters on this stage
